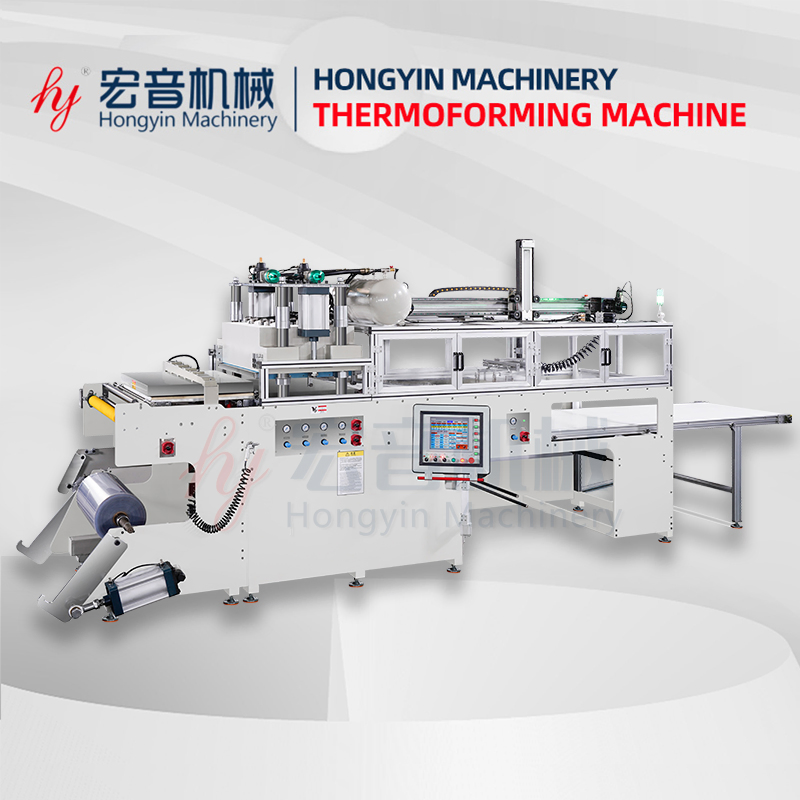

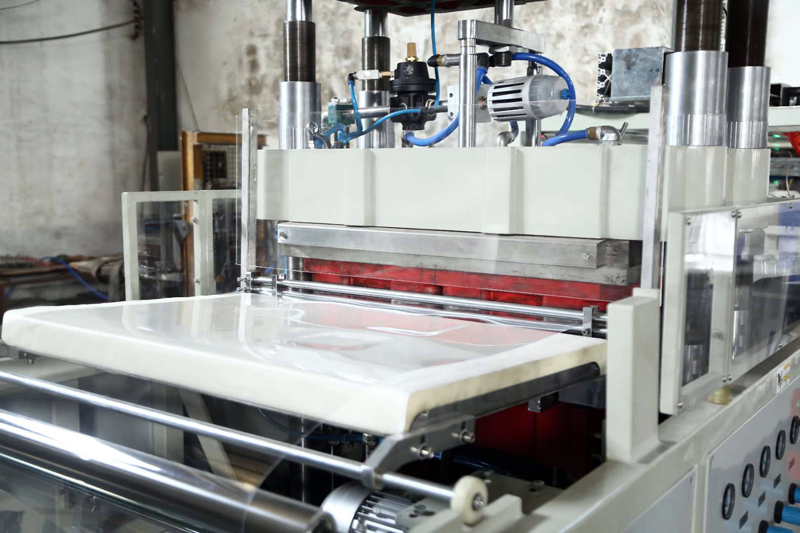

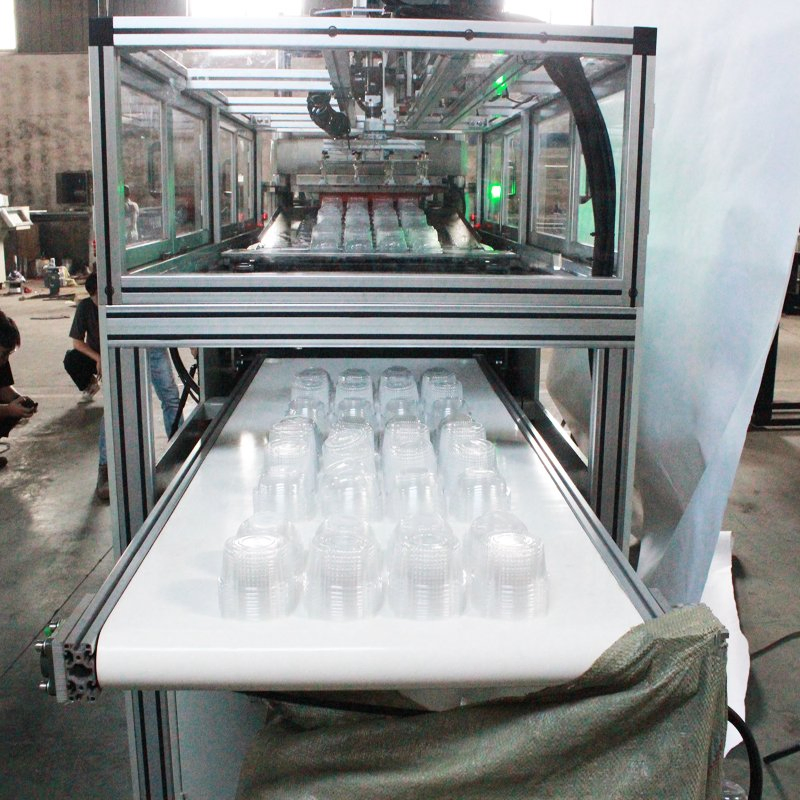

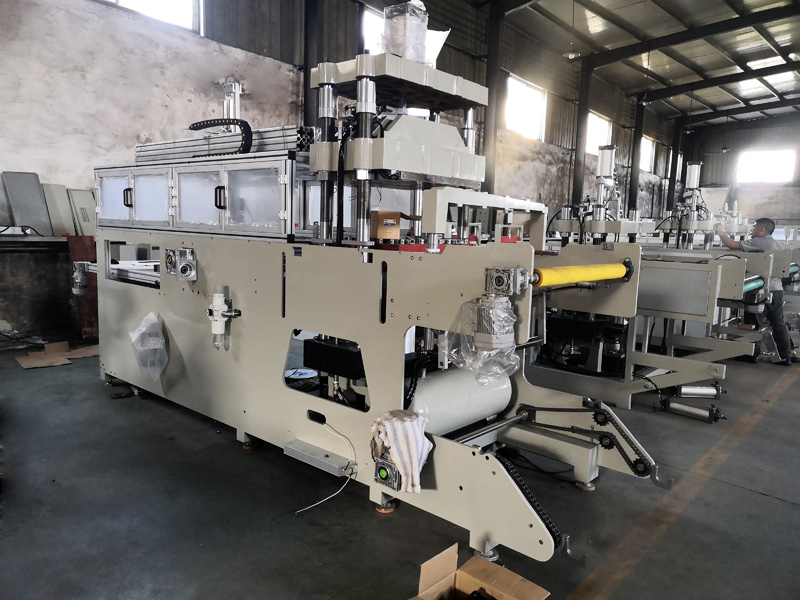

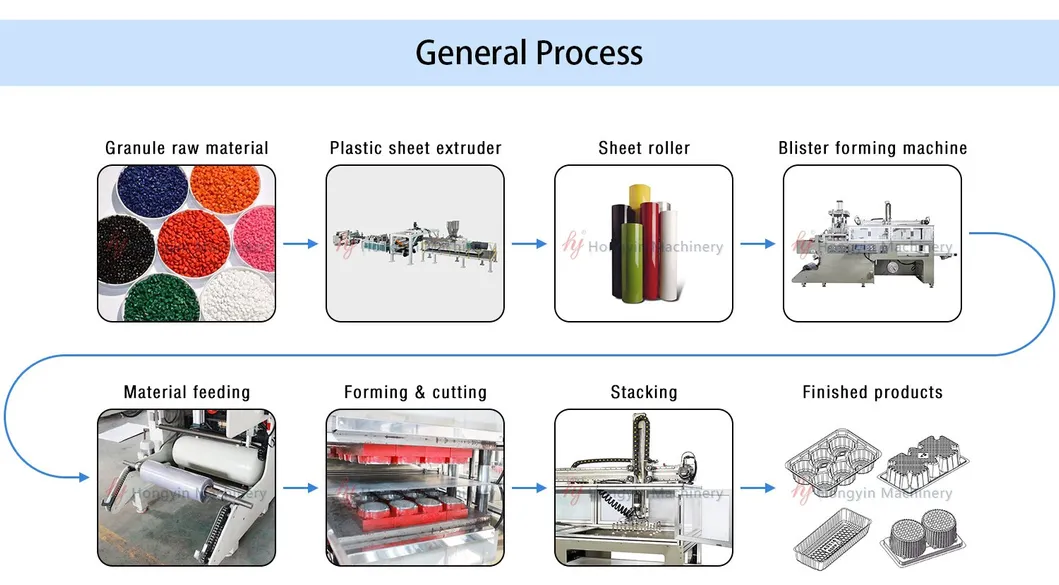

This series of machine is a plastic thermoforming equipment with integrated design of machine, electricity and gas, PLC control system, touch screen operation, sheet feeding-heating-molding-cutting-stacking one-time.

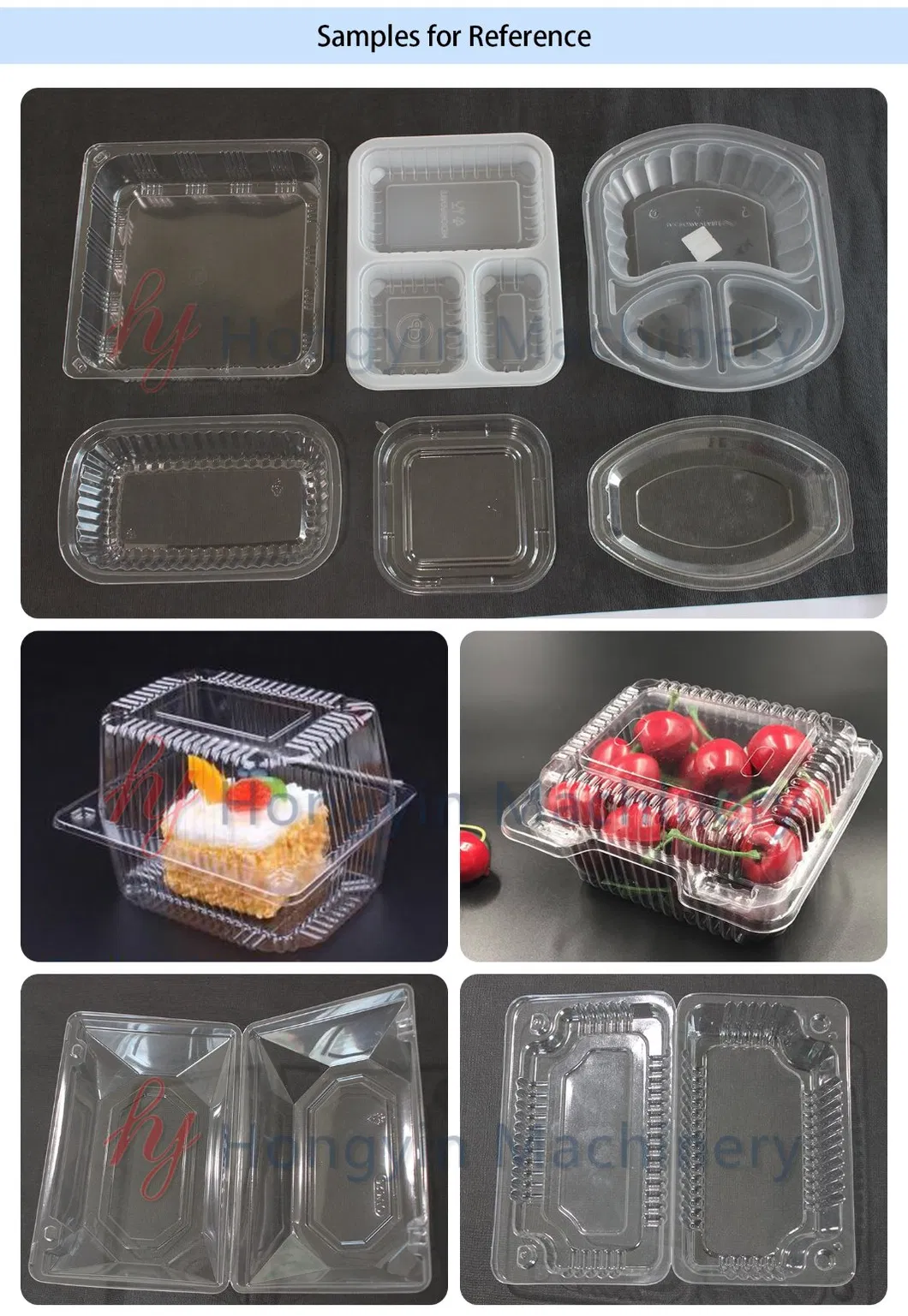

It is suitable for BOPS, PS, APET, PVC, PLA and other thermoplastic materials. It can form a variety of lids, boxes, dishes, trays, such as the lids of fast food box, sushi, paper bowl, aluminum foil, the trays of moon cake, pastry, supermarket, and it also can produce medical device packaging, like oral liquid tray, medicine injection tray.
| Forming Area | 700x 950 mm (27.6"x37.4") |
| Depth of Draw | 125mm (5") maximum |
| Knife Length | APET:12000mm / OPS:18000 mm |
| Material Thickness Range | 0.15-1.0mm (0.006"-0.040") |
| Air Pressure | 0.7Mpa |
| Air Consumption | 2000 Litres/min |
| Cooling Water Consumption | 15Litres/min |
| Power Consumption | 14kw/hr (Approximate) |
| Heating power | 38kw |
| Motor power | 13kw |
| Power Supply | AC 380V 50/60HZ |
| Working speed | 600-1200 Cycles/hr |

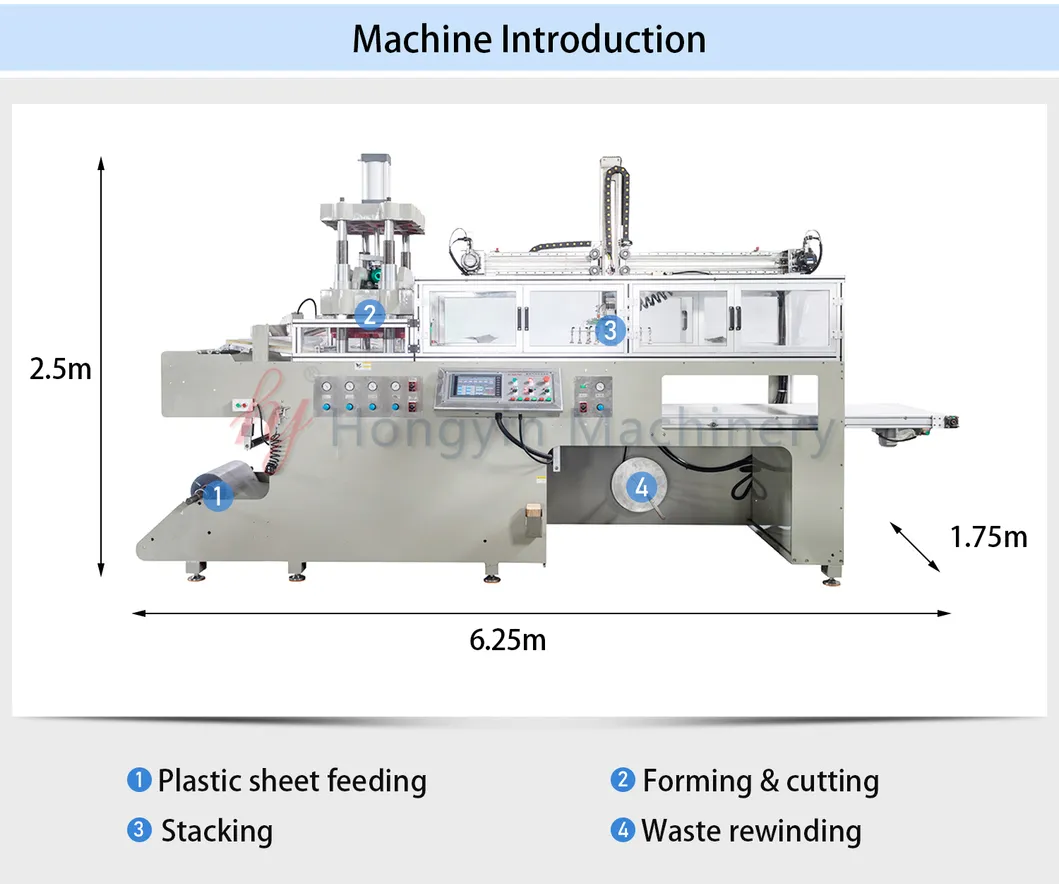

| Machine Dimensions | 6590x1760x2720mm |
