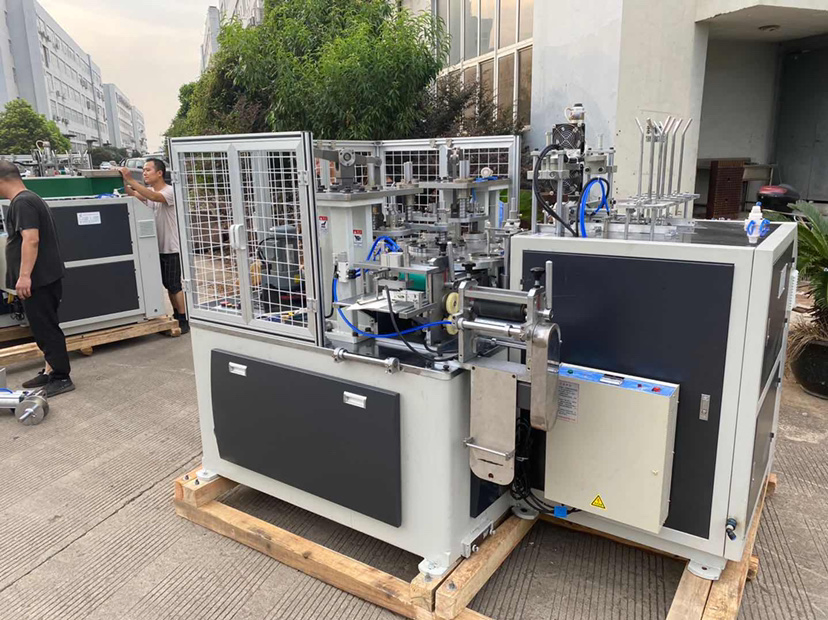

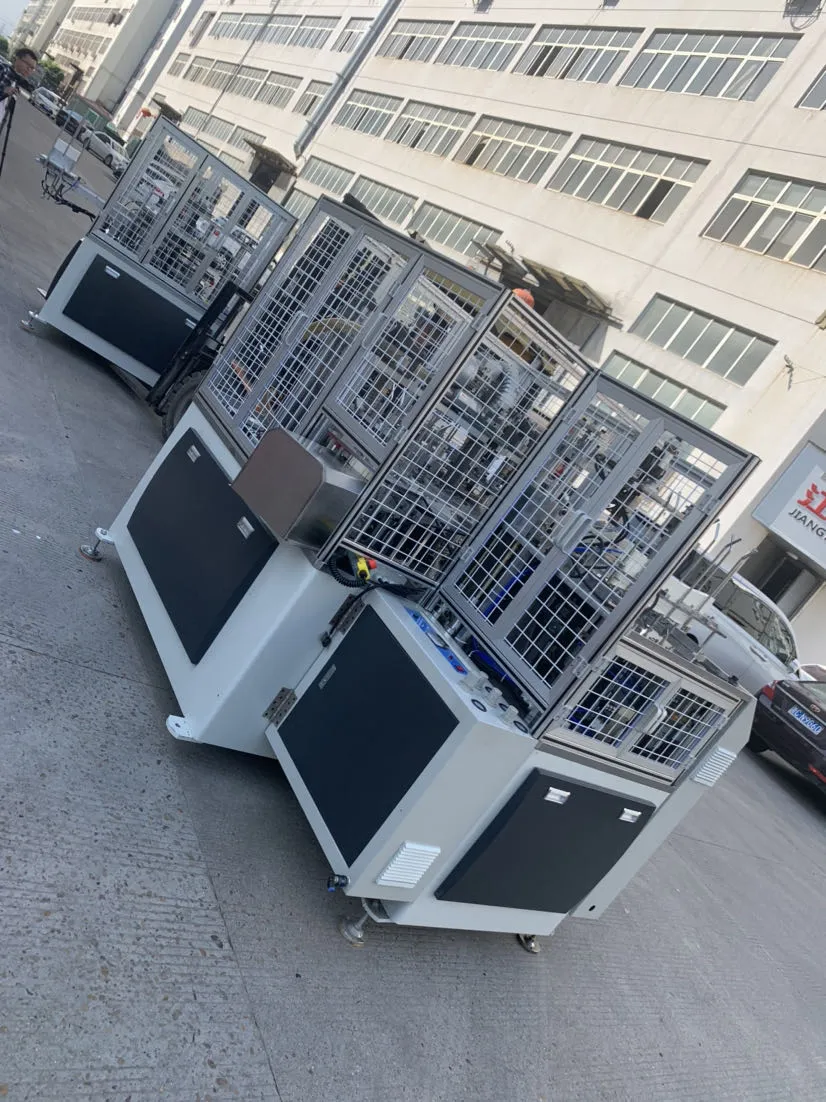

ZGJ-70J Rectangular Paper Lid Forming Machine
ZGJ-70F Square Paper Lid Forming Machine
ZGJ-70T Oval Paper Lid Forming Machine
1. The rectangular/square/oval paper cover forming machine series equipment adopts the world's leading technology, has the advantages of stable performance, high efficiency, environmental protection and energy saving, and fully fills the blank of domestic paper cover machines.

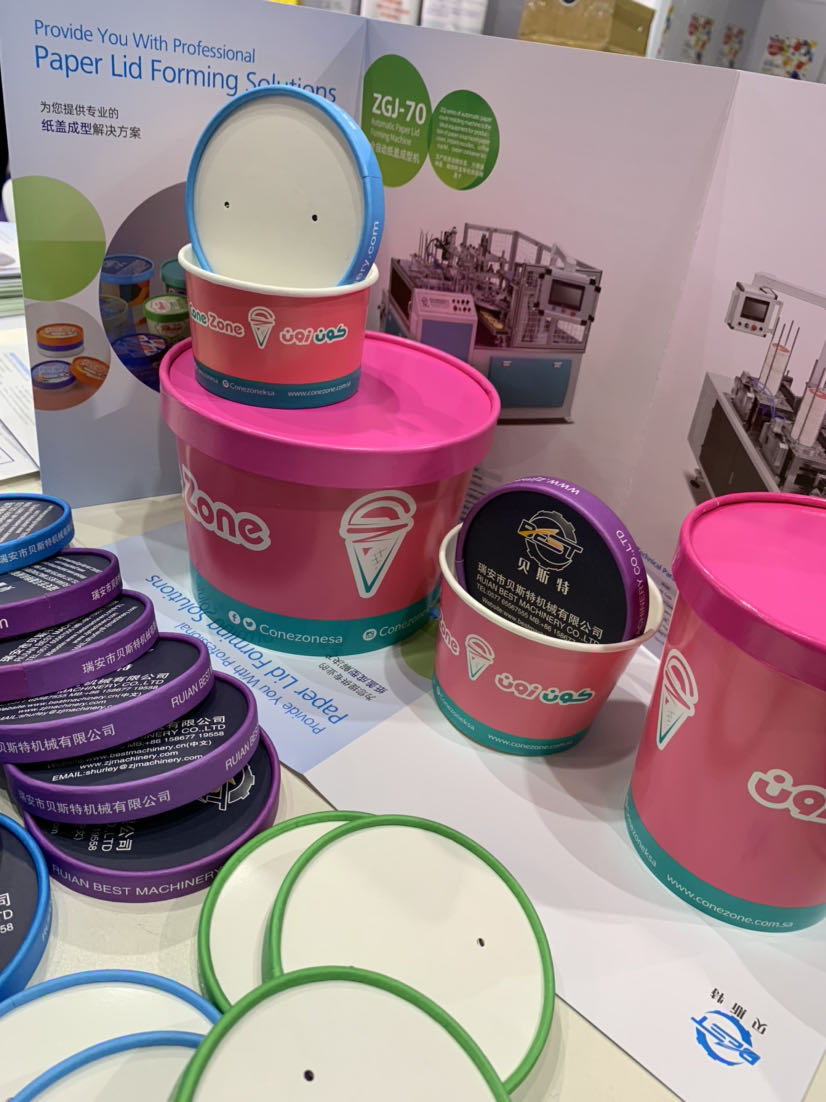

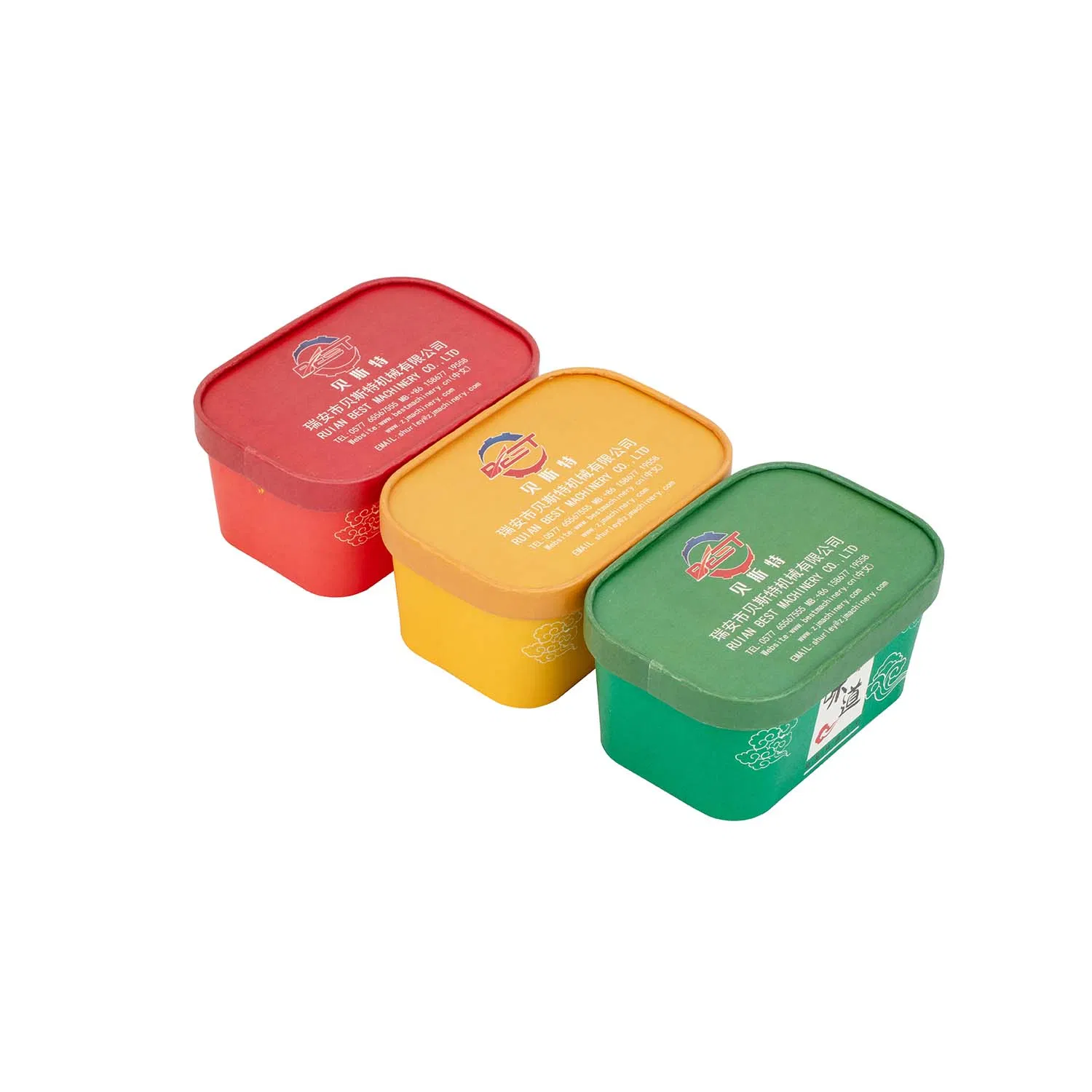

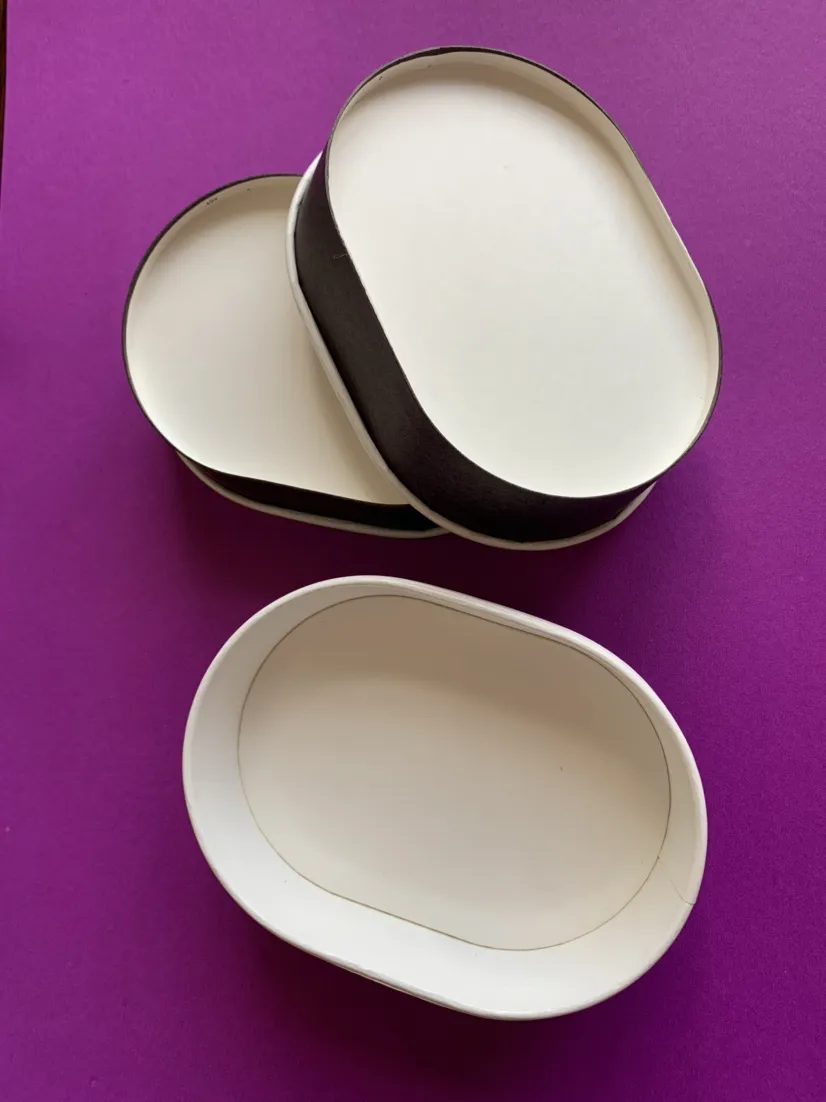

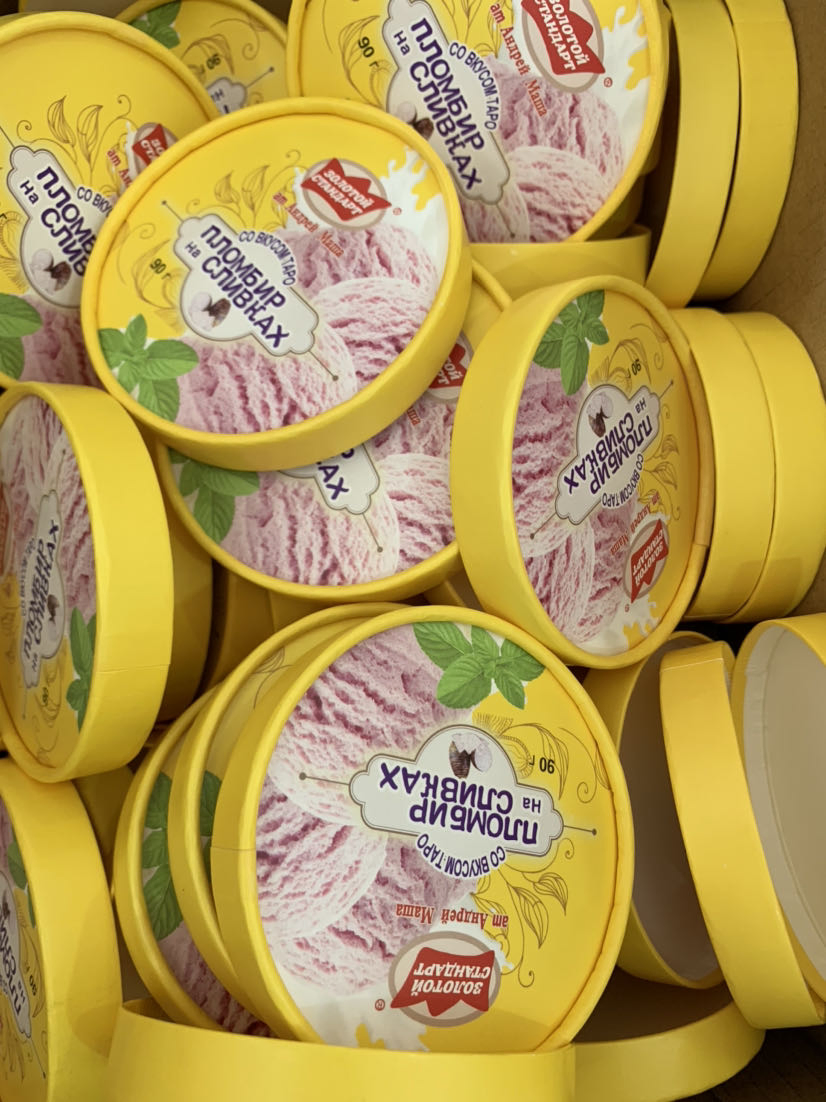

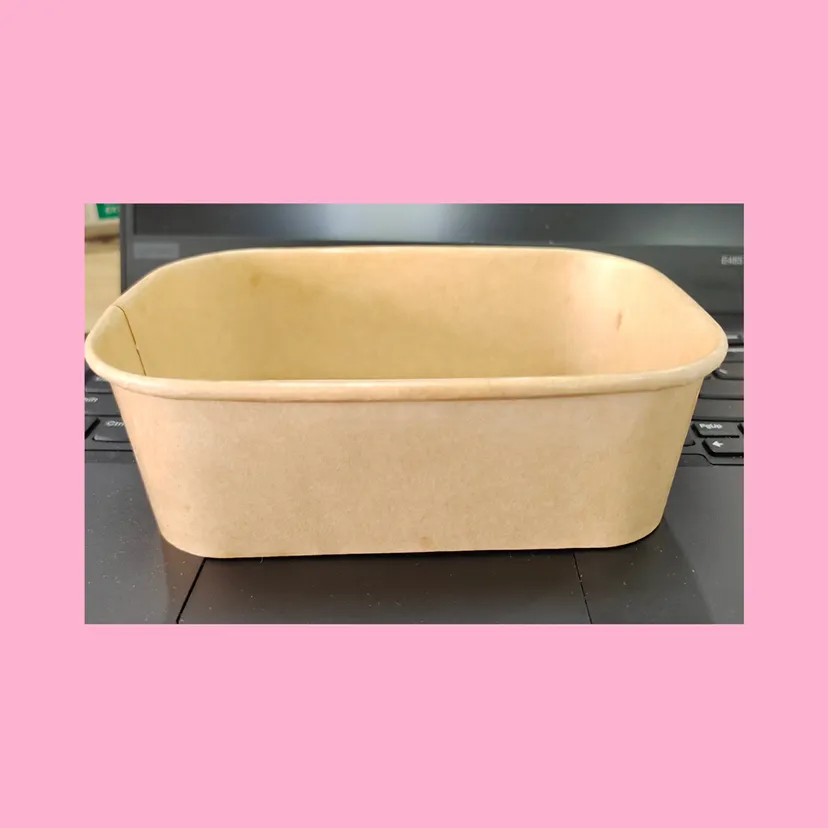

2. This series is the ideal equipment for producing paper lids for soup bowls, instant noodle bowls, ice cream paper cup lids, chocolate box lids and other special-shaped container lids. The automatic paper lid forming machine is easy to operate, stable in performance, small in area and high in efficiency.
| Customs Code | 8441309000 |
| ZGJ-70J (Rectangular) | Height: 14-20mm | Min: 65*65mm, Max: 125*125mm | Speed: 45 PCS/min |
| ZGJ-70F (Square) | Height: 14-20mm | Min: 130*130mm, Max: 190*190mm | Speed: 40 PCS/min |
| ZGJ-70T (Oval) | Height: 14-20mm | Diameter: 65-130mm | Speed: 45 PCS/min |
| Applicable Paper | Single/Double PE/PLA coated, glazing coated paper (280-480g/m2) |
| Power / Supply | 6.5kw | AC380V 3-phase, 50Hz (Customizable) |
| Air Source | Consumption: 0.12 m³/min | Pressure: 0.4MPa |
| Equipment Weight | Rectangular: 3000KG | Square: 3500KG | Oval: 3000KG |
| Packaging Size | Rectangular/Oval: 2350*1700*1850mm | Square: 2450*1700*1900mm |
