Disposable PE Coated Paper Bowl Machine
Disposable PE Coated Paper Bowl Machine
Disposable PE Coated Paper Bowl Machine
Disposable PE Coated Paper Bowl Machine
Disposable PE Coated Paper Bowl Machine
1 / 5
Disposable PE Coated Paper Bowl Machine
Disposable PE Coated Paper Bowl Machine
Disposable PE Coated Paper Bowl Machine
Disposable PE Coated Paper Bowl Machine
Disposable PE Coated Paper Bowl Machine

Disposable PE Coated Paper Bowl Machine

Customization: Available
Max Sheeet Size(X): 680
Max Sheet Size(Z): 460
Send Inquiry

Product Description

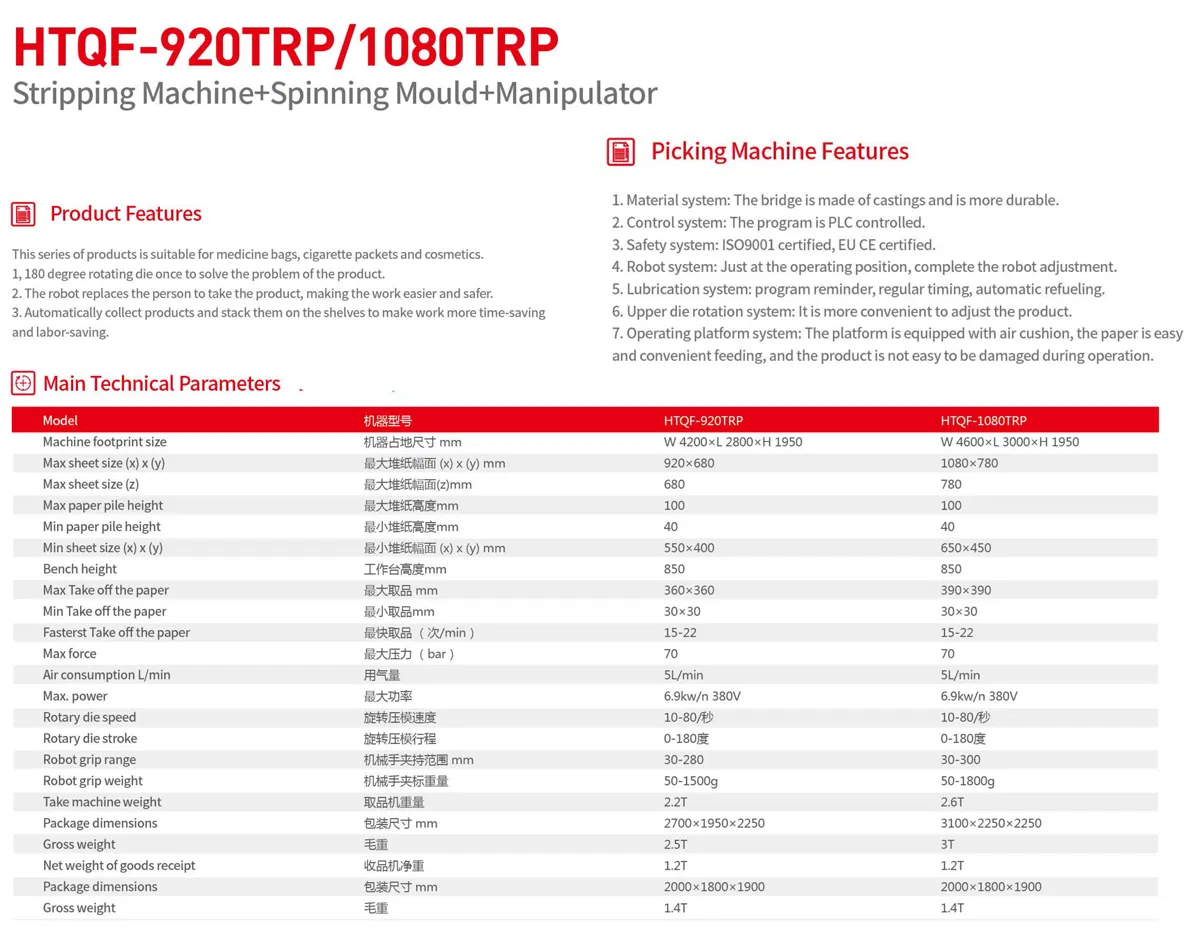

Basic Specifications

Model NO.
HTQF1080TR
Max Paper Pile Height
100
Min Sheet Size(X)
400
Min Sheet Size(Z)
300
Bench Height
850
Max Take off Paper
230*230
Min Take off Paper
30*30
Fastest Take off
15-22
Max Force
70
Machine Width(a)
1910
Machine Depth(B)
1480
Machine Height(C)
1940
HS Code
84439119
Production Capacity
300set/Month

Product Introduction

The die cutting and creasing machine is an equipment especially designed for die cutting the ordinary cardboard, corrugated board, plastic and leather products. It is widely used in the printing, packing decorating and plastic industries. The machine has features such as compact structure, fine workmanship, big pressure, high precision and easy and reliable operation.

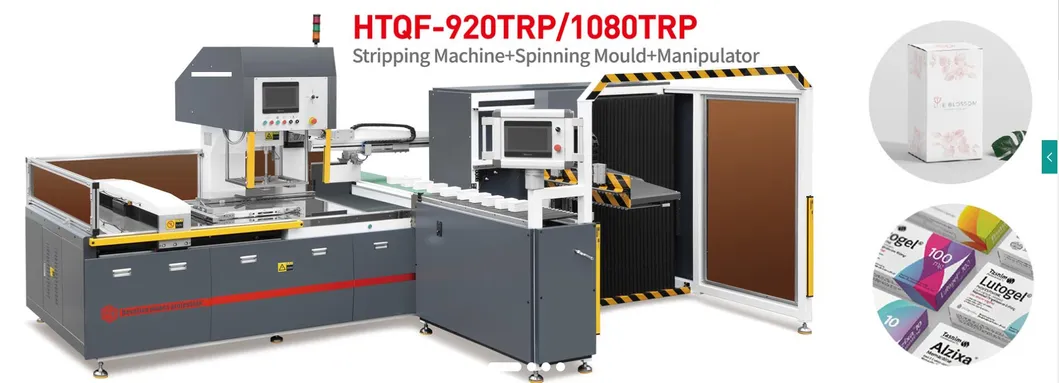

Die Cutting Machine Introduction

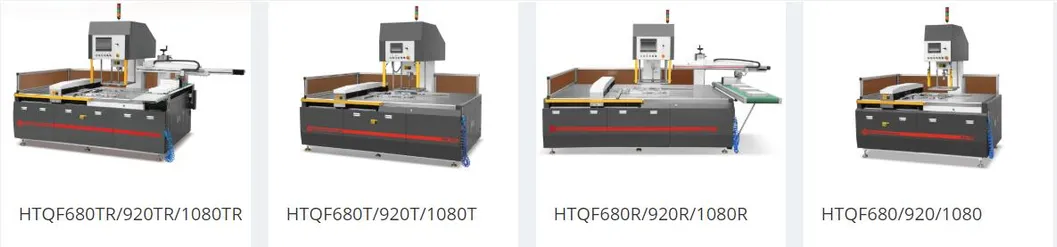

Machine Overview

Key Features

  • High strength due to one piece casting by using top quality materials for the machine body.
  • Smooth running, big pressure and low noise with herringbone gear input and helical gear output mechanism.
  • Single plate electromagnetic clutch is sensitive and reliable.
  • Reasonably arranged operational altitude, moveable platen opens to its optimum.
  • The electrical system is designed with IEC standard.
  • Functions include single, continuous operation and opening well, with adjustable dwell time.
  • Equipped with a highly reliable safety system.
  • Includes a concentrated lubricating system for maintenance efficiency.

Main Specifications

Specifications 1
Specifications 2
Model Inner Chase Size Speed Max. Rule Length Motor Power Weight Dimensions
ML-750750x520mm25±2<14m2.2kw1800kg1360x1400x1300mm
ML-930930x670mm23±2<25m4kw3000kg1680x1680x1640mm
ML-10401040x720mm23±2<30m4kw4000kg1850x1780x1700mm
ML-11001100x800mm20±2<26.5m4kw4500kg1900x1780x1700mm
ML-12001200X820mm20±2<26.5m4kw4500kg1900x1900x1750mm
ML-13001300x920mm18±2<38m5.5kw5600kg1920x2140x1800mm
ML-14001400x1000mm17±2<38m5.5kw6200kg2010x2400x1930mm
ML-15001500x1050mm17±2<40m7.5kw6800kg20100x2480x1960mm
ML-16001600x1250mm13±2<50m11kw11000kg2500×2200×2000mm
ML-18001800×1250mm13±2<60m11.5kw13500kg2510×2300×2000mm
ML20002000×1400mm13±2<60m15kw16000kg2270×3100×2150mm
ML25002500×1500mm13±2<75m18.5kw20000kg2300×3600×2150mm

Packaging & Delivery

Machines securely loaded into containers for international transport, ensuring safe arrival at the destination.
Loading 1
Loading 2

Frequently Asked Questions

What materials are compatible with this die cutting machine?
The machine is specifically designed to process ordinary cardboard, corrugated board, plastic sheets, and leather products.
How is the machine's durability ensured?
The machine body features a high-strength one-piece casting made from top-quality materials to ensure long-term stability and durability.
What kind of gear mechanism does the machine use?
It adopts a herringbone gear input and helical gear output mechanism, which provides smooth running, high pressure, and low operational noise.
Is the dwell time adjustable during operation?
Yes, the machine supports single and continuous operation modes, and the dwell time is fully adjustable to meet different production needs.
Does the machine meet international electrical standards?
Yes, the entire electrical system is designed and built in compliance with IEC standards for global safety and compatibility.
What maintenance features are included?
The machine is equipped with a concentrated lubricating system to simplify maintenance and ensure all moving parts are properly oiled.
