YB-W35 Paper Bowl Machine
Price: The ex factory price including tax and wooden box packaging is 129,000 RMB.
Packing type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external.
Delivery time: 40 days after receive the payment of deposit.
Payment: Deposit 30% by T/T in advance, delivery against payment of 70% balance after qualified acceptance.
Guarantee period: 12 months after getting the machine.
Leave factory testing: Equipment should be tested by both parties before leaving factory. Test material offered by buyer.
Installation: We will send 1 technician for installation and debugging. Buyer undertakes round-trip airplane tickets, board and lodging, plus a service charge of USD 100/day (estimate 5-7 working days).
Supplier Services: Adjustment of installation, commissioning, and directing buyer's technical personnel.
Buyer Preparations: Foundation, power supply, water, compressed air pipe, and related projects.

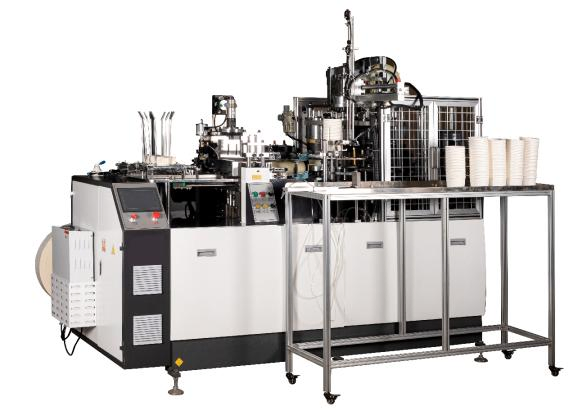

YB-W35 intelligent medium-speed paper bowl forming machine has the advantages of high performance, high efficiency and high quality. The integral steel body and the auto oil lubrication system ensure long-term normal and stable operation.
Advanced high-precision open cam drive and gear drive make it more accurate and stable. Servo tracking bottom paper feeding locks the size of the bottom paper, effectively saving raw materials.

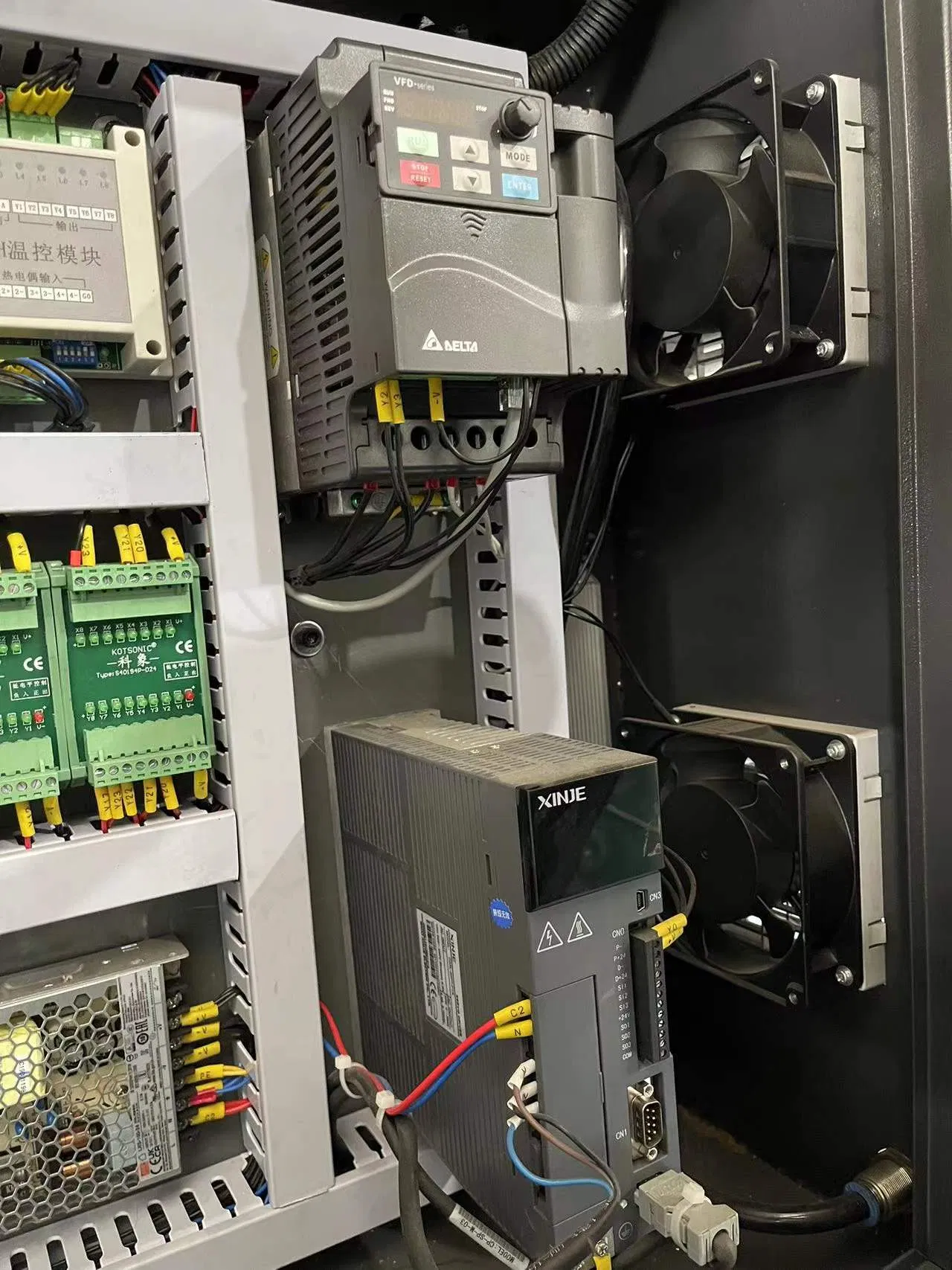

The man-machine interface PLC system controls the long-term stable operation of the whole machine.
| Parameter | Specification |
|---|---|
| Model | YB-W35 automatic paper bowl forming machine |

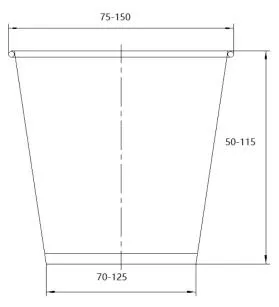

| Cup Size | 20-50oz (mould can be changed) |
| Raw Materials | Single /Double PE coated paper |
| Paper Weight | 140-350gsm |
| Speed | 60-75pcs/min |
| Power Source | 380V 50Hz |
| Total Power | 4.8KW |
| Weight | 2400KG |
| Dimension (L*W*H) | 2450 x 1300 x 1750mm |
| Air Pressure | 0.6Mpa, Output: 0.6 m³/minute |
| Machine should work with the air compressor | |

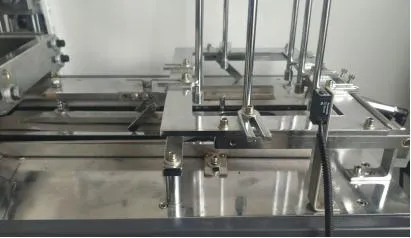

1. Multiple times Paper feeding: Paper feeding three times to avoid unevenness on both sides of the paper cup fan.
2. Sensors detection: Controlled by encoder and sensors to ensure paper fan matches cup bottom. Includes fault alarm and automatic shutdown.

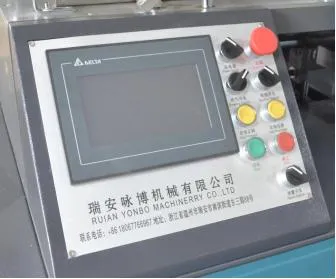

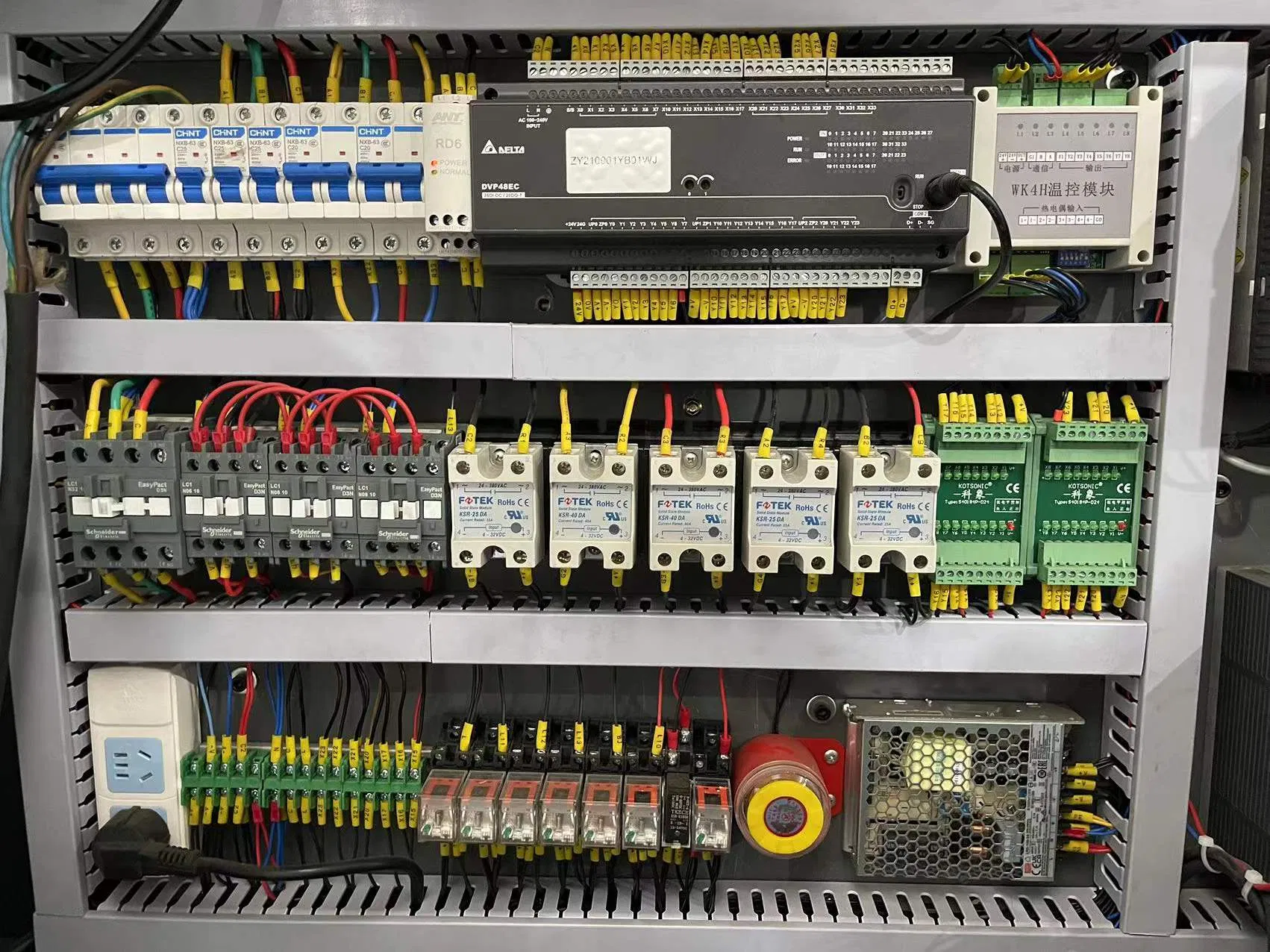

3. PLC control system: Improves intelligence and makes the stroke more precise. Parameters adjustable via control panel.

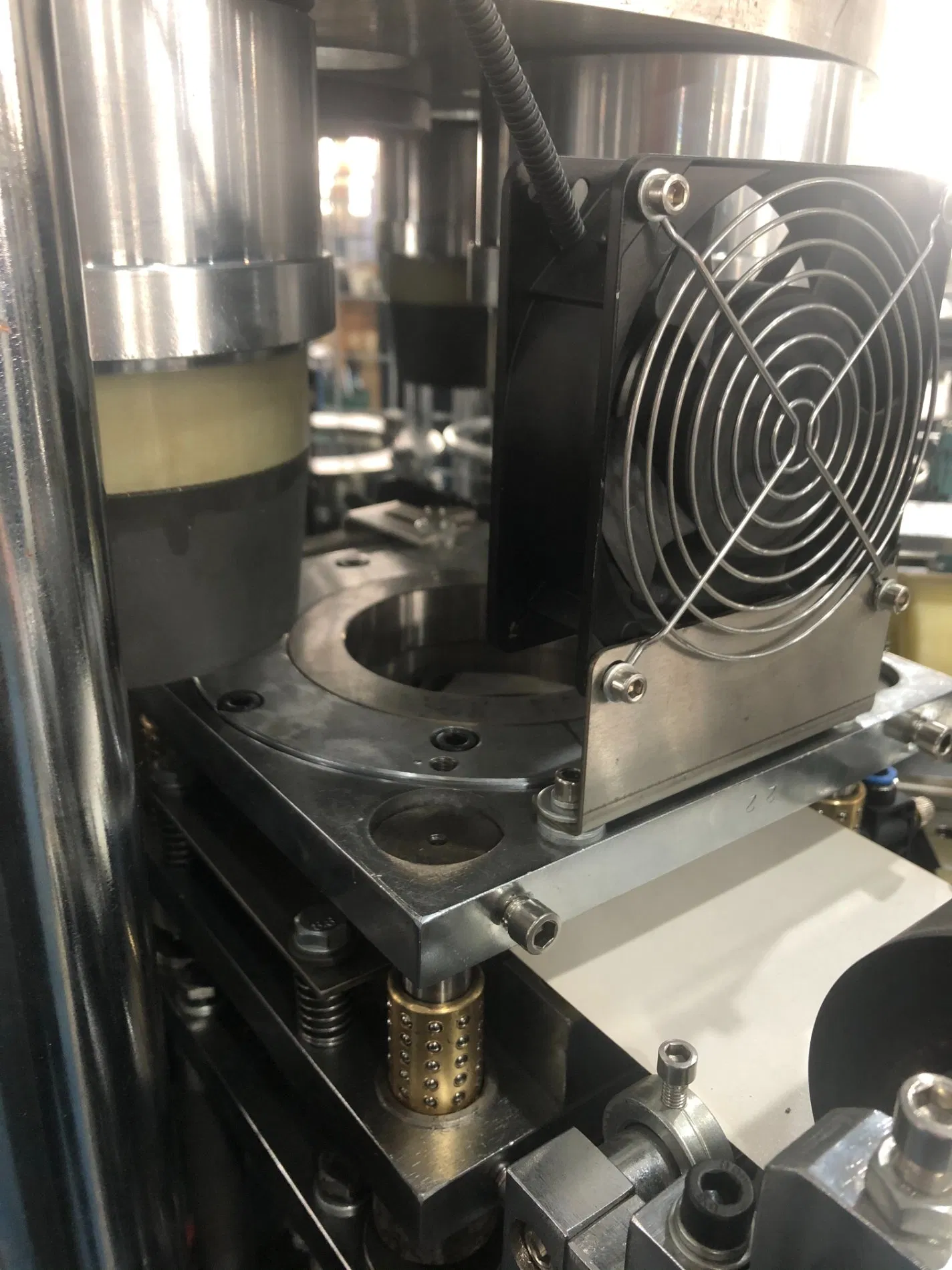

4. Ultrasonic cooling fan: Multiple fans operate simultaneously to speed up heat dissipation.

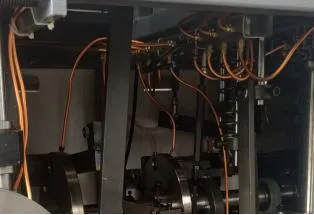

5. Automatic oil lubrication system: Lubricates key moving parts via copper pipes, extending machine life.

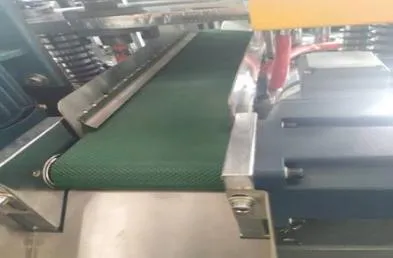

6. Bottom waste paper removal: Conveyor belt transfers waste paper to keep the machine interior clean.

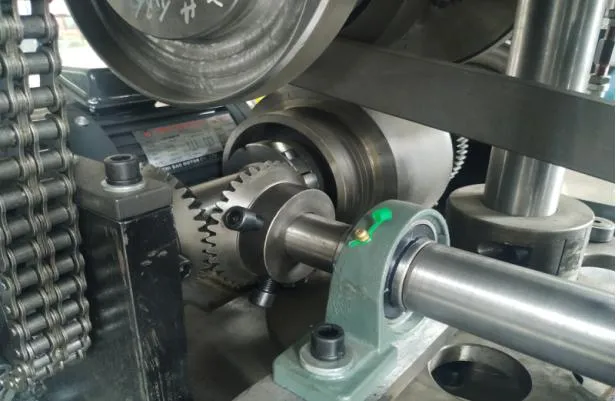

7. Grooved wheel and full gears drive: Ensures closer connections and stable forming process with fewer troubles.

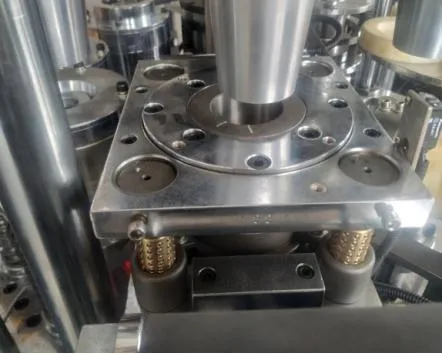

8. Direct punching and feeding: Uses a one-step direct punch method to avoid bottom turning over easily.
| Name | Quantity |
|---|---|
| Electrical heating rod | 1pcs |
| Adjustable spanner 10inch | 1pcs |
| Small Springs | 3pcs |
| Preheat heating collar | each 1pc |
| Heater ring | 2 pcs |
| Bearing 5204 + Knurling wheel | 1set |
| Inner hexagonal spanner | 1set |
| Open-end wrench (8-24) | 1set |
| Foot-screw M18 | 6pcs |
| Oil Gun / Electroscope / Screwdriver / Hammer | 1pcs each |
| Operation & Inverter Manual | 1pcs each |
