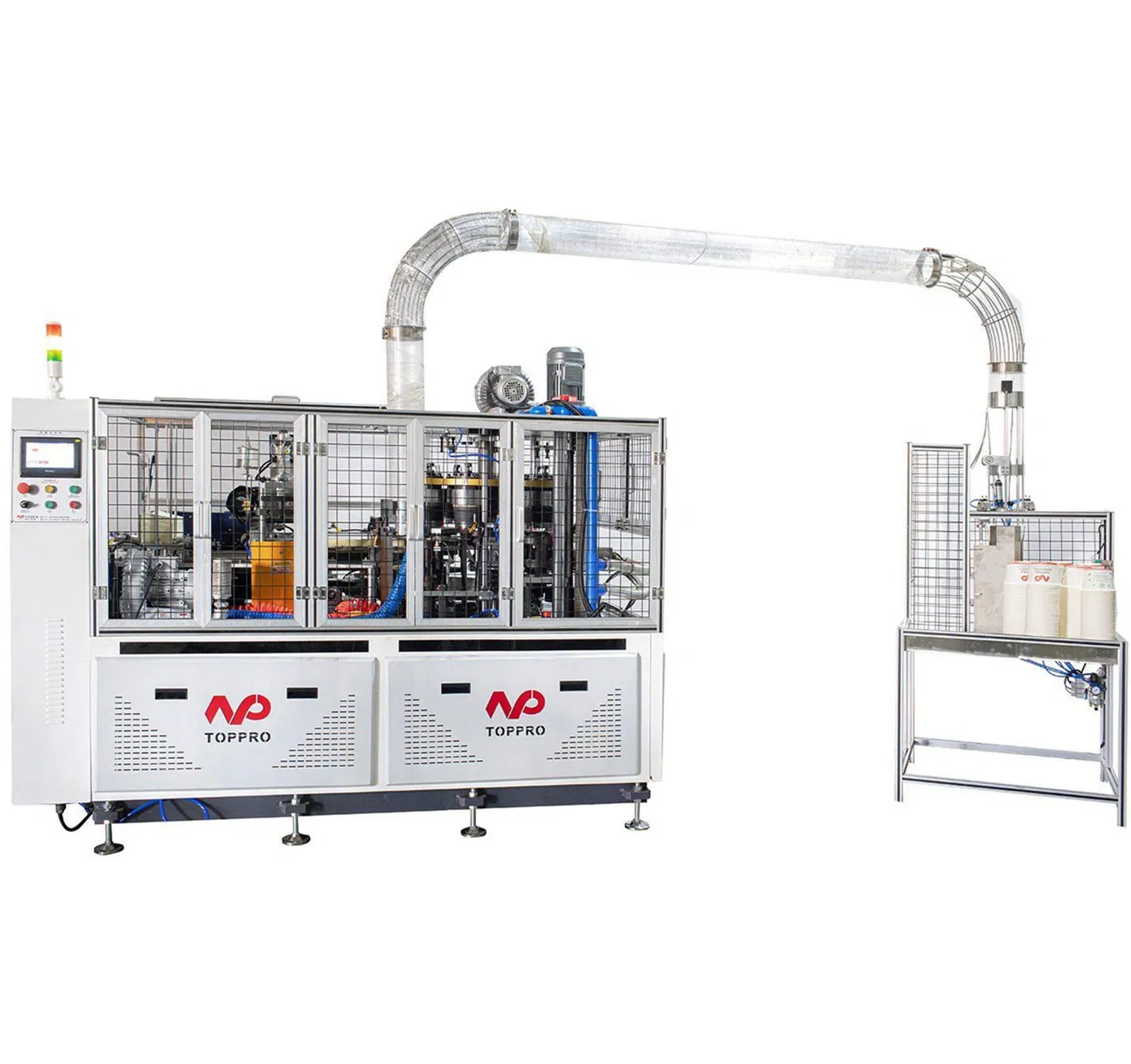

Factory Supply Disposable Takeaway Hot Food Salad Bowl Kraft Paper Forming Machine
Factory Supply Disposable Takeaway Hot Food Salad Bowl Kraft Paper Forming Machine
Factory Supply Disposable Takeaway Hot Food Salad Bowl Kraft Paper Forming Machine
Factory Supply Disposable Takeaway Hot Food Salad Bowl Kraft Paper Forming Machine
Factory Supply Disposable Takeaway Hot Food Salad Bowl Kraft Paper Forming Machine
1 / 5
Factory Supply Disposable Takeaway Hot Food Salad Bowl Kraft Paper Forming Machine
Factory Supply Disposable Takeaway Hot Food Salad Bowl Kraft Paper Forming Machine
Factory Supply Disposable Takeaway Hot Food Salad Bowl Kraft Paper Forming Machine
Factory Supply Disposable Takeaway Hot Food Salad Bowl Kraft Paper Forming Machine
Factory Supply Disposable Takeaway Hot Food Salad Bowl Kraft Paper Forming Machine

Factory Supply Disposable Takeaway Hot Food Salad Bowl Kraft Paper Forming Machine

Customization: Available
Warranty: Oversea
Application: Food
Send Inquiry

Product Description

Basic Information
Model NO.
wj-90
Production Speed
70-80PCS/Min
Voltage
380V/220V 50Hz
Control Panel
Computer Control Panel
Certification
CE
Function
Make Paper Bowl
Weight
2000kgs
Air Using
0.6-0.8MPa
HS Code
8441309000
Origin
China
Packaging & Delivery
Package Size
2200.00cm * 1200.00cm * 1800.00cm
Gross Weight
2000.000kg
Product Overview

High Performance Forming Machine - WJ-90

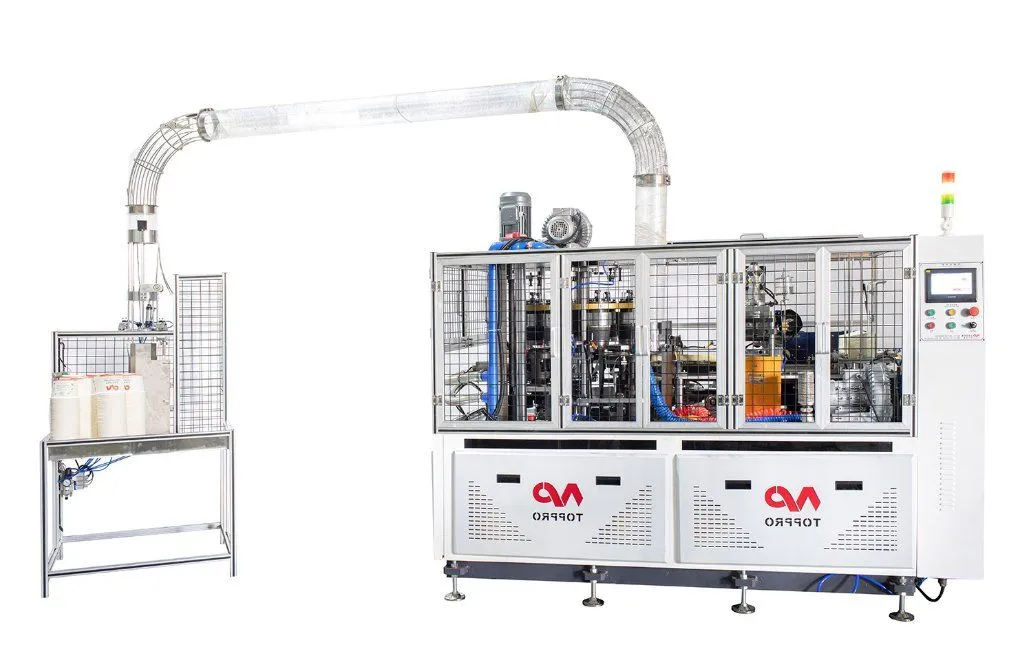

Paper Bowl Forming Machine

The WJ-80 Middle-speed paper bowl forming machine is developed based on advanced techniques. It features a comprehensive automated system including automatic paper feeding, preheating, sealing, oil injection, bottom cutting, heating, knurling, and curling. Equipped with sensors for alarm checking, counting, and self-collection, it is suitable for both single and double PE coated paper bowls, ideal for soup bowls, noodle bowls, and more.

Technical Specifications
Paper bowl SizeBottom: 70-110mm | Top: 90-140mm | Height: 50-105mm
Raw MaterialOne-side or two-side PE coated paper (Single or Double PE)
Production Speed80-100 pcs/min
Suitable Paper Weight170-350gsm
Power Supply380V 50Hz 3-phase (Customizable)
Working Air SourceAir pressure 0.6-0.8mpa, 0.4m³/min
Net Weight2000kgs

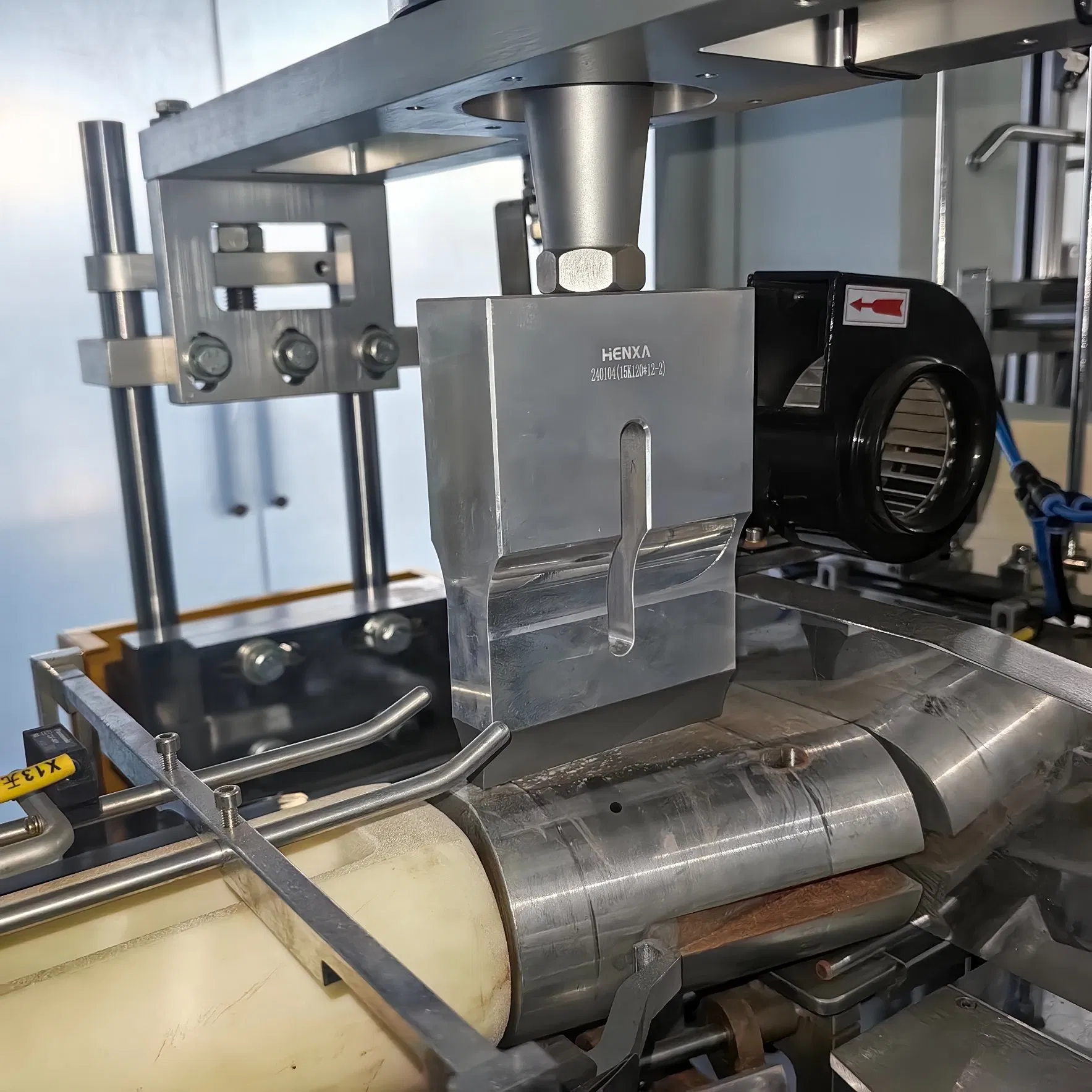

Sealing MethodEVERGREEN Ultrasonic
Key Machine Advantages

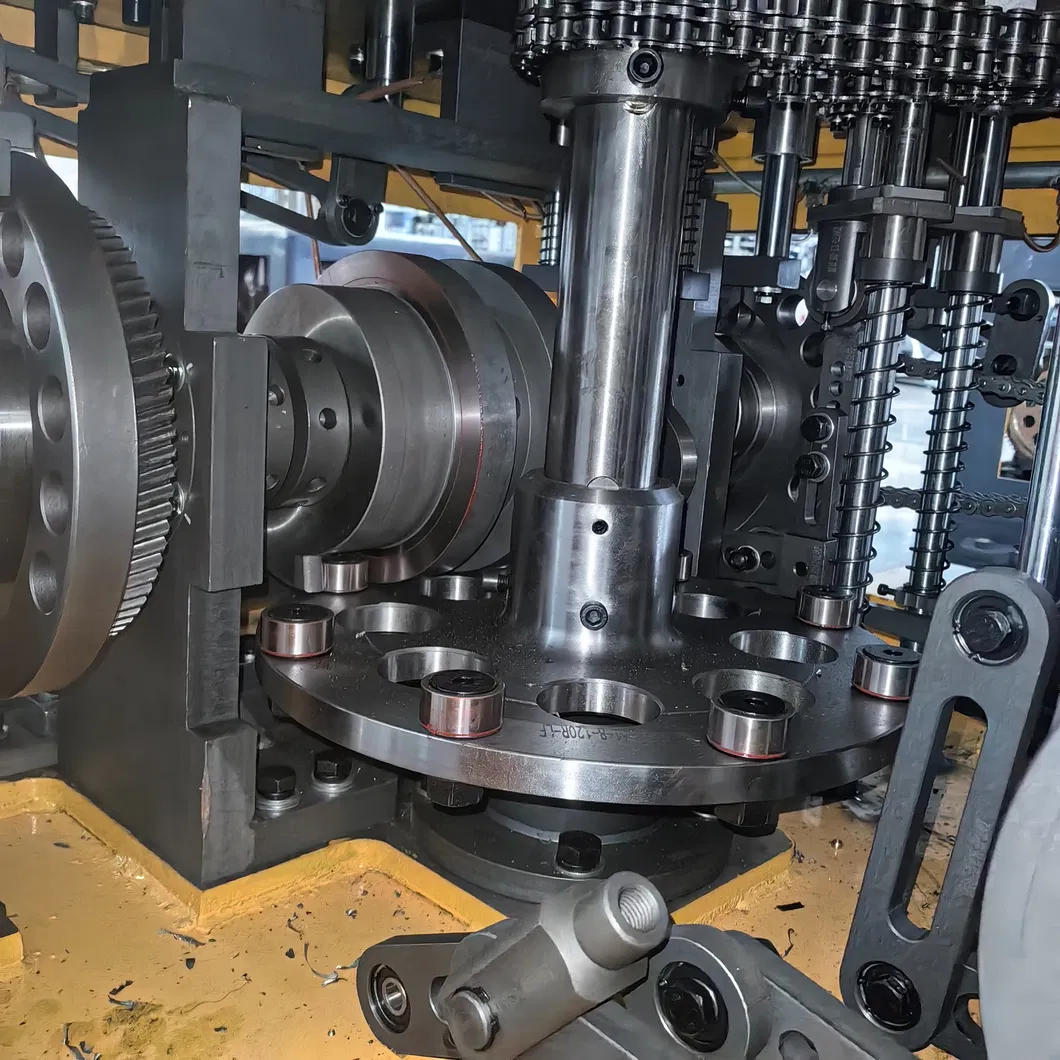

Open Cam Design

1. Open Cam Design & Gear Motor

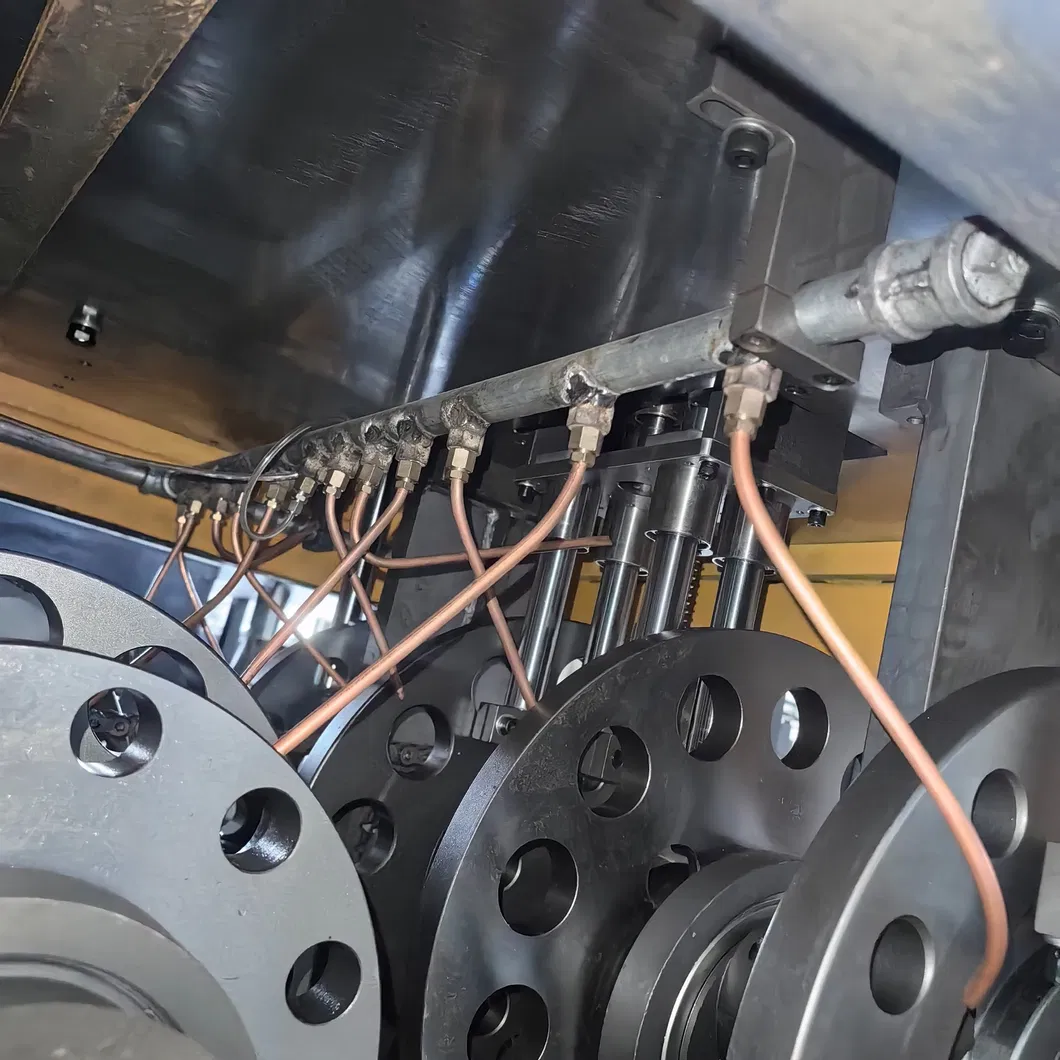

Automatic Lubrication

2. Full Automatic Lubrication System

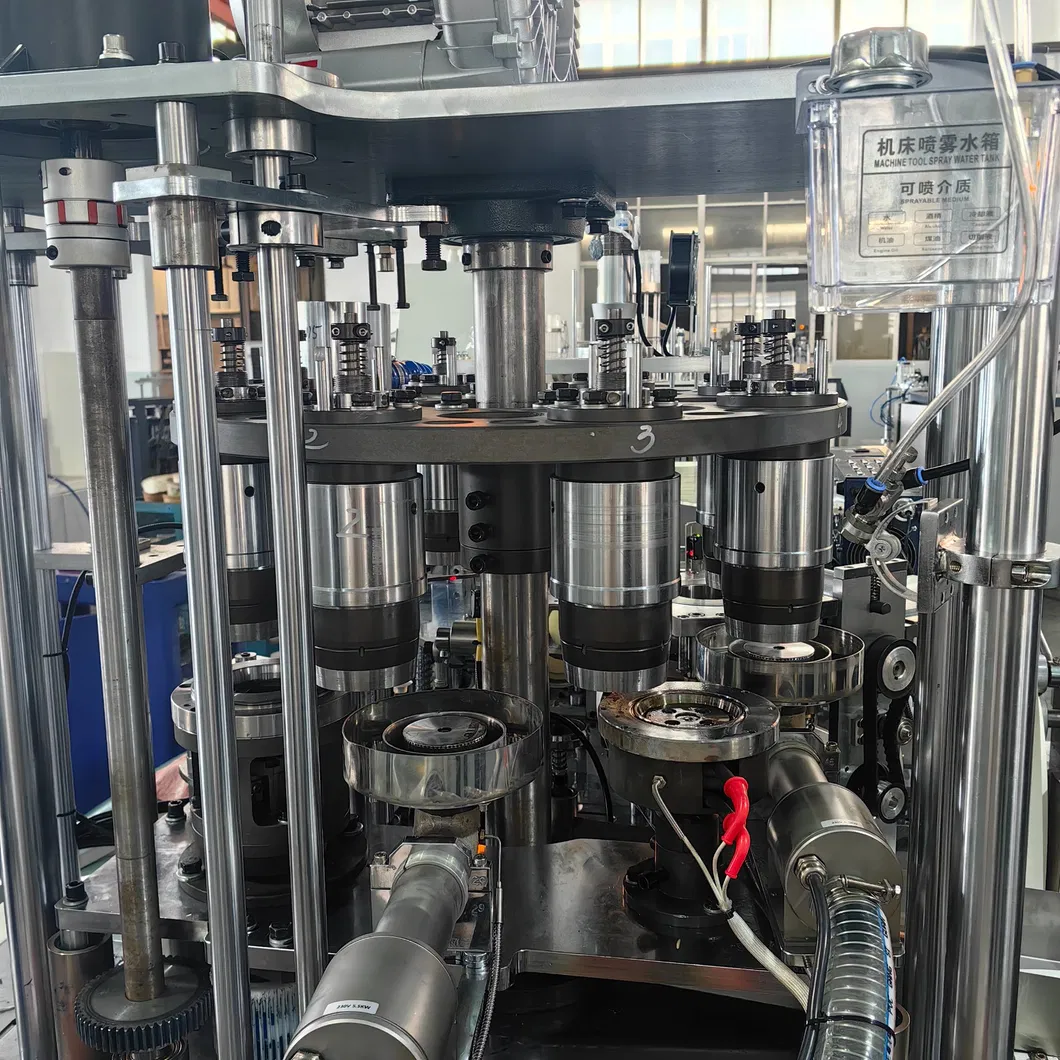

Stability Design

3. Separated Curling & Hot Air Heating

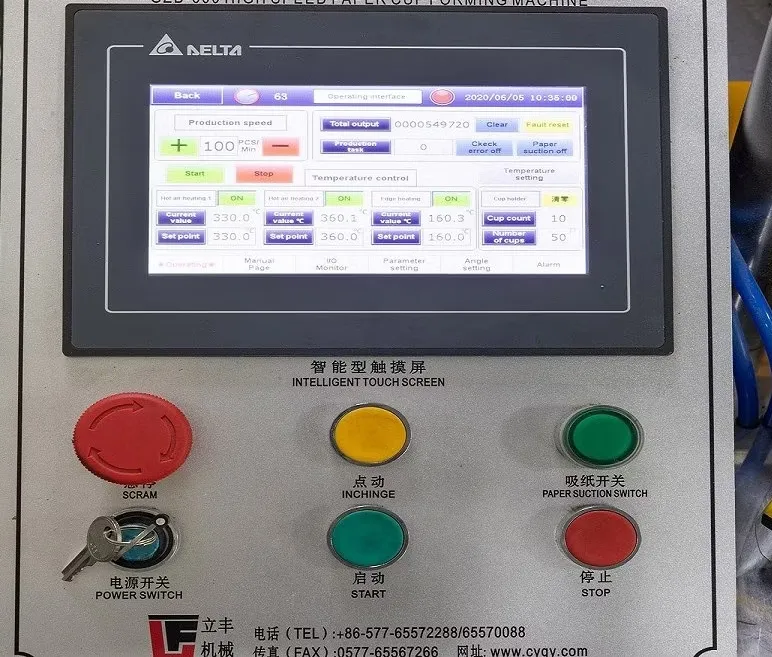

Control Panel

4. Advanced PLC Touch Screen Control

Packaging & After-Sales
📦
Machines are packed in strong wooden cases. Each shipment includes a tool box, English manual, electric diagram, and an operational CD.
Wooden Case Packaging
🛠️
Guarantee: One-year whole machine guarantee (excluding wear parts).
Support: 24-hour technical assistance via email and messaging platforms.

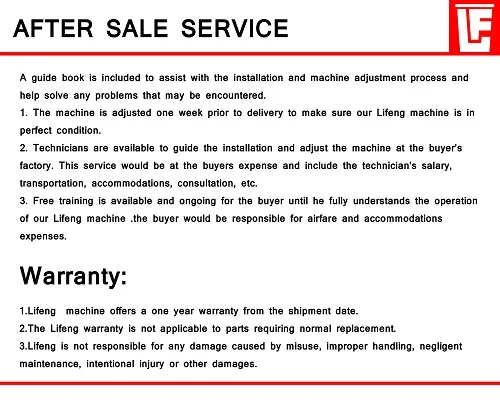

After Sales Service
Certifications
Certification 1
Certification 2
Frequently Asked Questions
How do you handle machine breakdowns overseas?
The machine is designed for easy operation. Engineers provide guidance via video or email, and on-site overseas support is available if required.
What are the payment terms and production lead time?
We require a 30% deposit via T/T, with the balance due before delivery. Production typically takes 25 days after the deposit is received.
What is the Minimum Order Quantity (MOQ)?
The MOQ for our paper bowl forming machine is 1 set.
What materials can this machine process?
It is compatible with both single-side and double-side PE coated paper, with weights ranging from 170gsm to 350gsm.
Does the machine come with an operational manual?
Yes, every machine is shipped with a user-friendly English software interface, a detailed user manual, and an instructional Video/CD.
Can the mold sizes be customized?
Yes, we can customize the machine and molds according to specific customer requirements for various bowl dimensions.
