Double Wall Carton Paper Cup Bowl Paper Coffee Cup Forming Making Machine
1 / 1
Double Wall Carton Paper Cup Bowl Paper Coffee Cup Forming Making Machine

Double Wall Carton Paper Cup Bowl Paper Coffee Cup Forming Making Machine

Customization: Available
Warranty: 1 Year
Applicable Objects: Beverage
Send Inquiry

Product Description

Basic Information

Model NO.HC
Cup Size4-16oz
Speed60-80pcs/min
Required PaperSingle/Double PE Coated
AutomationAutomatic
CertificationCE
Power Source220V/380V 50Hz
Average Power2.5kw
Air Supply0.4MPa, 0.6cbm/Min
HS Code84414000

Product Description

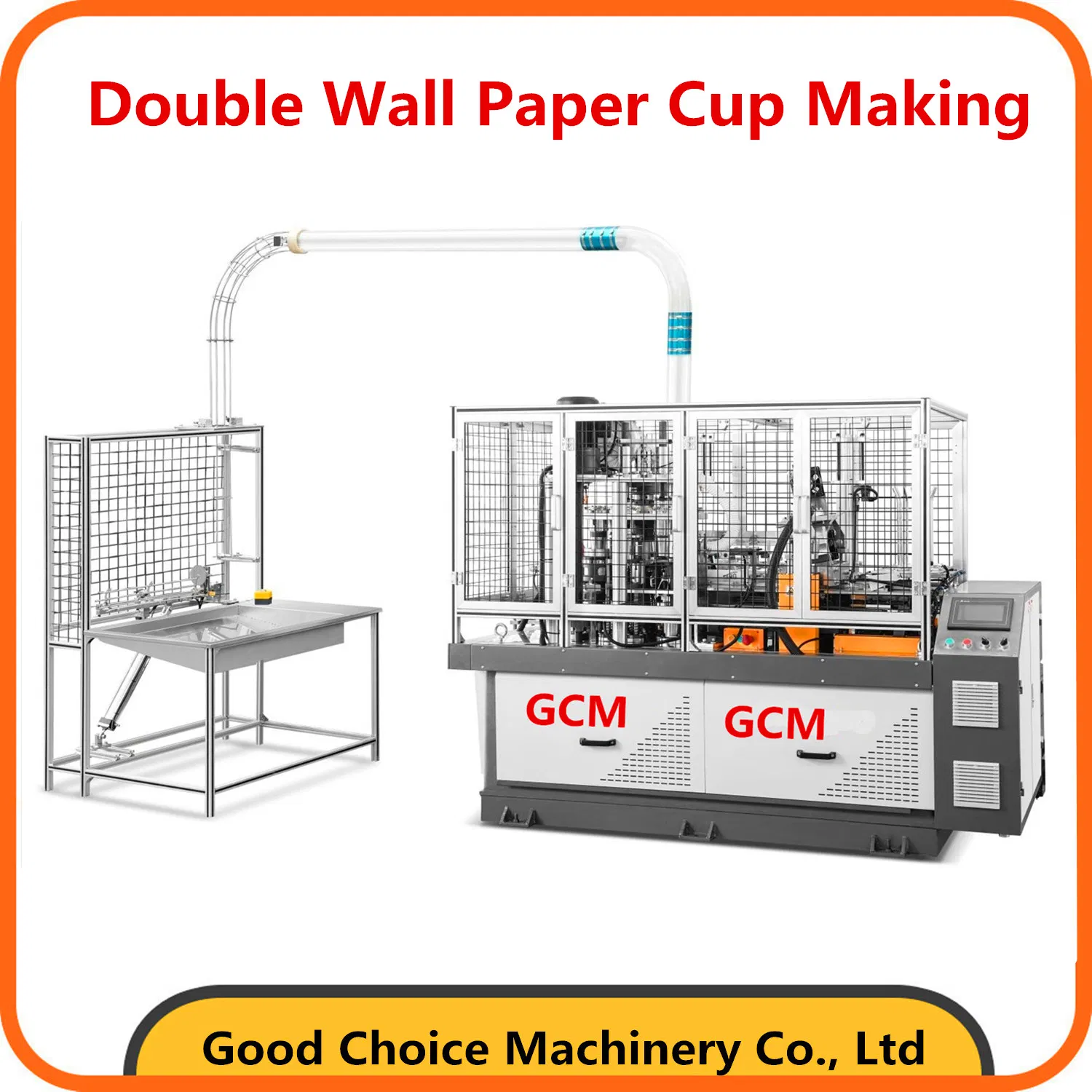

HC Double Wall Paper Cup Forming Machine (4-16oz)

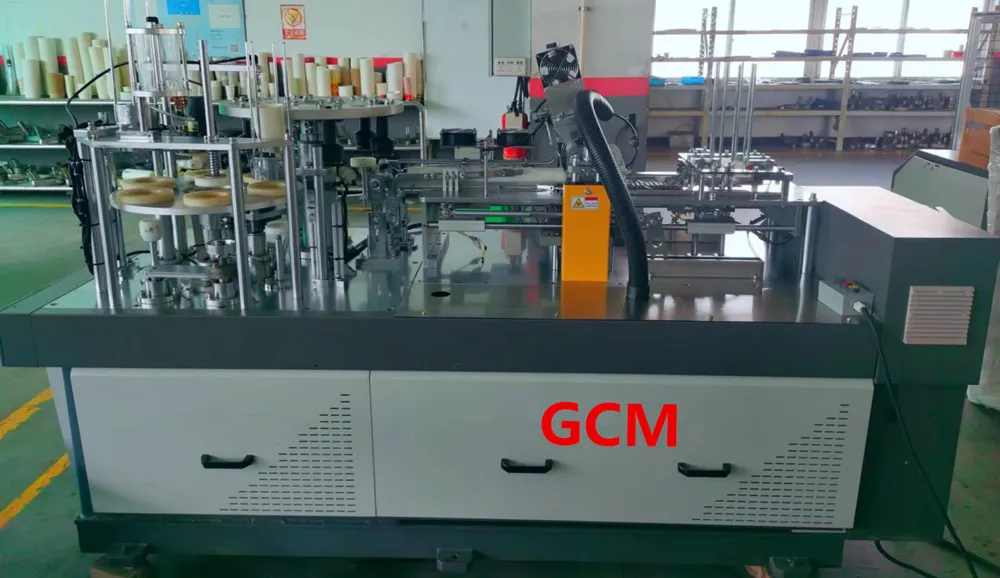

Double Wall Paper Cup Machine

The new model double wall cup forming machine is an advanced automatic double layer cup forming solution. It is capable of forming both double wall cups and ripple cups on the same machine. Featuring an open intermittent indexing cam mechanism, gear transmission, and longitudinal axis structures, it ensures high precision and stability.

Key Features:

  • Automatic lubrication system for smooth mechanical operation.
  • Ultrasonic sealing and row-by-row automatic paper feeding.
  • Inverter for automatic speed adjustment and sensor-controlled safety stops.
  • Separate cam drivers for quiet and stable cup side sealing.
  • Integrated stepping gluing system and air cylinder system.

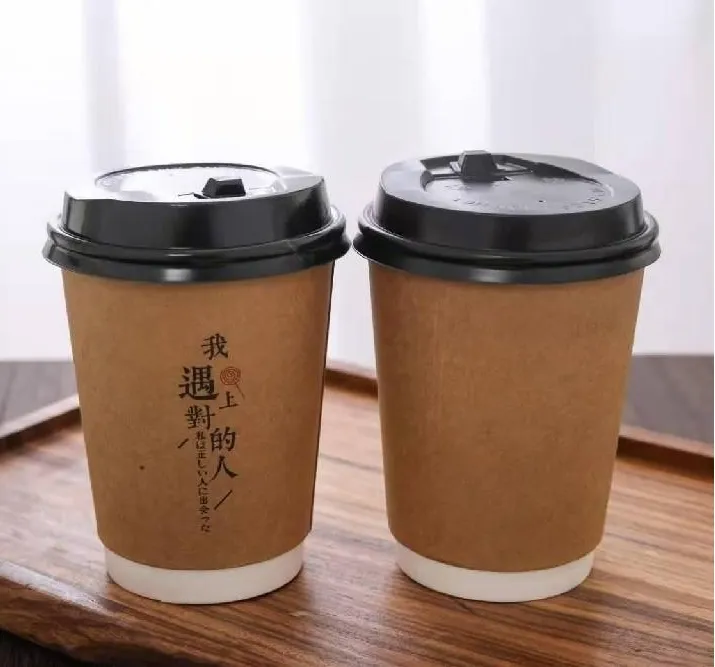

Machine Detail Product Parameters Overview

Technical Parameters

Specification Item Details

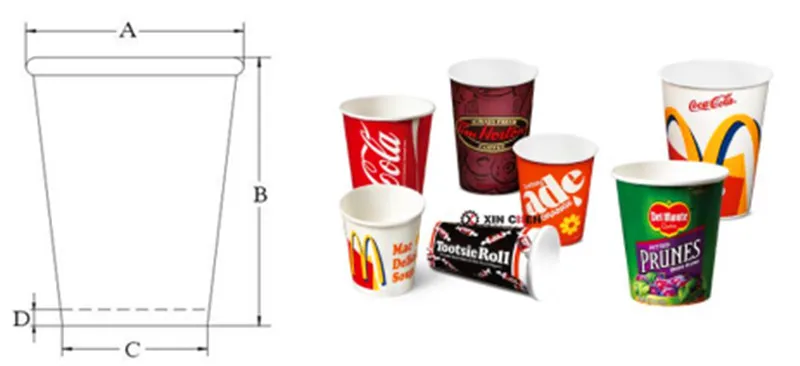

Paper Cup Specification4-16oz (100-450ml) | T:55-115mm, H:60-130mm, B:55-80mm
Paper Specification150-350 GSM single/double PE coated paper
Production Capacity60-80 pcs/min
Voltage380V 50HZ 3Phases
Average Power2.5KW
Air Supply RequirementPressure: 0.4 Mpa | Output: 0.6cbm/min
Total Weight2200KG
Machine Size (L x W x H)2500 x 1300 x 1700mm

Detailed Photos

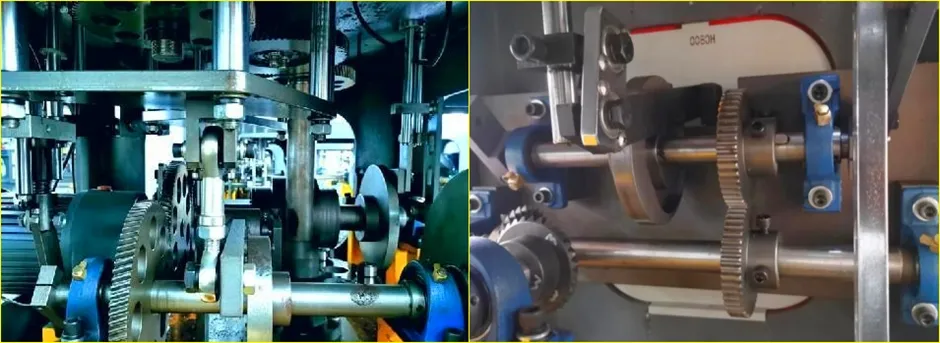

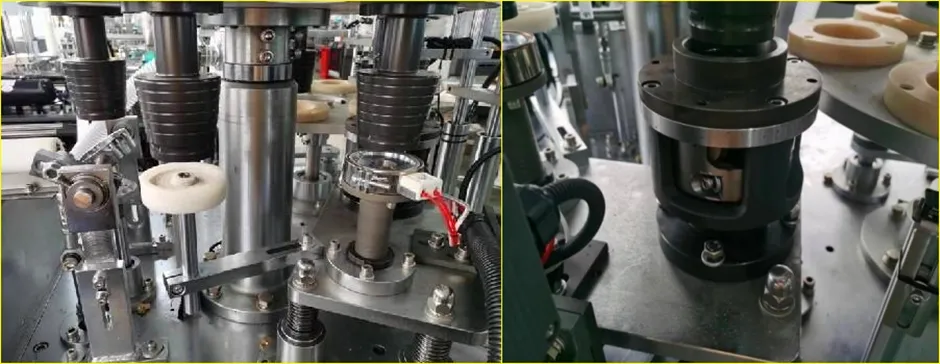

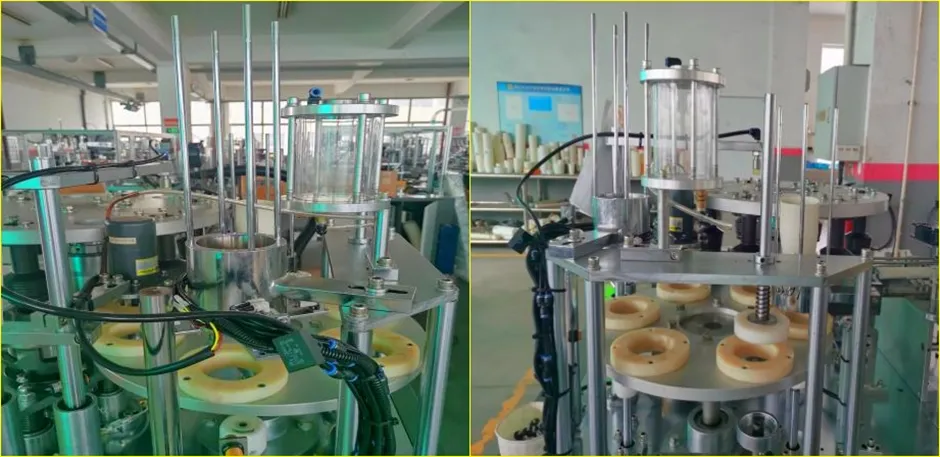

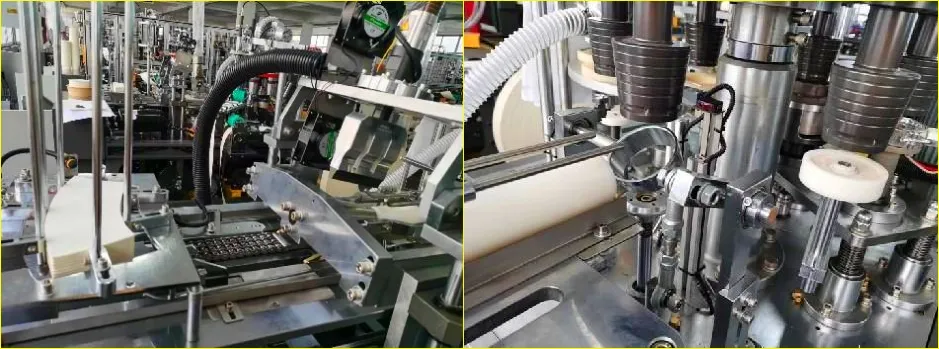

Detailed View 1 Detailed View 2 Detailed View 3 Detailed View 4

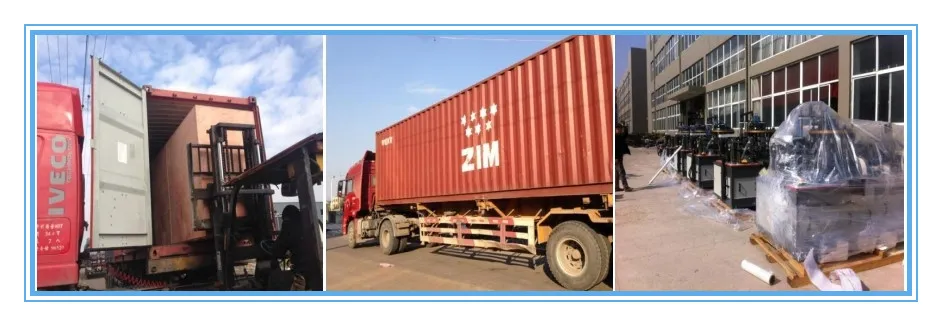

Packaging & Shipping

Packaging and Shipping

Service Support

Pre-sales Service

  • Professional product and technical consultation.
  • Free paper cup samples (freight excluded).
  • Factory visits and live machine demonstrations.

After-sales Service

  • 1-year comprehensive machine warranty.
  • Technician dispatch for installation and adjustment.
  • Free consumable spare parts for the first year.
  • Professional video guidance and instruction manuals.

Frequently Asked Questions

What is the production speed of this machine?
The machine operates at a stable speed of 60 to 80 pieces per minute.
What range of cup sizes can be produced?
It supports cup sizes from 4oz to 16oz (100ml to 450ml) with exchangeable molds.
What type of paper is compatible with this equipment?
It is designed for 150-350 GSM single or double-side PE coated paper.
Does the machine require an external air supply?
Yes, it requires an air pressure of 0.4 Mpa and an air output of 0.6cbm/min.
What is the warranty and after-sales policy?
We provide a 1-year warranty, free spare parts for the first year, and technical support via video or on-site technicians.
How is the machine protected during shipping?
The machine is securely packed in a professional wooden case to ensure safety during transport.
