| Model NO. | XZT-150W |
| Voltage | 380V/220V 50Hz |
| Control Panel | Computer Control Panel |
| Certification | CE |
| Weight | 4500kgs |
| Material | 170-380GSM Single or Double PE/ PLA Coated Paper |
| Speed | 120-200PCS/Min |
| Bowl Size | 15-57oz (Max Bottom 130mm, Top 150mm, Height 135mm) |
| Power Supply | 3 Phase 380V 50Hz, 44kw (Running Consumption 20kw) |
| HS Code | 8441309000 |

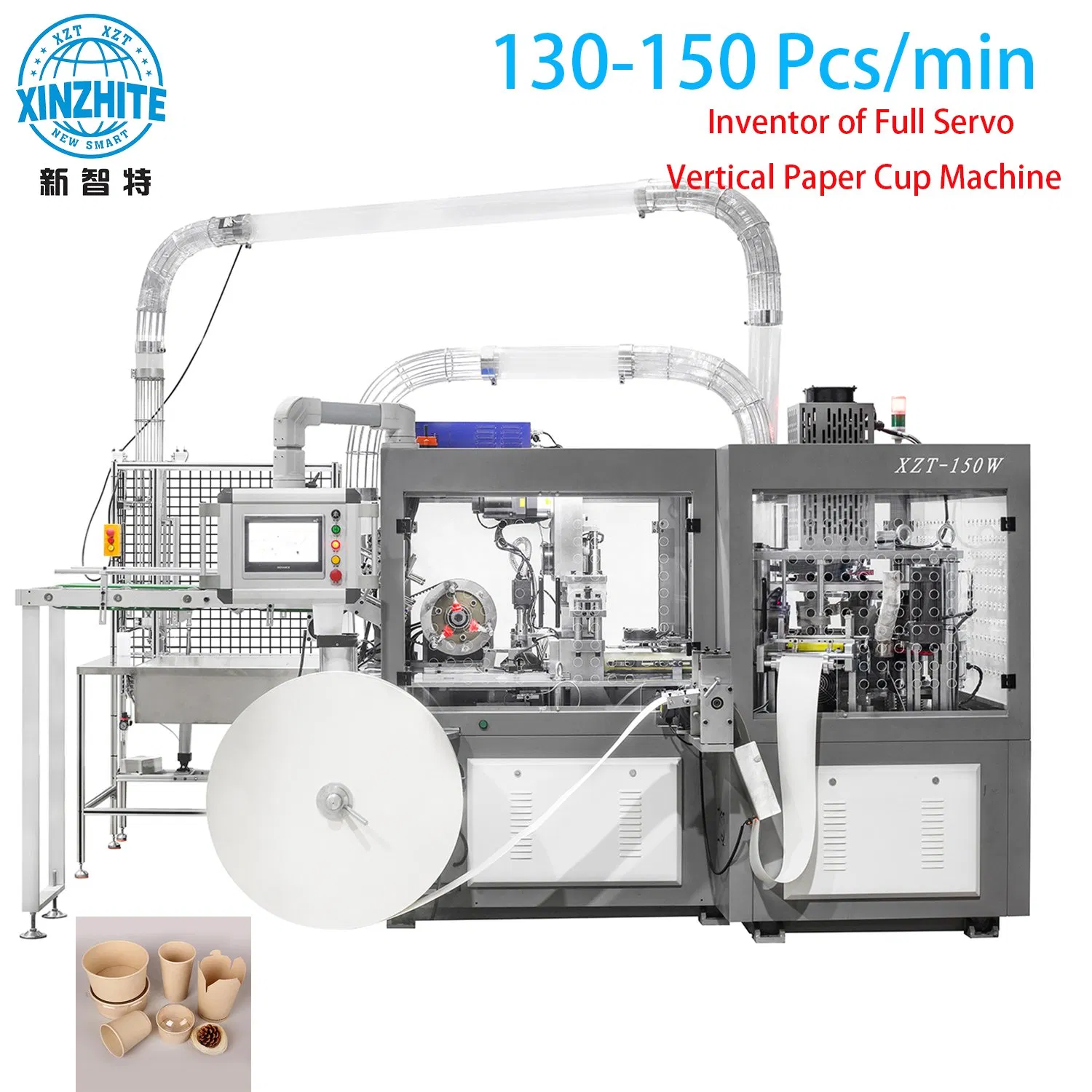

High-speed paper bowl making machine
1. XZT-150W features full servo-driven technology throughout the entire machine.
2. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate synchronized motion.
3. It replaces traditional gear/chain transmission and cam designs commonly found in the market.
4. It provides flexibility, high speed, affordable capital cost, and low maintenance requirements.
| Model | XZT-150W Paper Bowl Machine |
| Bowl Size Range | 15-57oz (Max bottom 130mm, top 150mm, height 135mm) |
| Material Compatibility | 170-380GSM single or double PE/ PLA coated paper (0.25-0.5mm thickness) |
| Production Speed | 120-150pcs/min |
| Air Supply | 0.6Mpa (running consumption 0.5Nm3/min) |
| Dimensions (mm) | 2760L * 2160W * 1925H |

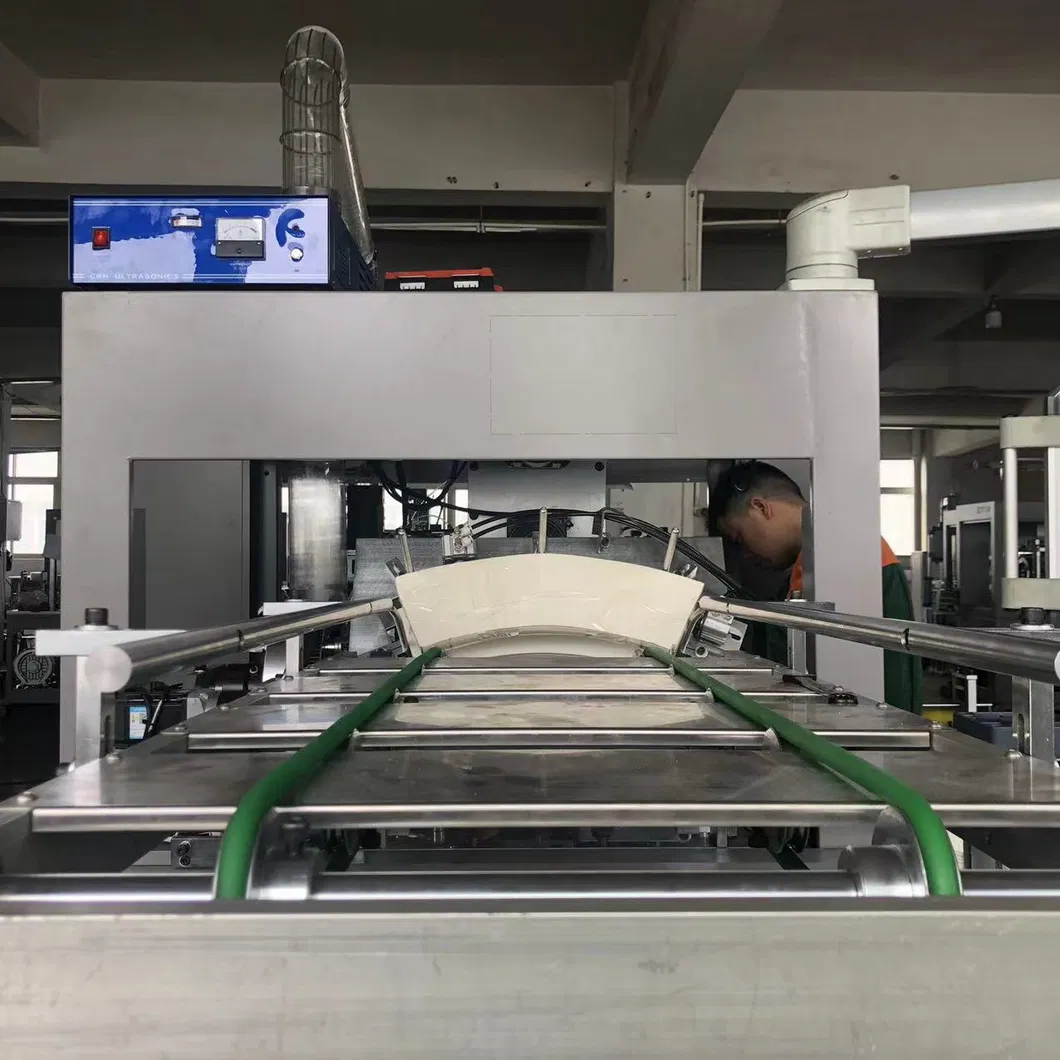

Loading table with full cup fan paper for forming 3000-4000 cups at a time. Conveyor Fan Wall Paper Feeding by Step Motor.

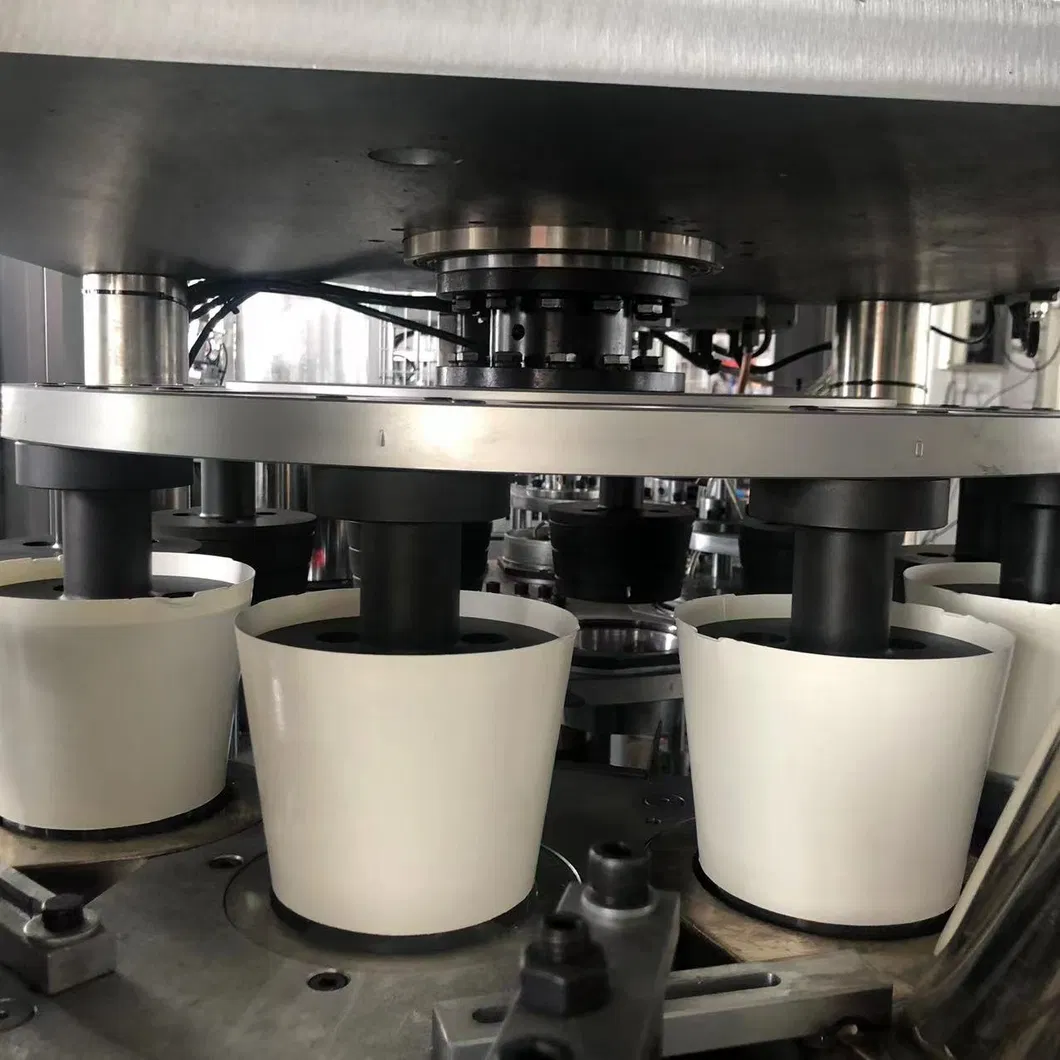

Bottom forming device uses the latest heating process. Molds are made of solid aluminum for durability and simplicity.

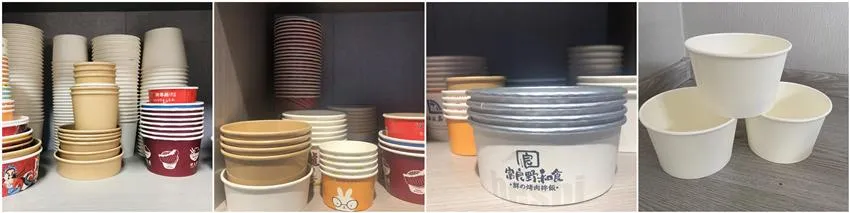

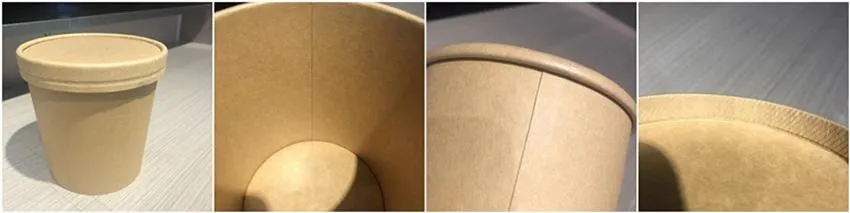

Our machines produce well-detailed paper bowls with stronger sealing and beautiful knurling.

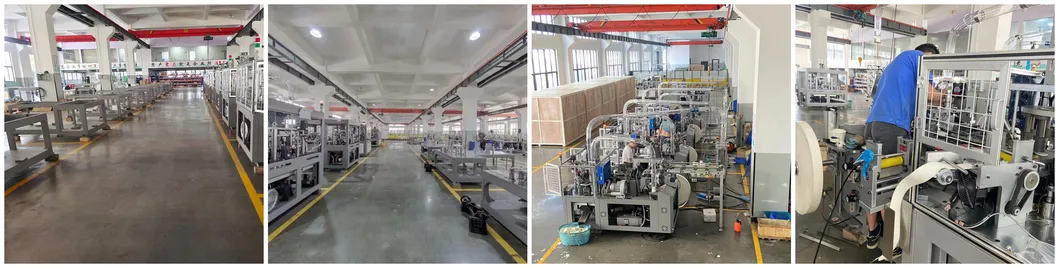

The workshop is well organized and technicians are responsible for every step of the assembly process.
All machines are CE certified.
Our machines attract many customers at trade fairs regularly. We look forward to meeting you in the near future.
