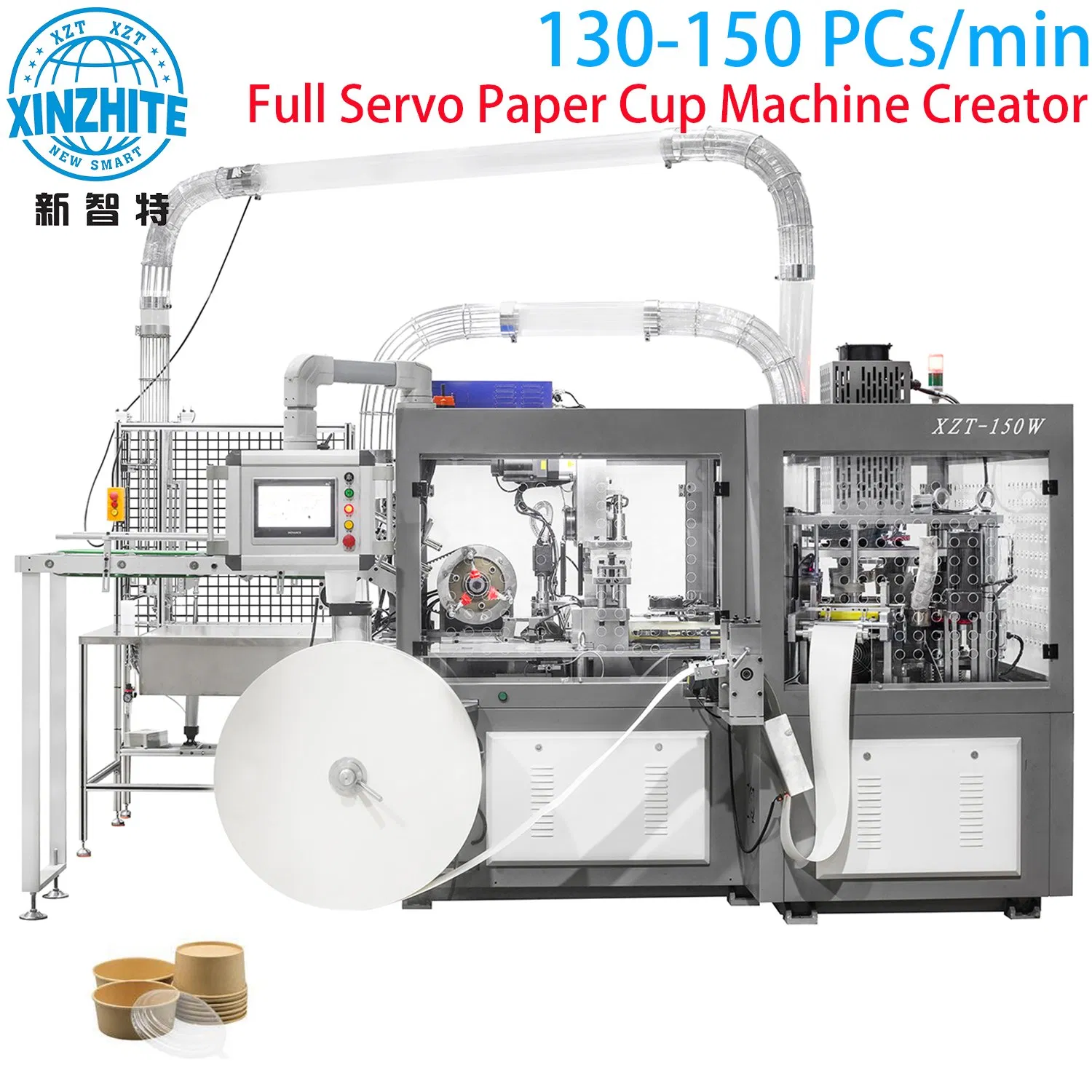

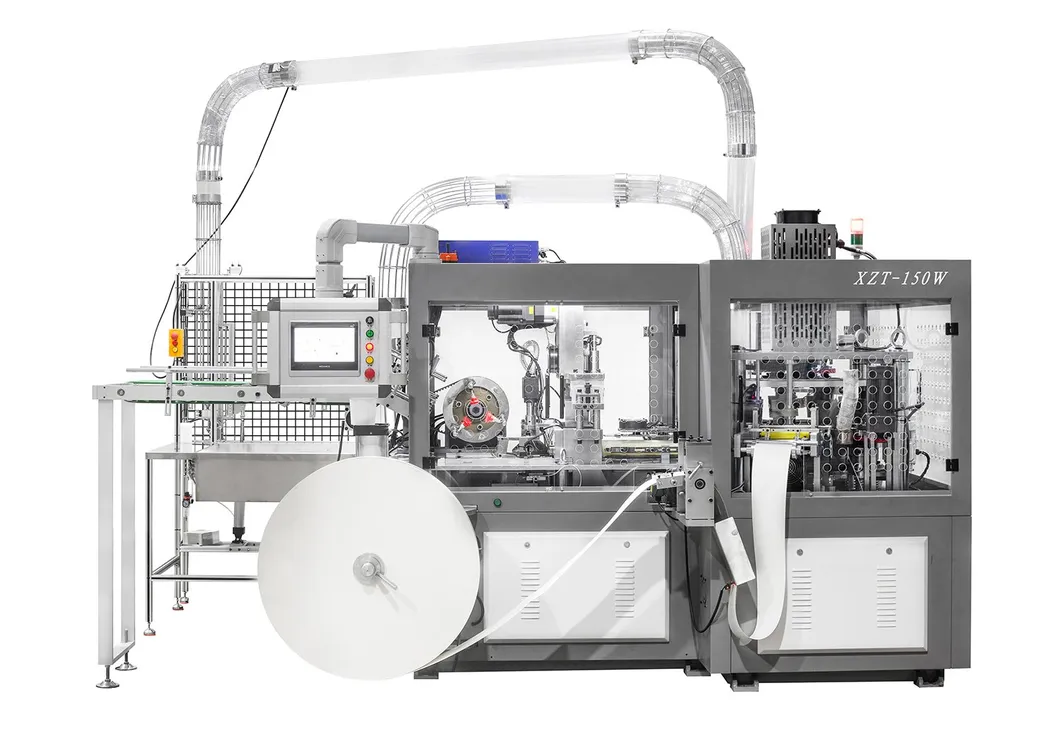

High-speed Paper Bowl Making Machine
1. XZT-150W features full servo-driven technology throughout the entire machine.
2. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate synchronized motion.
3. It replaces traditional gear/chain transmission and cam designs.
4. Provides flexibility, high speed, affordable capital cost, and low maintenance.

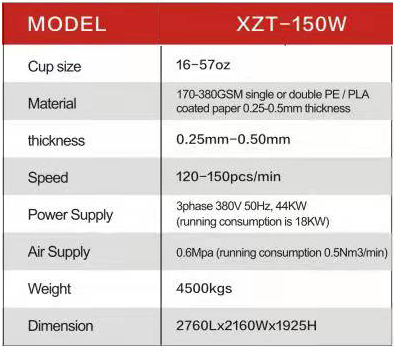

| Model | XZT-150W Paper Bowl Machine |
| Bowl Size | 15-57oz (Max bottom 130mm, top 150mm, height 135mm) |
| Material | 170-380GSM single or double PE/ PLA coated paper |
| Speed | 120-150 pcs/min |
| Power Supply | 3 phase 380V 50Hz, 44KW (Running consumption 20KW) |
| Air Supply | 0.6Mpa (Running consumption 0.5Nm3/min) |
| Dimension | 2760L * 2160W * 1925H (mm) |
| Weight | 4500kgs |

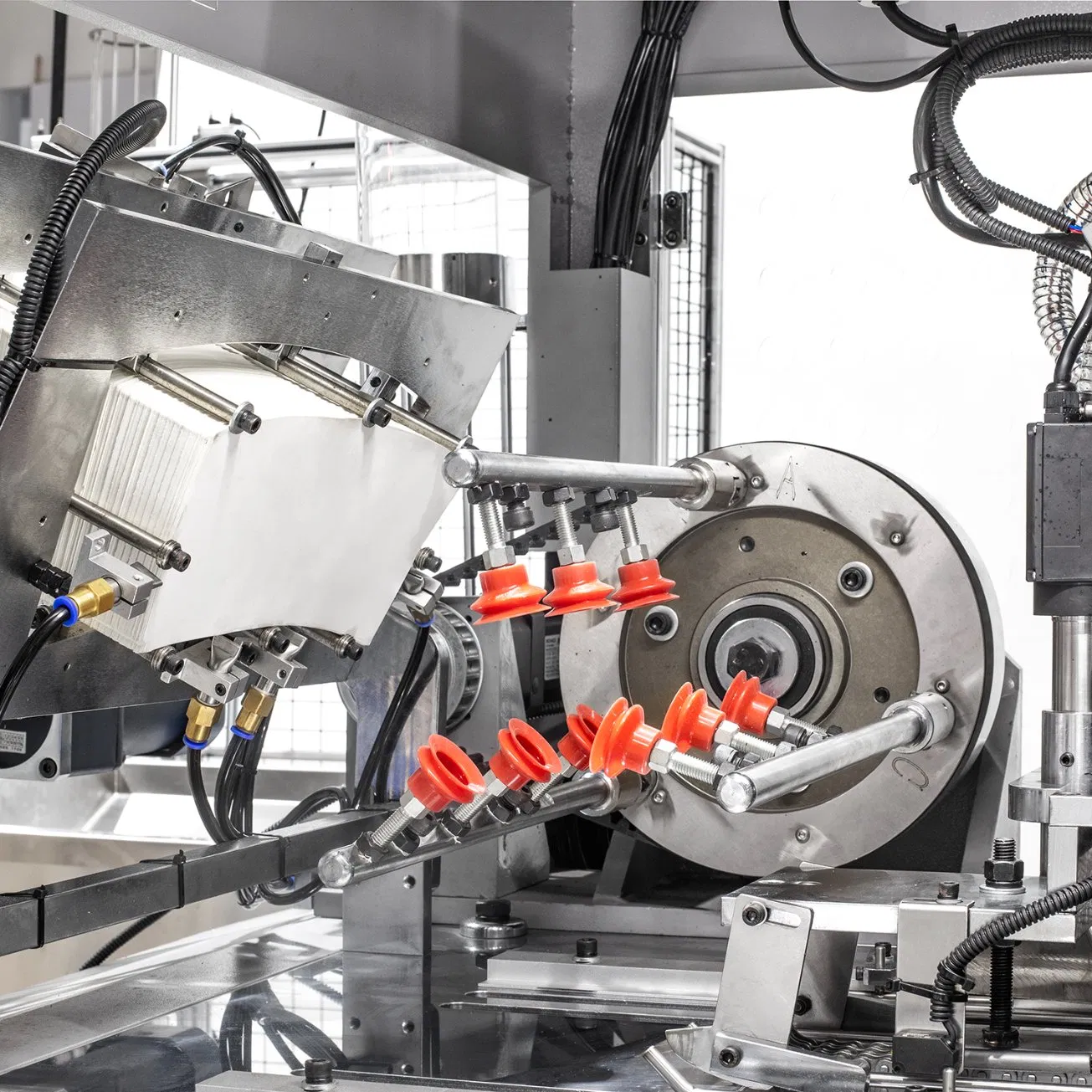

Loading Table: Full cup fan paper loading for forming 3000-4000 cups at a time. Conveyor feeding by step motor.

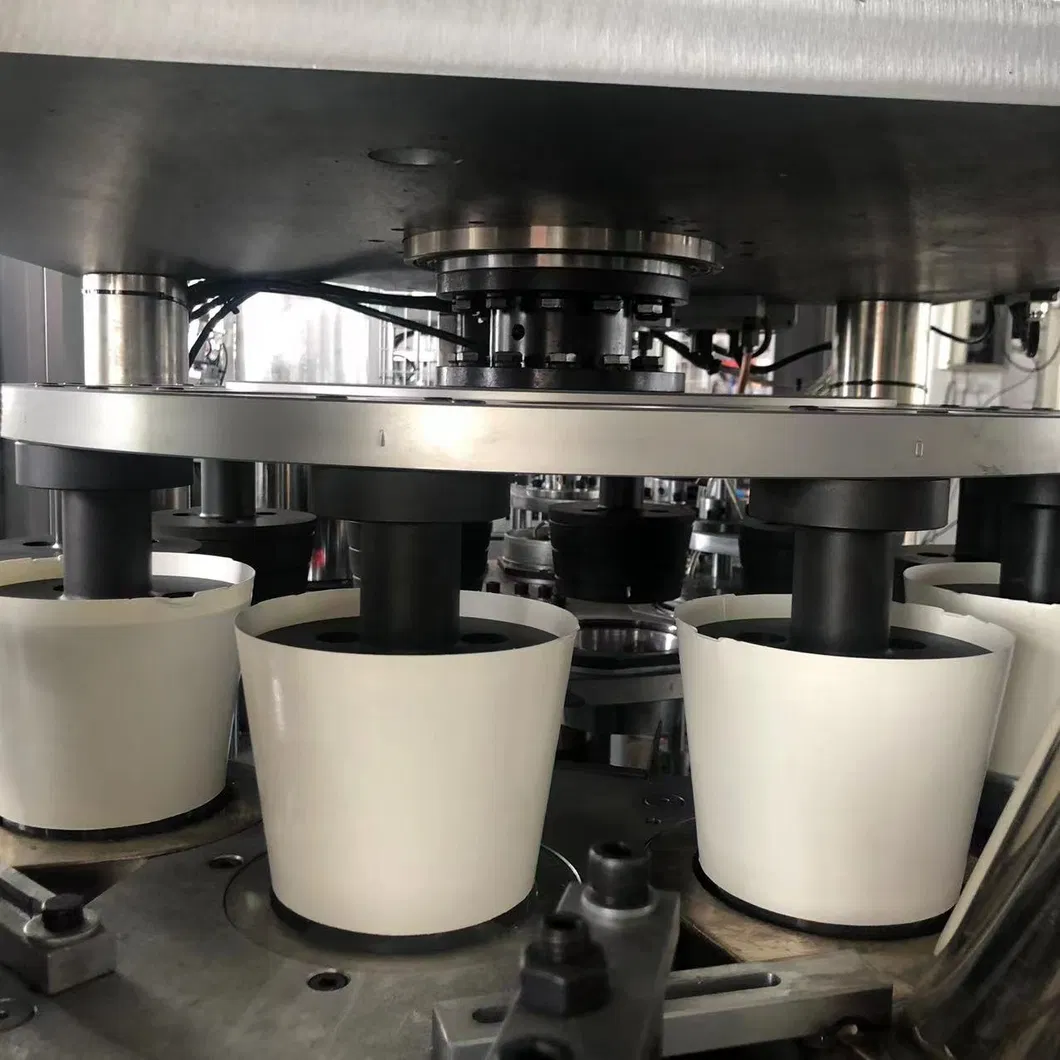

Bottom Forming: Uses latest heating process. Solid aluminum molds for durability and simpler maintenance.

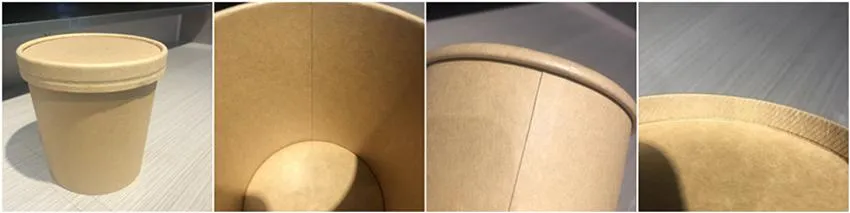

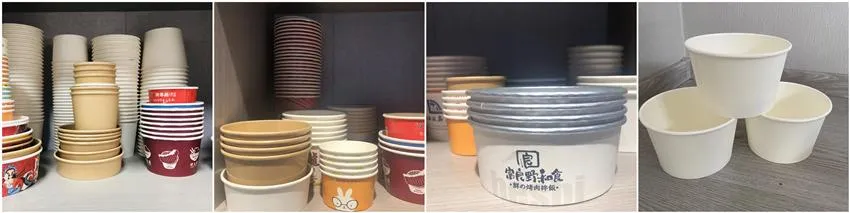

Our machines produce detailed paper bowls with strong sealing and beautiful knurling.

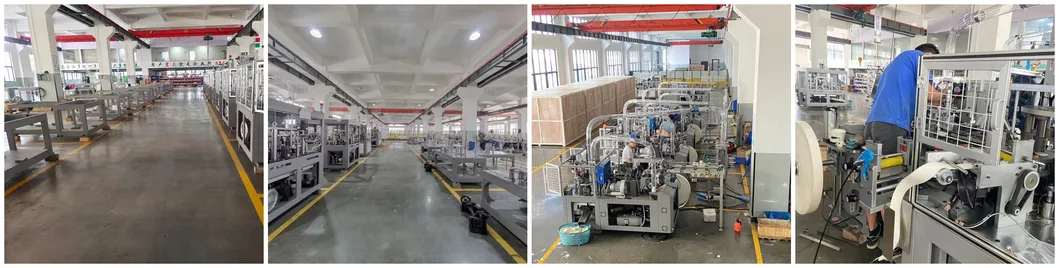

The workshop is well organized with professional technicians responsible for every assembly step.
All machines are CE certified ensuring high safety and quality standards.
We regularly attend trade fairs and look forward to meeting global customers.
