High Quality Double Wall Cup Machine/Paper Cup 250ml Machine/150ml Cup Machine

Basic Specifications

Model NO.

ZGJ-70H-CUP

Speed

80-100pcs/min

Required Paper

Single Side PE Coated Paper

Automation

Automatic

Certification

CE

After-sales Service

3 Years

Computerized

Yes

Production Capacity

5000 sets/Year

Product Overview

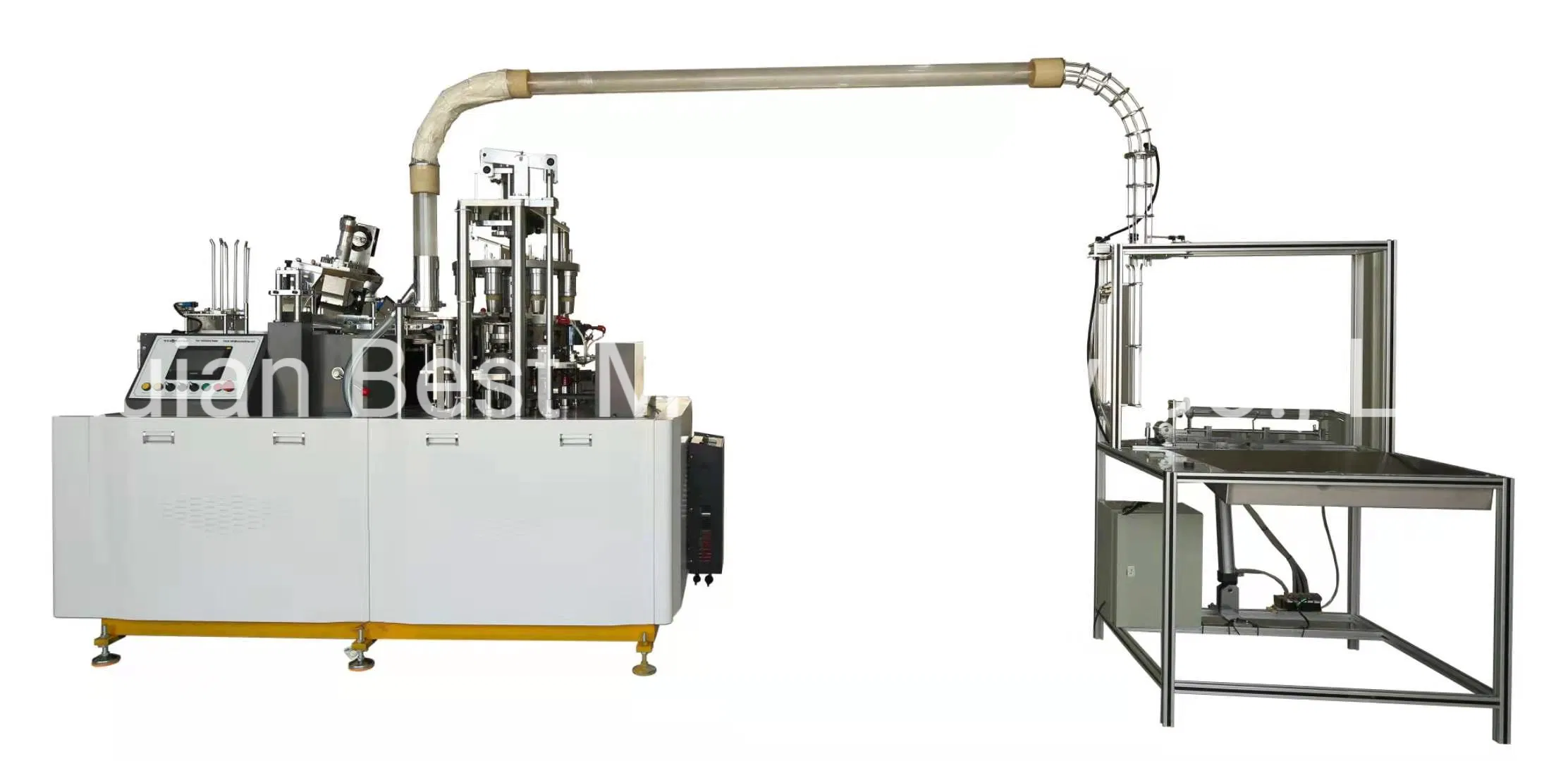

The Model ZGJ-70H-CUP Paper Cup Forming Machine is a high-performance automatic workstation designed for disposable tumbler production. It integrates advanced features including photocell detection, failure alarms, and an automated counter. Its human-centric design ensures safer operation and simplified maintenance.

This equipment processes single-side PE film-coated paper through a comprehensive automated procedure: pre-printed fan-shape paper feeding, cup-side body sealing (heater), silicone-oil lubrication (food grade), roll bottom auto punching, bottom pre-heating, folding, main heating, top curling, and final cup discharging.

Configuration List

Component Name	Model	Origin	Brand/Remarks	QTY
Main motor	CH-25-1.5	Taiwan	Chenggang	1
Frequency converter	Em60-1.5kw	Japan	Panasonic	1
Photoelectricity	PSE17-5DN	Korea	Ottonico	3
AC contactor	0910	France	Schneider Type	3
Temperature Control	AI-208G	Domestic	Yudian	5
Switching Power Supply	LRS-200-24	Taiwan	Ming Wei	1
Circuit Breaker	DZ47-60	Domestic	Chint	7

Technical Parameters

Paper Cup Size	5-12oz
Paper Material	140-320g/m², One Side PE Coated Paper Or Double
Production Speed	Max: 105pcs/min \| Stable: 85pcs/min
Power Source	380V 50HZ
Heating Total Power	5KW
Main Motor	1.5KW
Total Power	7.5KW
Machine Weight	2200kg
Overall Size	2.23 x 1.14 x 1.8m
Air Pressure	≤0.4MPa (for auto bottom paper feeding)
Operation Space	About 3000 * 3000mm

Frequently Asked Questions

1. What is the production speed of the ZGJ-70H-CUP machine?

The machine features a maximum speed of 105 pcs/min, with a recommended stable operating speed of 85 pcs/min for optimal longevity and quality.

2. What range of paper cup sizes can this machine produce?

This model is designed to produce paper cups ranging from 5oz to 12oz, making it versatile for various beverage needs.

3. What type of paper material is required?

It supports single-side PE coated paper or double-side coated paper with weights between 140g/m² and 320g/m².

4. Is the machine easy to maintain?

Yes, the machine is built with a human-centric design that includes photocell detection and failure alarms, allowing for easier troubleshooting and routine maintenance.

5. What is the warranty and after-sales service period?

We provide a comprehensive 3-year after-sales service period to ensure your production line remains efficient and reliable.

6. Can the machine be customized to specific requirements?

Yes, the technical parameters and configurations can be customized according to your specific production requirements and factory layout.
