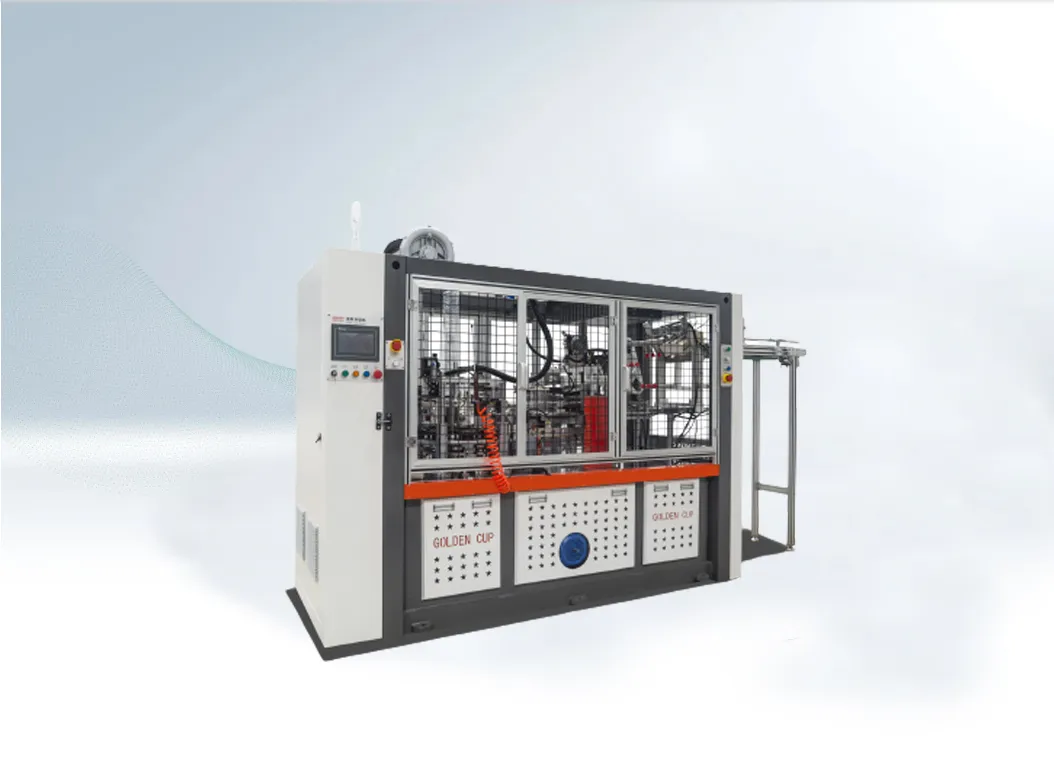

Automatic High Speed Double Wall Paper Cup Machine

📋

Overview & Basic Info

Model NO.

XSL-16W

Cup Size

4-16oz

Speed

100-120pcs/min

Required Paper

Single/Double PE/PLA/Water Based Paper

Automation

Automatic

Certification

CE

Power

3 Phase, 380V, 50Hz 6kw

Weight

3600kgs

⚙️

Product Description

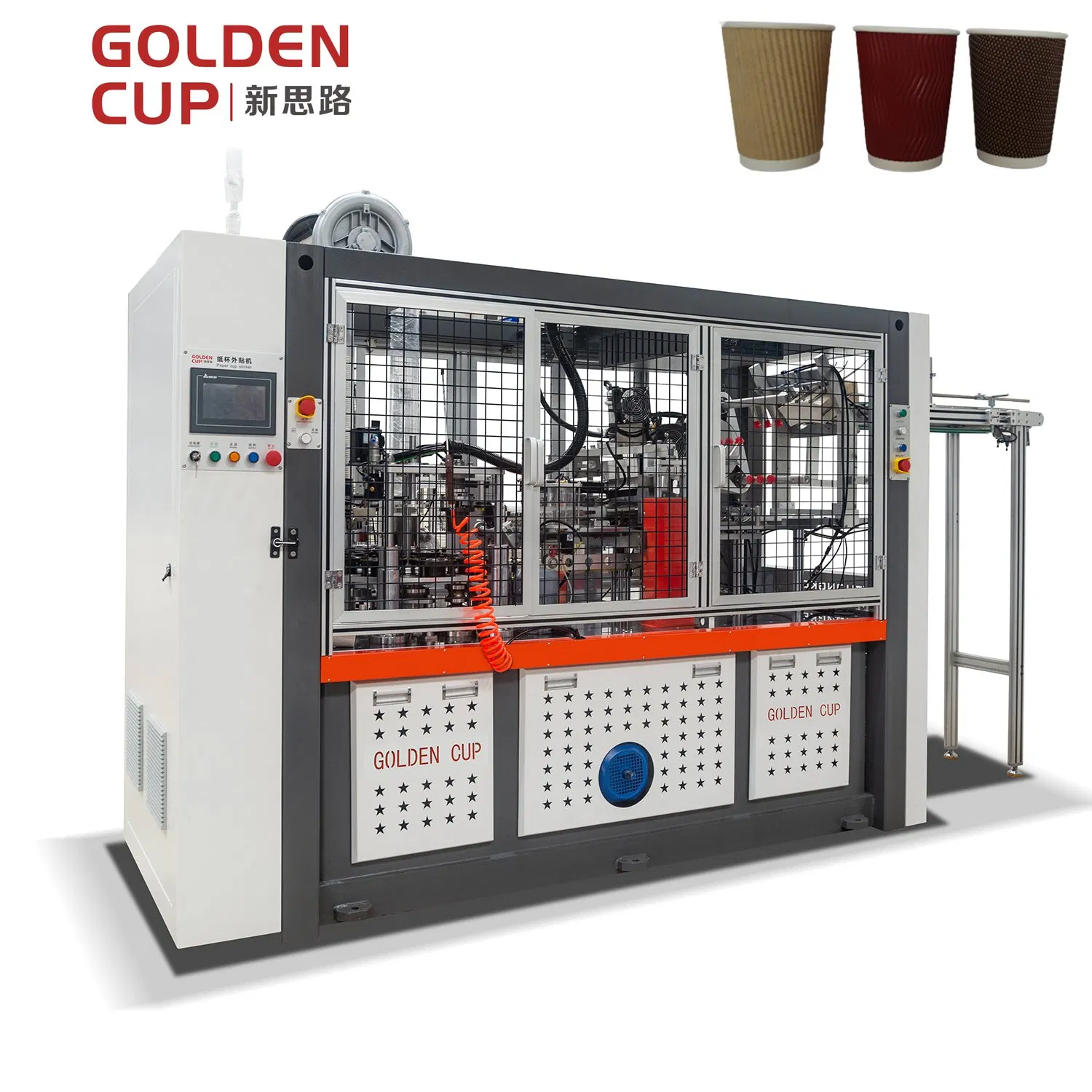

Automatic High Speed Double Wall Paper Cup Machine

The XSL-16W double wall sleeve machine features a tabletop layout that effectively isolates forming parts from transmission parts. Controlled by a high-precision PLC system, the entire production process is monitored by photoelectric sensors with glue application handled by a servo motor. It is the ideal equipment for manufacturing various types of sleeve cups with high efficiency and stability.

📊

Technical Parameters

Parameter Item	Specifications
Model	XSL-16W double wall paper cup sleeve machine
Suitable Size	Top: 60-95mm \| Bottom: 40-75mm \| Height: 50-135mm
Production Speed	100-120pcs/min
Paper Request	170-300gsm single/double PE paper
Machine Size	26009602120mm
Air Consumption	0.3Mpa

🏭

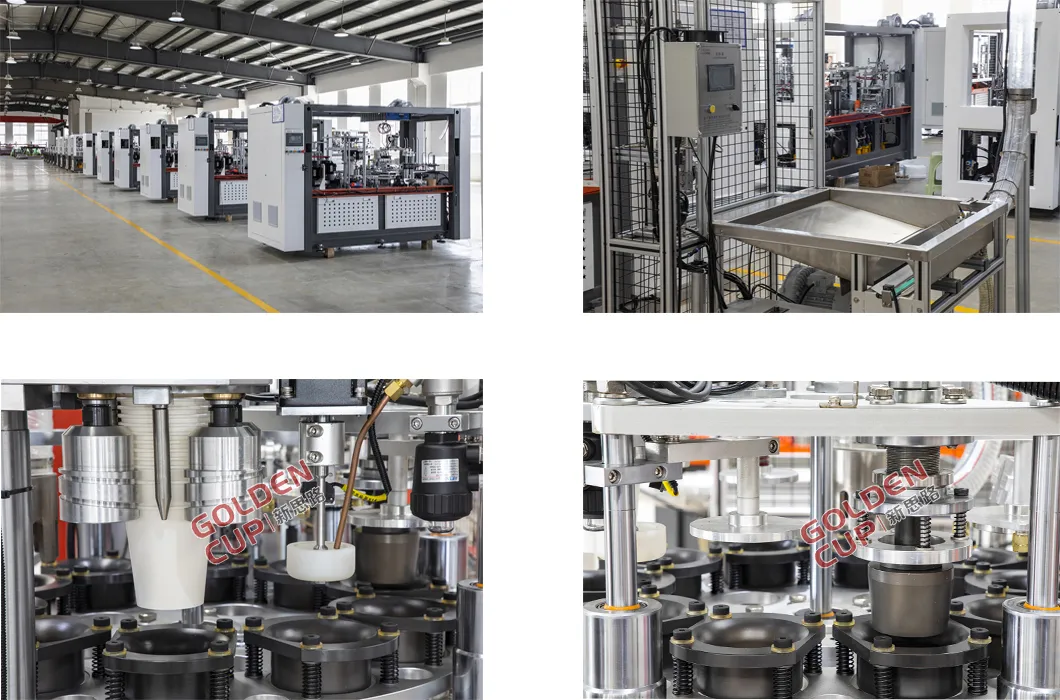

Machine Details & Workshop

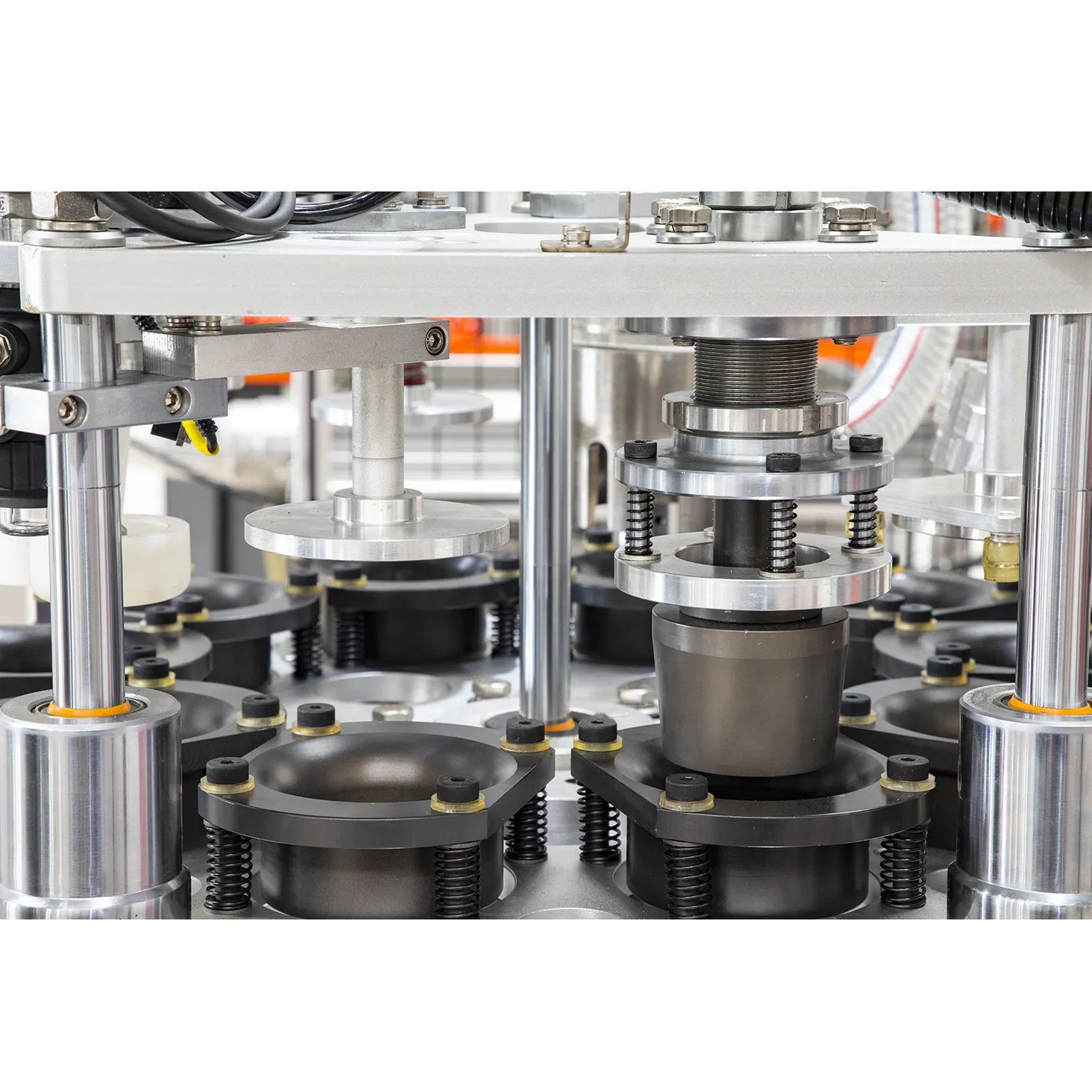

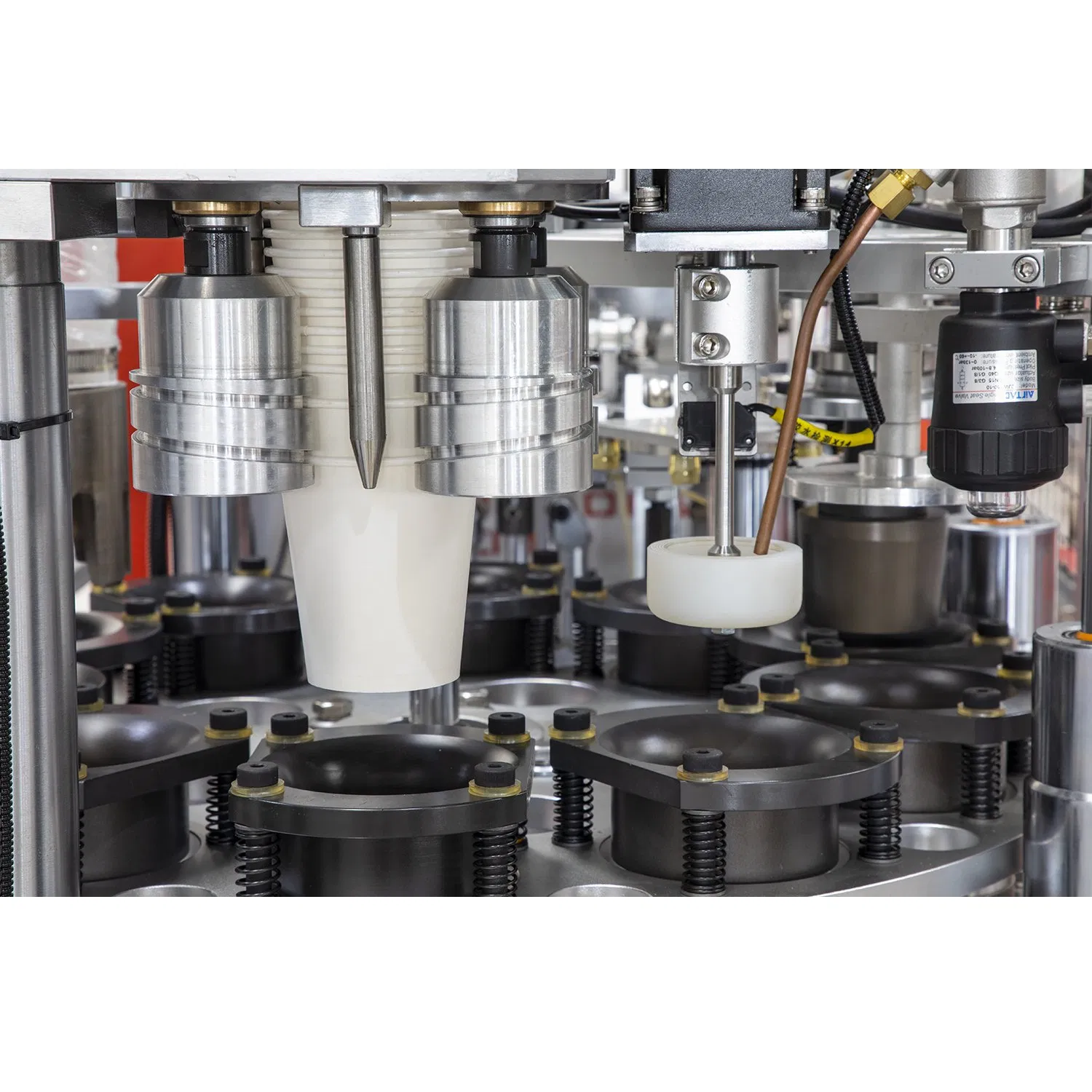

Internal Components

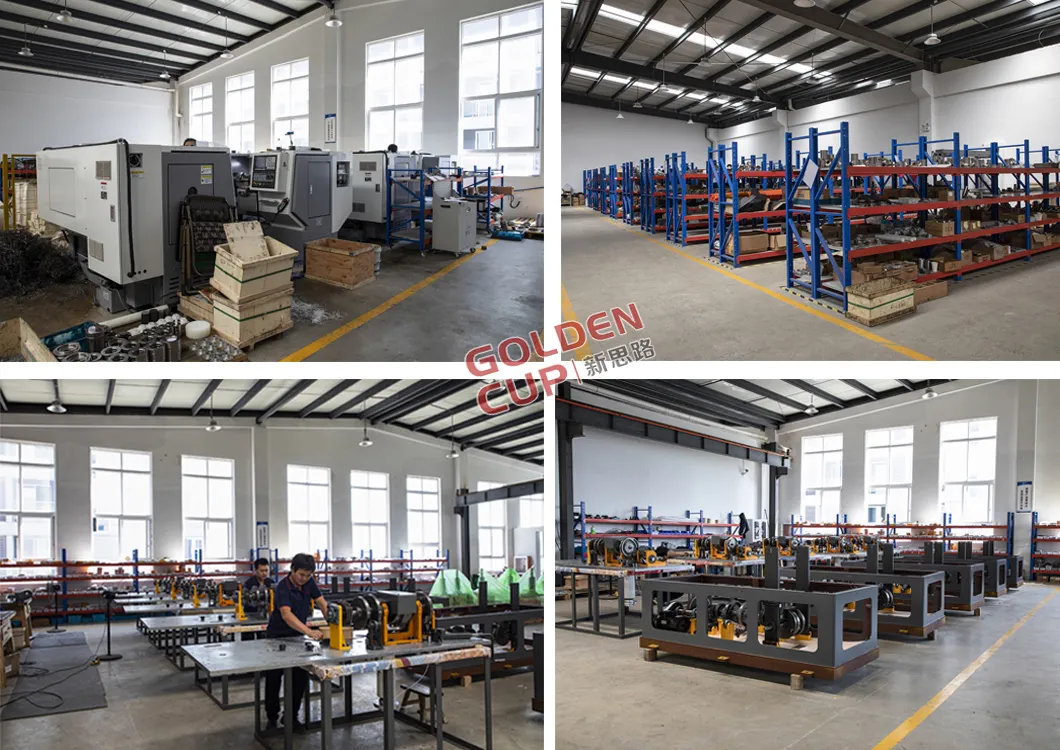

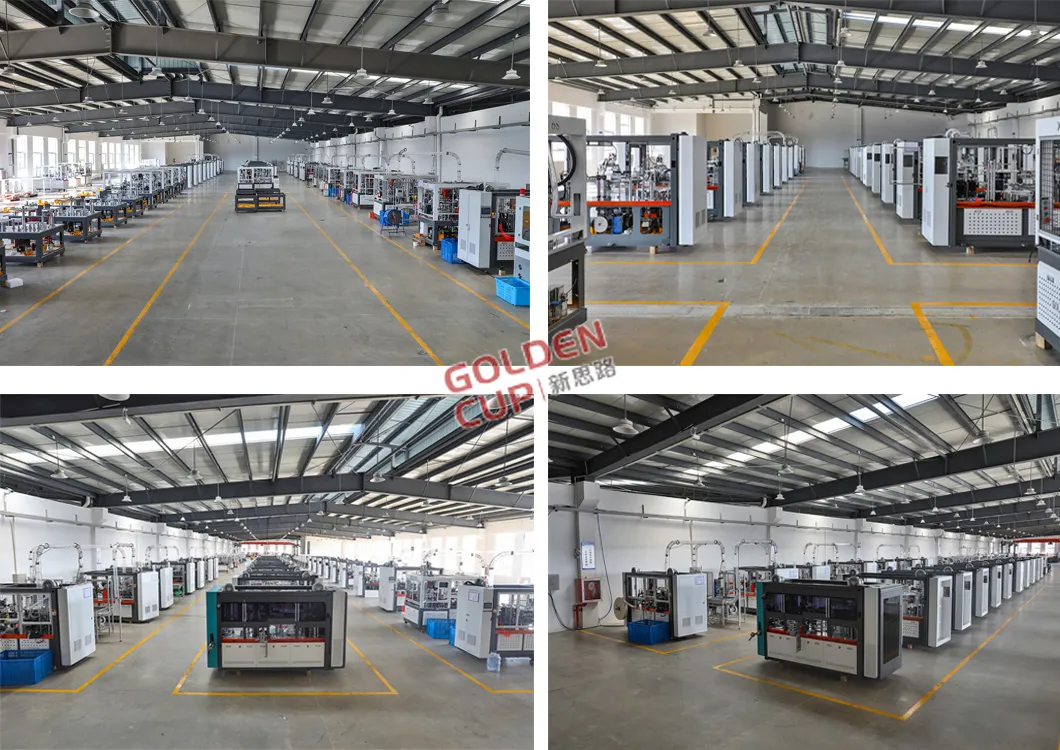

Manufacturing Excellence

Our facility spans approximately 10,000 square meters, equipped with advanced production capabilities. We utilize components from renowned international brands for electrical parts and high-quality bearings sourced from Japan. The transmission system employs cam and gear mechanisms, eliminating chains and incorporating a spray circulating lubrication system for a production rate of 120-150 cups per minute.

📦

Packaging & Transport

All machines are securely packed in professional wooden cases before shipment to ensure safety during sea transportation from the port to the destination.

❓

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a specialized manufacturer of paper cup machines with our own state-of-the-art production facility.

What is your product range?

Our machinery can produce coffee cups, tea cups, ice cream cups, noodle bowls, salad bowls, and more.

What size of cups or bowls can your machine make?

We can produce sizes from 4oz to 32oz using different molds and machines. Non-standard sizes can also be customized upon confirmation.

What is the standard delivery time?

Standard machines generally take 45 working days after receiving the deposit and confirming final technical drawings.

How long is the machine's warranty period?

For this machine, the cam transmission part has a 3-year warranty, and electrical parts have a 1-year warranty. We also provide lifetime maintenance services.

How do you solve machine problems after the engineer leaves?

During the installation visit, we train your staff on maintenance. If issues arise later, our department responds immediately via phone or video support to solve the problem.
