| Model NO. | XZT-150W |
| Voltage | 380V/220V 50Hz |
| Control Panel | Computer Control Panel |
| Certification | CE |
| Weight | 4500kgs |
| Material | 170-380GSM Single or Double PE/ PLA Coated Paper |
| Speed | 120-200PCS/Min |
| Bowl Size | 15-57oz (Max Bottom 130mm, Top 150mm, Height 135mm) |
| Power Supply | 3 Phase 380V 50Hz, 44kw (Running Consumption 20KW) |
| Origin | China |
| HS Code | 8441309000 |

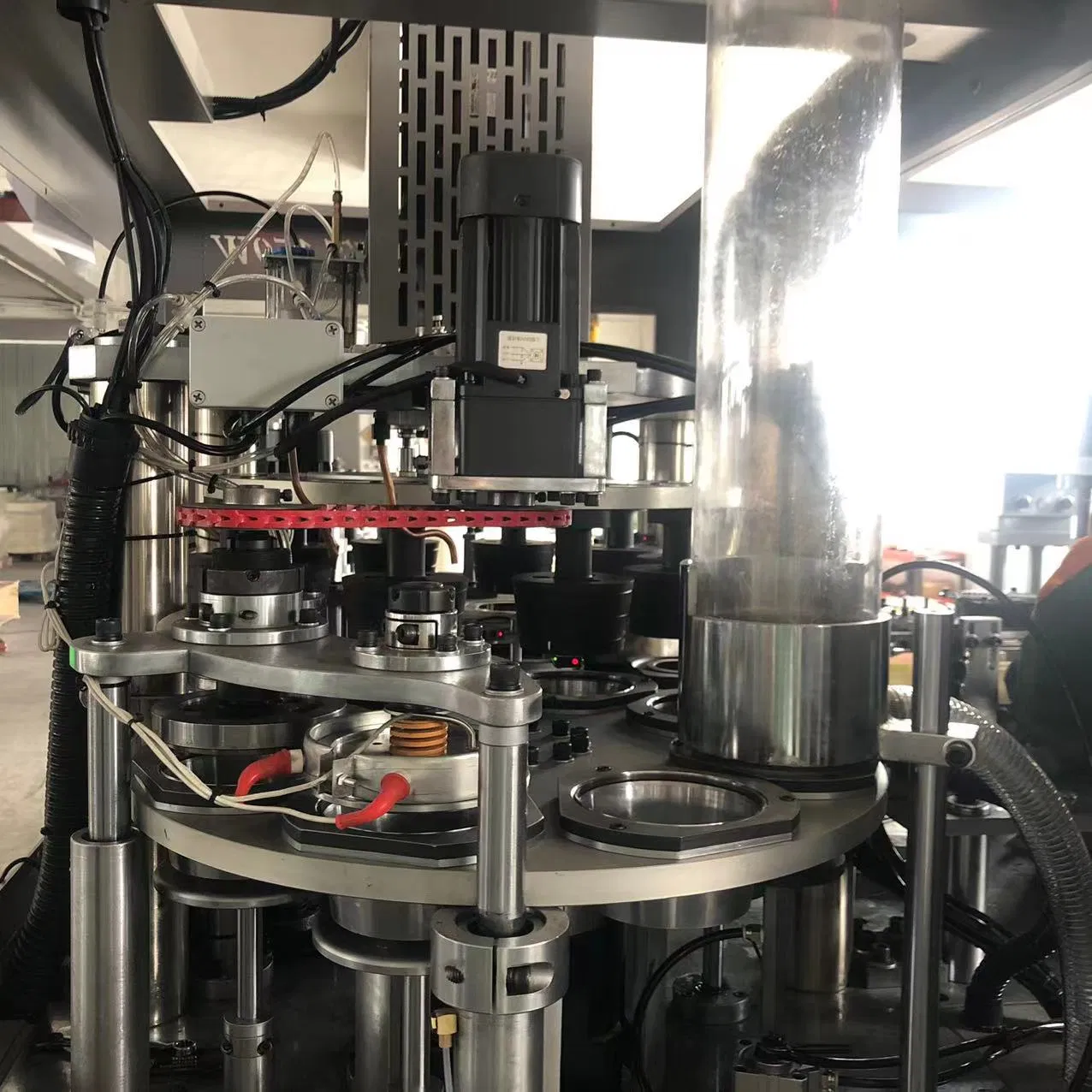

High-speed paper bowl making machine: XZT-150W features full servo-driven technology throughout the entire machine. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion.
It replaces the traditional gear/chain transmission and cam design, providing superior flexibility, speed, affordable capital cost, and low maintenance.

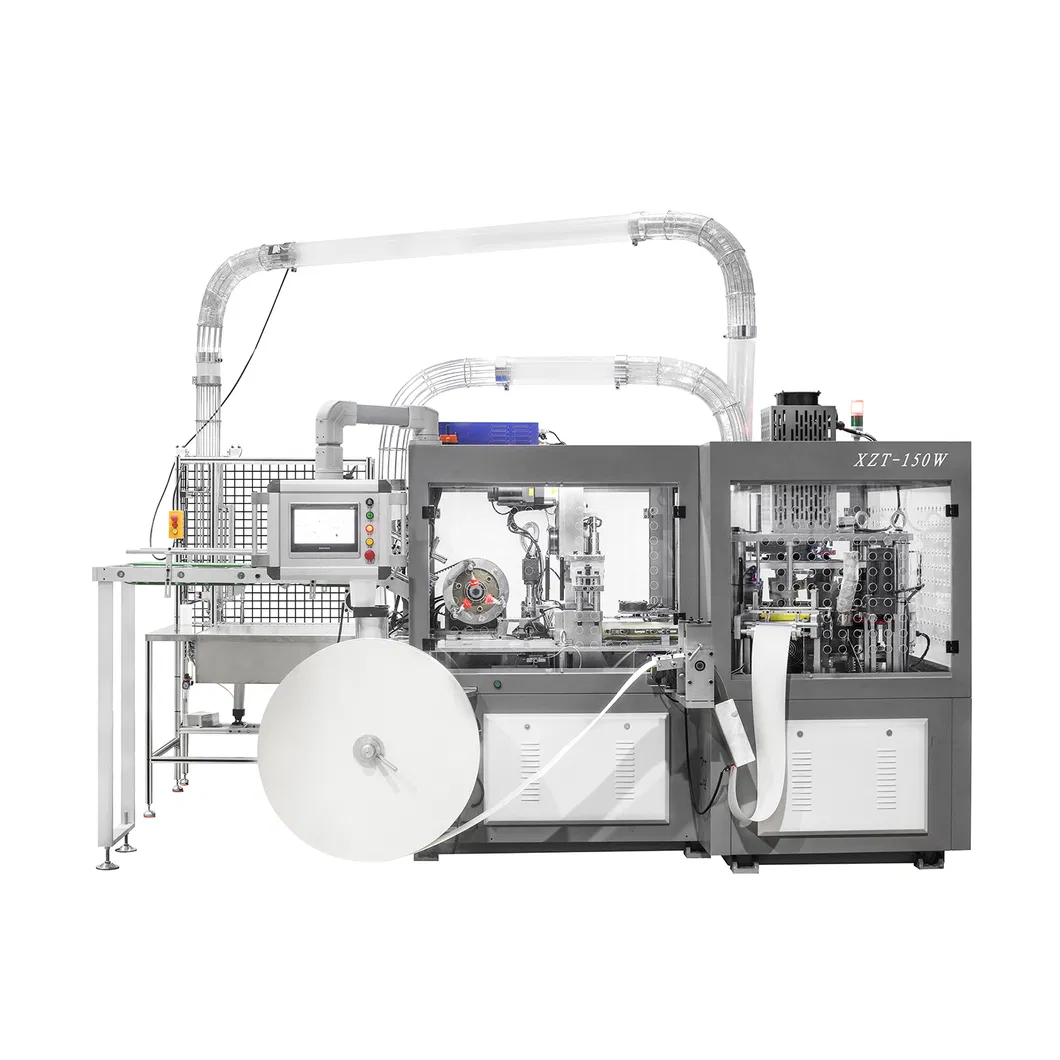

| Model | XZT-150W Paper Bowl Machine |
| Bowl Size | 15-57oz (Customizable) |
| Material Thickness | 0.25-0.5mm |
| Production Speed | 120-150pcs/min |
| Air Supply | 0.6Mpa (0.5Nm3/min) |
| Dimensions | 2760L * 2160W * 1925H mm |

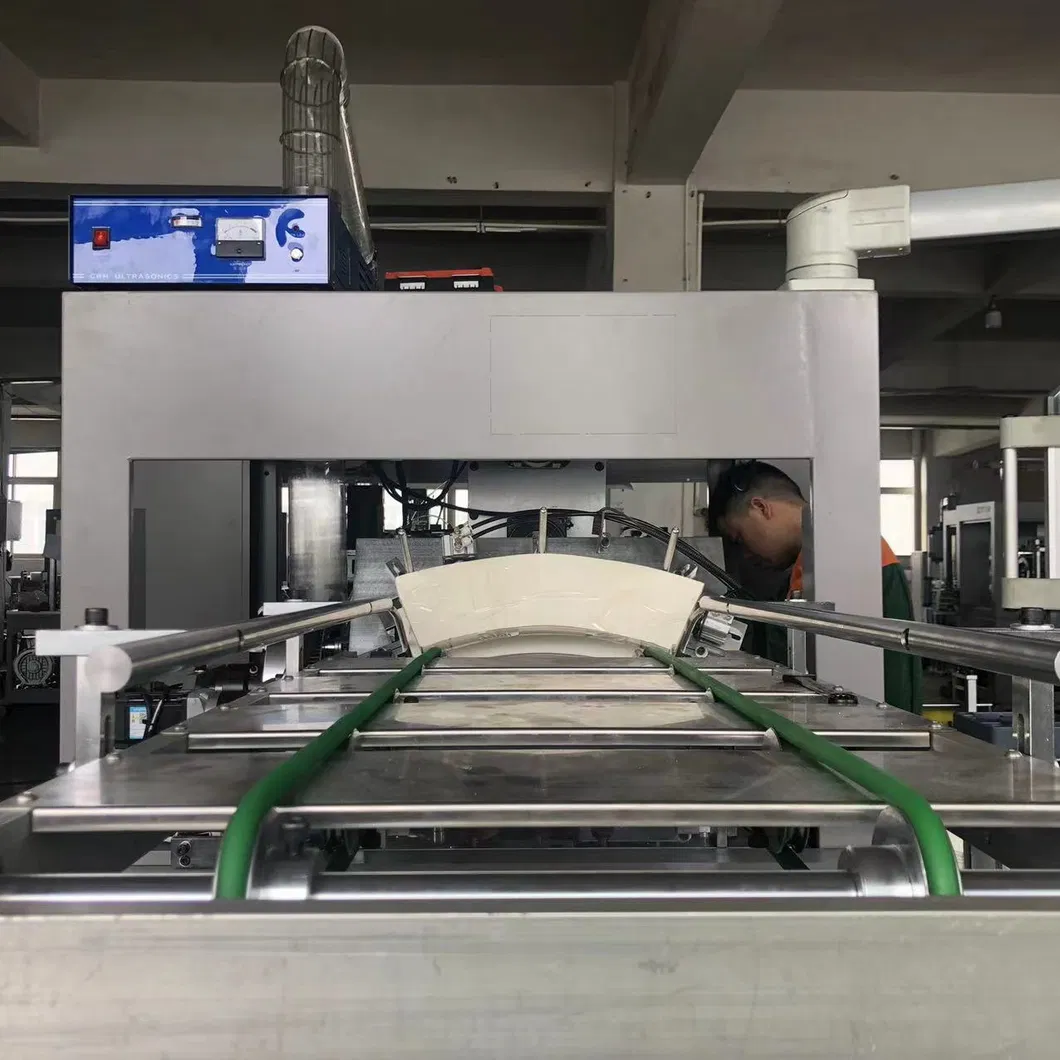

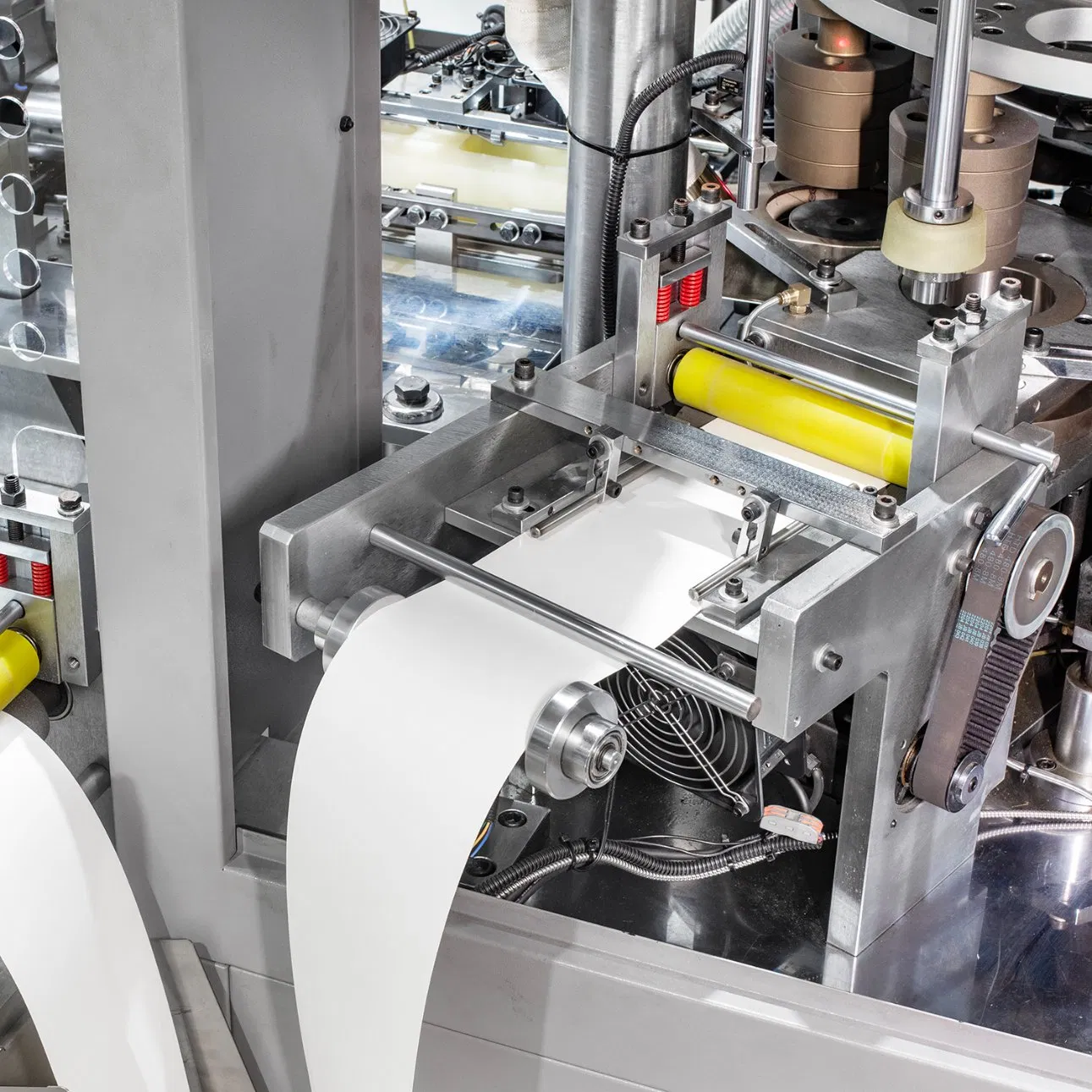

Loading Table: Conveyor Fan Wall Paper Feeding by Step Motor, capacity for 3000-4000 cups at a time.

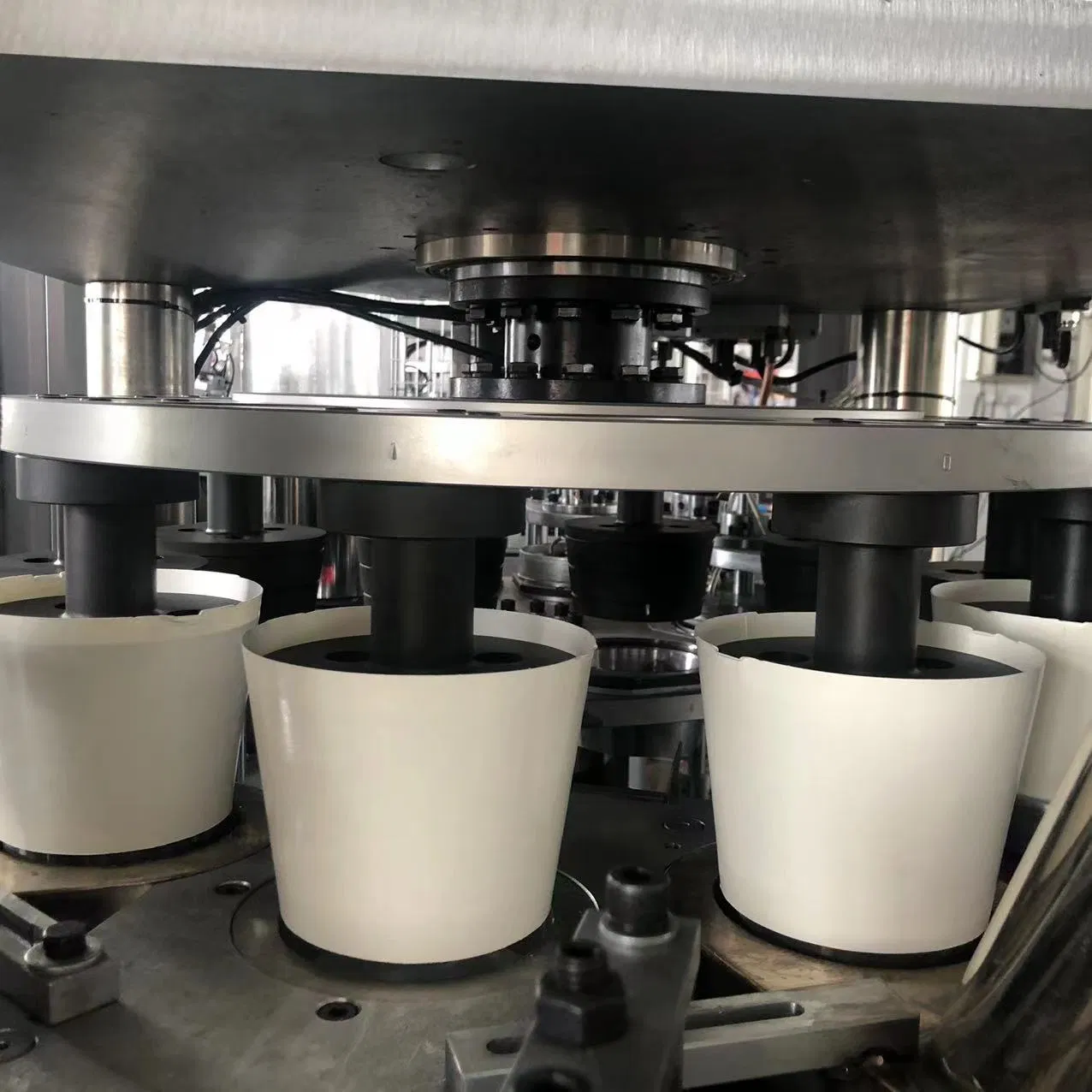

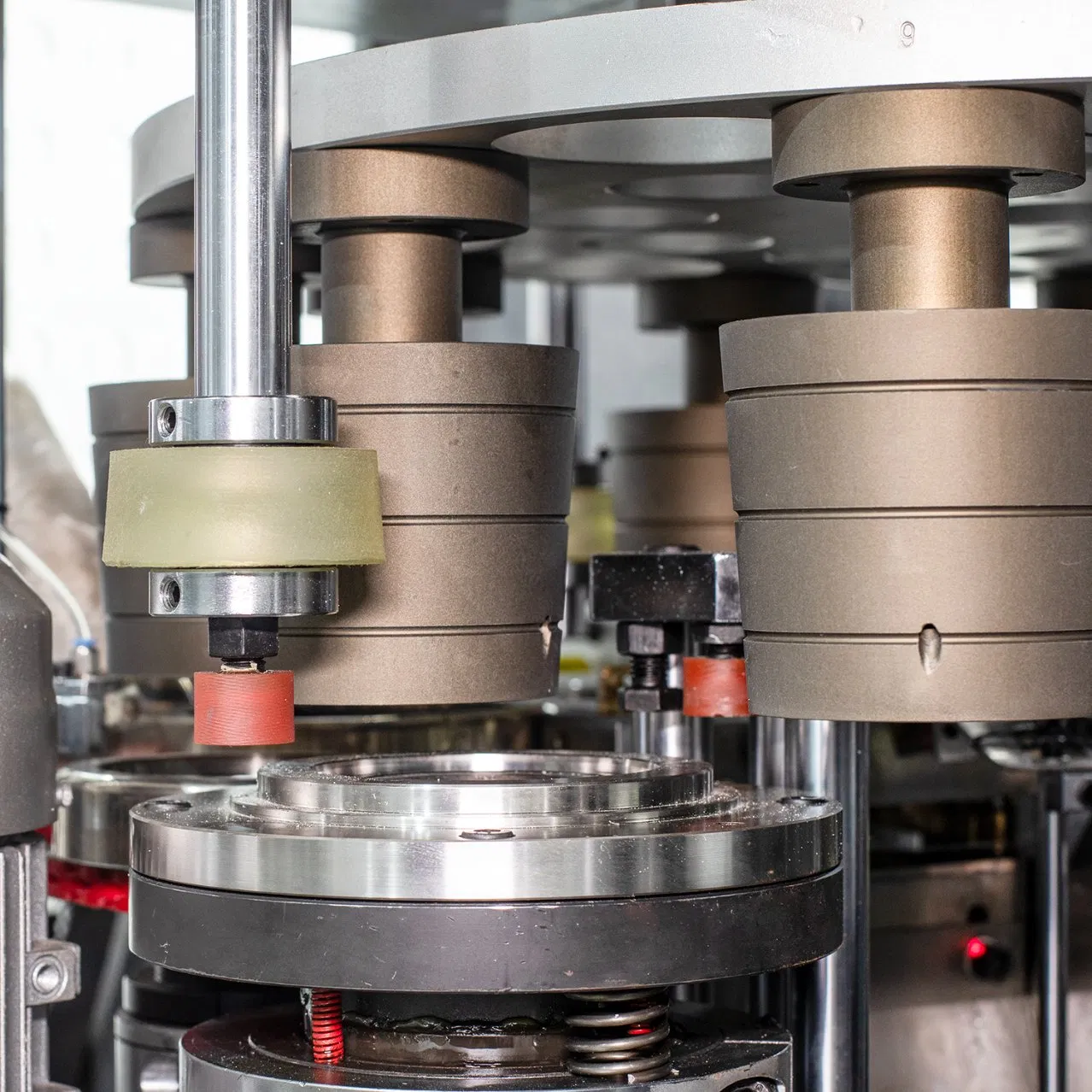

Bottom Forming: Uses the latest heating process with solid aluminum molds for durability and precision.

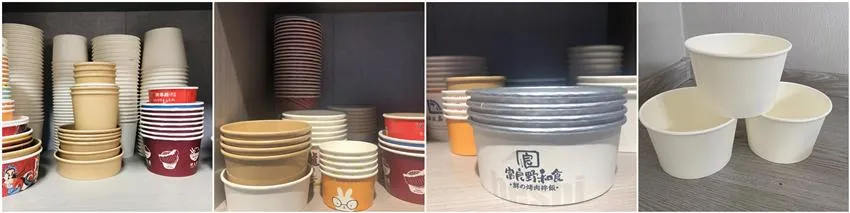

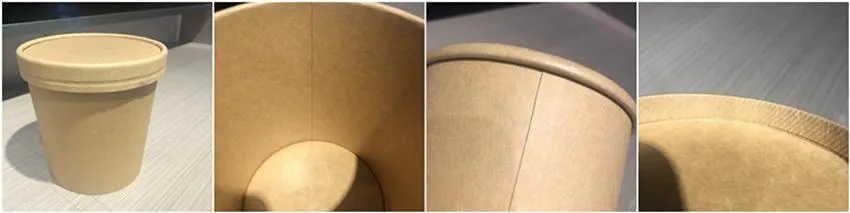

Our machines produce well-detailed paper bowls with stronger sealing and beautiful knurling.

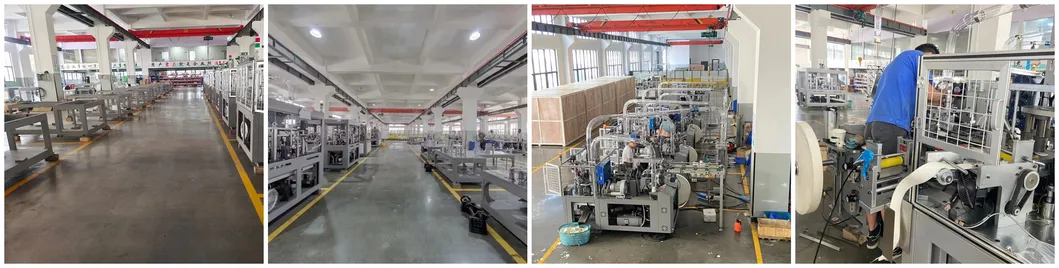

The workshop is well organized and technicians are responsible for every step of the assembly process.
All our machines are CE certified, ensuring international safety and quality standards.
We attend trade fairs regularly. Our machines consistently attract significant interest and orders due to their high performance and reliability.
