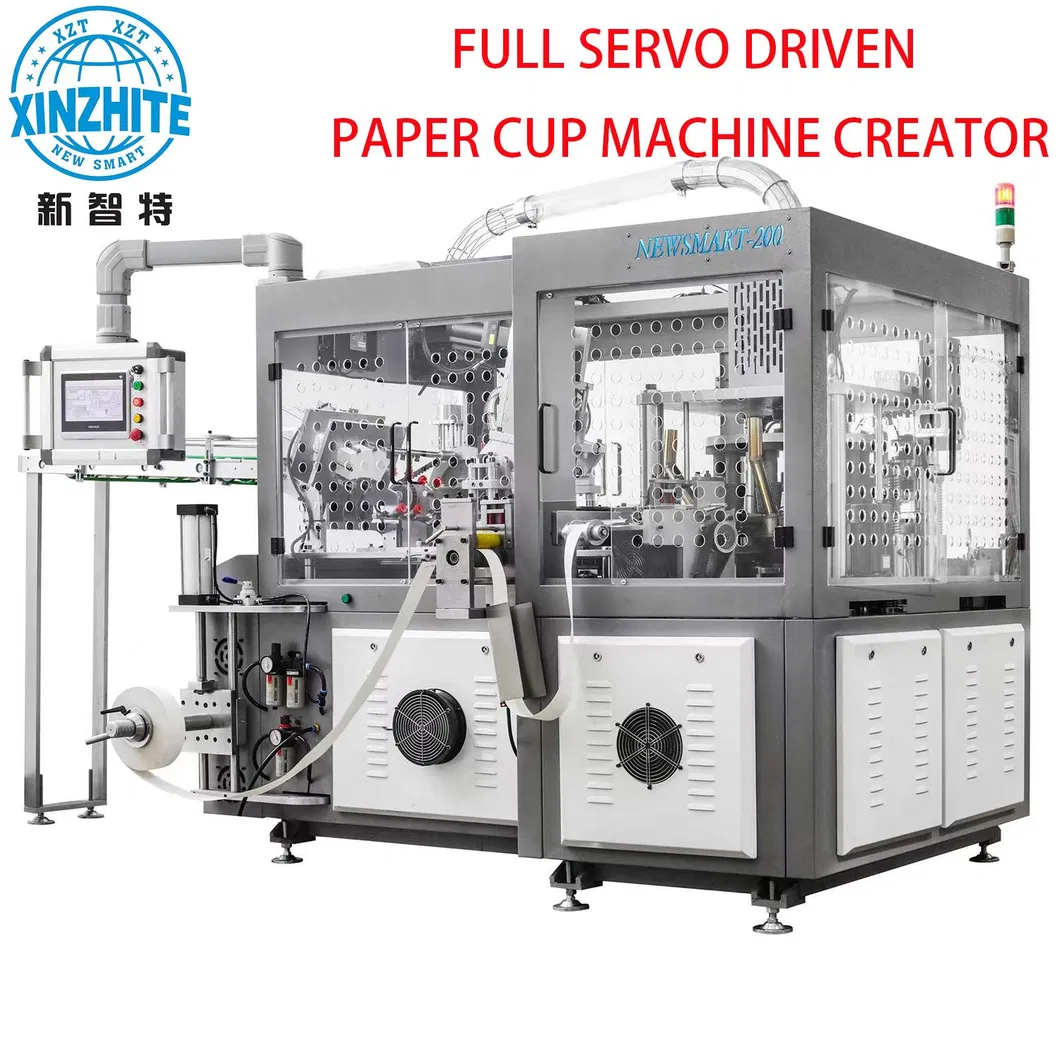

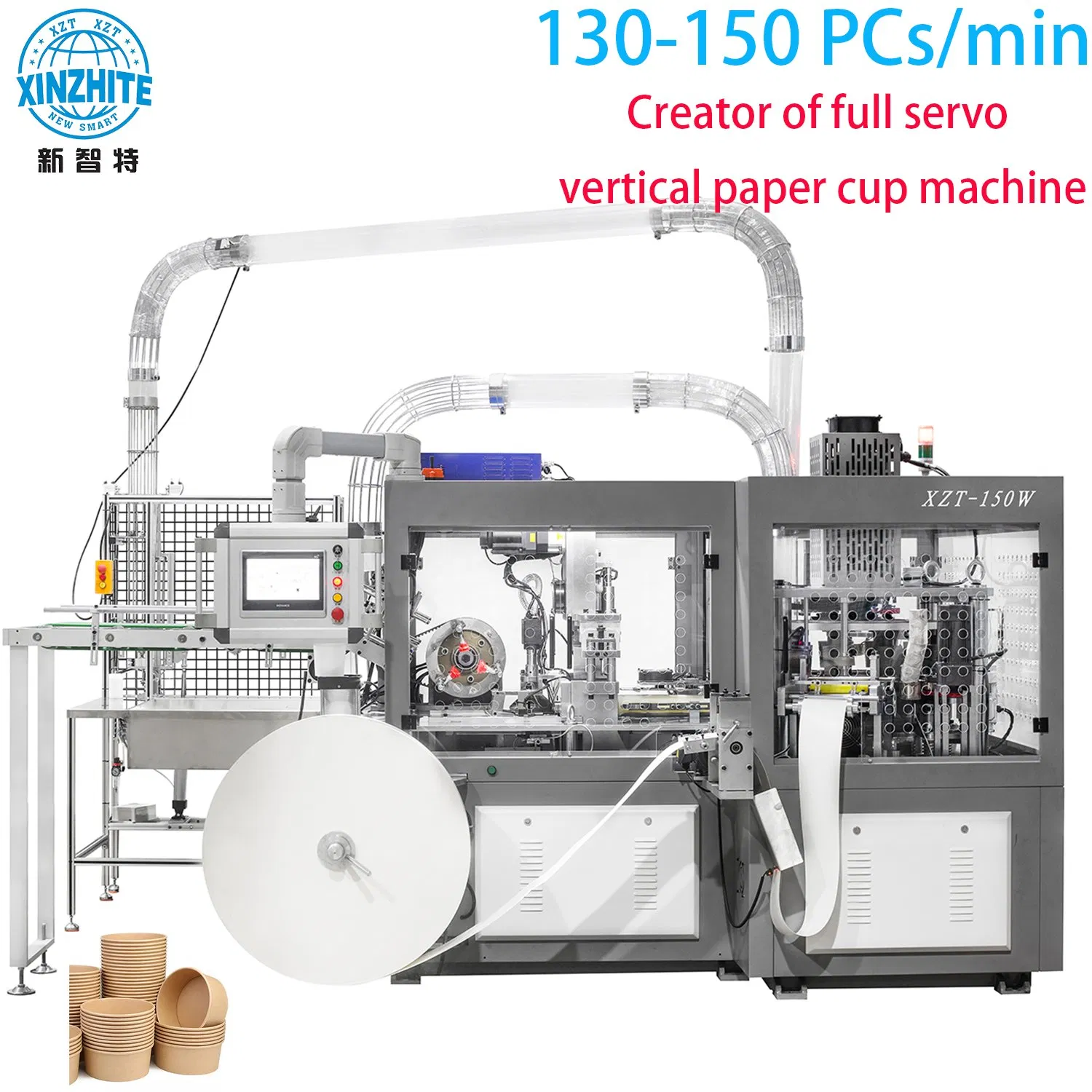

XZT-150W features full servo-driven technology throughout the entire machine. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion.
It replaced the market with almost a gear/chain transmission and cam design paper cup machine, providing flexibility, speed, affordable capital cost, and low maintenance.
| Model | XZT-150W Paper Bowl Machine |
| Bowl size | 15-57oz (Max bottom 130mm, top 150mm, height 135mm) |
| Material | 170-380GSM single or double PE/ PLA coated paper |
| Speed | 120-150pcs/min |
| Power supply | 3 phase 380V 50Hz, 44KW (Running consumption 20KW) |
| Air supply | 0.6Mpa (Running consumption 0.5Nm3/min) |
| Dimension(mm) | 2760L*2160W*1925H |
| Weight | 4500kgs |

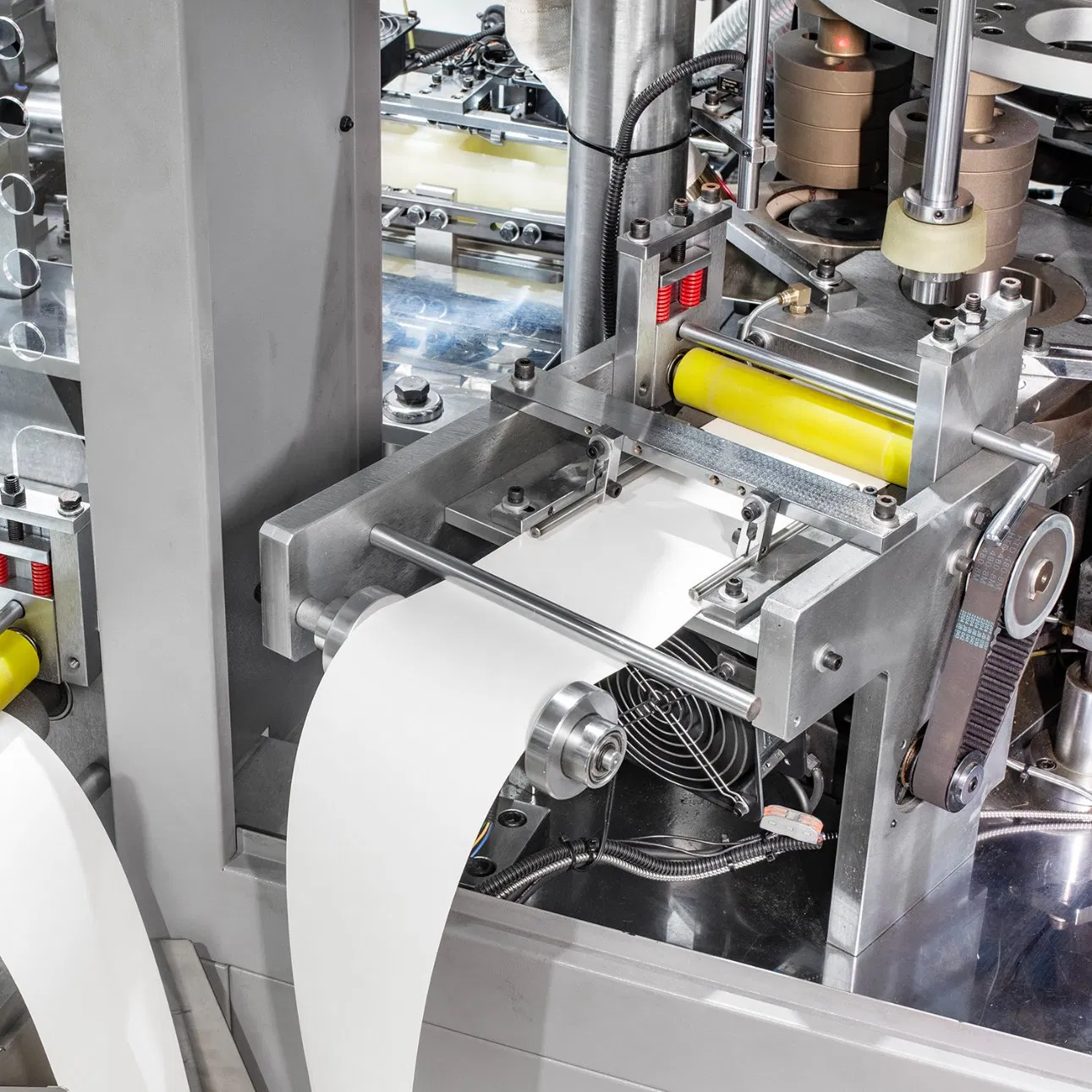

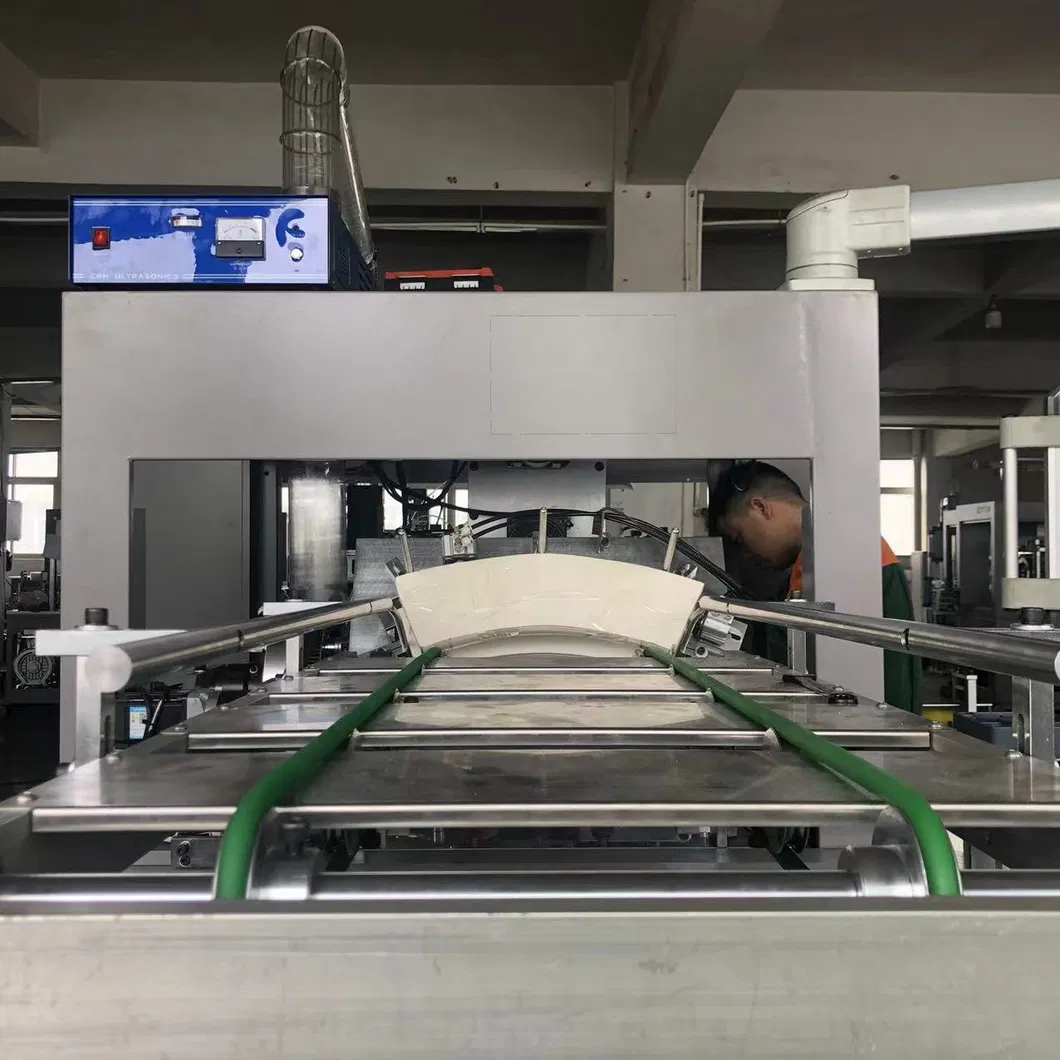

Loading table with full cup fan paper feeding by Step Motor.

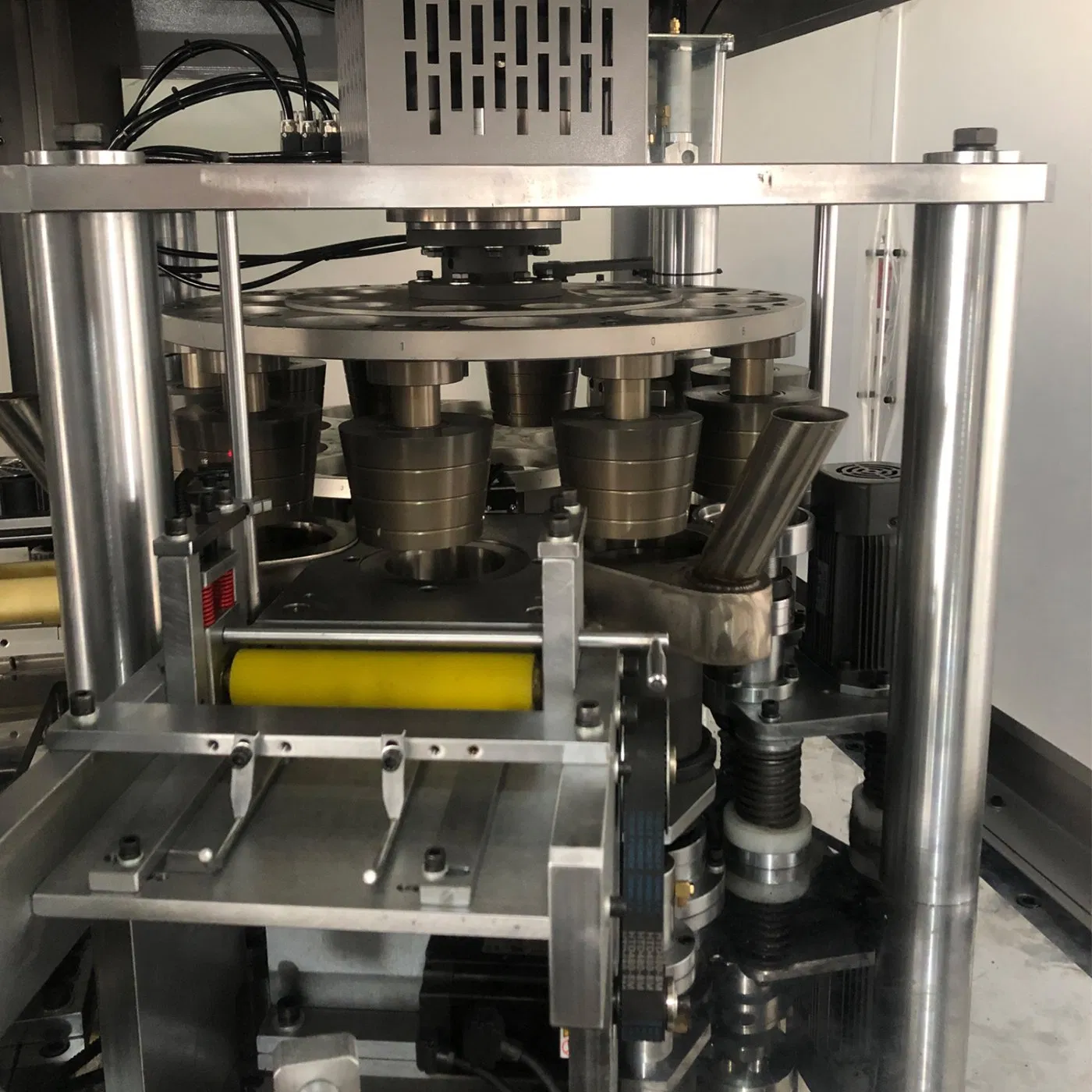

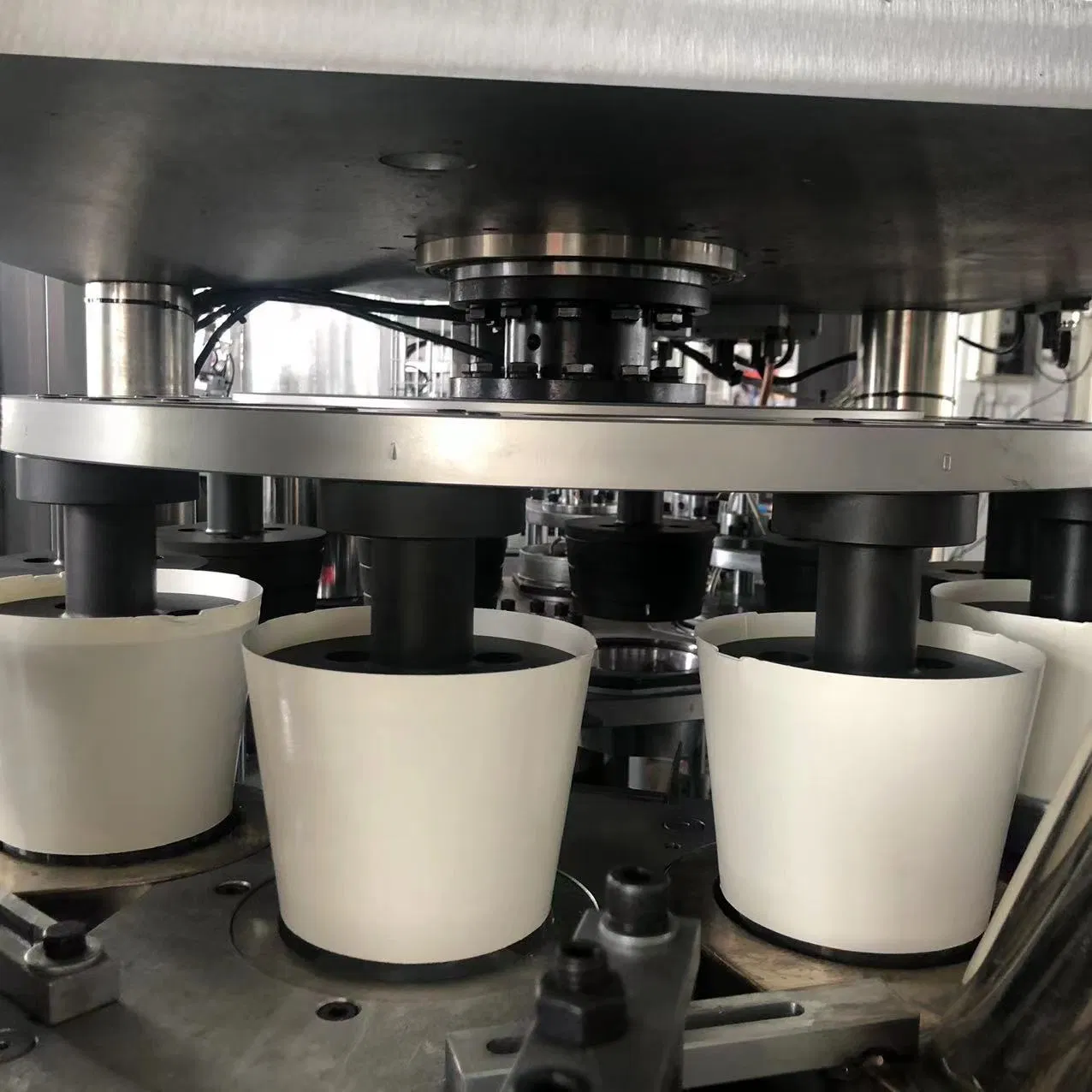

Bottom forming device using whole solid aluminum material molds.

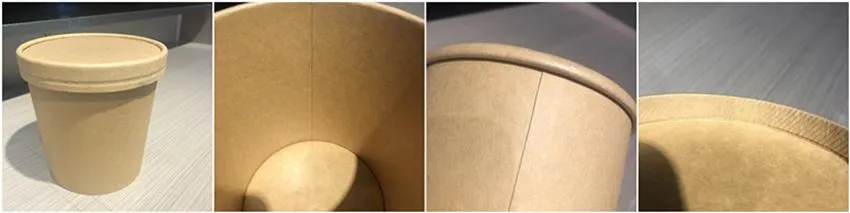

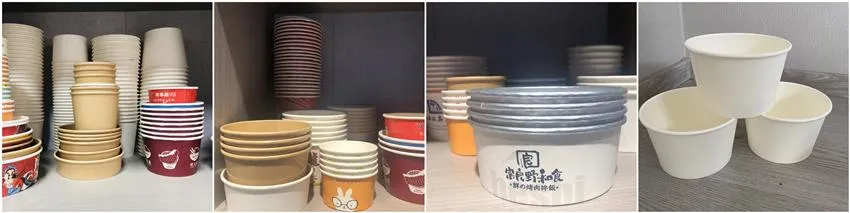

Our machines produce well-detailed paper bowls with stronger sealing and beautiful knurling.

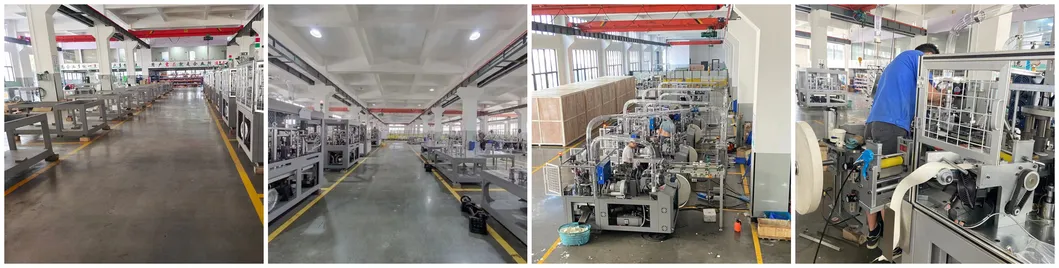

The workshop is well organized and technicians are responsible for every step of assembly.
All machines are CE certified and built for easy maintenance.
We attend trade fairs regularly and look forward to meeting you in the near future.
