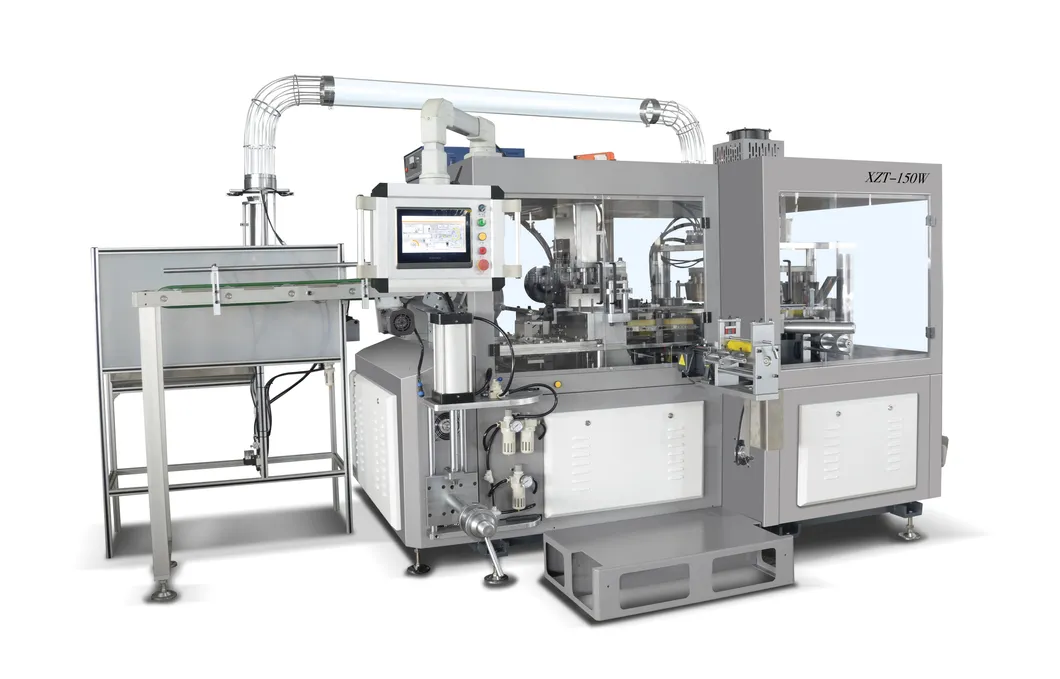

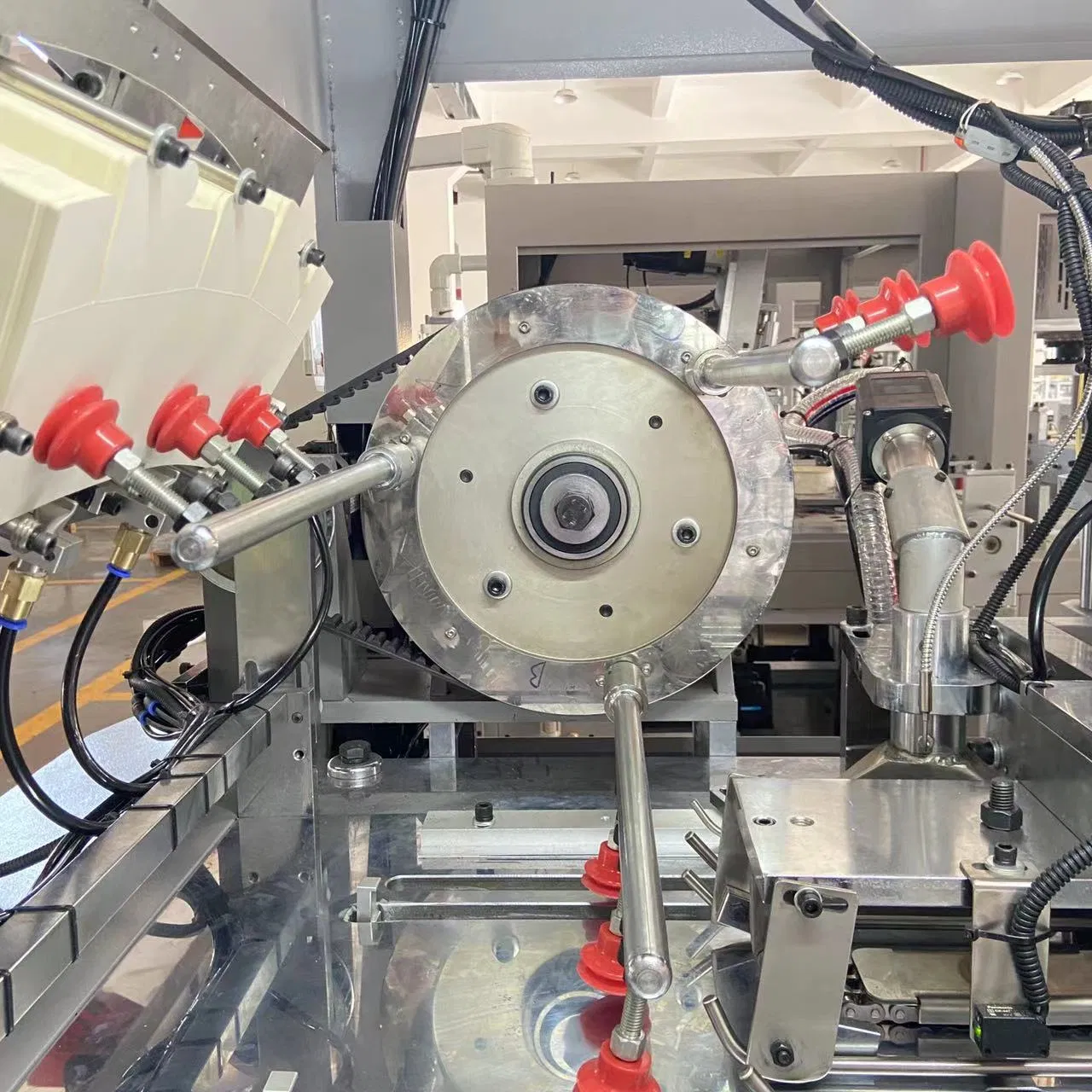

High-speed doner box-making machine
1. XZT-150W features full servo-driven technology throughout the entire machine.

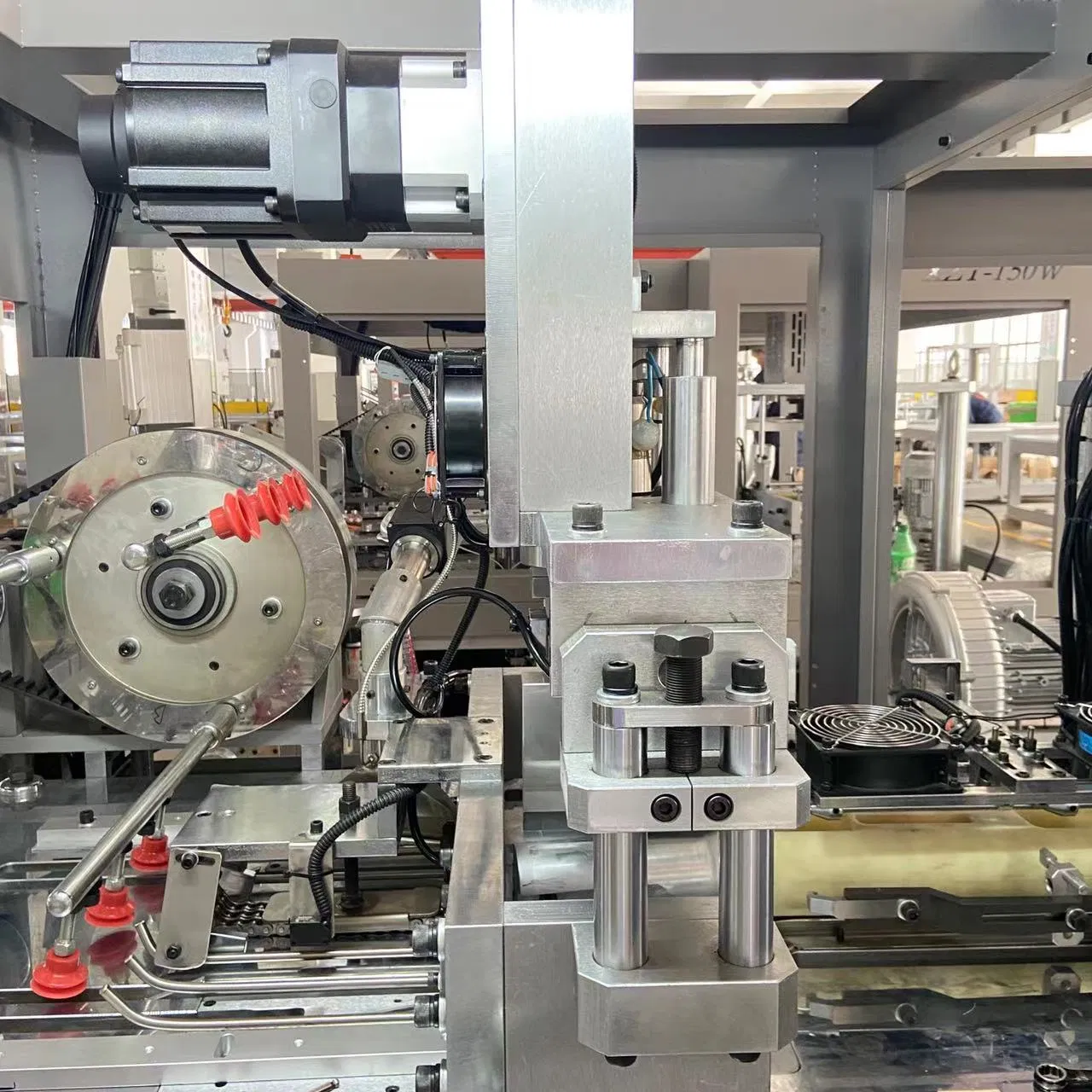

2. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion.
3. It replaced the market with almost a gear /chain transmission and cam design paper cup machine.
4. It provides flexibility, speed, affordable capital cost, and low maintenance.
| Specification | Details |
|---|---|
| Model | XZT-150W doner Box Machine |
| Size | 15-57oz (Max bottom 130mm, top 150mm, height 135mm) |
| Material | 170-380GSM single or double PE/ PLA coated paper |
| Speed | 130-150pcs/min |
| Power supply | 3 phase 380V 50Hz, 44KW (consumption 20KW) |
| Air supply | 0.6Mpa (consumption 0.5Nm3/min) |
| Dimension(mm) | 2760L*2160W*1925H |
| Weight | 3500kgs |

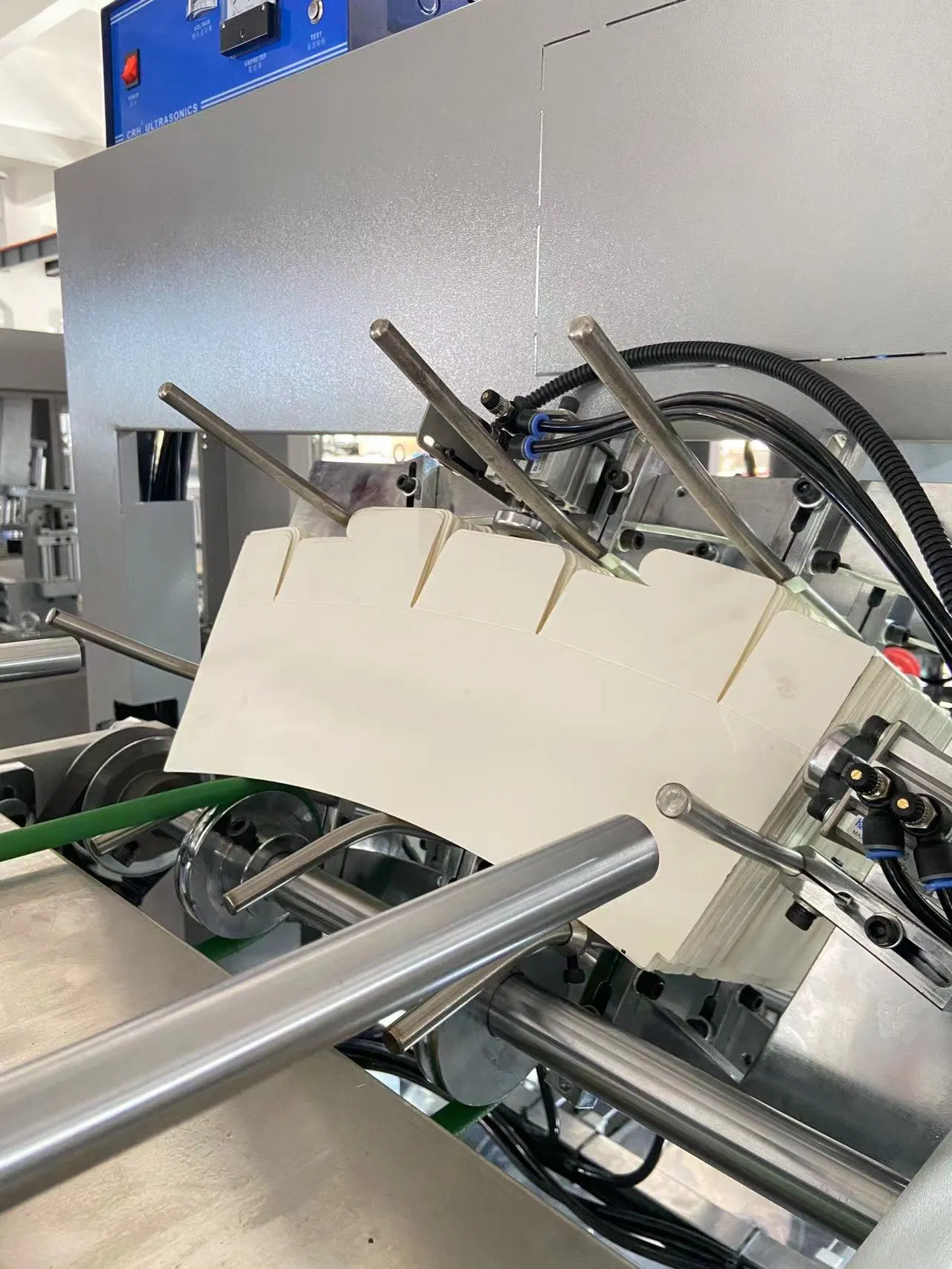

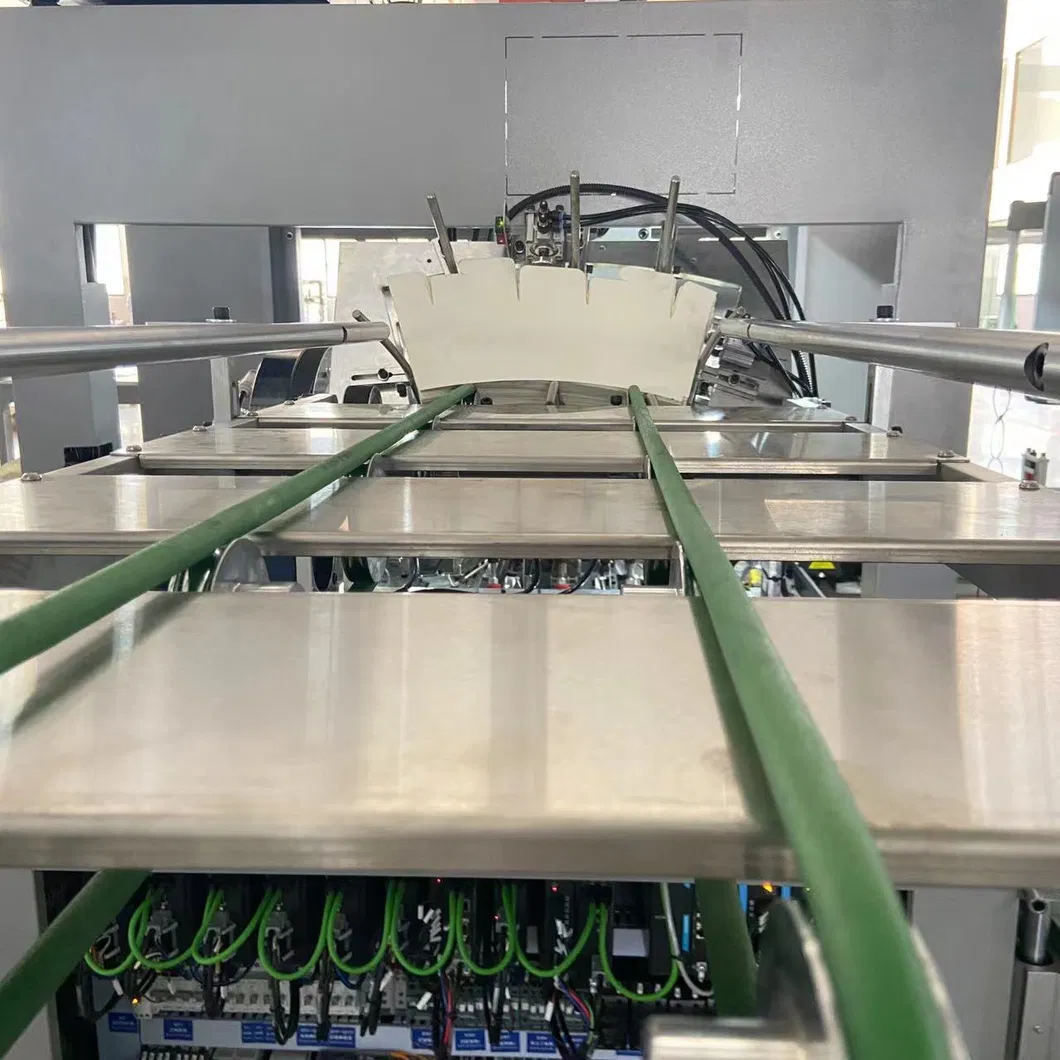

Loading table with full cup fan paper for forming 3000-4000 boxes at a time.

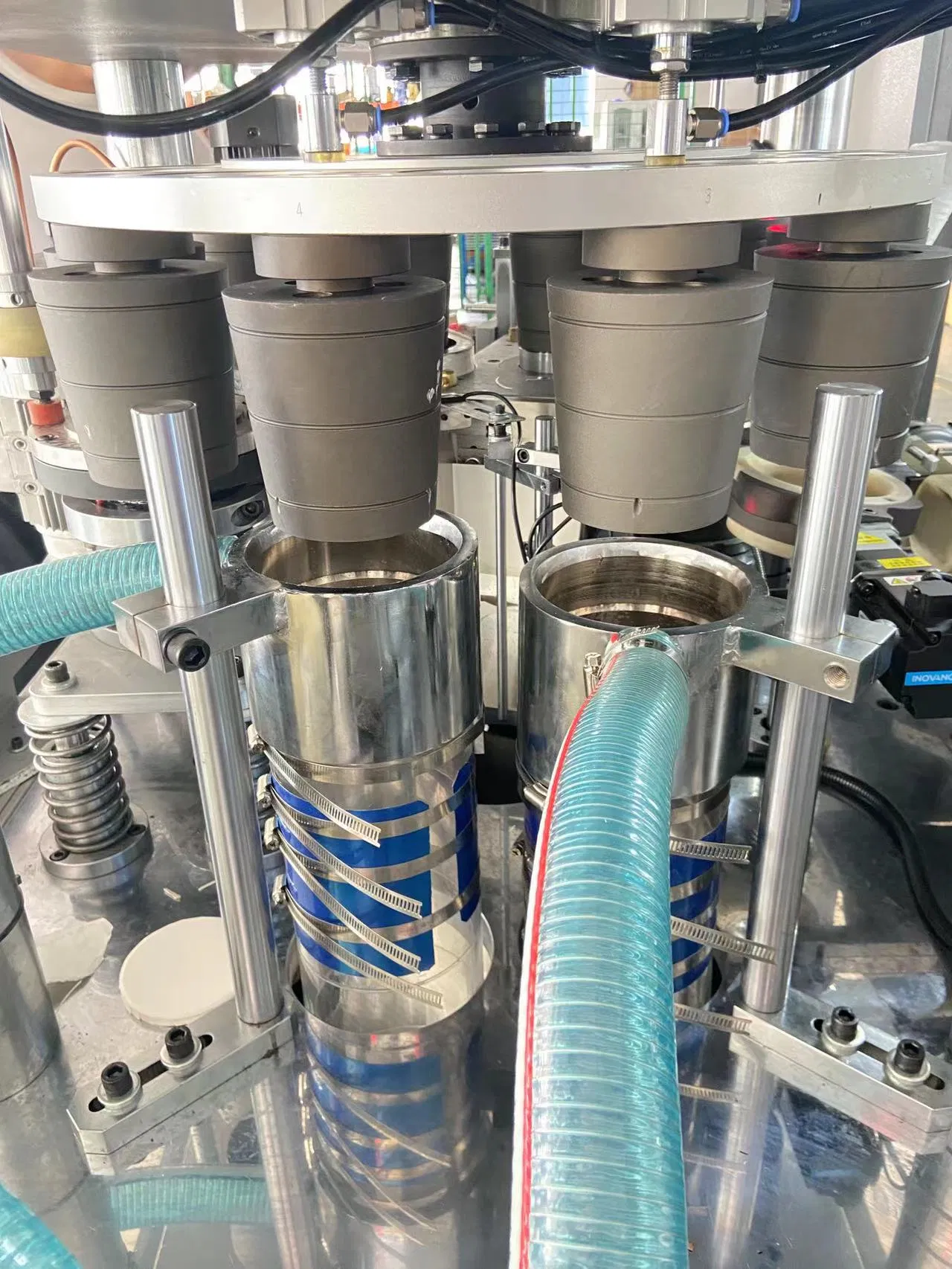

Bottom forming device using the latest heating process with solid aluminum mold.

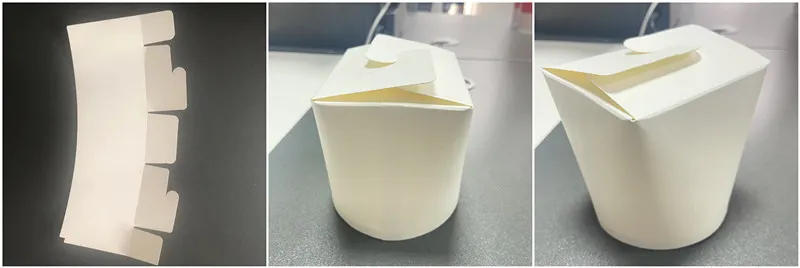

Our machines produce very well-detailed paper products with stronger sealing.

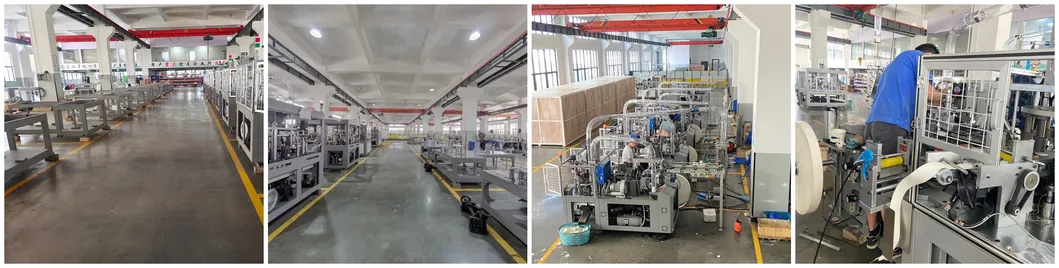

The workshop is well organized and our technicians are responsible for every step of the assembly process.
All our machines are CE-certified.
We attend trade fairs regularly and look forward to meeting you in the near future.
