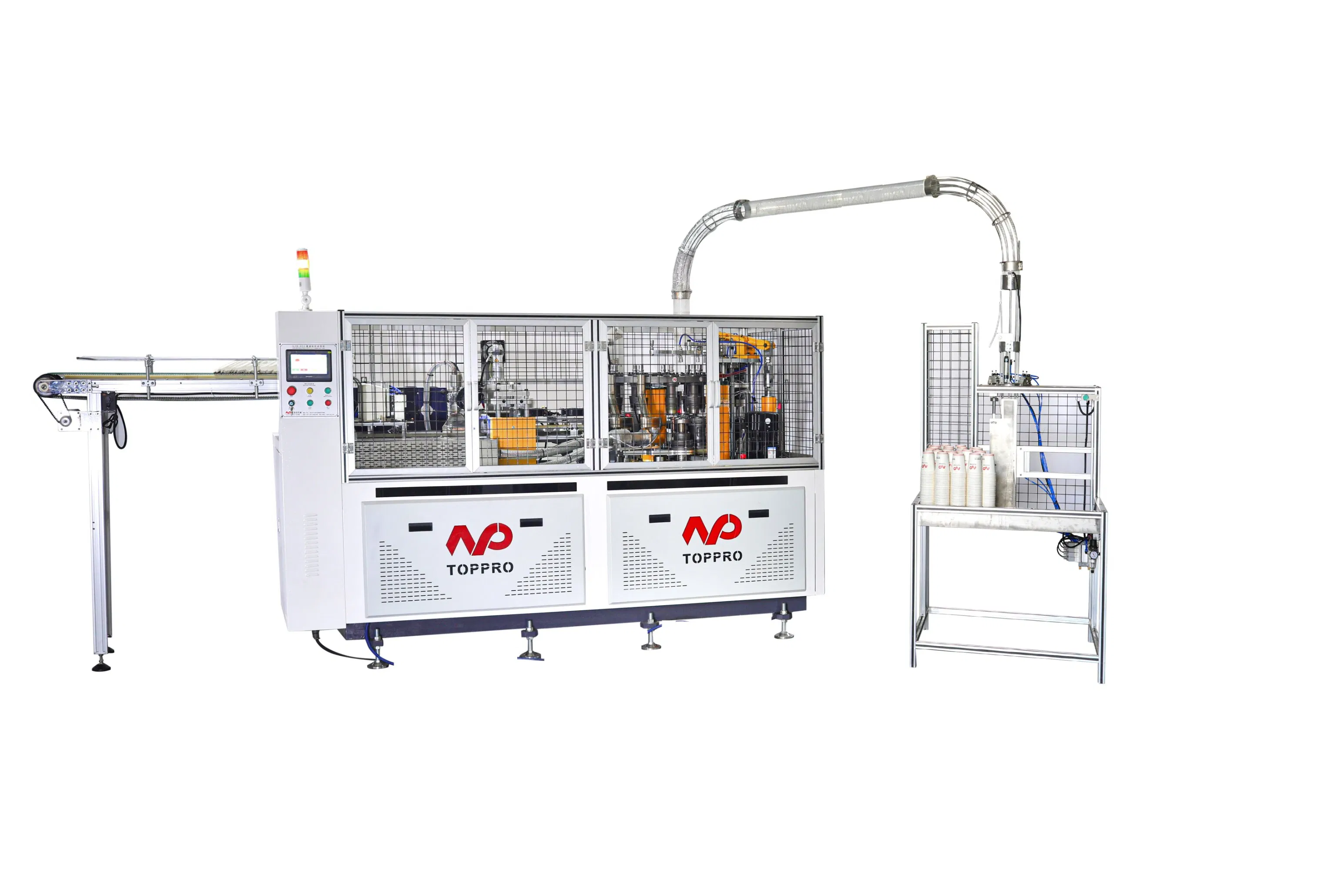

GZB-600 High-speed paper cup forming machine is a high-performance system featuring a double turntable and dual-segment operation. It integrates automatic paper fan feeding, ultrasonic side sealing, cup top lubrication, automatic bottom paper feeding, double curling artwork, and automatic cup collection. It is versatile enough to produce cups from both single PE and double PE coated paper, suitable for both cold and hot drinks. The machine reaches a maximum speed of 180pcs/min, with a stable running speed of 130-150pcs/min depending on paper quality.

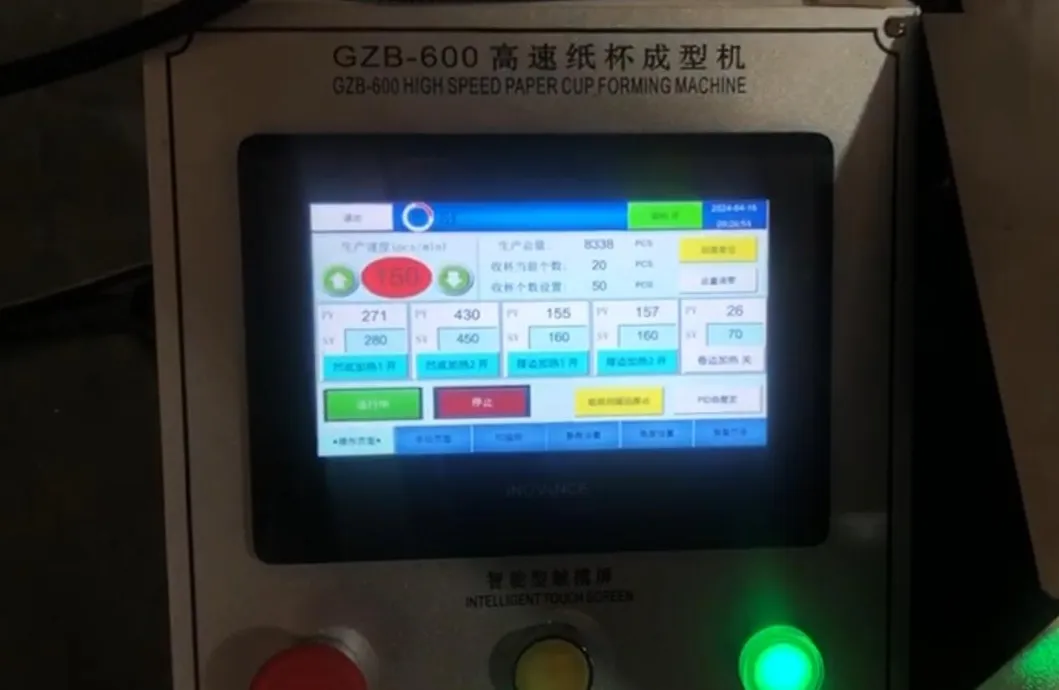

Intelligent Control: Human-computer interface PLC touch screen for controlling all settings. Features a full automatic counting system for finished cups, ensuring long-term stability and intelligent operation.

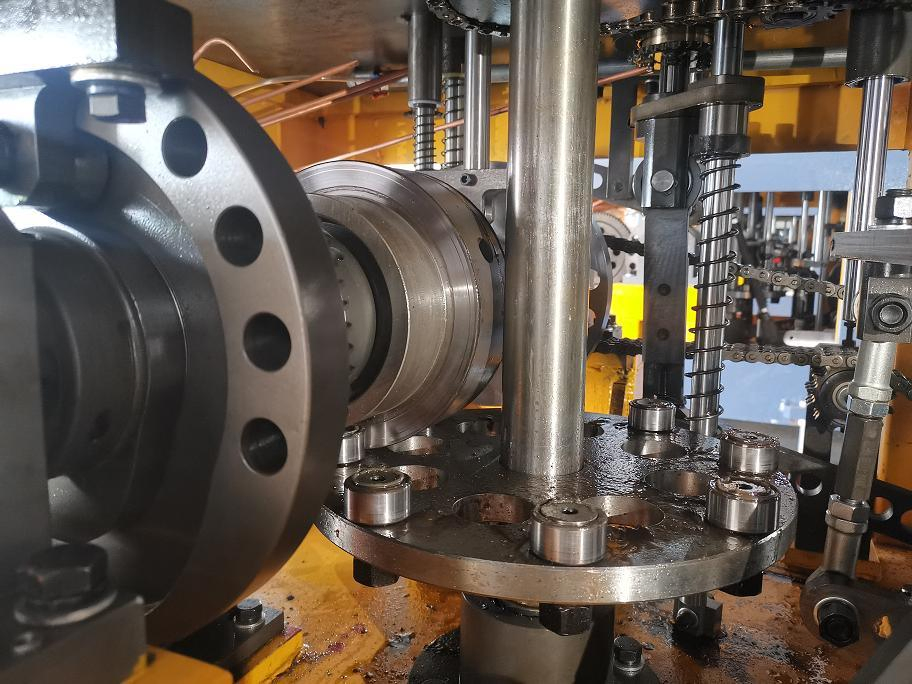

High Precision Transmission: Imported high-precision CAM driving system with gear transmission replaces traditional systems, ensuring accurate and unmistakable molding at each station.

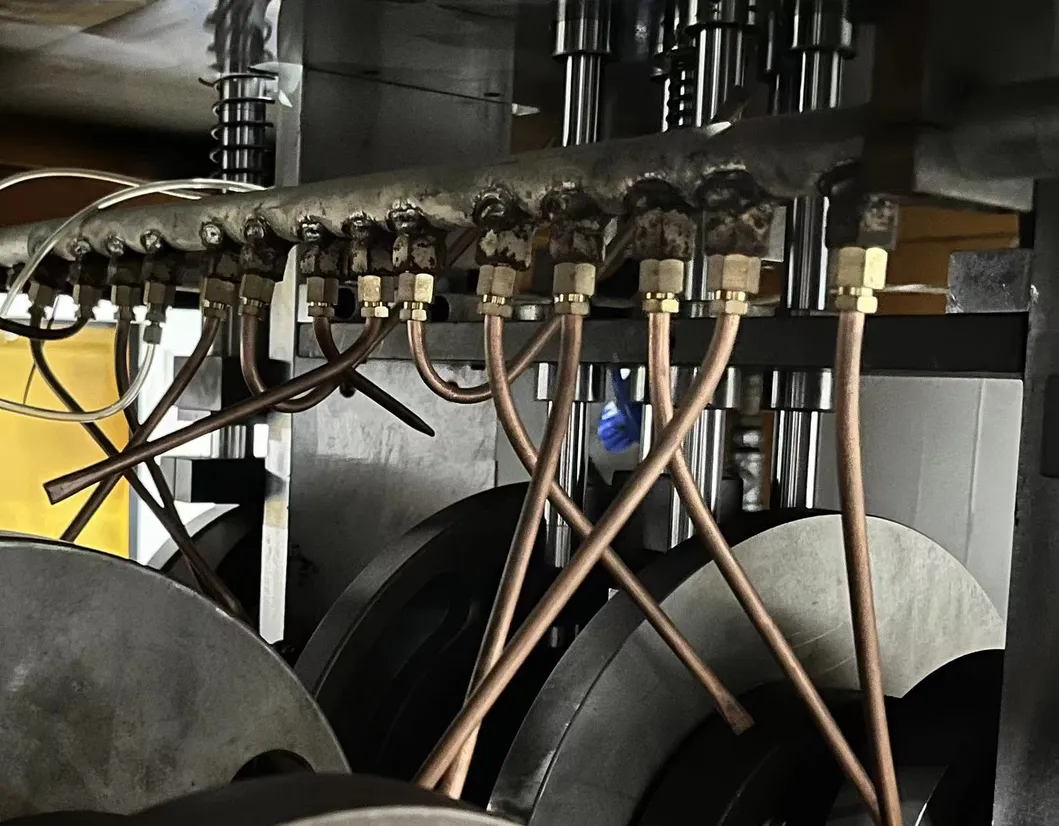

Advanced Lubrication: Oil circulation and filtration for the driving system at the machine bottom ensures long-term stable running of transmission parts.
| Parameter | Specification |
|---|---|
| Model | GZB-600 |
| Raw Material | Single PE or Double PE |
| Speed | 130-150 PCS/Min |
| Voltage Supply | 380V, 50Hz |
| General Power | 13kw |
| Paper Size | 210-330g/m² |
| Measurement | 2800 x 1400 x 1700 (mm) |
| Cup Side Sealing | Ultrasonic Sealing |

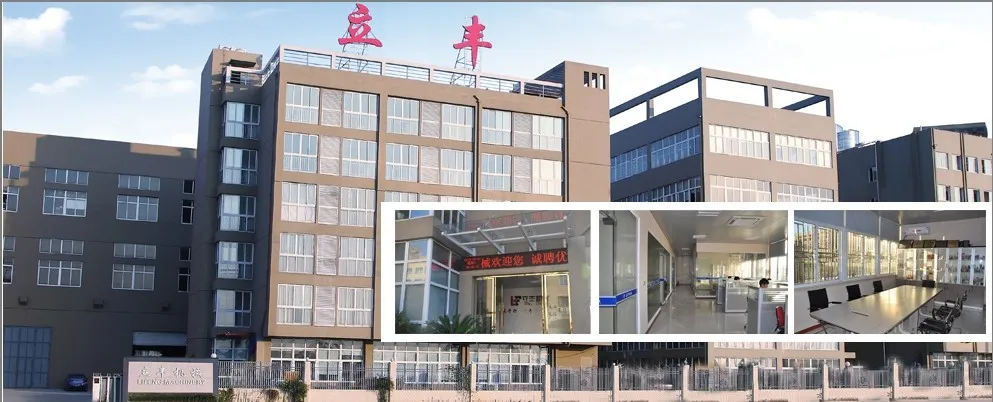

We are a professional manufacturer of paper container machinery, established in 1999. Our product range includes paper cup machines, paper bowl machines, paper cone machines, and die punching machines. Our facility occupies over 9,000 square meters and is CE & SGS certified. With over 10 years of successful foreign trading experience across Europe, South America, Africa, and Southeast Asia, we prioritize quality and service excellence.
