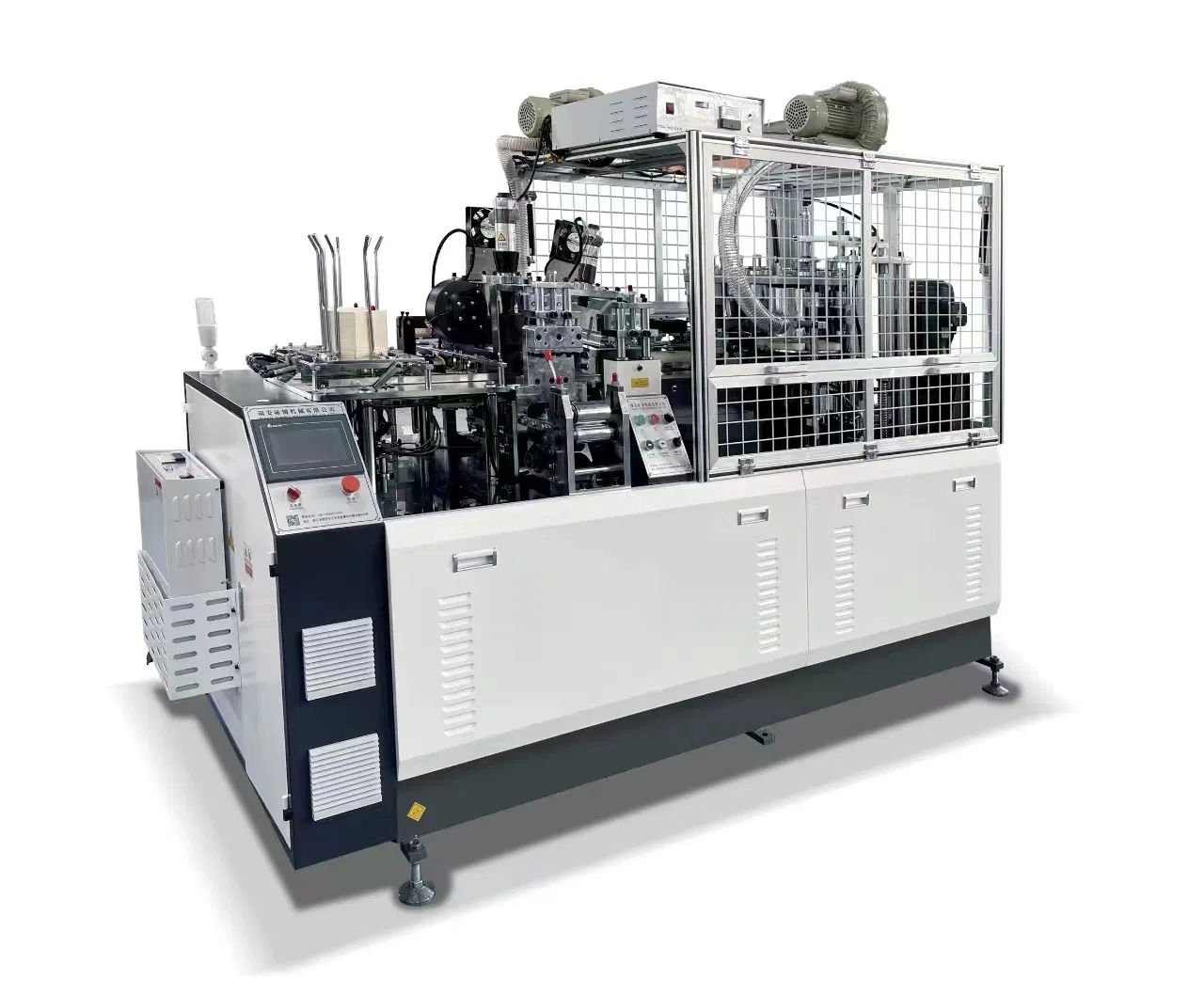

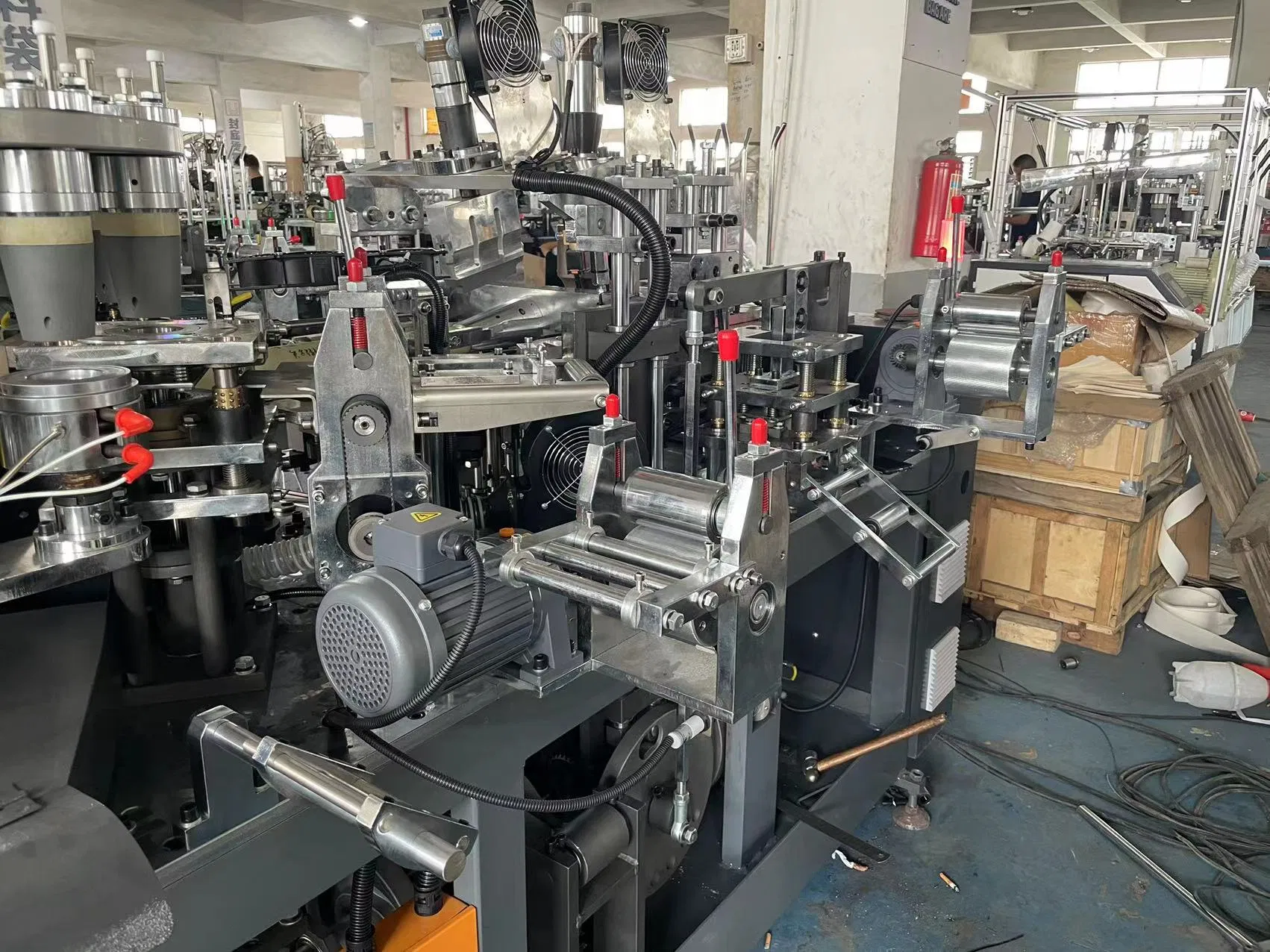

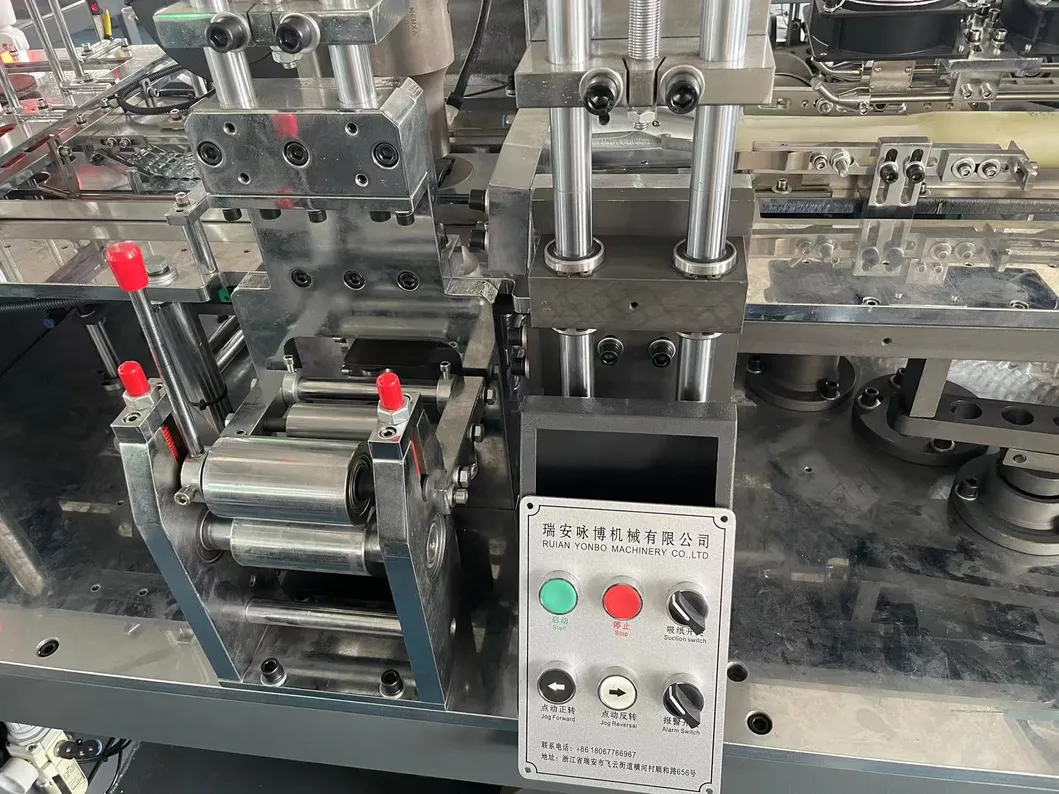

Brief Description: YB-NB100 is a medium speed paper cup with handle machine.

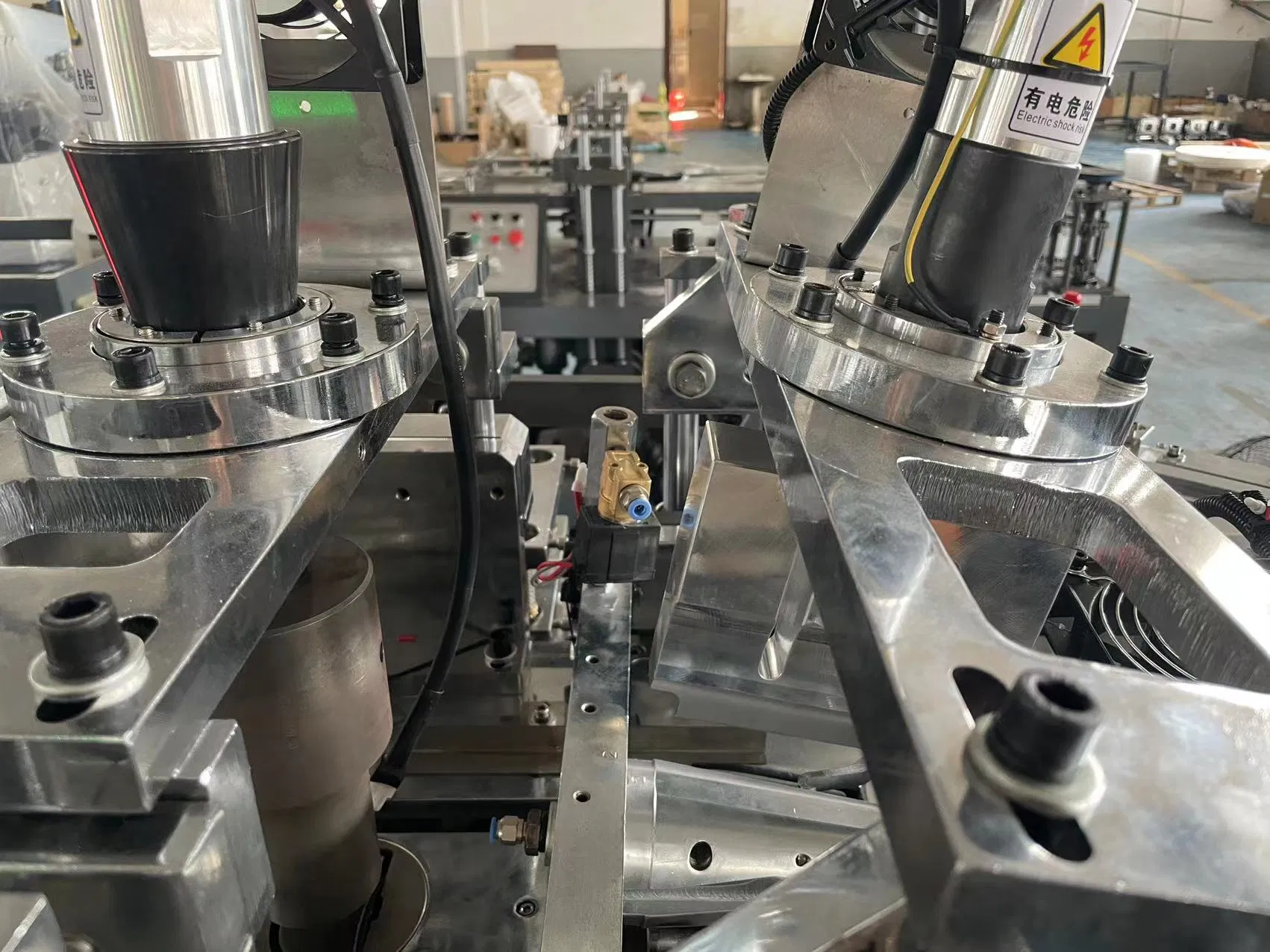

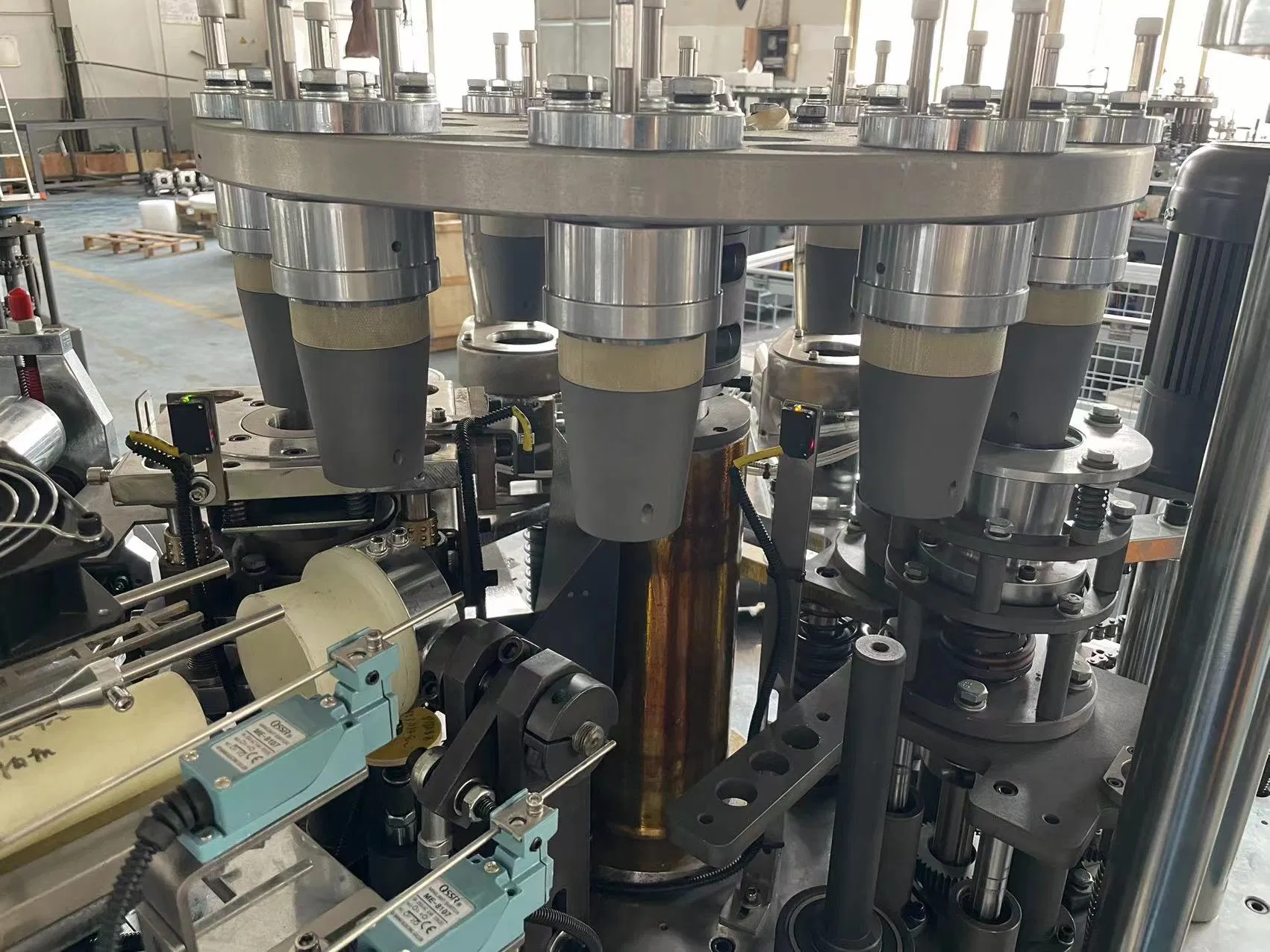

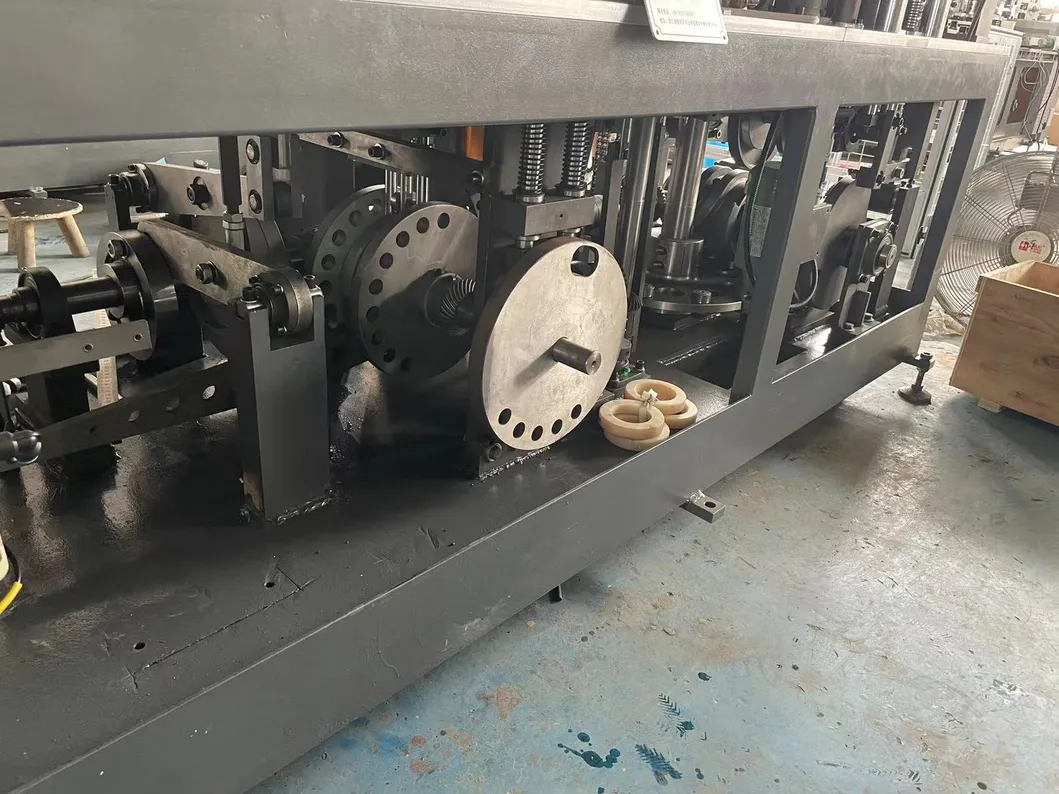

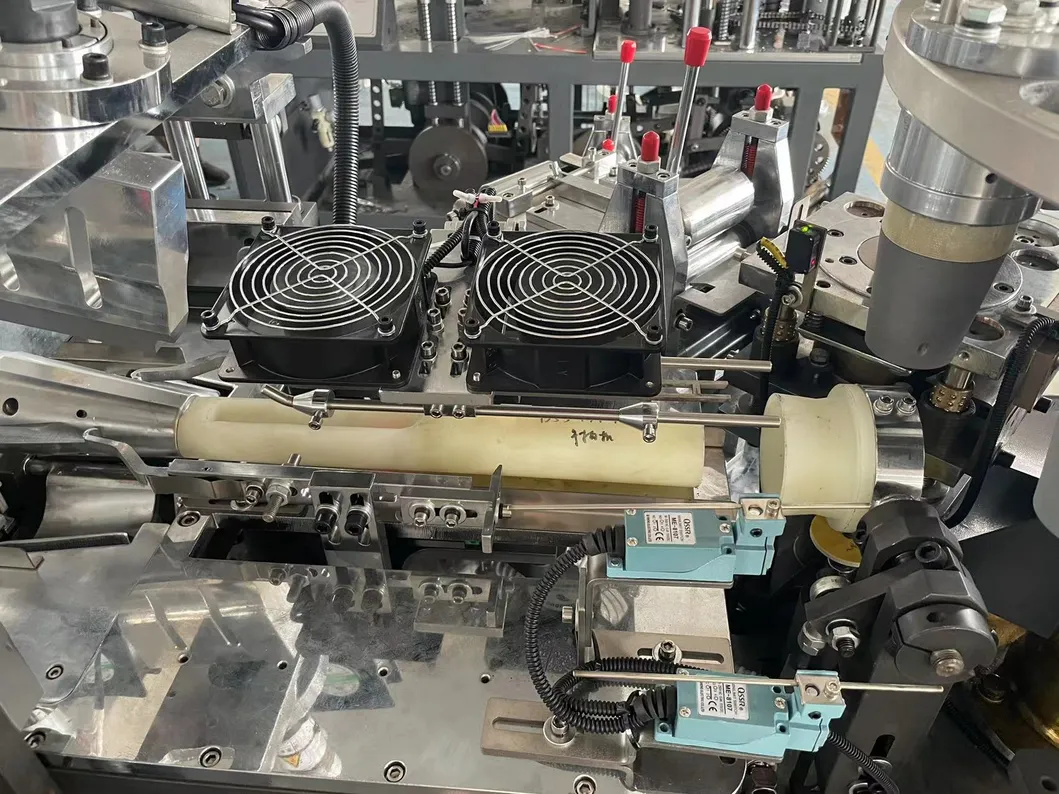

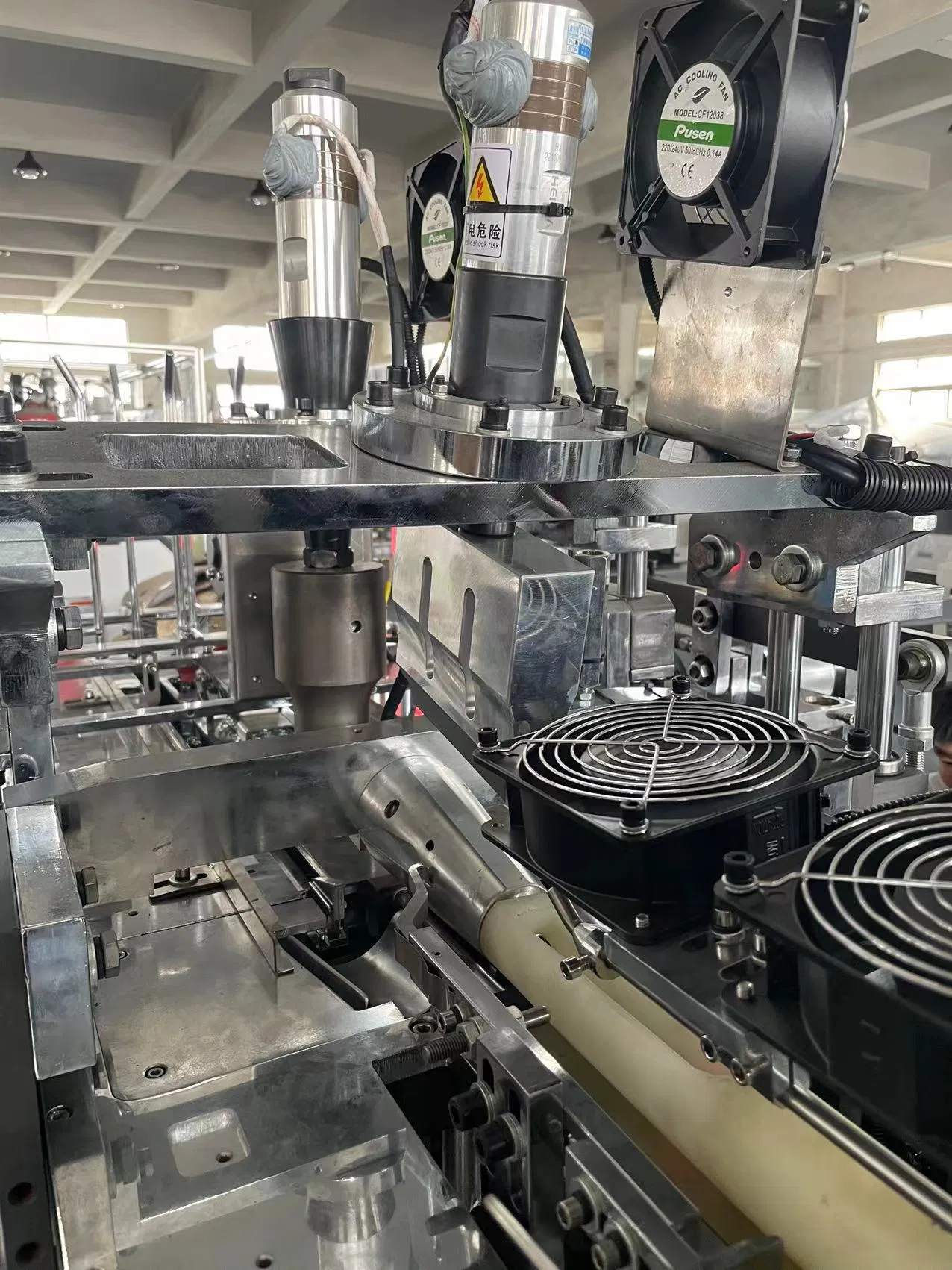

An upgraded single turntable paper cup machine achieves a faster cup making speed of 90-110pcs/min which benefits from the low mold stroke and the design of highly integrated working station. Whole machine main transmission parts are equipped with automatic spray oil lubrication system to reduce wear and tear. Meanwhile, it adopts open type intermittent cam system and helical gear transmission, which makes up for the inherent insufficiency of jitter and unstable transmission of chain transmission and greatly prolongs the service life of the machine and reduces the failure rate of the machine. While ensuring high accuracy, it guarantees the stability of the machine's operation, low noise and high production capacity.
The whole cup making process is controlled and monitored by Delta inverter, Delta servo feeding, Delta PLC, Delta human-computer interaction touch screen, Omron/Fotek proximity switch, Panasonic sensor, etc., thereby improving the performance of the equipment and achieving fast and stable running. High degree of automation and automatic shutdown in case of failure to minimize the labor intensity of workers and achieve operational safety.

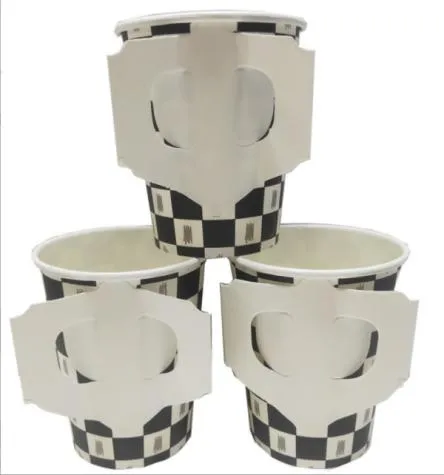

| Paper Cup Specification | 4-16oz (100-450ml) (mold exchangeable) Top: 55-90mm Height: 60-135mm Bottom: 55-60mm |
| Paper Specification | 150-350 GSM single/double PE coated paper |
| Production Capacity | 90-110pcs/min |
| Power Source | 380V 50HZ 3Phases |
| Average Power | 6KW (Total Power: 9KW) |
| Air Supply Requirement | Compressed air: 0.5-0.8Mpa Air outlet: 0.6cbm/min |
| Total Weight | 2000KG |
| Package Size (L*W*H) | 2800*1500*1900mm |
| Component | Qty | Brand |
|---|---|---|
| Touch screen | 1 | Delta |
| Inverter | 1 | Delta |
| Step drive | 1 | Xinghuo |
| Temperature module | 1 | WK8H |
| PLC | 1 | Delta |
| Ultrasonic | 1 | Kejian |
| Switch mode | 1 | Mingwei |
| Solid state | 6 | Fotek |
| Air switch | 5 | CHNT |
| AC contact | 4 | Schneider |
| Photo electric switch | 8 | Panasonic |
| Midget replay | 6 | Omron |
| Coder | 1 | Omron |
| PLC magnification plate | 1 | Omron |
| Phase order protector | 1 | CHNT |
Note: Machines are being improved constantly, configuration is subject to the latest design and technology. Minor configuration changes are subject to change without notice.
