Customization: Available
Warranty: 3year
Applicable Objects: Food
Send Inquiry

Product Description

📋

Basic Specifications

Cup Size
22OZ-32OZ
Speed
100-120pcs/min
Required Paper
Single Side PE Coated Paper
Automation
Automatic
Certification
CE
After-sales Service
3 Years
Max Cutting Area
950mmx520mm
Cutting Precision
0.2mm
Paper Gram Weight
135-400g
Max Pressure
150 T
Total Power
12kw
Origin
China
⚙️

Product Description

Introduction:

FD series automatic web die-cutting machine based on international advanced technology, has a high stability, high safety performance, high precision of the finished product, it's widely used in printing, packaging and paper products industries. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing.

Model FD970x550 FD970x640 FD1080X550
Max Cutting Area 950mmx520mm 950mmx610mm 1050mmX520mm
Cutting Precision 0.15mm 0.15mm 0.15mm
Paper Gram Weight 135-400g 135-400g 135-400g
Production Capacity 100-180 times/min 100-180 times/min 100-180 times/min
Max Cutting Pressure 150 T 150 T 150 T
Total Power 12KW 12KW 12KW
🛠️

Main Structure & Features

1

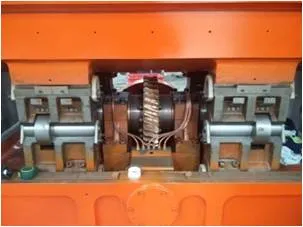

Worm Gear Structure: Perfect worm wheel and worm transmission system ensures the powerful and steady pressure and makes the cutting accurately while the machine runs with high speed. Main base frame, moving frame and top frame adopt high strength Ductile Cast Iron QT500-7.
Structure 1

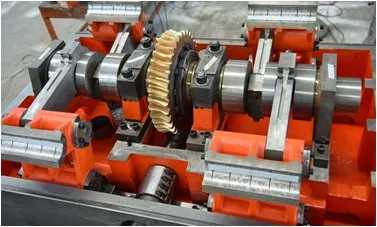

Structure 2

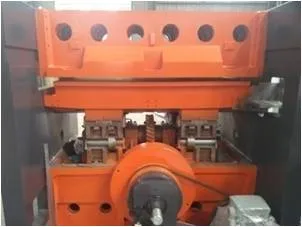

Structure 3
2

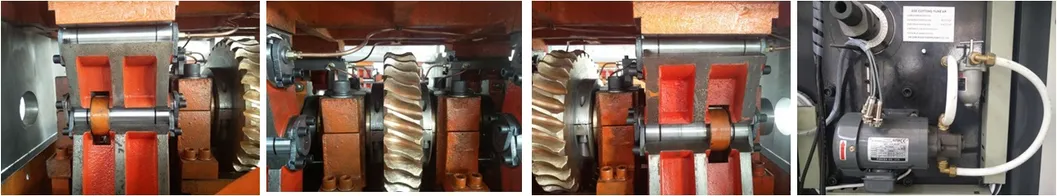

Lubrication System: Adopts forced lubrication system to ensure main driving oil supply regularly and reduce friction and prolong the machine life. Lubrication System
3
Inverter Motor & Clutch: The die-cutting force is provided by a 7.5KW inverter motor driver. Pneumatic clutch brake controls the driving torque with low noise and high brake performance.
4
Electrical Control Pressure: Accurate and fast die-cutting pressure adjustment through the motor to control the four feet by HMI.
5

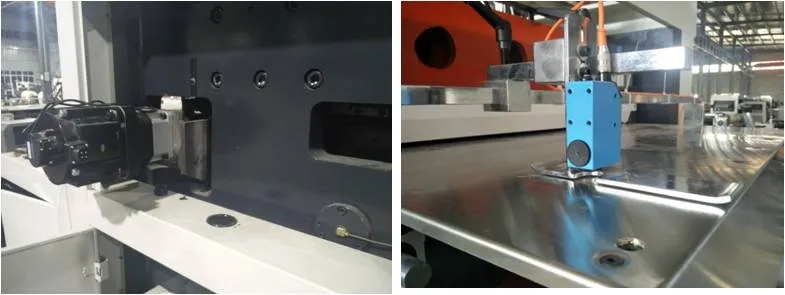

Photoelectric Tracking: The coordination between stepping motor and photoelectric eye assures the perfectly fit of the die-cutting position and figures. Tracking System
6
Electrical Cabinet: PLC and HMI screen display running data and status. All parameters can be set through the screen.
7

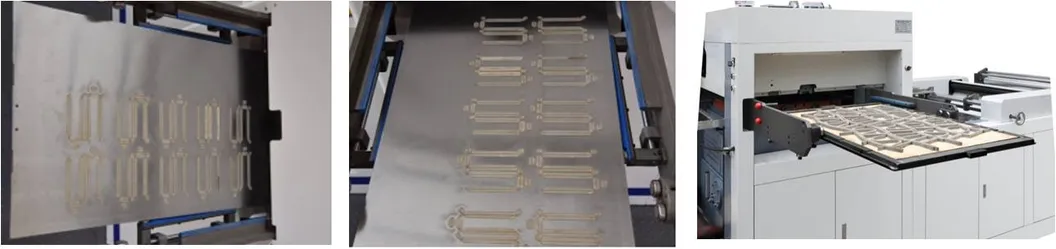

Die Cutting Department: Adopts pneumatic lock version of the device. Die cutting plate uses 65Mn steel with high hardness and flatness. Die Cutting
8
Feeding Unit: Adopts chain type pneumatic roller unwind, tension controls unwind speed. Max roll paper diameter 1.6m. Feeding Unit
❓

Frequently Asked Questions

What is the warranty period for this machine?
The machine comes with a one-year warranty.
Does the machine have international certification?
Yes, our machines are equipped with CE certification.
What is the typical production and delivery time?
The production time is approximately 30 days, and delivery is usually arranged within 30 days after receiving payment.
How is the machine packaged for export?
All machines are packed using strong wooden pallets that meet international export standards to ensure safety during transit.
What are the accepted payment terms?
We accept T/T (30% in advance, balance before delivery), West Union, and L/C.
Are you a direct manufacturer?
Yes, we are a professional manufacturer with over 10 years of experience in this industry.
