⚙️ Product Description

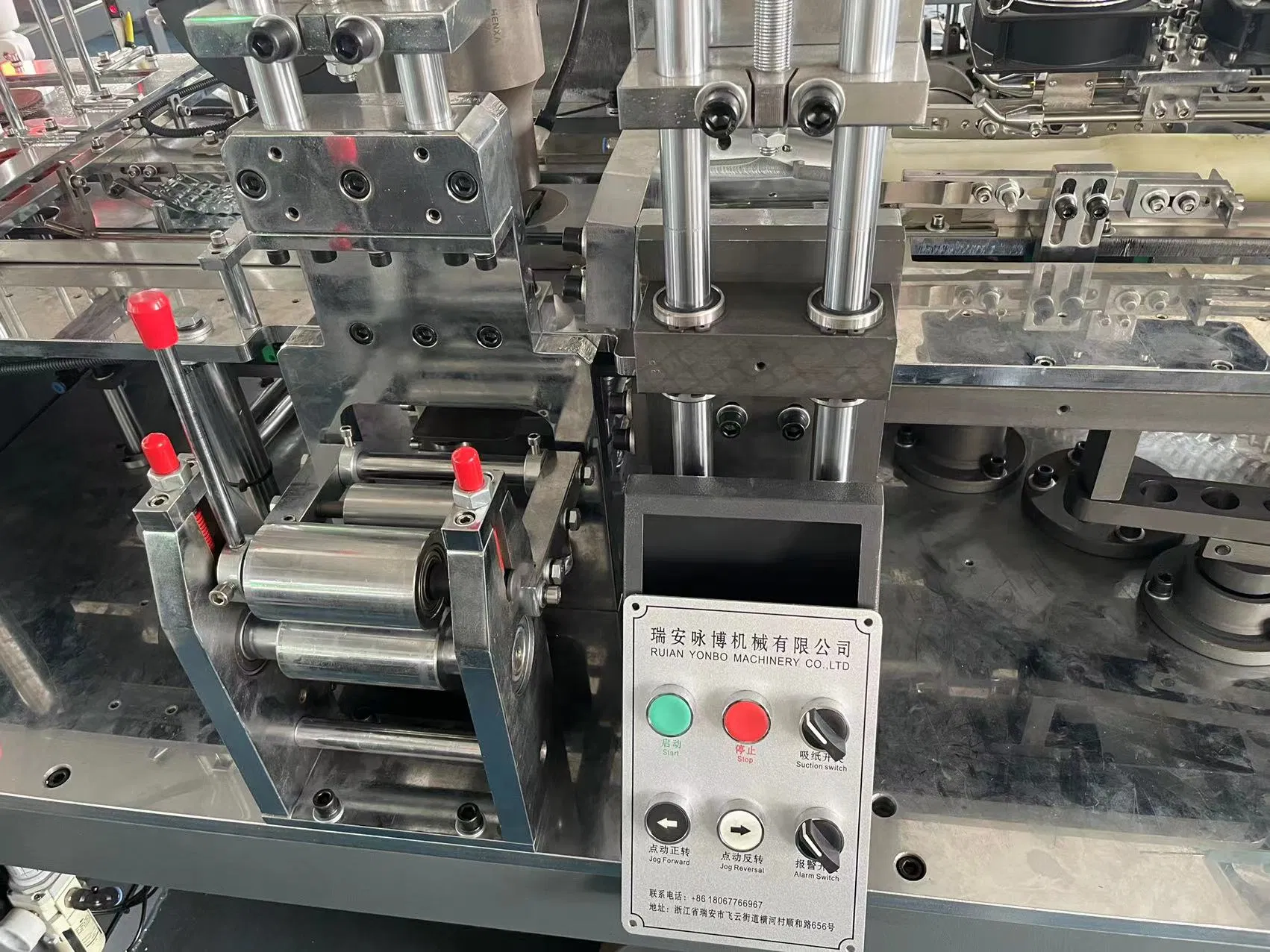

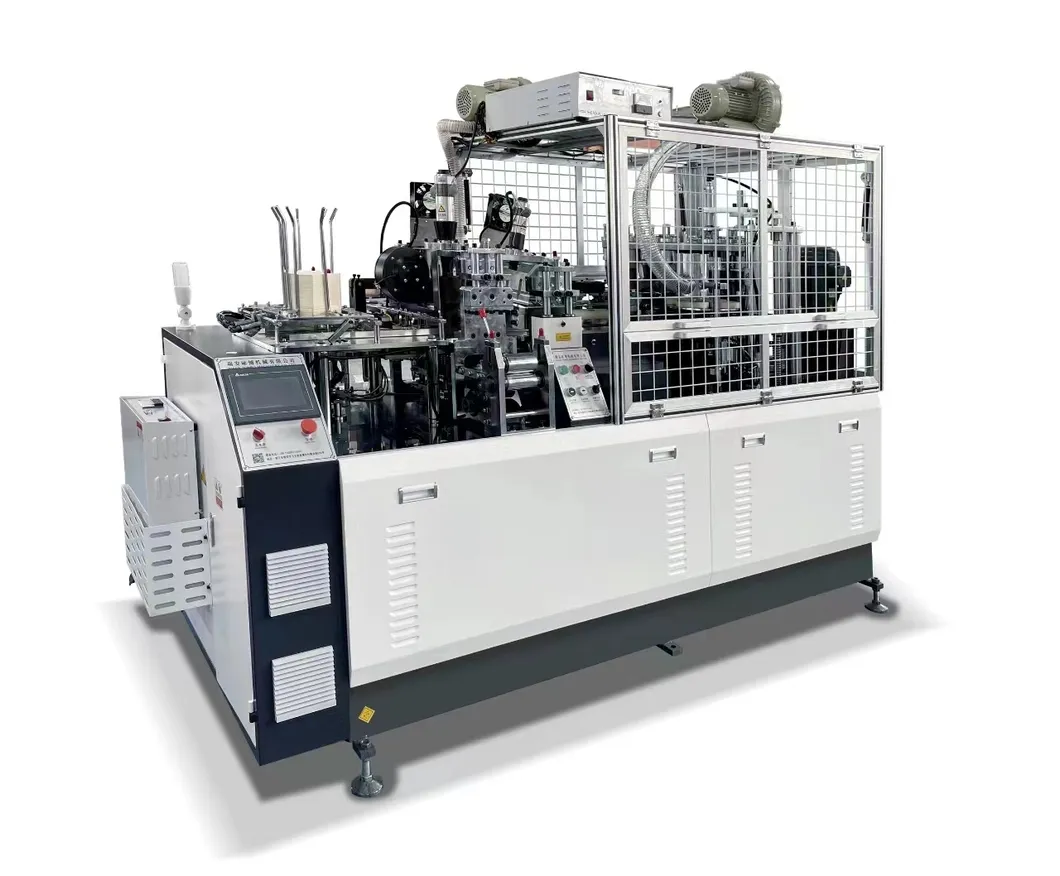

YB-NB100 Paper Cup With Handle Forming Machine
📝 Brief Description
YB-NB100 is a medium speed paper cup with handle machine. An upgraded single turntable paper cup machine achieves a faster cup making speed of 90-110pcs/min which benefits from the low mold stroke and the design of highly integrated working station. Whole machine main transmission parts are equipped with automatic spray oil lubrication system to reduce wear and tear. Meanwhile, it adopts open type intermittent cam system and helical gear transmission, which makes up for the inherent insufficiency of jitter and unstable transmission of chain transmission and greatly prolongs the service life of the machine and reduces the failure rate of the machine. While ensuring high accuracy, it guarantees the stability of the machine's operation, low noise and high production capacity.
The whole cup making process is controlled and monitored by Delta inverter, Delta servo feeding, Delta PLC, Delta human-computer interaction touch screen, Omron/Fotek proximity switch, Panasonic sensor, etc., thereby improving the performance of the equipment and achieving fast and stable running. High degree of automation and automatic shutdown in case of failure to minimize the labor intensity of workers and achieve operational safety.

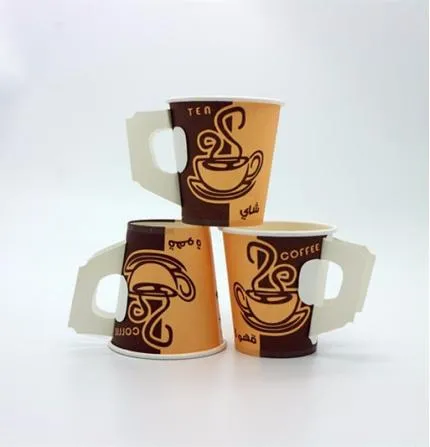

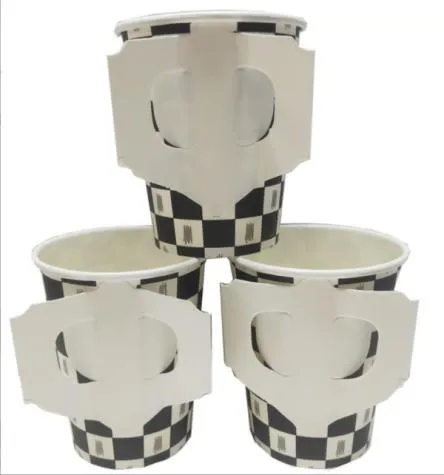

☕ Samples
📋 Main Technical Specification
| Paper Cup Specification |
4-16oz (100-450ml) (mold exchangeable)
Top: 55-90mm | Height: 60-135mm | Bottom: 55-60mm |
| Paper Specification |
150-350 GSM single/double PE coated paper |
| Production Capacity |
90-110pcs/min |
| Power Source |
380V 50HZ 3Phases |
| Average Power |
6KW (Total Power: 9KW) |
| Air Supply Requirement |
Compressed air: 0.5-0.8Mpa | Air outlet: 0.6cbm/min |
| Total Weight |
2000KG |
| Package Size (L*W*H) |
2800*1500*1900mm |
🛠️ Machine Configuration
| Component |
Qty |
Brand |
| Touch screen | 1 | Delta |
| Inverter | 1 | Delta |
| Step drive | 1 | Xinghuo |
| Temperature module | 1 | WK8H |
| PLC | 1 | Delta |
| Ultrasonic | 1 | Kejian |
| Switch mode | 1 | Mingwei |
| Solid state | 6 | Fotek |
| Air switch | 5 | CHNT |
| AC contact | 4 | Schneider |
| Photo electric switch | 8 | Panasonic |
| Midget replay | 6 | Omron |
| Coder | 1 | Omron |
| PLC magnification plate | 1 | Omron |
| Phase order protector | 1 | CHNT |
Note: Machines are being improved constantly, configuration is subject to the latest design and technology. Minor configuration changes are subject to change without notice.

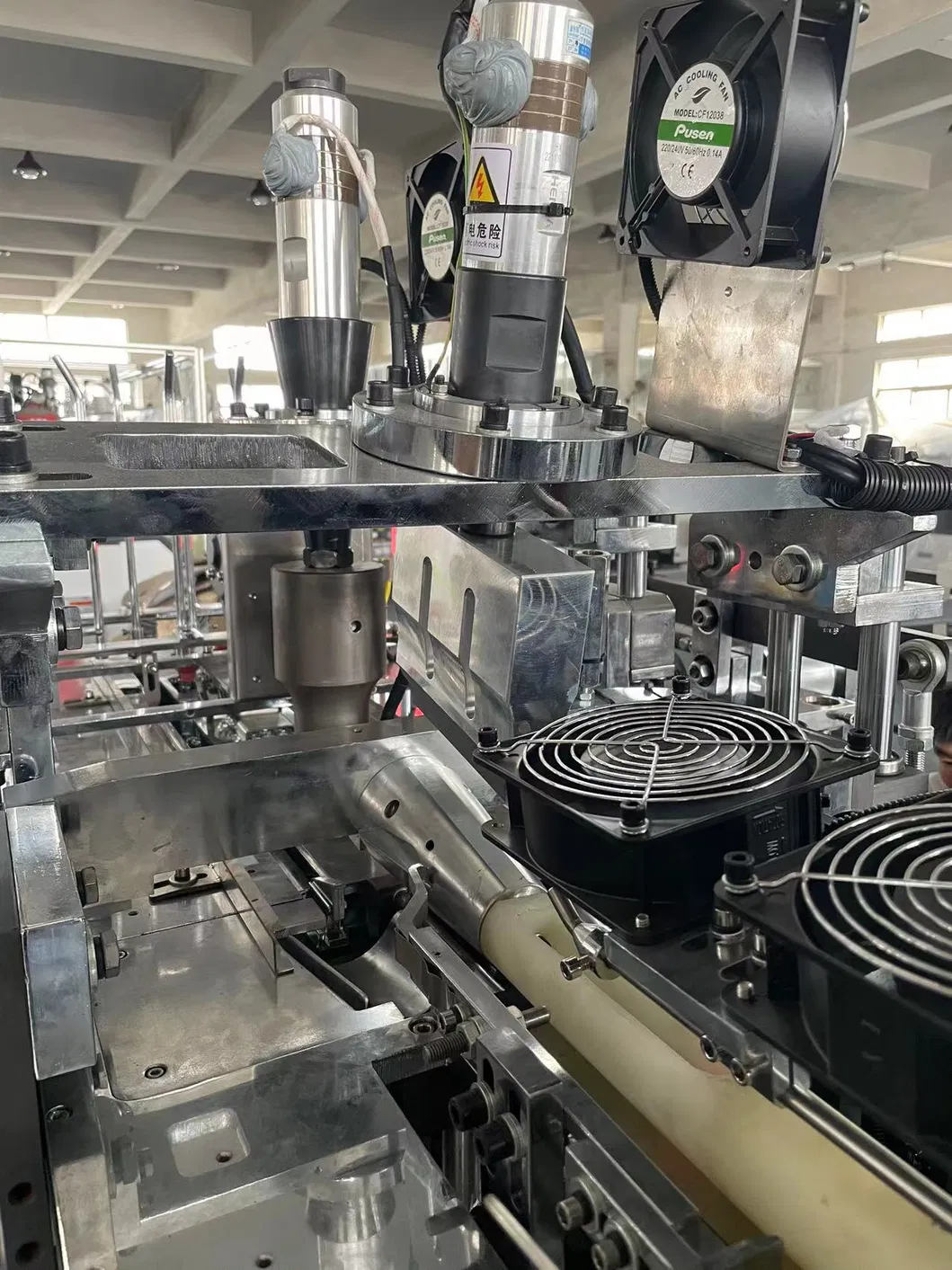

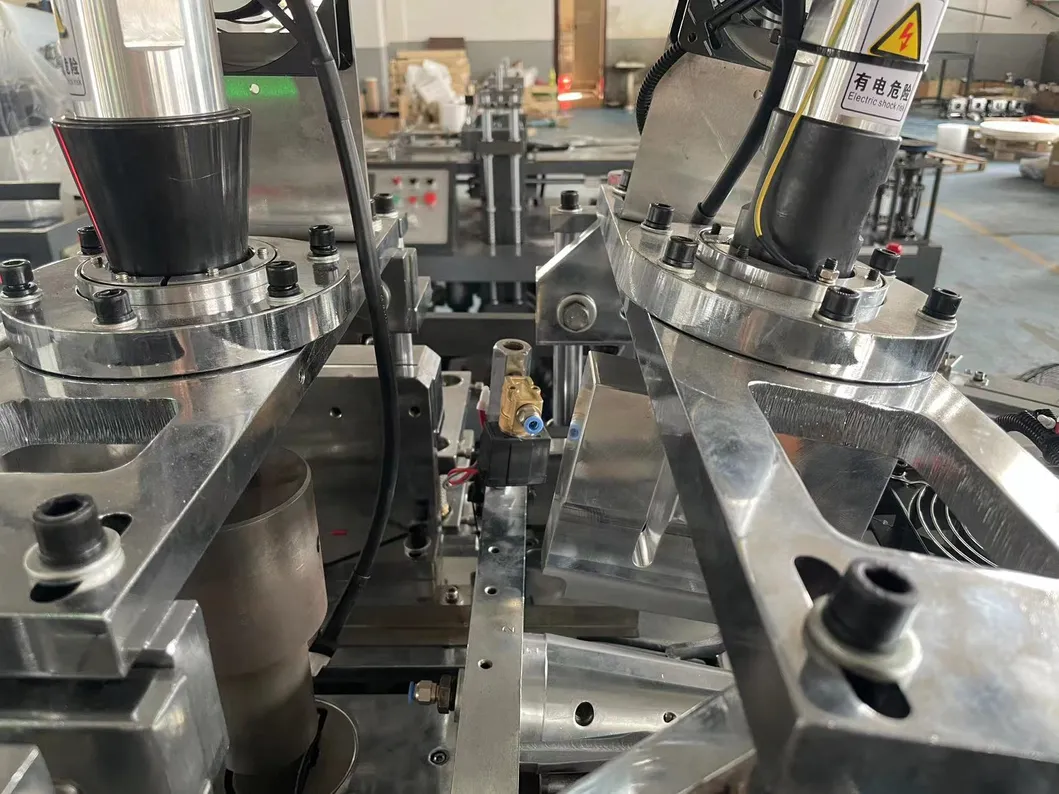

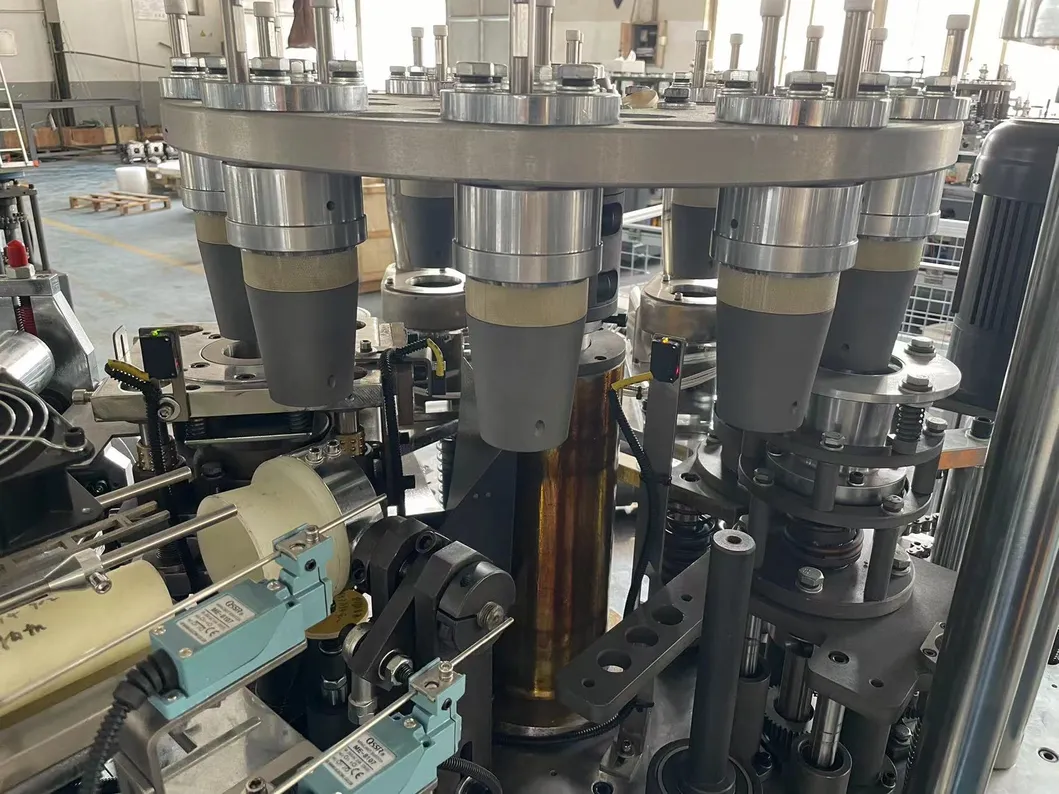

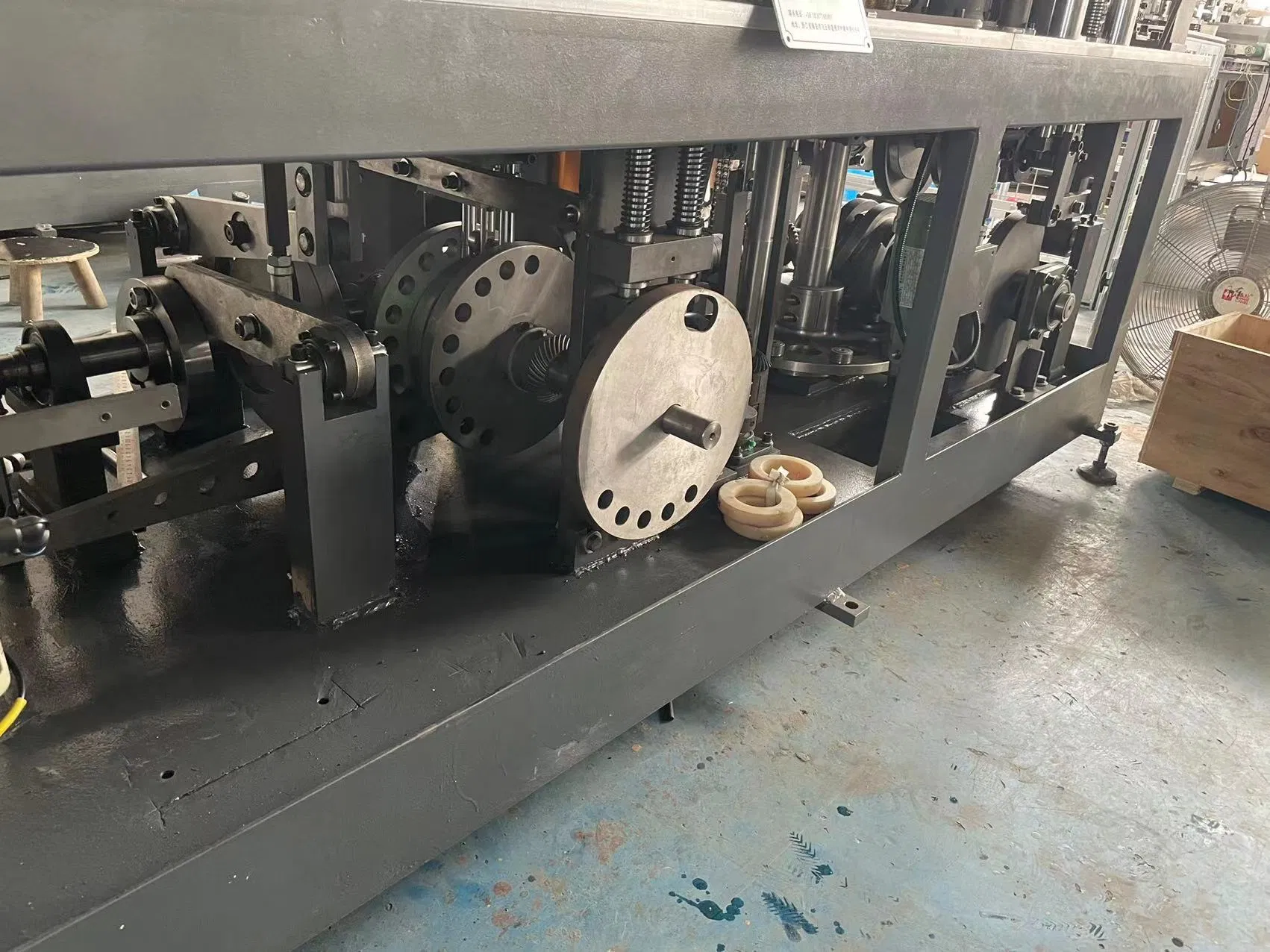

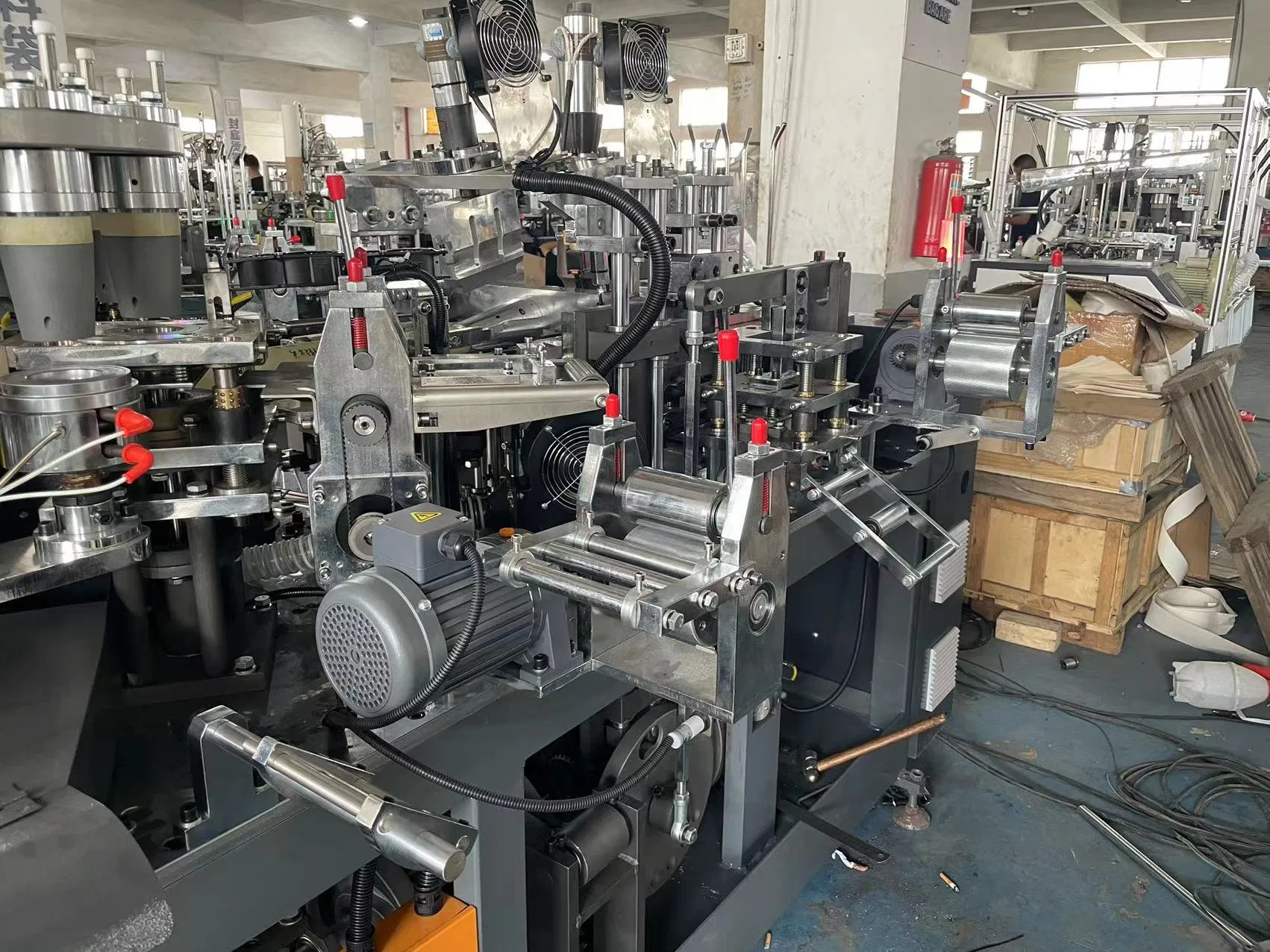

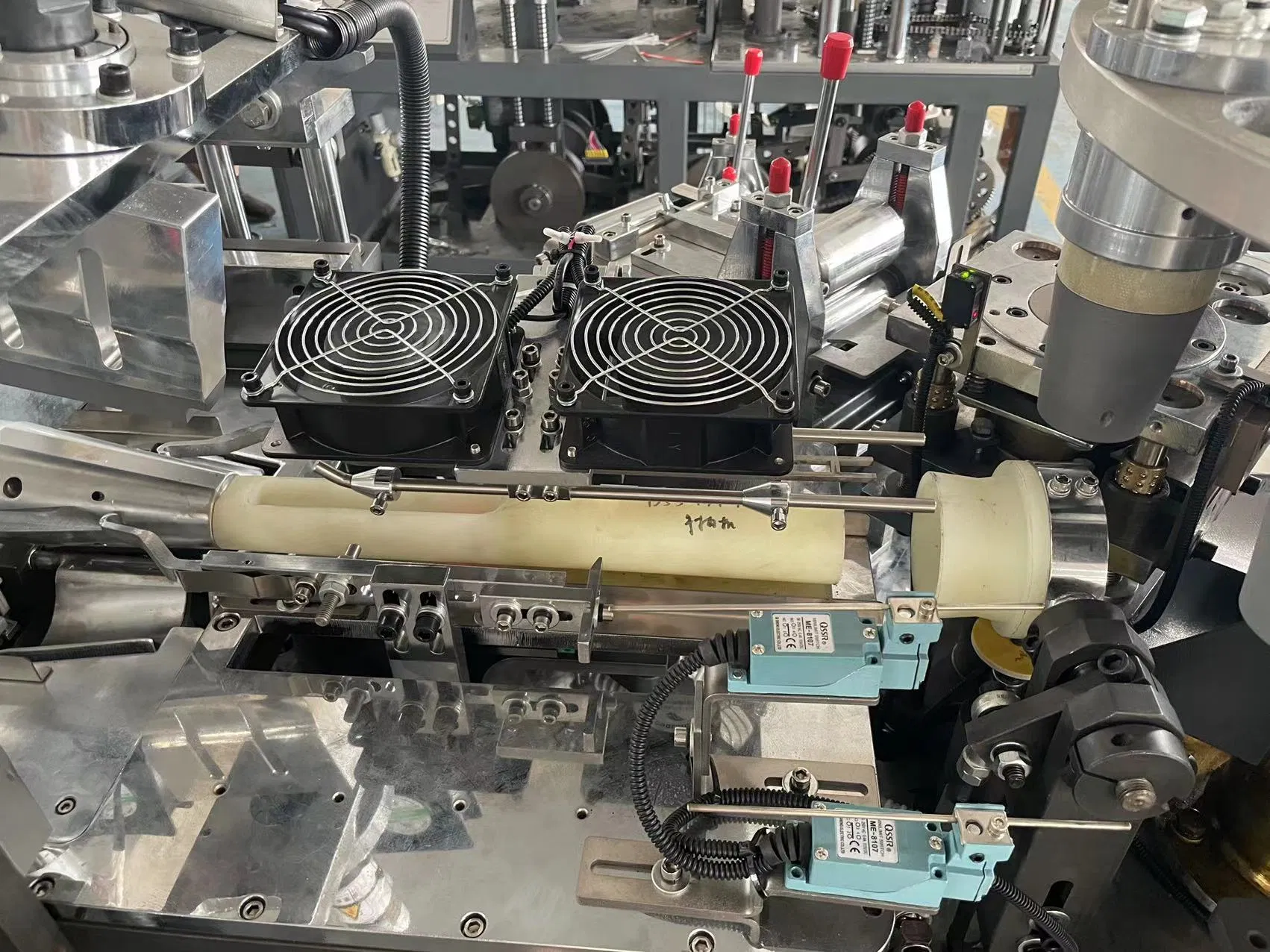

🔍 Machine Details

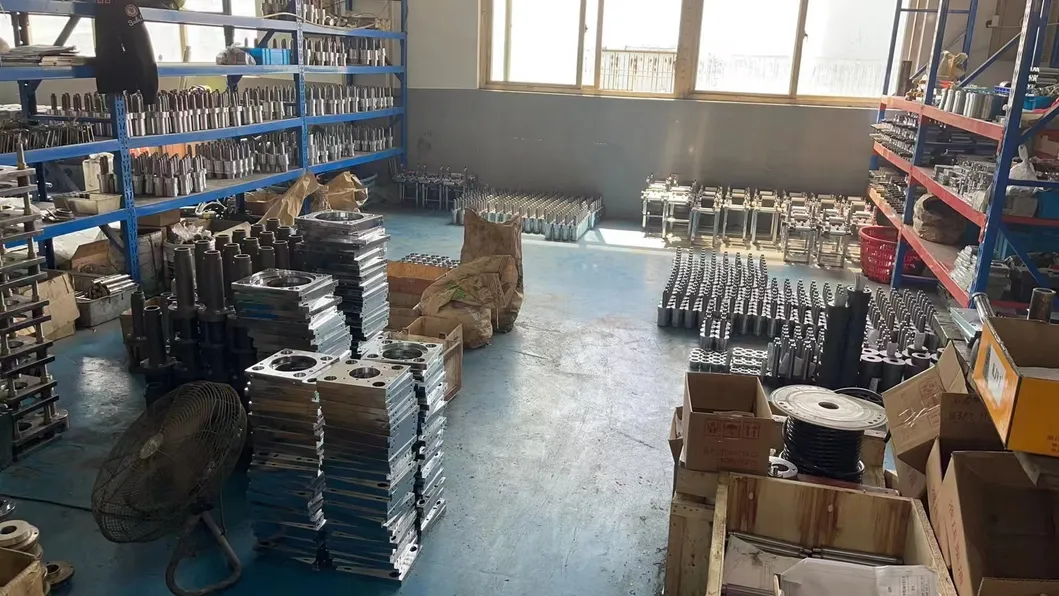

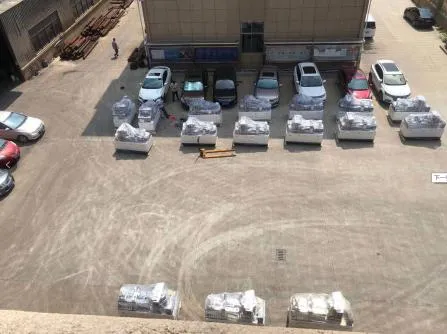

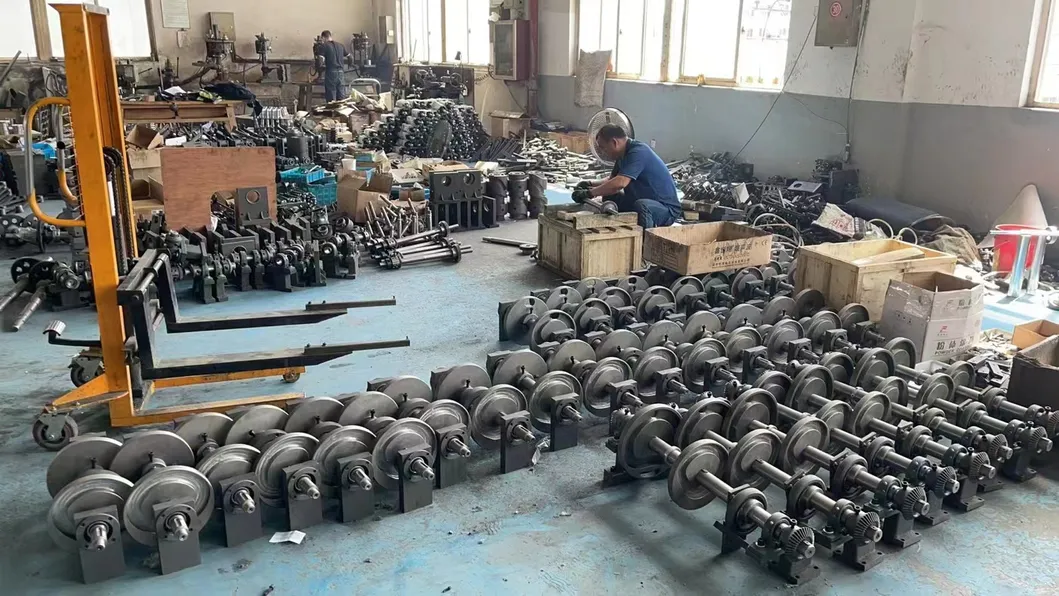

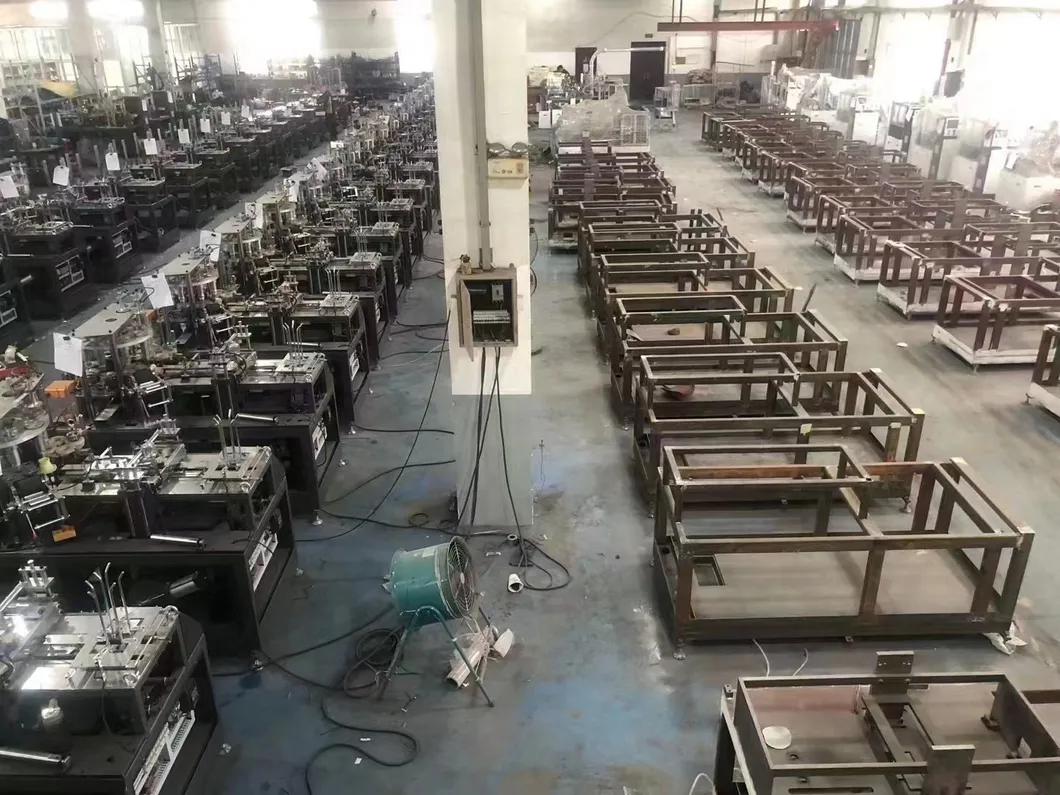

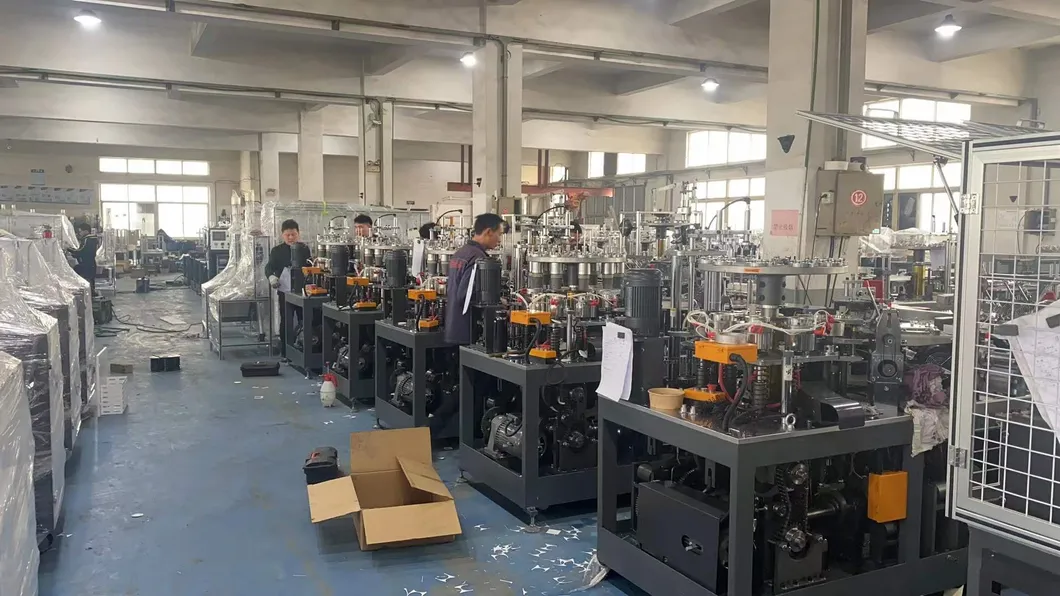

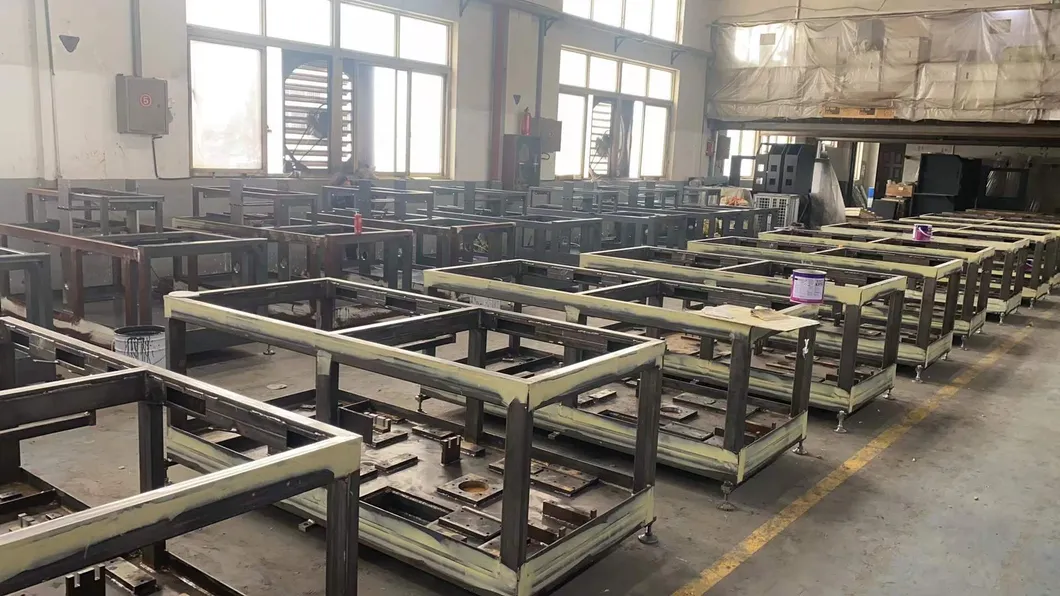

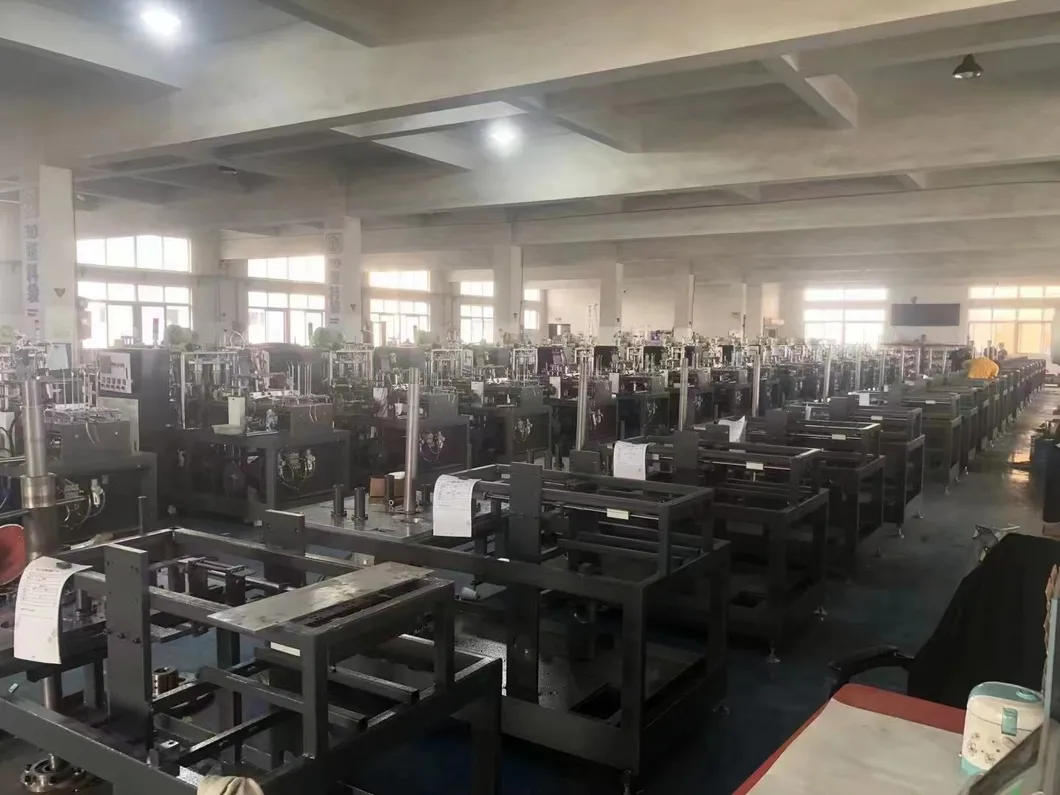

🏭 Factory Introduction
❓ Frequently Asked Questions
Q1: What is the production speed of the YB-NB100 machine?
A1: The machine achieves a stable production speed of 90-110 pcs/min, thanks to its upgraded single turntable and highly integrated workstation.
Q2: What range of paper cup sizes can this machine produce?
A2: It is designed for cups ranging from 2oz to 16oz (100-450ml), with exchangeable molds to accommodate different specifications.
Q3: What type of paper material is compatible with this equipment?
A3: The machine works efficiently with 150-350 GSM single or double PE coated paper.
Q4: How is the machine's operation controlled?
A4: It features a high-end control system including Delta PLC, Delta touch screen, and Delta inverter, ensuring precise and automated operation.
Q5: Does the machine require manual lubrication?
A5: No, the main transmission parts are equipped with an automatic spray oil lubrication system to reduce wear and minimize maintenance.
Q6: What safety features are included?
A6: The machine includes an automatic shutdown function in case of failure, monitored by Panasonic sensors and Omron proximity switches to ensure operational safety.
