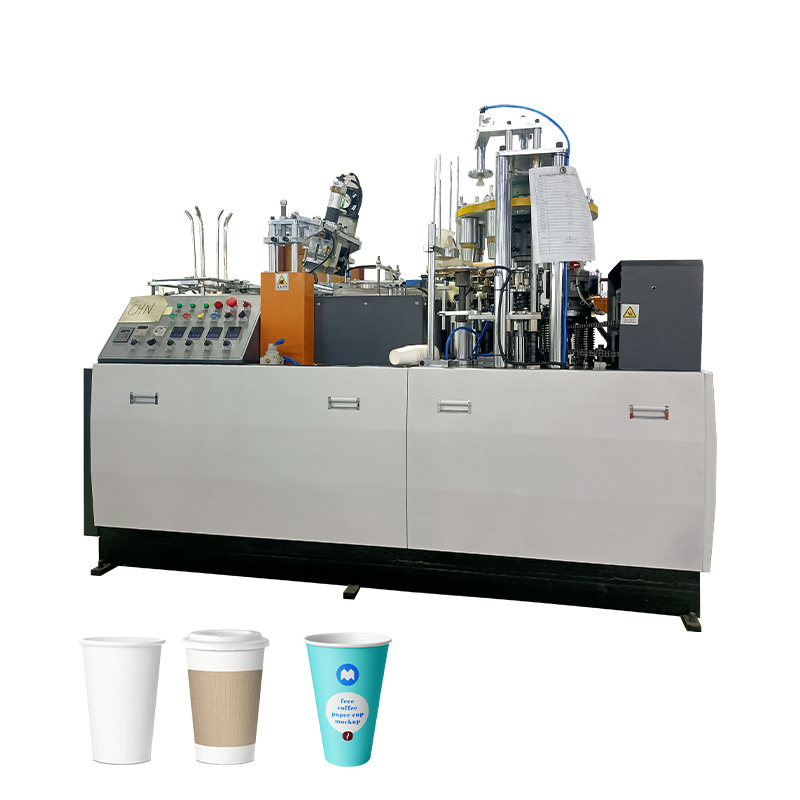

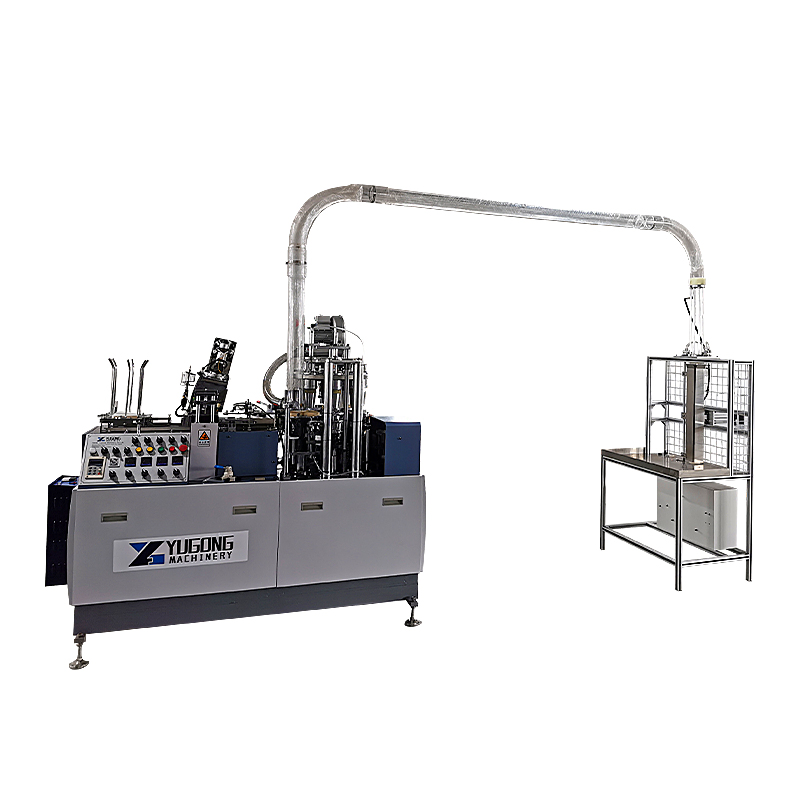

Disposable Paper Cup Printing Machine Plate Paper Cup Handle Machine Price
Disposable Paper Cup Printing Machine Plate Paper Cup Handle Machine Price
Disposable Paper Cup Printing Machine Plate Paper Cup Handle Machine Price
Disposable Paper Cup Printing Machine Plate Paper Cup Handle Machine Price
Disposable Paper Cup Printing Machine Plate Paper Cup Handle Machine Price
1 / 5
Disposable Paper Cup Printing Machine Plate Paper Cup Handle Machine Price
Disposable Paper Cup Printing Machine Plate Paper Cup Handle Machine Price
Disposable Paper Cup Printing Machine Plate Paper Cup Handle Machine Price
Disposable Paper Cup Printing Machine Plate Paper Cup Handle Machine Price
Disposable Paper Cup Printing Machine Plate Paper Cup Handle Machine Price

Disposable Paper Cup Printing Machine Plate Paper Cup Handle Machine Price

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
YG-100
Cup Size(Ounce)
2-12OZ
Speed
100-120pcs/min
Required Paper
Single and Double Side PE Coated Paper
Automation
Automatic
Logo Printing
With Logo Printing
Certification
CE
Customized
Customized
Condition
New
Item
High Speed Ultrasonic Paper Cup Machine
Paper Cup Size
Top: 160-115mm Bottom: 40-85mm
Paper Weight
135-450g
Heating Method
Hot Air & Ultrasonic
Power
12kw, 380V/220V, 60Hz/50Hz
Air Source
0.4 M3/Min, 0.5MPa
Net Weight
3400kg
Machine Dim.
2500*1800*1700mm
HS Code
8441309000
Capacity
5000sets/Year
🚀 Product Description

6oz 7oz 16oz Double Wall Paper Cup Making Machine

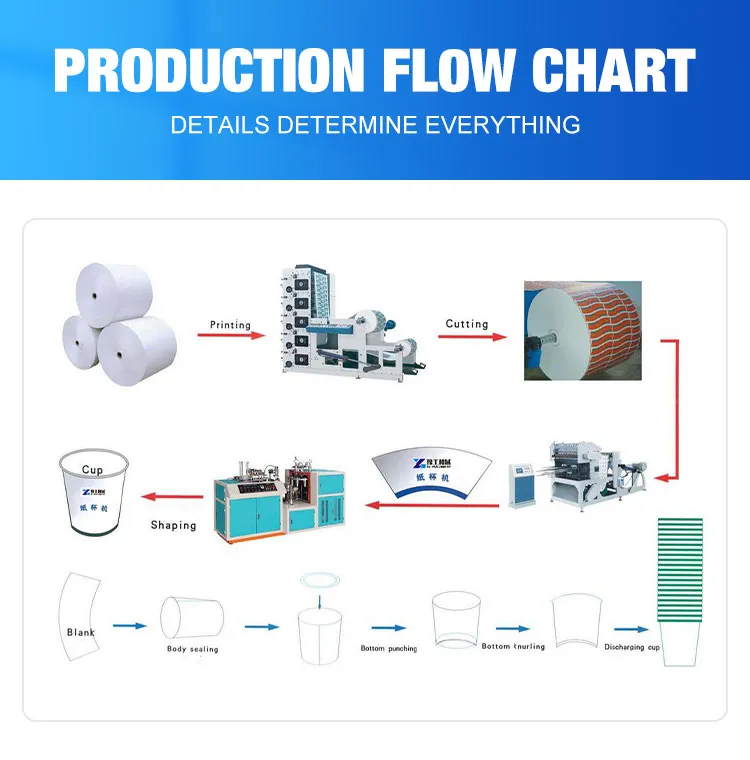

The paper cup machine is improved based on the normal chain driving type. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, and bottom punching, heating, rolling, rimming, rounding and tripping. It is ideal equipment for producing drinking cups, market cups, coffee cups, advertising cups, etc. It is widely used for hot drinks and beverages.

Key Features:

  • ✔Multiple Paper Feeding: Three times paper feeding system with multiple mediation to avoid unevenness.
  • ✔Slotted Wheel: Ensures tighter inside-connection, preventing loosening during operation.
  • ✔Bottom Punching: Single plate bottom punching offsets paper jam and flip bottom issues.
  • ✔Auto Lubrication: Automatic time control of oil lubrication for stable running.
  • ✔Open Cam System: Replaces connecting rod system to reduce malfunction and increase speed.
  • ✔Durable Build: Uses square steel body (2500kgs) for stability under high speed.
  • ✔Premium Components: Equipped with Taiwan brand reducer and NSK bearings.
Disposable Paper Cup Printing Machine Plate Paper Cup Handle Machine Price
Speed100-120 pcs/min
Cup SizeTop: 60-125mm | Bottom: 45-100mm | Height: 60-170mm
Raw Material135-450 GRAM
ConfigurationULTRASONIC & HOT AIR SYSTEM
Output12KW, 380V/220V, 60HZ/50HZ
Air Compressor0.4 M³/Min 0.5MPA
Machine Dimension2500 × 1800 × 1700mm
Cup Collector Dim.900 × 900 × 1760mm
Disposable Paper Cup Printing Machine Plate Paper Cup Handle Machine Price
🏭 Production Display
Production Image 1

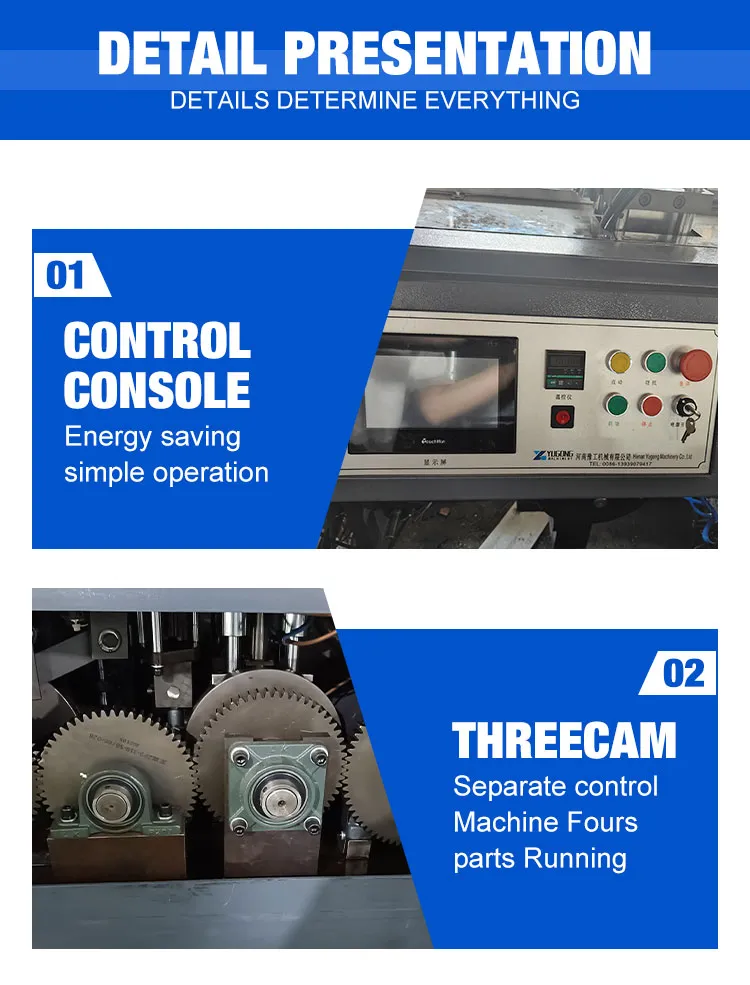

Production Image 2

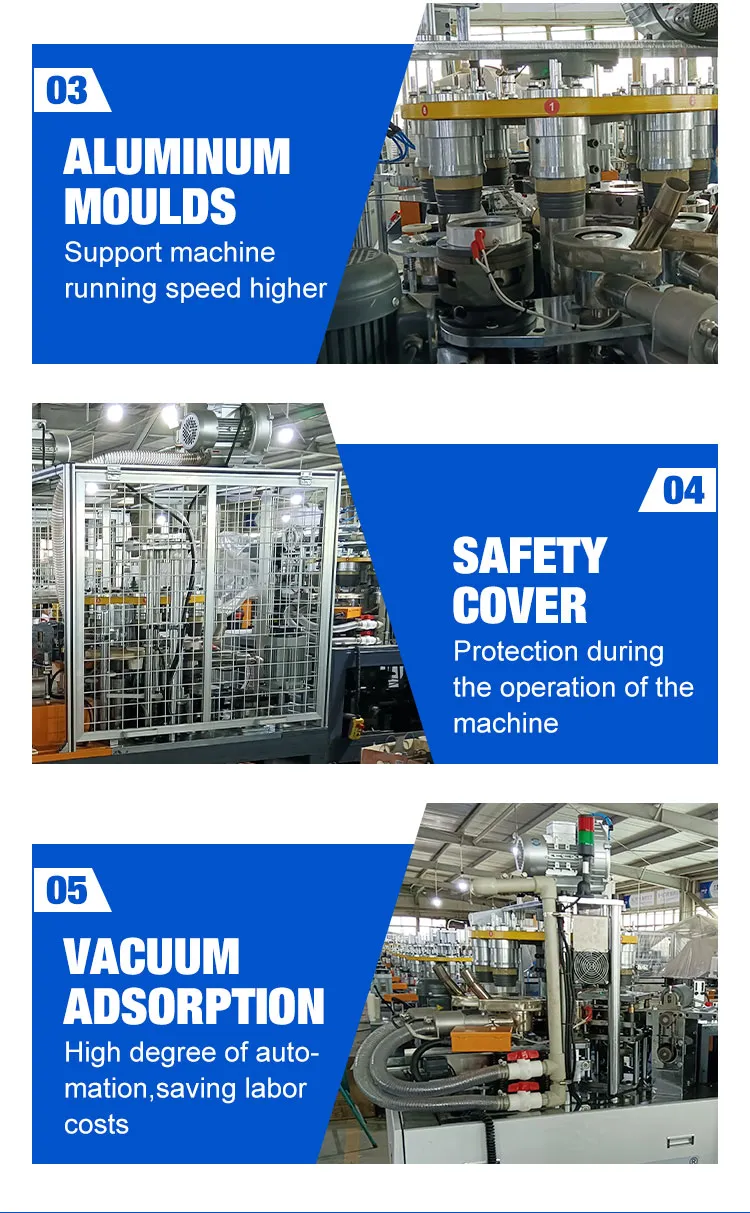

Production Image 3

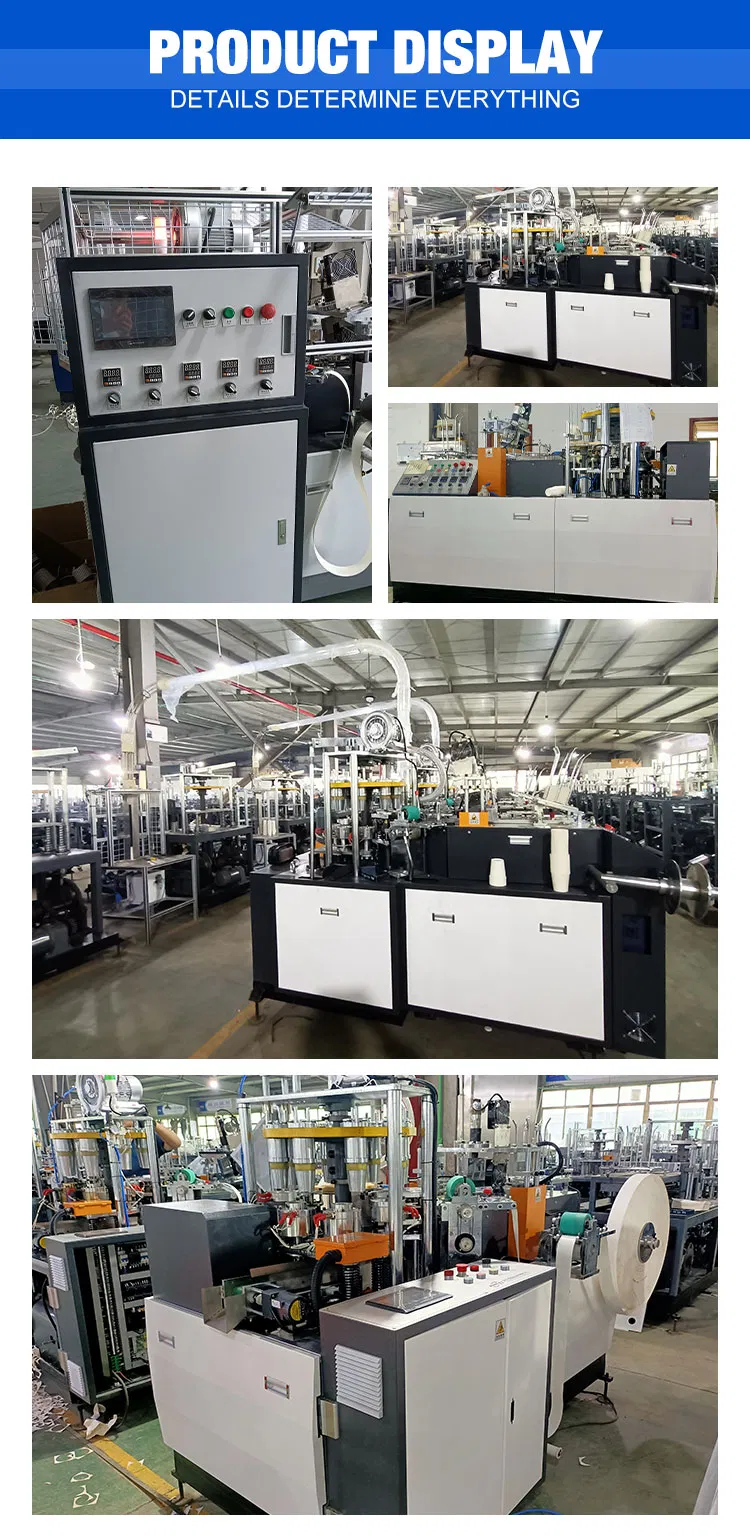

Production Image 4
Production Image 5
Production Image 6
Production Image 7
Frequently Asked Questions
What is the production speed of the YG-100 machine?
The machine operates at a high speed of 100 to 120 pieces per minute, depending on the cup size and material quality.
What range of cup sizes can this machine produce?
It is versatile and can produce paper cups ranging from 2oz to 12oz, with heights up to 170mm.
What type of paper material is required?
The machine is designed to work with both single and double-side PE coated paper, with a weight range of 135g to 450g.
How does the heating system work?
It utilizes a combination of Hot Air and Ultrasonic systems to ensure perfect sealing for various paper thicknesses.
Does the machine require manual lubrication?
No, the machine features an automatic time-controlled oil lubrication system, which ensures stable operation and reduces maintenance effort.
What are the power and air source requirements?
The machine requires 12kw of power (380V/220V) and an air source providing 0.4 M³/Min at 0.5MPa.
