Apolo Paper Bowl Lid Cover Making Machine

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
DPJ-100
Speed
80-100pcs/min
Required Paper
Single and Double Side PE Coated Paper
Automation
Automatic
Certification
CE
HS.Code
8441309000
Transport Package
Wooden Box
Production Capacity
5000set/Year
Product Description

The single-layer paper cover forming machine series equipment adopts advanced forming technology, offering simple operation, easy mold replacement, stable performance, high efficiency, and energy saving. It integrates automatic roll paper feeding, creasing, embossing, punching, heating, knurling, and forming functions. The same mold can achieve different design requirements on the top of the lid by changing the indentation version.

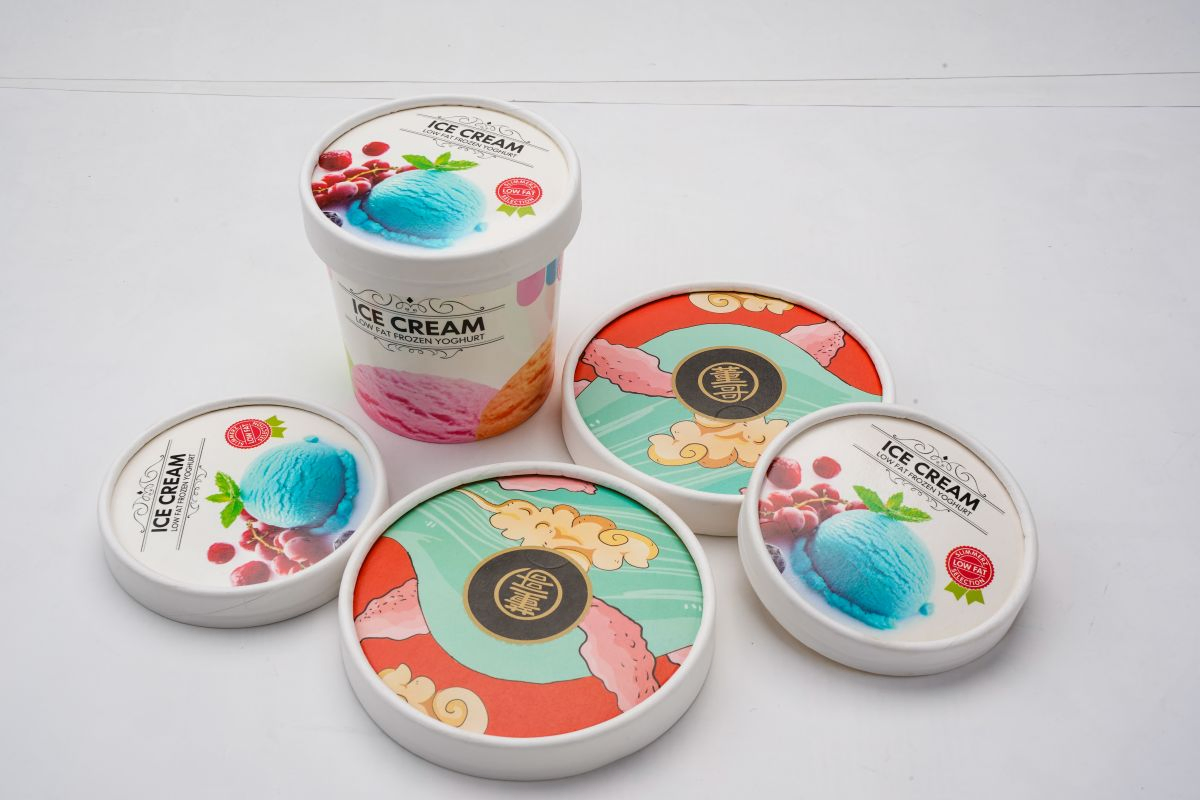

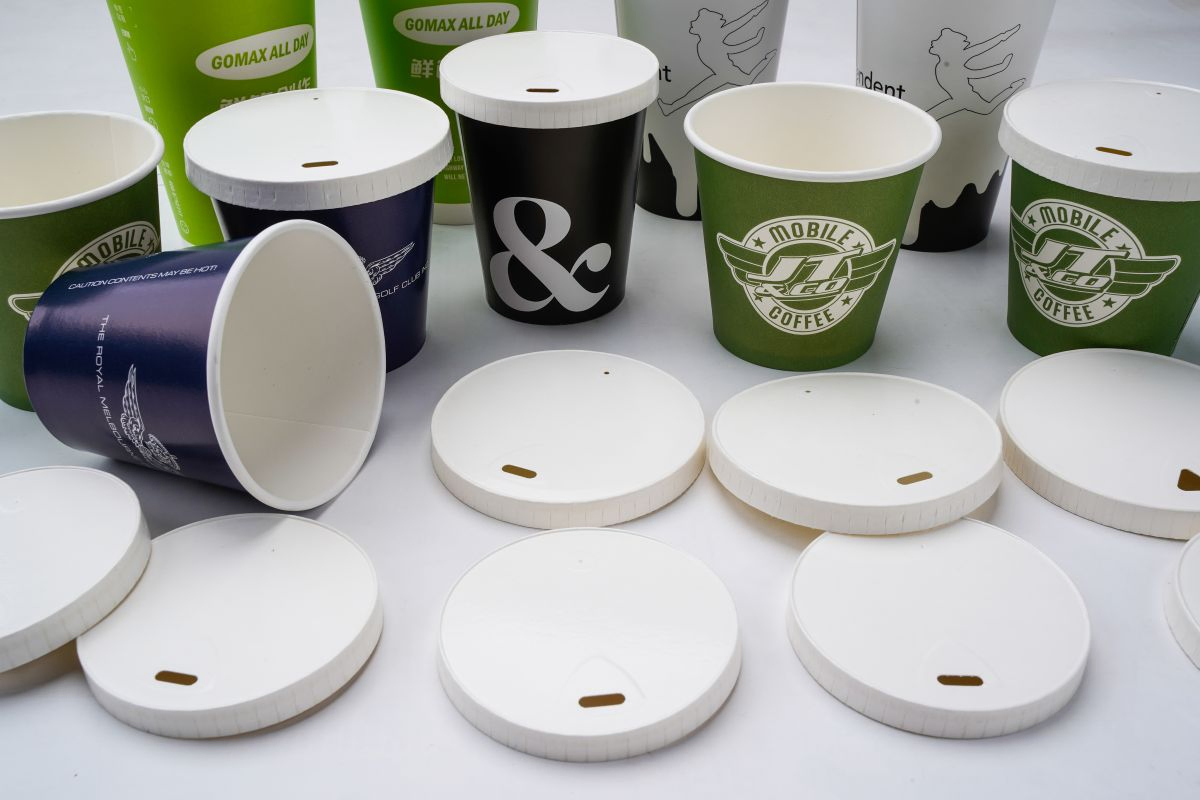

Applications: Suitable for lids made of coated paper, ice cream cup lids, coffee cup lids, noodle bowl lids, salad bowl lids, etc. It is an ideal replacement for plastic covers.
Main Advantages
  • High-speed production efficiency.
  • Flexible feeding: Supports both Roll paper and Sheet paper.
  • Automatic creasing, embossing, and punching.
  • Cost-efficient design: Saves paper material during the process.
  • Advanced Control: PLC control combined with servo motor paper feeding.
  • Mechanical Stability: Open cam, shaft, and gear control for reliable movement.

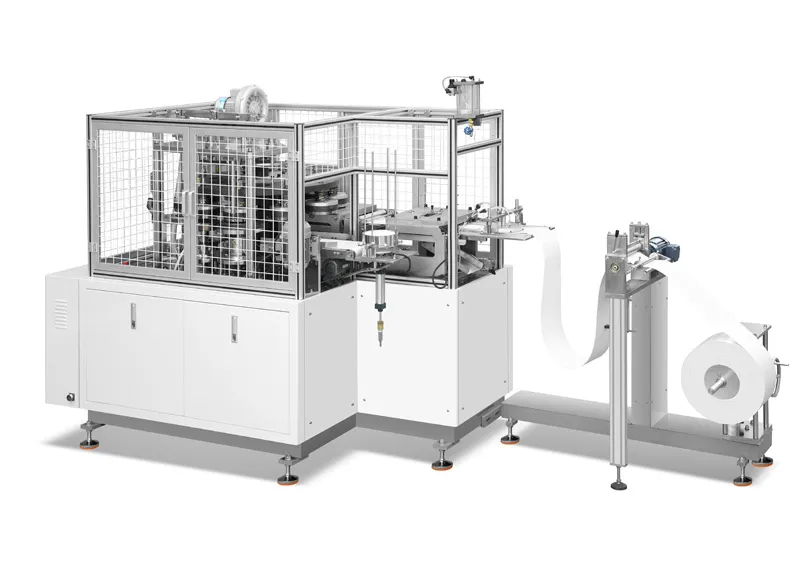

Paper Bowl Lid Cover Making Machine

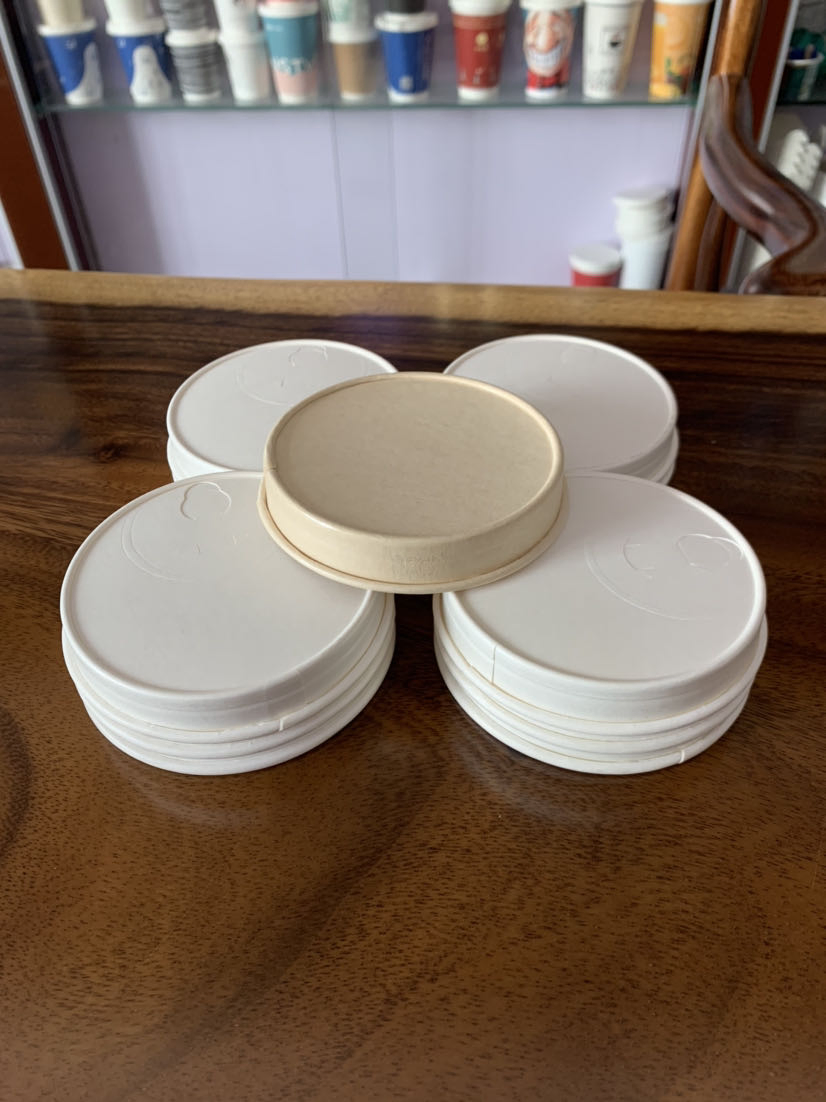

Product Samples

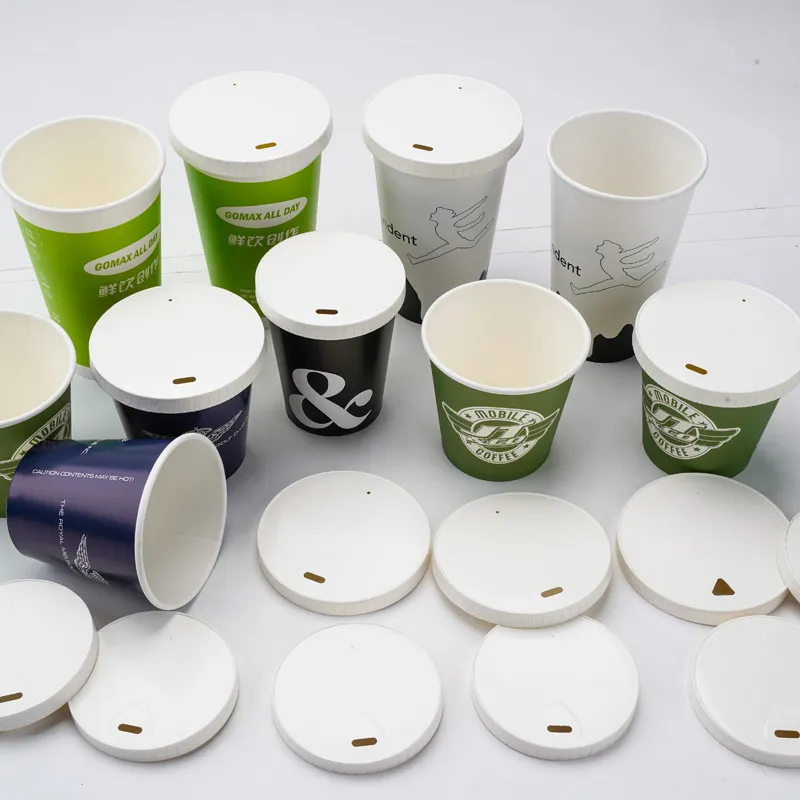

Sample Lid 1

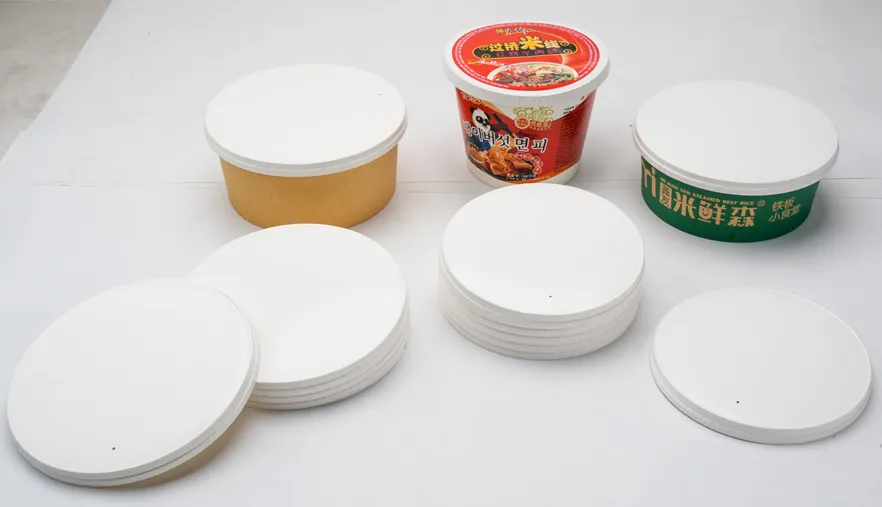

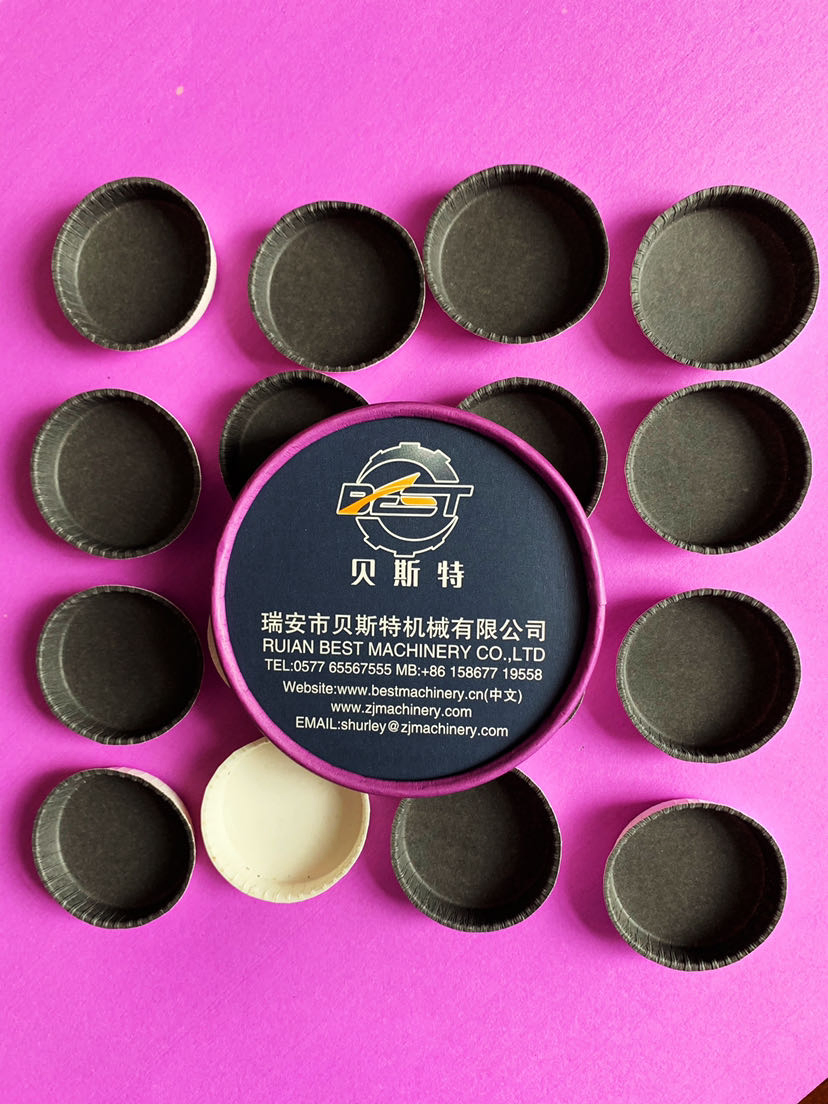

Sample Lid 2
Product Parameters
Model DPJ-90 DPJ-M70 ZGJ-60T
Paper Cover Dia 65-125MM 100-140MM 130-190MM
Raw Material Single/Double PE Coated Single/Double PE Coated Single/Double PE Coated
Paper Weight 280-450 gsm 280-450 gsm 280-500 gsm
Speed 80pcs/Min 55pcs/Min 50pcs/Min
Power 380V 50Hz 3Ph 380V 50Hz 3Ph 380V 50Hz 3Ph
Machine Weight 3000kg 3200kg 3500kg
Packaging & Shipping
Packaging Process
Shipping Preparation
Company Profile

We have extensively introduced and absorbed advanced production technology for paper container equipment. We have successfully developed a series of new products including single-piece and double-piece paper cup lid forming machines, flat-bottom paper cup machines, and disposable fast food box machines. Our equipment features complete functions, stable performance, and beautiful appearance. We provide one-stop services including technology, equipment, and raw materials, and are responsible for installation, commissioning, and technical training. Our products are exported to Italy, the United States, France, Japan, Southeast Asia, Arabia, Africa, India, and many other regions.

After Sales Service
  • Comprehensive training on how to install and operate the machine.
  • Engineers available to provide machinery service overseas.
  • All-weather after-sales support system for continuous operation.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a professional manufacturer of paper product machinery in China.
Do you have quality certificates for your machines?
Yes, all our machines have obtained the CE certificate.
What is the typical delivery time for an order?
The standard delivery time is approximately 45 days after order confirmation.
How do you ensure quality control in your factory?
Quality is our priority. We attach great importance to quality control from the very beginning to the final assembly and testing.
What raw materials are required for the lid forming machine?
The machine primarily uses single or double PE coated paper with weights ranging from 280 to 500 gsm.
Do you provide overseas installation and training?
Yes, we provide field installation, commissioning, and technical training. Our engineers are available to service machinery overseas.
