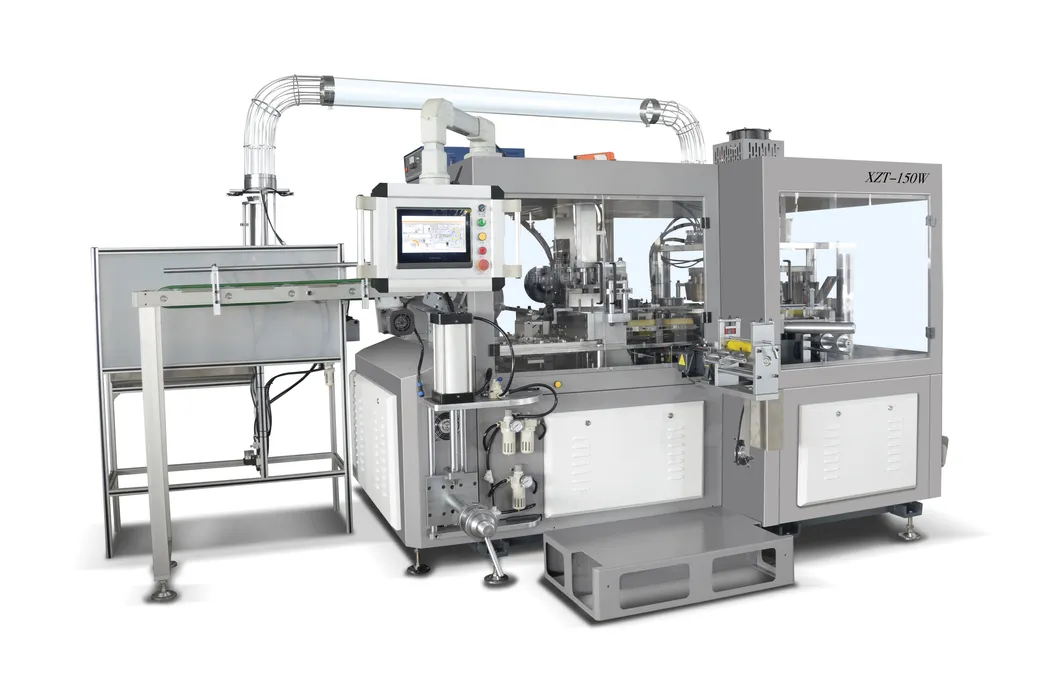

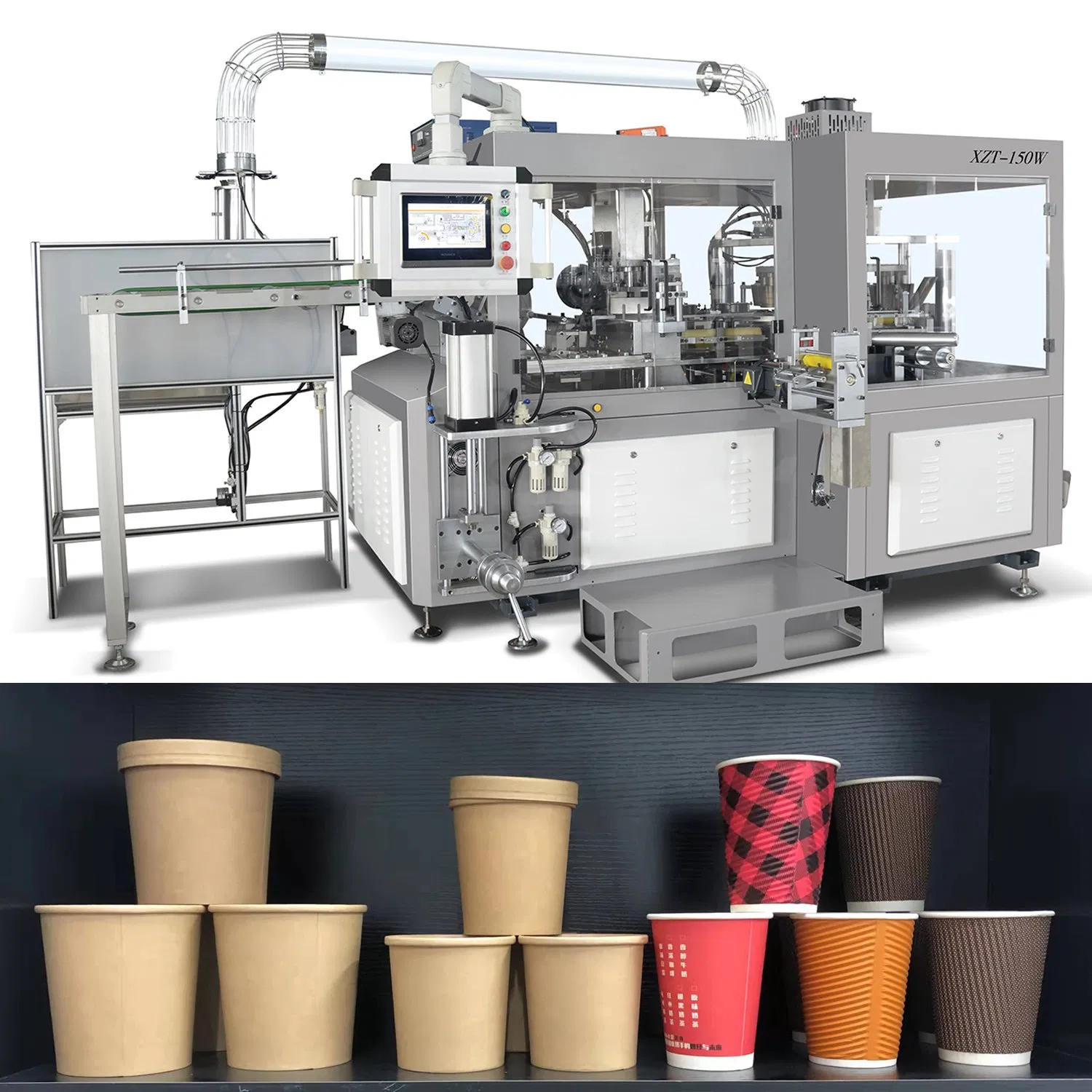

The XZT-150W is our latest model full servo-driven paper bowl machine. It is designed to produce paper bowls and containers ranging from 16oz to 57oz at a stable running speed of 120ppm, with ongoing upgrades for even higher efficiency.

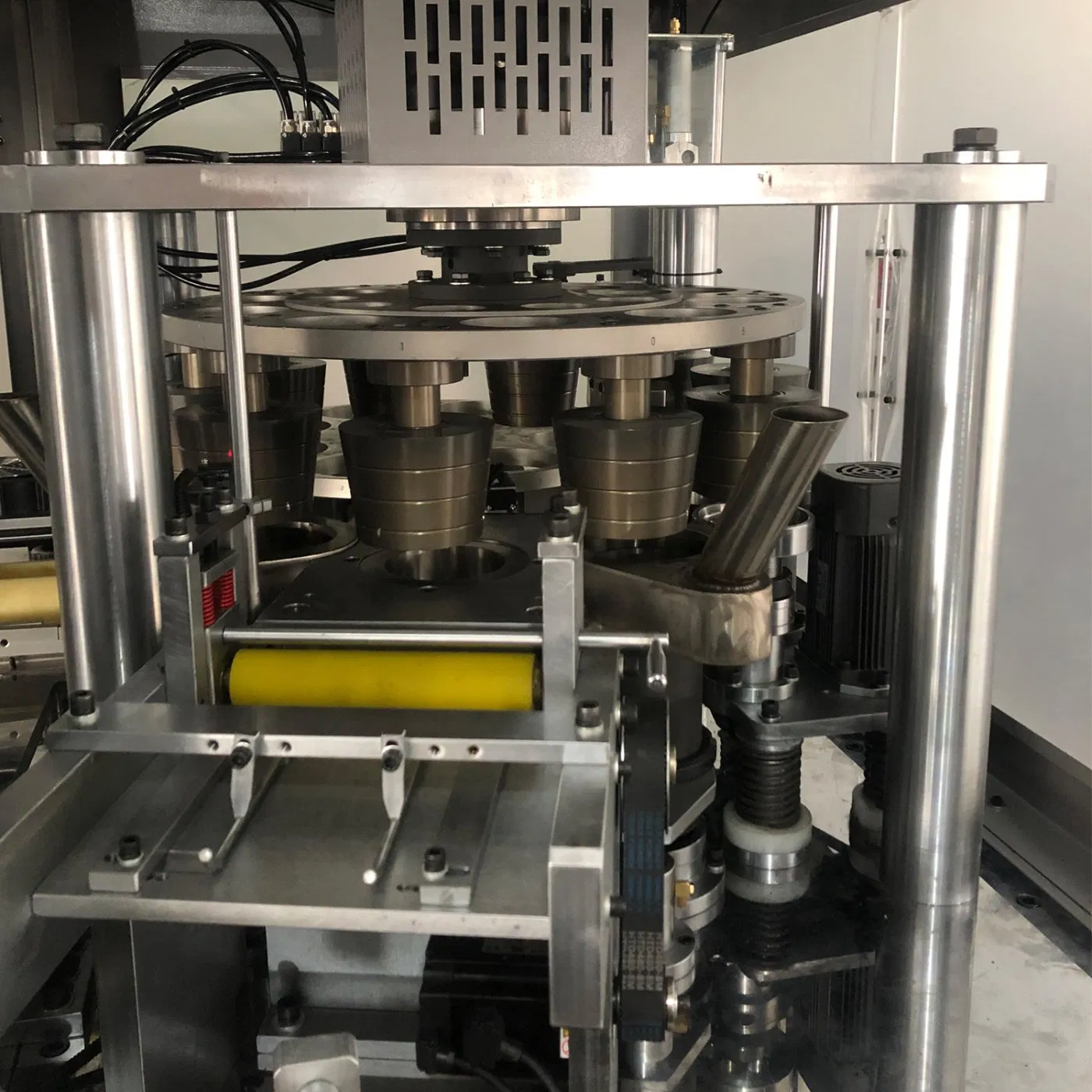

This machine features advanced full servo-driven technology throughout. Each station is controlled independently by servo drives, ensuring remarkable accuracy and perfectly synchronized motion. By replacing traditional gear/chain transmissions and cam designs, the XZT-150W provides greater flexibility, higher speeds, lower maintenance requirements, and a more affordable capital cost for manufacturers.
| Model | XZT-150W Paper Bowl Machine |
| Bowl Size | 15-57oz (Max bottom 130mm, top 150mm, height 135mm) |
| Material | 170-380GSM single or double PE/ PLA coated paper (0.25-0.5mm) |
| Speed | 120-150 pcs/min |
| Power Supply | 3 phase 380V 50Hz, 44KW (Running consumption: 20KW) |
| Air Supply | 0.6Mpa (Running consumption: 0.5Nm3/min) |
| Weight | 4500kgs |
