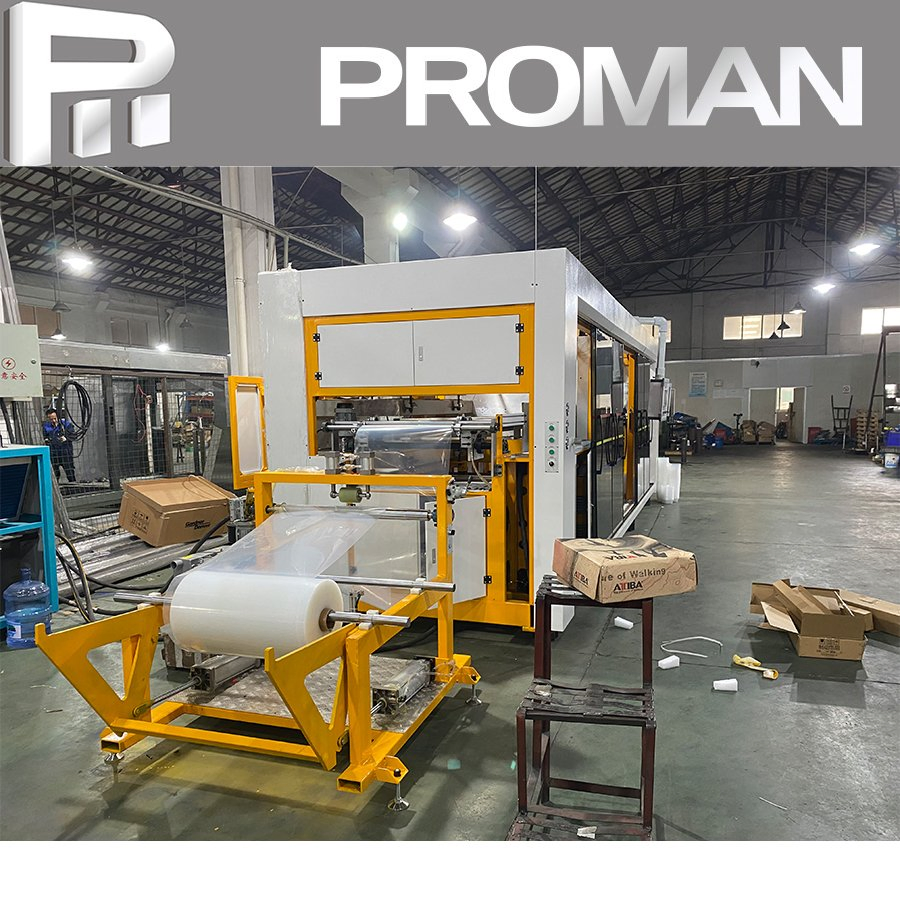

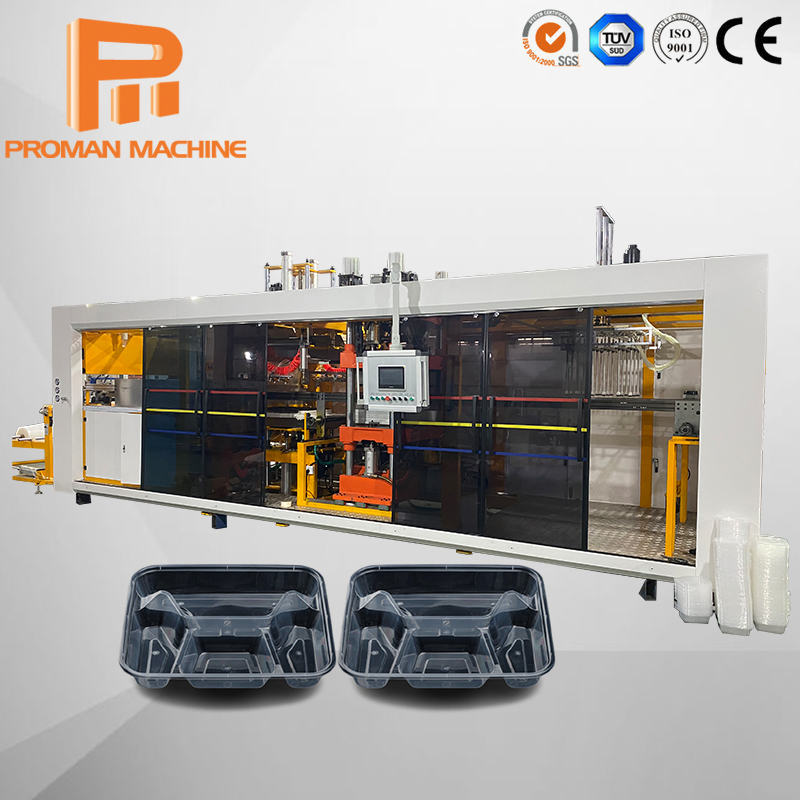

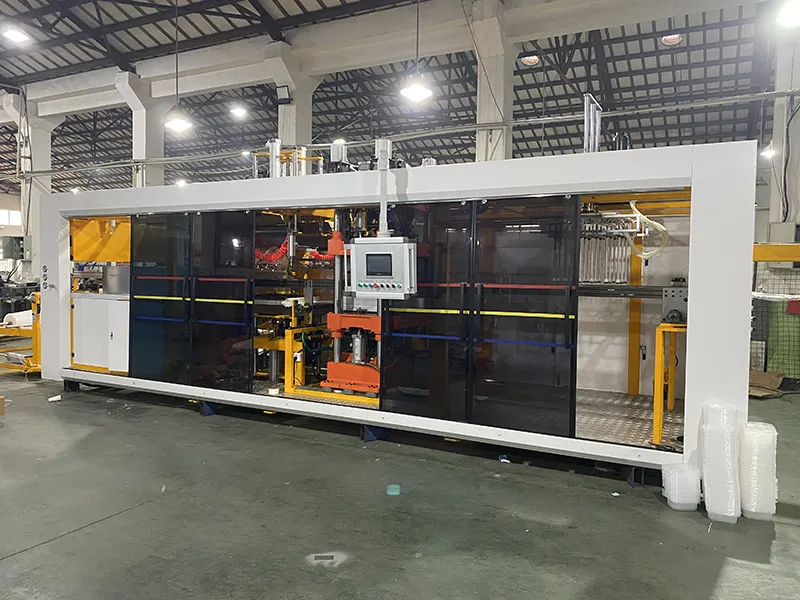

The PM-7185 thermoforming machine is an advanced multi-station automatic solution designed to meet modern market demands. It features synchronous complete forming, punching, and cutting, making it highly efficient for producing plastic items such as jelly cups, ice cream containers, yogurt cups, coffee lids, bowls, trays, and plates. By integrating these processes, it significantly reduces labor input and production costs while maximizing output efficiency.
| No. | Parameter Item | Specifications (PM-7185) |
|---|---|---|
| 1 | Suitable Material | PP, PS, PET, PVC, PLA, etc. |
| 2 | Material Width | 450-750mm |
| 3 | Thickness of Material | 0.15-2.2mm |
| 4 | Max. Forming Area | 710×520mm |
| 5 | Min. Forming Area | 420×300mm |
| 6 | Forming Depth | 150mm |
| 7 | Max. Cutting Force | 60T (Used with heatable die system) |
| 8 | Installed Power | 100KW |
| 9 | Actual Energy Consumption | About 20KW/H |
| 10 | Max. Production Speed | ≤10 cycles/minute |
| 11 | Machine Weight | 8,000kg |
| 12 | Dimension (L*W*H) | 9000mm×2300mm×2500mm |

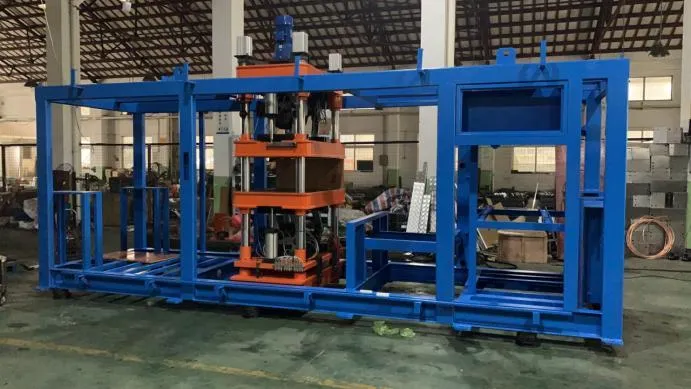

Machine Framework: National standard square steel pipe with three-layer anti-rust painting.

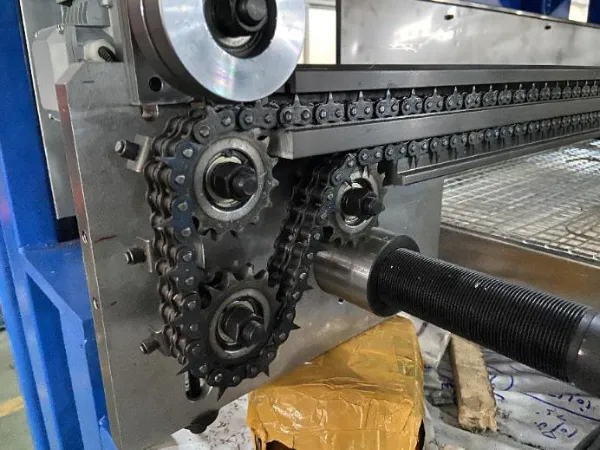

Chain Track: High-precision sheet delivering system.

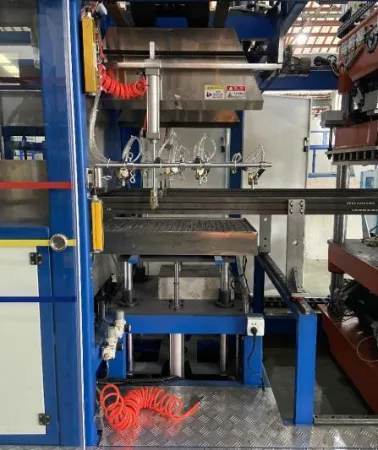

Forming Table: Adjustable area with internal water cooling for high-speed production.

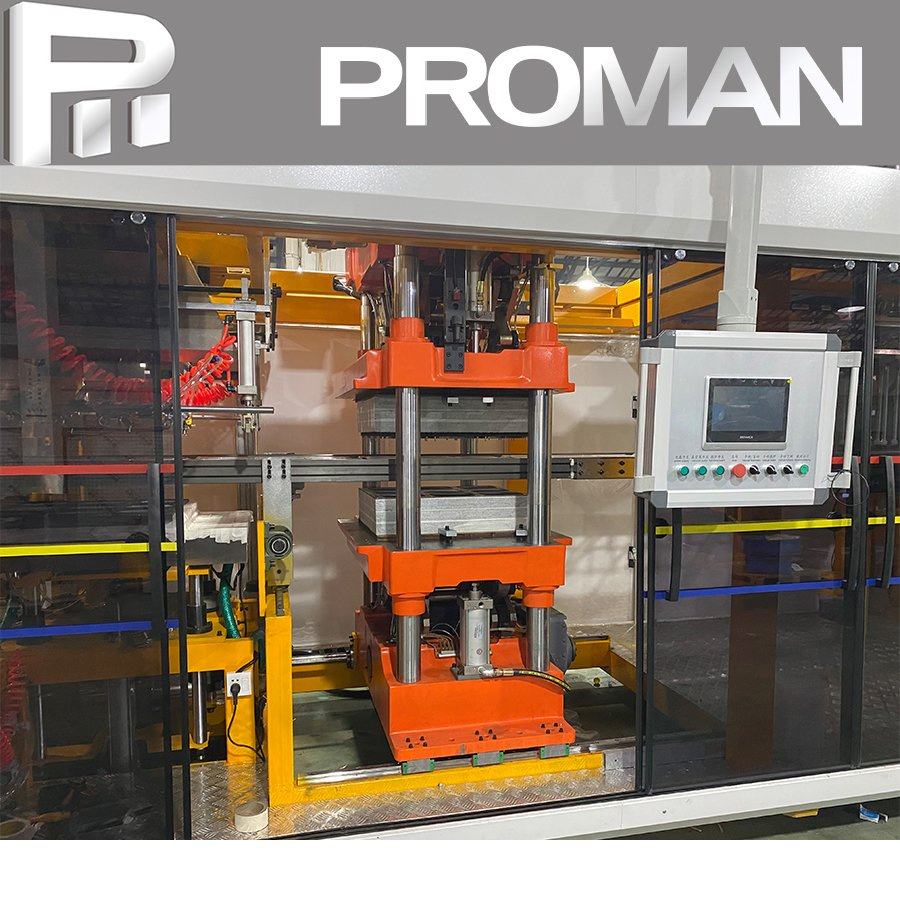

Cutting Station: Full servo motor drive for faster and stable production.
1. Installation & Training: Seasoned technicians are available for equipment installation, debugging, and test production to ensure the line reaches rated capacity. We also offer comprehensive technology training on equipment structure, maintenance, and operation.
2. Quality Assurance: We guarantee that all equipment is brand new and unused. A 12-month quality guarantee is provided, including free wearing parts.
3. Long-term Support: Post-warranty, we continue to provide technical support and after-sales service, offering spare parts at favorable prices.
