After-sales Service: Video Technical Support, Free Spare Parts
Warranty: 1 Year
Certification: CE, ISO
Send Inquiry

Product Description

Basic Information
Model NO.
HY-70/95
Column number
Four Column
Molding Method
Pressing
Automatic Grade
Automatic
Forming Area
700X 950 mm
Forming Depth
125mm
Suitable Material
OPS/PVC/HIPS/Pet
Sheet Thickness Range
0.15-1mm
Working Speed
600-1400 Cycles/Hr
Air Pressure
0.7MPa
Origin
China
Production Capacity
5 Sets Per Month
Product Introduction

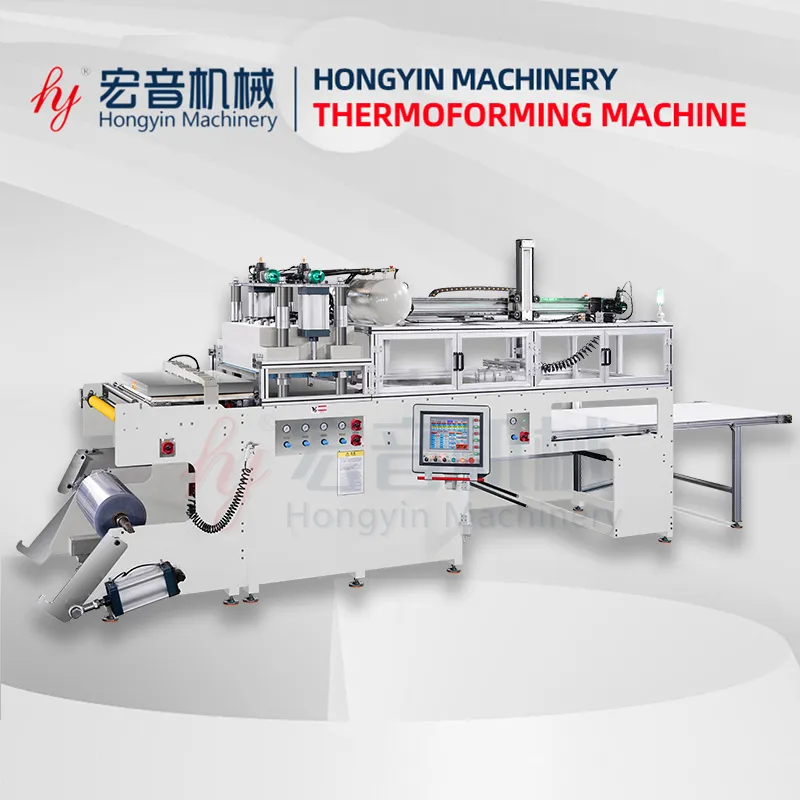

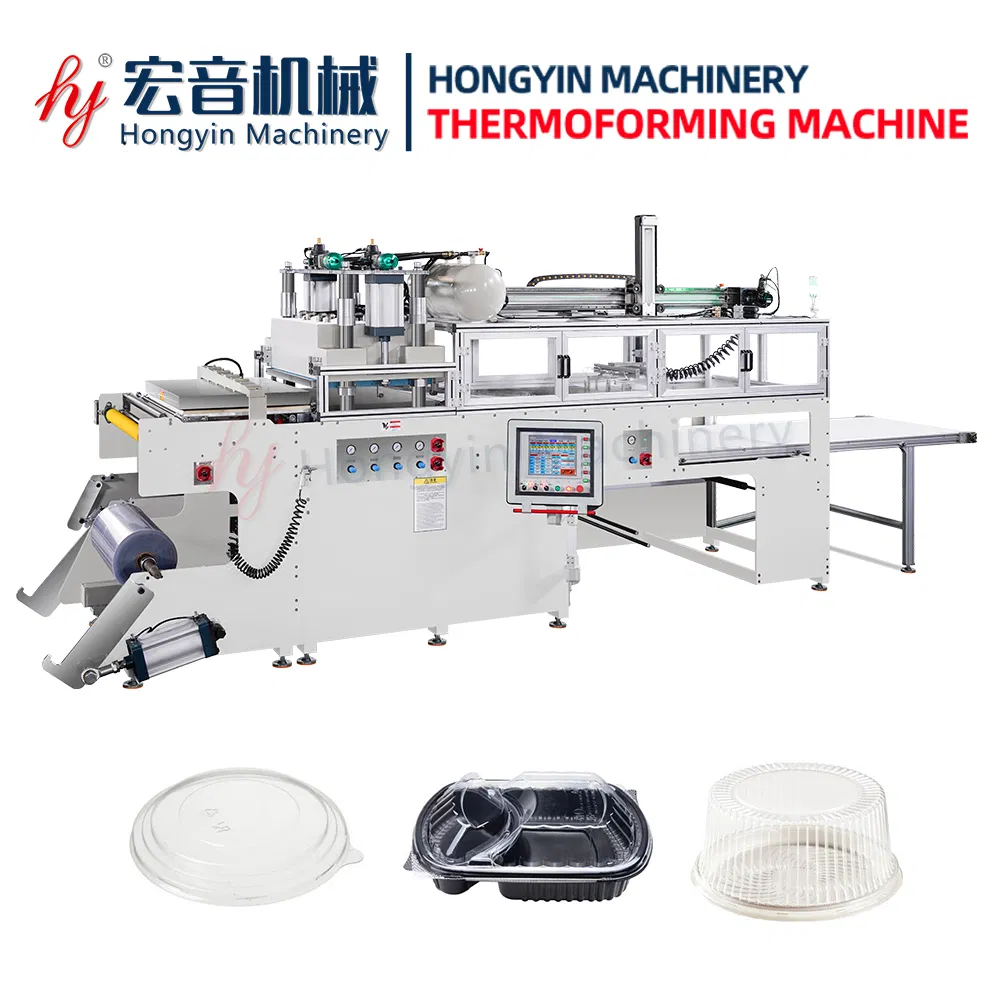

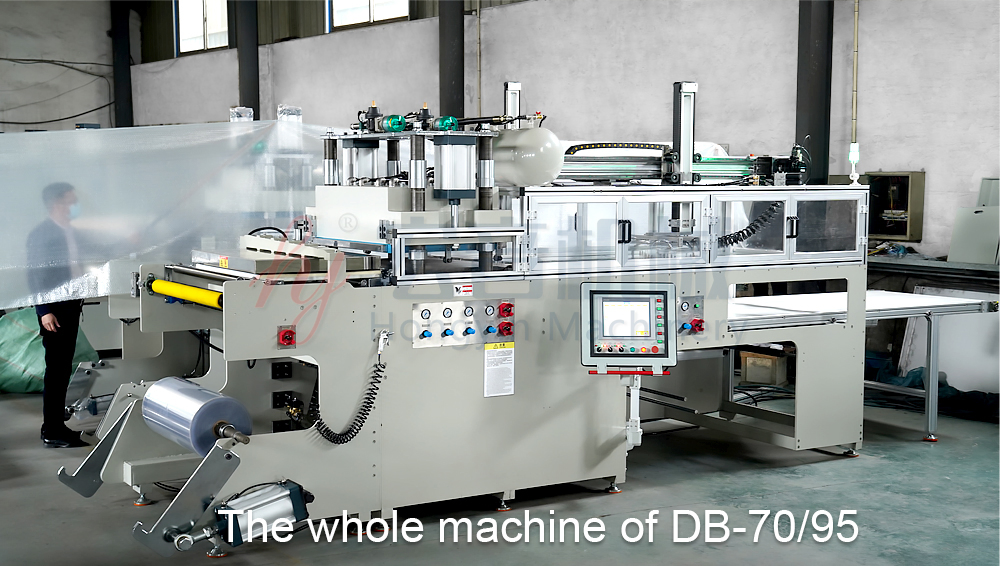

Plastic Thermoforming Machine

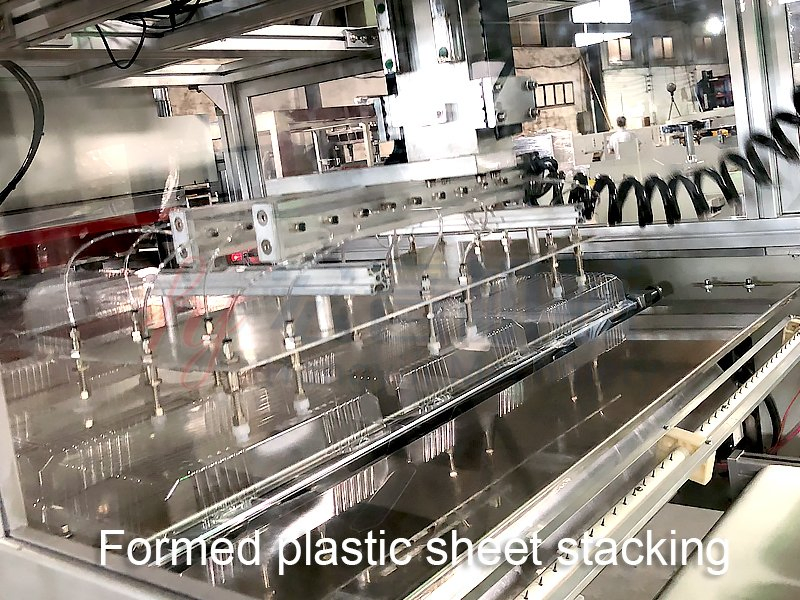

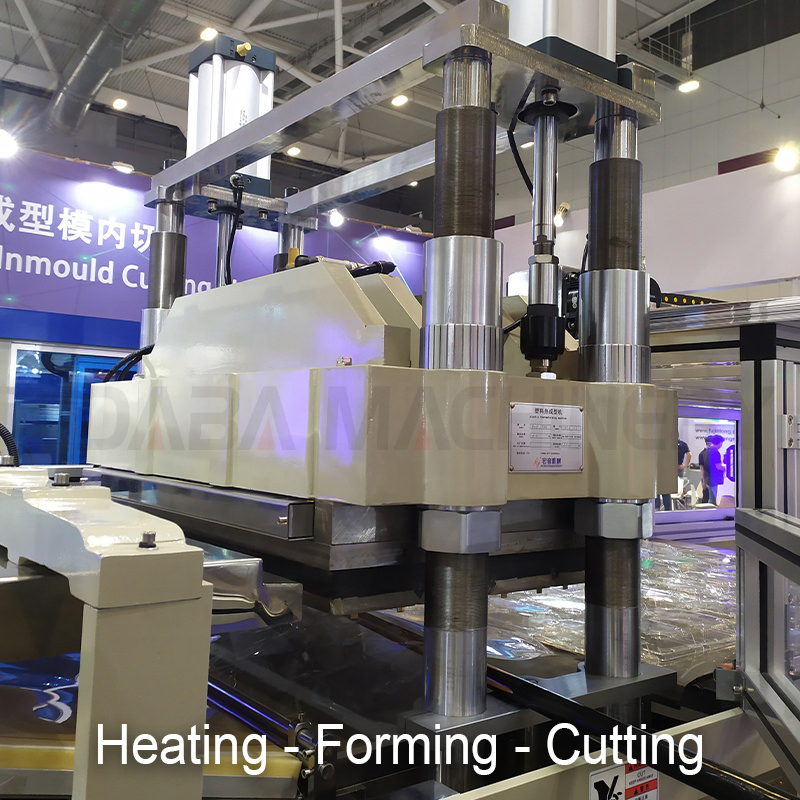

This series of machine is a plastic thermoforming equipment with integrated design of machine, electricity and gas, PLC control system, touch screen operation, sheet feeding-heating-molding-cutting-stacking one-time.

It is suitable for BOPS, PS, APET, PVC, PLA and other thermoplastic materials. It can form a variety of lids, boxes, dishes, trays, such as the lids of fast food box, sushi, paper bowl, aluminum foil, the trays of moon cake, pastry, supermarket, and it also can produce medical device packaging, like oral liquid tray, medicine injection tray.

Technical Parameters
Forming Area700x 950 mm (27.6"x37.4")
Depth of Draw125mm (5") maximum
Knife LengthAPET:12000mm / OPS:18000 mm
Material Thickness Range0.15-1.0mm (0.006"-0.040")
Air Pressure0.7Mpa
Air Consumption2000 Litres/min
Cooling Water Consumption15Litres/min
Heating power38kw
Motor power13kw
Power SupplyAC 380V 50/60HZ
Working speed600-1200 Cycles/hr
Machine Dimensions6590x1760x2720mm
Machine Weight6800kg
Key Features
01
Versatile use for forming BOPS/HIPS/PS/PVC/PET plastic sheets into various boxes, dishes, trays, bowls, and lids.
02
Advanced combination of mechanical, electrical, and pneumatic components, integrating material sending, heating, forming, and cutting.
03
Micro PLC control system with a user-friendly interface, ensuring reliable, safe, and smooth operation with minimal errors.
04

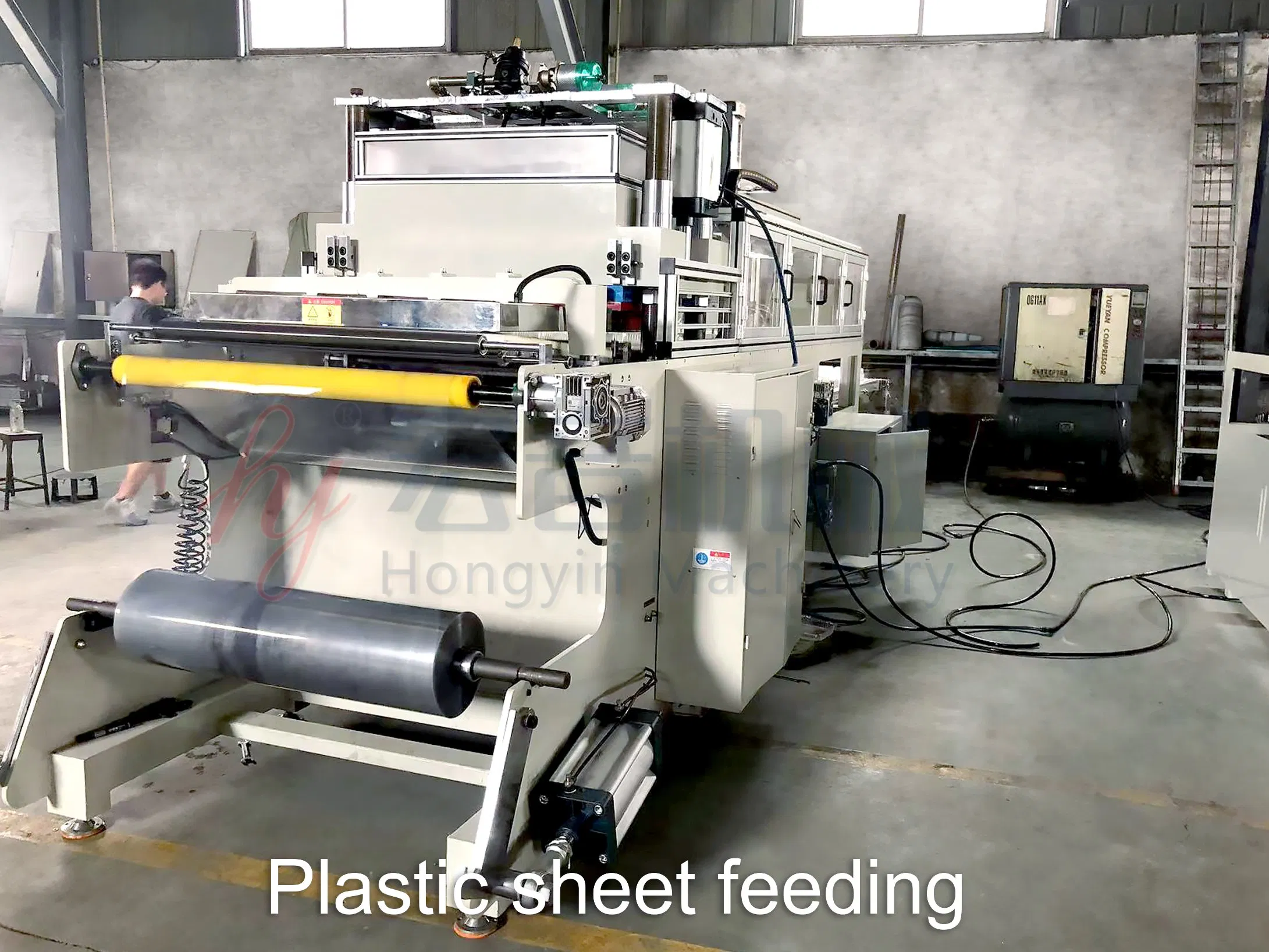

High-precision servo motor drives the sheet transport system for accurate performance.
05
High production capacity with high utilization ratios of plastic sheets and low air consumption.
06
Equipped with telecommuting and memory reserve functions for modern production management.
Product Details & Samples

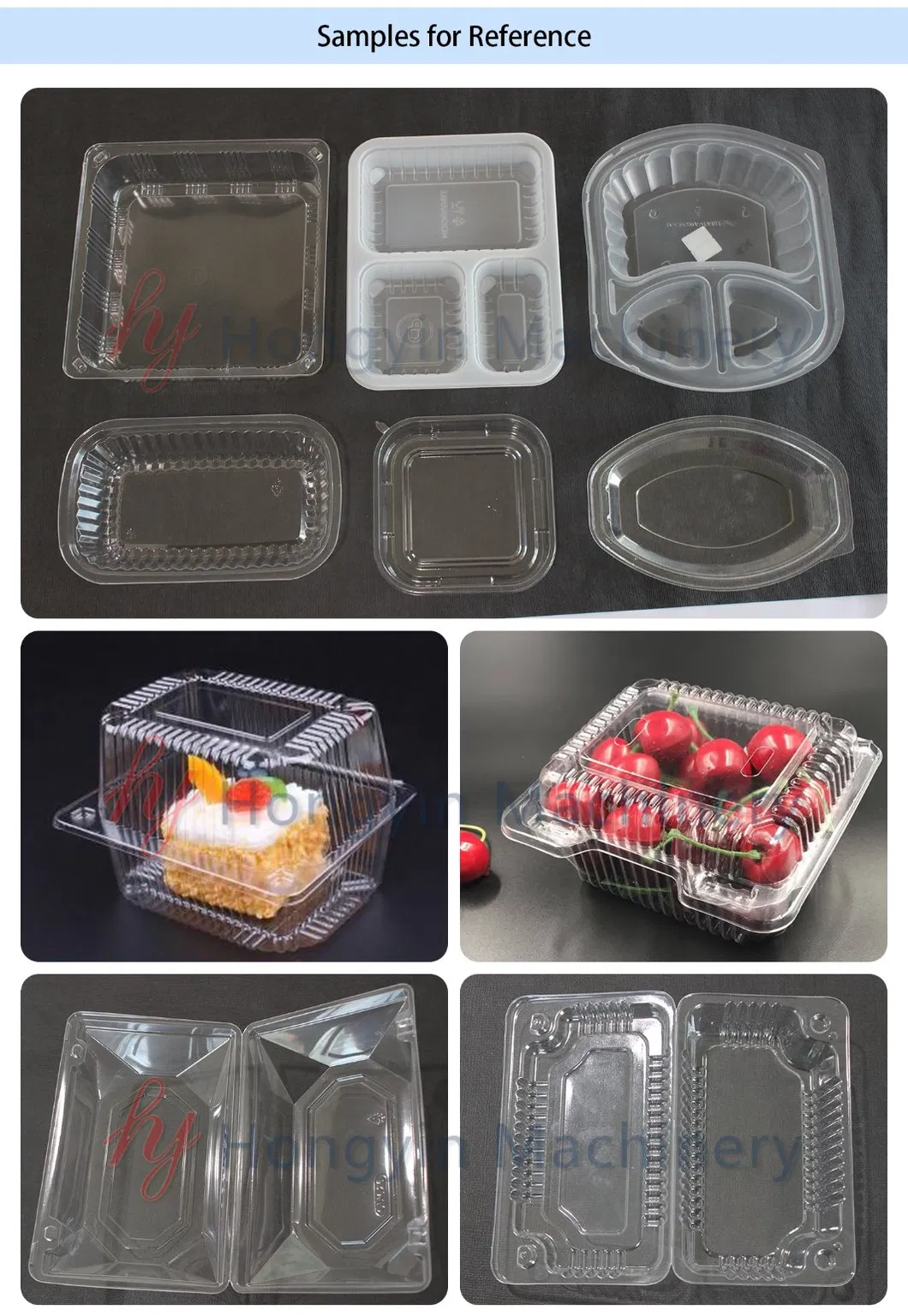

Detail 1

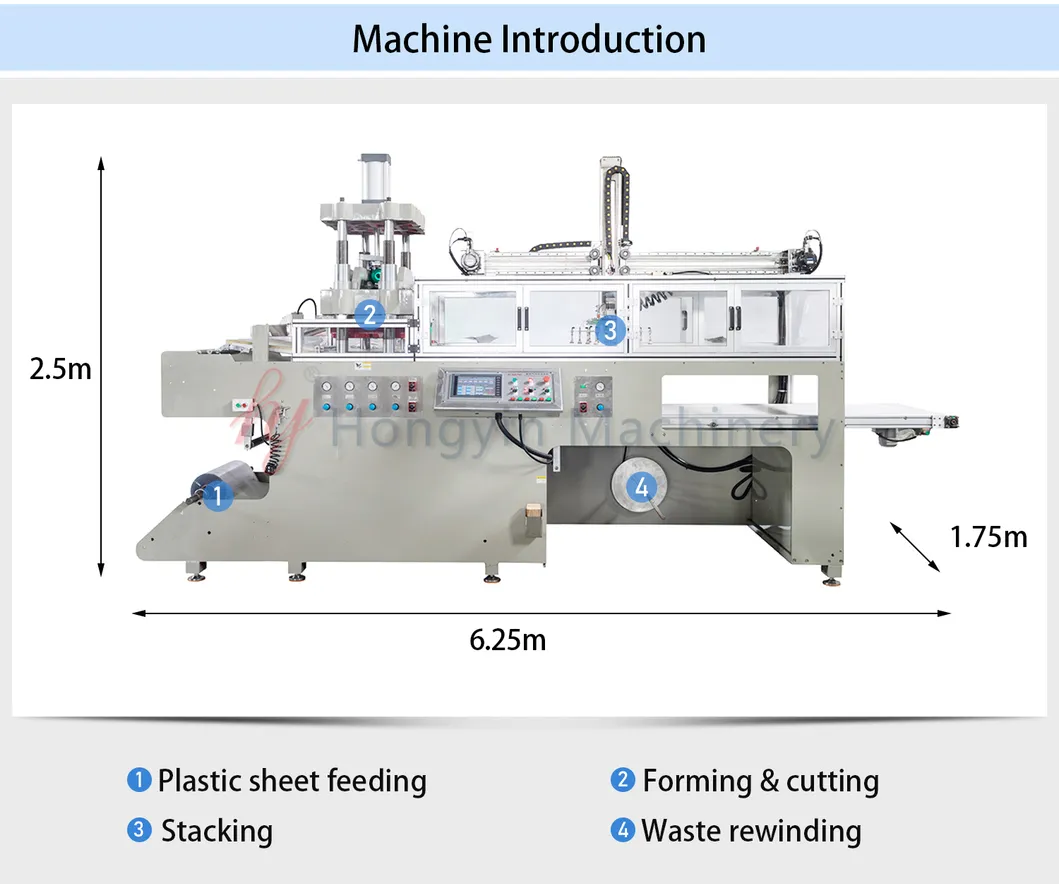

Detail 2

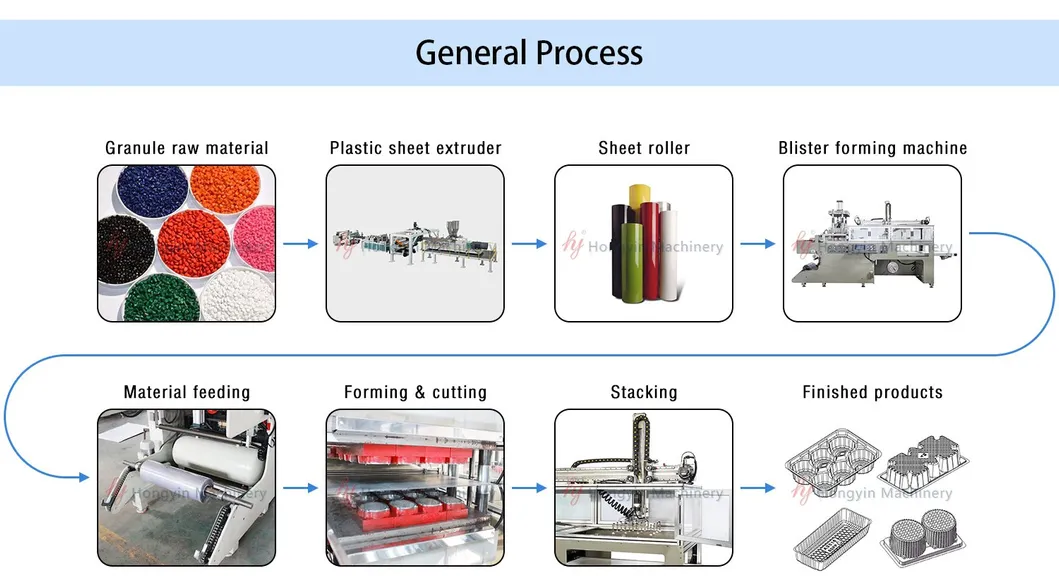

Detail 3

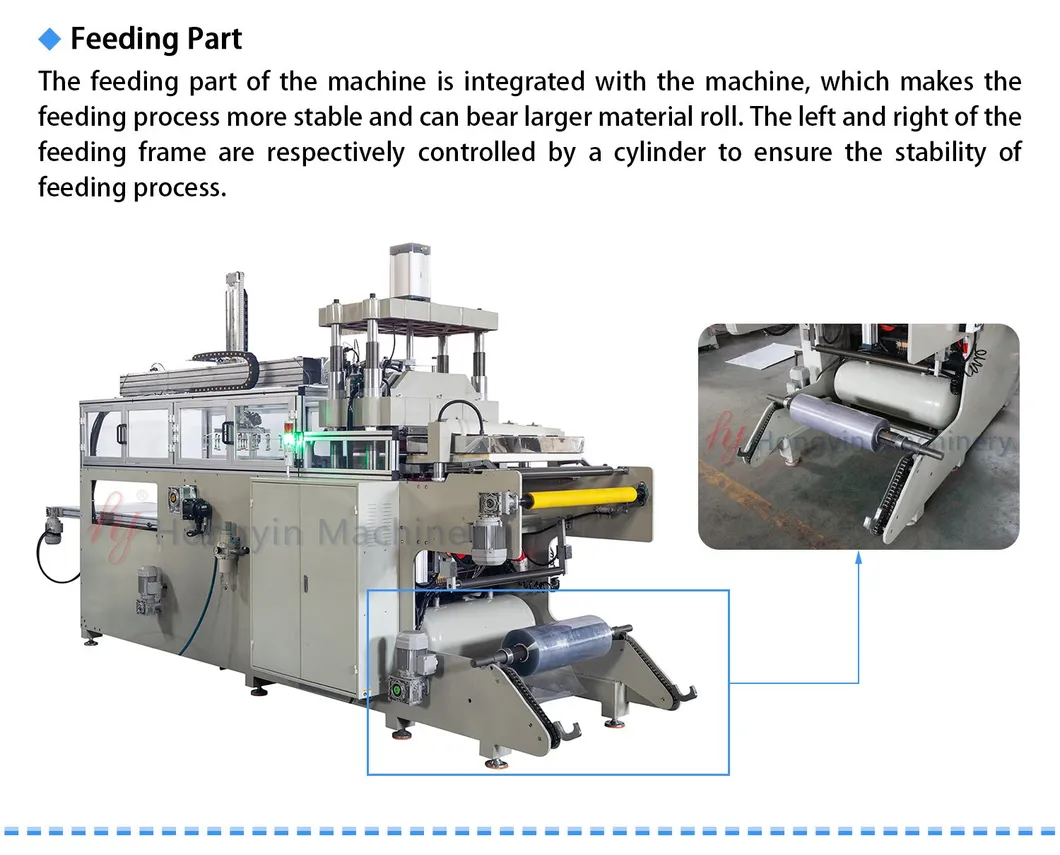

Detail 4

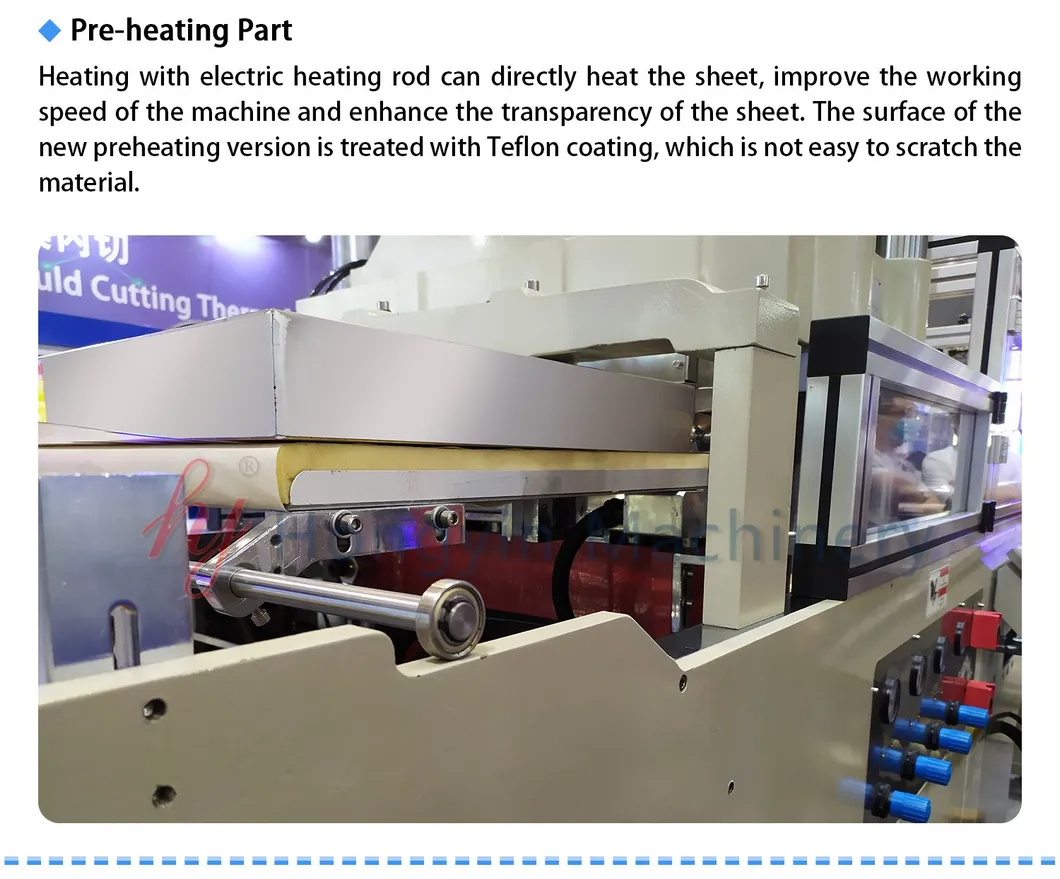

Detail 5

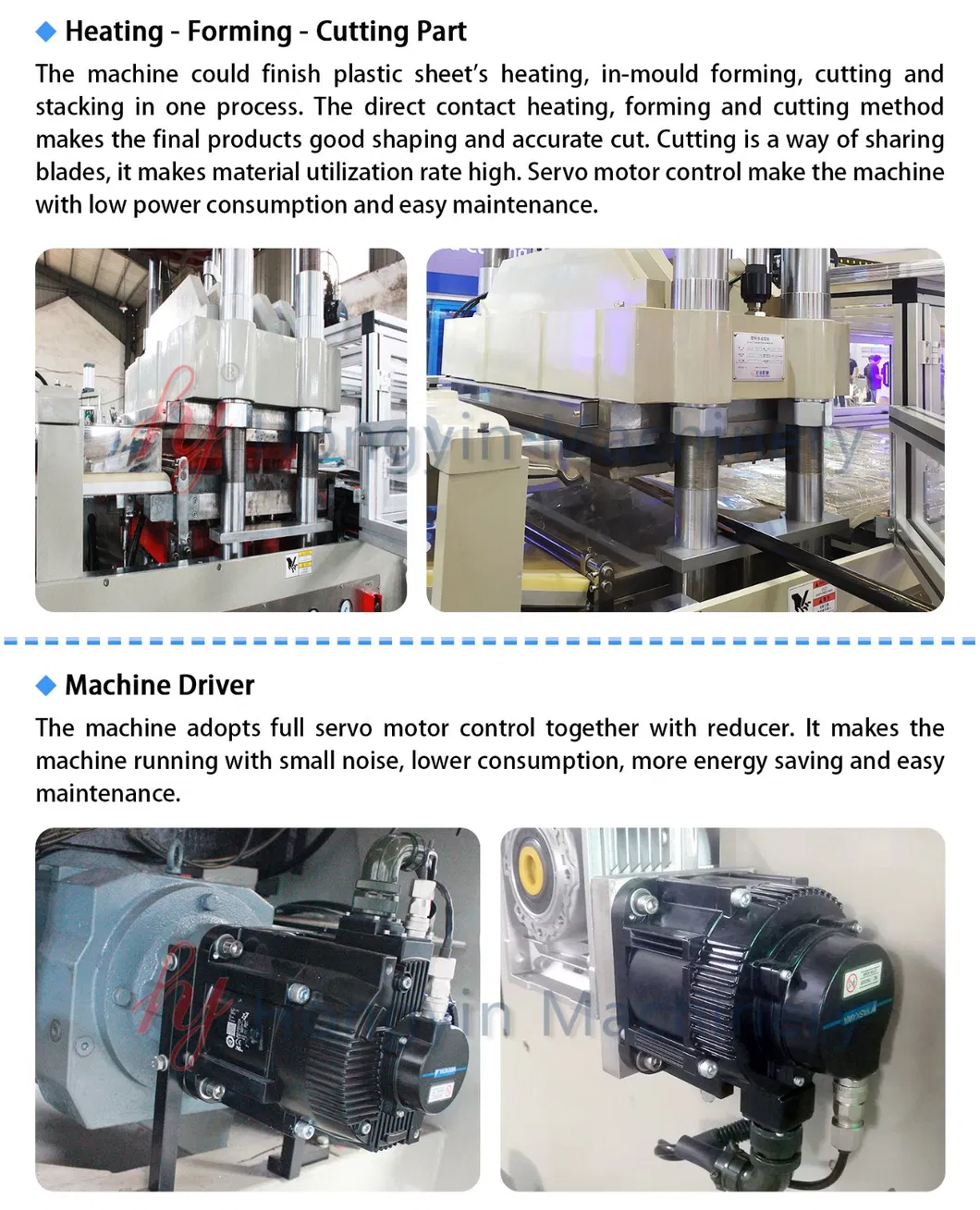

Detail 6

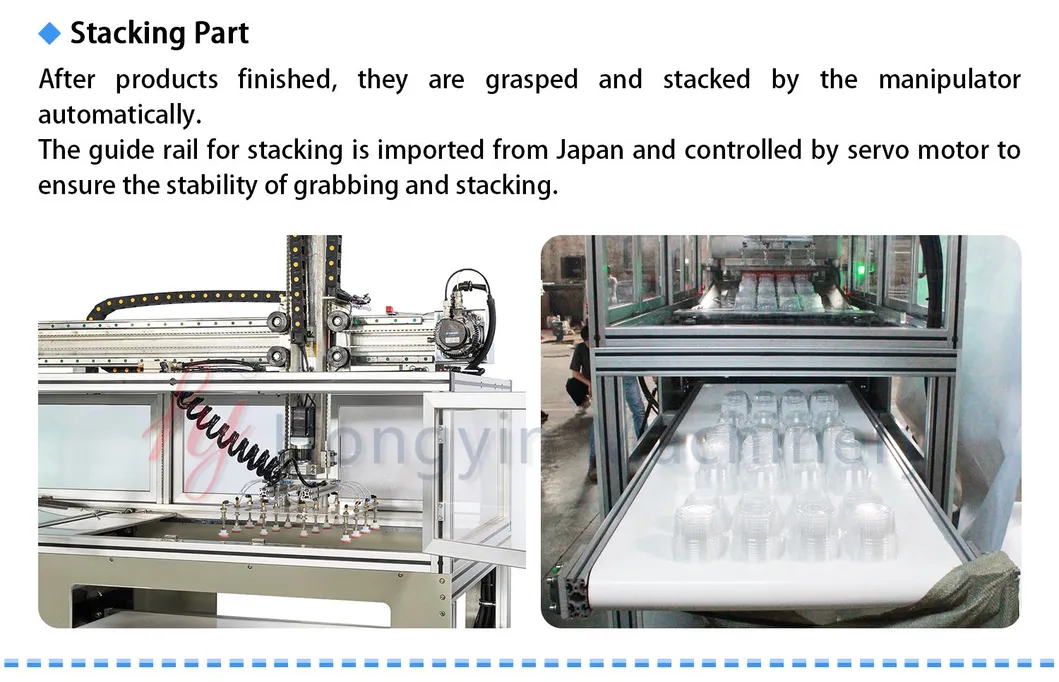

Detail 7

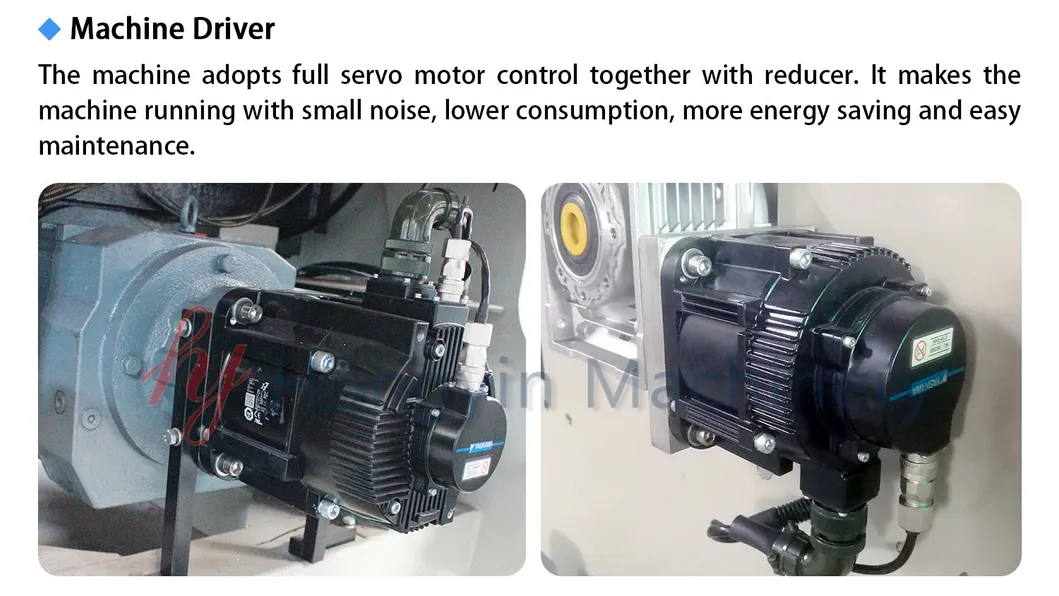

Detail 8
Detail 9
Detail 10
Frequently Asked Questions
What is the typical delivery timeframe?
Production is usually completed within 30 days after receiving the 30% advanced payment, subject to current stock and production schedules.
What are the accepted payment terms?
We accept T/T (30% in advance and 70% balanced against B/L copy) and L/C at sight.
How long does the installation and training take?
The complete installation and operator training are typically finalized within 30 days.
What is the warranty period for the machine?
All machines come with a one-year guarantee, starting from the date the installation is completed.
How are replacement parts handled during the warranty period?
We provide express delivery for free replacement parts if any components fail within the warranty period.
Is technical support available after the warranty expires?
Yes, we continue to offer services. For overseas technical assistance after the warranty, a standard daily technician fee applies.
