Automatic High Speed Accuracy Counting Paper Plastic Disposable Cup Bowl Lid Coffee Tea Milk Sauce Cup Bowl Packing Making Forming Machine

Customization: Available
After-sales Service: Engineers Available to Service Machinery Overseas,
Warranty: 1 Year

Product Description

Basic Specifications
Model NO.
TCJ-QZB700
Automatic Grade
Automatic
Application
Drinks, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Type
Filling and Sealing Machine
Forming Species
Bag Moulding
Forming Function
Seal
Driven Type
Electric
Material Type
Solid
Packaging
Bag
Packaging Material
Film
Transport Package
Wood Case Packing
HS Code
8422309090
Product Description

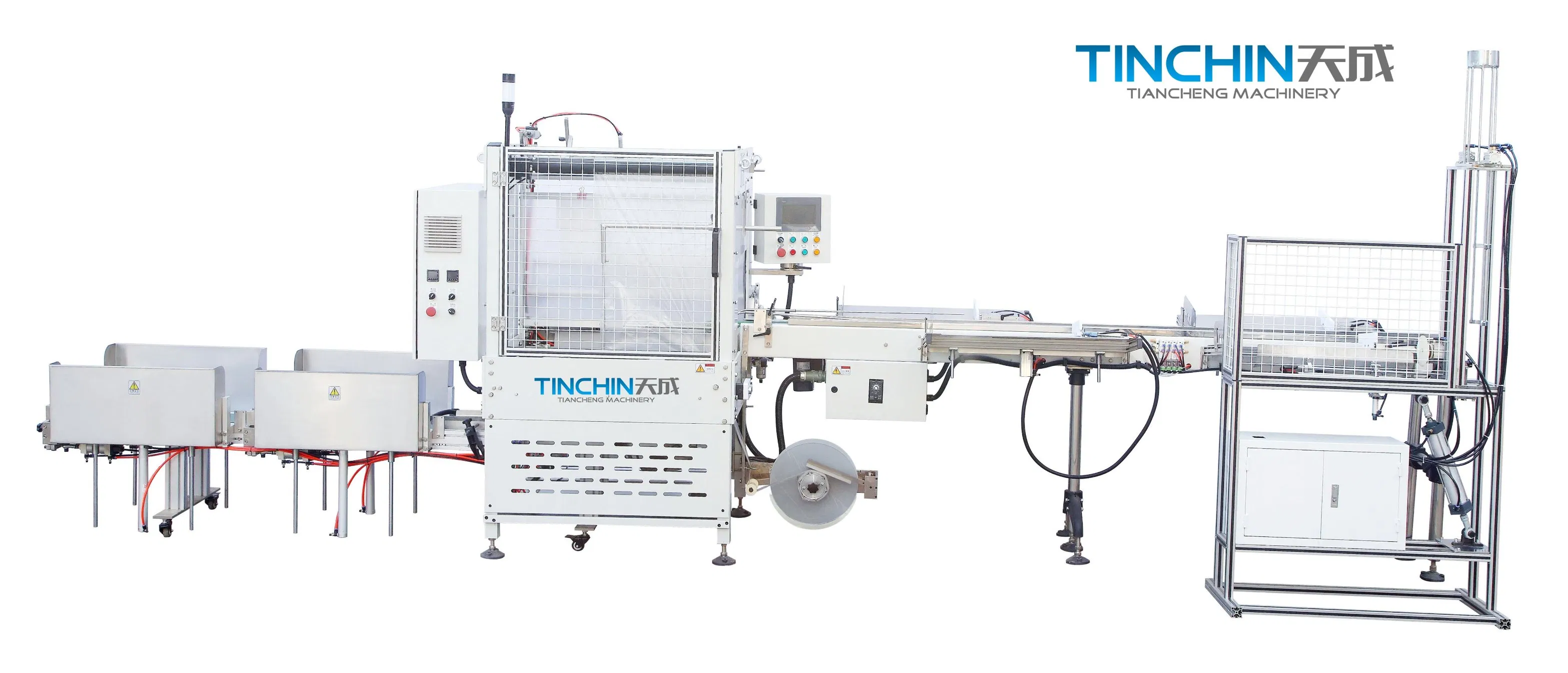

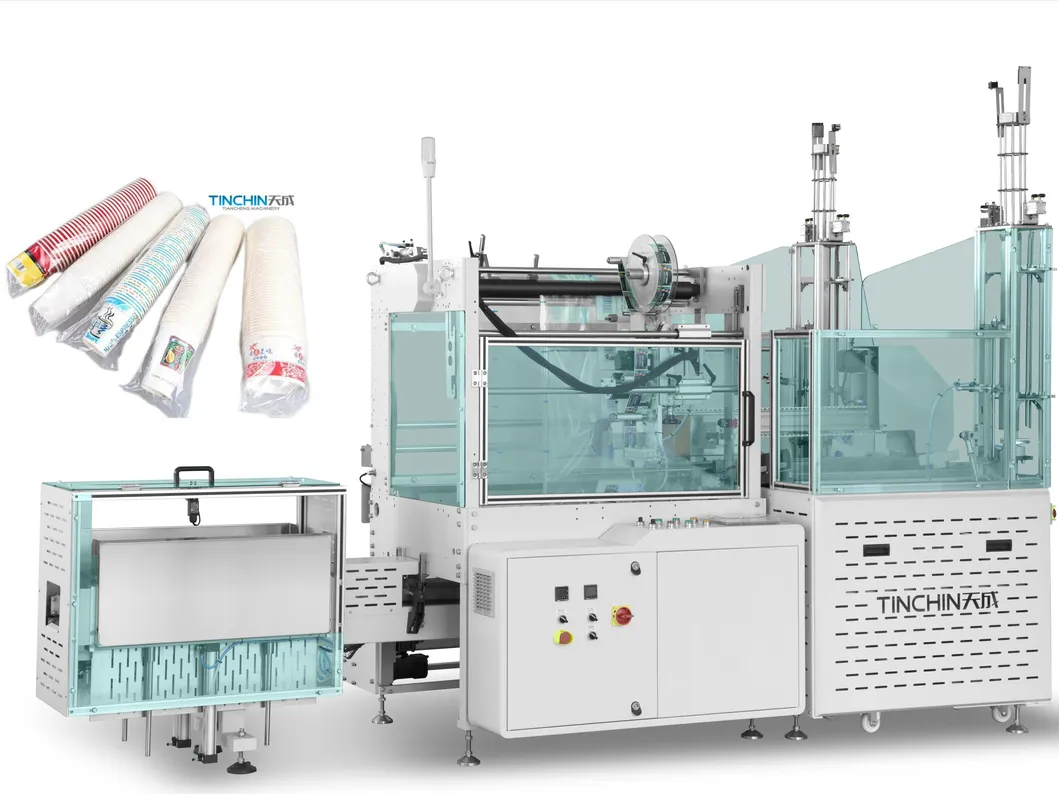

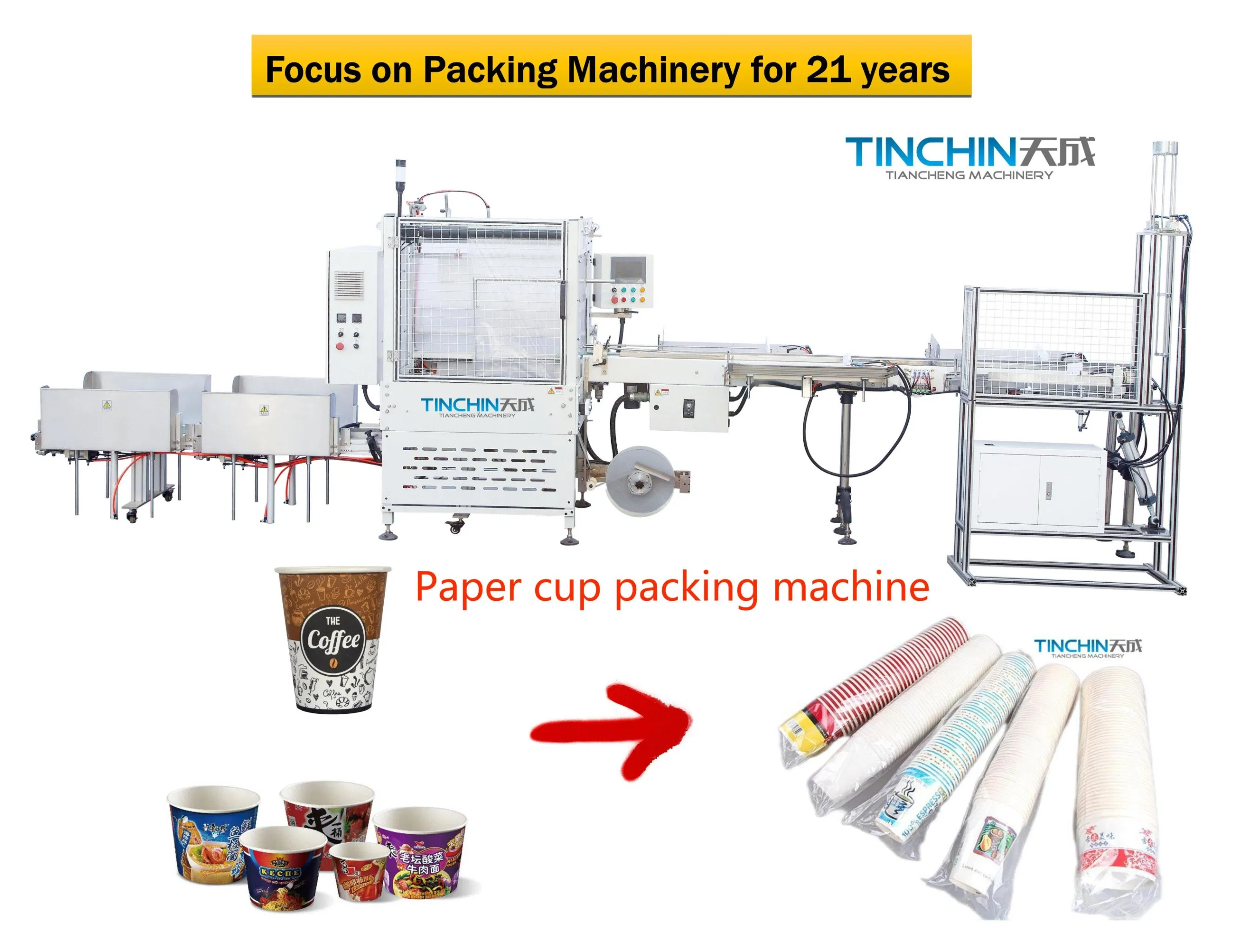

TCJ-QZB750 Full-automatic paper (plastic) cup (Bowl) packing machine
The automatic paper (plastic) cup (bowl) packing machine is essential equipment in modern production lines, serving as the premier alternative to manual labor.
  • Eliminates dust and fingerprint issues common in manual handling.
  • Significantly reduces labor costs and optimizes packaging material usage.
  • Delivers superior, professional, and aesthetically pleasing packaging results.
Advanced Features
Our machinery integrates multiple high-tech functions to ensure efficiency and precision:
  • Automatic film feeding and air release hole punching.
  • High-accuracy color mark tracking for precise sealing.
  • Seamless integration into full-automatic production lines with multiple cup machines.
  • On-line production adjusts film length automatically based on cup diameter.
  • Optional ink-jet printer integration for production dates, models, and batch numbers.
Technical Parameters
TCJ-QZB750 Main Unit
Product TypePaper cup / Paper bowl
Top DiameterΦ60mm-Φ95mm / Φ95mm-Φ150mm (Customizable)
Max. Stacking Length630mm / 720mm
Packaging MaterialHDPE, LDPE, PP, POF, PO
Film Thickness12μm - 50μm
Max Speed16 bags/min
Case Machine Specifications
Max. Packaging Speed12 sleeves / min
Effective Cup DiameterΦ60mm - Φ150mm
Carton Dimensions (L*W*H)(350-500) * (240-450) * (330-600) mm
Electrical Requirement0.8KW, Single Phase 220V 50HZ/60HZ
Air Requirement0.6MPa

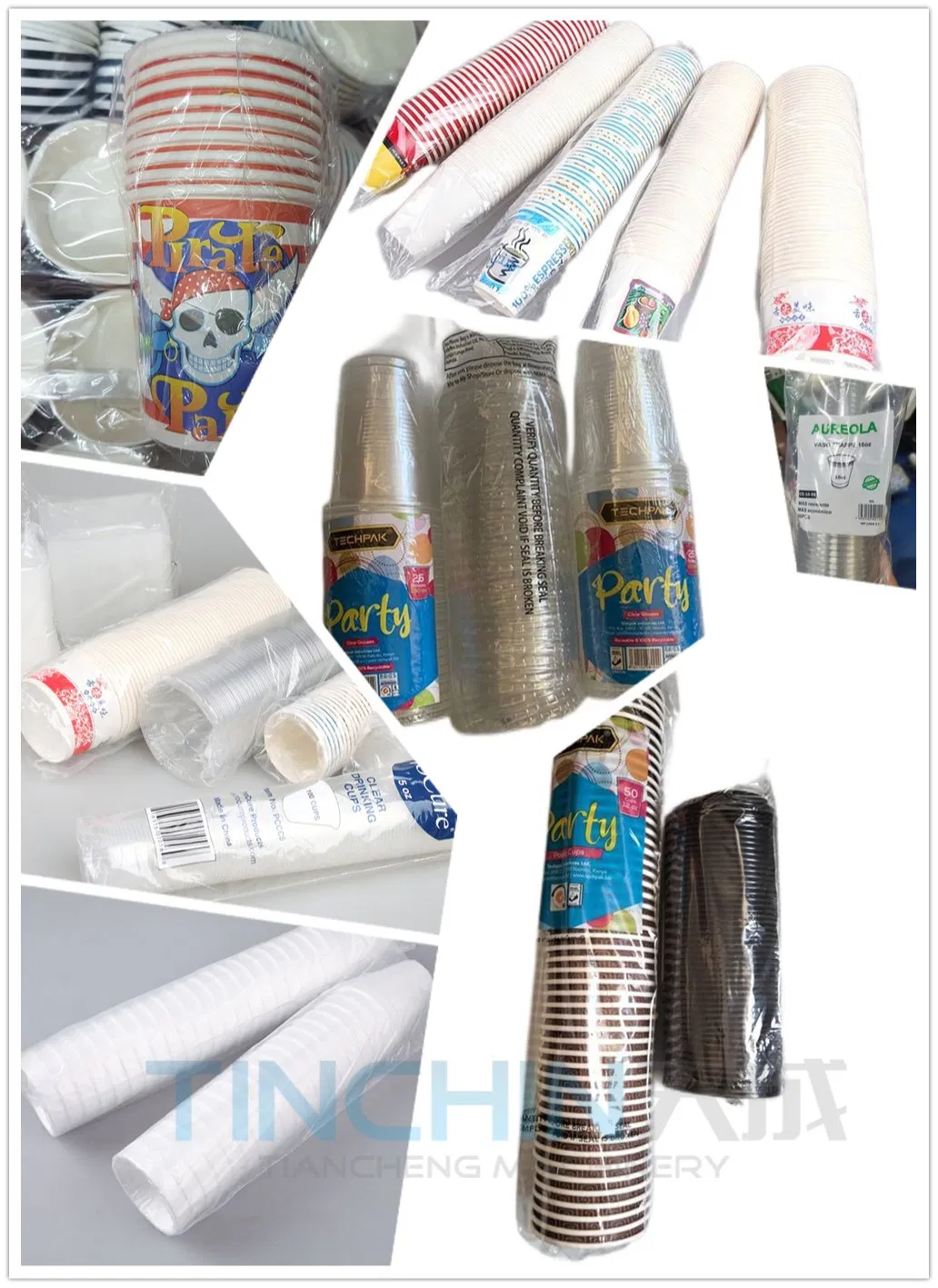

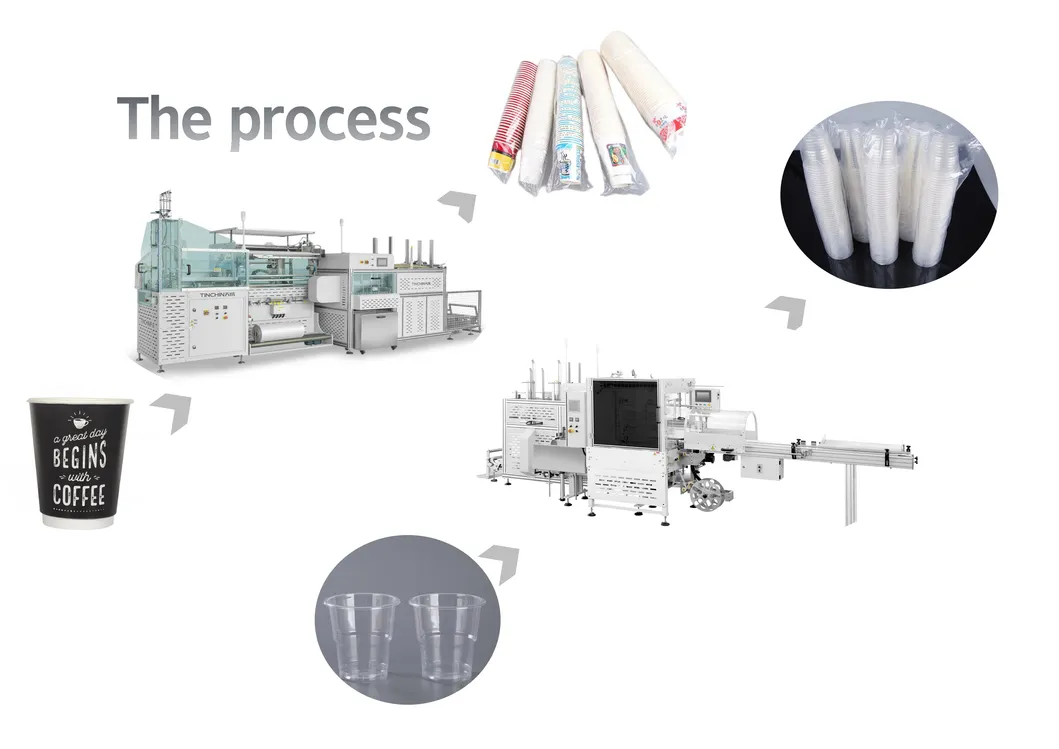

Product Applications & Process

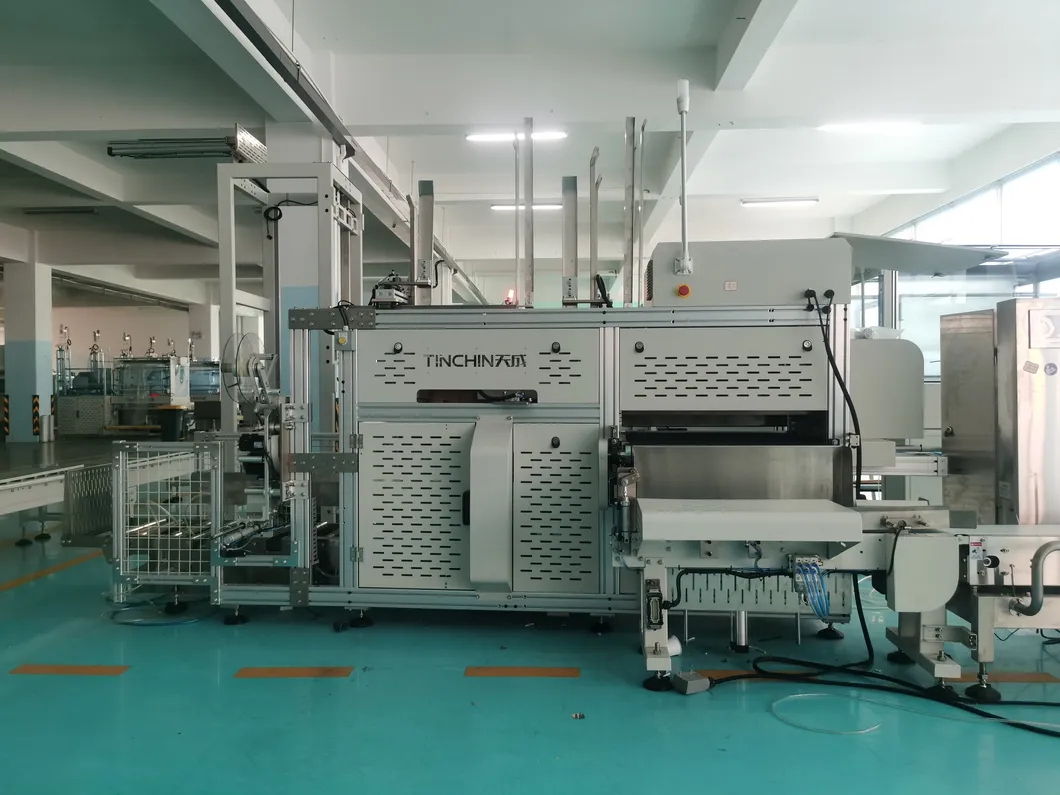

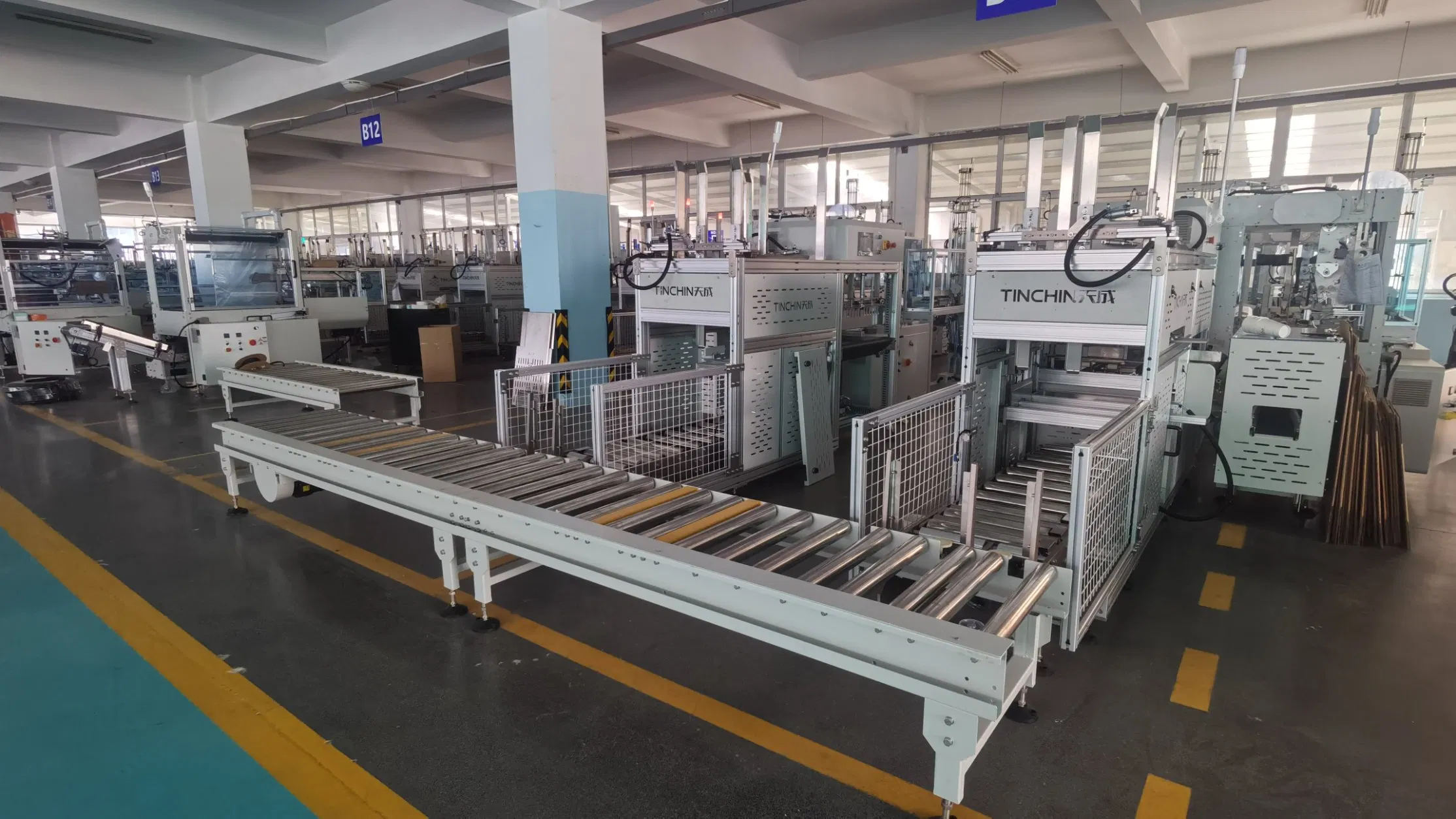

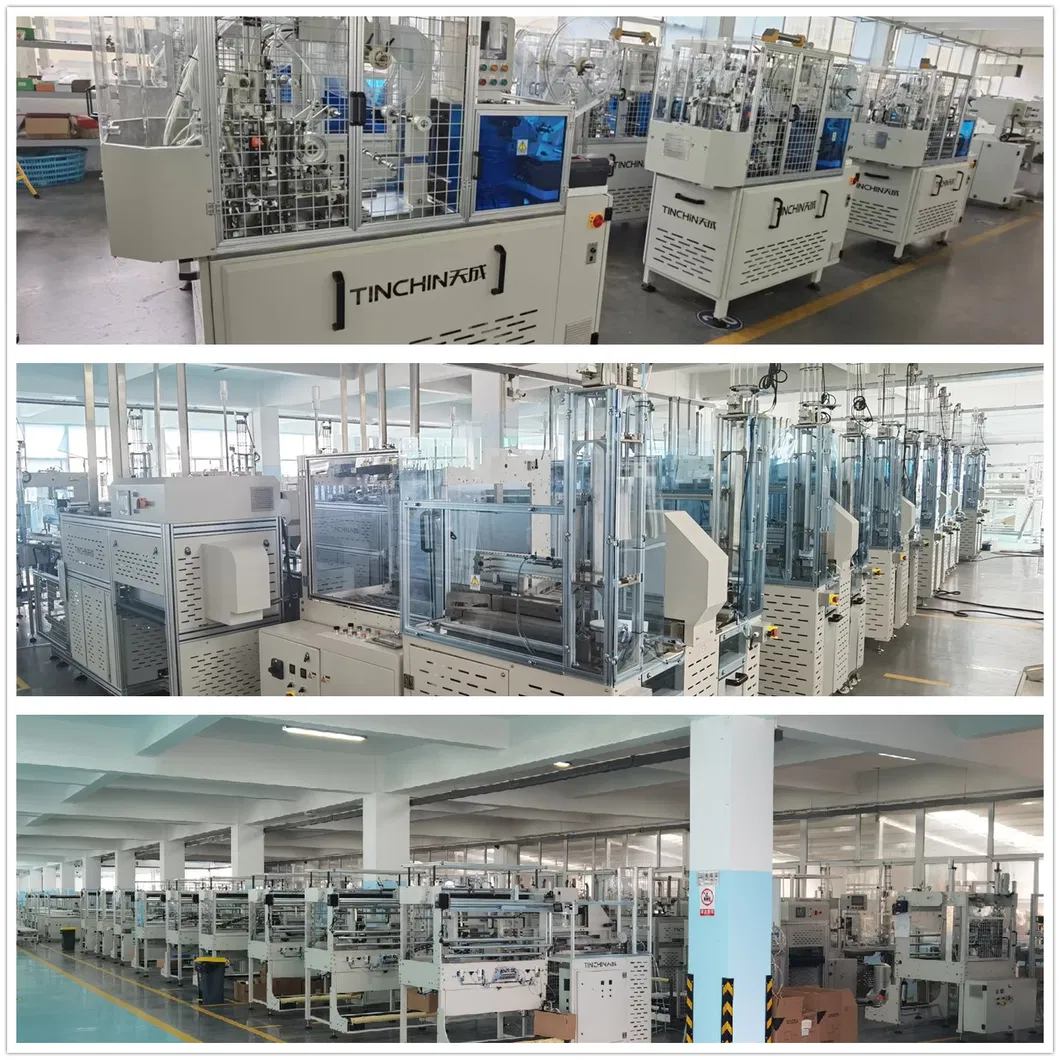

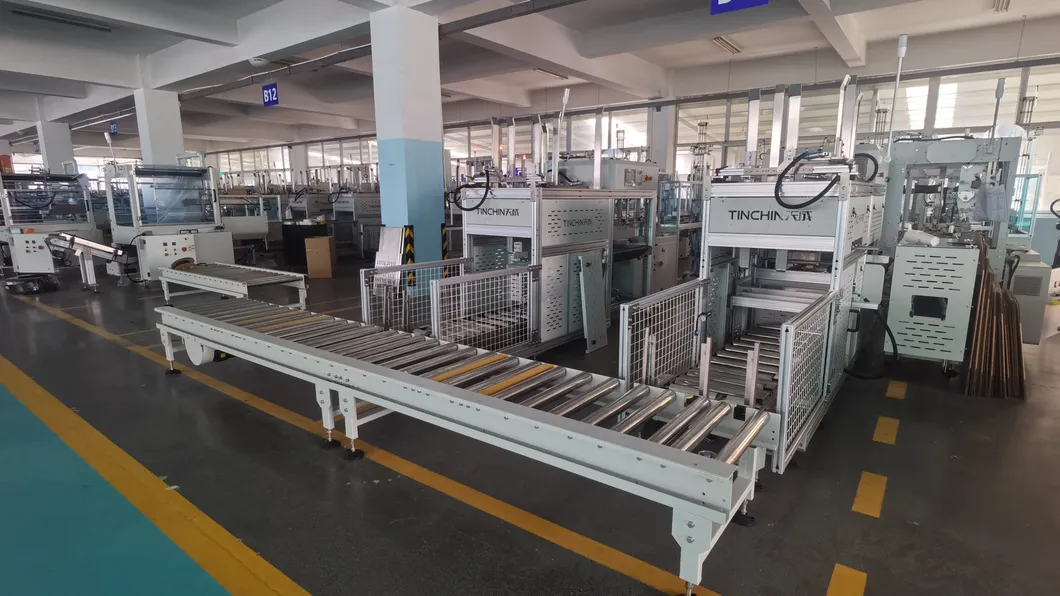

Workshop & Quality Control
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer specialized in this field for over 21 years.
What is the product range for cup/bowl/lid packing?

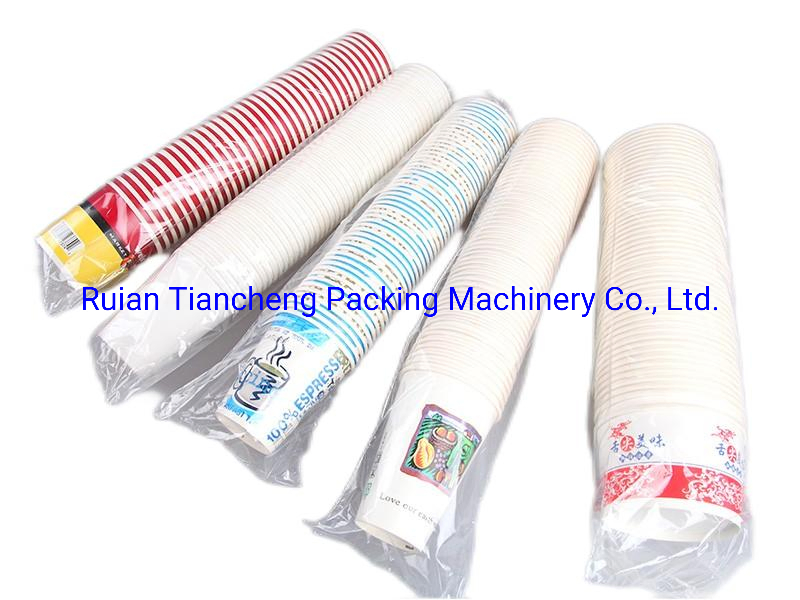

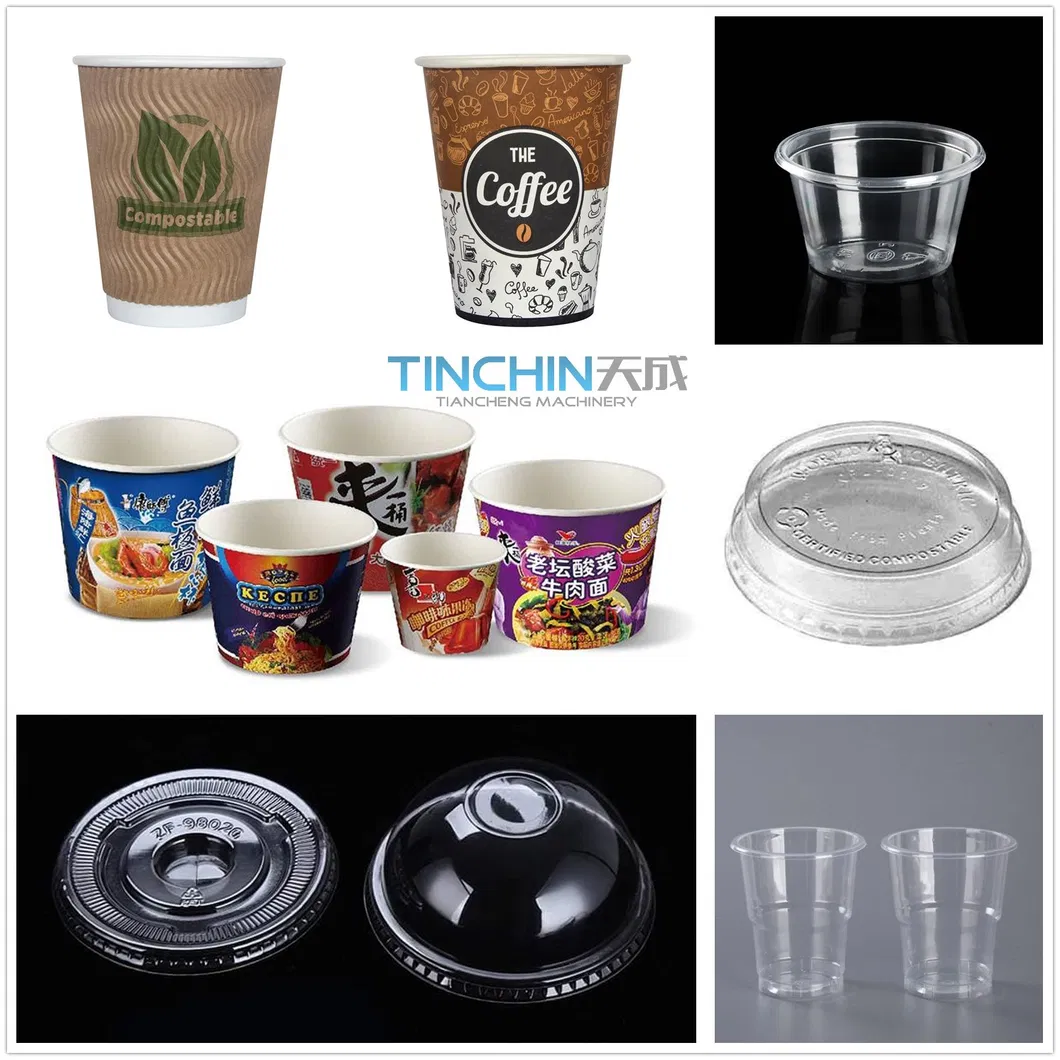

Our machines pack tea cups, milk tea cups, coffee cups, ice cream cups, yogurt cups, sauce cups, noodle bowls, KFC bowls, and all types of disposable lids.
What cup/bowl sizes can the machine handle?
Standard sizes range from Φ60mm to Φ150mm top diameter. Other specific sizes can be customized upon request.
What information is needed for a quotation?
Please provide the quantity, detailed dimensions (top/bottom diameter and height), and whether you require a cup collect station or case machine.
What are your core advantages?
We offer 21 years of industry experience, global customer reach, CE certification, and a rapid-response support team.
What after-sales services do you provide?
We provide comprehensive support including spare parts, overseas engineering services, commissioning, training, field maintenance, and online video technical support.
