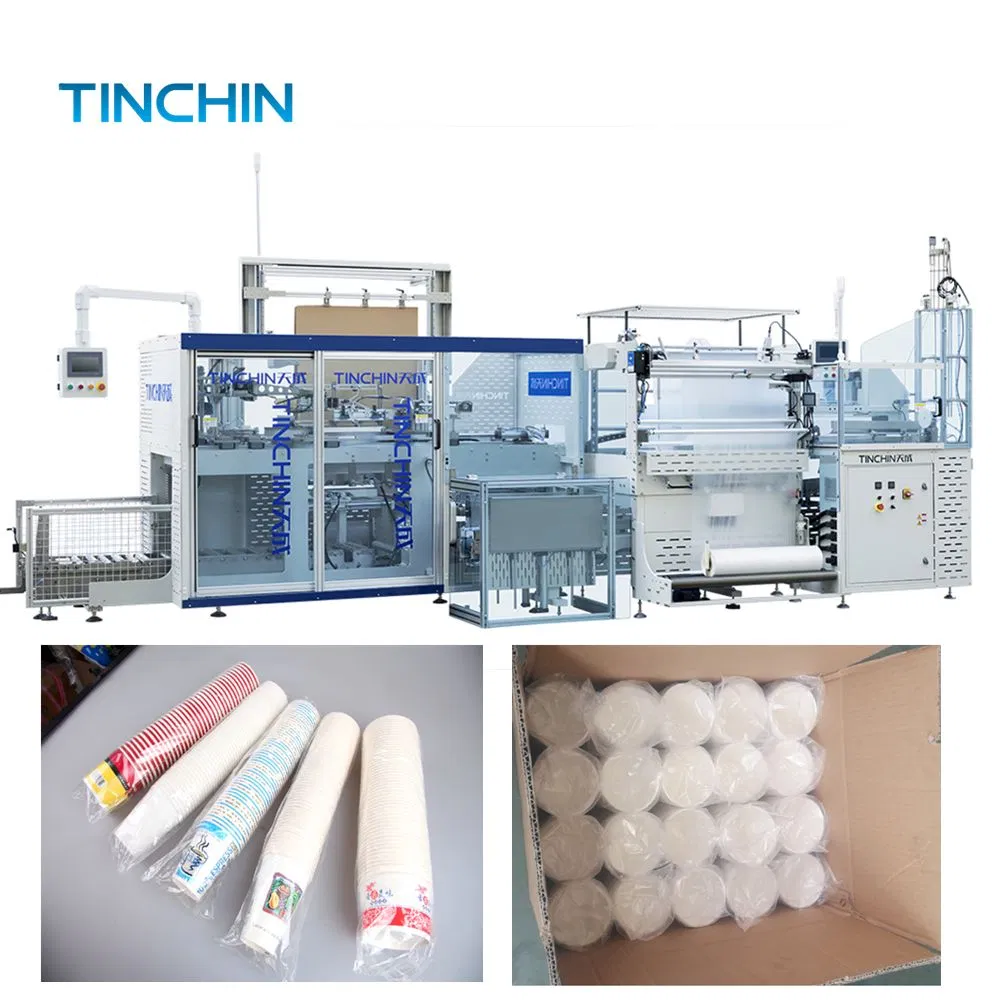

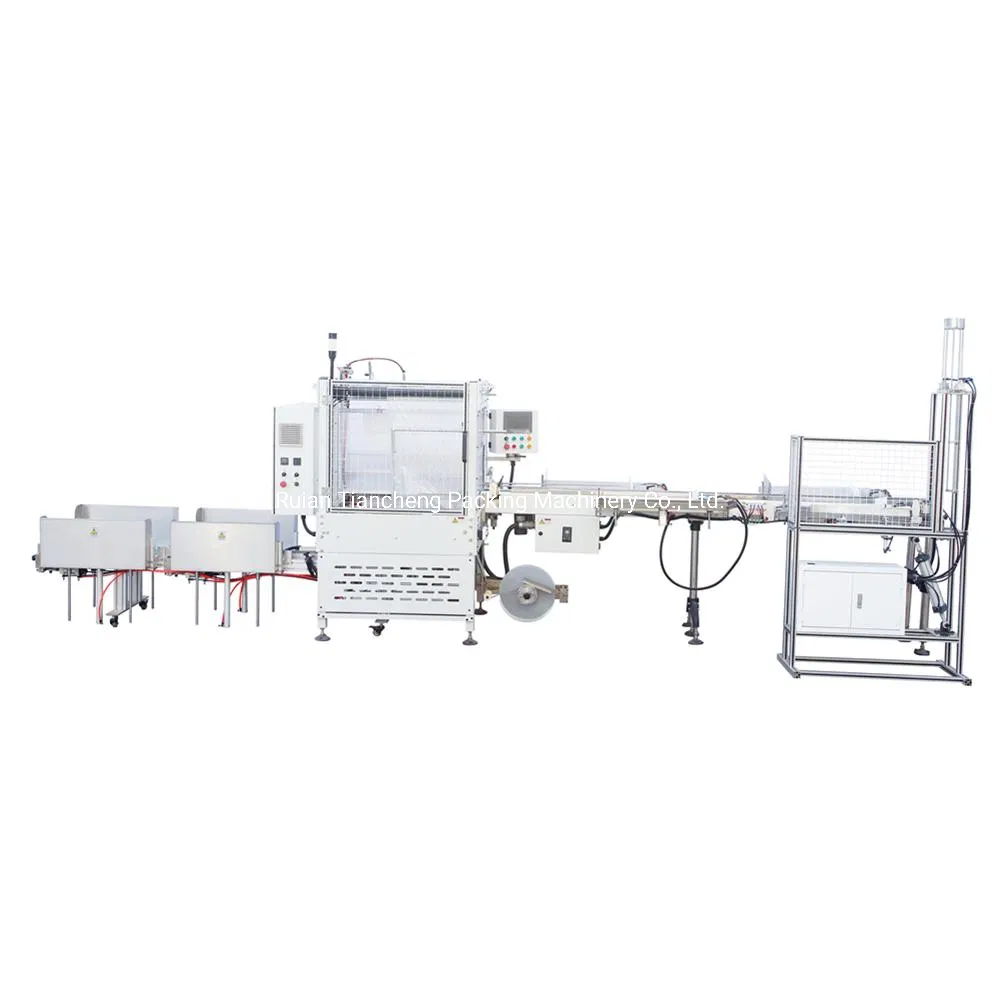

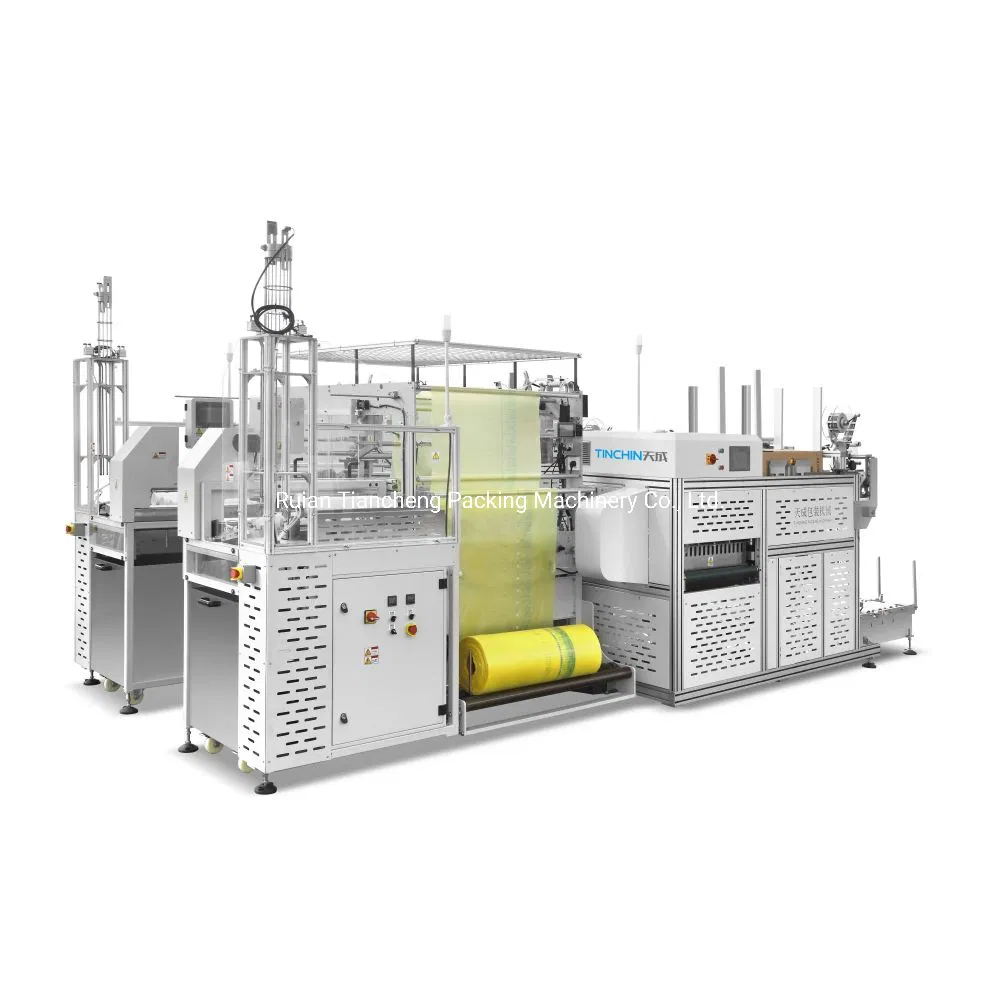

Full Automatic Double Single Wall Coffee Drink Paper Plastic Cup Bowl Lids Packing and Case Erector Tape Sealing Machine Packaging Machine
| Technical Specifications - TCJ-QZB750 | |
|---|---|
| Model | TCJ-QZB750 |
| Max. Packaging Speed | 16 bags/min |
| Max. Unwinding Diameter | 400mm |
| Effective Packaging Diameter | A: 60-95mm | B: 95-150mm (Customizable) |
| Max. Cup Stacking Height | 700mm (Customizable) |
| Packaging Film Materials | HDPE, LDPE |
| Packaging Film Thickness | 15um-40um |
| Power Supply | 3KW |
| Air Requirement | 0.6MPa |

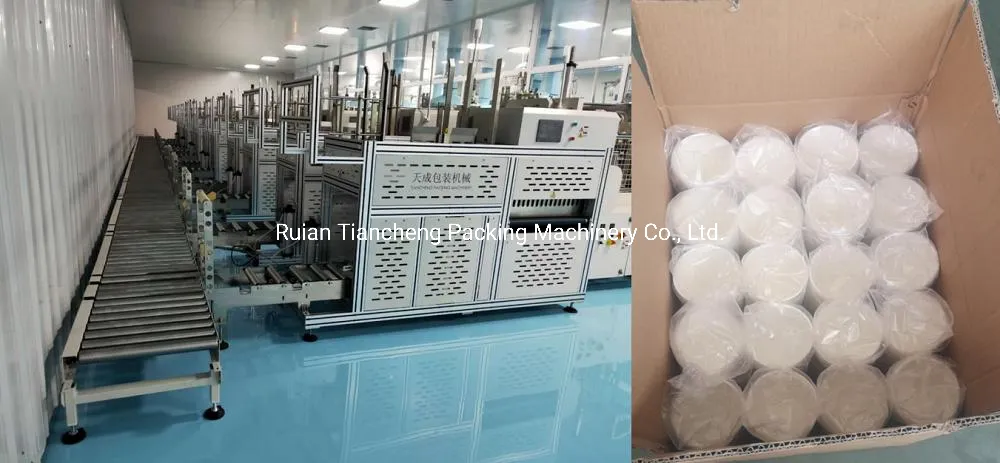

| Case Machine Parameters | |
|---|---|
| Model | 750 |
| Max. Packaging Speed | 12 sleeves /min |
| Effective Cup Diameter | 60mm-150mm |
| Number of Layers | A: Single layer | B: Double layers |
| Carton Length | 350mm to 500mm |
| Carton Width | 240mm to 450mm |
| Carton Height | 330mm to 700mm (Customizable) |
| Electrical Requirement | 0.8KW three phase 380V 50HZ/60HZ |
| Air Requirement | 0.6MPa |

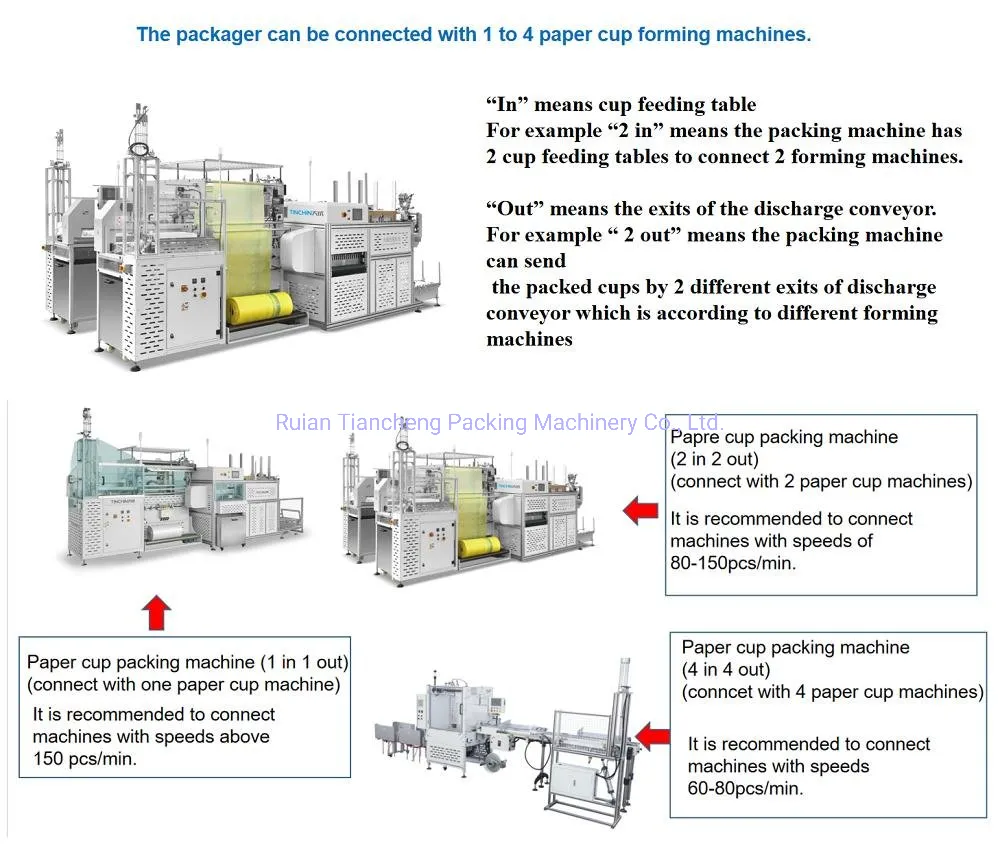

Collecting cups from forming machines and counting automatically.

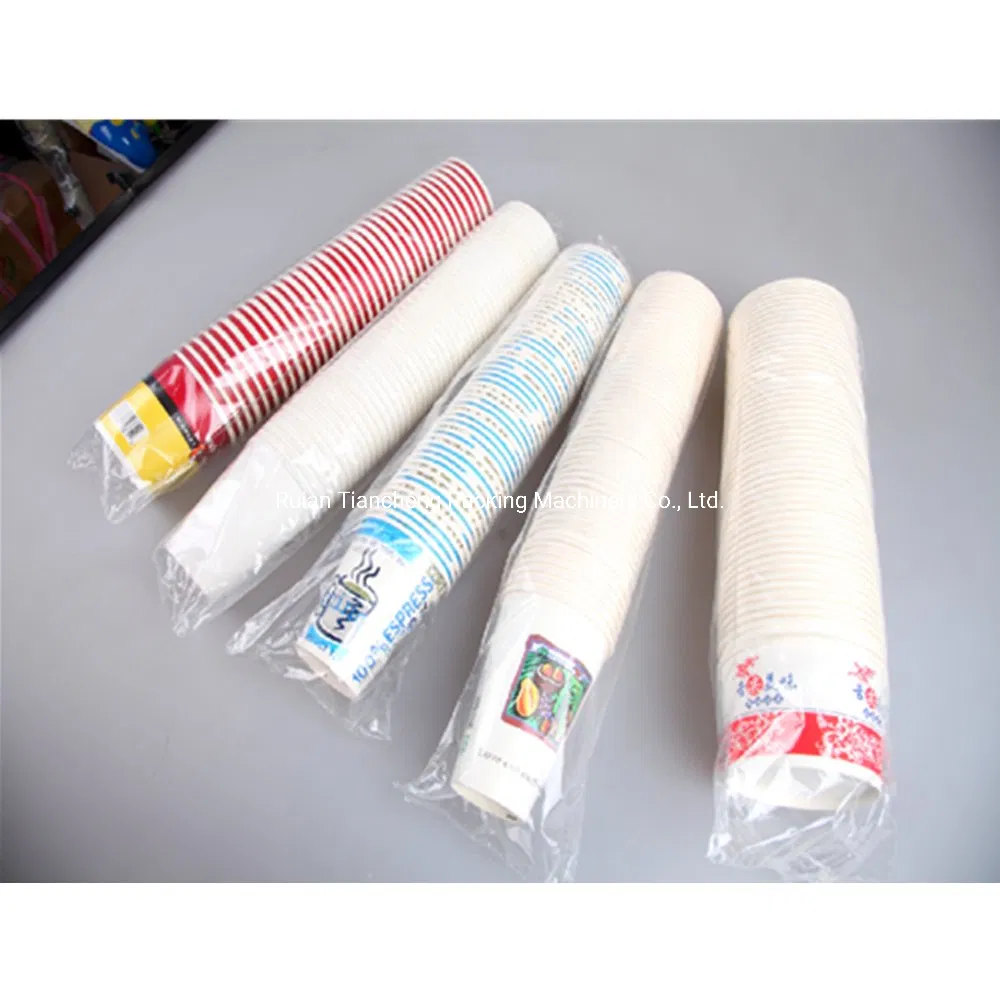

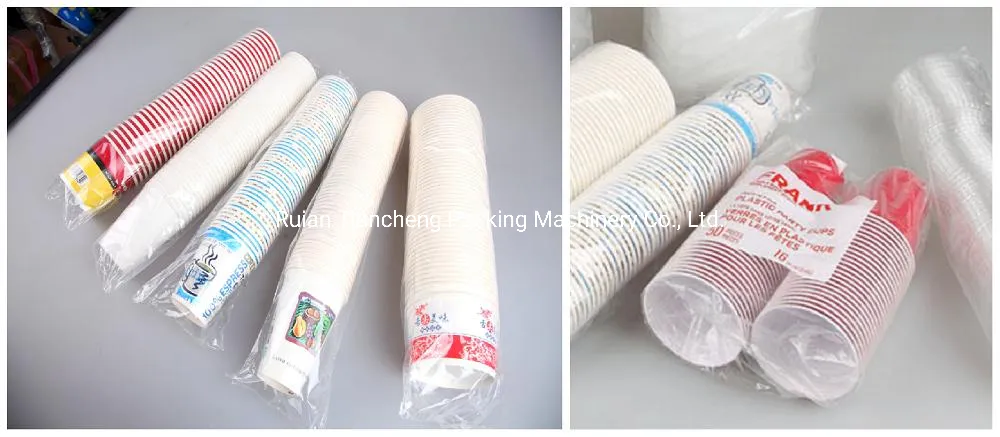

Pack the cups securely into the protective sleeve.

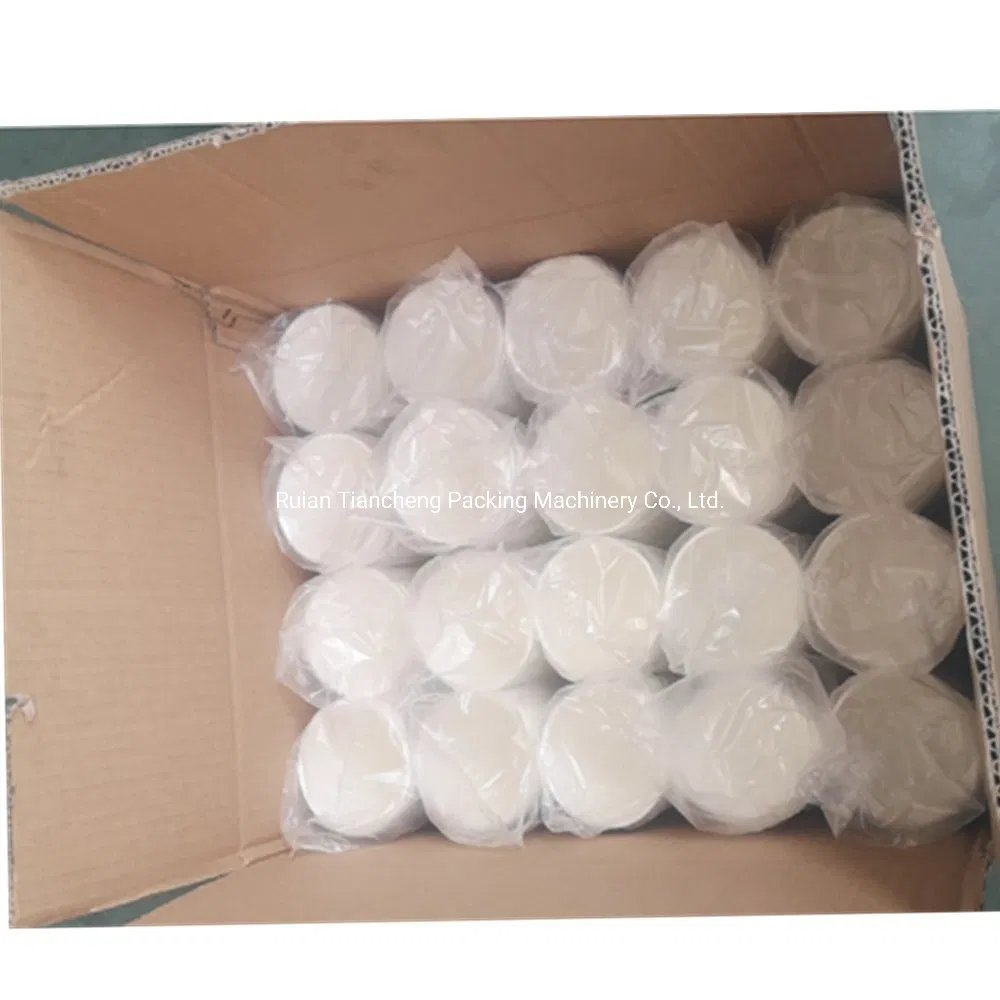

Insert the sleeved cups into the carton precisely.
Close and seal the case using industrial tape.
Stack finished cartons onto pallets for shipping.

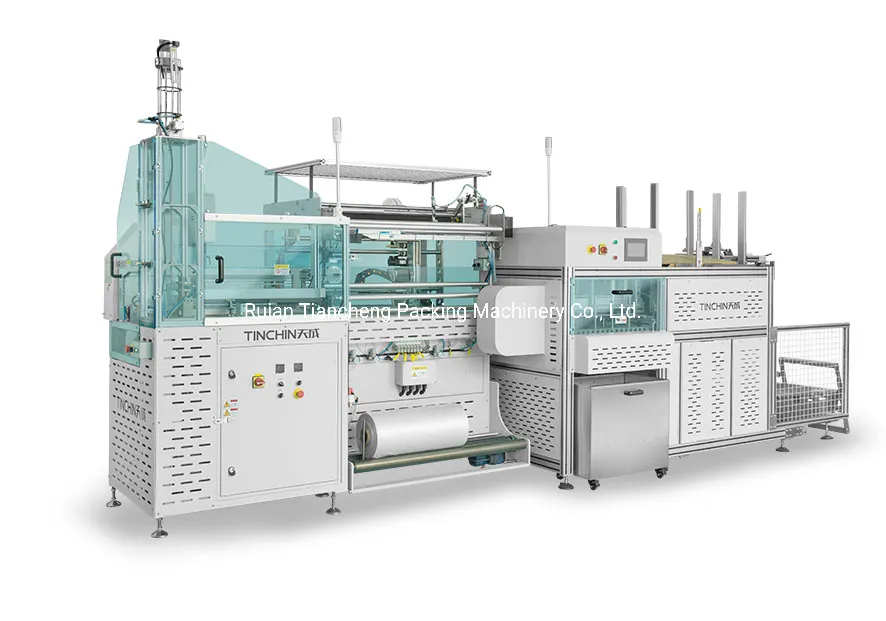

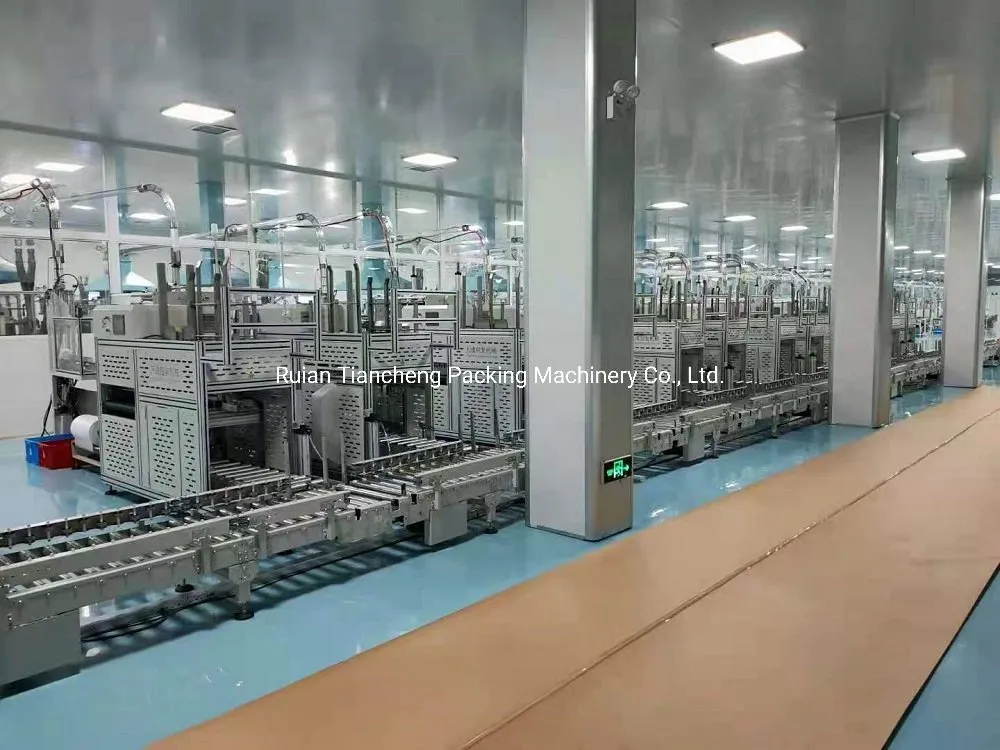

Full Automatic Paper Cup Bowl Packing Machine Online Work With Case Erector And Tape Sealing Machine.
We are a leading source of intelligent packing machines for paper/plastic cups, containers, and lids. With a focus on intelligent packing solutions for more than 20 years, we have obtained more than 70 patents and almost all machines carry CE certification. Our successfully developed lines include bagging machines, case loaders, cartoning machines, tape sealers, and carton stackers.
