High Pressure Automatic Roll Die Cutting Machine for Disposable Paper Packaging Paper Cup
High Pressure Automatic Roll Die Cutting Machine for Disposable Paper Packaging Paper Cup
High Pressure Automatic Roll Die Cutting Machine for Disposable Paper Packaging Paper Cup
High Pressure Automatic Roll Die Cutting Machine for Disposable Paper Packaging Paper Cup
High Pressure Automatic Roll Die Cutting Machine for Disposable Paper Packaging Paper Cup
1 / 5
High Pressure Automatic Roll Die Cutting Machine for Disposable Paper Packaging Paper Cup
High Pressure Automatic Roll Die Cutting Machine for Disposable Paper Packaging Paper Cup
High Pressure Automatic Roll Die Cutting Machine for Disposable Paper Packaging Paper Cup
High Pressure Automatic Roll Die Cutting Machine for Disposable Paper Packaging Paper Cup
High Pressure Automatic Roll Die Cutting Machine for Disposable Paper Packaging Paper Cup

High Pressure Automatic Roll Die Cutting Machine for Disposable Paper Packaging Paper Cup

Customization: Available
After-sales Service: 100 Years
Warranty: 1year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
FDZ1200
Species
Die Cutting and Creasing Machine
Imprinting Type
Platen
Placing Form
Horizontal
Die Cutting Tool
Wooden Die
Computerized
Computerized
Automatic Grade
Automatic
Application
Printing and Packaging
Max Cutting Area
1160mmx610mm
Cutting Precision
0.2mm
Paper Weight
135-600g
Capacity
100-200 Times/Min
Max Pressure
300 T
Weight
9000kgs
Total Power
12kw
Origin
China
⚙️ Product Description
Specifications Details (Model FD1200X640)
Max Cutting Area1160mmX610mm
Cutting Precision0.15mm
Paper Gram Weight135-800g
Production Capacity100-220 times/min
Air Pressure Requirement0.5Mpa
Max Cutting Pressure300 T
Max Roller Diameter1600MM
Dimension6500x2000x1800mm
Introduction

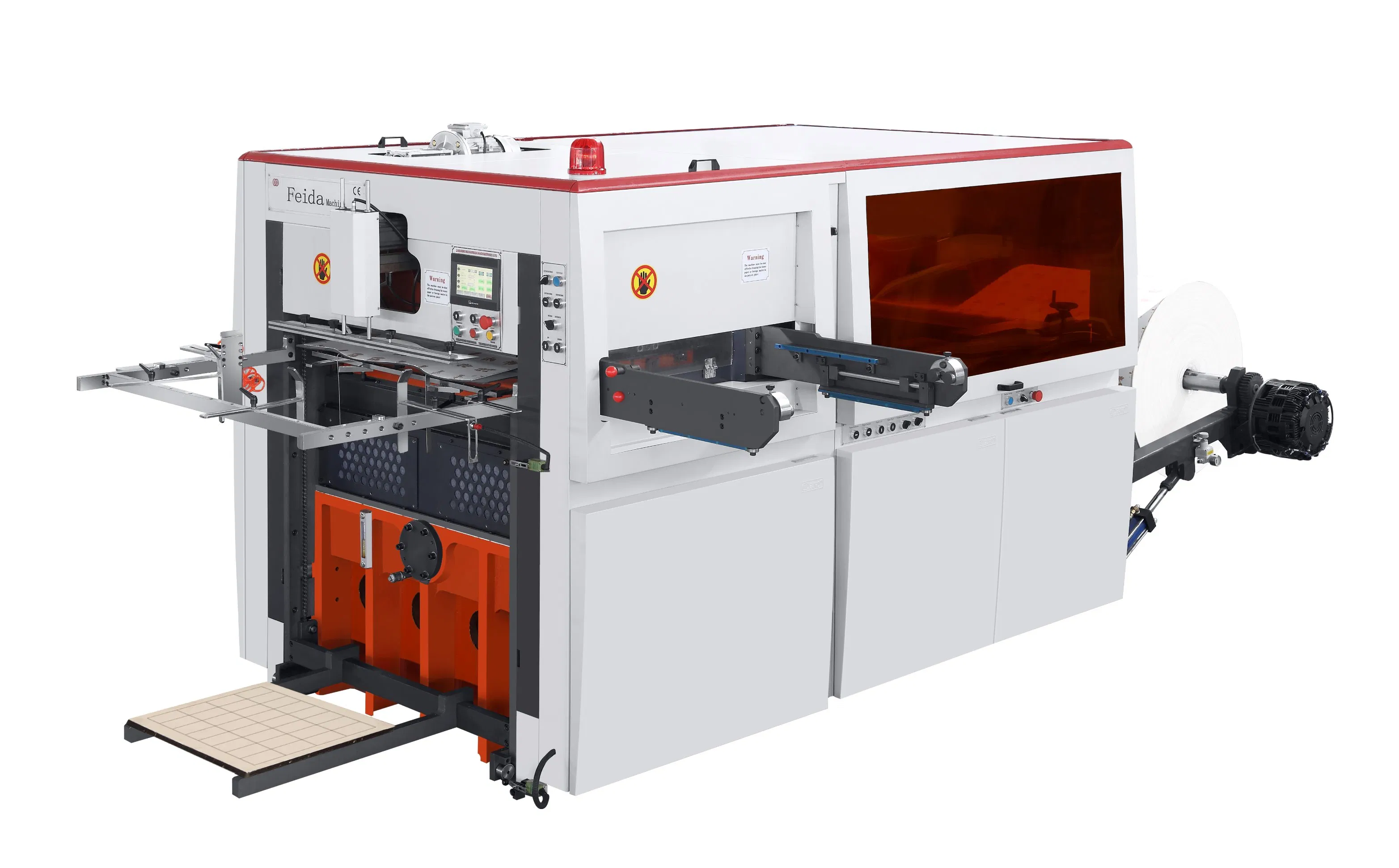

The FDZ series automatic web die-cutting machine is based on international advanced technology, offering high stability, high safety performance, and high precision for finished products. It is widely used in the printing, packaging, and paper products industries. The system adopts micro-computer control, human-computer interface, servo positioning, and alternating current frequency conversion. It features automatic counting, manual pneumatic lock plate, photoelectric deviation correction, and electromagnetic clutch for smooth operations.

Main Structure & Features

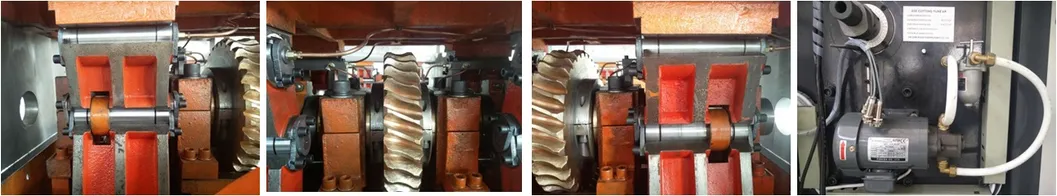

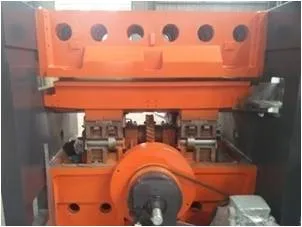

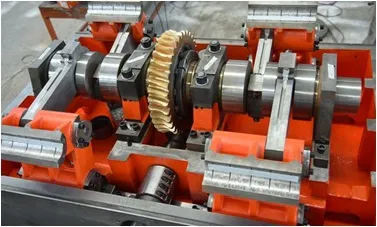

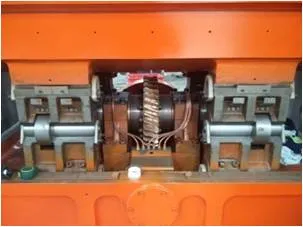

1. Worm Gear Structure: The perfect worm wheel and transmission system ensures powerful and steady pressure, enabling accurate cutting at high speeds with low noise. The frame uses high-strength Ductile Cast Iron QT500-7 for anti-deformation durability.
Worm Gear Structure 1
Worm Gear Structure 2
Worm Gear Structure 3
2. Lubrication System: Forced lubrication ensures regular oil supply to the main drive, reducing friction and prolonging machine life. Includes safety sensors for low oil pressure.
Lubrication System
3. Driving & Braking: Powered by a 7.5KW inverter motor with an extra-large flywheel for strong, steady force. Includes a pneumatic clutch brake for high performance and overload protection.
4. Electrical Control: Accurate die-cutting pressure adjustment via HMI and motor control.

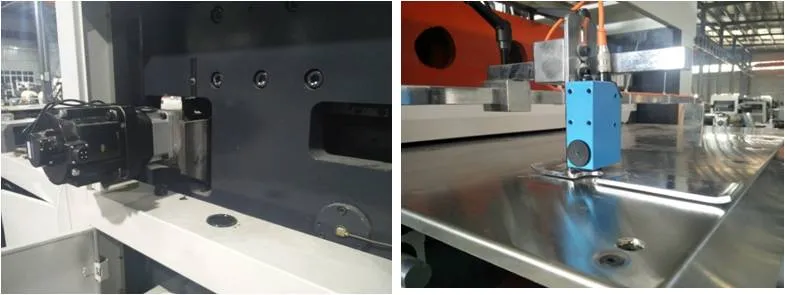

5. Positioning System: Coordination between stepping motor and photoelectric eye allows for precise die-cutting of printed figures or plain materials.
Positioning System
6. Electrical Cabinet: Features PLC and HMI for data display and parameter setting. Micro-computer control manages the entire process from feeding to delivery.

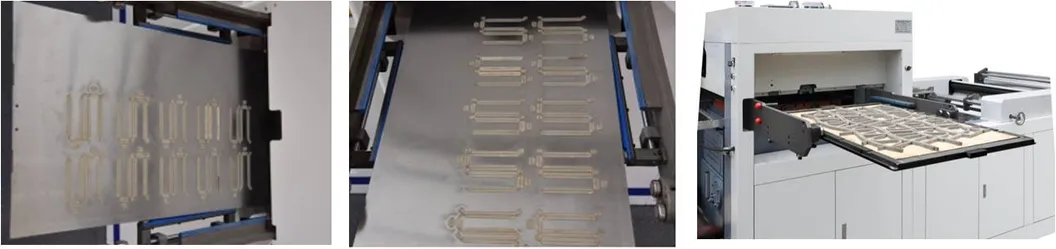

7. Die Cutting Department: Employs a pneumatic lock device and 65Mn steel plate for high hardness and flatness.
Die Cutting Department
8. Feeding Unit: Pneumatic roller unwind with hydraulic support for up to 1.5T. Max roll diameter is 1.6m.
Feeding Unit
❓ Frequently Asked Questions
What is the warranty period for the machine?
The machine comes with a standard one-year warranty.
Does the machine come with international certification?
Yes, our machines are equipped with CE certification to meet safety standards.
What is the typical production and delivery timeline?
Production typically takes about 30 days, and delivery is arranged within 30 days after receiving payment.
Is the export packaging durable enough for long-distance shipping?
Yes, we use strong wooden pallets that comply with international export packing standards to ensure safety.
What are the accepted payment terms?
We accept T/T (30% in advance, balance before delivery), West Union, and L/C.
How is the after-sales service handled?
In case of any issues, you can contact your sales representative, and our technical team will provide a solution as quickly as possible.
