| Model NO. | KXT-LTM420 | Certification | CE |
| Column number | Four Column | Molding Method | Pressing |
| Automatic Grade | Automatic | Punch Frequency | 8-30 Time/Min |
| Suitable Materials | BOPS HIPS PS PVC Pet etc | Max Formed Area | 520×300mm |
| Max. Forming Depth | 55mm | Thickness Range | 0.1-0.65mm |
| Air Pressure | 0.5-0.7MPa | Heating Power | 12kw |
| Total Power | 380V/220V 50Hz | Weight | 1750kg |
| Transport Package | Wooden Case | Specification | 4250× 1050× 1800mm |

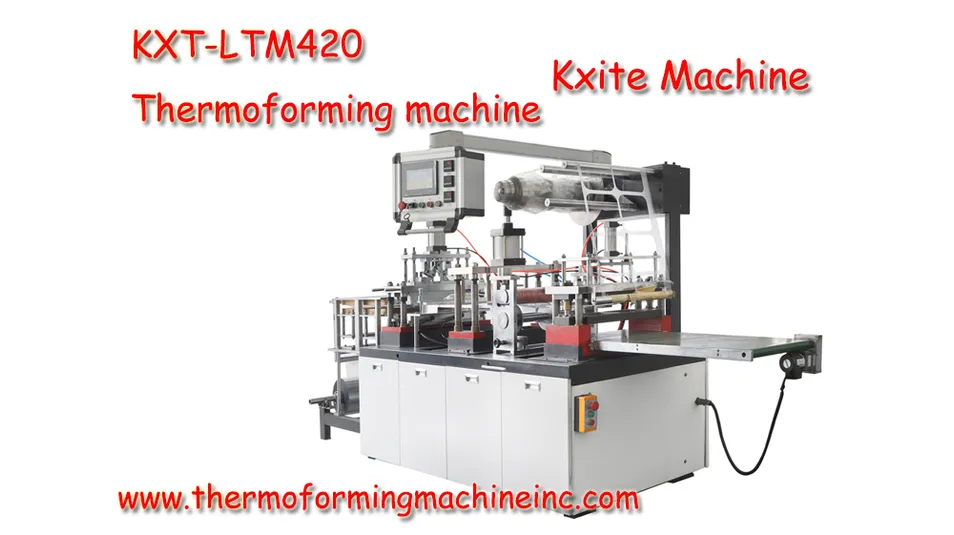

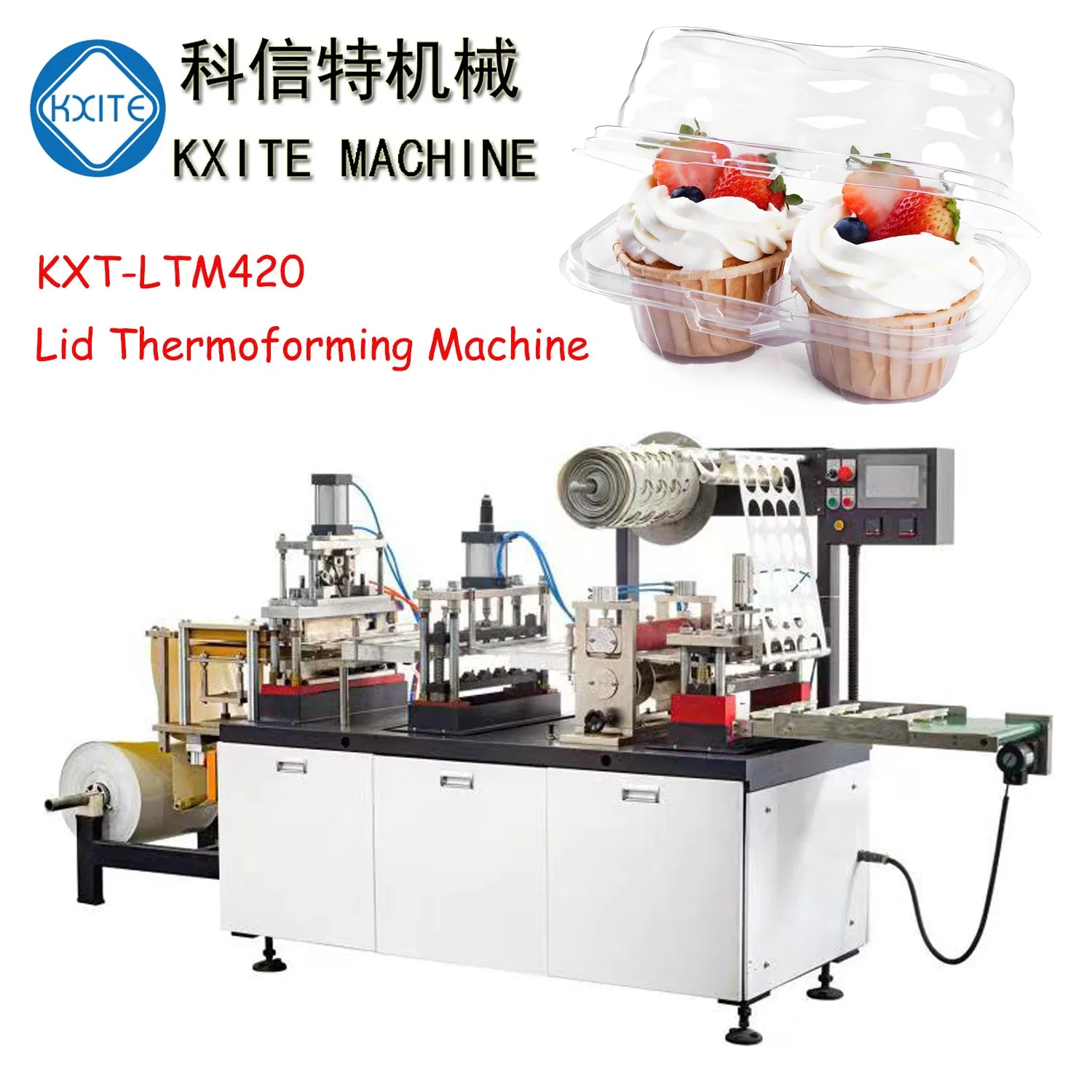

Plastic Lid Thermoforming Machine
The automatic plastic tray / lid making machine is developed based on mature thermoforming technology. This improved model is smarter and easier to operate. It is primarily designed for molding HIPS, PS, PVC, PET, and other plastic sheets to produce various items such as milk cup lids, tea cup lids, coffee cup lids, spoons, snack trays, and saucer lids.

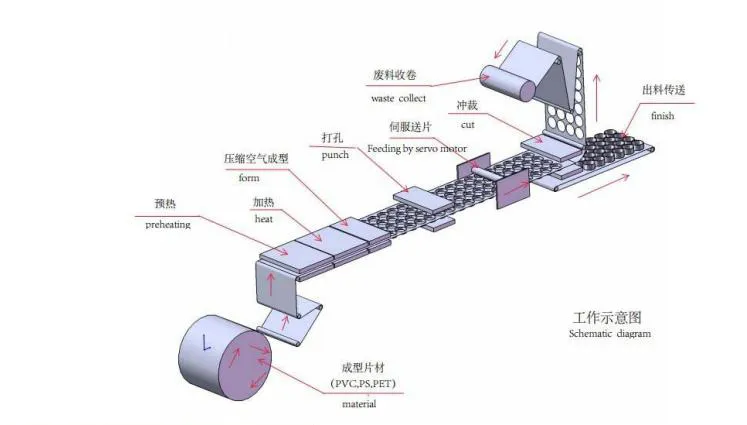

This machine integrates automatic unwinding, sheet contact heating, positive pressure forming, hardware punching, and automatic stacking. It effectively reduces labor input and energy consumption while ensuring high product safety and stability.

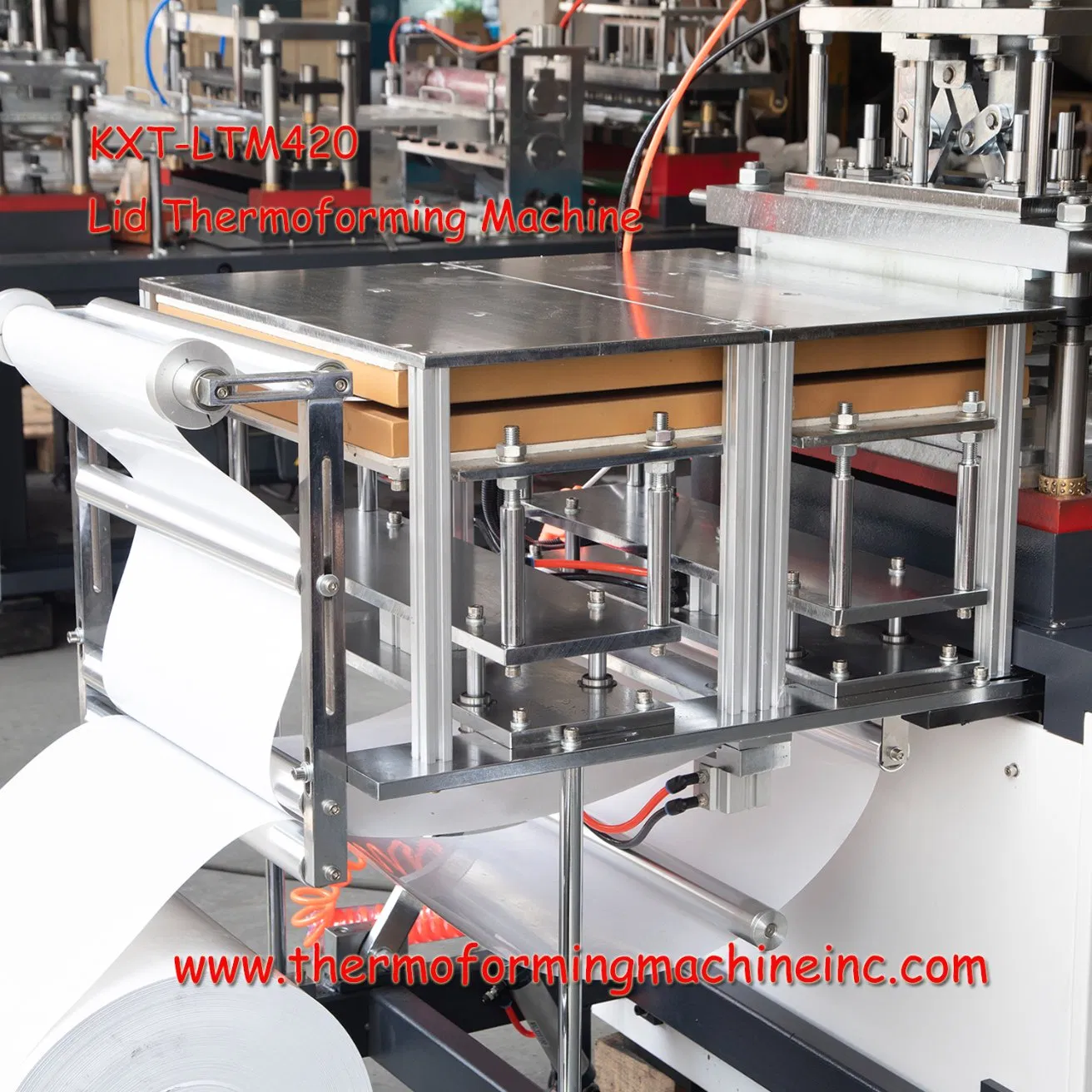

Unwinding/Heating Station

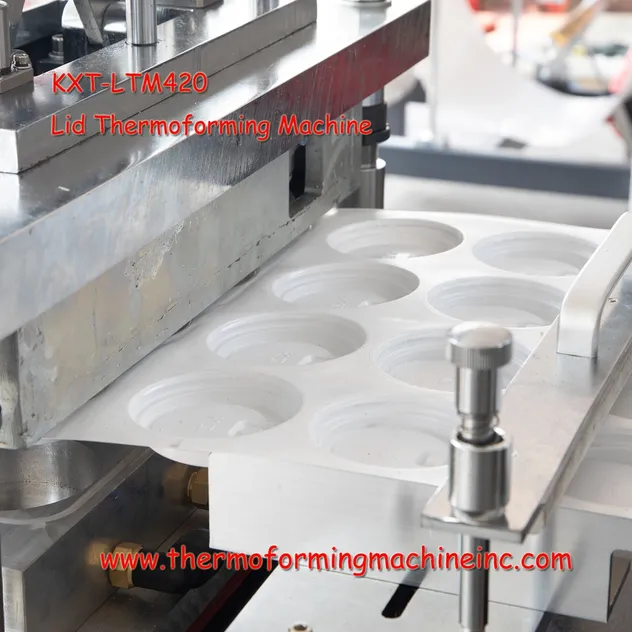

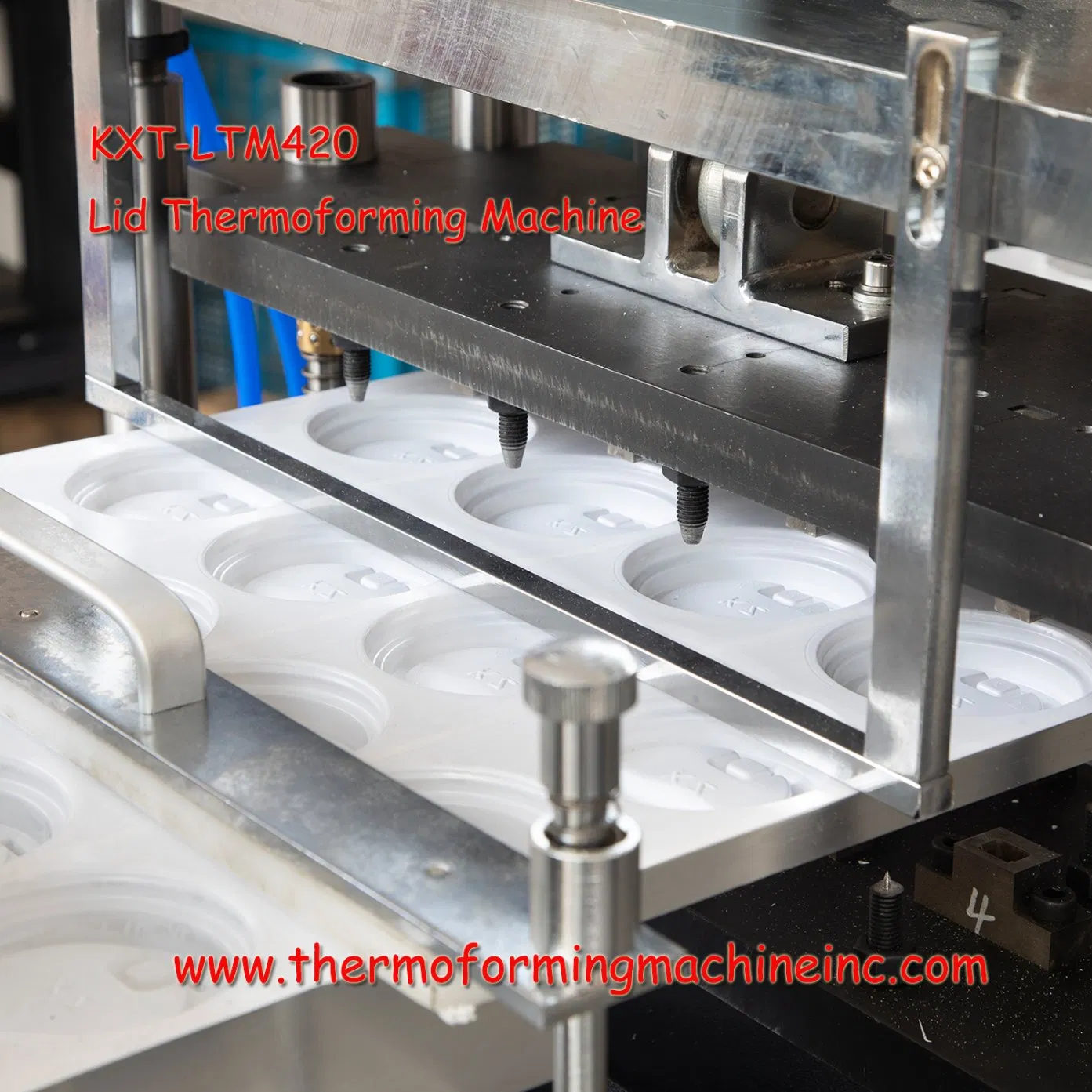

Forming Station

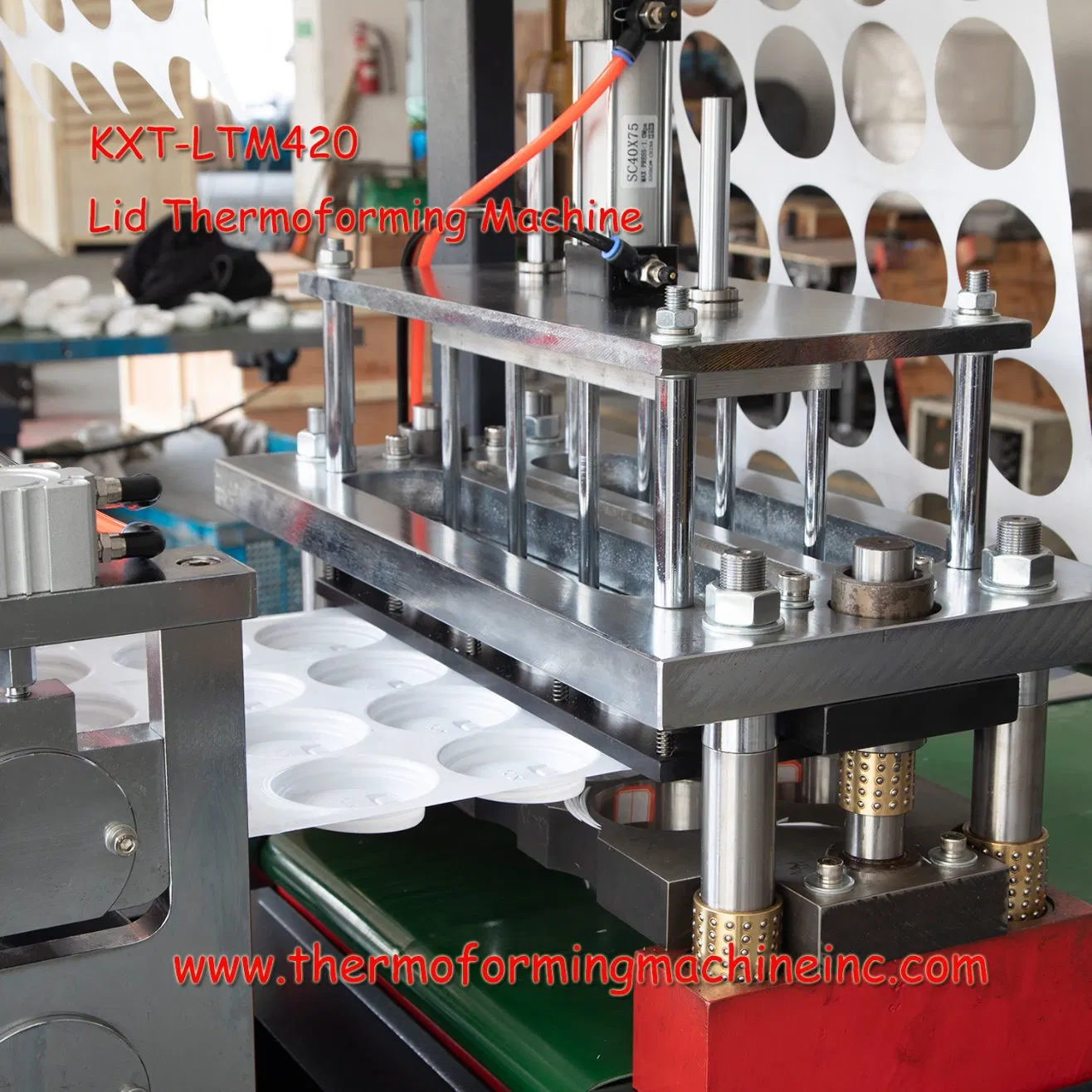

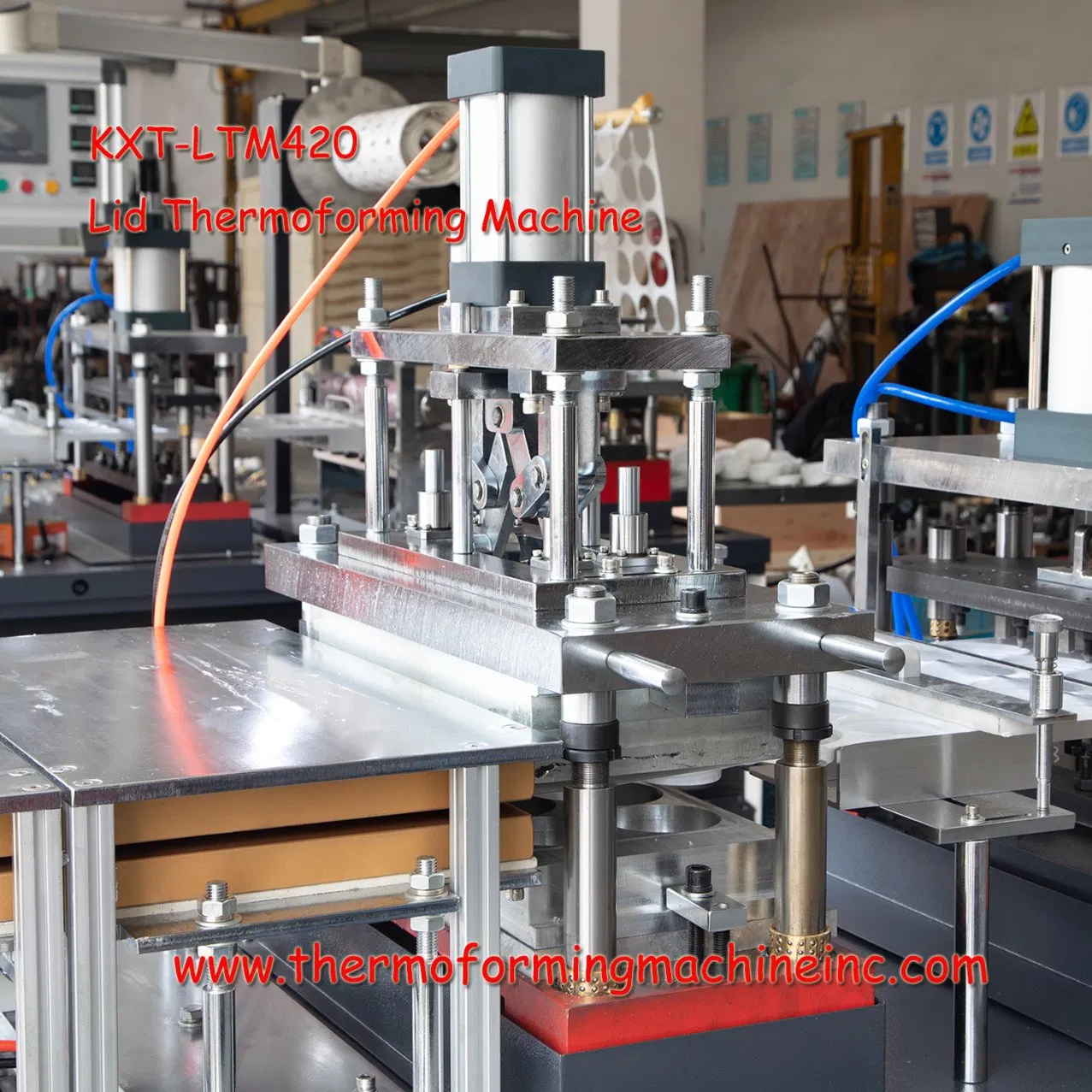

Punching Station
Cutting Station

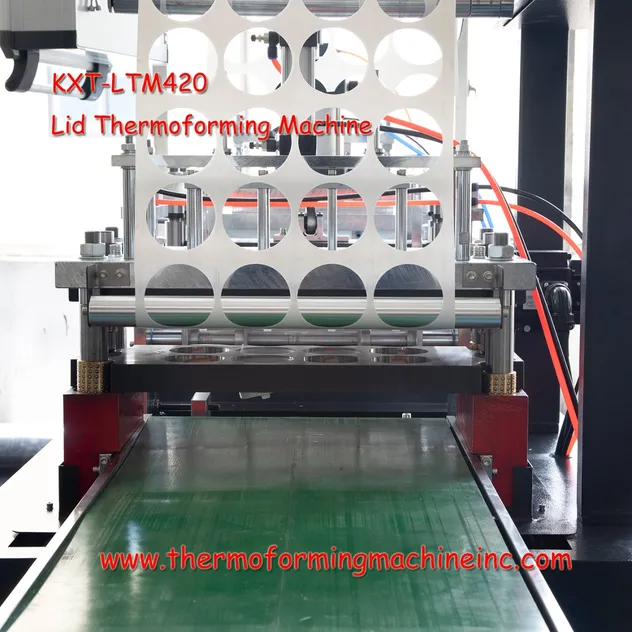

Stacking Robot

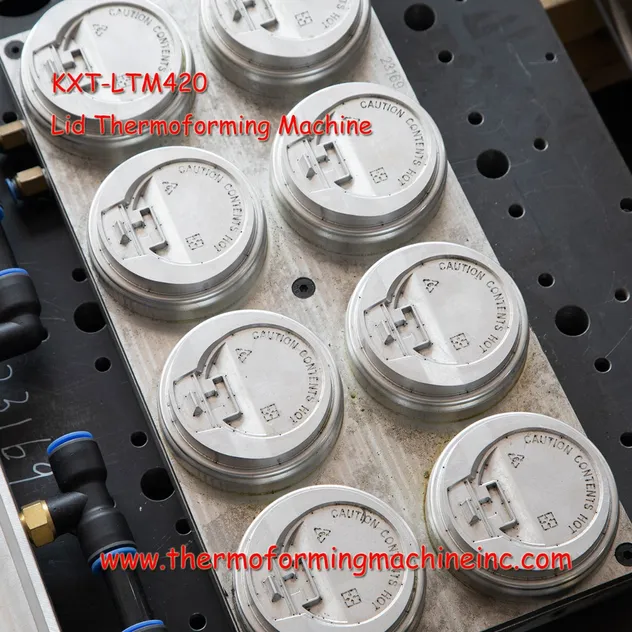

Thermoforming Mould

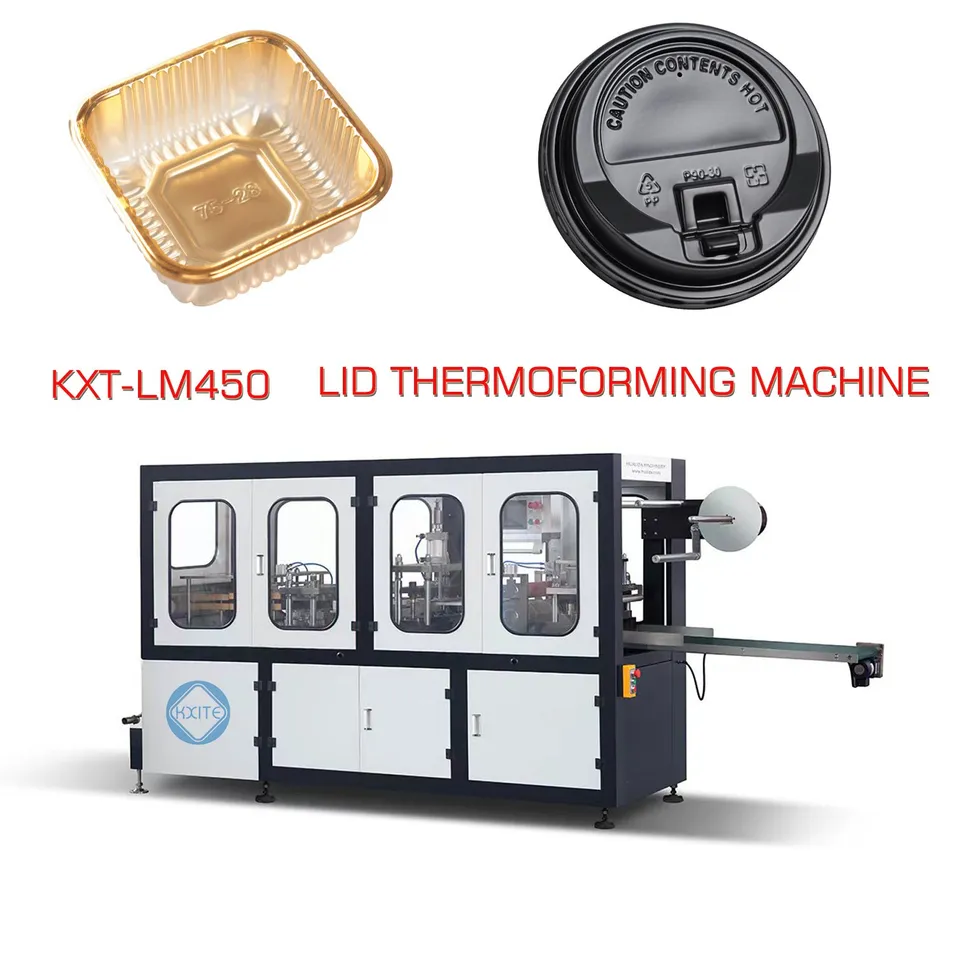

| Model | KXT-LTM420 | KXT-LTM420F | KXT-LTM450 |
|---|---|---|---|
| Cutting Frequency | 8-30 times/min | 8-32 times/min | 15-45 times/min |
| Stroke Range | 60-180mm | 60-320mm | 0-260mm |
| Max. Forming Depth | 50mm | 50mm | 45mm |
| Max. Forming Area | 170×410mm | 310×420mm | 430×280mm |
| Weight | 850kg | 1250kg | 1700kg |
| Dimensions | 2700*840*1700mm | 3800*920*1750mm | 3440*1833*930mm |
Professional Support: We provide technical guidance, non-standard equipment customization, and new product development services. Our team ensures order tracking and regular production progress reports.

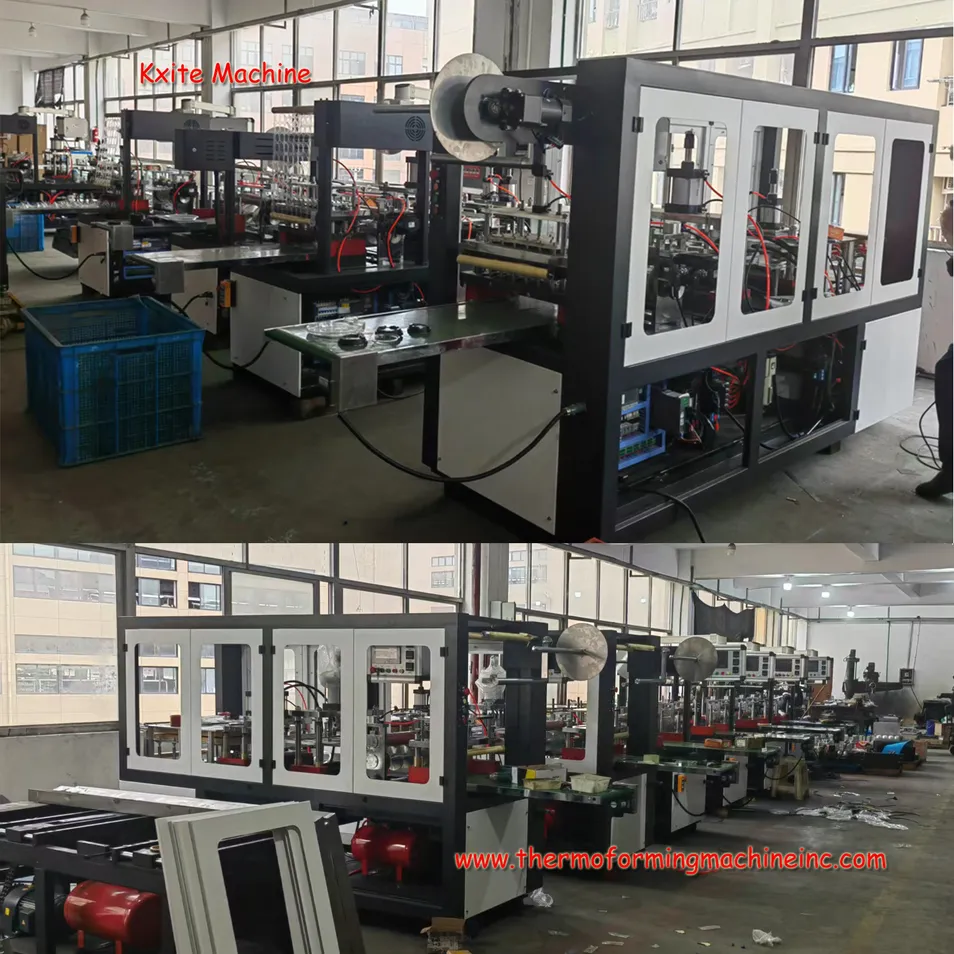

Quality Assurance: Strict inspection processes are adopted during production, including internal component checks and whole-machine testing to meet technical requirements.
