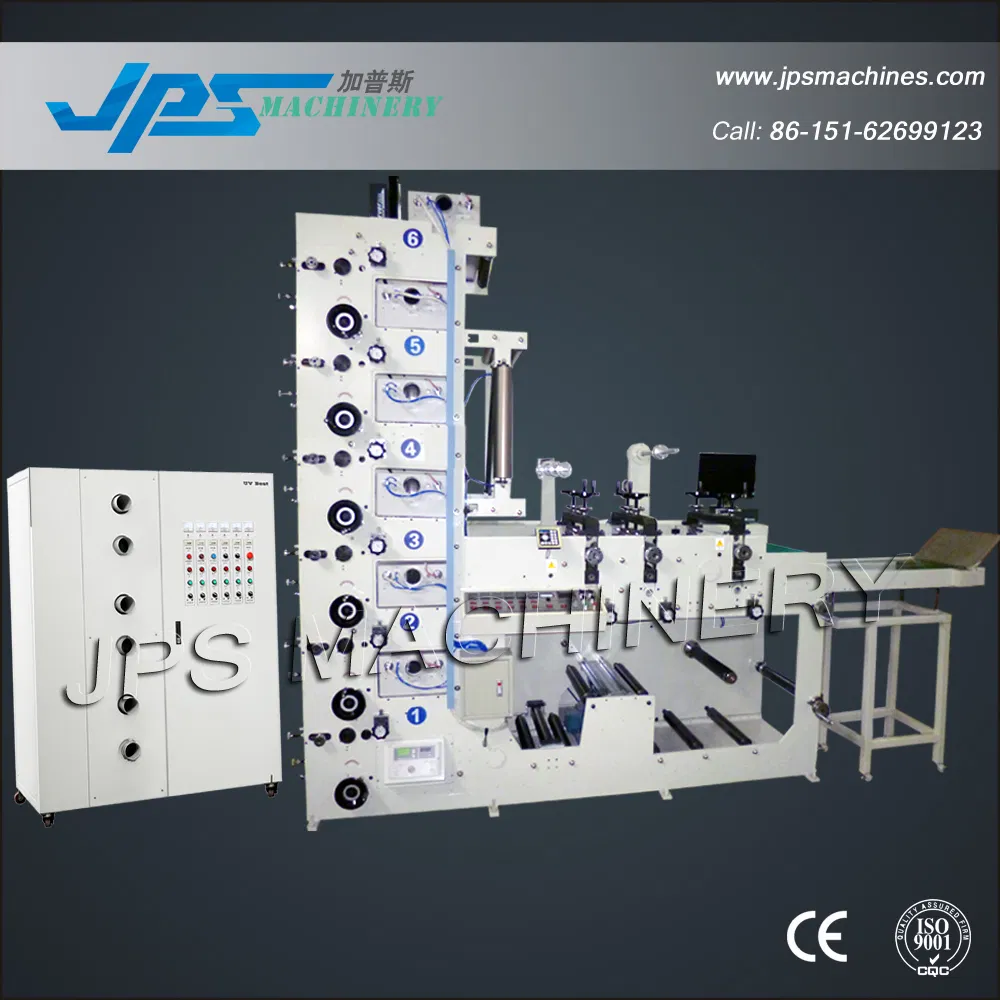

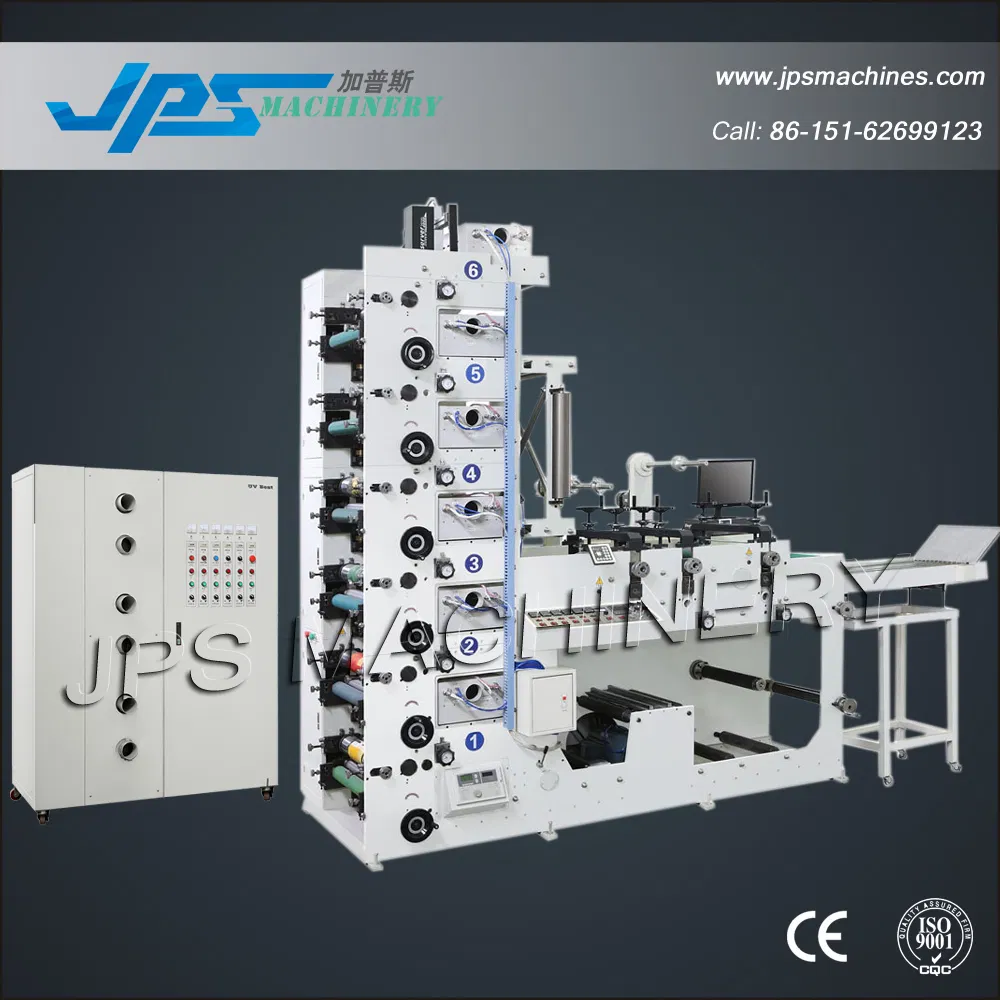

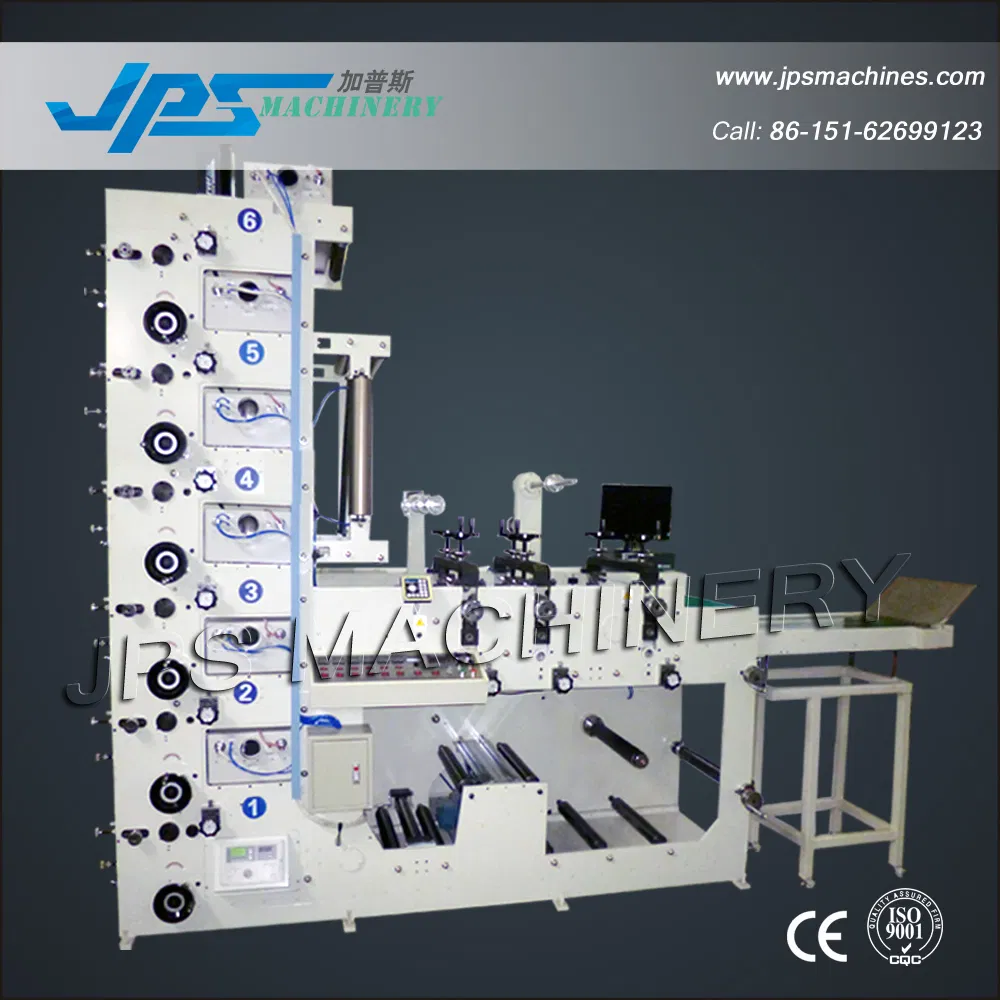

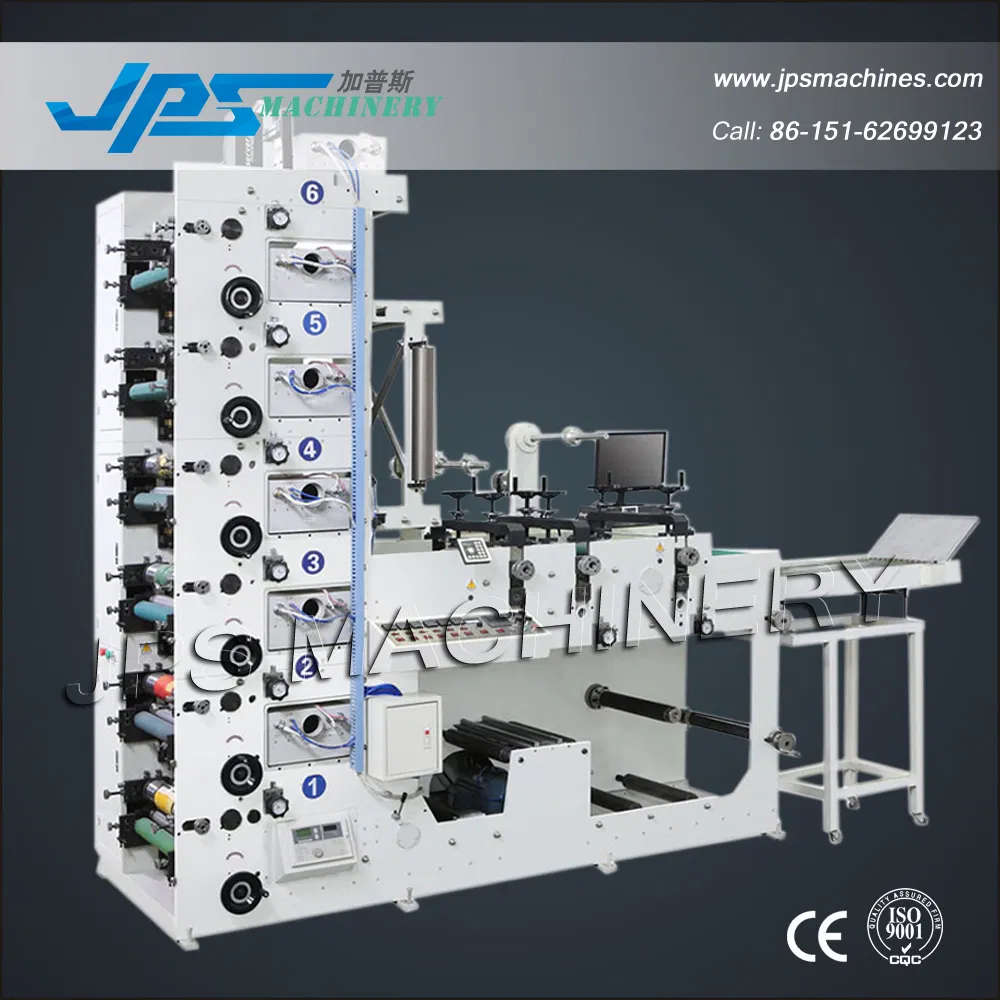

Automatic Label Flexo Printing Machine with Laminating+Rotary Die Cutting Slitting+Sheeting Station/Paper Cup/ Film Sticker Flexographic Printer Cutter Slitter

Customization:	Available
Printing Page:	Double Faced
Printing Color:	6 Colors

Send Inquiry

Product Description

Basic Specifications

Model NO.

JPS480-6C-B

Anilox Roller

Ceramic Anilox Roller

Dryer

UV & IR

Type

Ink Jet

Embossing Structure

Rotary Letterpress

Structure

Unit Type

Application

Label Printing Machine

Automatic Grade

Automatic

Printing Speed

60m/min

Max. Paper Width

480mm

Printing Color

6 Colors

Registration Accuracy

+/-0.1mm

★

Product Description

Automatic Self-adhesive Label Flexo Printing Machine with Laminating + Rotary Die Cutting Slitting + Sheeting Station. Ideal for Paper Cup, Film Sticker, and Flexographic printing applications.

Technical Parameter	Details
Specification	JPS480-6C-B
Printing speed (m/min)	60
Printing color (colors)	6
Max. paper width (mm)	480
Max. printing width (mm)	470
Max. Unwinding diameter (mm)	600
Max. rewinding diameter (mm)	600
Printing perimeter (mm)	175-380
Registration accuracy(mm)	±0.1
Voltage (v)	380±10%
Total power	12.5kw
Dimension (mm)	430013003300

⚙

Main Characteristics

Adopt the ceramic anilox roller to spread ink.
Unwinding and rewinding are controlled by magnetism power brake, clutch (or by automatic tension controller).
Printing unit adopt 360º for registration.
Each printing unit is equipped with one infrared dryer group.
The rubber roller can break away automatically while parking and run at a low speed to avoid ink drying.
Main motor adopts imported stepless regulation of frequency conversion.
Unwinding, printing, varnishing, IR drying, laminating, and rewinding can be finished in one single process.
Best choice for printing companies to produce adhesive-paper labels and commercial labels.

✚

Standard & Optional Configurations

Standard Configurations	Components	Optional Units
6× ceramic anilox roller	AC contactor	Corona treatment
12× printing roller	Variable frequency	Plate mounting
Magnetic powder brake	Push button	Video system
Magnetic particle clutch	Control panel	Web guide
1× Unwinding tension controller	Hall switch	Lamination unit
1× Rewinding tension controller	Main motor	Rotary die cutting unit
6× Infrared dryer	2× shaft	UV dryer
6× ink roller	Turn bar	Cold foil

📷

Product Gallery

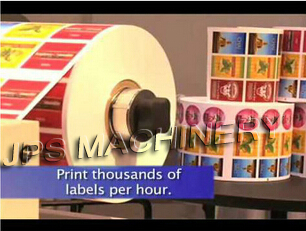

Printing Samples:

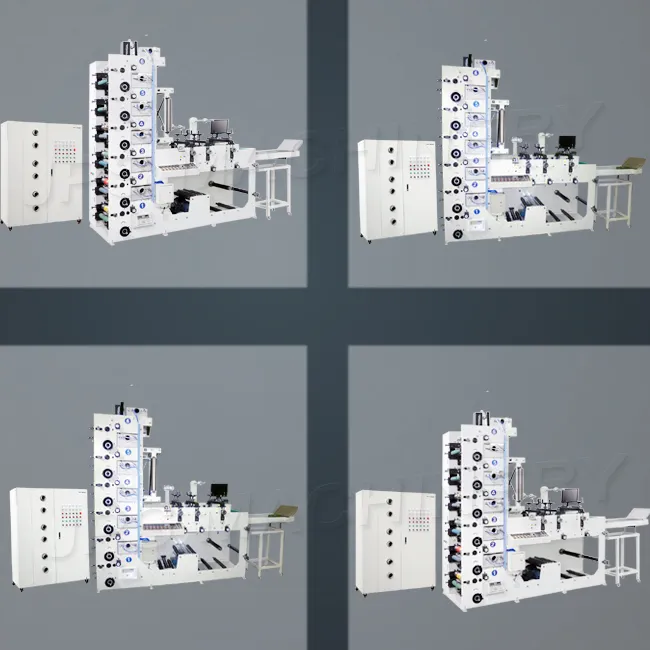

Machine Versions & Factory Overview:

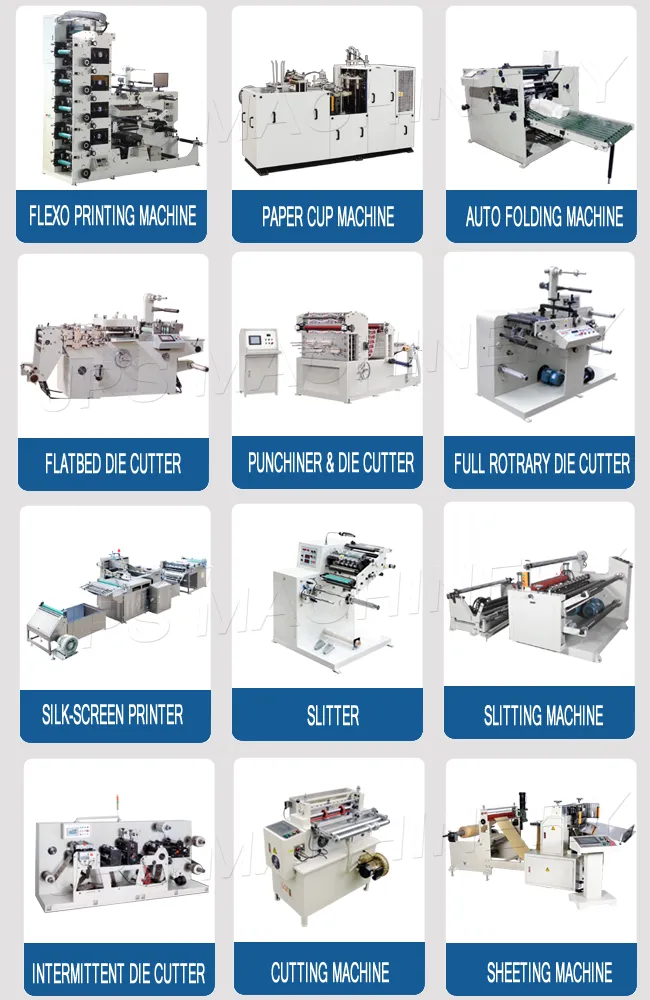

Customer Display & Catalogue:

Frequently Asked Questions

What is the maximum printing speed of the JPS480-6C-B?

The machine operates at a maximum printing speed of 60 meters per minute, ensuring high efficiency for label production.

What types of drying systems are used in this flexo printer?

It comes standard with 6 Infrared (IR) dryers. Additionally, UV dryers are available as an optional configuration for specific ink requirements.

Can this machine handle multiple processes in one pass?

Yes, the JPS480-6C-B is designed to complete unwinding, printing, varnishing, drying, laminating, and rewinding in a single continuous process.

What is the registration accuracy of the printing units?

The machine features a high-precision registration system with an accuracy of ±0.1mm.

What materials are suitable for this flexographic printer?

It is ideally suited for adhesive-paper labels, film stickers, paper cups, and various other commercial label materials.

What kind of after-sales support is provided?

We offer a 12-month warranty for the machine, 24-hour response for service inquiries, and free technical training before delivery.
