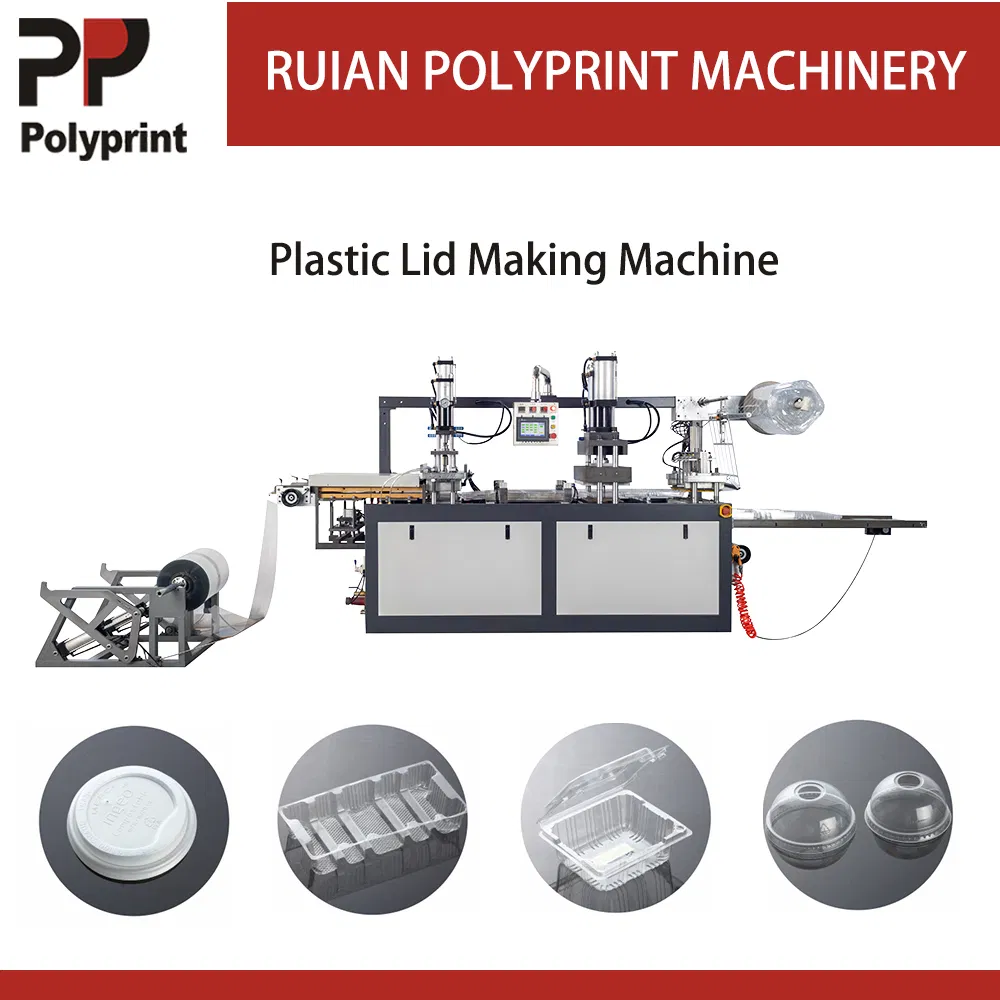

Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
1 / 5
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine
Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine

Automatic Plastic Fruits Clamshell Packages Box Tray Paper Coffee Cup Lid Cover Thermoforming Forming Making Machine

Customization: Available
Warranty: 1year
Certification: CE, ISO
Send Inquiry

Product Description

1 Basic Information
Model NO.
PPBG-500
Column number
Four Column
Molding Method
Pressing
Automatic Grade
Automatic
Working Speed
10-32 Cycles/Min
Stroke Range
30-340mm
Max. Forming Depth
50mm
Max. Forming Area
480X320mm
Main Motor Power
3kw
Heating Power
12kw
Production Capacity
10000-15000PCS/Hr
Origin
China
2 Product Details & Stations

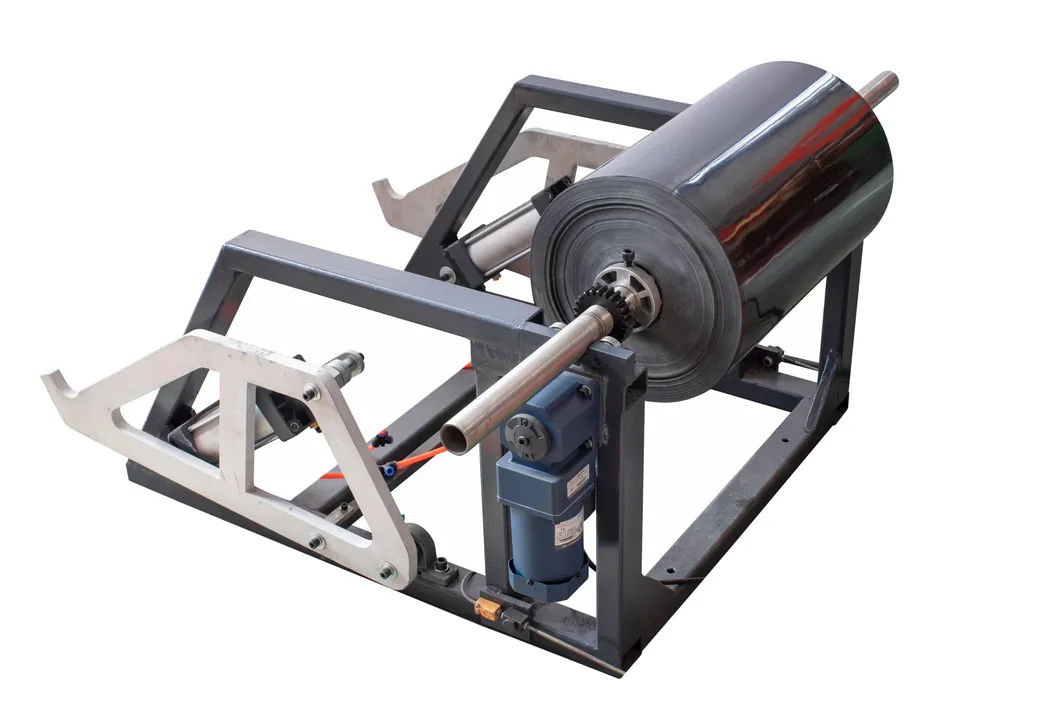

Unwinding Station

Unwinding Station

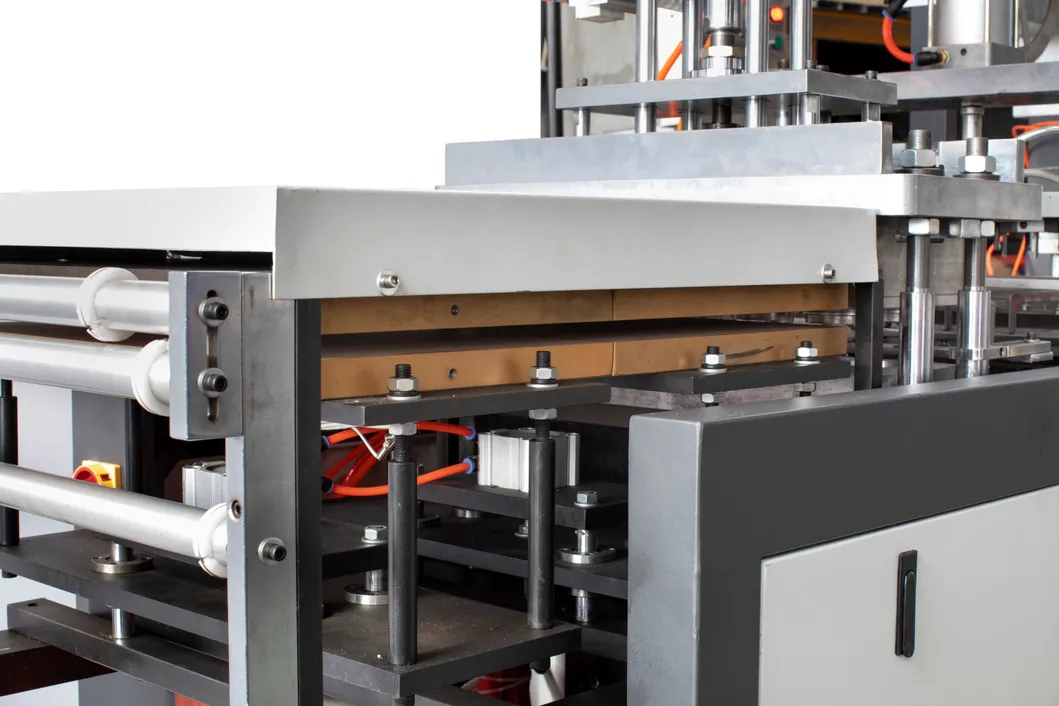

Heating Station

Heating Station

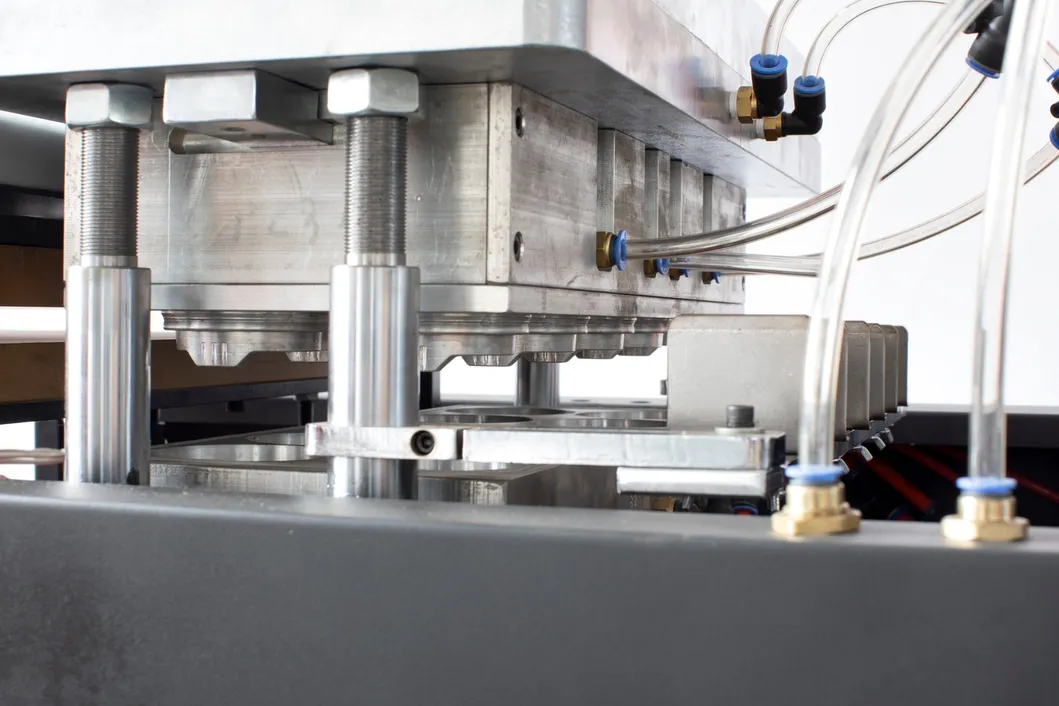

Forming Station

Forming Station

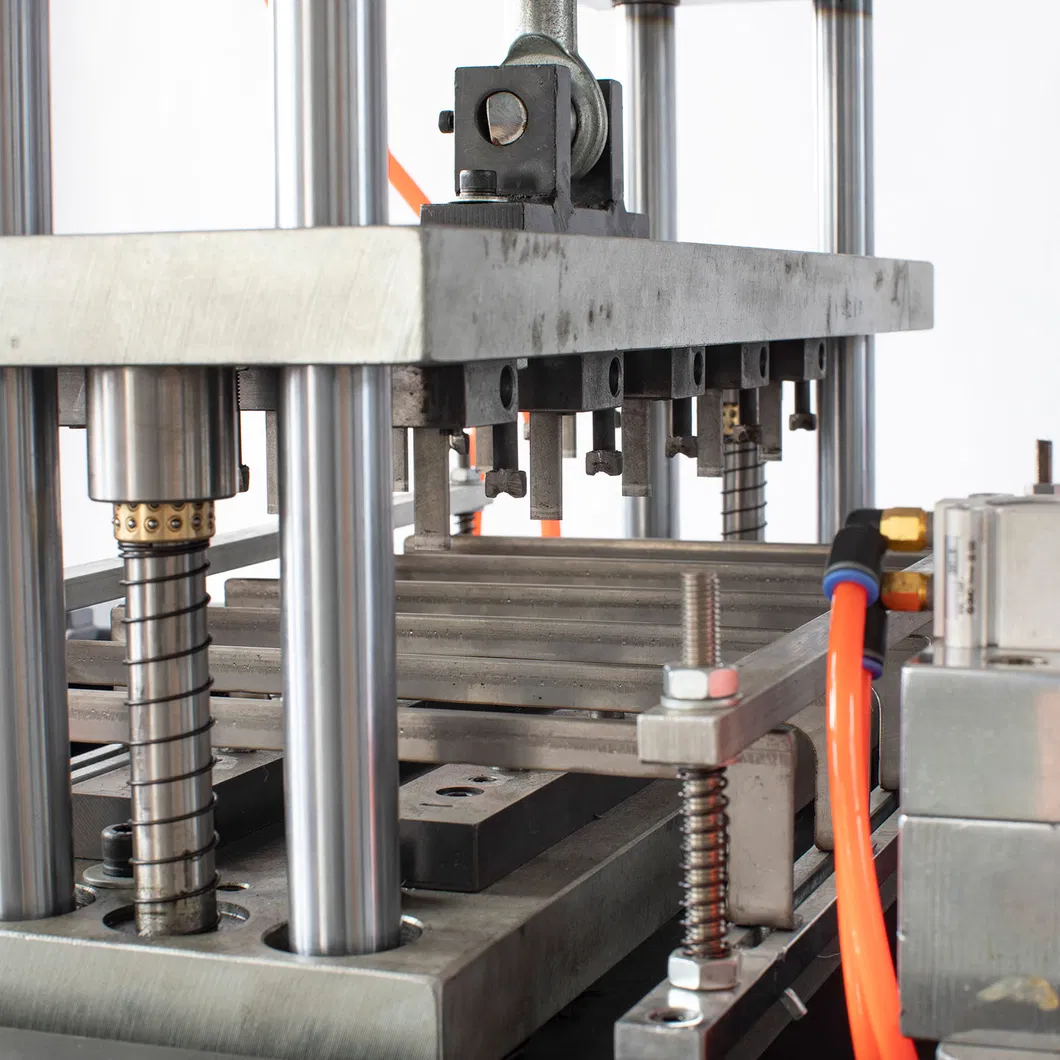

Punching Station

Punching Station

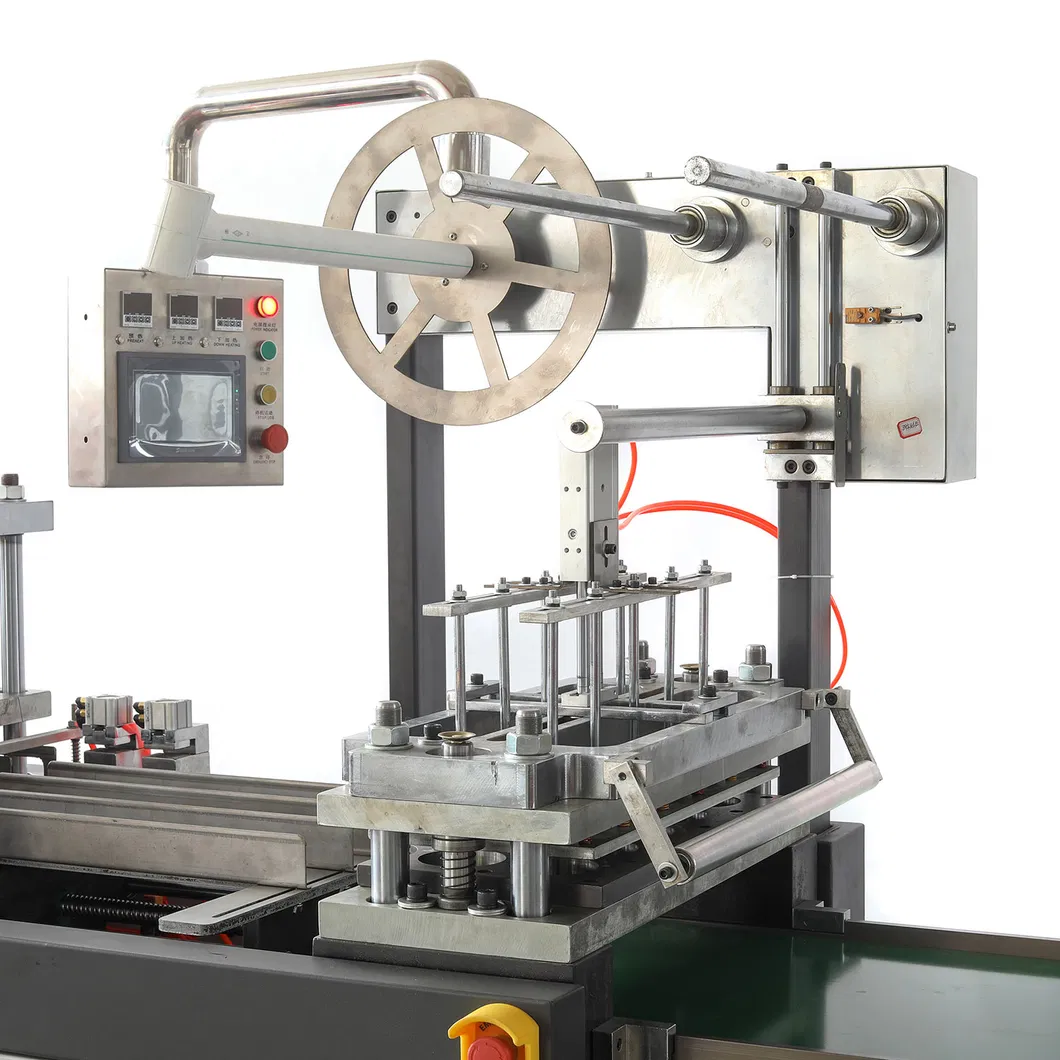

Stacking Robot

Stacking Robot

3 Key Features
The PPBG-500 lid forming machine is a high-performance model combining multiple advantages of advanced forming technologies with innovative improvements.
Engineered for user-friendly operation, smooth running, and stable functionality with minimal maintenance required.
Versatile production capabilities: compatible with PVC, PS, PET, and other plastic materials for all types of covers and lids.
4 Technical Parameters
Working Speed10-32 Cycles/min
Stroke Range30-340mm
Max. Forming Depth50mm
Max. Forming Area480×320mm
Voltage380V/50Hz (Three Phase, Four Wires)
Main Motor Power3kw
Heating Power12kw
Servo Power0.75kW
Air Pressure0.5-0.7MPa
Air Consumption≥ 0.22 m³/h
Noise Level75Db
Machine Dimension2760×950×1720mm
Machine Weight1900kg
5 Our Services
Warranty: 1-year warranty after installation. Free replacement parts provided for any components broken during the warranty period.
Installation & Training: Professional engineers (1-2) available for on-site machine installation and setup services.
Support: Reliable technical guidance ensuring optimal production efficiency.

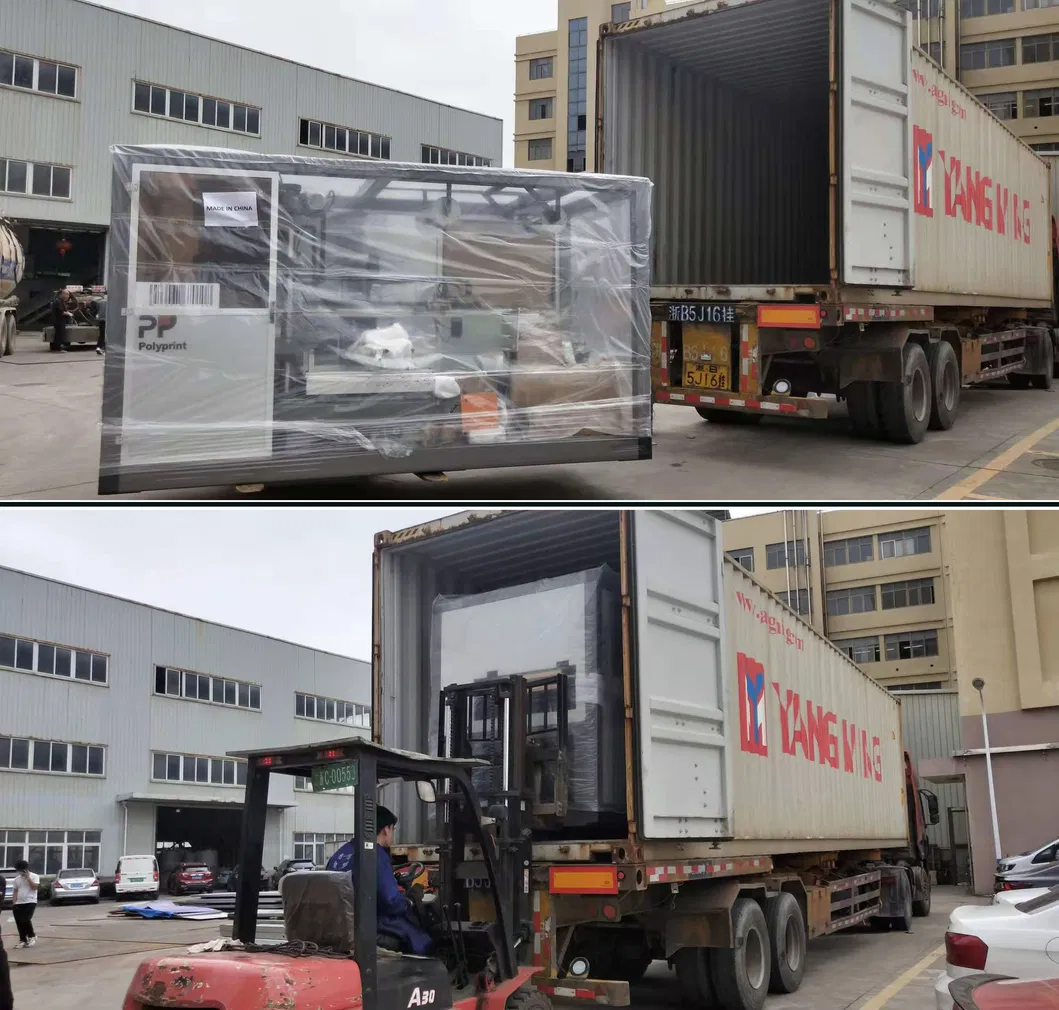

6 Packaging & Shipping
Packaging and Shipping
Frequently Asked Questions
What materials can the PPBG-500 machine process?
The machine is highly versatile and can process a wide range of materials including PVC, PS, PET, and other common thermoforming sheets.
What is the production speed of this lid making machine?
The machine operates at a working speed of 10 to 32 cycles per minute, depending on the material and product depth.
What products can be manufactured with this equipment?

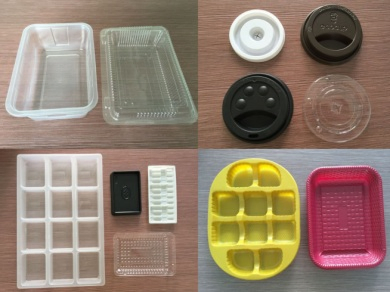

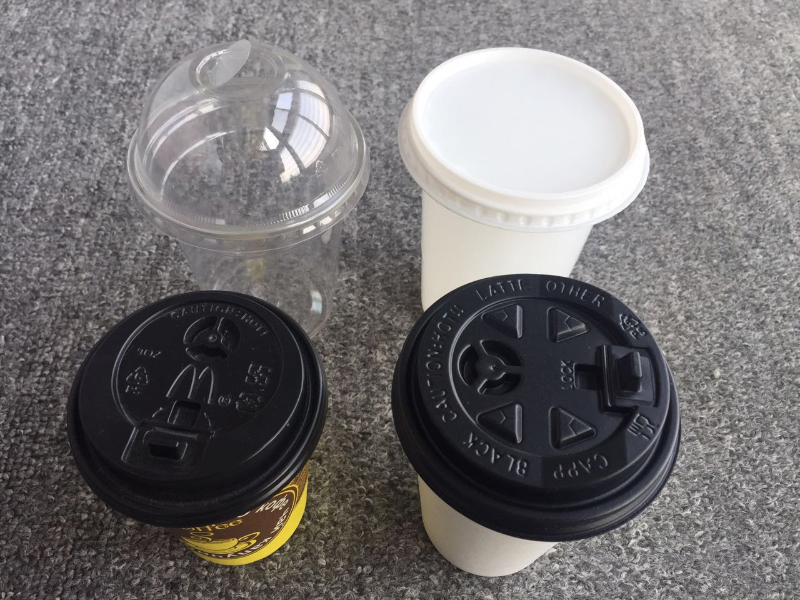

It is ideal for producing coffee cup lids, plastic fruit clamshell packages, box trays, and various other thermoformed covers.
What is the maximum forming depth and area?
The machine supports a maximum forming depth of 50mm and a maximum forming area of 480x320mm.
What kind of after-sales service do you provide?
We offer a 1-year warranty on the machine and provide engineer dispatch services for installation, configuration, and operator training.
Does the machine require a specific power supply?
Yes, the standard requirement is 380V/50Hz (Three Phase, Four Wires) with a total heating power of 12kw.
