Jinli Machinery
1 / 5
| Model NO. | S180 |
| Cup Size | 2-12OZ |
| Speed | 130-150 pcs/min |
| Required Paper | Single and Double Side PE Coated Paper |
| Automation | Automatic |
| Certification | CE |
| After-sales Service | 12 Months |
| HS Code | 8441309000 |
| Production Capacity | 1500 sets/Month |
| Dimensions | 2200mm*1350mm*1900mm |

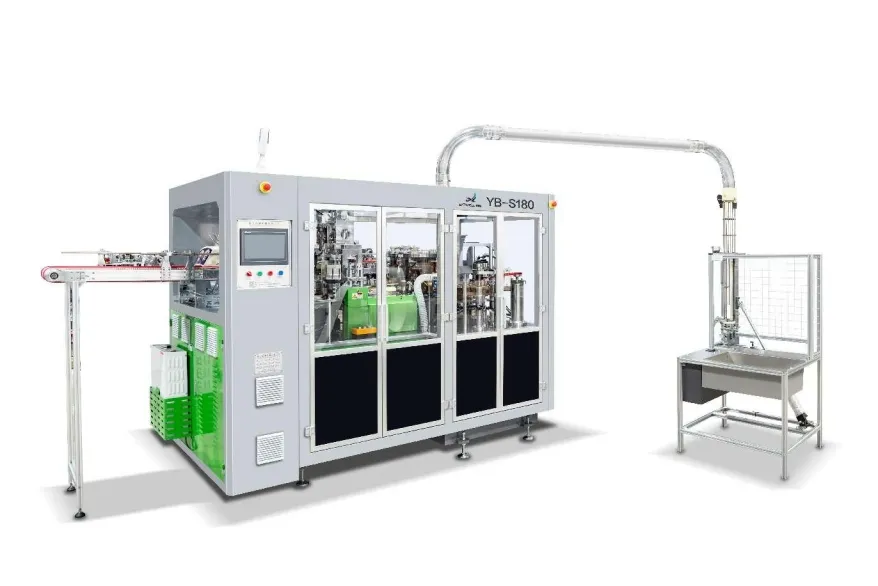

S180 High-Speed Paper Cup Forming Machine
The S180 High-speed paper cup forming machine offers high performance, efficiency, and quality. Its steel plate body and oil-draining lubrication system ensure long-term stable operation. Featuring advanced high-precision cam drives and gear transmission, every station operates with accuracy. The servo motor tracking bottom feeding paper system optimizes raw material usage, while the PLC human-machine interface ensures stable control.
| Paper Cup Range | 2-16oz (100-450ml) |
| Paper Material | 150-350 GSM single/double PE coated paper |
| Power Source | 380V 50HZ 3Phases |
| Average Power | 15KW |
| Air Supply | Compressed air: 0.6-0.8Mpa |
| Total Weight | 3100KG |
| Component | Brand |
|---|---|
| PLC / Screen / Servo Motor | Delta |
| AC Contactor / Inlet Button | Schneider |
| Relay | Omron |
| Solid-state Relay | Yangming |
| Ultrasonic System | Even Green |
| Power Supply | Mingwei |

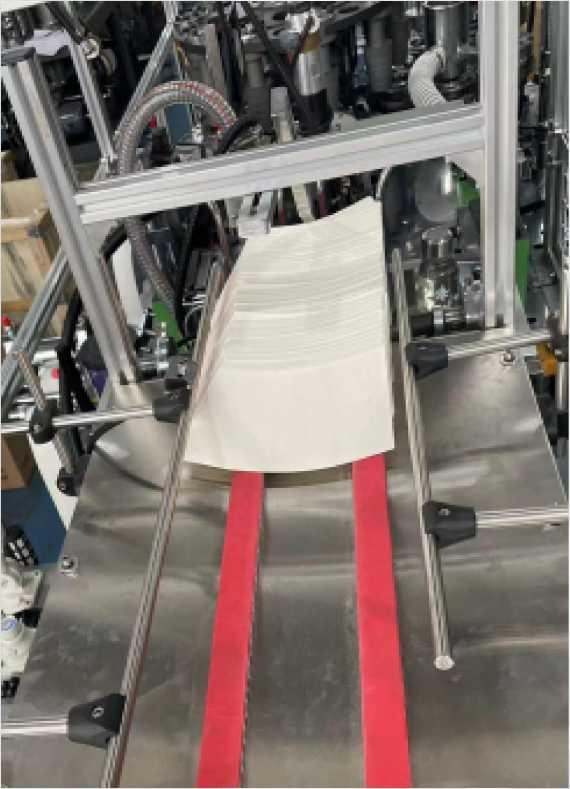

1. Automatic Feeding System: The added automatic paper feed device greatly reduces manual labor, allowing one worker to monitor multiple devices simultaneously.

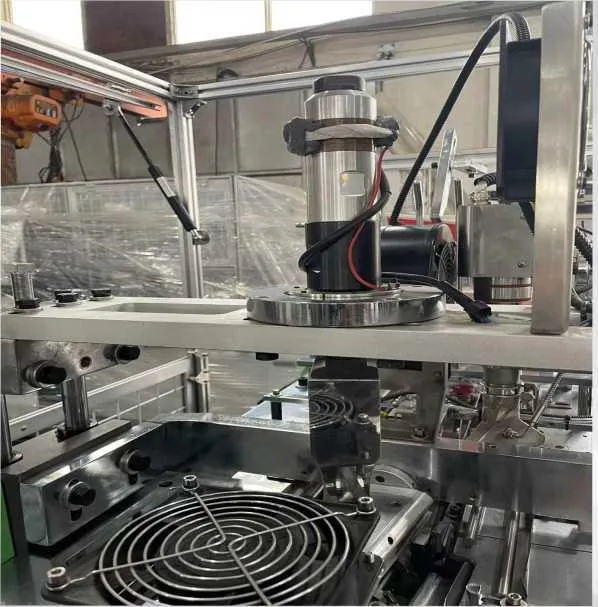

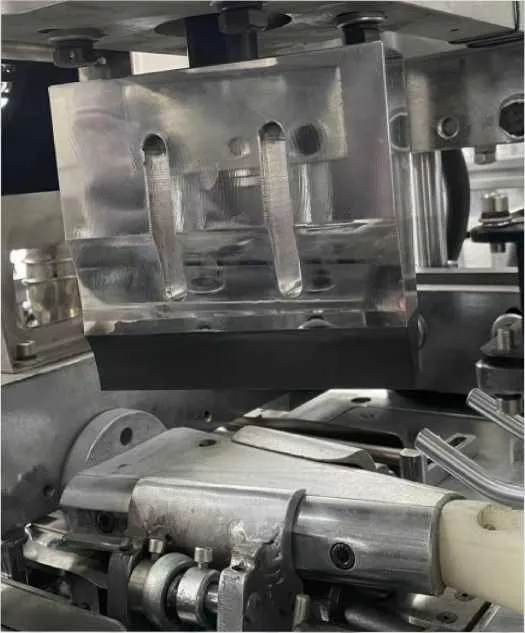

2. Sealing & Heating: Utilizes Ultrasonic sealing for the cup body and four-stage heating for optimal bottom bonding.

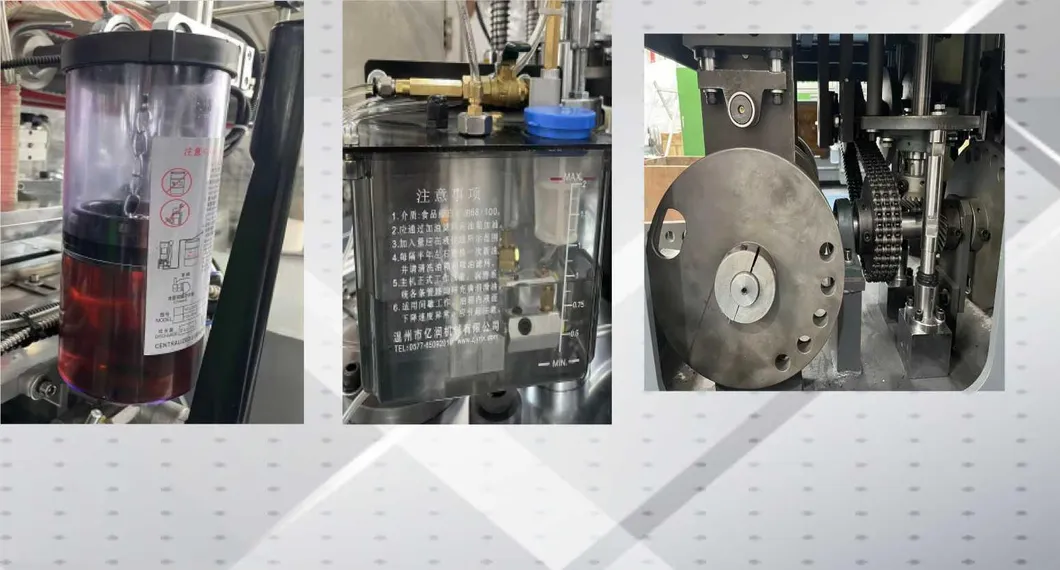

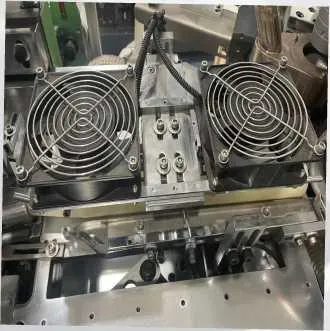

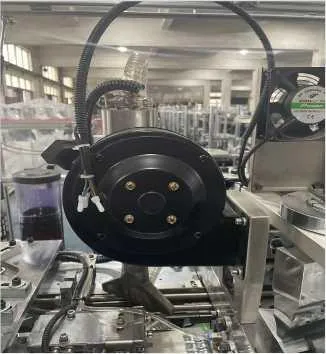

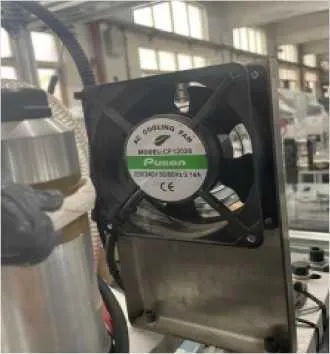

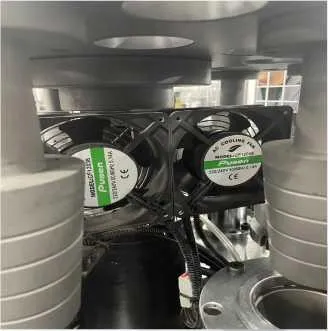

3. Advanced Lubrication & Cooling: The machine features an automatic oil circulation system (including motor, filter, and copper pipes) to extend part life. Multiple cooling fans maintain optimal temperature during high-speed operation.
