| Specification Item | Details |
|---|---|
| Model NO. | YG-160S |
| Cup Size(Ounce) | 2-16oz |
| Speed | 130-160 PCS/Min |
| Required Paper | Single and Double Side PE Coated Paper |
| Automation | Automatic |
| Certification | CE |
| Condition | New |
| After-sales Service | Remote Video Guidance |
| Configuration | Ultrasonic & Hot Air System |
| Air Compressor Requirement | 0.6-0.8MPa 0.5m3/Min |
| Control Panel | 7 Inch Touch Screen |
| Raw Material | Single/Double PE/PLA Coated Paper |
| Paper Weight | 210-330G/M3 |

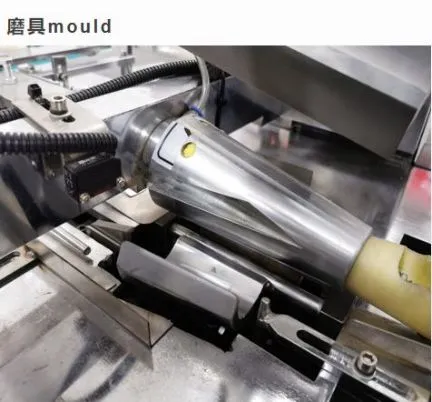

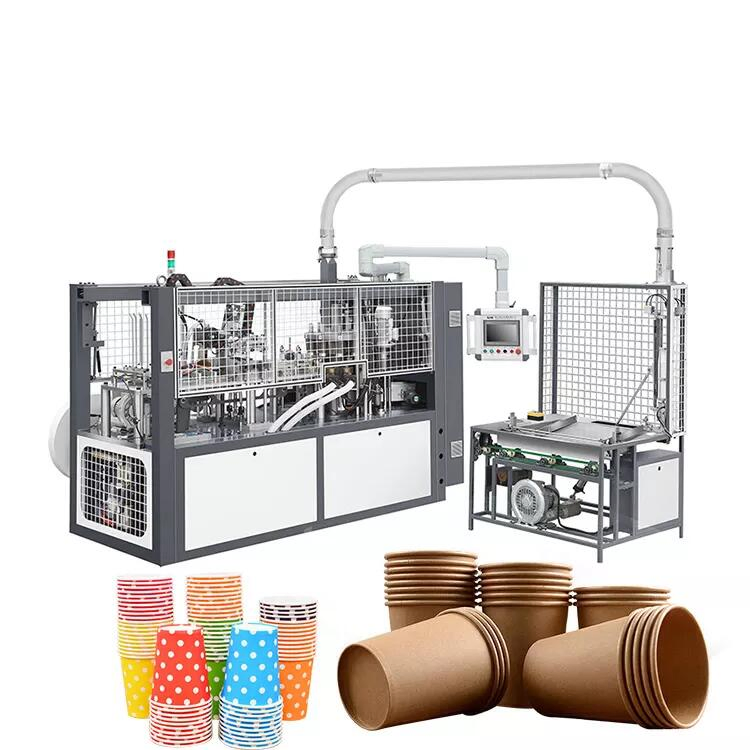

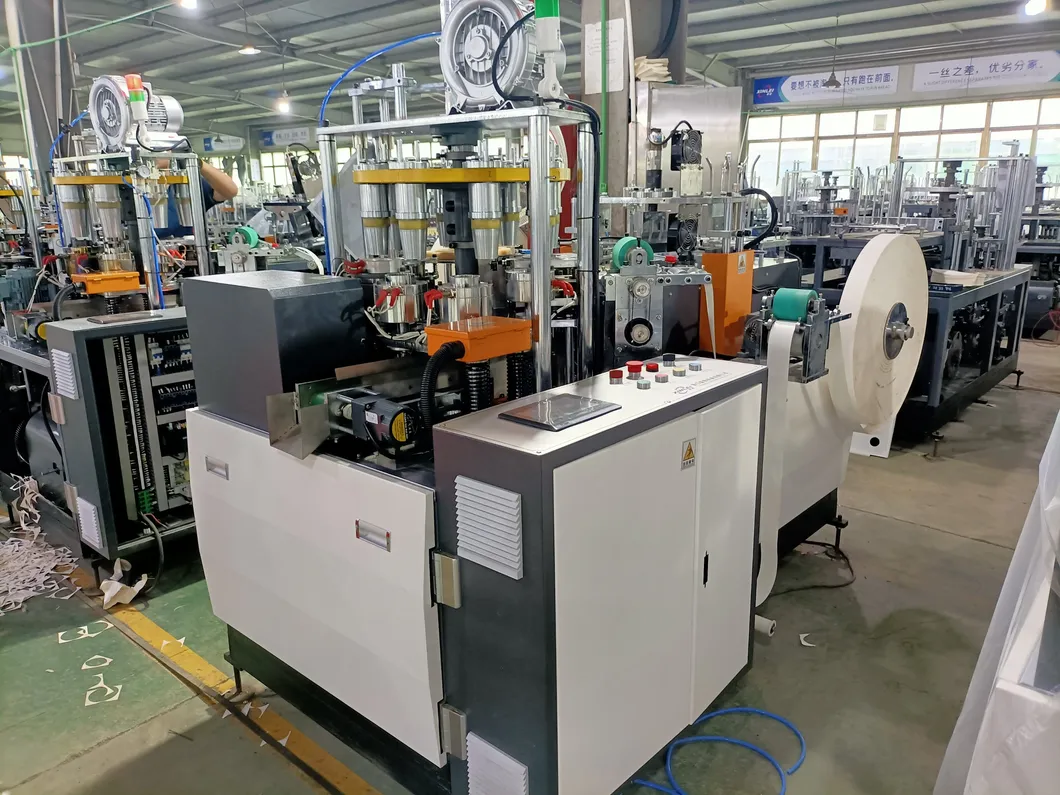

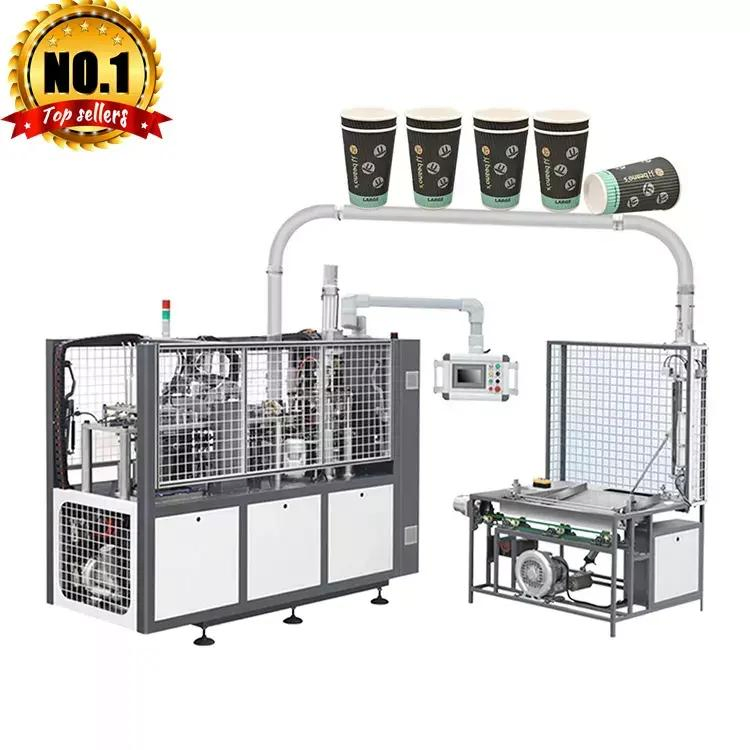

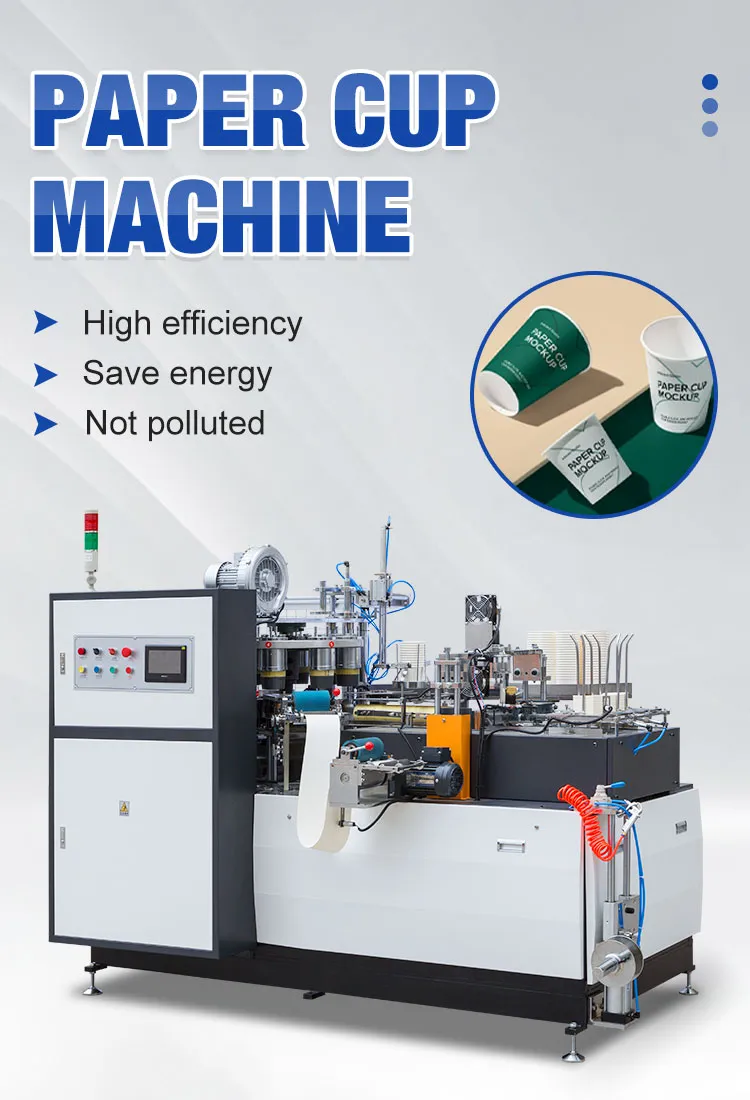

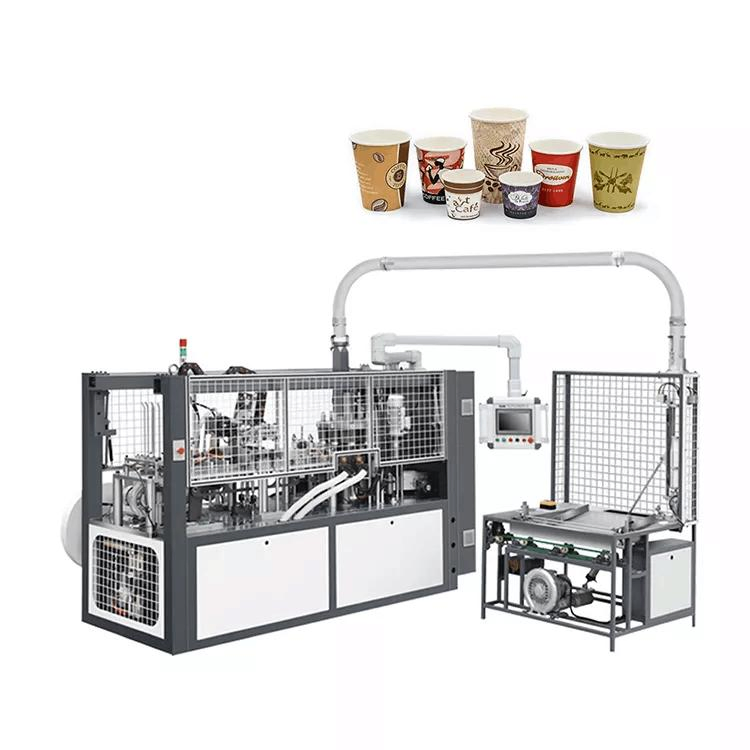

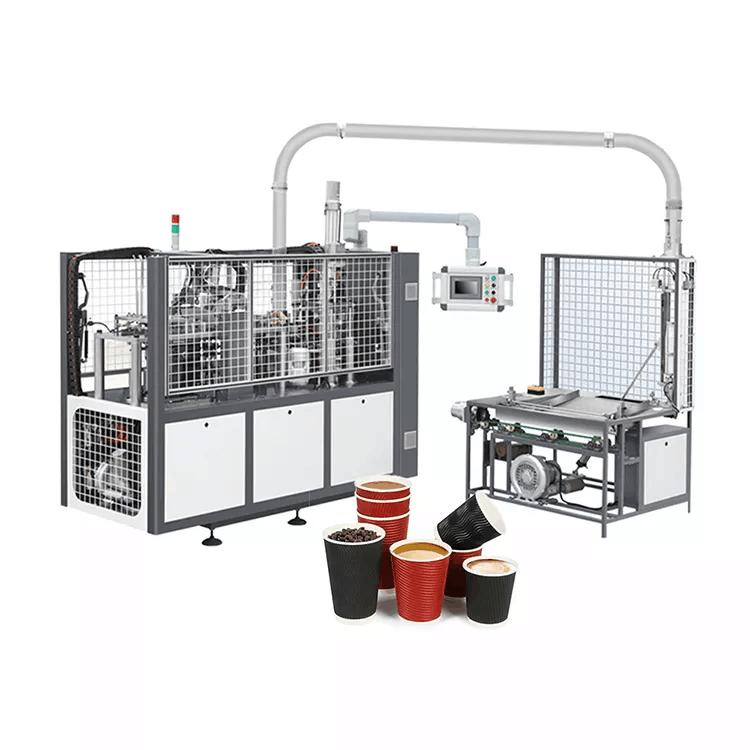

The YG-160S high-speed intelligent paper cup machine adopts a desktop layout, effectively isolating the transmission parts from the molds. Transmission components are located under the table, while molds are on top, ensuring easy cleaning and maintenance. The machine utilizes automatic spray lubrication, vertical axis transmission, a barrel-type cylindrical indexing mechanism, and gear transmission to guarantee long-term stability and high-quality production.

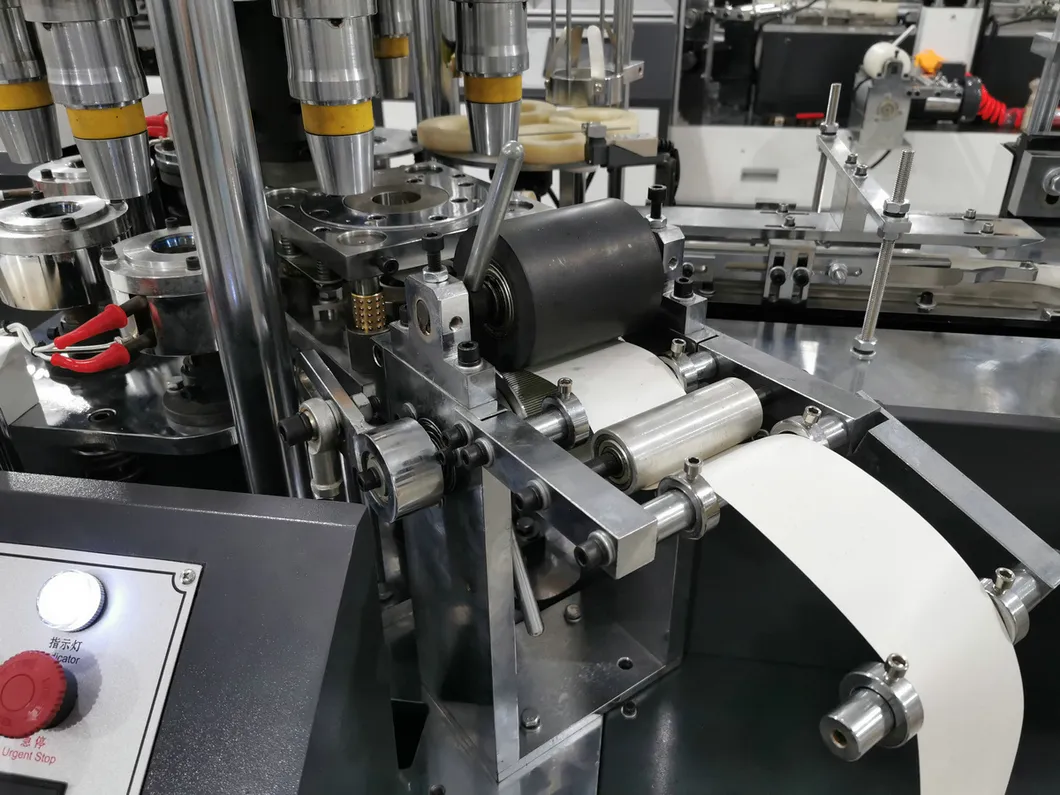

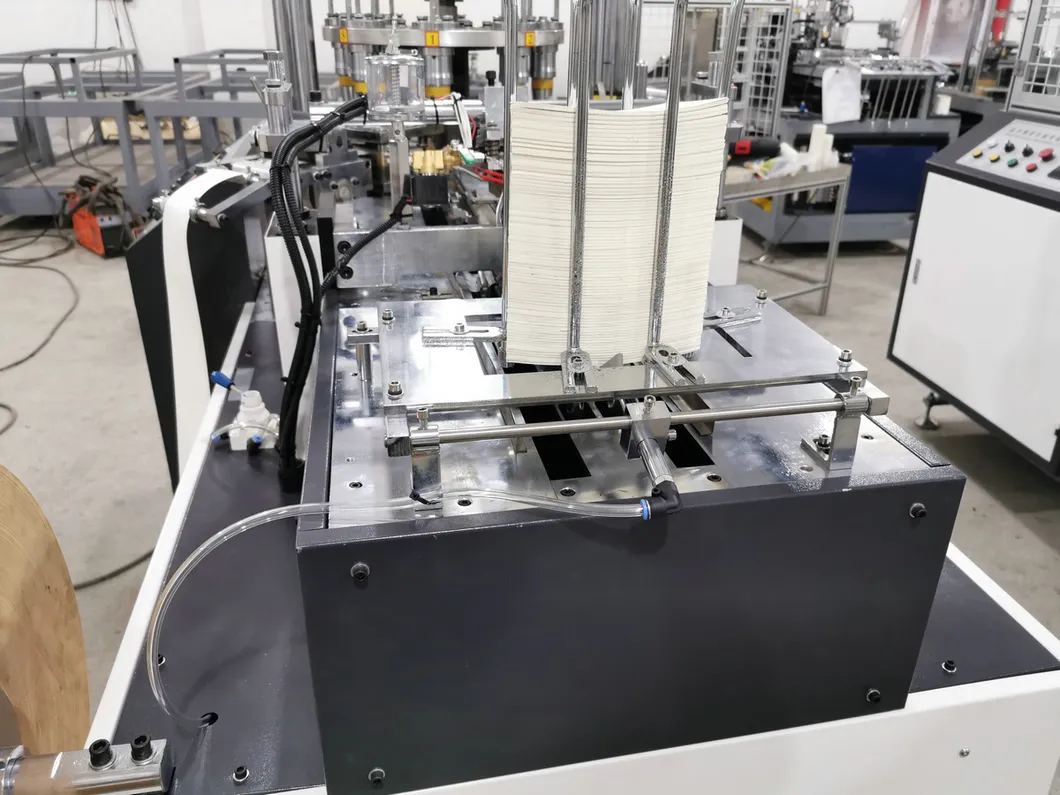

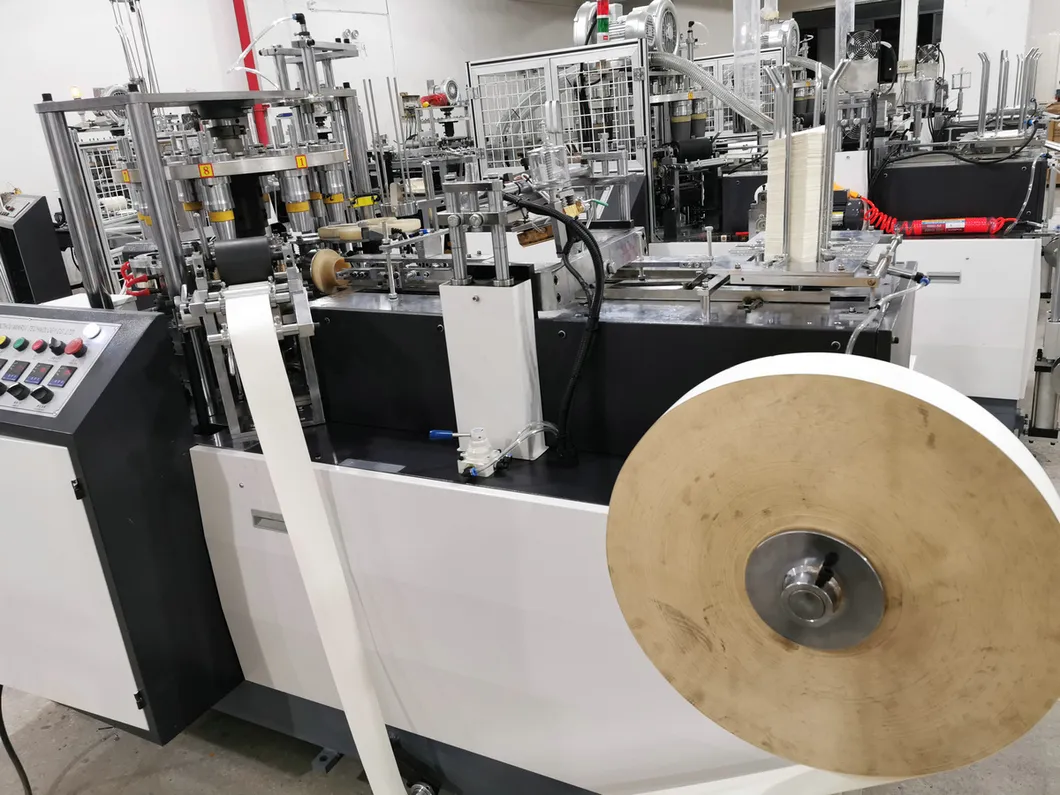

This system achieves perfect integration of chain and cam structures driven by a single main motor. By utilizing a single aluminum disk instead of traditional three-disk designs, the failure rate is significantly reduced. It supports the production of 5-16 oz cold or hot cups through continuous processes including automatic paper feeding, ultrasonic welding, bottom punching, preheating, and knurling.
| Weight | 4000 kg |
| Machine Dimensions | 2800 x 1100 x 1800mm |
| Power Configuration | 3 phase 380V, 25KW |
| Production Capacity | 130-160 pcs/min |
| Paper Type | Single/Double PE/PLA coated paper |
| Cup Mouth Diameter | ф50-90mm |
| Cup Bottom Diameter | ф40-65mm |
| Cup Height | 50-138mm |
Simple window prompts for quick model selection and setup.
Support for backup, restore, and manual modification of detailed operational parameters.
Automatic direction setting and encoder origin configuration with internal diagnostic capabilities.
The system calculates inertia distance to ensure the machine stops at the optimal position quickly.
