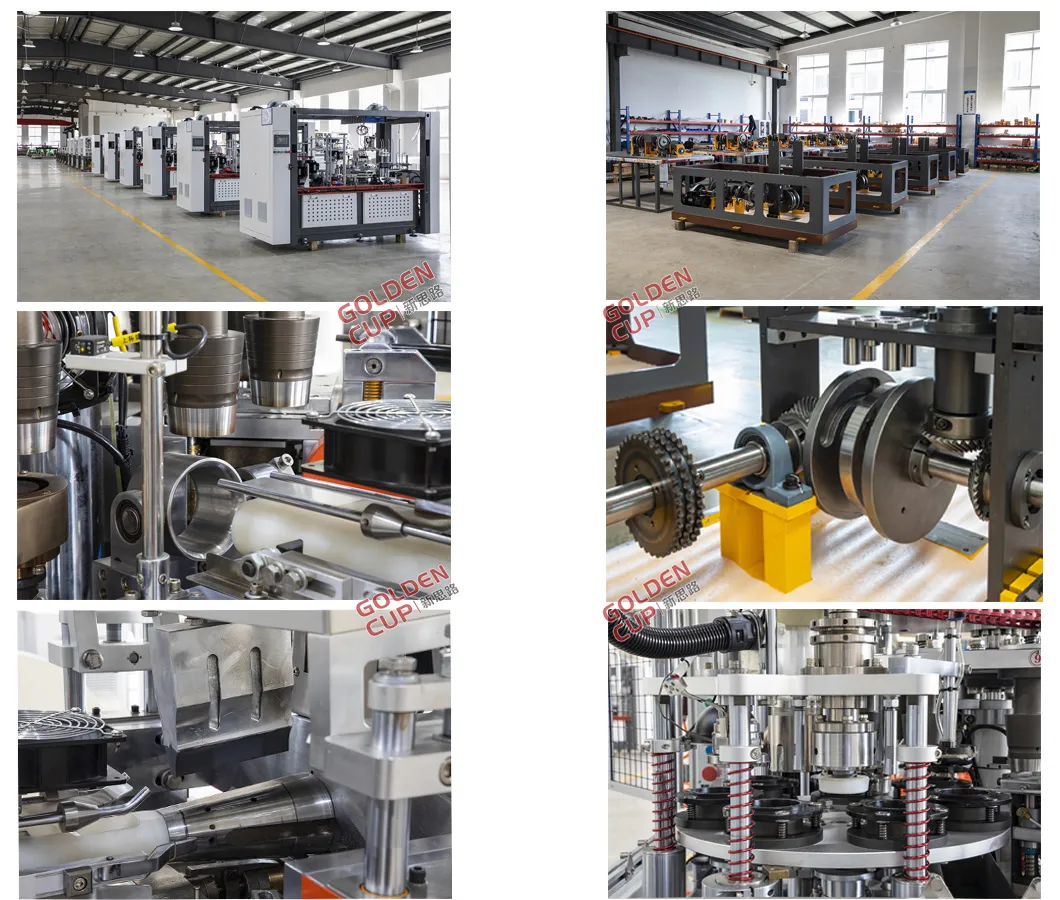

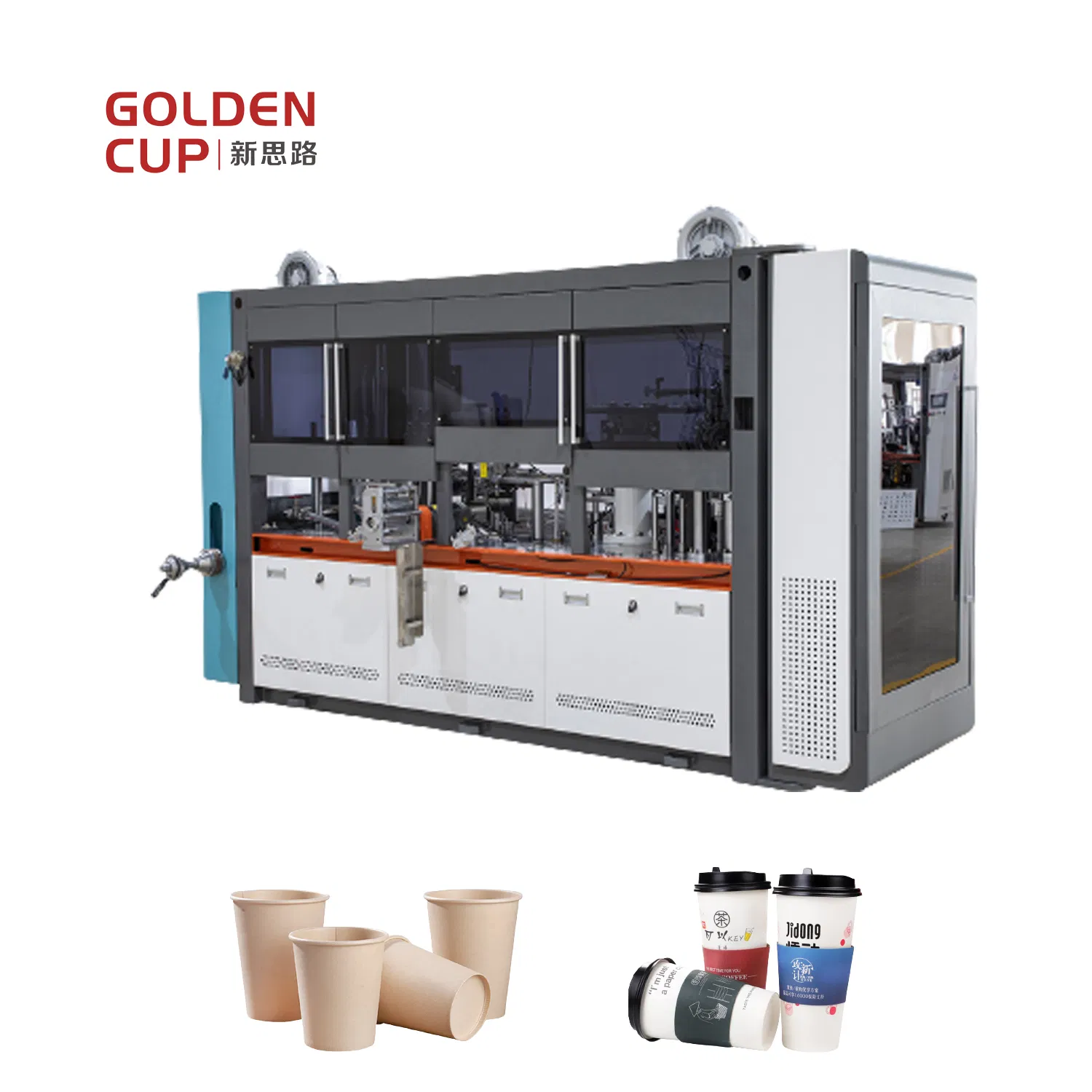

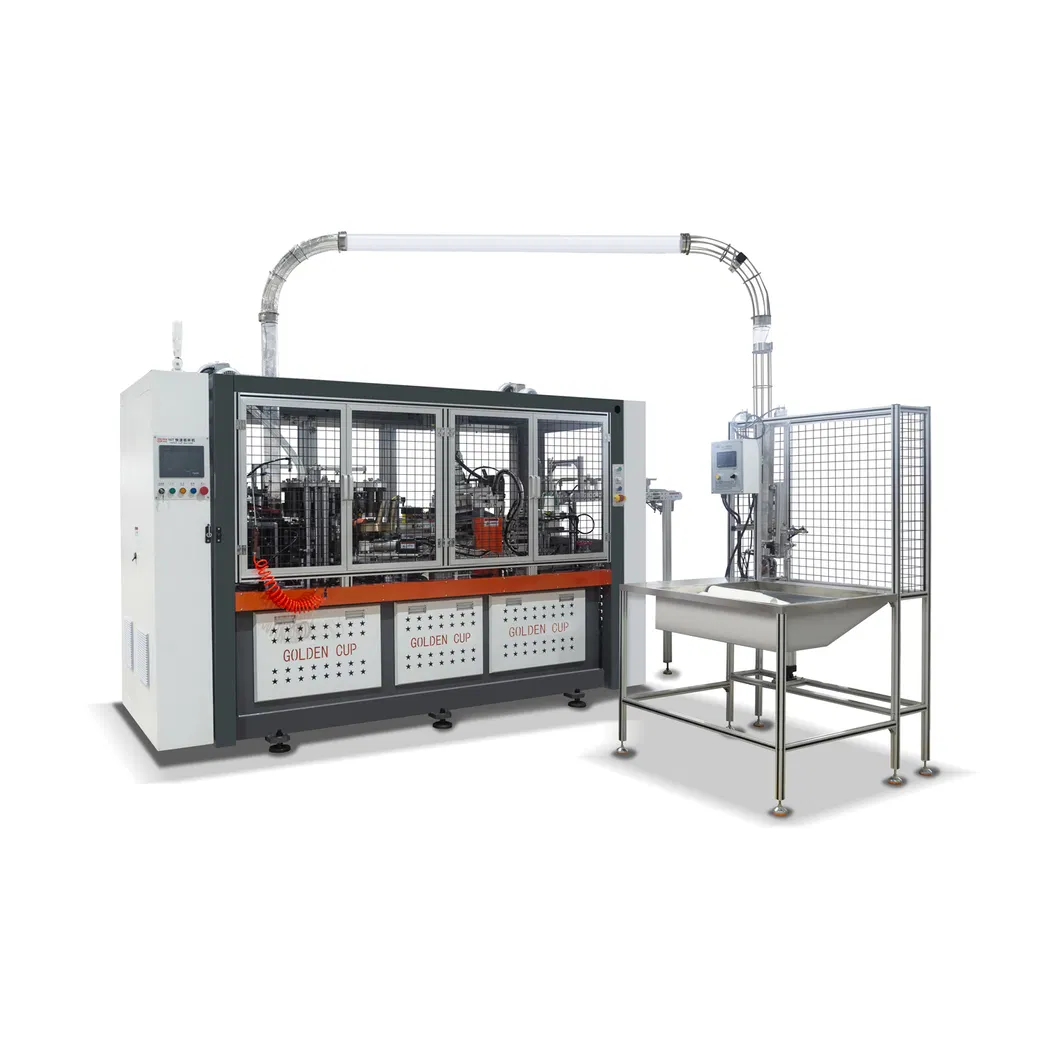

The XSL-16T paper cup machine features a tabletop layout that effectively isolates forming parts from transmission components. All transmission parts utilize longitudinal shafts, barrel indexing cams, and gear transmissions, lubricated via a spray system.
💡 Key Features: Controlled by PLC, the entire process is monitored by photoelectric sensors with servo feeding. An optional visual inspection system is available to ensure high-quality output. Suitable for 4-16 OZ cold and hot drink cups.
| Parameter | Specification |
|---|---|
| Model | XSL-16T High Speed Paper Cup Machine |
| Suitable Size | Top: 60-95mm | Bottom: 40-75mm | Height: 50-135mm |
| Production Speed | 120-150 pcs/min |
| Paper Request | 170-380gsm single/double PE paper |
| Machine Weight | 3600kgs |
| Dimensions (L*W*H) | 3000*1400*2060mm |
| Power Supply | 3 Phase, 380V, 50HZ, 21KW |
| Air Consumption | 0.6-0.8m³/min |

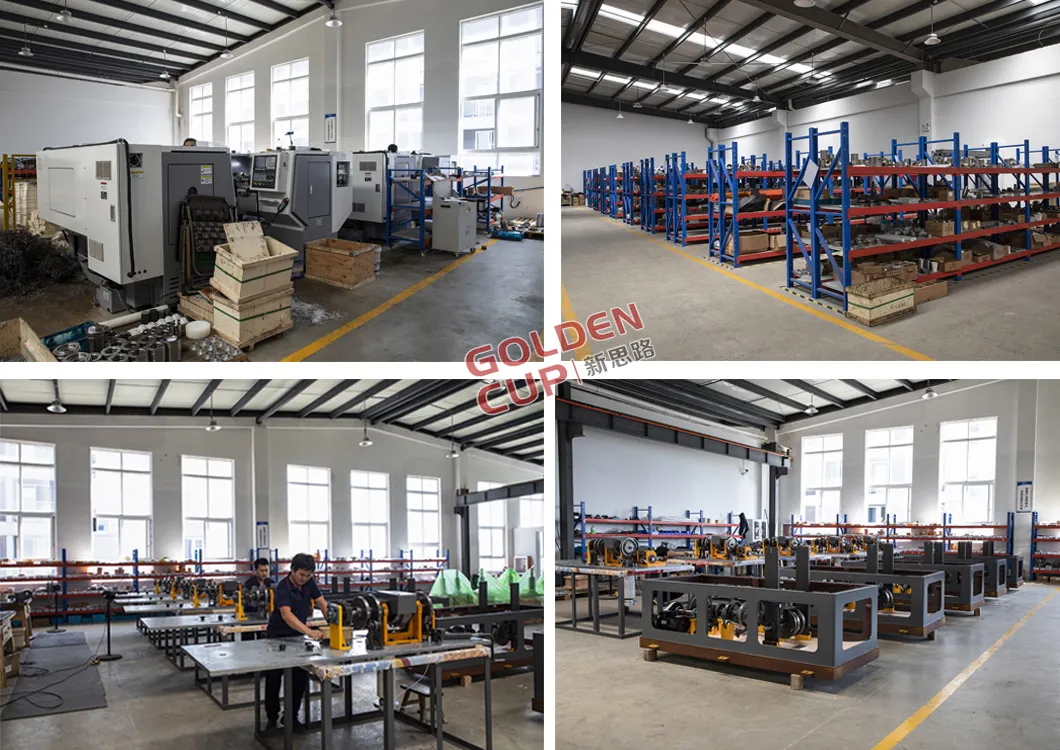

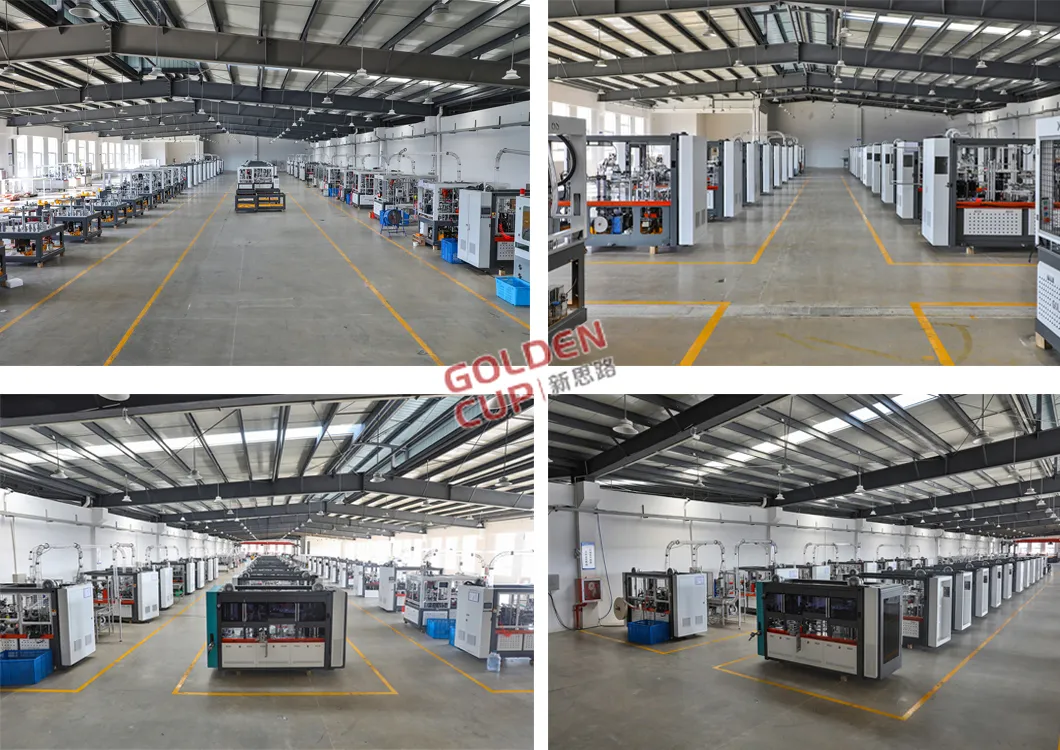

Our facility spans approximately 10,000 square meters, equipped with advanced production capabilities. We specialize in high-speed paper cup machines, paper bowl machines, and double-wall sleeve machines. To ensure durability, we utilize components from renowned international brands and high-quality materials similar to those used in aviation.
Upon the machine's arrival at the factory, we can dispatch engineers to assist with installation and training. We provide ongoing support via video or phone calls to explain adjustments and solve any production issues. Our goal is to ensure a smooth and efficient experience for all our partners.
