🚀 Product Description
Mechanical Behavior

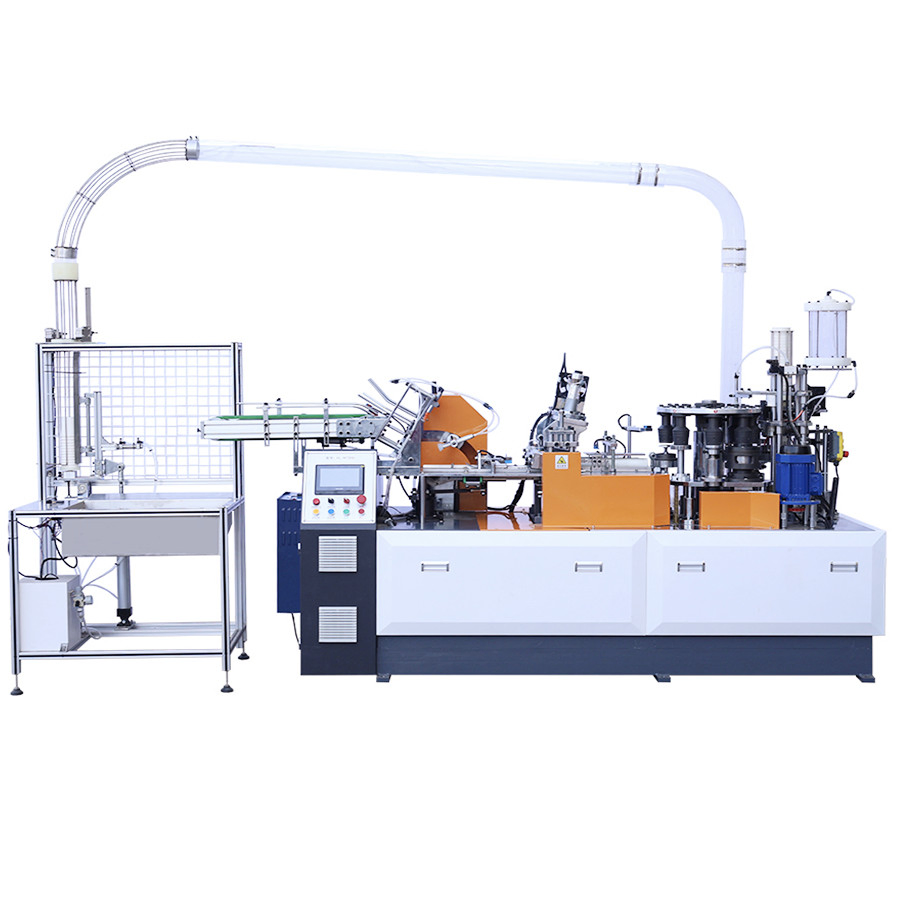

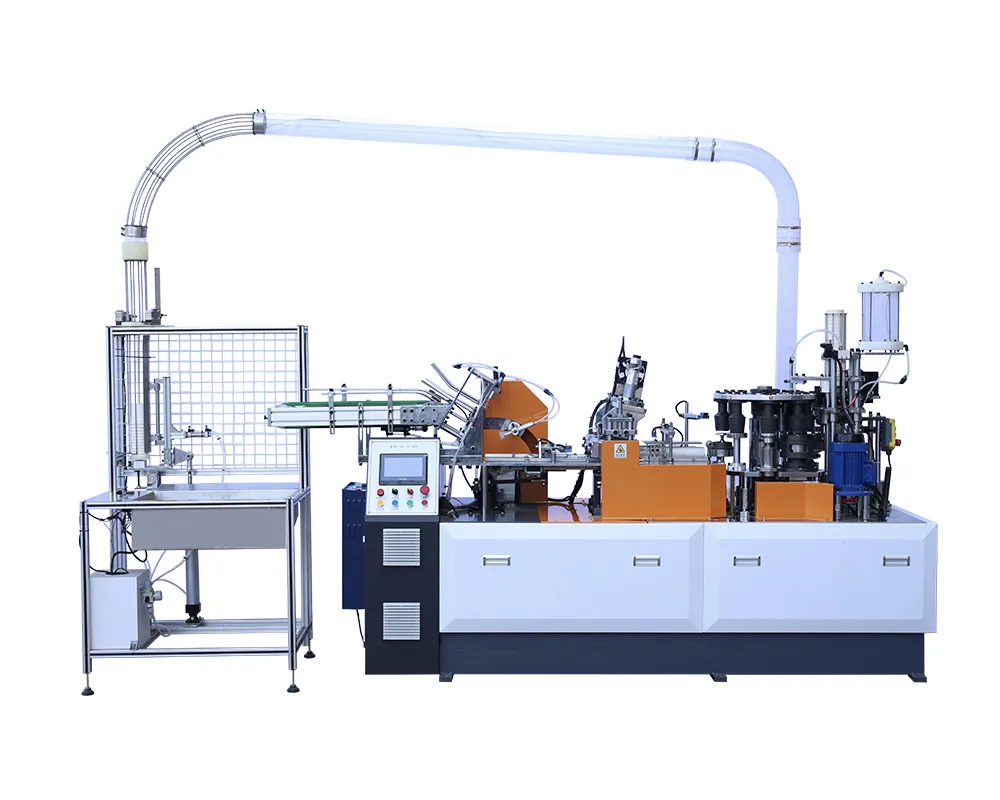

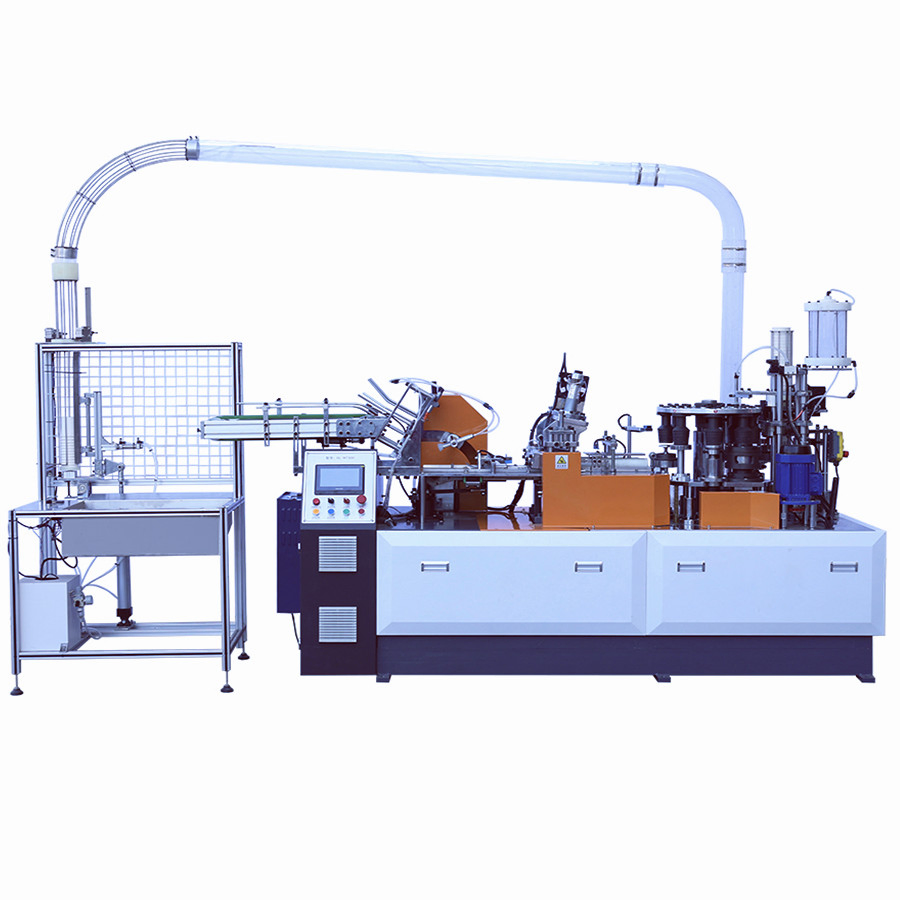

The externally laminated hollow corrugated cup machine features a tabletop layout, isolating the drive components and molds. With the drive components located below the platform and the molds above, this layout facilitates cleaning and maintenance. The machine utilizes automatic spray lubrication, a longitudinal drive structure, an open cylindrical grooved wheel indexing mechanism, and a gear drive, ensuring overall stability and quality.
❓ Frequently Asked Questions
1. What is the production speed of the XL-WT100 machine?
The machine operates at a high-speed capacity of 100 to 110 pieces per minute.
2. What range of cup sizes can this machine produce?

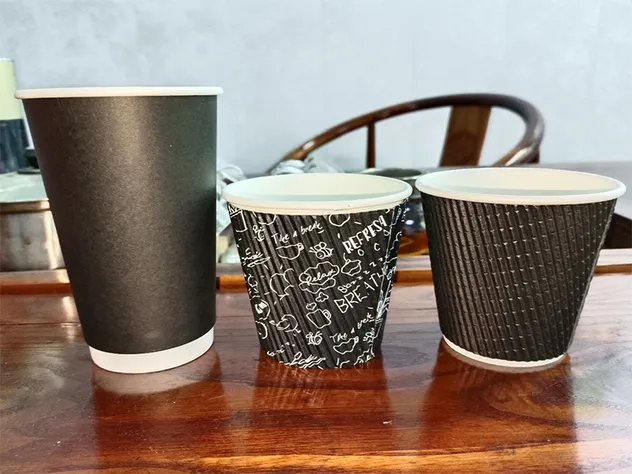

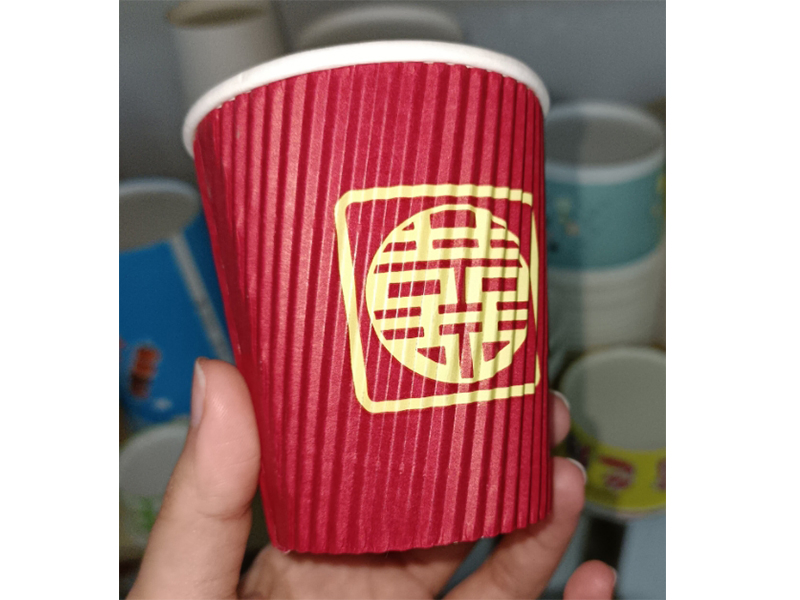

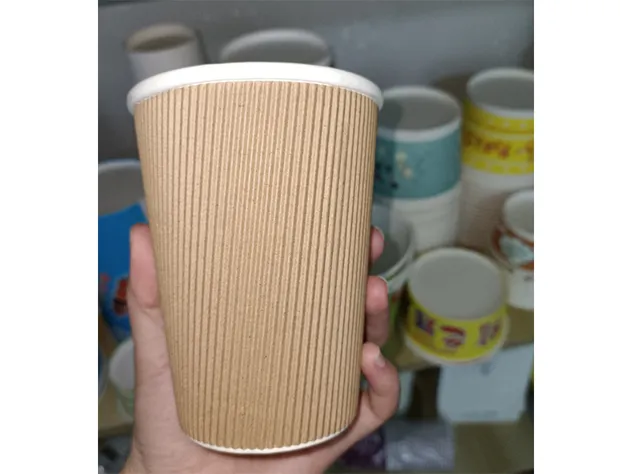

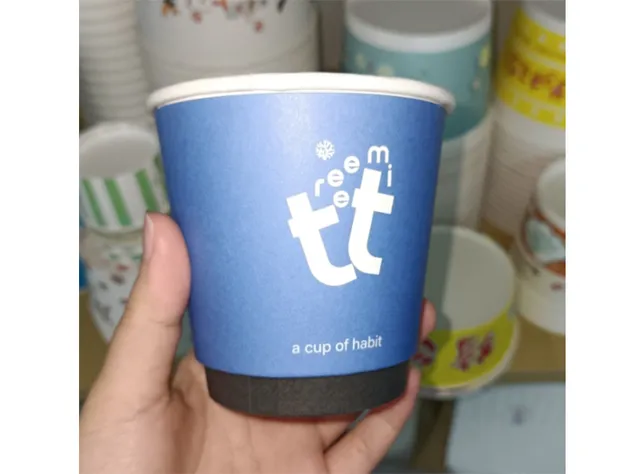

The XL-WT100 is designed to produce ripple wall and hollow corrugated cups ranging from 4 oz to 16 oz.
3. What type of paper is required for production?
It supports both single and double-side PE coated paper with a thickness of 180-330 GSM.
4. Does the machine feature an automatic lubrication system?
Yes, it utilizes an automatic spray lubrication system to ensure smooth operation and longevity of the drive components.
5. How is the machine controlled?
It features an intelligent control system using PLC, photoelectric tracking, and a user-friendly touch screen for parameter settings and fault self-diagnosis.
6. How is the machine packaged for shipping?
The machine is securely packed in a standard export wooden box for maximum protection during transit.
