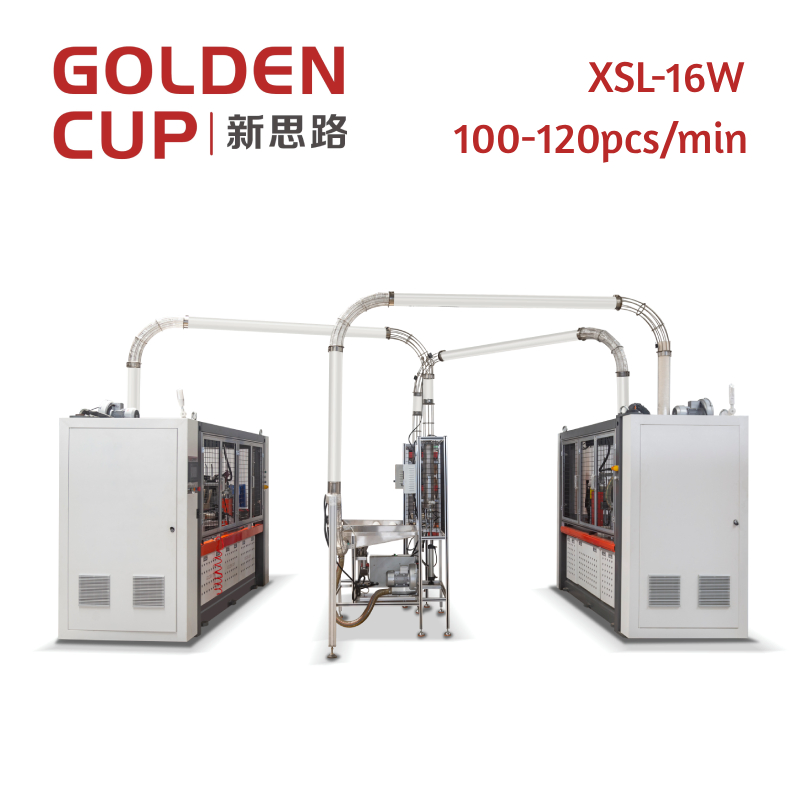

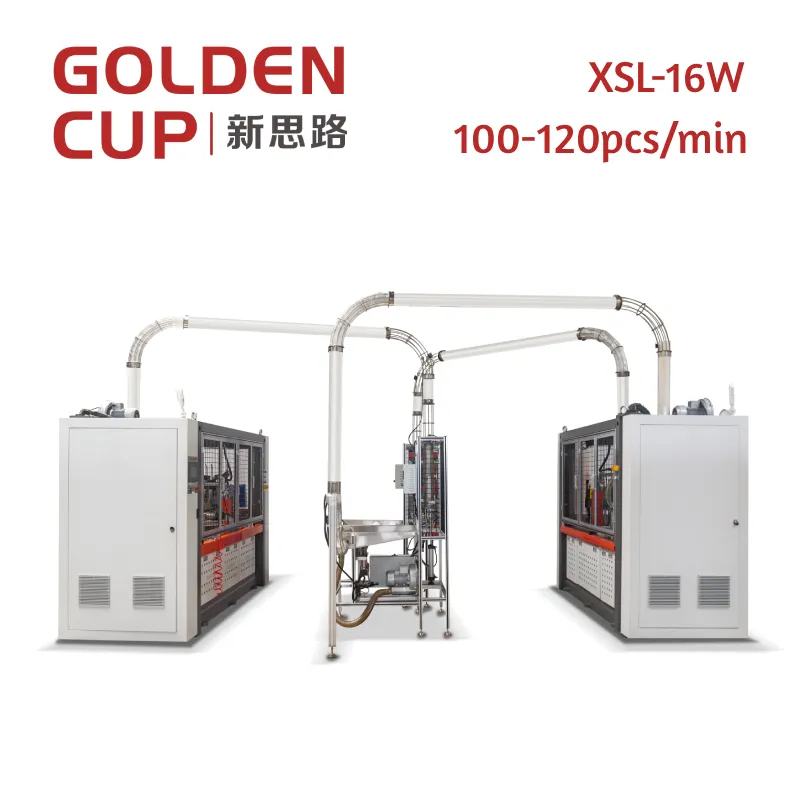

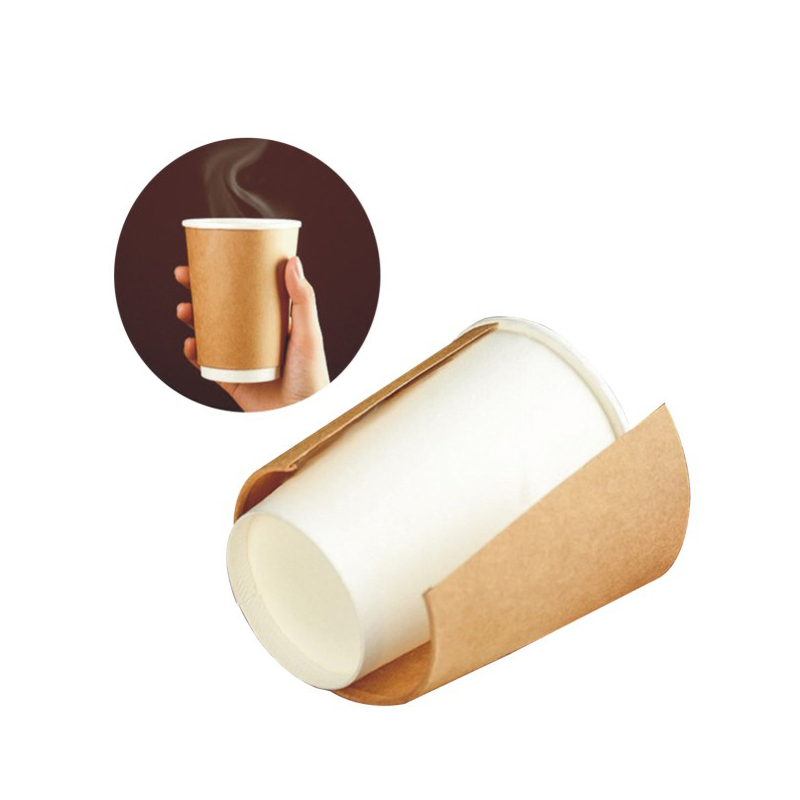

XSL-16W ripple wall paper cup making machine is ideal for producing ripple wall cups and double wall paper cups with high stability and efficiency.

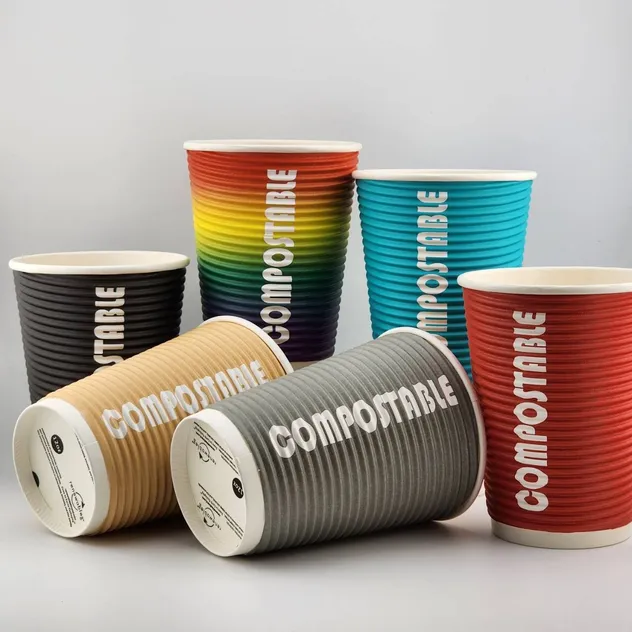

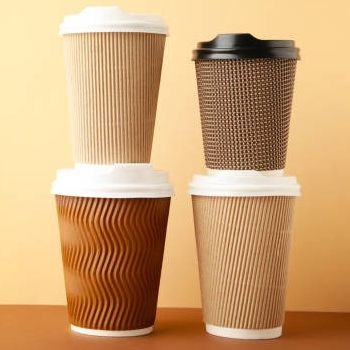

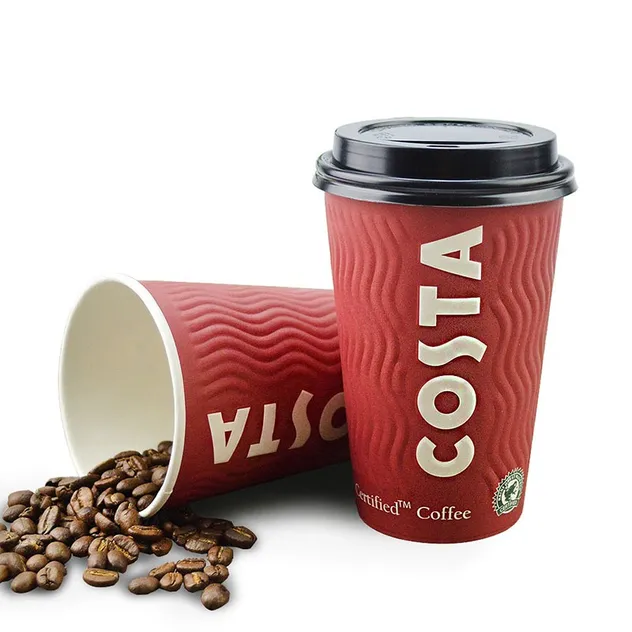

The XSL-16W double wall paper cup making machine is designed for producing 4–16oz insulated cups. With a maximum speed of 120 pcs/min, it is widely used for producing double wall cups, ripple wall cups, coffee cup sleeve cups, soup bowls, and milk tea cups.
When connected with the 16TS paper cup forming machine, it forms a complete corrugated / hollow-wall paper cup production line. The line can also be linked with an automatic packing machine, creating an intelligent cup production and packaging solution from forming → sleeve attaching → counting → packing.

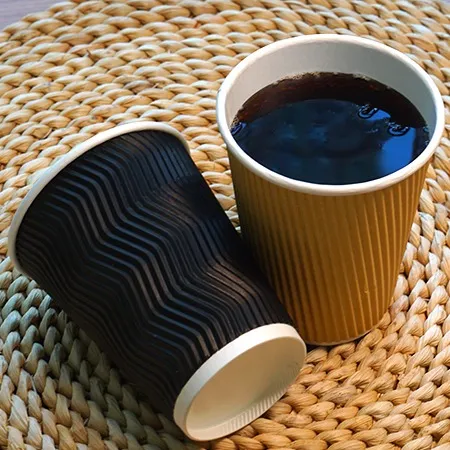

These insulated cups provide excellent heat resistance and anti-scald protection, making them ideal for hot beverages and takeaway packaging.
| Model | XSL-16W | XSL-16SW |
|---|---|---|
| Weight | 2800kg | 3200kg |
| Machine Size | L3300 x W950 x H2000mm | L3500 x W950 x H2000mm |
| Rated Power | Three-phase, 380V, 6KW | Three-phase, 380V, 9KW |
| Max Capacity | 120pcs/min | 150pcs/min |
| Paper Materials | Gray board/White board | Gray board/White board |
| Paper Thickness | 150-300gsm | 150-300gsm |

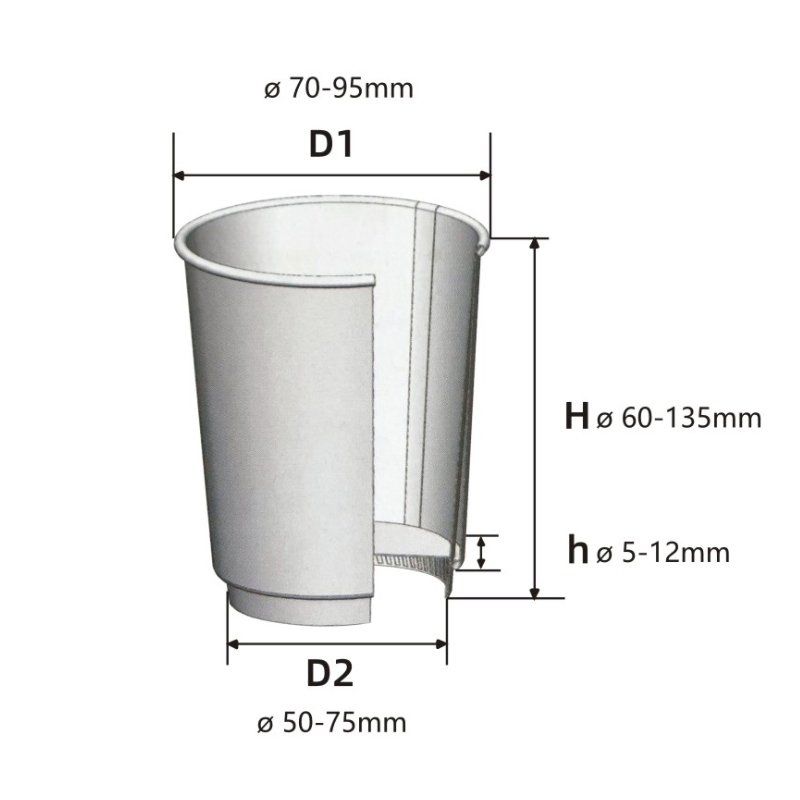

| Product Range (D1) | φ70-95mm (H)60-135mm | φ70-95mm (H)60-135mm |

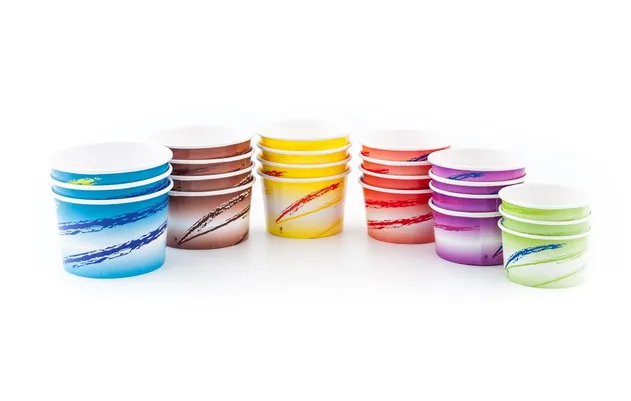

Ice Cream Paper Cup Machine
Designed for cold dessert packaging, ensures stable forming and customizable sizes.

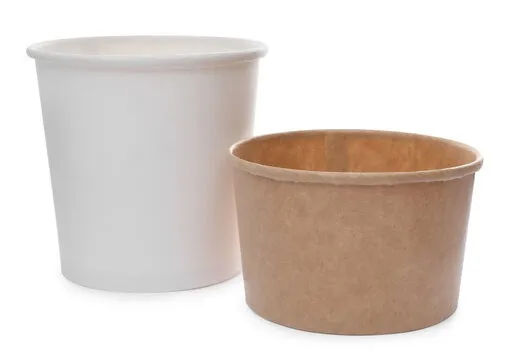

Paper Bowl Machine
High-speed forming for 16–46oz soup and noodle bowls with strong sealing.

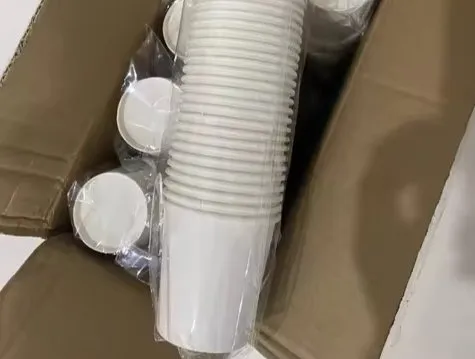

Automatic Packaging Line
Efficiently counts, wraps, and packs cups for an intelligent production line.
We are a professional manufacturer of paper cup machines, paper bowl machines, and double wall paper cup sleeve machines. We provide high-speed, intelligent paper cup production solutions, covering cup forming, sleeve attaching, packing, and boxing.
