Basic Information
| Model NO. | XZT-150D | Cup Size | 2-12OZ |
|---|
| Speed | 140-160pcs/min | Required Paper | Single/Double Side PE Coated |
|---|
| Automation | Automatic | Certification | CE |
|---|
| Condition | New | Finish Products | Double Wall Paper Cup |
|---|
| Bowl Size | 4-16oz | Material | 170-380GSM Coated Paper |
|---|
| Power Supply | 3phase 380V 50Hz, 34kw | Air Supply | 0.6MPa |
|---|
| Dimension | 2460X1620X1780mm | Weight | 2800kgs |
|---|
| Transport Package | Wooden Box | HS Code | 8441309000 |
|---|
Product Description

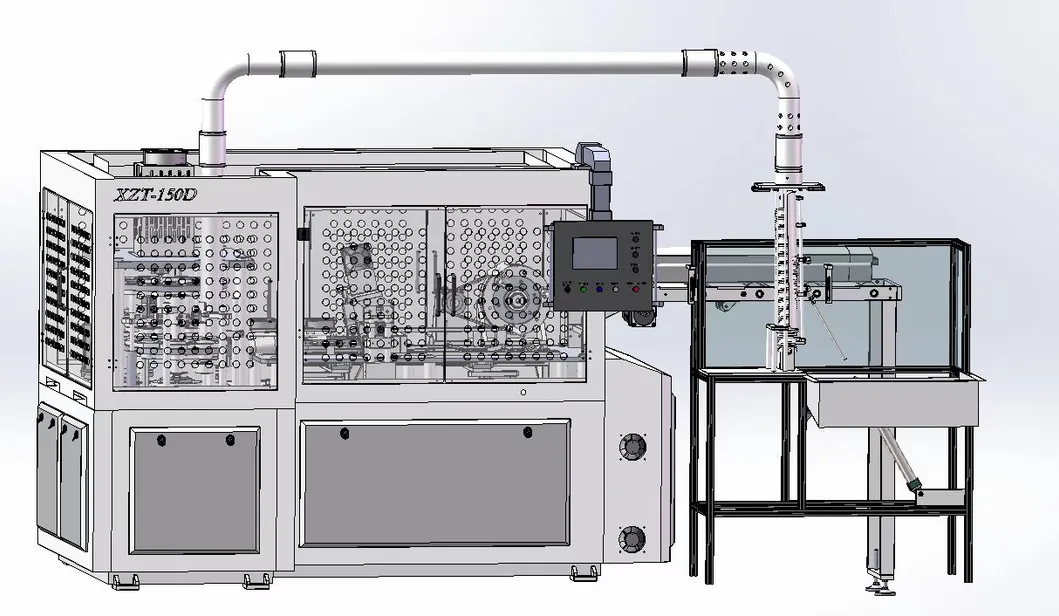

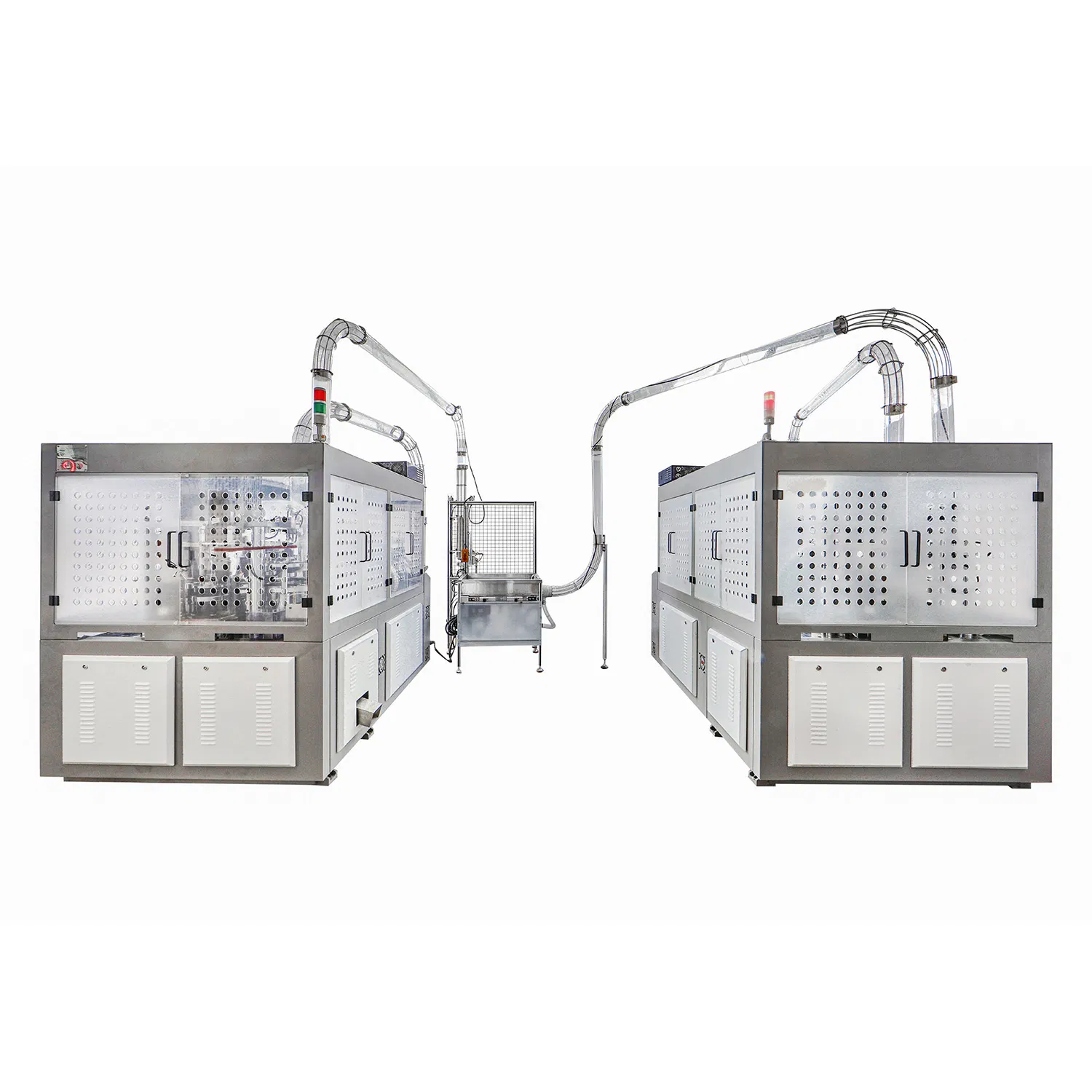

XZT-150D is our latest model for double-wall paper cups. It produces 4oz to 16oz double wall paper cups at a stable running speed of 140-160ppm.

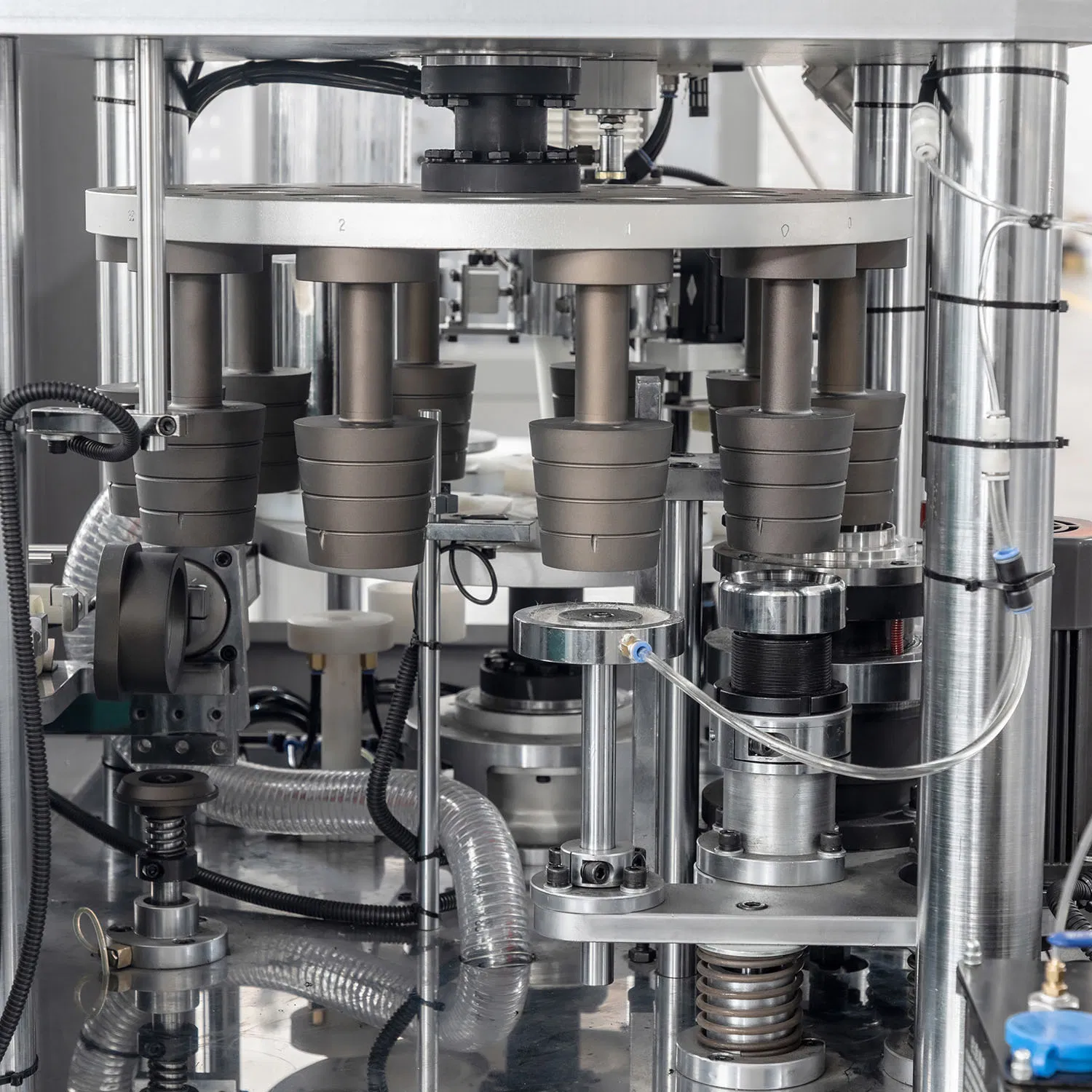

XZT-150D features full servo-driven technology throughout the entire machine. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion. It replaces traditional gear/chain transmission and cam designs, providing flexibility, speed, affordable capital cost, and low maintenance.
Technical Parameters
| Parameter Item |
Specifications |
| Model | XZT-150D Paper Cup Sleeve Machine |
| Bowl Size | 4-16oz |
| Material | 170-380GSM coated paper |
| Speed | 140-160 pcs/min |
| Power Supply | 3phase 380V 50Hz, 34KW (Running consumption 11KW) |
| Air Supply | 0.6Mpa (Running consumption 0.5Nm3/min) |
| Dimension | 2460x1620x1780mm |
| Weight | 2800kgs |
Machine Features

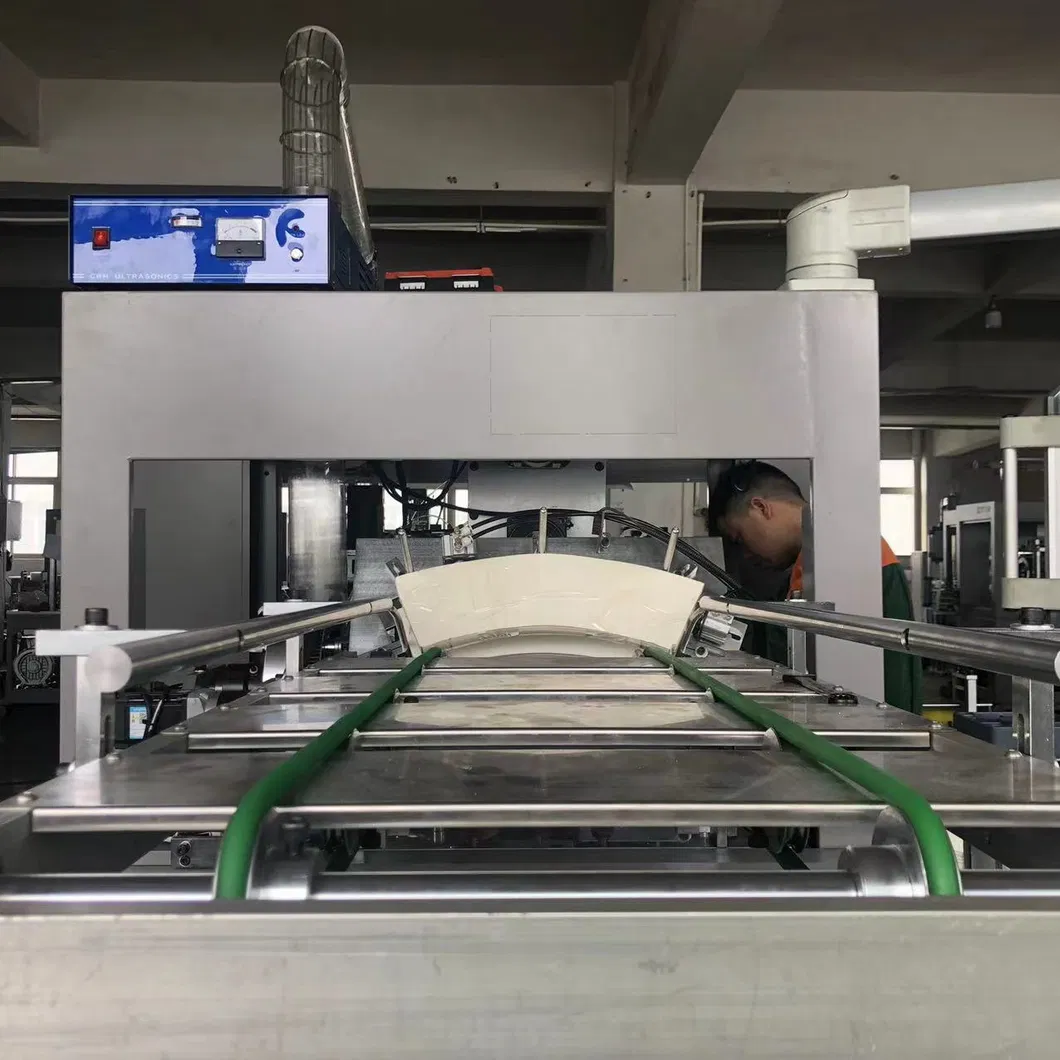

Conveyor Fan Wall Paper Feeding by Step Motor.

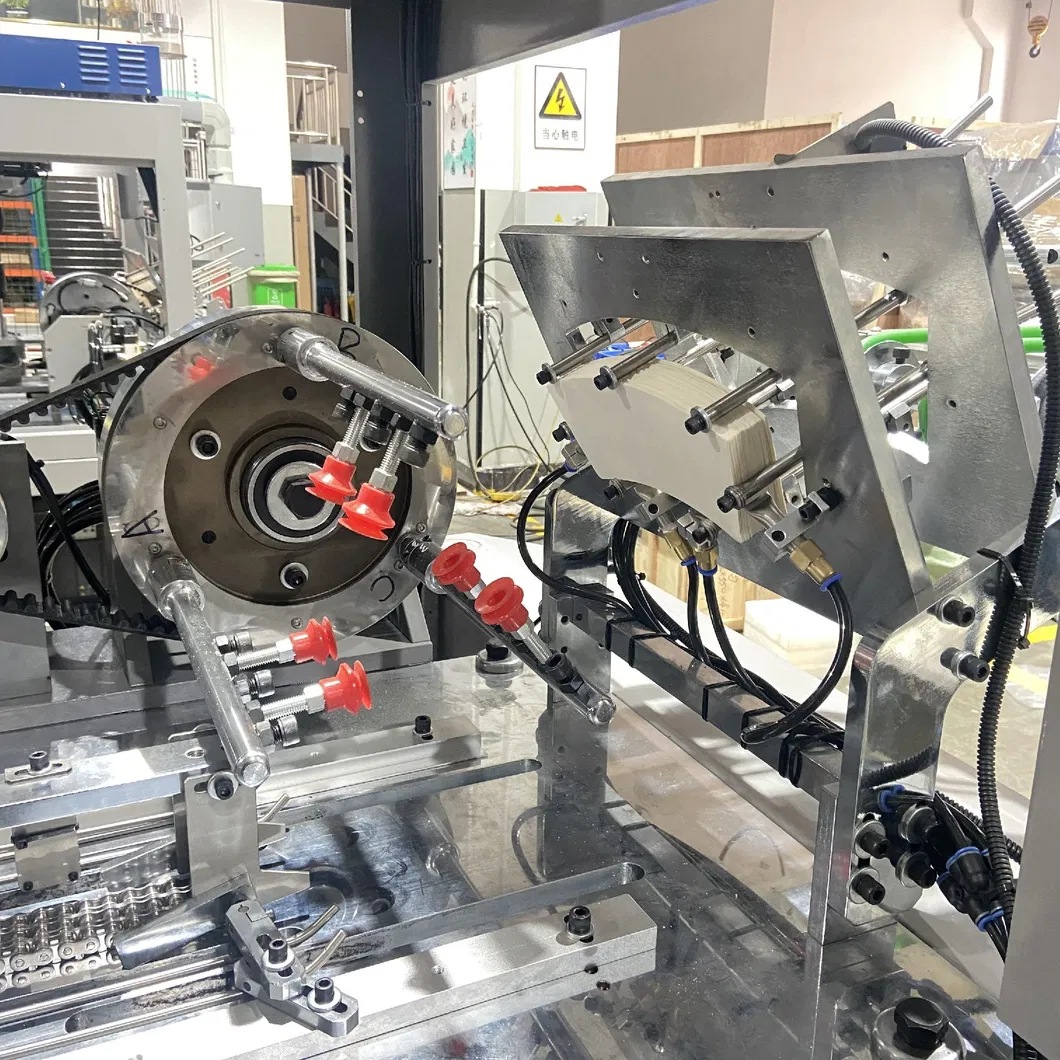

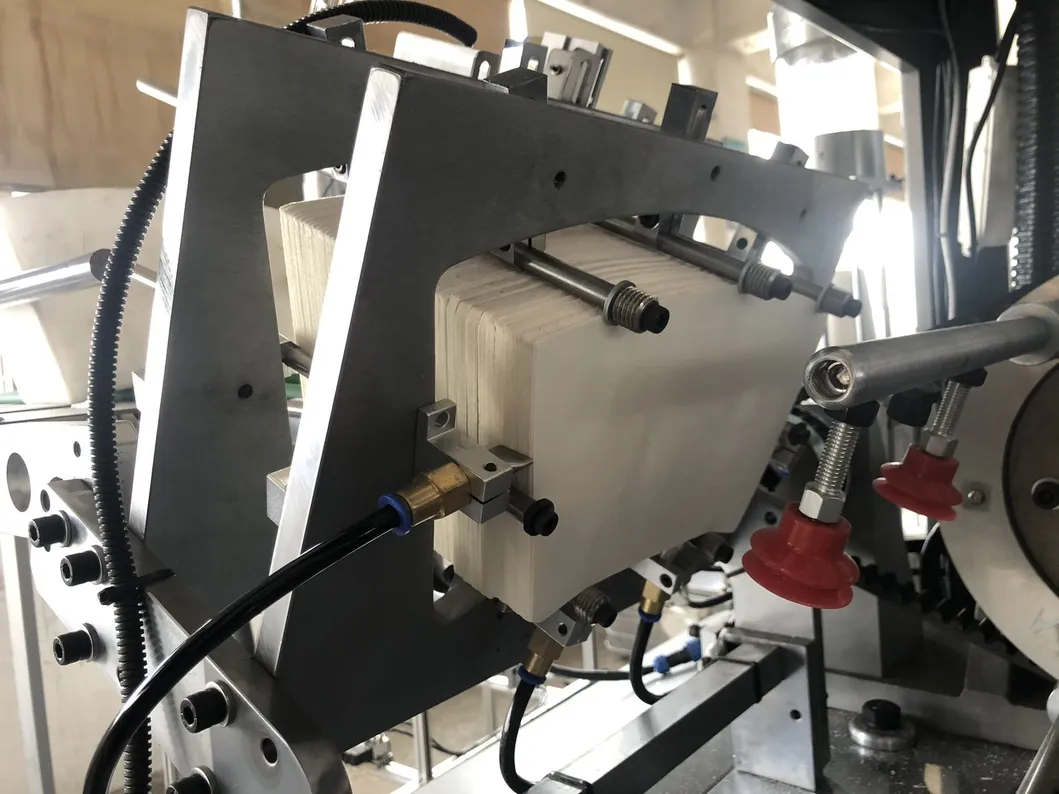

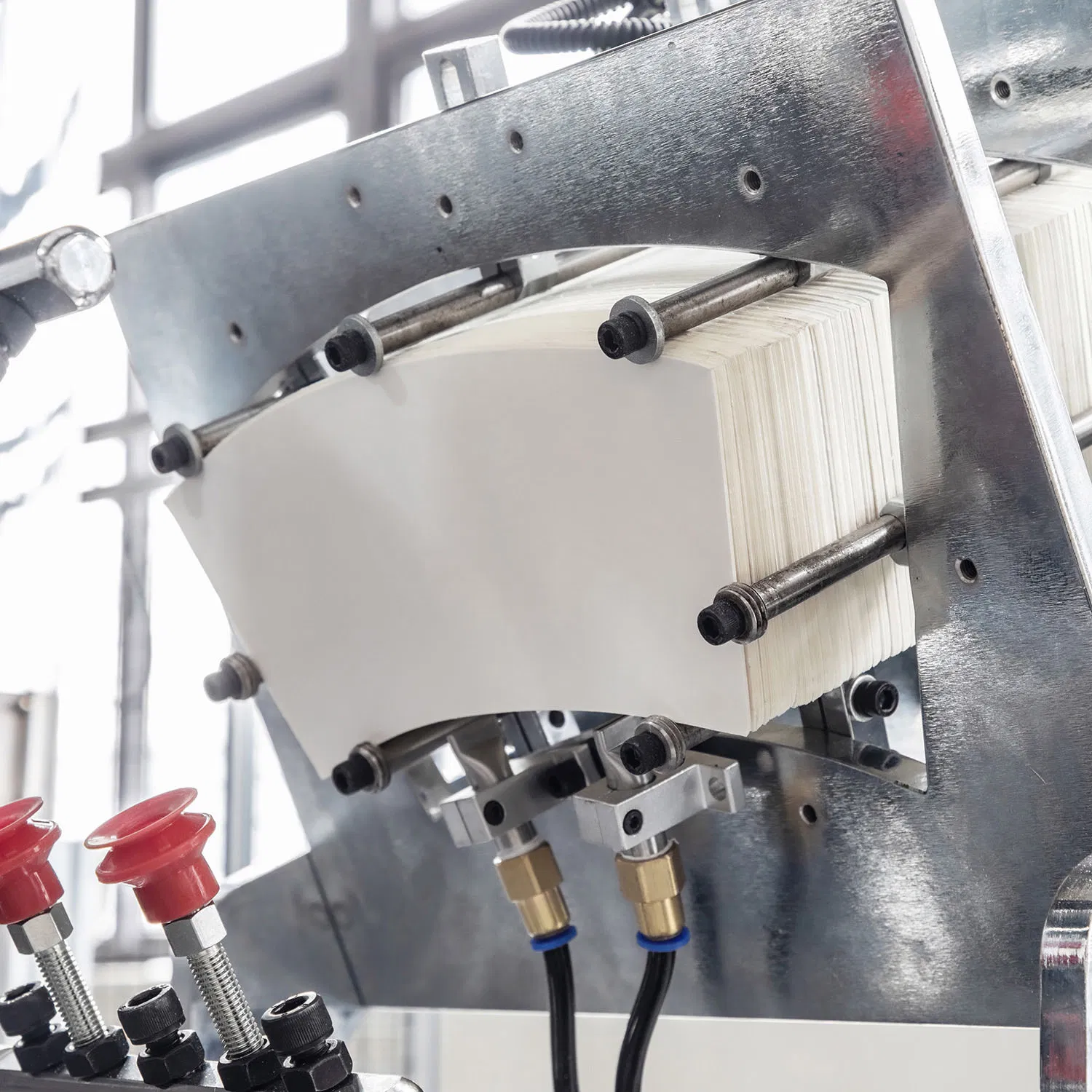

Unique rotary shuttle feeding system by servo motor, ensuring stable and fast paper feeding, supported by automatic conveyor.

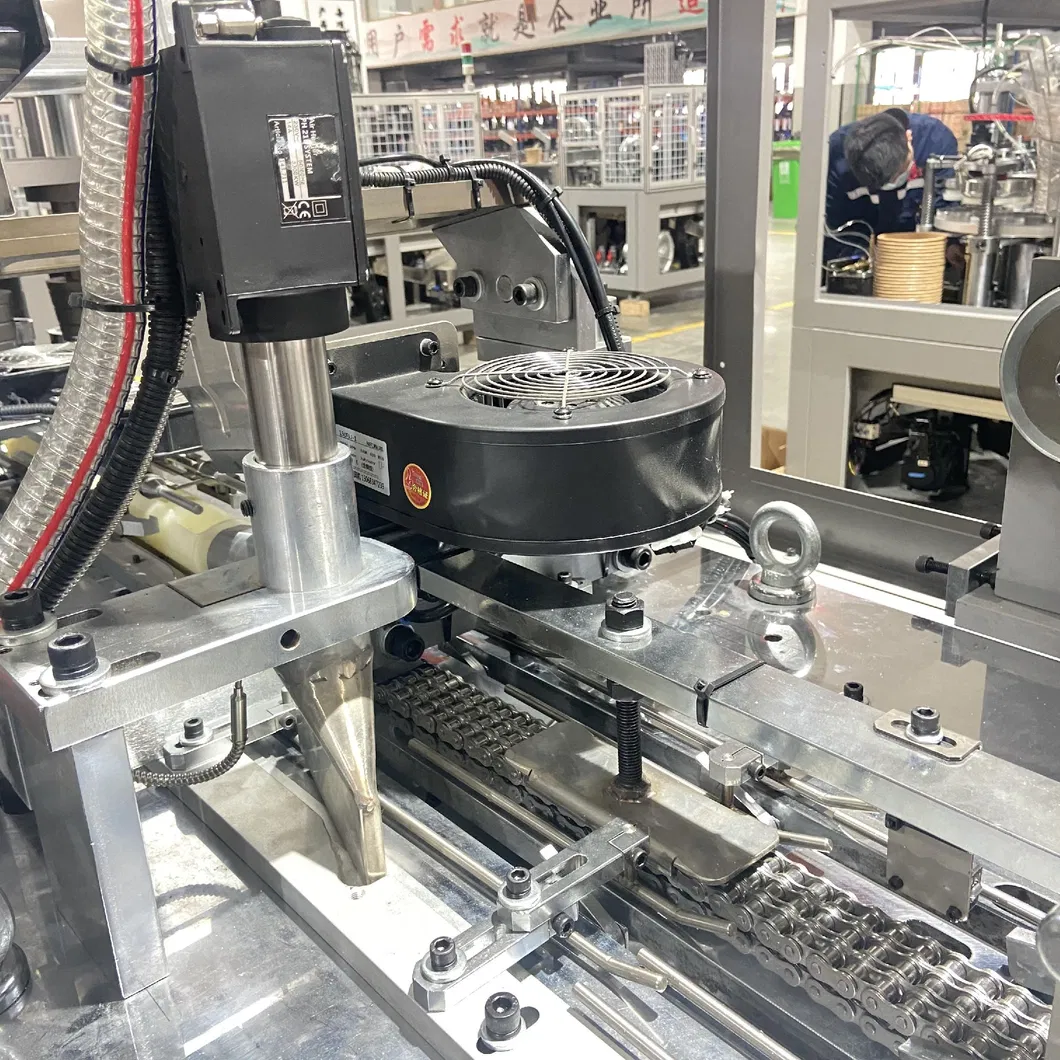

Independent Swiss Leister hot air for paper fan preheating before ultrasonic sealing.

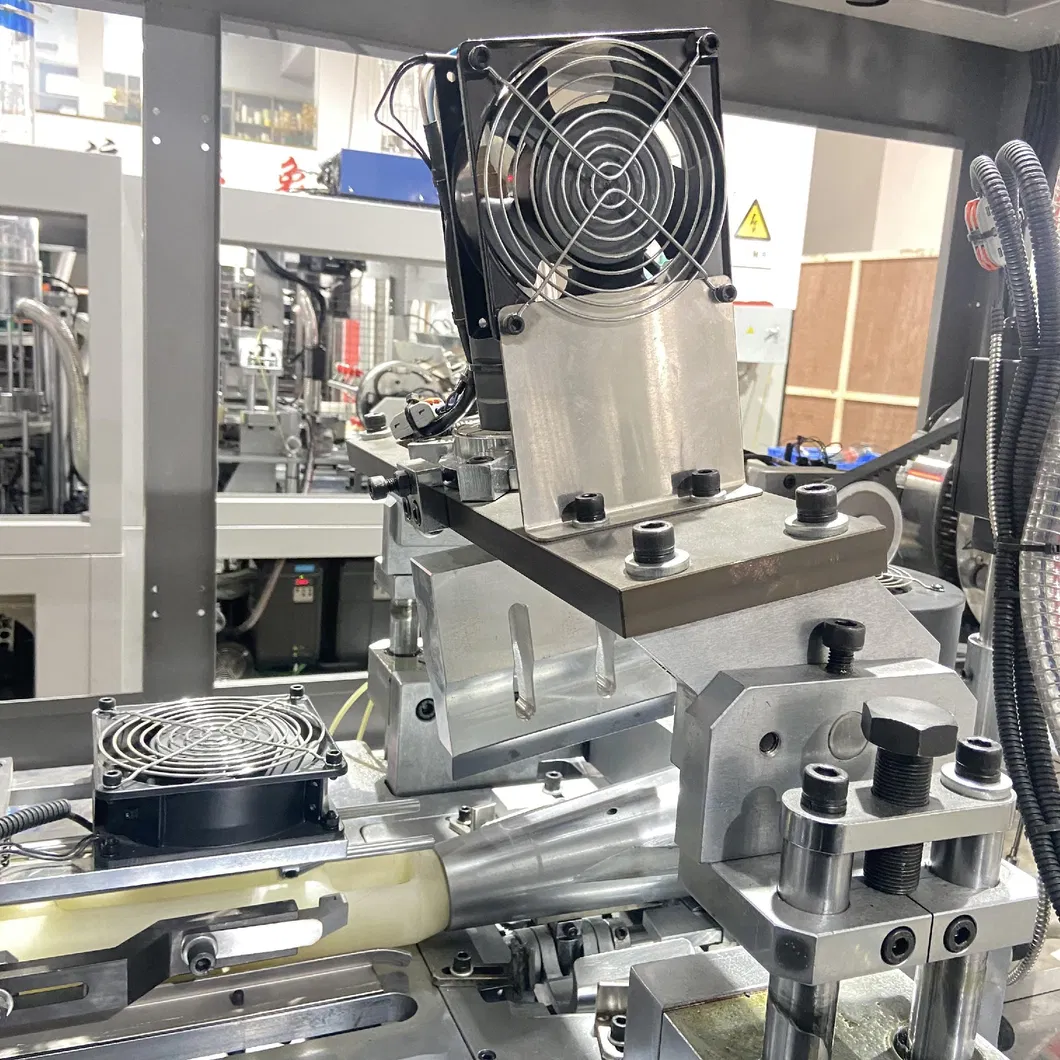

Ultrasonic sealing adopts servo motor and electronic cam to control the lift and timing precisely.

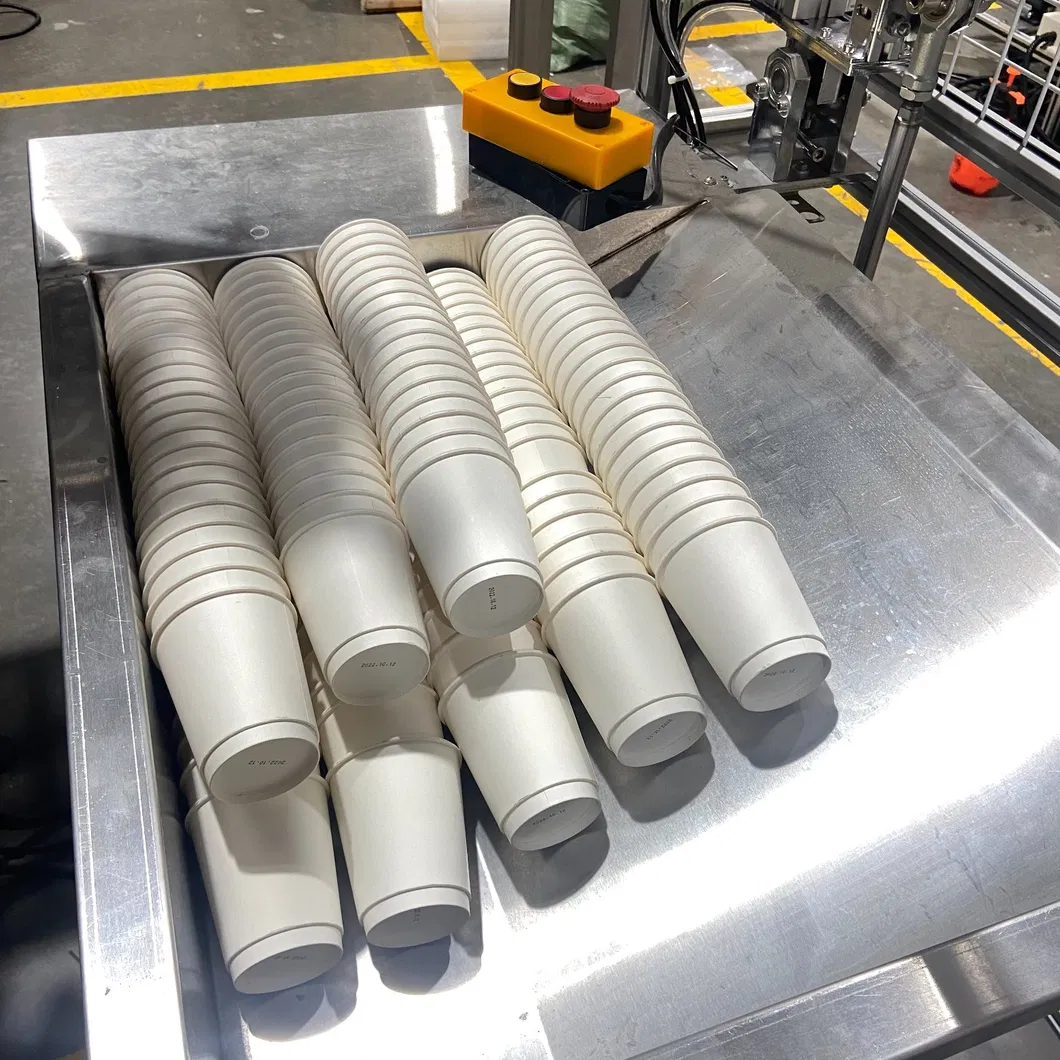

Integrated cup reject system and finished cup collect system.

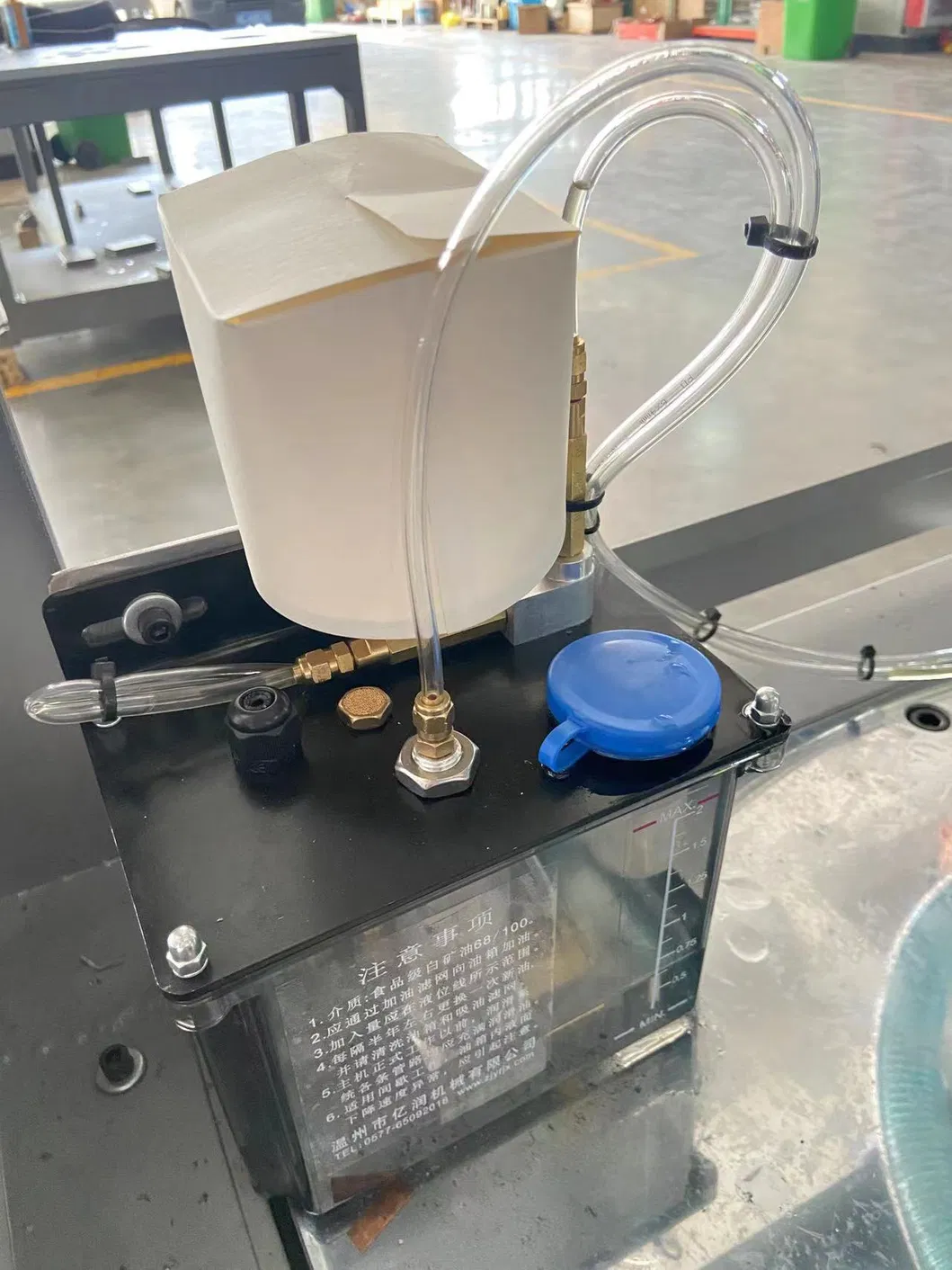

Automatic grease lubricant system for long-term operational stability.
Frequently Asked Questions
What materials are suitable for your machines?
PE, double-PE Laminated cup paper, composite material, and aluminum foil paper are all suitable for our equipment.
What size of cups or bowls can your machines produce?
Our machines are versatile and can produce paper cups and bowls ranging from 4oz to 57oz.
What kind of technology is used in the XZT-150D model?
The XZT-150D utilizes full servo-driven technology, which replaces traditional gear and chain transmissions for higher accuracy and lower maintenance.
What is the production speed of this machine?
The machine runs at a stable production speed of 140 to 160 pieces per minute.
What is the warranty period for your products?
We offer a one-year warranty. We also provide online technical instructions and can dispatch engineers for on-site service where conditions permit.
What information is needed for a formal quotation?
Please provide the required quantity, detailed dimensions (top/bottom diameter and height), and the paper thickness/material specifications.
