Ripple Wall Paper Cup Machine

Customization:	Available
Warranty:	1 Year
Applicable Objects:	Beverage

Send Inquiry

Product Description

Basic Information

Model NO.

RD-100T

Cup Size

6-22oz

Speed

80-100pcs/min

Required Paper

Single Side PE Coated Paper

Automation

Automatic

Certification

Condition

New

After-sales Service

1 Year

Transport Package

Wooden Case

Origin

China

HS Code

84413090

Production Capacity

100 Set/Year

Product Description

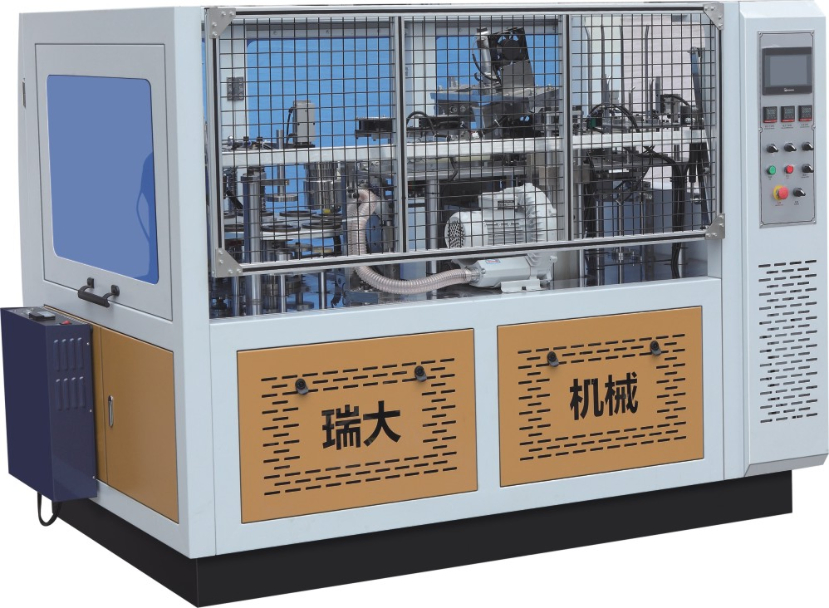

RD-100T double wall cup machine is suitable for the production of insulated cups for hot coffee, hot noodles and soups. The machine is both ok for making hollow and ripple cups, at speed 80-100cups/min.

Item	Specification Value
Applicable Industries	Hotels, Manufacturing Plant, Restaurant, Food Shop
Product Type	Paper Cup Machine
Processing Type	Double Wall Paper Cup Machine
Voltage	380/220V, 3PH, 50HZ
Power	5kw / Total 6kw
Dimension(LWH)	260013001900mm
Weight	2500kg
Warranty	Spare parts guarantee for one year
Production Capacity	80-100 pcs/Min
Core Components	PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox
Certification	CE / ISO9001
Cup Size Range	4-16oz / 6-22oz
Paper Thickness	180-350gsm paper sheet

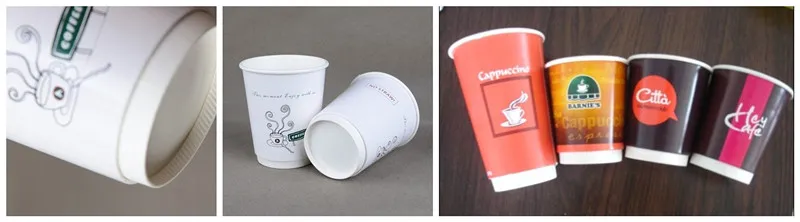

Application	Corrugated double wall paper cup, hollow double cup
Feature	High speed and good performance

Frequently Asked Questions

What types of cups can the RD-100T machine produce?

The RD-100T is specifically designed for double wall cups, including both hollow insulated cups and ripple (corrugated) wall cups, ideal for hot beverages and soups.

What is the maximum production speed?

This high-speed machine can produce between 80 to 100 pieces per minute, ensuring efficient manufacturing performance.

What range of cup sizes does this machine support?

The machine is versatile and can handle cup sizes ranging from 6oz to 22oz (with some specifications supporting 4-16oz depending on configuration).

What are the power requirements for installation?

The machine operates on a voltage of 220V or 380V (3 Phase, 50HZ) with a total power consumption of approximately 6kw.

What kind of paper material is required?

It requires single-side PE coated paper with a thickness between 180-350gsm in sheet form.

What is the warranty and after-sales support?

We provide a 1-year guarantee on spare parts. Additionally, technical support and video inspections are available to ensure smooth operation.
