| Model | FD970x550 | FD970x640 | FD1080X550 |
| Max Cutting Area | 950mmx520mm | 950mmx610mm | 1050mmX520mm |
| Cutting Precision | 0.15mm | 0.15mm | 0.15mm |
| Paper Gram Weight | 135-400g | 135-400g | 135-400g |
| Production Capacity | 100-180 times/min | 100-180 times/min | 100-180 times/min |
| Max Cutting Pressure | 150 T | 150 T | 150 T |
| Total Power | 12KW | 12KW | 12KW |

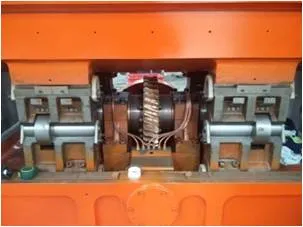

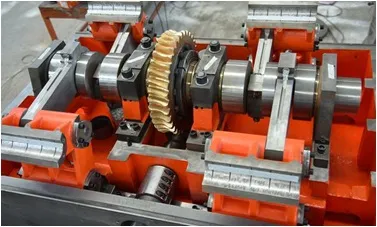

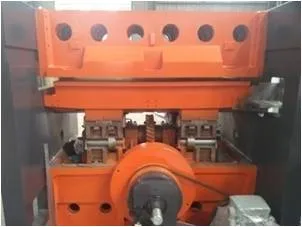

Perfect worm wheel and worm transmission system ensures the powerful and steady pressure and makes the cutting accurately while the machine runs with high speed, has features of low noise, smooth running and high cutting pressure.

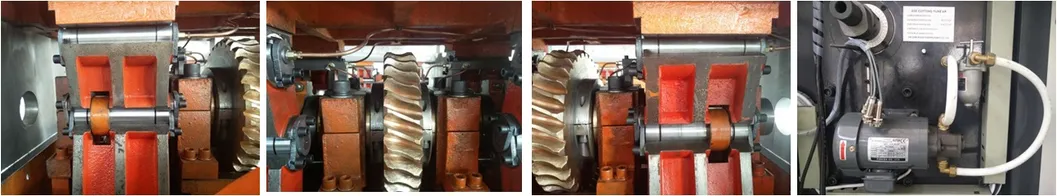

Adopts forced lubrication system to ensure main driving oil supply regularly and reduce friction and prolong the machine life. The oil circuit adds a filter to clear the oil and a flow switch to monitor lacking oil.
The die-cutting force is provided by a 7.5KW inverter motor driver. Pneumatic clutch brake: through adjust the air pressure to control the driving torque, low noise and high brake performance.

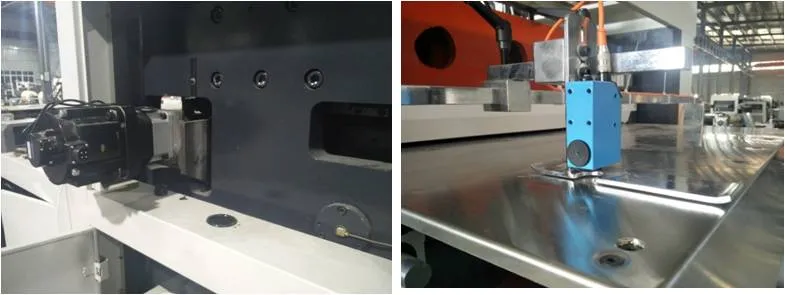

Accurate and fast to achieve die-cutting pressure adjustment. The pressure is automatic adjusted through the motor to control the four feet by HMI. It is very convenient and accurate.

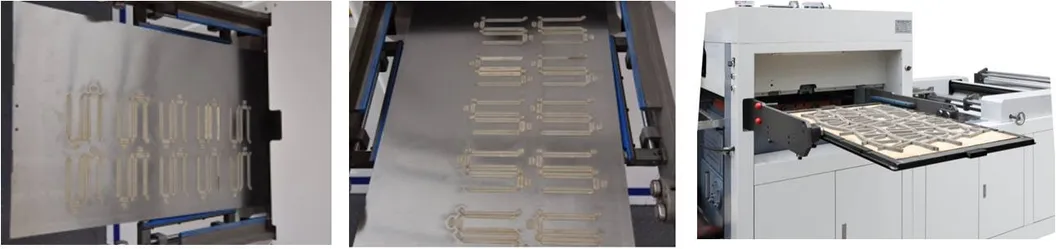

Adopts pneumatic lock version of the device to avoid come off from the machine. Die cutting plate: 65Mn steel plate heating treatment, high hardness and flatness.

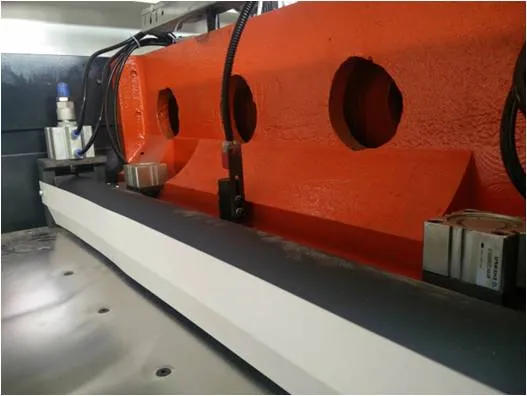

Adopts chain type pneumatic roller unwind, tension controls unwind speed. Electric roll material loading, which is easy and fast. Max roll paper diameter 1.6m.
