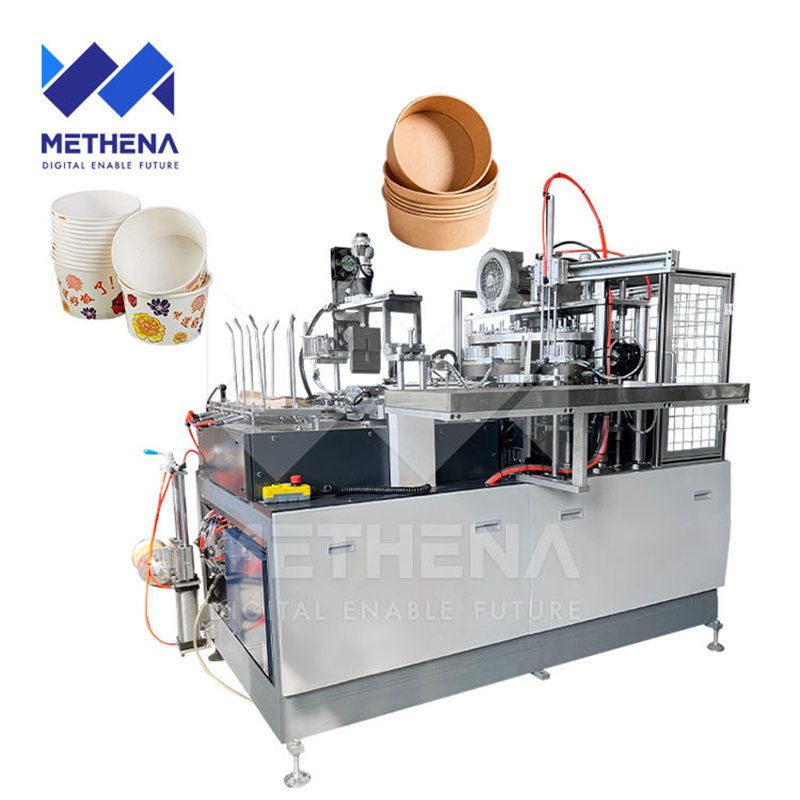

High Speed 70PCS / Min 75oz Bake Paper Bowl Form Machine for Paper Soup Cup

1 / 5

High Speed 70PCS / Min 75oz Bake Paper Bowl Form Machine for Paper Soup Cup

Customization:	Available
Warranty:	Online Support, Video Technical Support
Application:	Paper Bowl Machine

Send Inquiry

Product Description

Basic Information

Model NO.	MTN-PPBM03	Production Speed	35-45pcs/min
Voltage	380V/220V 50Hz	Certification	CE
Max Bowl Volume	1500ml	Air Consumption	0.5-0.8MPa, 0.6m3/Min
Paper Thickness	240-340G/M2,+-20G/M2	Raw Material	PE Coated Paper
Weight	3150kg	Specification	215013201900mm

Product Description

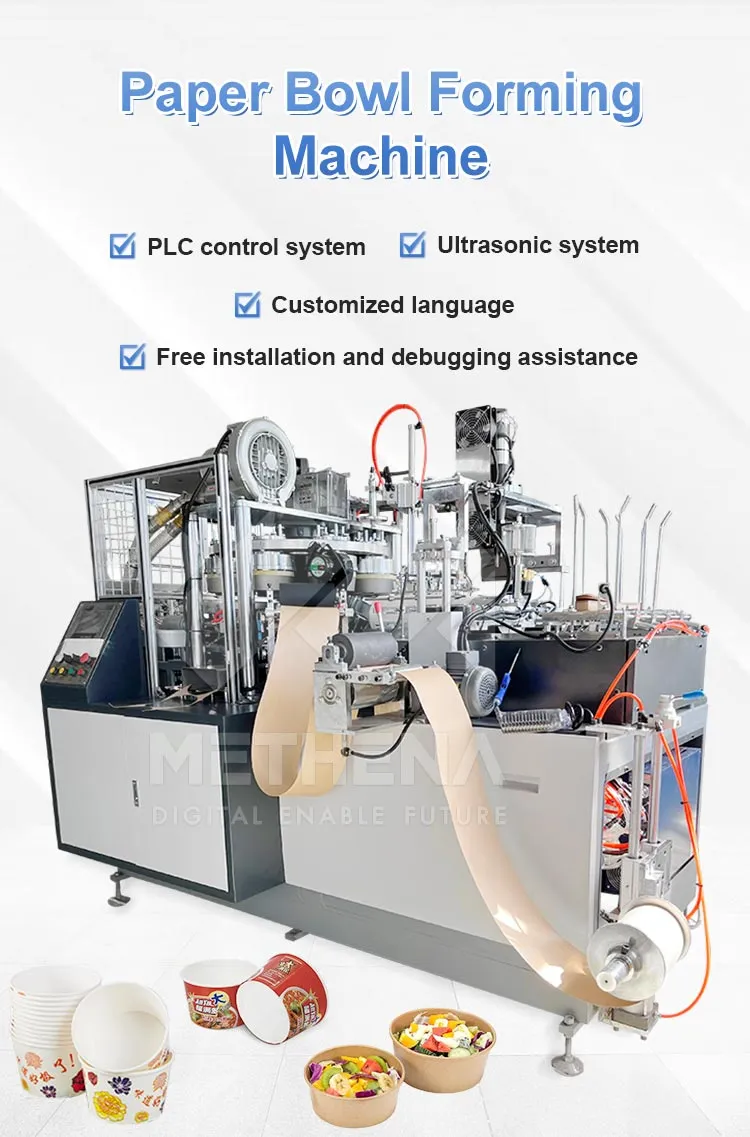

High Speed 70PCS / Min 75oz Bake Paper Bowl Form Machine for Paper Soup Cup

The paper bowl machine uses mechanical transmission and mold forming technology to efficiently process paper raw materials into paper bowls of various specifications. It offers efficient production, stable quality, and easy operation, making it ideal for catering, take-out, and retail industries.

Applications:

Suitable for producing paper bowls, breakfast bowls, instant noodle bowls, takeaway bowls, soup bowls, and cold drink paper bowls. An essential solution for disposable paper tableware manufacturers.

Our Advantages

✓High automation: automatic feeding, sealing, oiling, punching, and curling.

✓Large market demand for eco-friendly disposable products.

✓Small footprint and low power consumption; one-person operation.

✓Versatile: Change molds to produce different shapes and sizes.

✓Multi-language display screen with parameter storage.

✓Safety first: Equipped with emergency stop buttons and guardrails.

✓Stepless frequency conversion for easy speed adjustment.

✓Photoelectric monitoring for active fault alarming and counting.

✓Vacuum suction conveying for precise paper movement.

✓Ultrasonic heat sealing protects the printing surface.

✓Automatic lubrication system for longer machine service life.

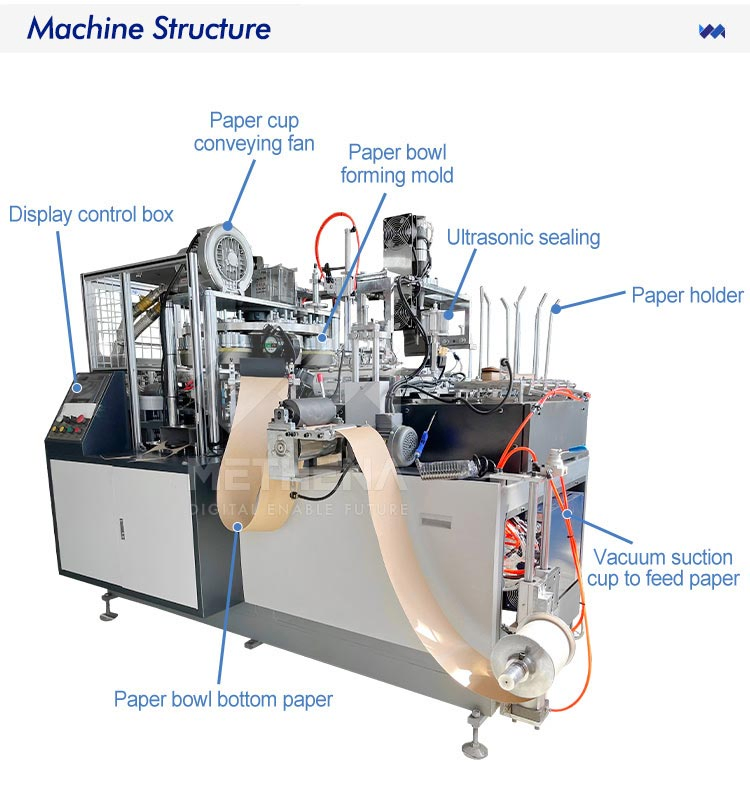

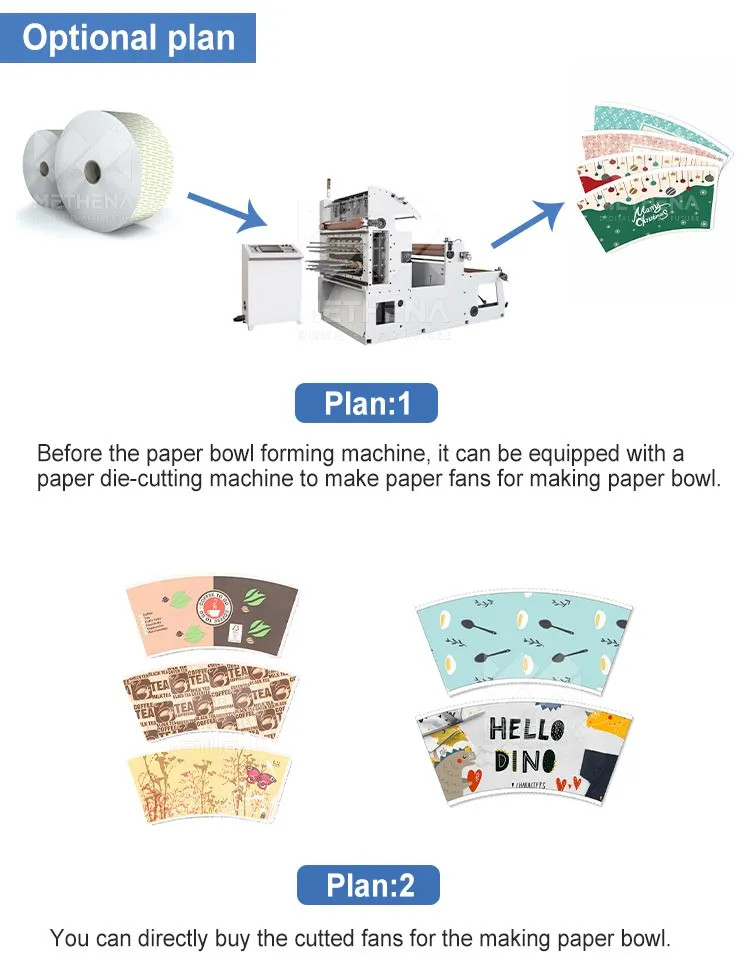

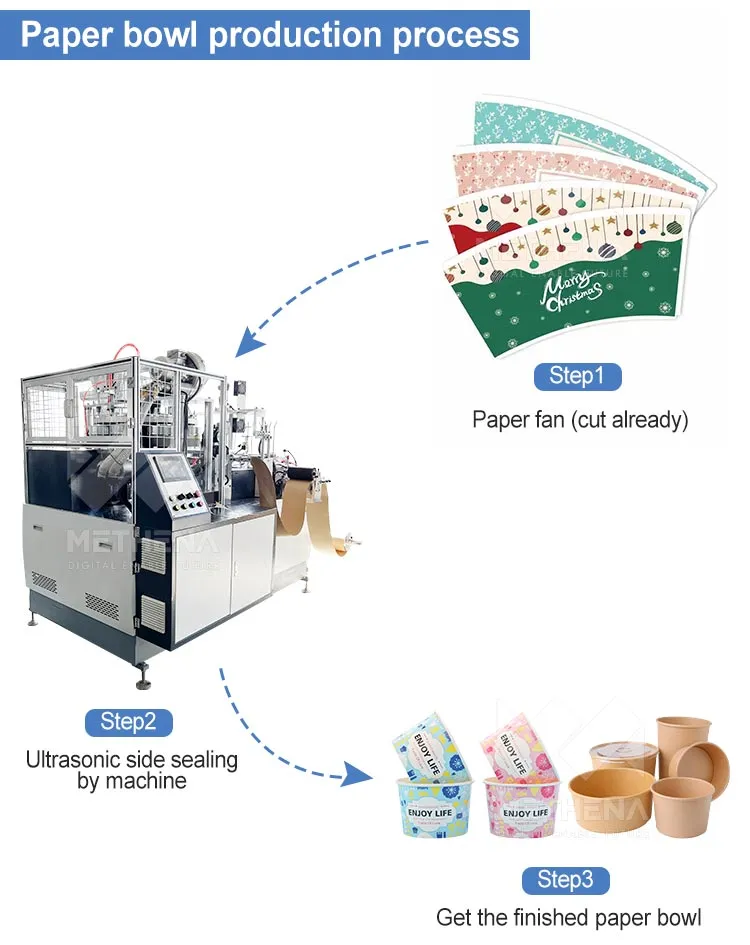

Product Structure

Product Parameters

Max Paper bowl volume	1500ml
Raw Material	Single or Double PE coated paper
Speed	40-60 pcs/min
Suitable paper weight	240-340g/m2;±20g/m2
Bowl size	Bottom 125-165mm, Top 150-185mm, Height 45-80mm
Power	15 kw
Dimension	215013201900mm

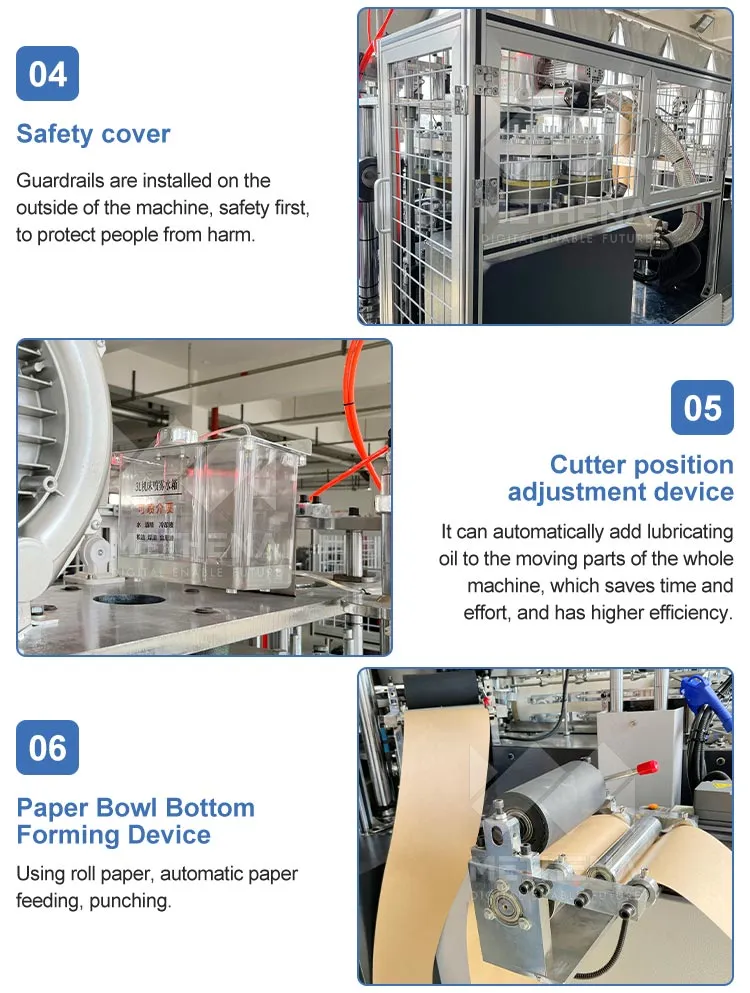

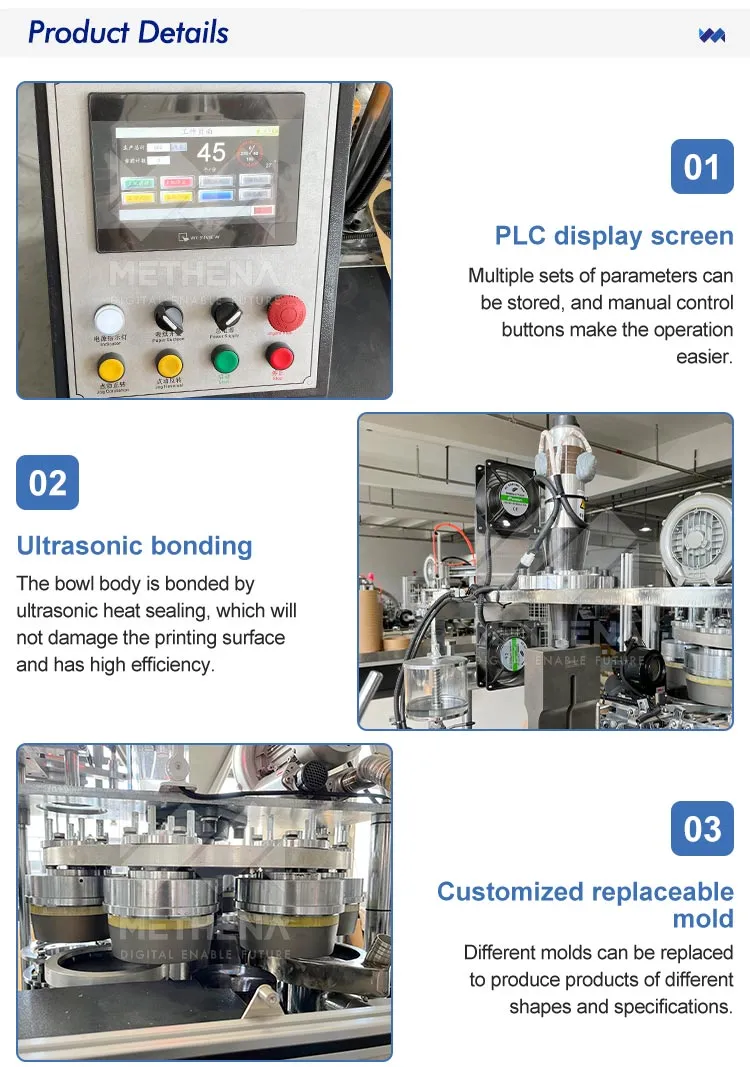

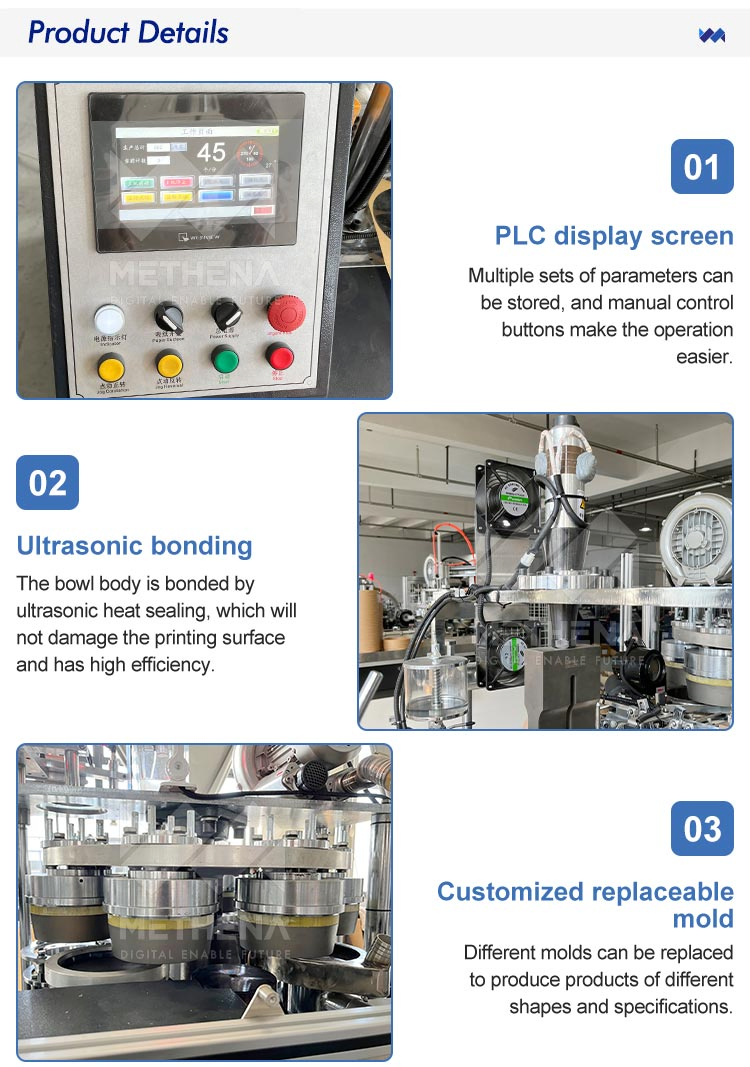

Detail Display

Related Products

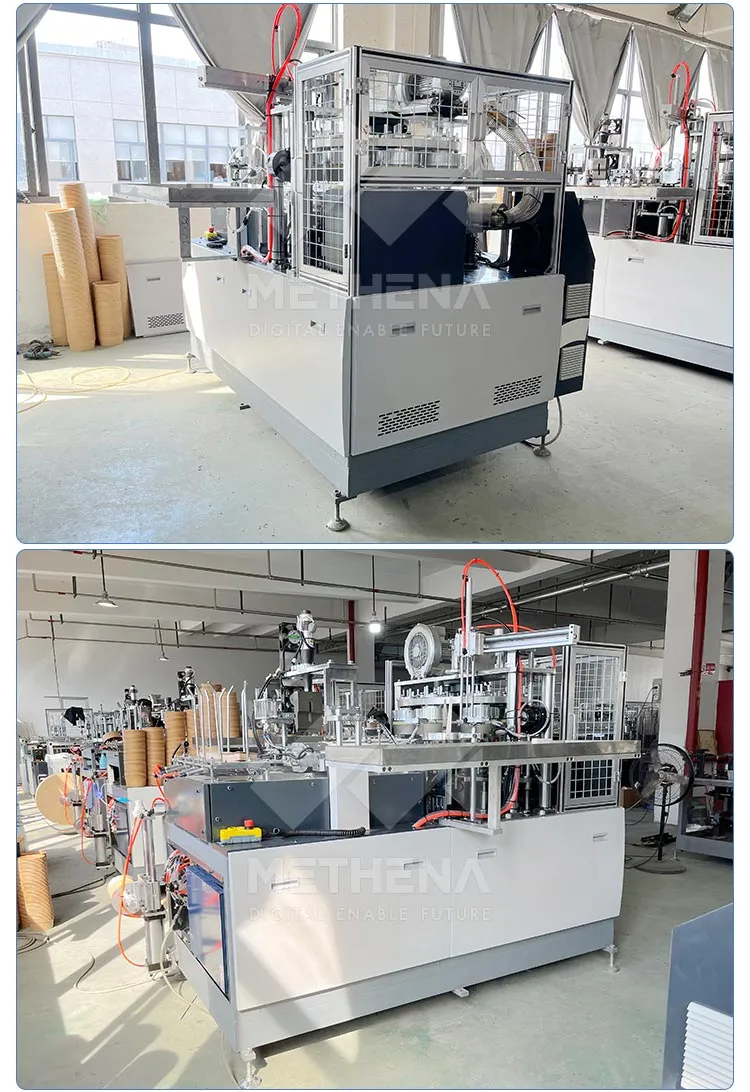

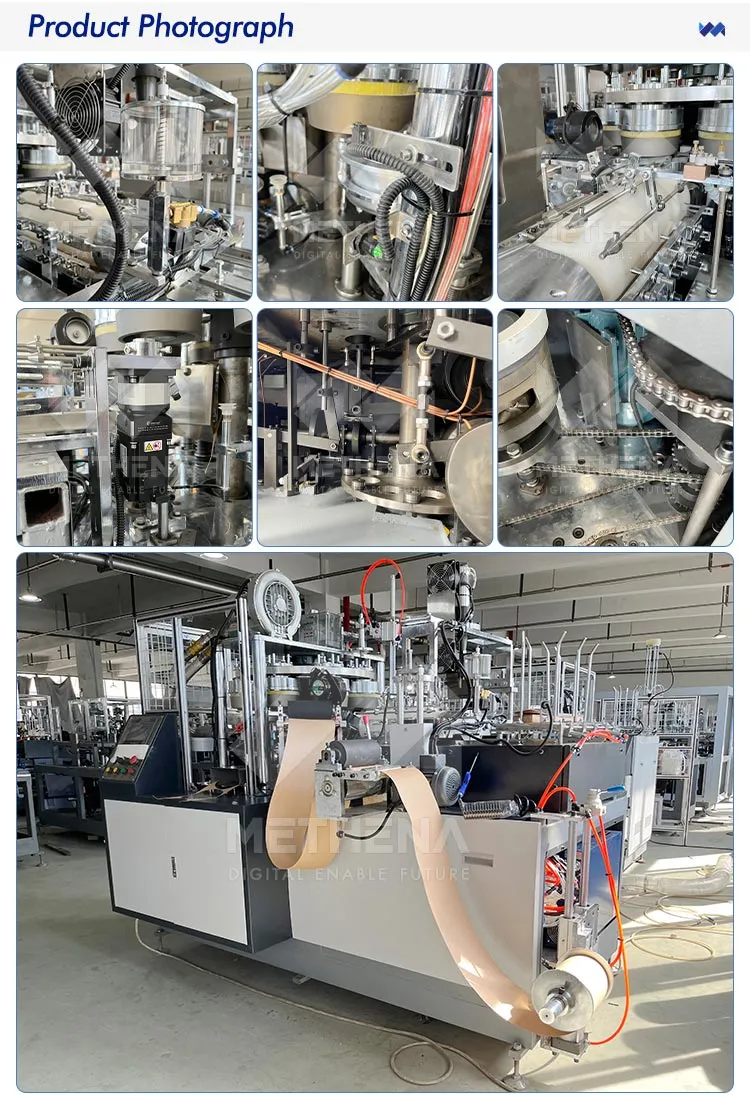

Product Photograph

Frequently Asked Questions

Q1: What is the maximum production speed of this paper bowl machine? A: The machine can reach a production speed of 55-70 pieces per minute, depending on the bowl size and material thickness.

Q2: What types of paper can be used as raw material? A: It is designed for single-side or double-side PE coated paper, with a suitable paper weight ranging from 240 to 340g/m².

Q3: Can the machine produce different sizes of bowls? A: Yes, by changing different molds, you can produce bowls with different specifications, including various diameters and heights.

Q4: Does the machine require a lot of manpower to operate? A: No, the machine features a high degree of automation and a user-friendly computer control panel, allowing it to be operated by a single person.

Q5: How is the bowl body sealed? A: The bowl body is bonded using ultrasonic heat sealing, which provides high efficiency without damaging the printed surface of the paper.

Q6: What safety features are included in the machine? A: The machine is equipped with safety guardrails and an emergency stop button to ensure the immediate cessation of operation in case of an unexpected situation.
