High Speed Noodles Paper Bowl Paper Bowl Welding Machine

1 / 5

High Speed Noodles Paper Bowl Paper Bowl Welding Machine

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.	YB-W35	Production Speed	＞45pcs/min
Voltage	380V 50Hz	Control Panel	Computer Control Panel
Certification	CE	After-sales Service	12 Month
HS Code	8441309000	Transport Package	Wooden Box by Sea
Production Capacity	1000sets/Year	Raw Materials	Single /Double PE coated paper

Product Description

■ Quotation: The ex factory price of yb-w35 paper bowl machine including tax and wooden box packaging is 129,000 RMB.

■ Packing type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external.

■ Delivery time: 40 days after receive the payment of deposit.

■ Payment: Deposit 30% by T/T in advance, delivery against payment of 70% balance after qualified acceptance.

■ Installation: 1 technician for installation and debugging (USD 100/day service charge, 5-7 working days).

■ Guarantee: 12 months after receiving the machine.

Core Advantages

Reliability

YB-W35 intelligent medium-speed paper bowl forming machine has the advantages of high performance, high efficiency and high quality. The integral steel body and the auto oil lubrication system ensure long-term normal and stable operation.

Energy Efficient

Advanced high-precision open cam drive and gear drive make it more accurate and stable. Servo tracking bottom paper feeding locks the size of the bottom paper, effectively saving raw materials.

Humanized Control

The man-machine interface PLC system controls the long-term stable operation of the whole machine.

Technical Parameters

Parameter	Specification

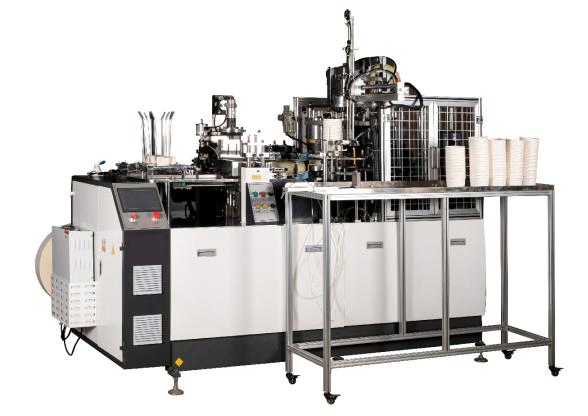

Model	YB-W35 automatic paper bowl forming machine

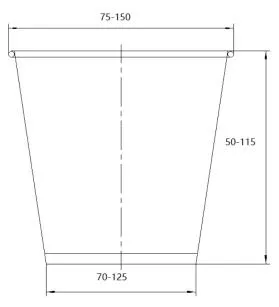

Cup Size	20-50oz (mould can be changed)
Paper Weight	140-350gsm
Speed	60-75pcs/min
Total Power	4.8KW
Weight	2400KG
Dimensions (LWH)	2450 x 1300 x 1750mm
Air Pressure Requirements	0.6Mpa, output: 0.6 m³/minute

Machine Specification Details

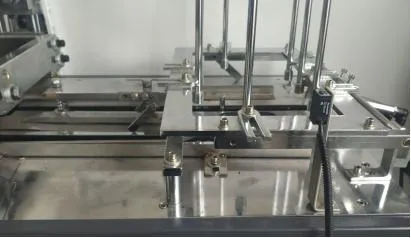

1. Multiple Times Paper Feeding

Paper feeding three times, multiple adjustments to avoid unevenness on both sides of the paper cup fan.

2. Sensors Detection

Controlled by encoder and sensors to ensure paper fan matches cup bottom, avoiding waste. Includes fault alarm and automatic shutdown.

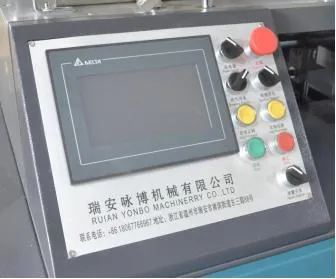

3. PLC Control System

Improves intelligence and makes the stroke more precise. All parameters can be setup on the control panel for easy operation.

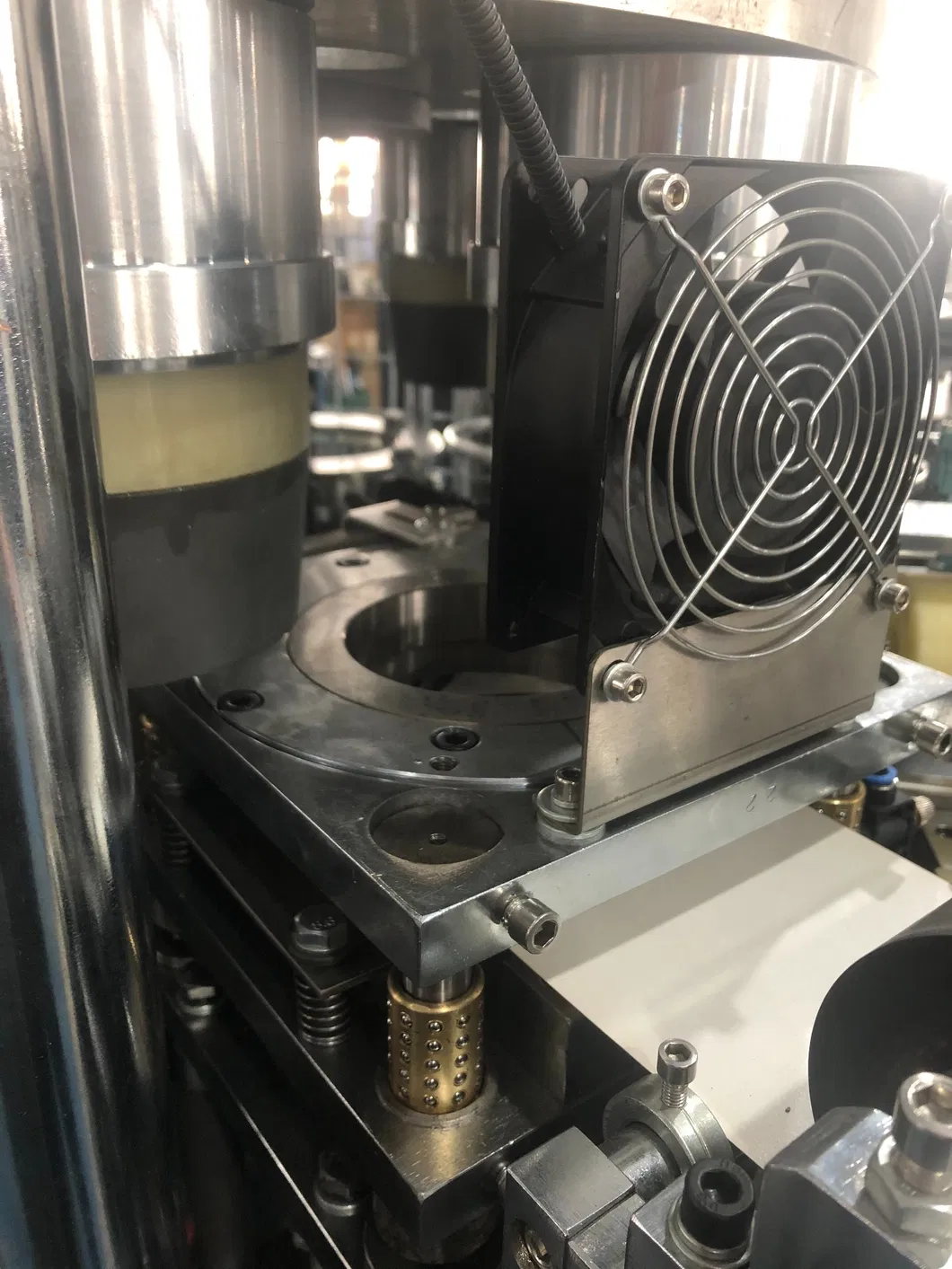

4. Ultrasonic Cooling Fan

Multiple fans operate simultaneously to increase heat dissipation and speed up cooling during high-speed running.

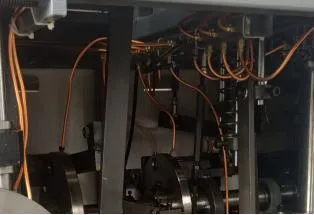

5. Automatic Oil Lubrication System

Automatically lubricates key moving parts via copper pipes, saving labor and extending machine service life.

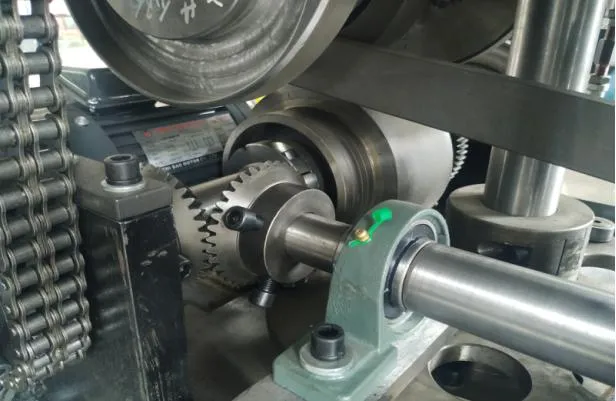

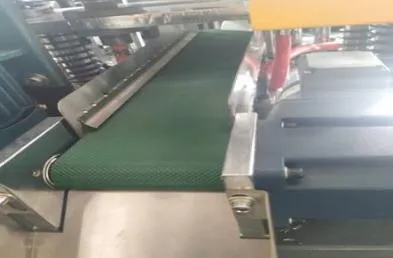

6. Waste Paper Removal & Gear Drive

Conveyor belt transfers waste paper. The grooved wheel and full gears drive system ensure stable and accurate cup forming.

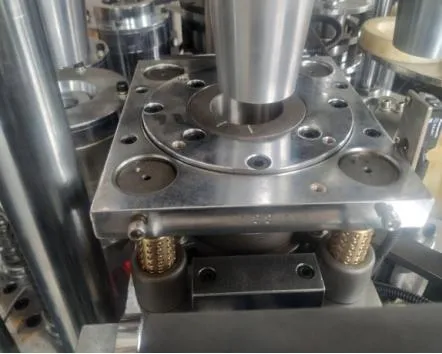

7. Bottom Punching & Feeding

Direct punch bottom feeding method in one step to avoid bottom turning over, ensuring higher reliability than suction designs.

Spare Parts List

Name	Quantity
Electrical heating rod	1pcs
Adjustable spanner 10inch	1pcs
Small Springs	3pcs
Preheat heating collar	each 1pc
Heater ring	2 pcs
Bearing 5204 + Knurling wheel	1set
Inner hexagonal spanner	1set
Open-end wrench (8-10 to 22-24)	1set
Operation manual & Inverter manual	1pcs each

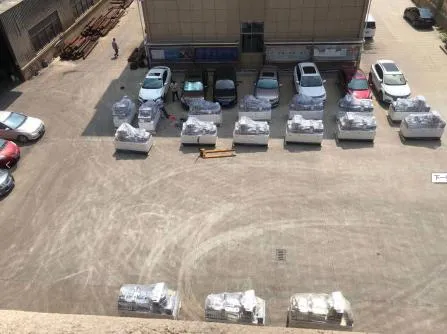

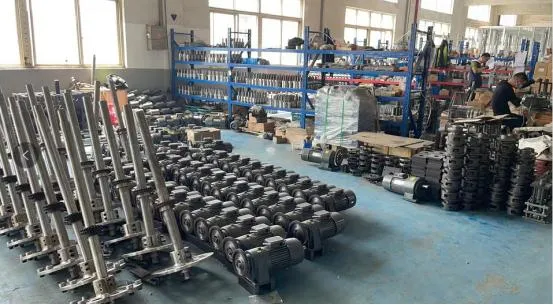

Factory & Production Display

Frequently Asked Questions (FAQ)

Q1: What is the maximum production speed of the YB-W35? A: The machine can reach a production speed of 60-75 pieces per minute, depending on the material and bowl size.

Q2: What range of paper bowl sizes can this machine handle? A: It is designed for paper bowls ranging from 20oz to 50oz. The moulds can be customized based on specific client requirements.

Q3: Does the machine support both single and double PE coated paper? A: Yes, the YB-W35 is compatible with both single and double PE coated paper materials.

Q4: What is the warranty period and after-sales support? A: We provide a 12-month guarantee period after you receive the machine. Technical installation and commissioning services are also available.

Q5: How does the automatic lubrication system benefit the machine? A: The system automatically lubricates key moving parts through copper pipes, which reduces manual labor and significantly extends the machine's service life.

Q6: What are the power and air pressure requirements? A: The machine requires a 380V 50Hz power supply and an air pressure of 0.6Mpa with an output of 0.6 m³/minute.
