Ex-factory Price: 129,000 RMB (including tax and wooden box packaging)
Packing Type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external
Delivery Time: 40 days after receiving deposit
Payment: 30% T/T in advance, 70% balance after qualified acceptance
Guarantee Period: 12 months after receiving the machine

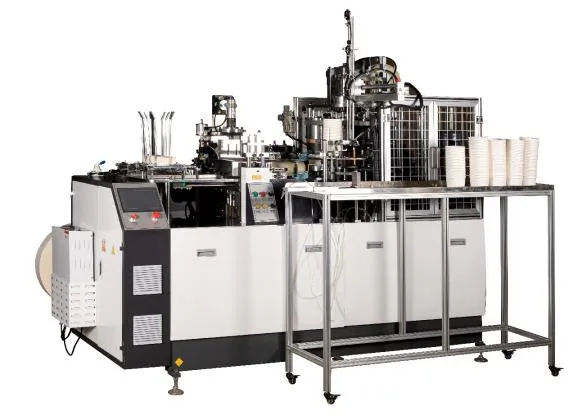

YB-W35 intelligent medium-speed paper bowl forming machine offers high performance and efficiency. The integral steel body and auto oil lubrication system ensure long-term stable operation.
Advanced high-precision open cam and gear drives ensure stability. Servo tracking bottom paper feeding optimizes material usage and reduces waste.
The man-machine interface PLC system provides comprehensive control for long-term stable operation.
| Parameter | Specification |
|---|---|
| Model | YB-W35 automatic paper bowl forming machine |

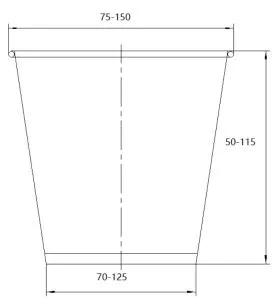

| Cup Size | 20-50oz (moulds customizable) |
| Raw Materials | Single / Double PE coated paper |
| Paper Weight | 140-350gsm |
| Speed | 60-75pcs/min |
| Power Source | 380V 50Hz |
| Total Power | 4.8KW |
| Weight | 2400KG |
| Dimensions (L*W*H) | 2450 x 1300 x 1750mm |
| Air Pressure Requirements | 0.6Mpa, Output: 0.6 m³/minute |
| Note: Machine should work with an air compressor | |

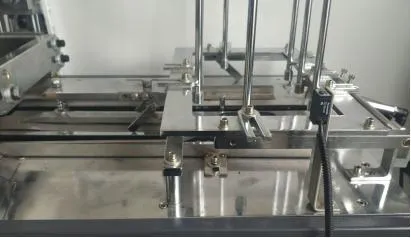

1. Multiple Paper Feeding: Three-stage feeding to avoid unevenness on both sides of the paper bowl fan.
2. Sensor Detection: Controlled by encoder and sensors to ensure paper fan matches the cup bottom, reducing waste. Includes fault alarms and auto-shutdown.

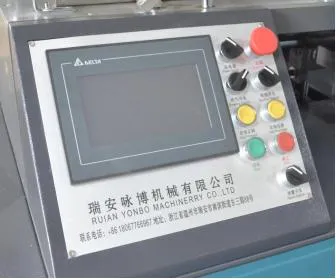

3. PLC Control System: Improves intelligence and stroke precision. Parameters are easily adjusted via the control panel.

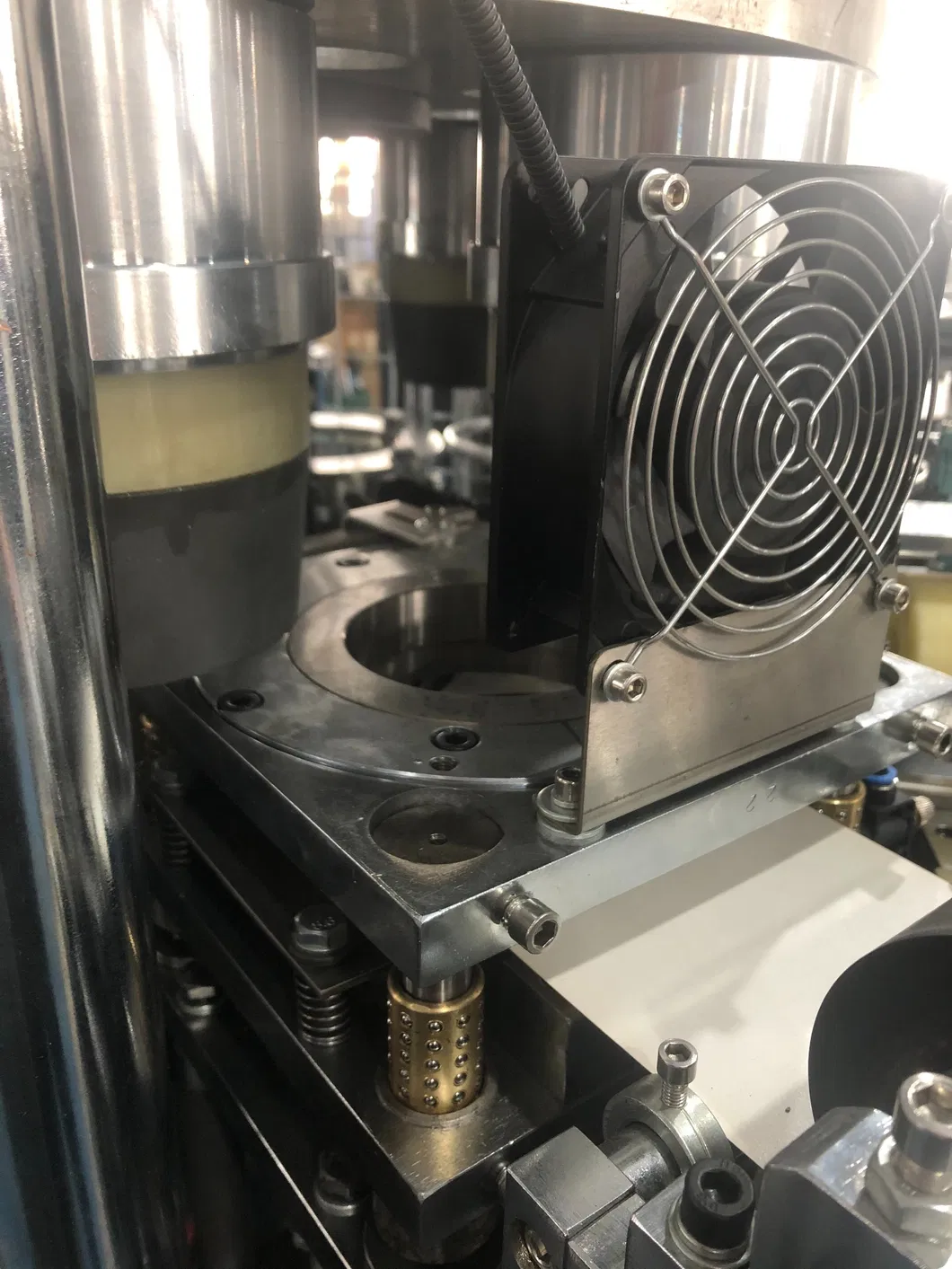

4. Ultrasonic Cooling Fan: Multiple fans operate simultaneously to speed up heat dissipation and maintain optimal temperature.

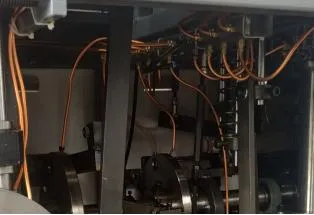

5. Automatic Lubrication: Automatically lubricates key moving parts via copper pipes, extending machine service life.

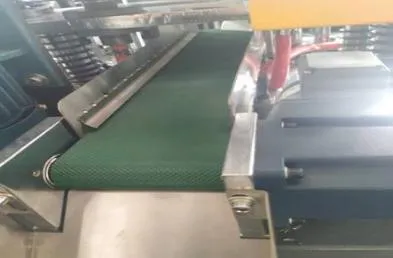

6. Waste Removal: Conveyor belt transfers waste paper to prevent internal accumulation and cleaning difficulties.

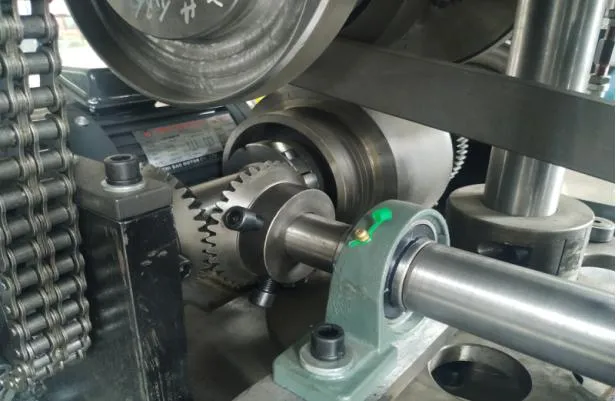

7. Gear Drive System: Connected by grooved wheels and full gears for closer connections, ensuring stability and accuracy.

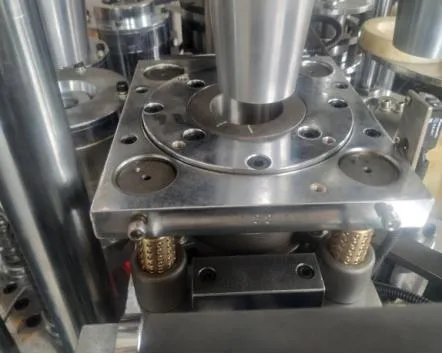

8. Direct Bottom Punching: Uses a one-step direct punch feeding method to avoid bottom turning issues common in suction designs.
| Name | Quantity |
|---|---|
| Electrical heating rod | 1pcs |
| Adjustable spanner 10inch | 1pcs |
| Small Springs | 3pcs |
| Preheat heating collar | each 1pc |
| Heater ring | 2 pcs |
| Bearing 5204 + Knurling wheel | 1set |
| Inner hexagonal spanner | 1set |
| Open-end wrench (8-24) | 1set |
| Foot-screw M18 | 6pcs |
| Oil Gun | 1pcs |
| Operation manual & Inverter manual | 1pcs each |
