High Speed and Intelligent Disposable Single Wall PLA/PE Kraft Paper Salad Bowl Take Away Container Paper Bowl Making Machine
High Speed and Intelligent Disposable Single Wall PLA/PE Kraft Paper Salad Bowl Take Away Container Paper Bowl Making Machine
High Speed and Intelligent Disposable Single Wall PLA/PE Kraft Paper Salad Bowl Take Away Container Paper Bowl Making Machine
High Speed and Intelligent Disposable Single Wall PLA/PE Kraft Paper Salad Bowl Take Away Container Paper Bowl Making Machine
High Speed and Intelligent Disposable Single Wall PLA/PE Kraft Paper Salad Bowl Take Away Container Paper Bowl Making Machine
1 / 5
High Speed and Intelligent Disposable Single Wall PLA/PE Kraft Paper Salad Bowl Take Away Container Paper Bowl Making Machine
High Speed and Intelligent Disposable Single Wall PLA/PE Kraft Paper Salad Bowl Take Away Container Paper Bowl Making Machine
High Speed and Intelligent Disposable Single Wall PLA/PE Kraft Paper Salad Bowl Take Away Container Paper Bowl Making Machine
High Speed and Intelligent Disposable Single Wall PLA/PE Kraft Paper Salad Bowl Take Away Container Paper Bowl Making Machine
High Speed and Intelligent Disposable Single Wall PLA/PE Kraft Paper Salad Bowl Take Away Container Paper Bowl Making Machine

High Speed and Intelligent Disposable Single Wall PLA/PE Kraft Paper Salad Bowl Take Away Container Paper Bowl Making Machine

Customization: Available
Warranty: One Year
Applicable Objects: Beverage
Send Inquiry

Product Description

Basic Information
Model NO.
XZT-150W
Cup Size
16-57oz
Speed
120-150 ppm
Automation
Automatic
Certification
CE
Weight
4500kgs
Material
170-380GSM Single/Double PE Coated
Power Supply
3 Phase 380V 50Hz
Product Description

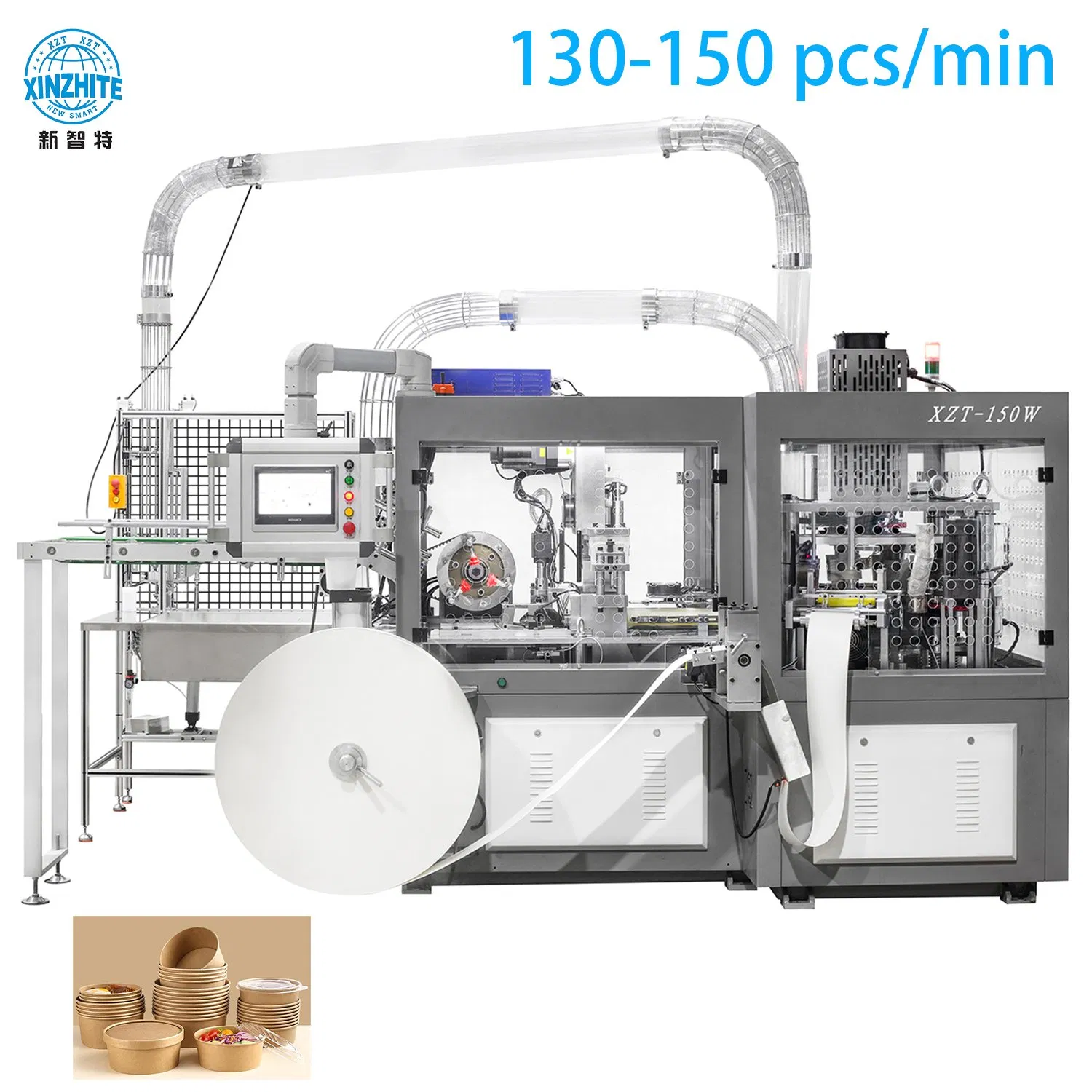

High-speed Paper Bowl Making Machine

  • XZT-150W features full servo-driven technology throughout the entire machine.
  • Servo drives work independently to control each station with remarkable accuracy and coordinate synchronized motion.
  • Replaces traditional gear/chain transmission and cam designs for superior performance.
  • Provides flexibility, high speed, affordable capital cost, and low maintenance requirements.

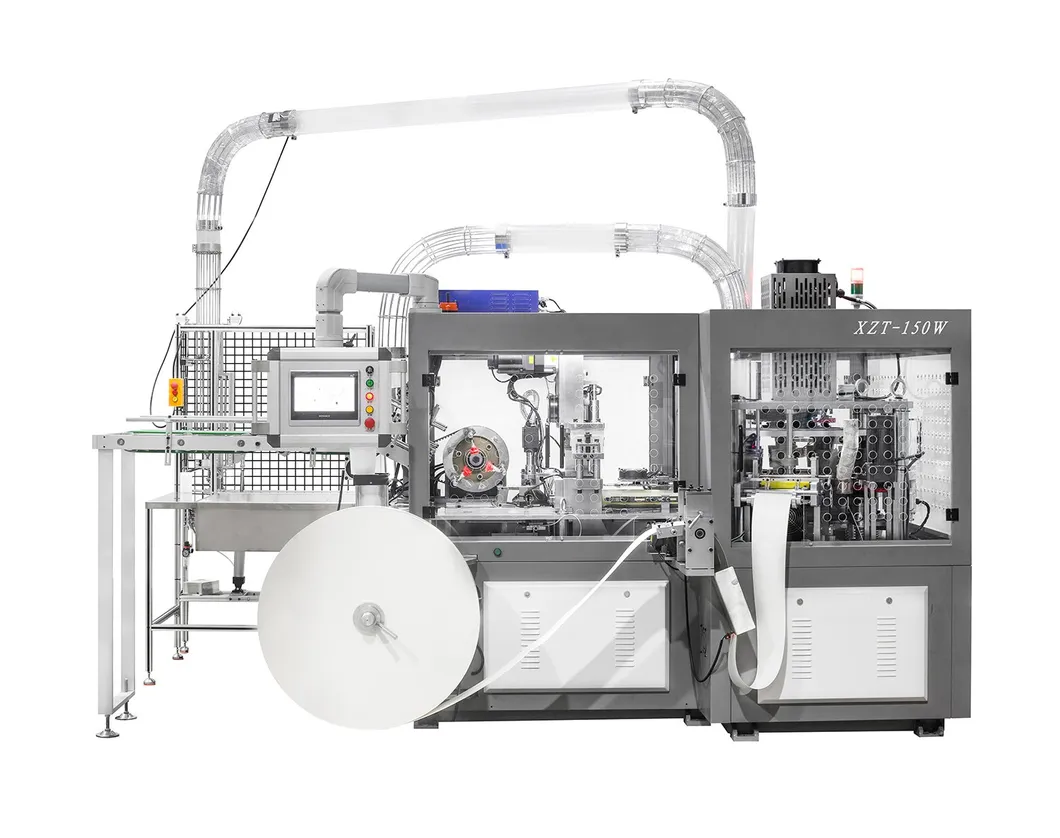

Paper Bowl Machine
Technical Parameters
ModelXZT-150W Paper Bowl Machine
Bowl Size15-57oz (Max bottom 130mm, top 150mm, height 135mm)
Material170-380GSM single or double PE/ PLA coated paper
Speed120-150 pcs/min
Power Supply3 phase 380V 50Hz, 44KW (Running consumption 20KW)
Air Supply0.6Mpa (Running consumption 0.5Nm3/min)
Dimensions2760L * 2160W * 1925H (mm)
Weight4500 kgs
Detailed Features

Loading Table: Features a 1-meter loading table with full cup fan paper capacity for forming 3000-4000 cups at a time. Conveyor fan wall paper feeding is controlled by a high-precision Step Motor.

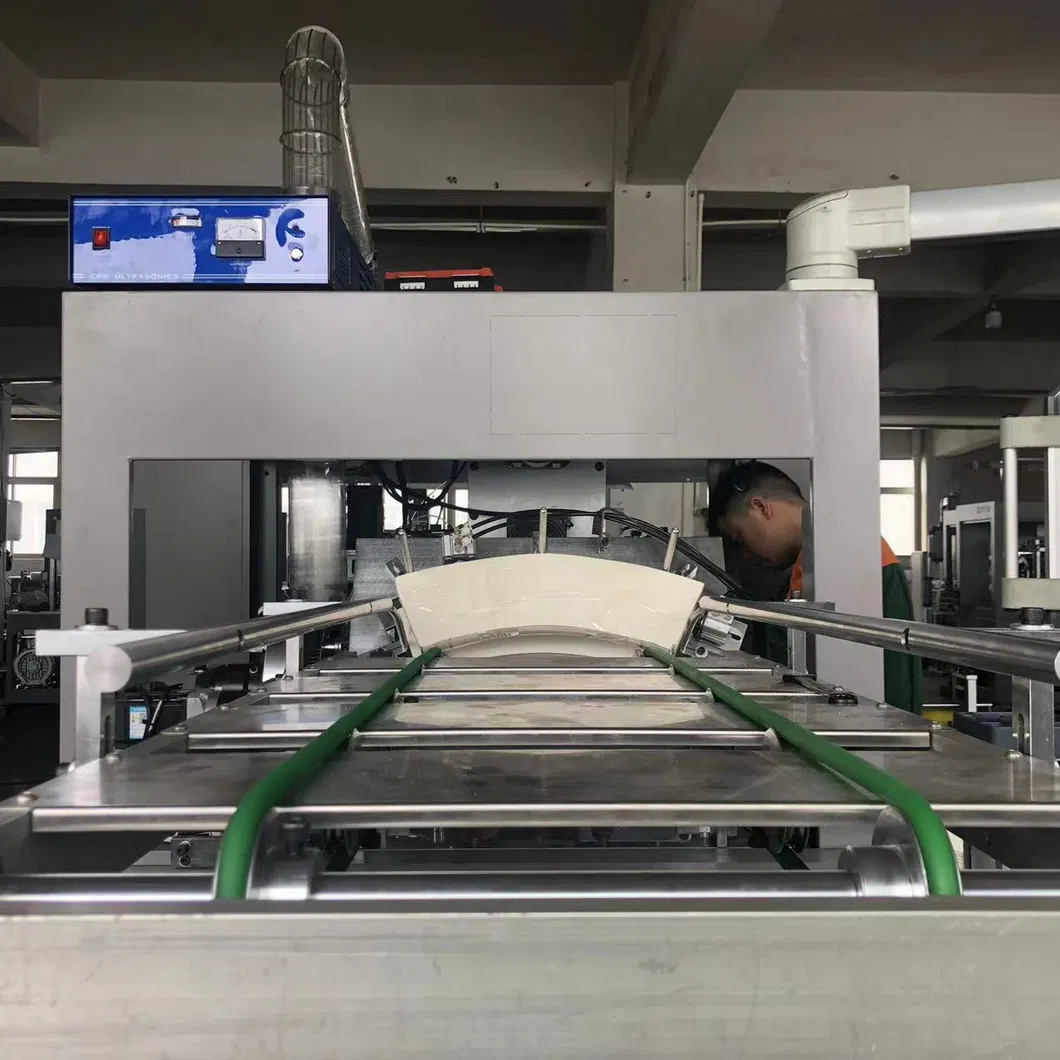

Loading Table

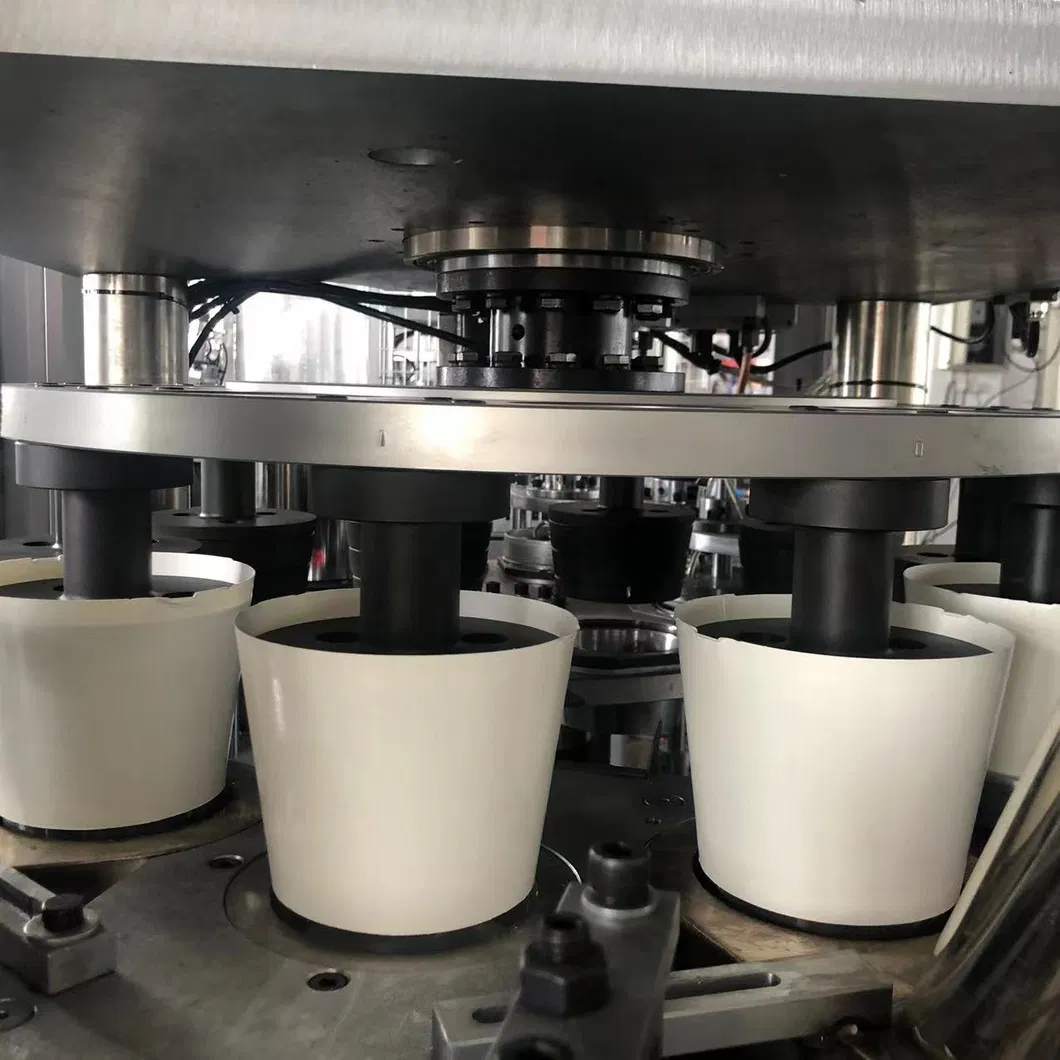

Bottom Forming Device

Bottom Forming Device: Utilizes the latest heating process to eliminate traditional mold damage. Our whole solid aluminum molds are simpler, more durable, and ensure perfect forming.

Sample Show & Workshop

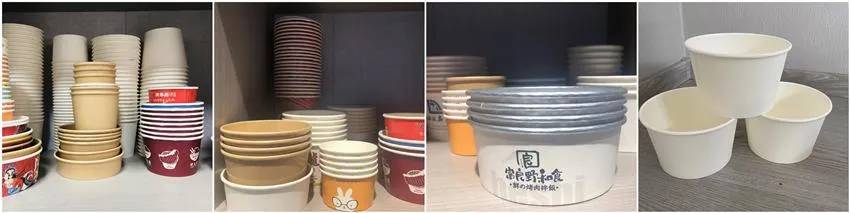

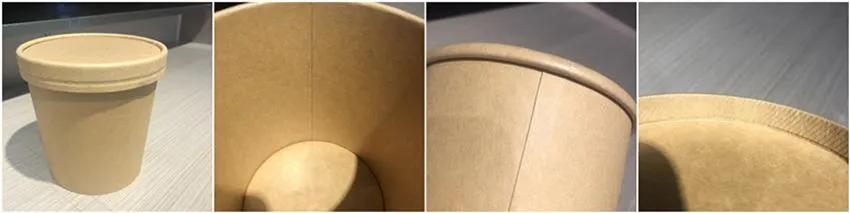

Our machines produce highly detailed paper bowls with strong sealing and beautiful knurling.

Sample 1
Sample 2

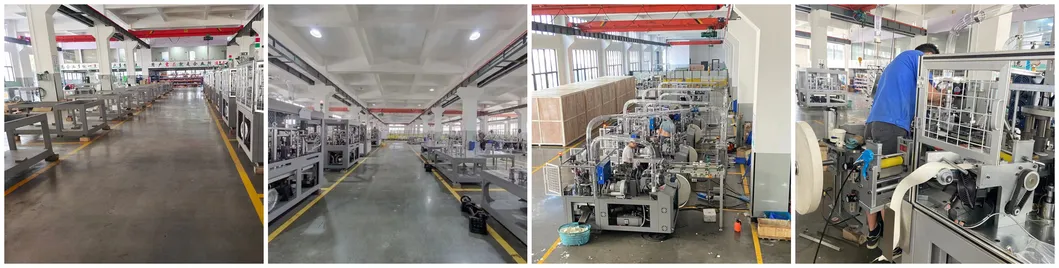

Workshop
Maintenance

The workshop is well organized, and all machines are CE certified to ensure international quality standards.

Global Exhibition
Exhibition

Our machines attract significant attention at international trade fairs due to their efficiency and intelligent design. We look forward to meeting you at our next event.

Frequently Asked Questions
Q1: Is your company a factory or a trading company?
A1: We are a professional factory with more than 20 years of technical experience in paper container machinery.
Q2: What materials are suitable for these machines?
A2: PE, double-PE laminated paper, composite materials, and aluminum foil paper are all suitable. We can produce sizes from 4oz to 57oz.
Q3: What information is needed for a formal quotation?
A3: Please provide the required quantity, detailed dimensions (top/bottom diameter and height), and the paper thickness/material specifications.
Q4: What are the typical payment terms?
A4: Our standard terms are 30% T/T in advance, with the remaining balance paid before shipment.
Q5: What is the warranty period and after-sales support?
A5: We offer a one-year warranty. We provide online instructions and can dispatch engineers for on-site service where conditions permit.
Q6: How do you handle order tracking and production updates?
A6: After an order is placed, professional personnel are assigned to track the production and provide regular progress reports to the customer.
