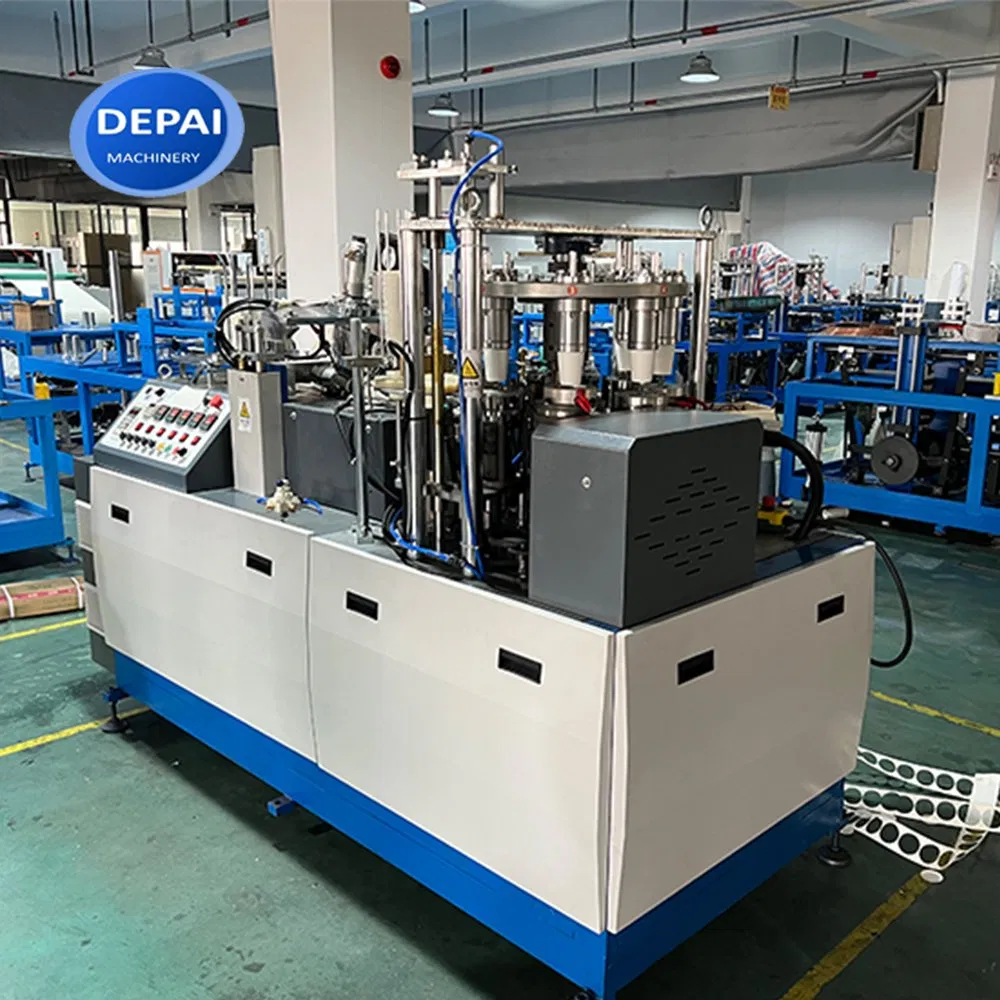

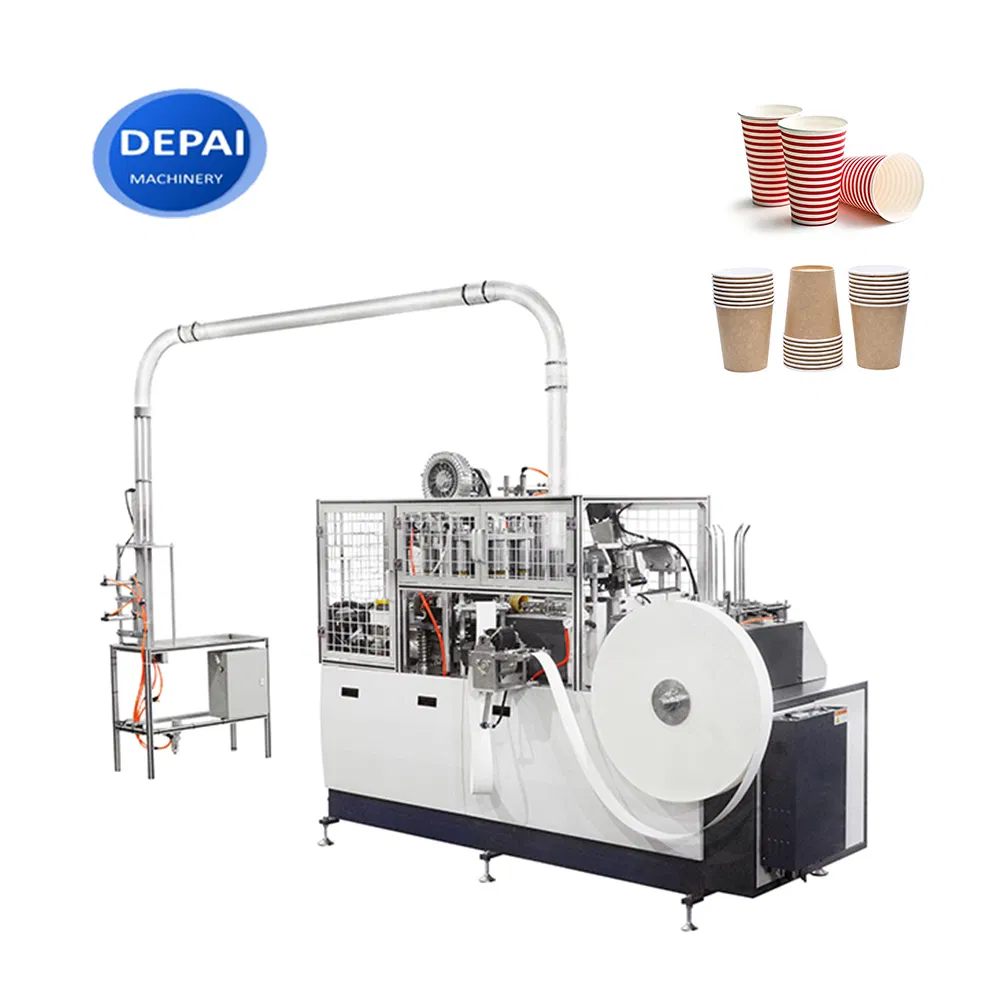

High Quality Automatic Ice Cream Cup Paper Cone Sleeve Wrapper Forming Machine

📋 Basic Information

Model NO.DP-C16

Cup Size2oz-16oz

Speed80-100pcs/min

Required PaperSingle/Double PE Coated

AutomationAutomatic

CertificationCE

ConditionNew

Core ComponentsPLC, Engine, Gear, Motor

Production Capacity30 Sets/Month

HS Code8441309000

🚀 Product Description

High Quality Automatic Ice Cream Cup Paper Cone Sleeve Wrapper Forming Machine

The Paper Cup Machine is an advanced automatic system with multiple working stations. It handles procedures including single or double PE coated paper feeding, cup side welding (via heater or ultrasonic), silicone oil lubrication, bottom punching, preheating, folding, knurling, top curling, and discharging. Equipped with photocell detection and failure alarms, it offers a human-centric design for safe, easy maintenance and durable operation. Ideal for making disposable cups for coffee, tea, ice cream, and cold drinks.

Key Features:

✔ Simple operation with easy installation and maintenance procedures.

✔ Adopts advanced world-famous brand components for pneumatic and electric parts.

✔ High automation and intellectualization with zero pollution.

✔ Optional automatic cup collector for streamlined production.

📊 Product Parameters

Parameter	Specifications
Type	High Speed Double PE Coated Paper Cup Making Machine
Paper Cup Size	2 oz - 16 oz (Mould exchangeable; Max height: 135mm)
Speed	80-95 pcs/min (Stable at 80 pcs/min for 9oz 280gsm paper)
Raw Material	One-side or Double-side PE coated paper
Power Source	50/60HZ, 380V/220V (380V 3-phase recommended)
Total Power	4kw - 6kw
Weight	1800 kgs
Package Size	2115 × 1000 × 1700 mm
Cup Side Welding	Copper heater or Ultrasonic heater
Material Weight	140-350 gsm

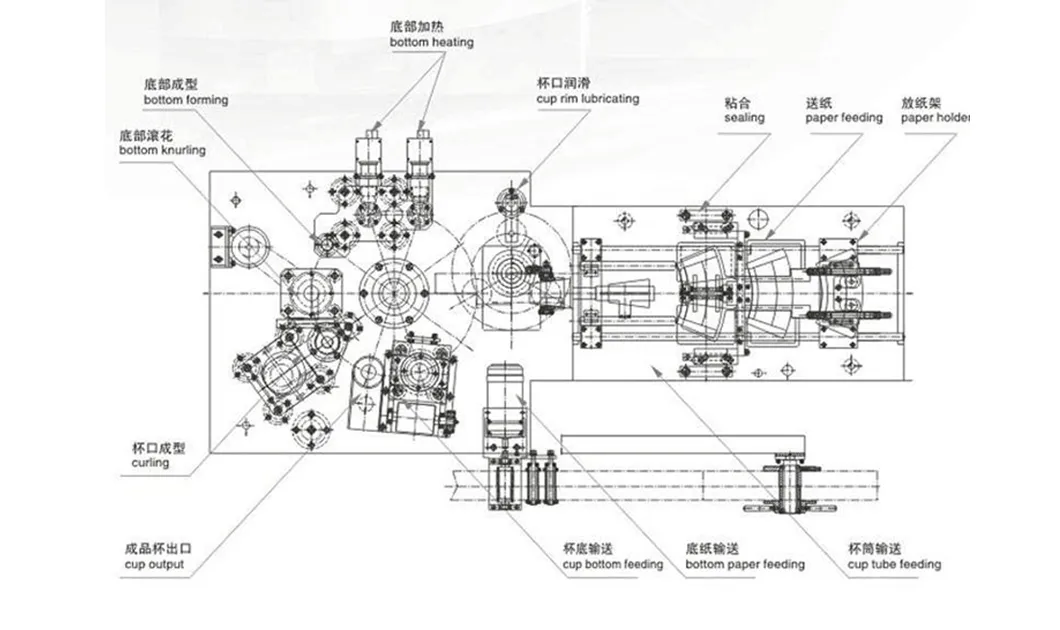

Machine Structure Drawing

🔍 Machine Details

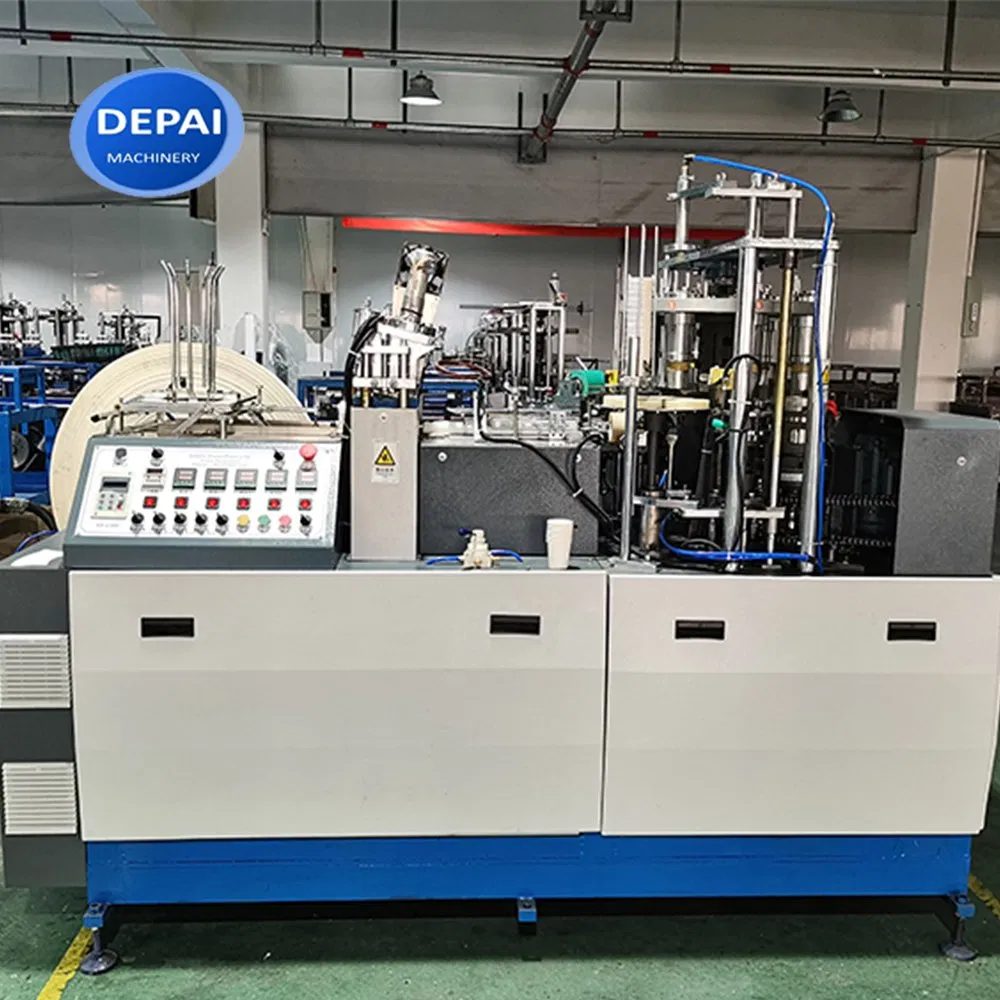

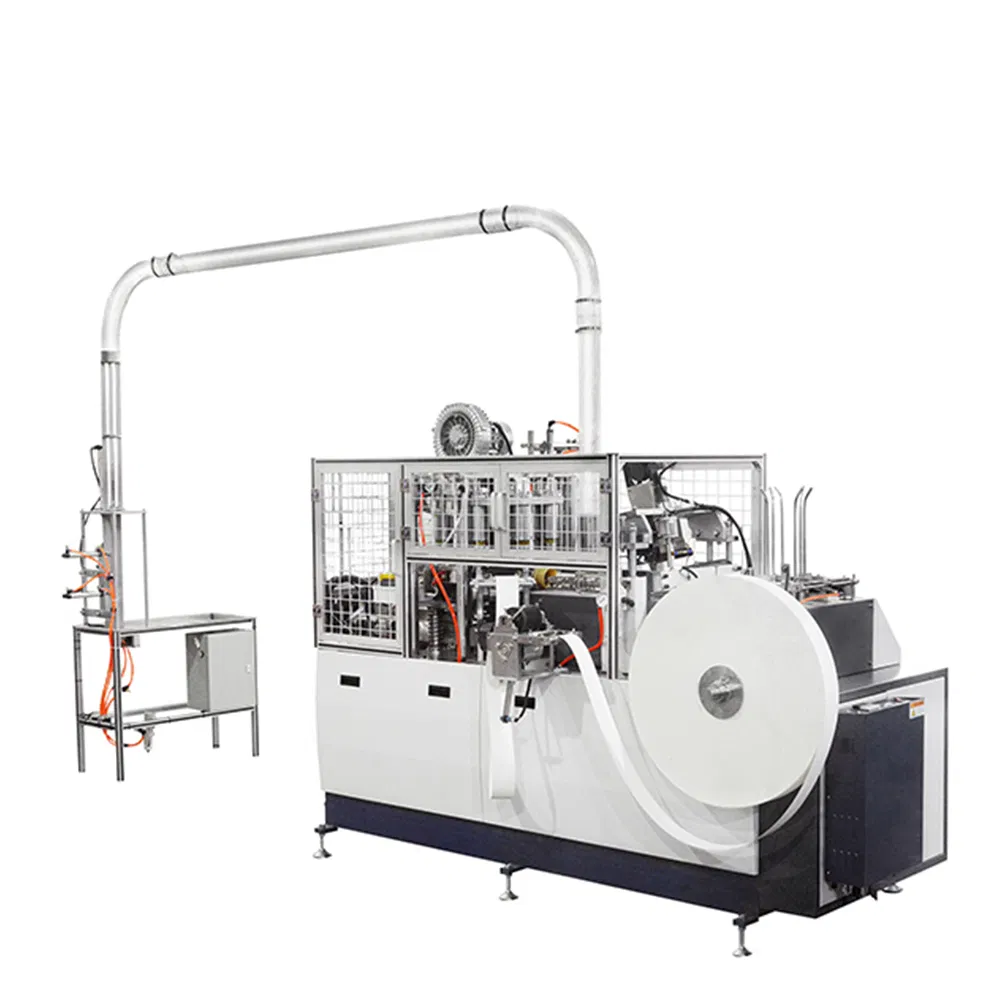

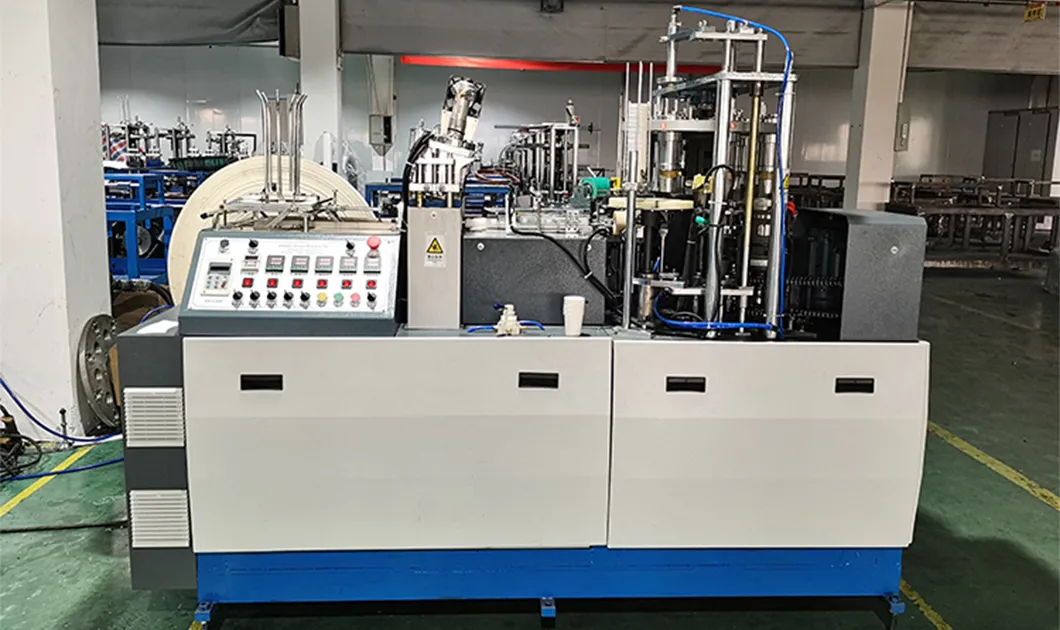

Machine Appearance Overview

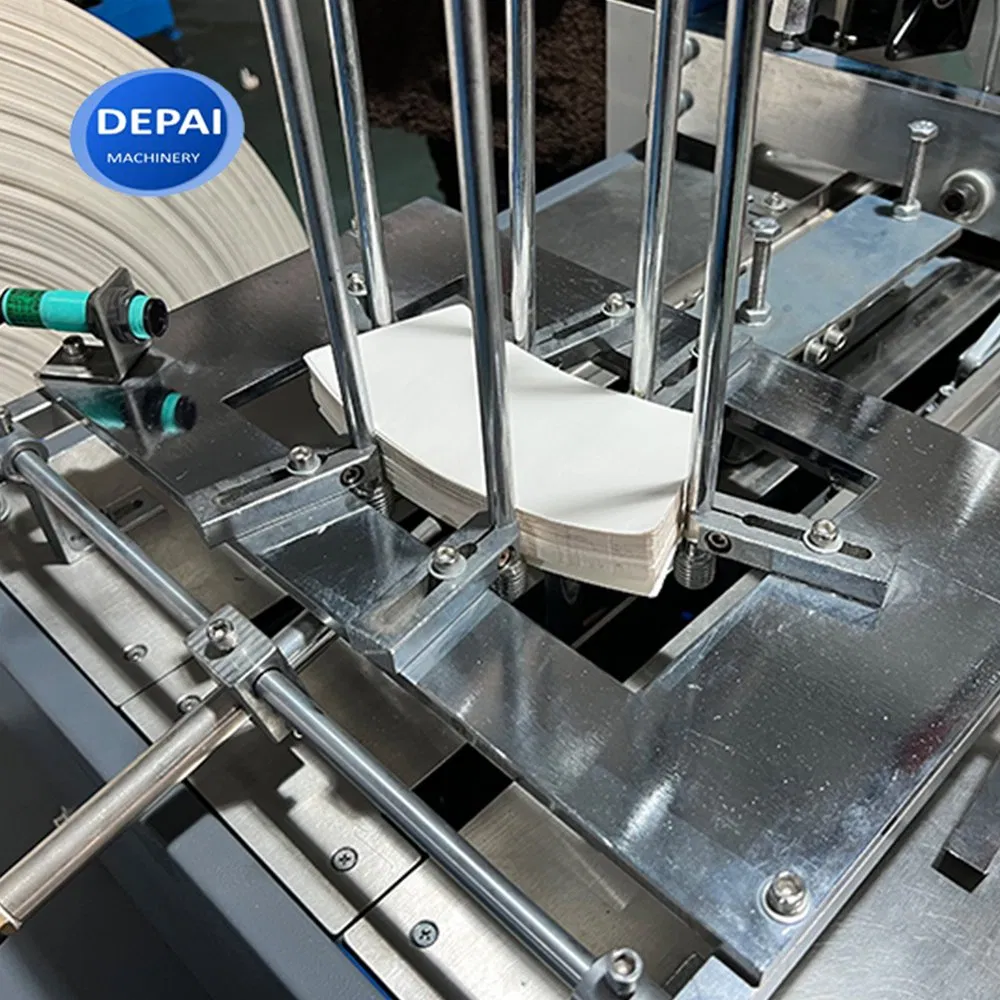

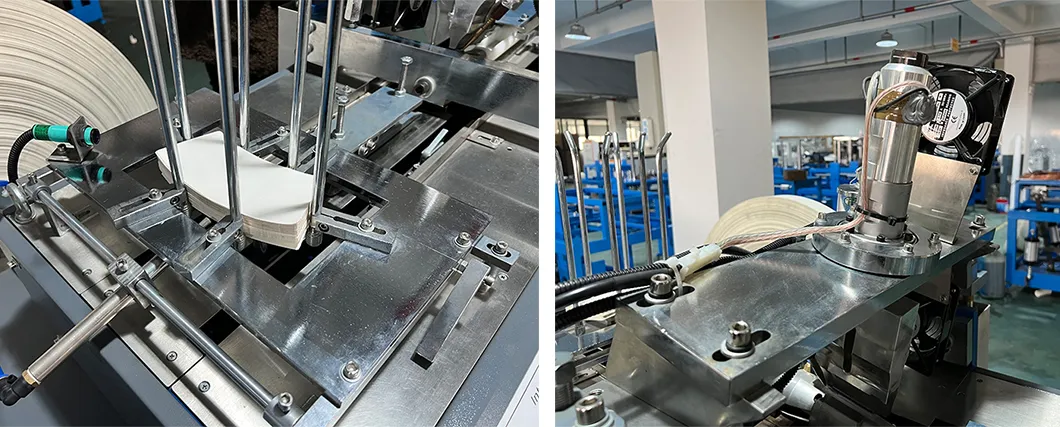

Paper Feeding & Ultrasonic Welding

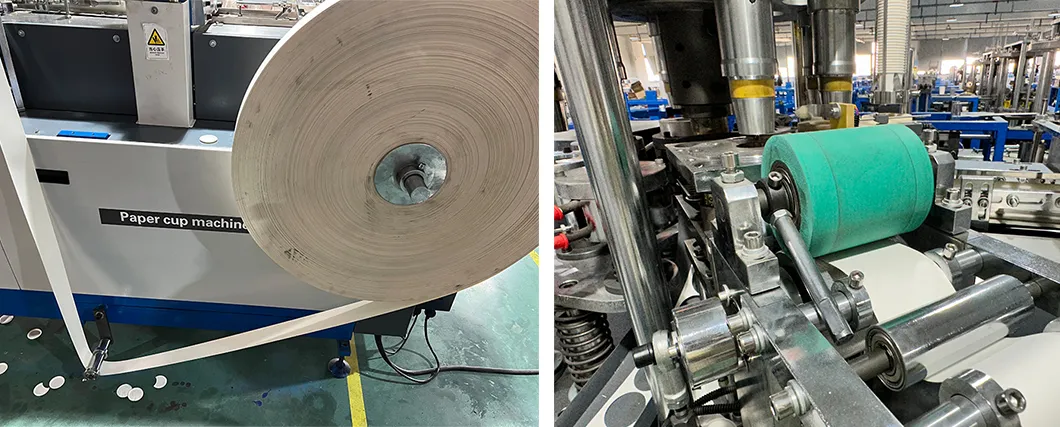

Bottom Paper & Cup Bottom Feeding

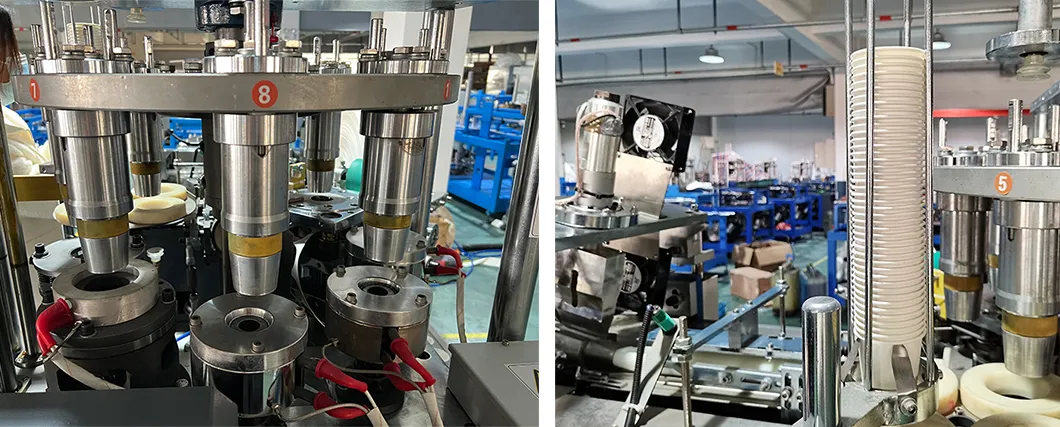

Turntable Mould & Discharging

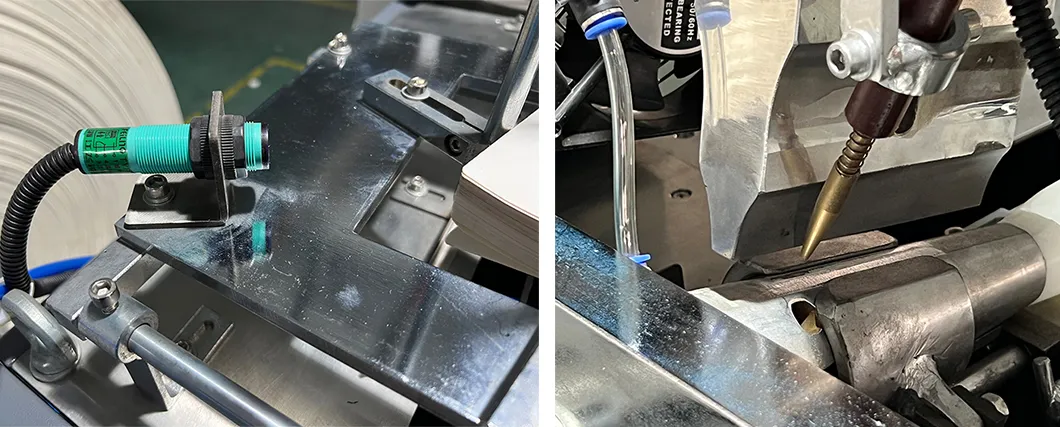

Photoelectricity Sensor & Wall Sealing

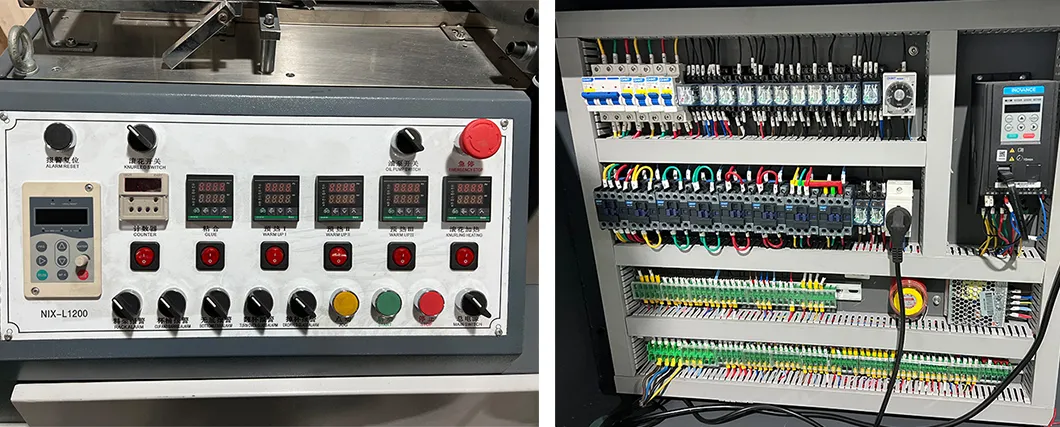

Control Panel & Electric Box

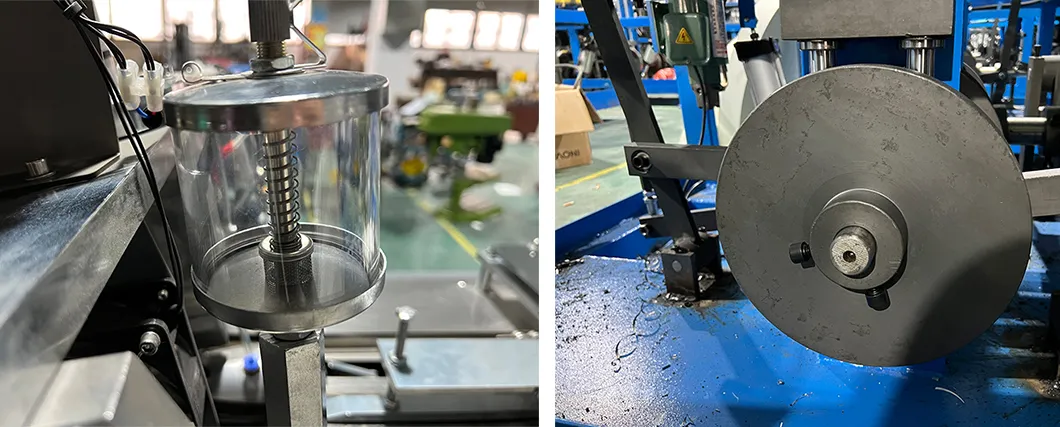

Oil Adjustment & Pneumatic Actuator

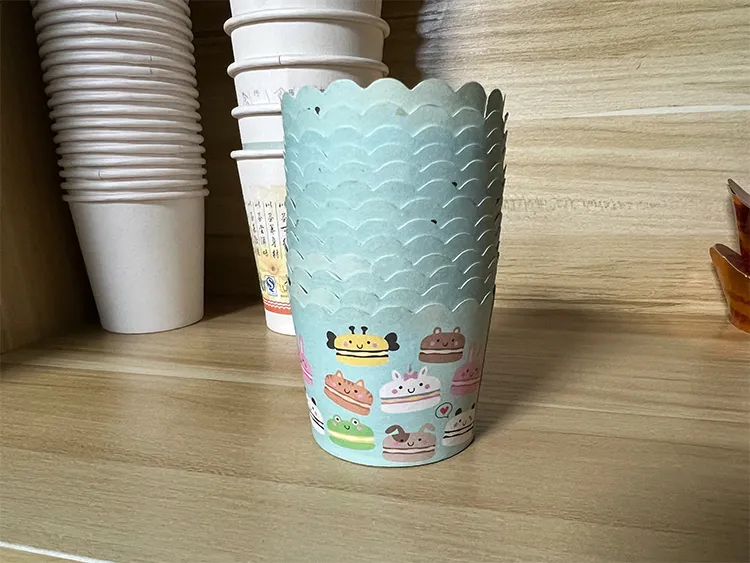

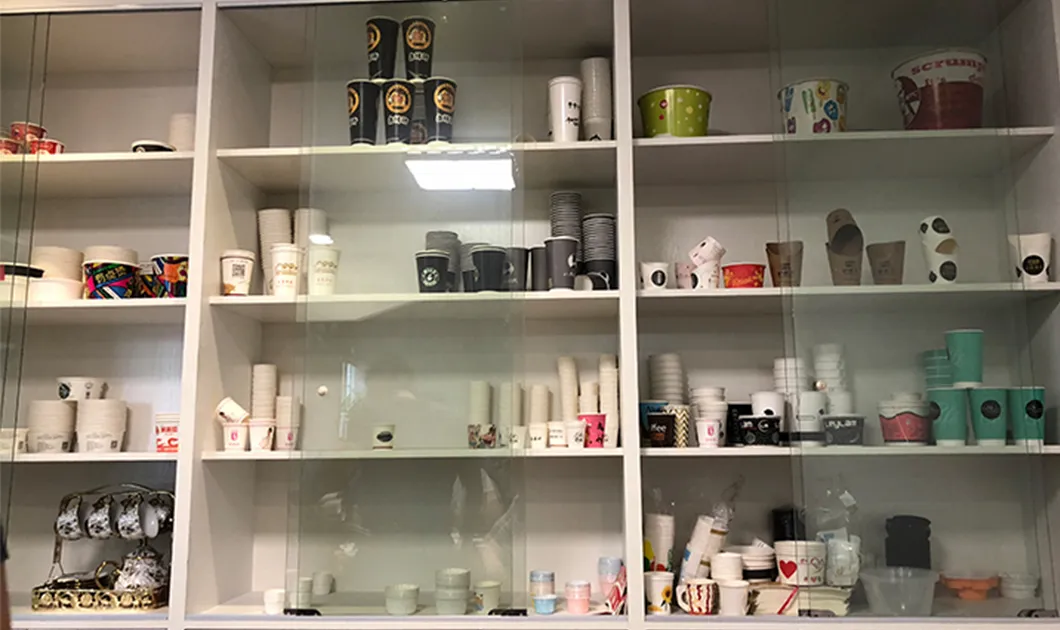

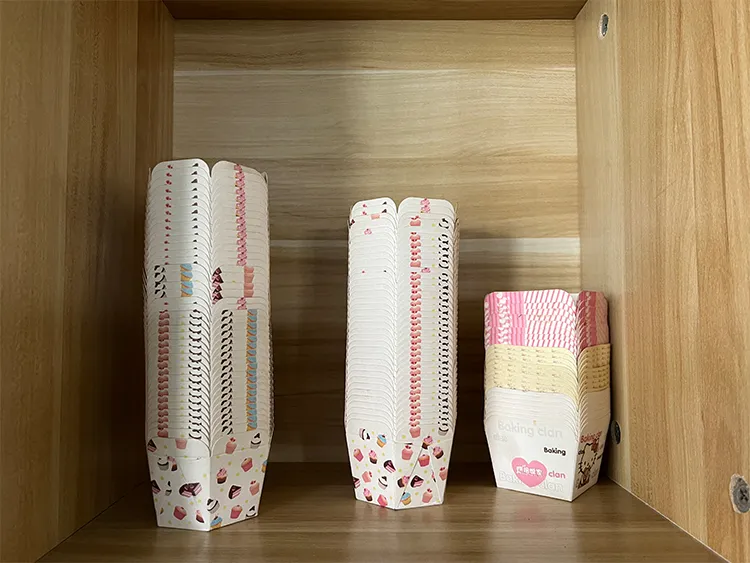

🍰 Finished Samples

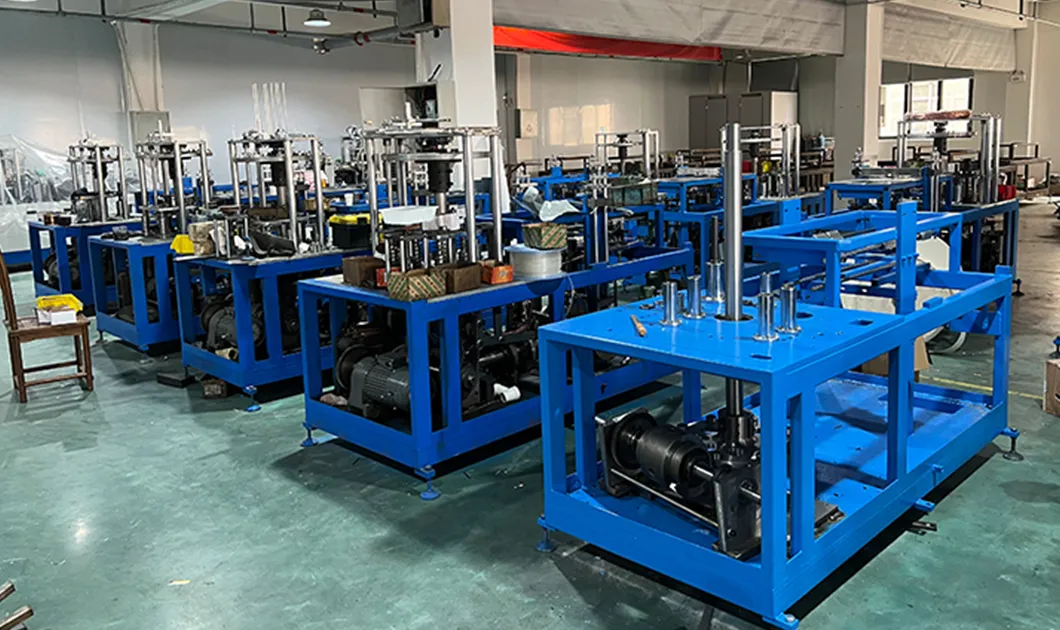

🏭 Manufacturing Excellence

Our facility operates several professional production lines ranging from printing and bag making to label die-cutting and disposable product machinery. We maintain a high standard of technical expertise through international cooperation and continuous learning from leading European technology partners.

📦 Packaging & Shipping

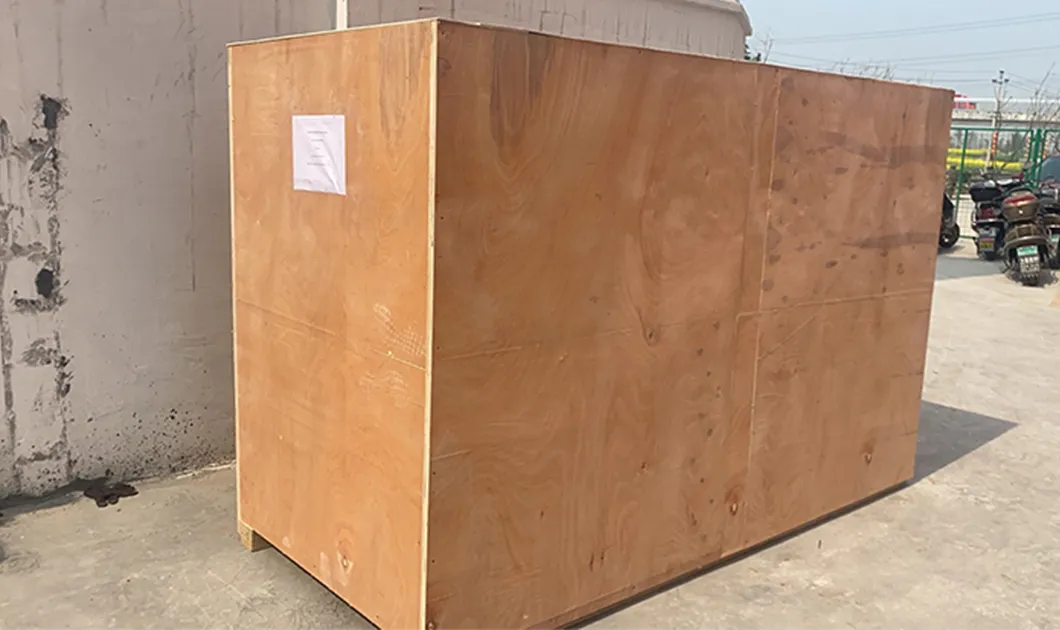

Standard export packaging: Wrapping film + reinforced wooden case for moisture-proof and shock-proof protection during transit.

❓ Frequently Asked Questions

How do you ensure the quality of the machines?

Quality is our priority. We implement strict quality control from the smallest components (like screws) to the final assembly. Every machine undergoes rigorous testing before shipment.

What kind of after-sales service do you provide?

We offer a one-year warranty. If parts are damaged under normal use, we provide replacements for free. We also offer video technical support and online troubleshooting from our expert engineering team.

Is the machine packaging safe for long-distance sea freight?

Yes, we use a combination of protective wrapping film and sturdy wooden cases designed to be moisture-proof and shock-proof, ensuring the machine arrives in perfect condition.

What are your accepted payment terms?

We typically accept 30% T/T in advance and 70% T/T balance before delivery. We are also open to discussing L/C and Western Union options.

Can the machine be customized for specific cup sizes?

Yes, the machine is highly customizable. We can adjust the moulds to produce cups ranging from 2oz to 16oz based on your specific requirements.

What is the typical lead time for an order?

Our standard production capacity is approximately 30 sets per month. Typical lead times range from 20 to 45 days depending on the level of customization required.
