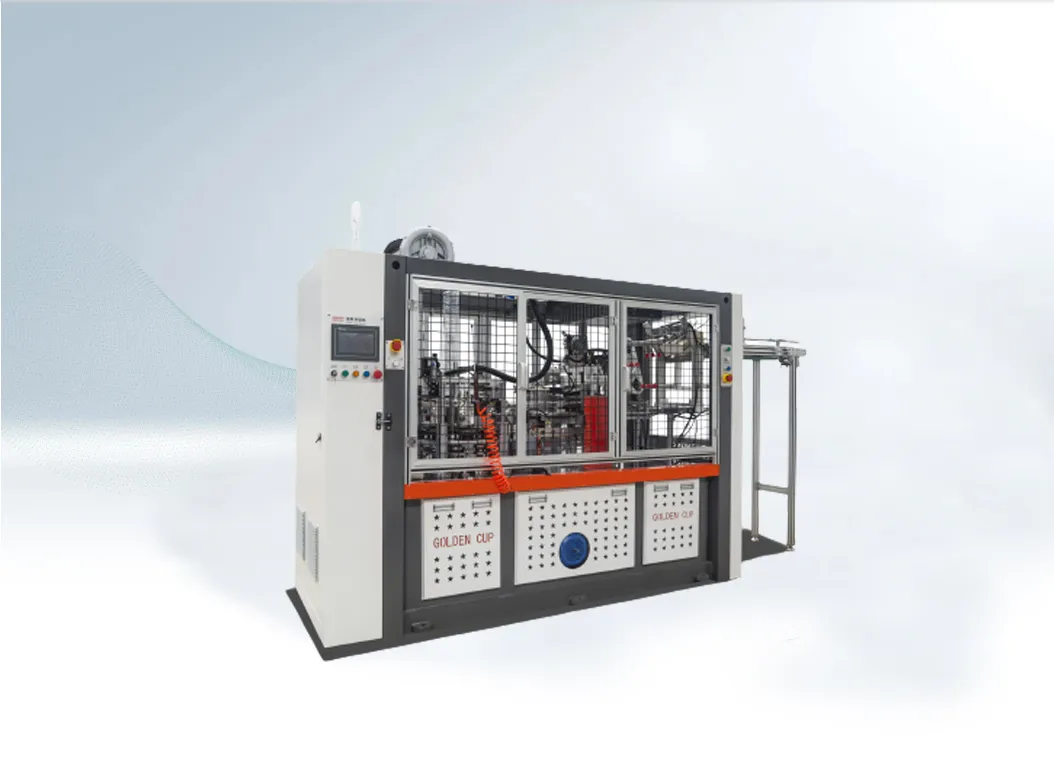

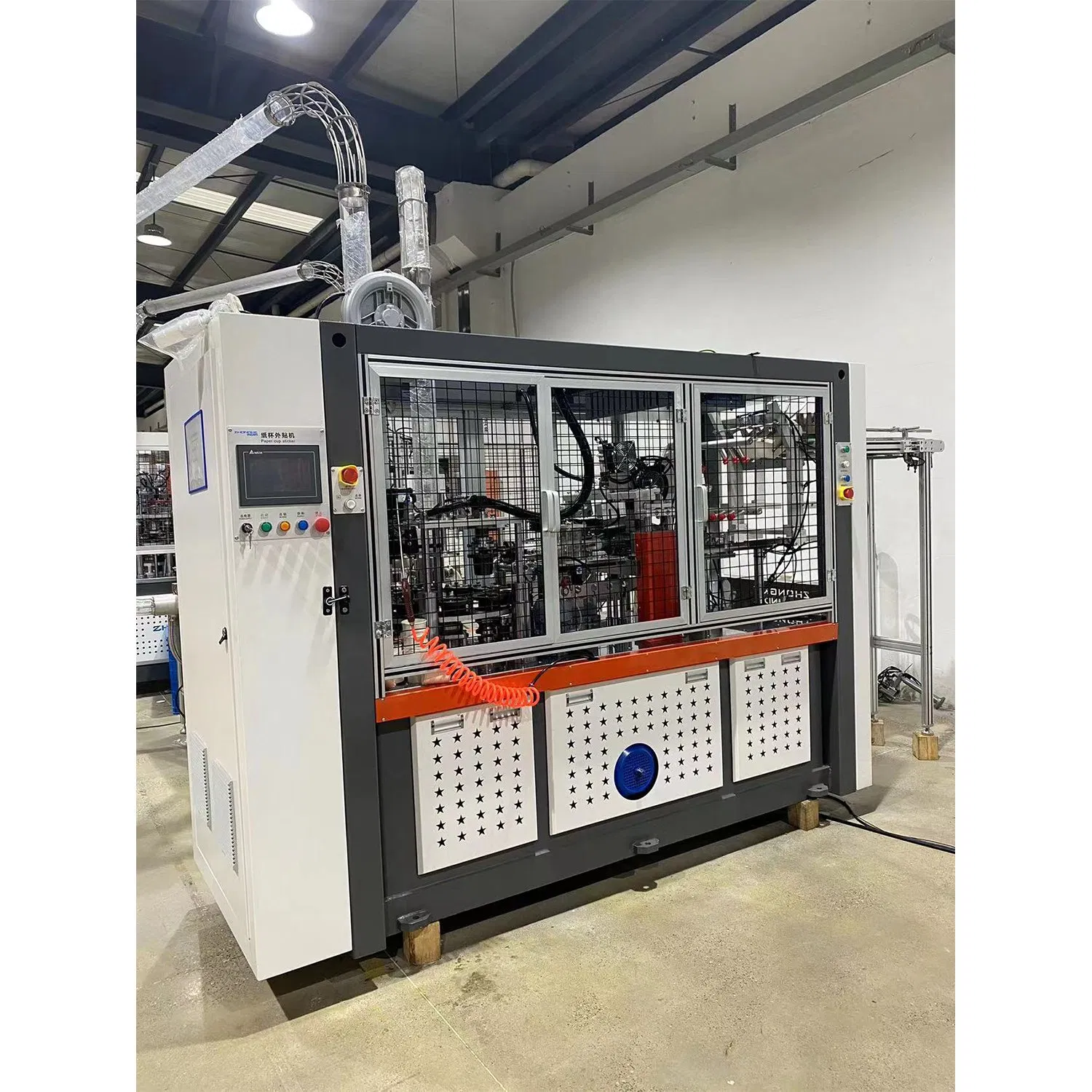

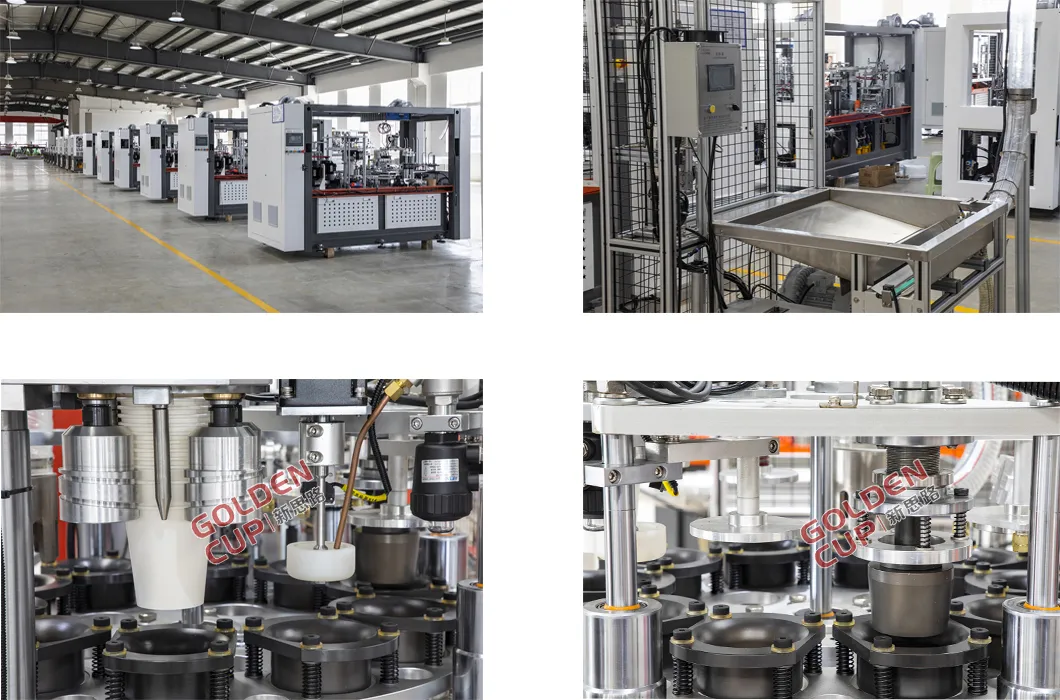

The XSL-16W double wall sleeve machine features a tabletop layout that effectively isolates forming parts from transmission parts. Controlled by a PLC system, the entire production process is monitored by high-precision photoelectric sensors, with glue application managed by a servo system. It is the ideal equipment for manufacturing various types of sleeve cups.
| Technical Specifications | |
|---|---|
| Model | XSL-16W double wall paper cup sleeve machine |
| Suitable Size | Top: 60-95mm | Bottom: 40-75mm | Height: 50-135mm |
| Production Speed | 100-120pcs/min |
| Paper Requirement | 170-300gsm single/double PE paper |
| Machine Weight | 3600kgs |
| Dimensions | 2600*960*2120mm |
| Power Supply | 3 phase, 380V, 50HZ, 6KW |
| Air Consumption | 0.3Mpa |

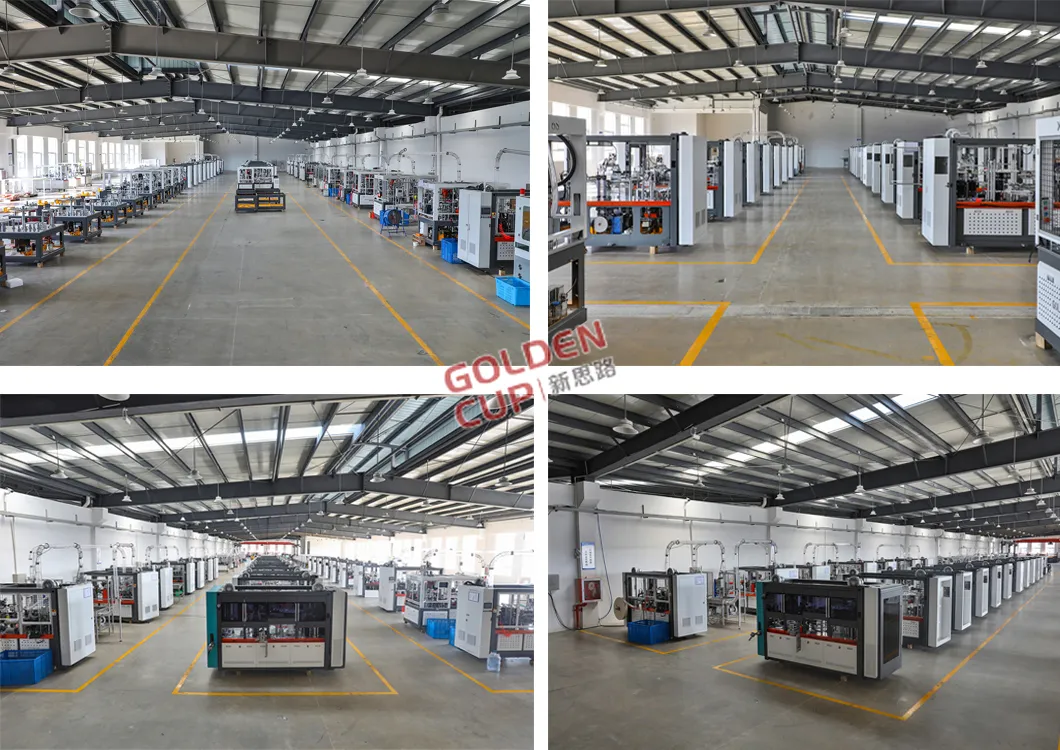

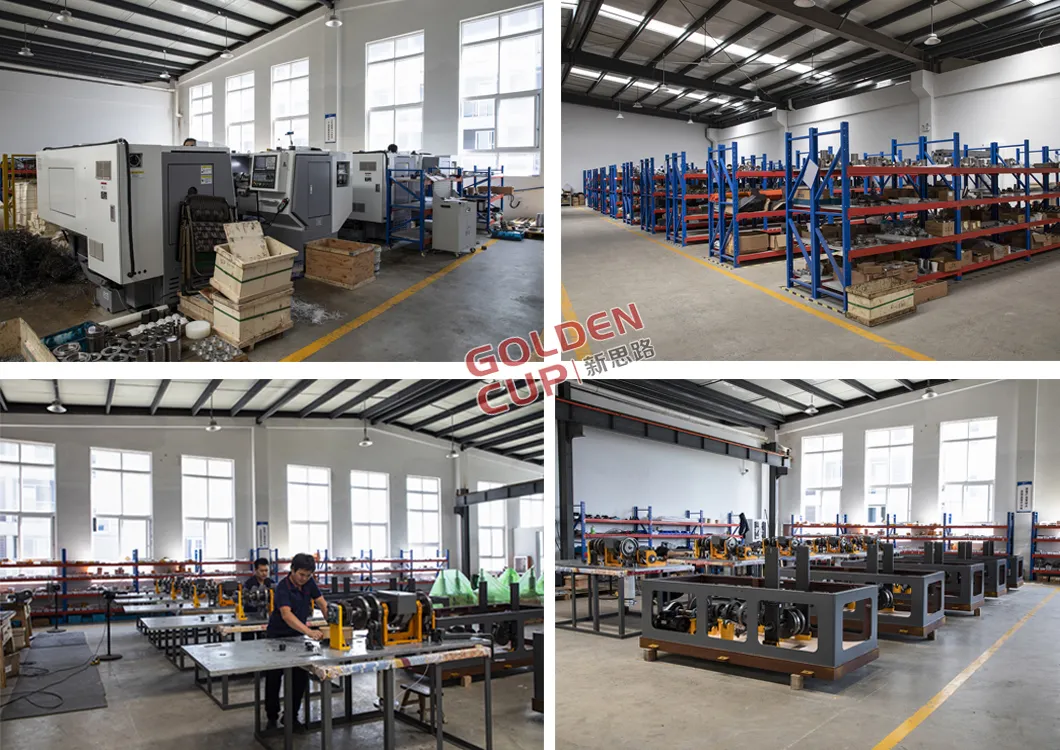

We are a leading manufacturer of high-quality machinery in the paper cup industry. Our state-of-the-art facility spans around 10,000 square meters, equipped with advanced production capabilities. We specialize in high-speed paper cup machines, paper bowl machines, and double wall sleeve machines designed to cater to a wide range of cup sizes.
To ensure top-notch performance, we utilize components from renowned international brands. Our transmission systems use cam and gear mechanisms, eliminating chains and incorporating a spray circulating lubrication system. Our high-speed machines achieve production rates of 120-150 cups per minute.
Package: All products are securely packed in wooden cases before shipment to ensure safety during sea transportation.
