Product Description

i

Basic Information

Model NO.
JBZ-D
Speed
60-80pcs/min
Required Paper
Single and Double Side PE Coated Paper
Automation
Automatic
Logo Printing
With Logo Printing
Certification
CE
Customized
Customized
Condition
New
After-sales Service
3years
Color
Blue
Process
Finishing Process Machine
Usage
Packing Paper Machine, Household Paper Machine
Type
Corrugating Machine
Automatic Grade
Automatic
Computerized
Yes
Transport Package
Wooden Boxes
HS Code
8441309000
Production Capacity
5000sets/Year
D

Product Description

Equipment Name: Double layer cup machine

Model JBZ-D Paper Ripple Cup Sleeve Wrapping and Forming machine is an advanced machine developed on the JBZ-D double walls paper cup machine. In this machine, the out sleeve layer is corrugated paper. The sleeve feeding device utilizes specialized technology to ensure precision forming.

About the out-sleeve corrugate layer: The inside layer (facing the inner cup layer) is light PE coated paper (e.g., 100GSM); the outside layer is raw printed paper. It is designed to easily finish corrugated paper on a corrugating machine.

T

Technical Specification

✓Paper Cup Size: 5-16oz cup / 20--50oz bowl (mold exchangeable)
✓Raw Material: PE paper, Varnishing Printed paper, or other film coated paper (ultrasonic sealing)
✓Suitable Paper Weight: 170-450GSM (Recommend 250-300 GSM)
✓Rated Productivity: 40---50 PCS / minute
✓Total Power: 4 KW / 380V 50Hz
✓Machine Weight: 1000 Kg
✓Dimensions: 2450 X 1200 X 2000 mm

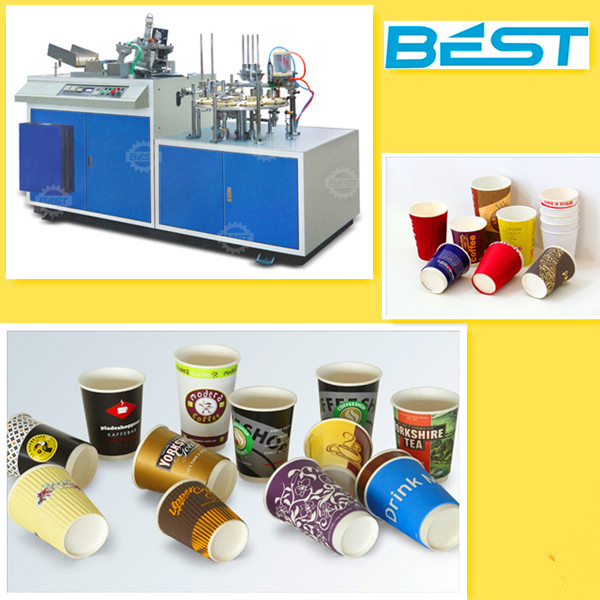

Double Layer Cup Machine JBZ-D

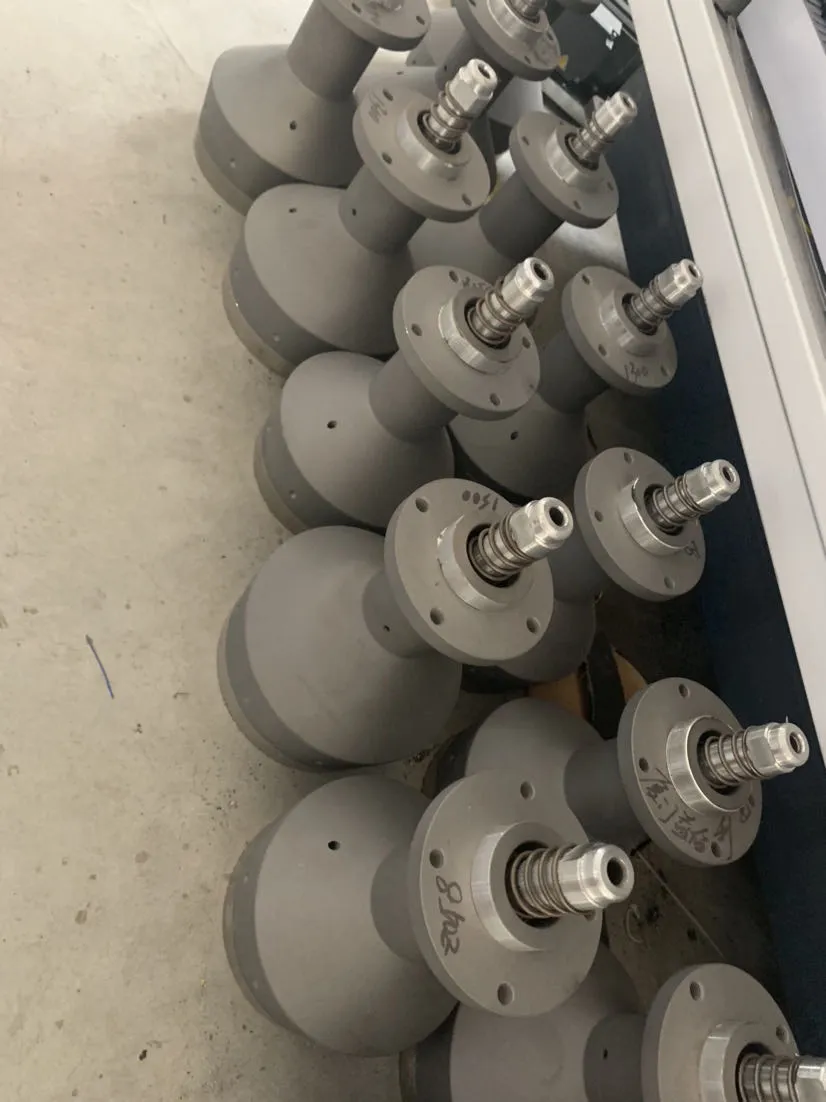

Sleeve Forming Machine

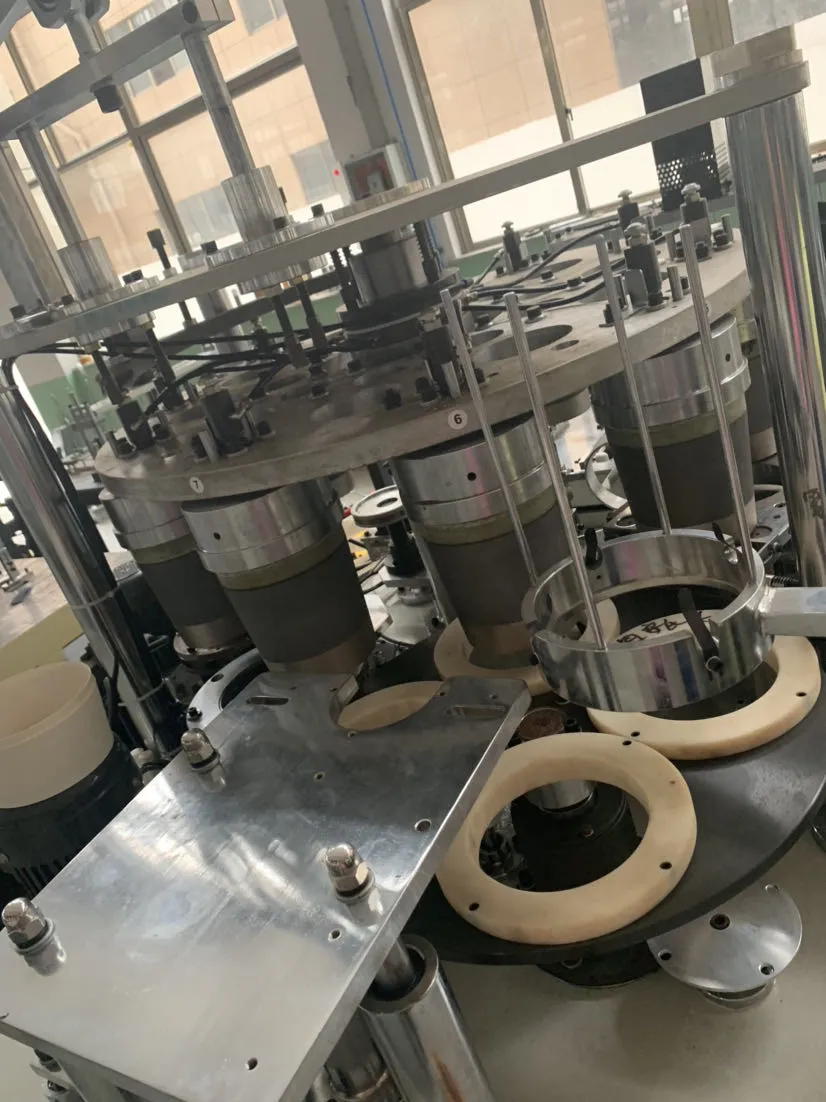

Two Layer Paper Cup Machine

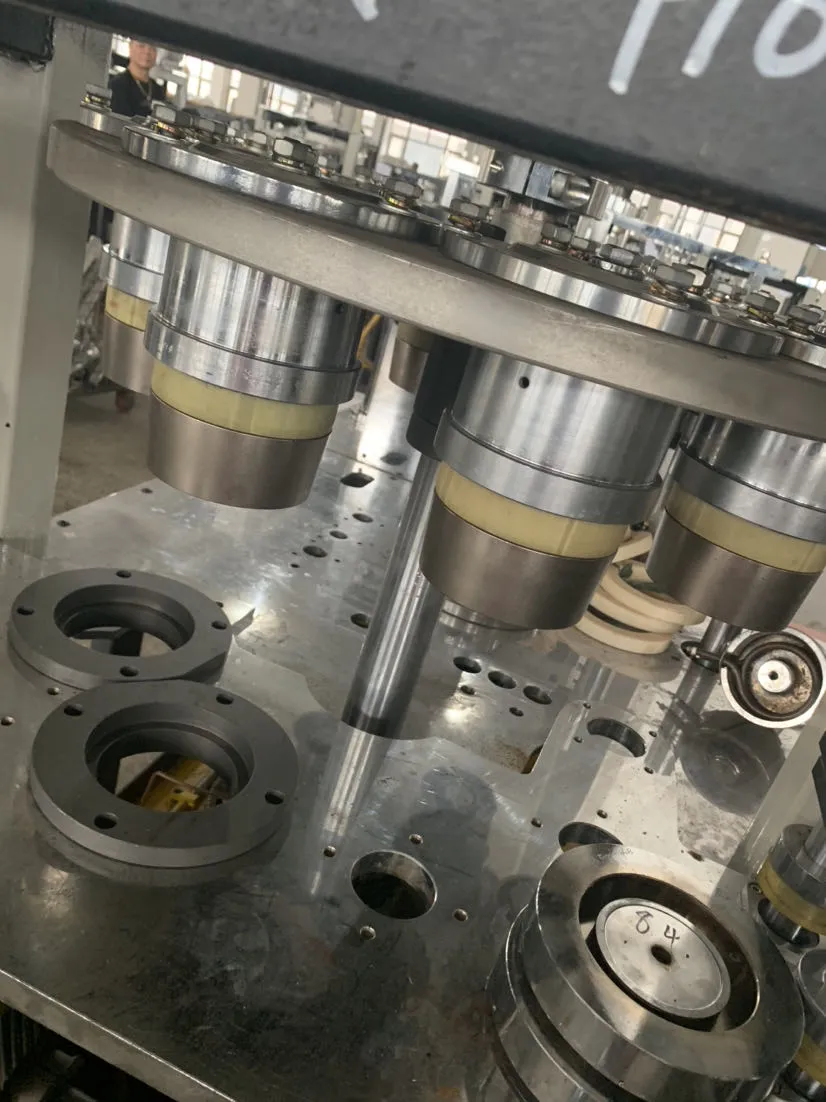

JBZ-D Detail View

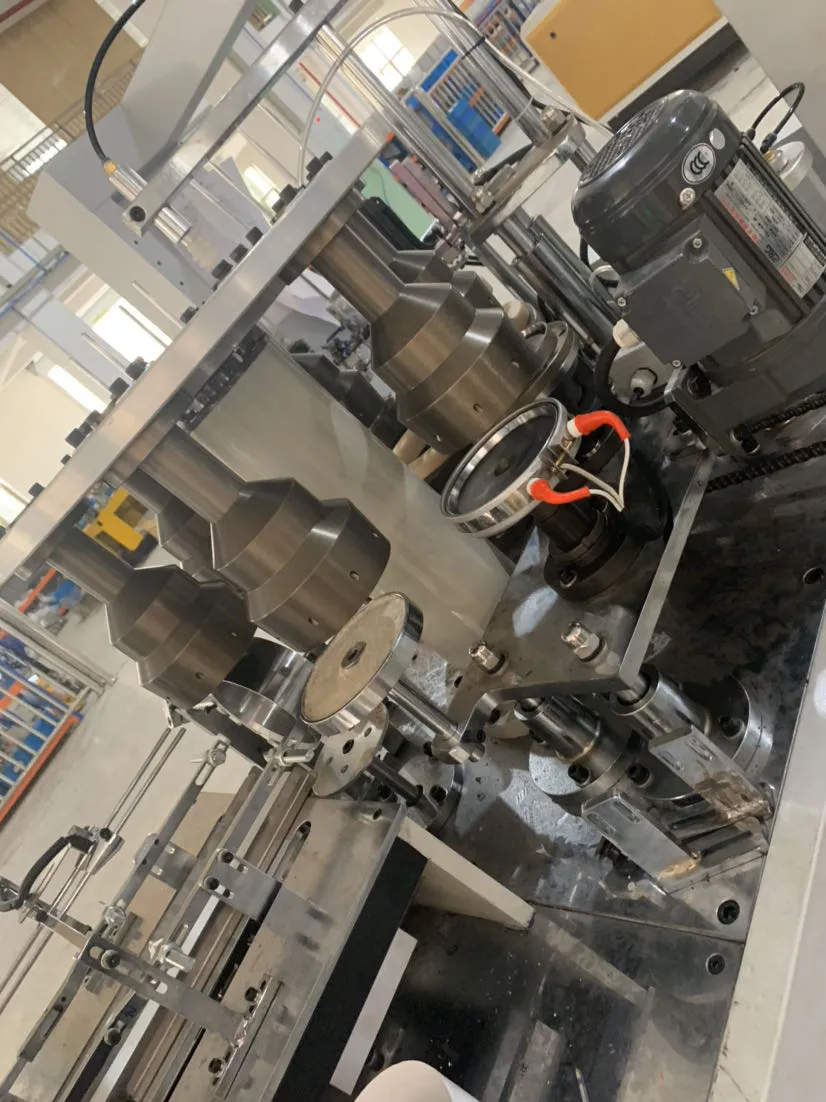

Paper Cup Production

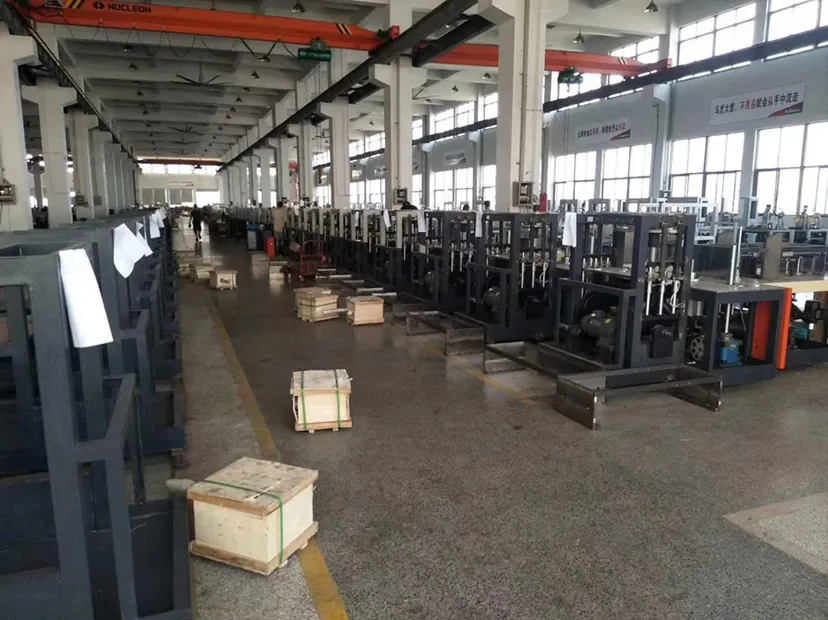

Double Sleeve Forming
?

Frequently Asked Questions

1. What is the main application of the JBZ-D machine?
The JBZ-D is specifically designed for wrapping and forming the outer sleeve of double-layer or ripple paper cups and bowls, providing heat insulation and structural strength.
2. What range of cup sizes can this machine handle?
It is highly versatile, supporting 5-16oz cups and 20-50oz bowls through a simple mold exchange process.
3. What kind of paper materials are compatible?
The machine works efficiently with single or double-side PE coated paper, varnishing printed paper, and other film-coated papers suitable for ultrasonic sealing.
4. Is the JBZ-D machine fully automated?
Yes, it is a fully automatic machine with a computerized control system, ensuring high precision and minimal manual intervention.
5. What is the production speed of this equipment?
The rated productivity for sleeve forming is between 40 to 50 pieces per minute, while the general mechanical speed can reach up to 60-80 pieces per minute.
6. What are the power and space requirements?
The machine requires a 4 KW power source (380V 50Hz) and has a physical footprint of approximately 2450 x 1200 x 2000 mm.
