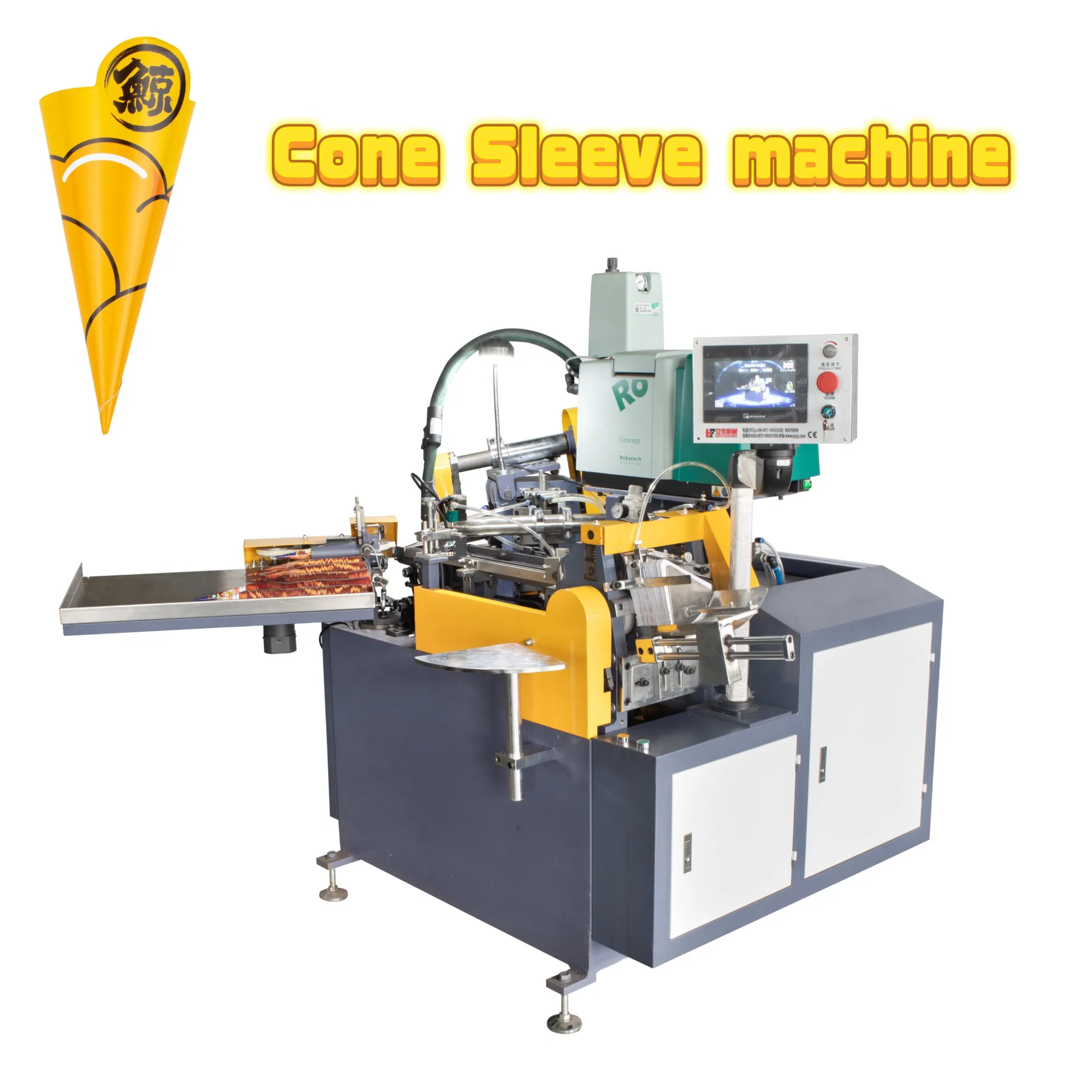

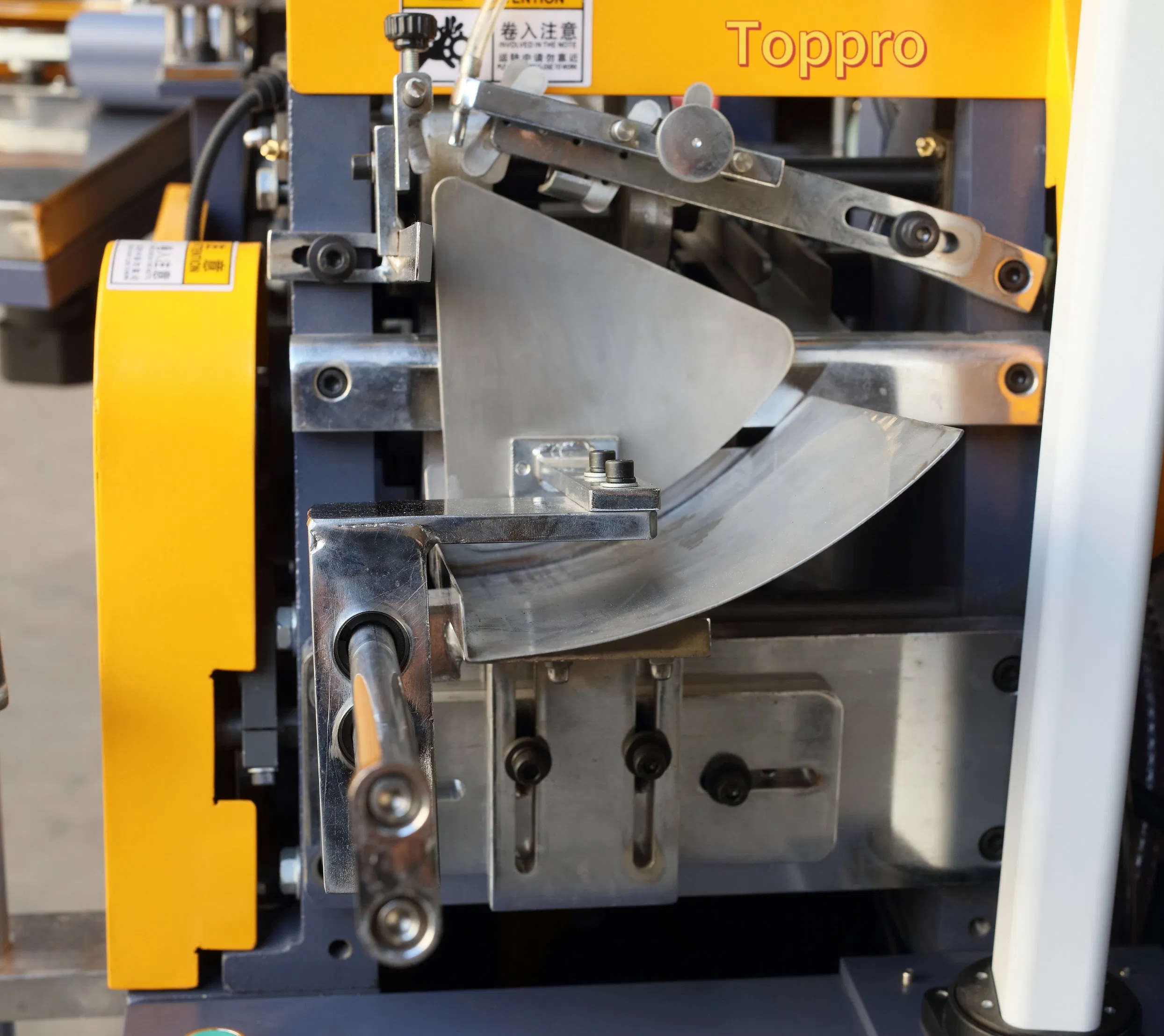

High Speed Ice Cream Paper Cone Sleeve Making Machine From Toppro

Customization:	Available
Warranty:	One Year
Applicable Objects:	Food

Basic Specifications

Model NO.	CPC-220
Cup Size	4-10oz
Speed	190-230 PCS/Min
Required Paper	Wax Paper, Kraft Paper, Art Paper, etc.
Automation	Automatic
Certification	CE
Cone Angle	17-23 degrees (Adjustable 17-28 degrees)
General Power	9kw
Net Weight	1000kgs
Dimension	185017501800mm

Product Characteristics

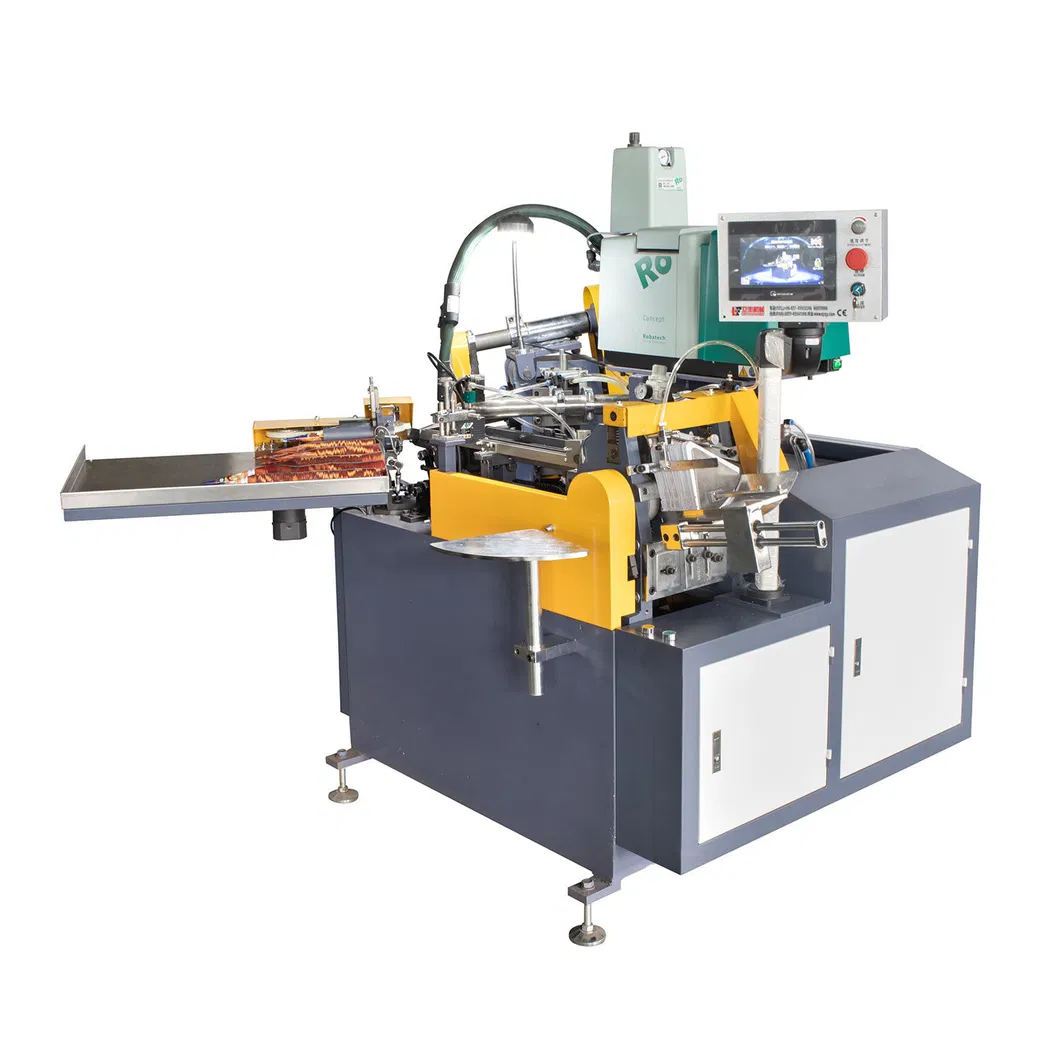

The CPC-220 Automatic Paper Cone Sleeve Machine is specifically designed for ice cream and similar paper cone sleeves. This high-speed equipment can shape angles from 17 to 28 degrees by changing the mold. Operating at speeds of 190-230 pcs/min, it supports various materials including art paper, aluminized paper, and offset paper.

Main Technical Specifications

Item	Details
Cone Length	90-185mm
Raw Material	80-170 g/m², art paper/aluminized paper/offset paper/wax paper
Electricity	220V 50Hz 1Phase / 380V 50Hz 3Phase (Customizable)
PLC Brand	Mitsubishi
Glue Box	Robatech (Switzerland)
Vacuum Pump	Huitong
Transducer	Delta
Sensor	Panasonic
Electrical Parts	Schneider + Panasonic

Machine Advantages

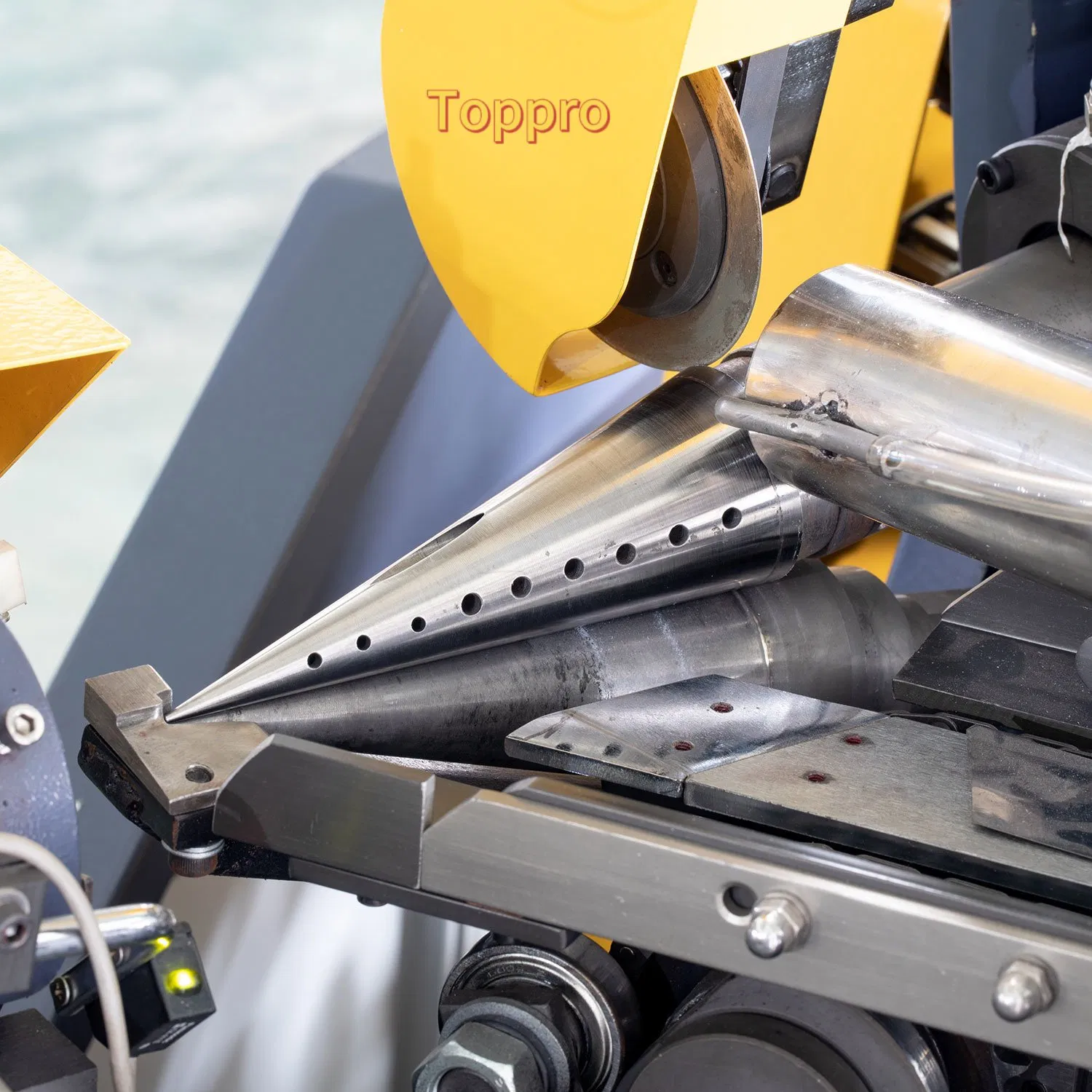

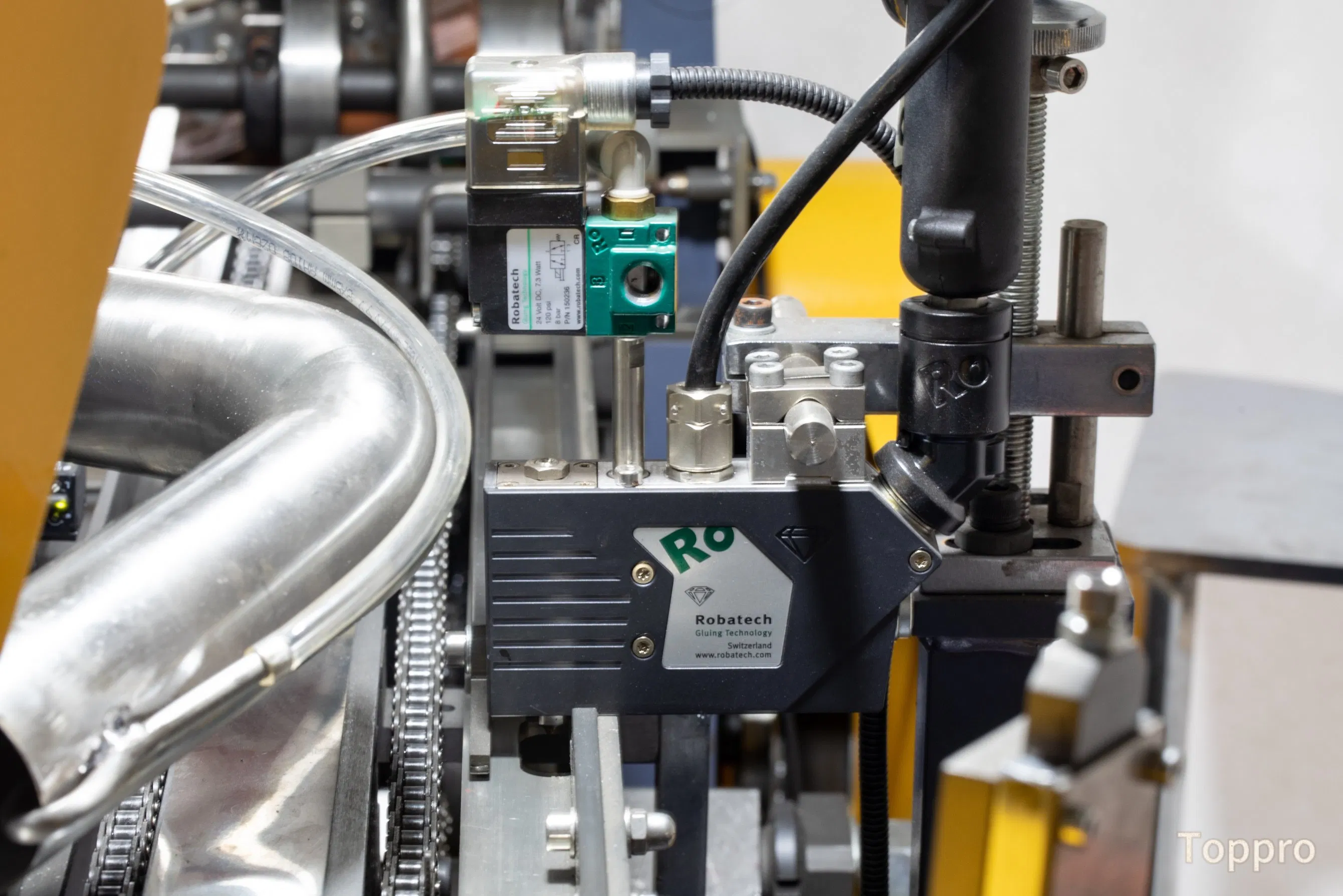

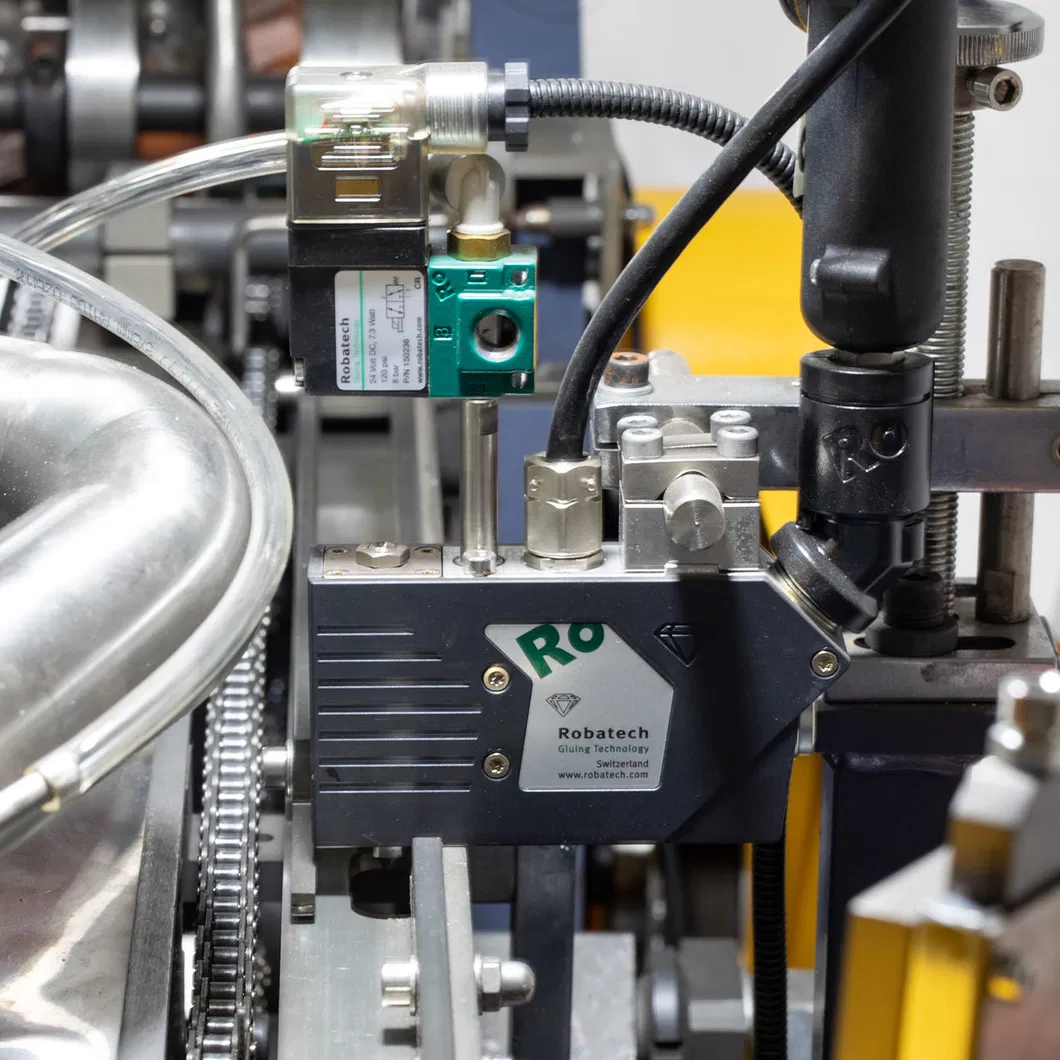

Precision Components Utilizes special materials for cone molds and original Switzerland Robatech nozzles for precise glue application.

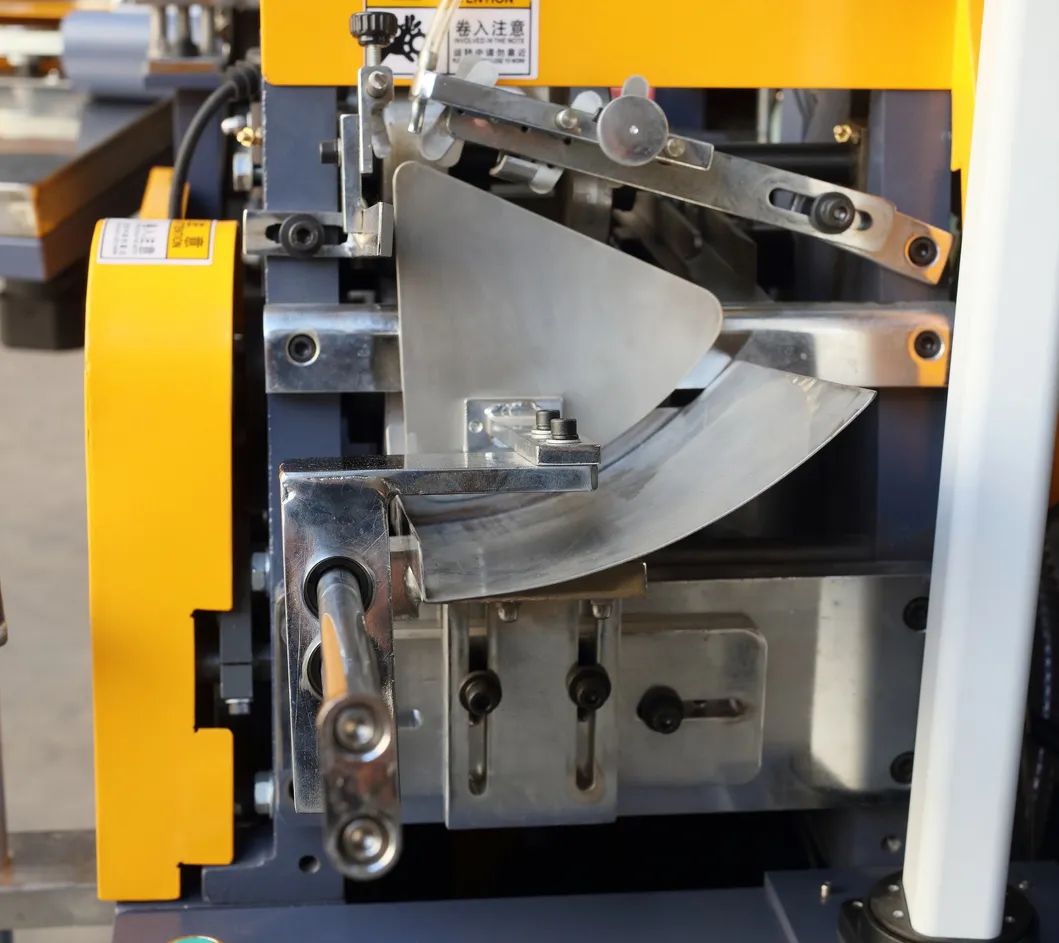

Stable Conveying The paper conveying system is engineered for high-speed stability, ensuring consistent production.

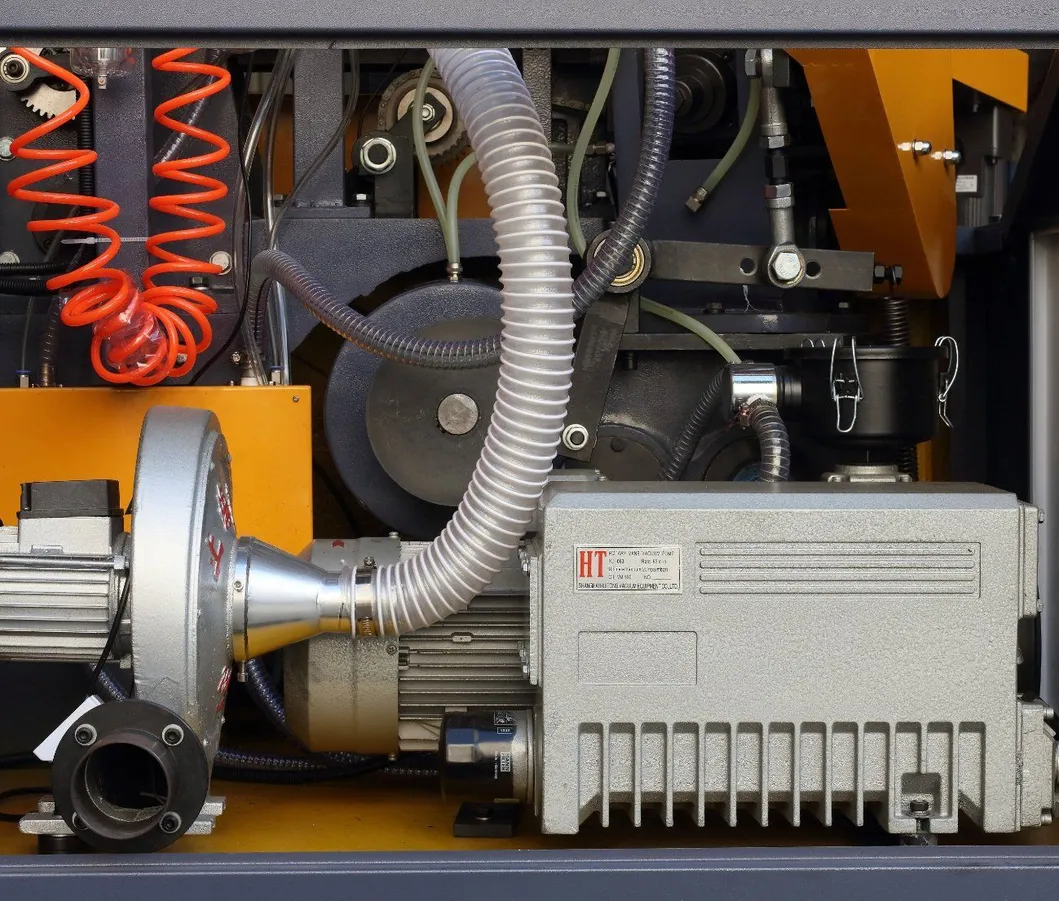

Integrated Systems Features integrated waste discharge and vacuum systems for a cleaner working environment.

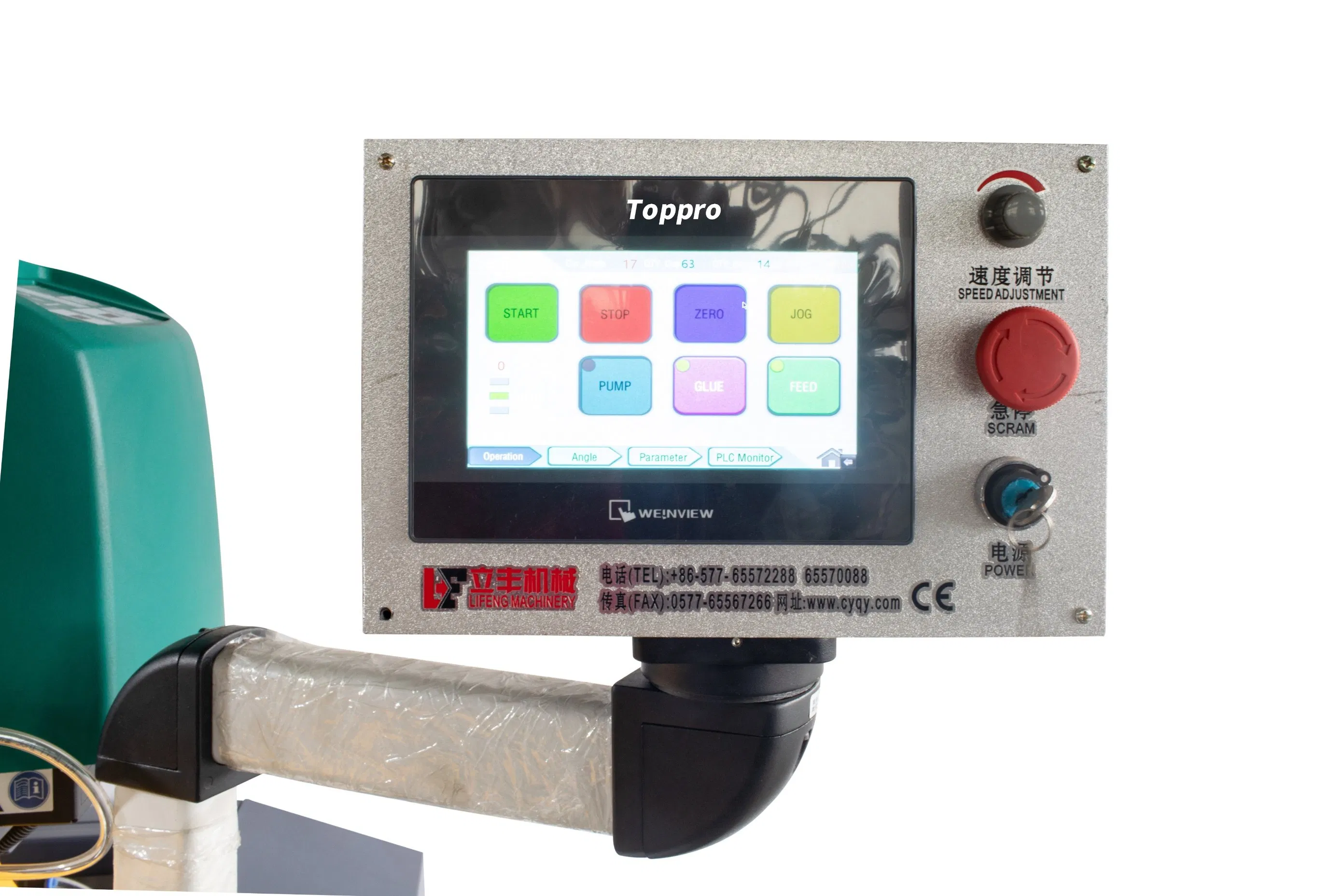

Smart Control System

Equipped with a large-scale touch screen interface for visual human-machine interaction, making operation and monitoring simple and efficient.

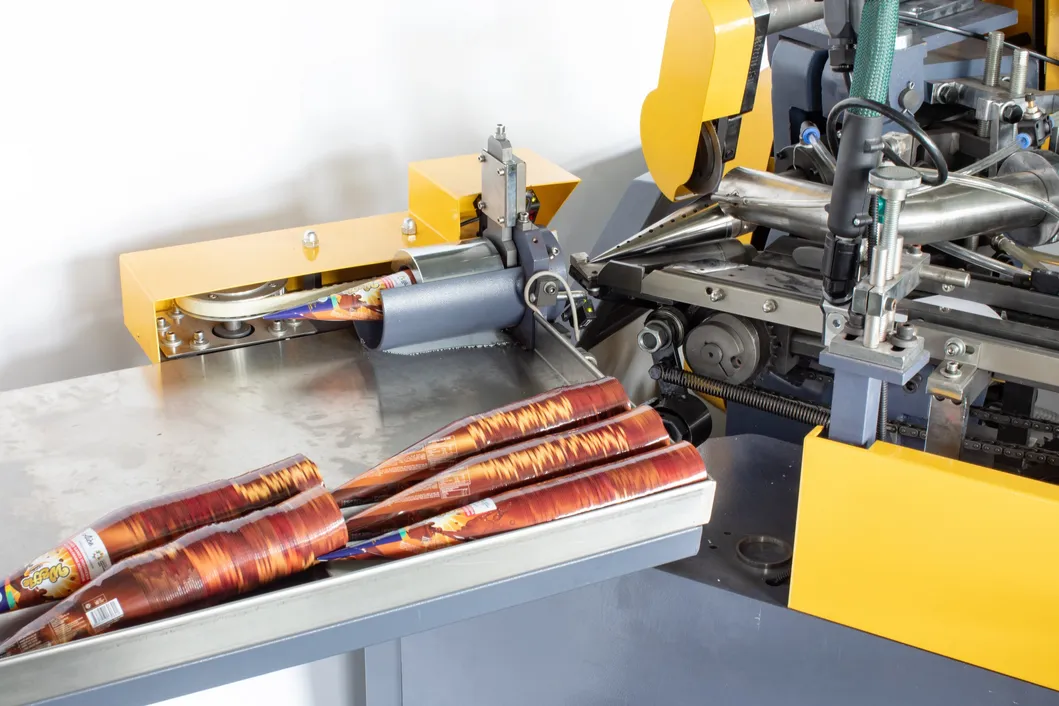

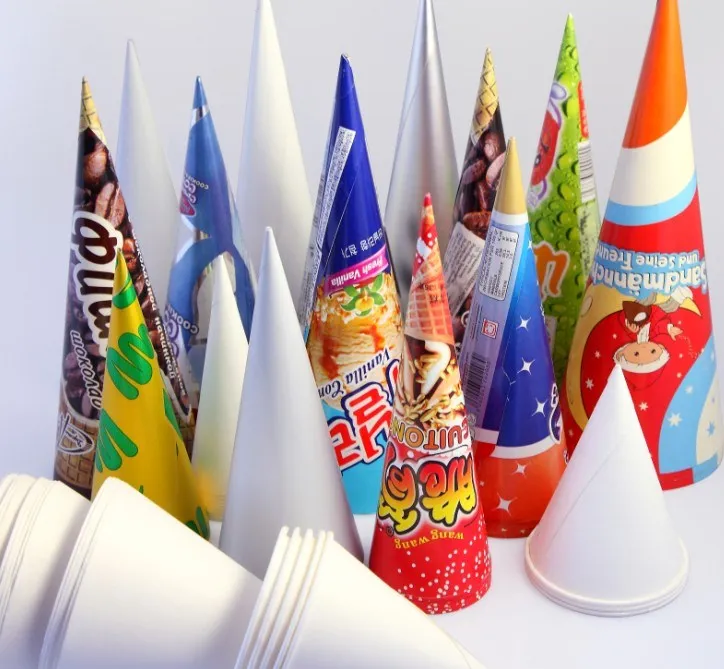

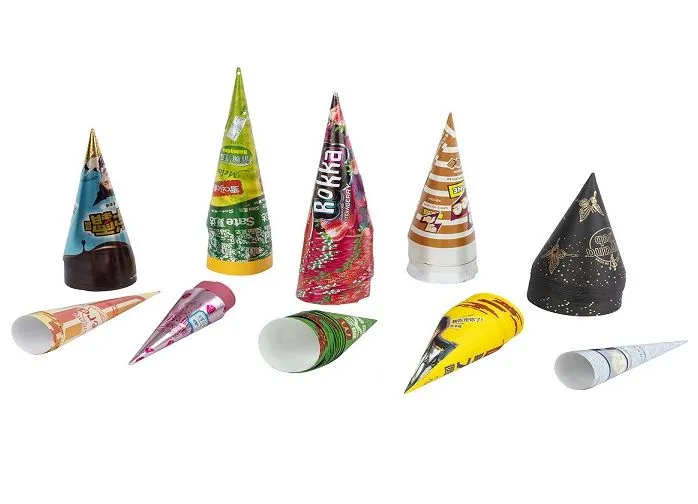

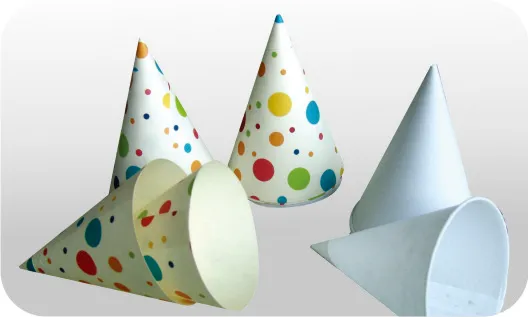

Finished Products Display

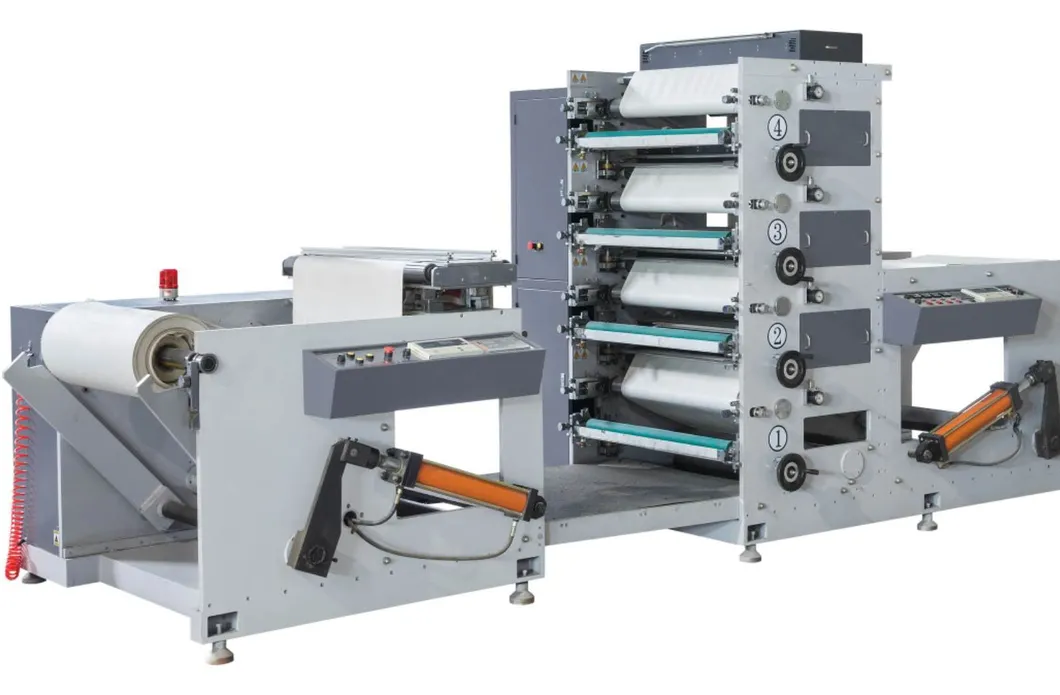

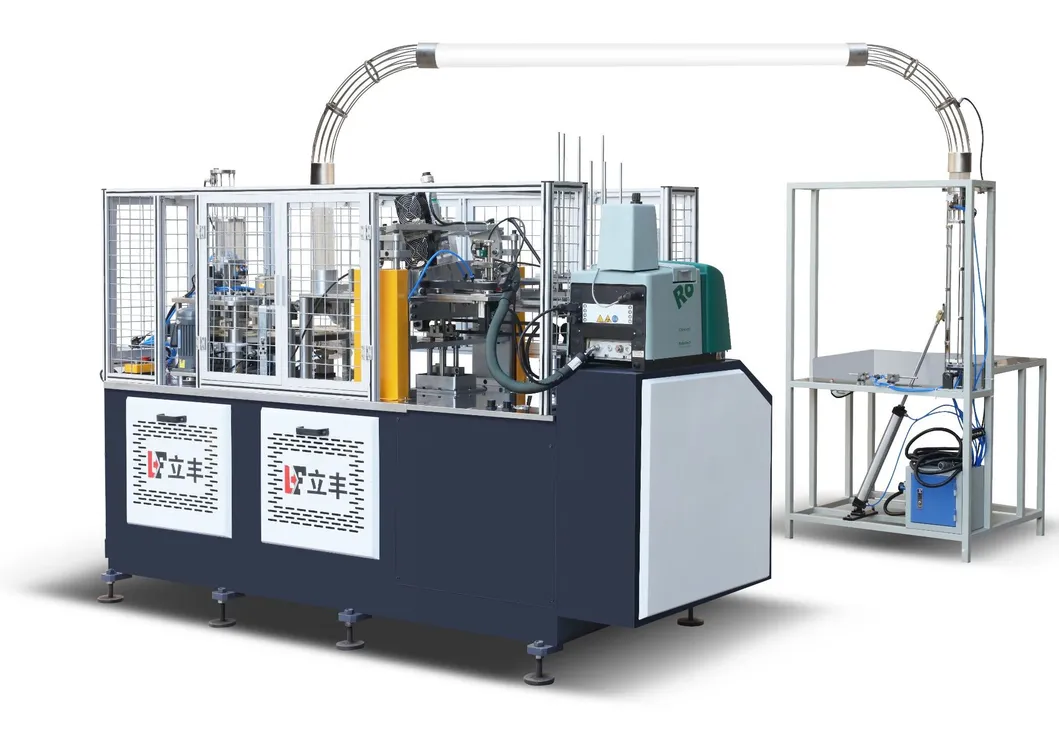

Related Production Equipment

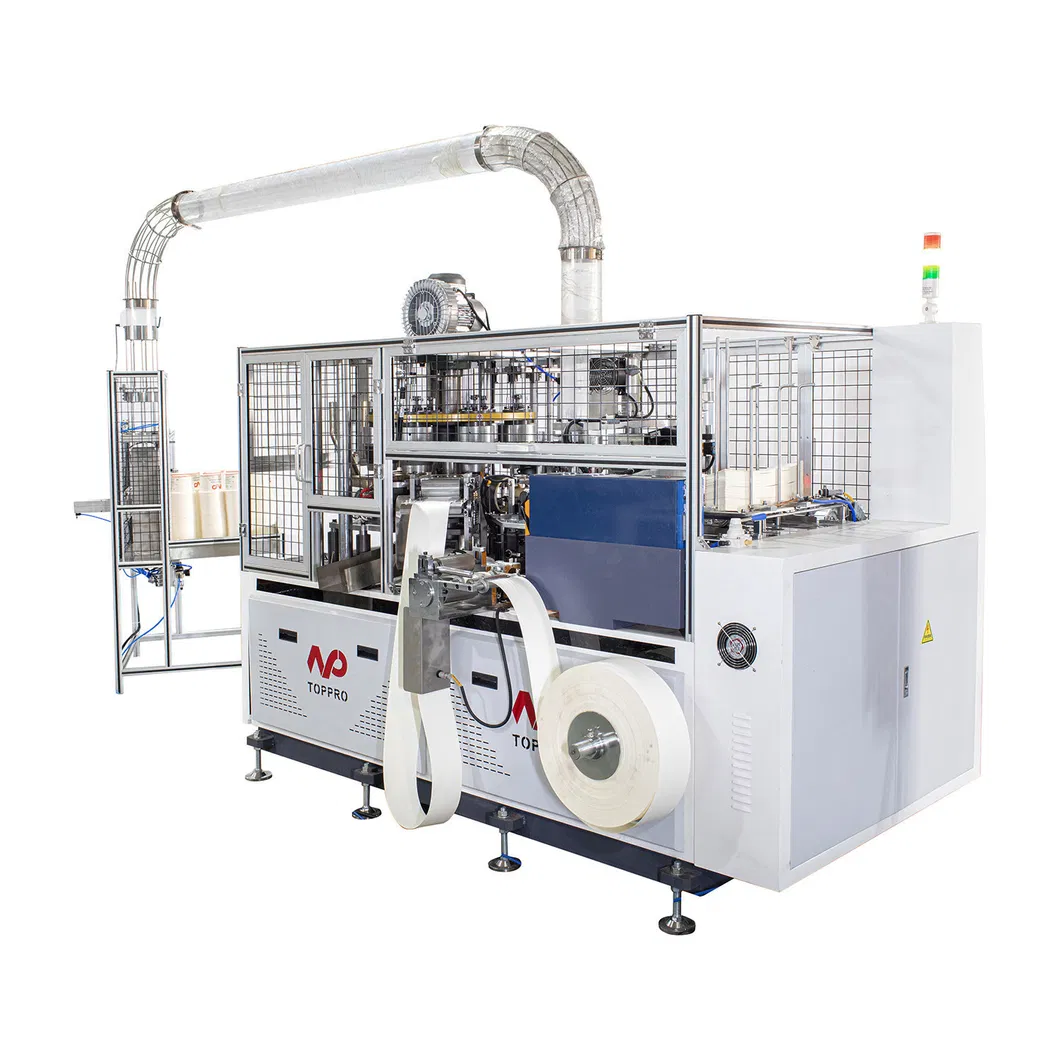

We provide full production lines including paper cup machines, die cutting machines, paper sleeve machines, and paper bowl machines.

After-Sales Service & Support

1 Year Warranty Free consumable spare parts provided for the first year.

Installation Support Guide booklets and technical dispatch available for factory setup.

Pre-Delivery Testing Machines are tested for one week before shipping to ensure stability.

Free Training Comprehensive operator training until the buyer masters the process.

Frequently Asked Questions

What is the production speed of the CPC-220?

The machine operates at a high speed of 190 to 230 pieces per minute, depending on the material and cone size.

Can one machine produce different sizes of paper cones?

High-speed paper cone machines are typically designed for one size per machine. However, the cone angle can be adjusted between 17 and 28 degrees by changing the mold.

What materials are compatible with this equipment?

It supports a wide range of materials including art paper, aluminized paper, offset paper, and wax paper with weights ranging from 80-170 g/m².

How do you handle machine troubleshooting?

We provide a 1-year warranty and 24-hour online support. You can send photos/videos for step-by-step guidance. If a problem persists, we can dispatch engineers to your facility.

What is the lead time for delivery?

The standard production time is 25 to 30 days. Urgent orders can be discussed based on current factory capacity.

Is the operation manual available in English?

Yes, all manuals, electric diagrams, and operation videos are provided in English. Other languages can be customized upon request.
