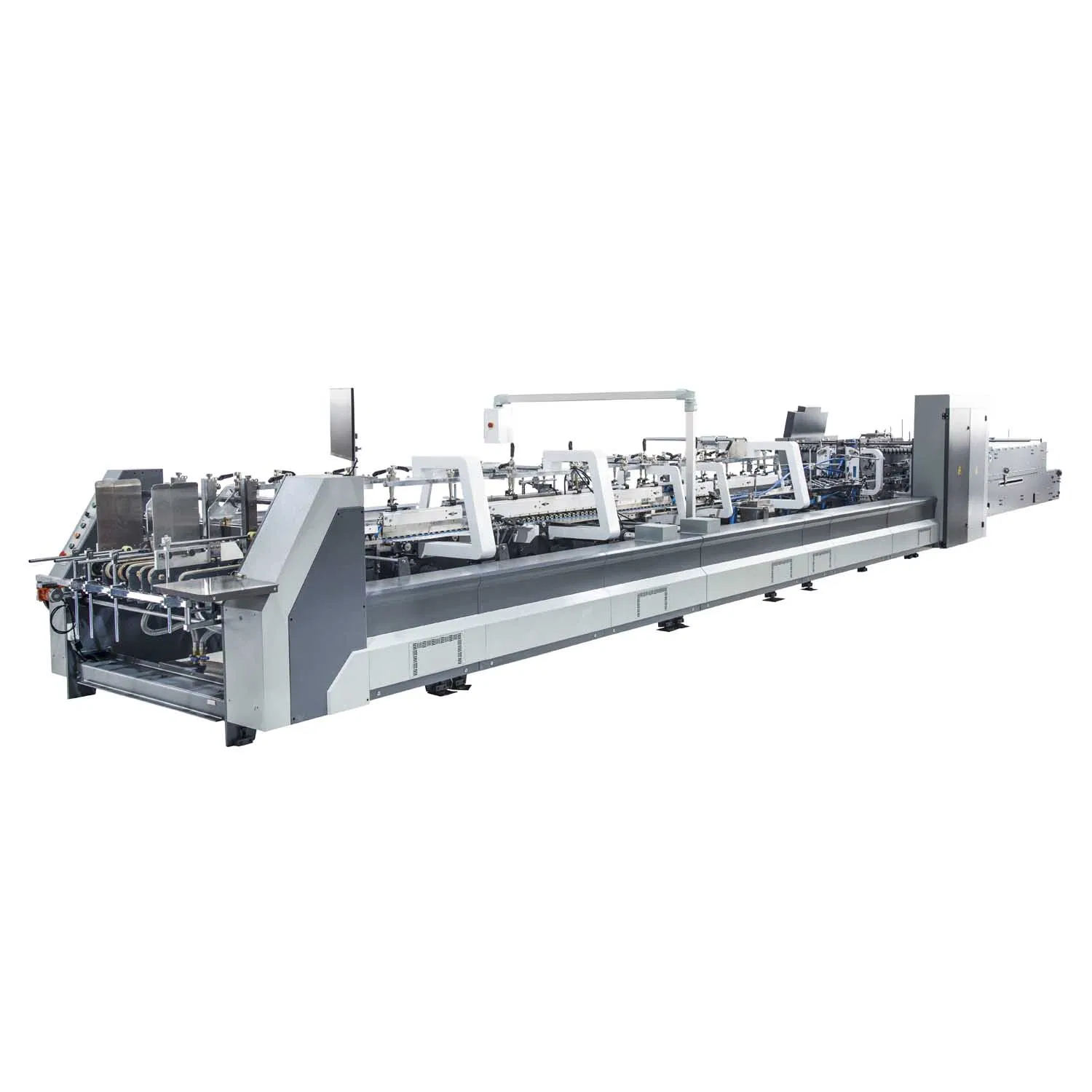

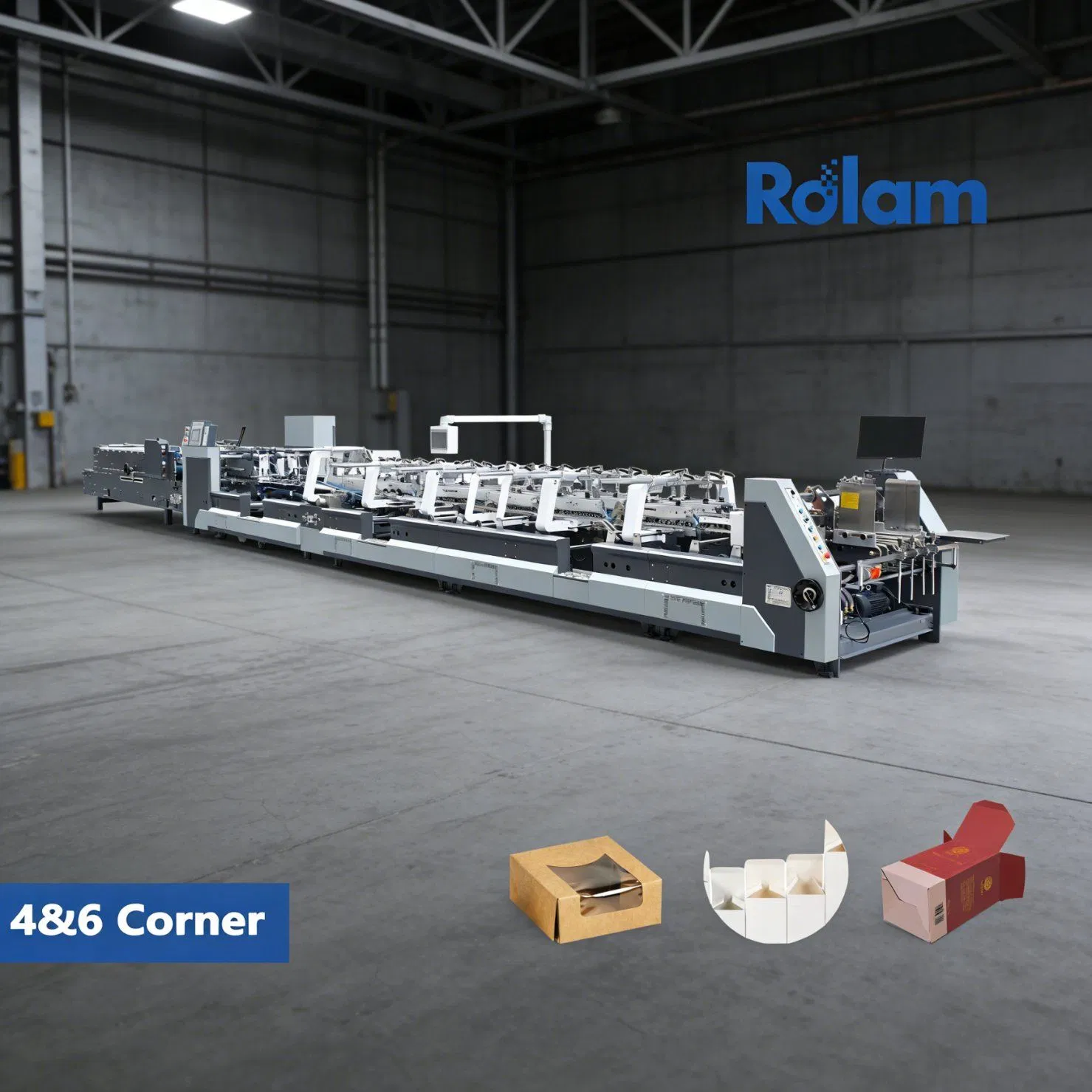

This machine is expertly designed to handle both rigid cardboard and corrugated paper boxes, offering exceptional flexibility for diverse packaging production lines.
Its robust, heavy-duty stainless steel frame provides a solid foundation that minimizes vibration and ensures consistently smooth operation during high-speed runs.

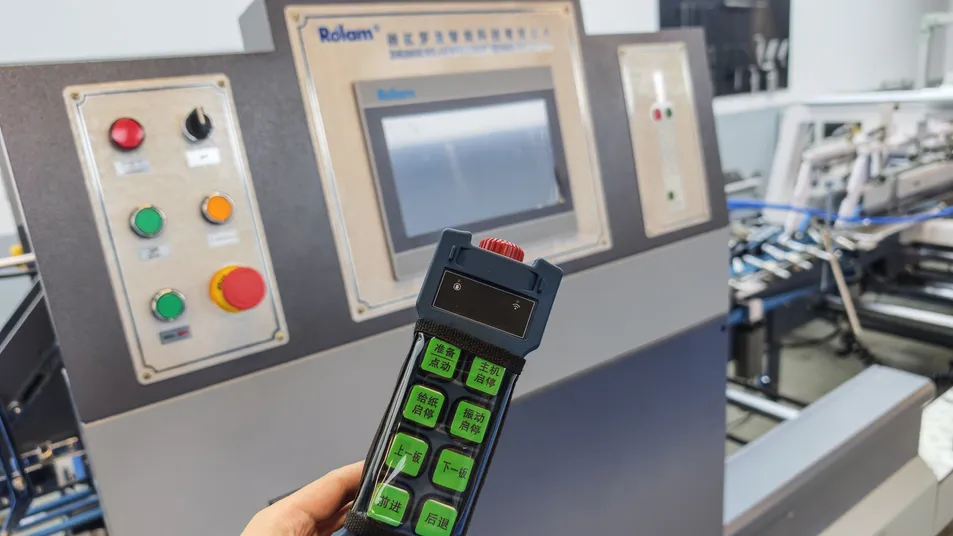

Integrated automatic fault diagnosis system and wireless remote control allow for efficient machine operation and adjustments from anywhere on the shop floor.
Critical components—from servo motors to timing belts—are sourced from leading international suppliers adhering to European and American safety standards.
| MODEL | 650 | 800 | 1100 |
|---|---|---|---|
| Paper Material | Cardboard 210-800gsm A/B/E Flute | ||
| Max. Speed | 400m/min | ||
| Max. Thickness of Folded Box | 12mm | 12mm | 12mm |
| Power Supply | 3P 380V 50HZ | ||
| Blank Width | 650mm | 800mm | 1100mm |
| Net Weight | 7T | 8T | 9T |
Driven by variable frequency motor. Equipped with three pieces feeding knife and vibration device for consecutive automatic feeding.

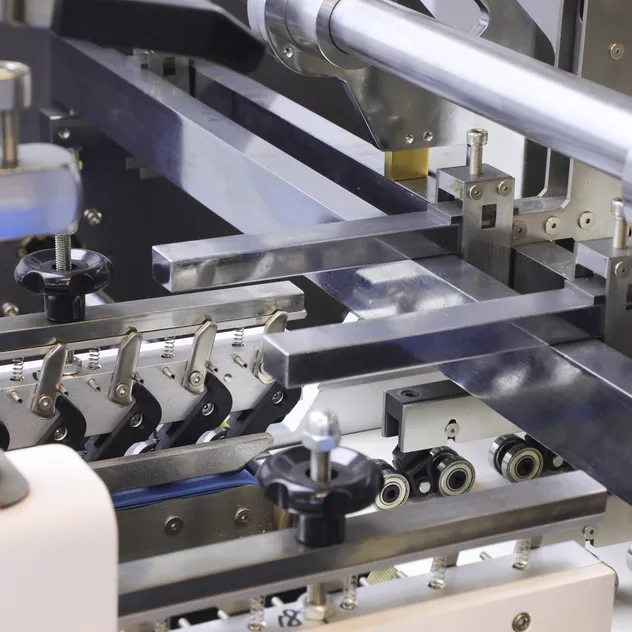

Correcting the paper from feeding. Pressing drive pressure is adjustable to fit various paper thicknesses.

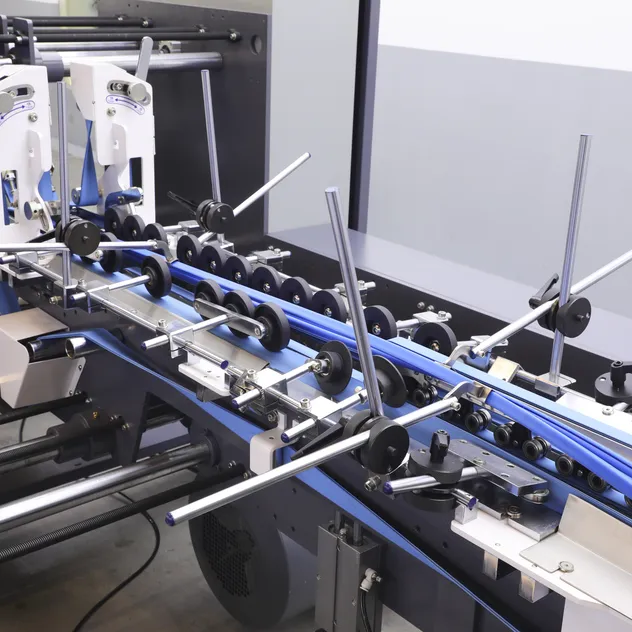

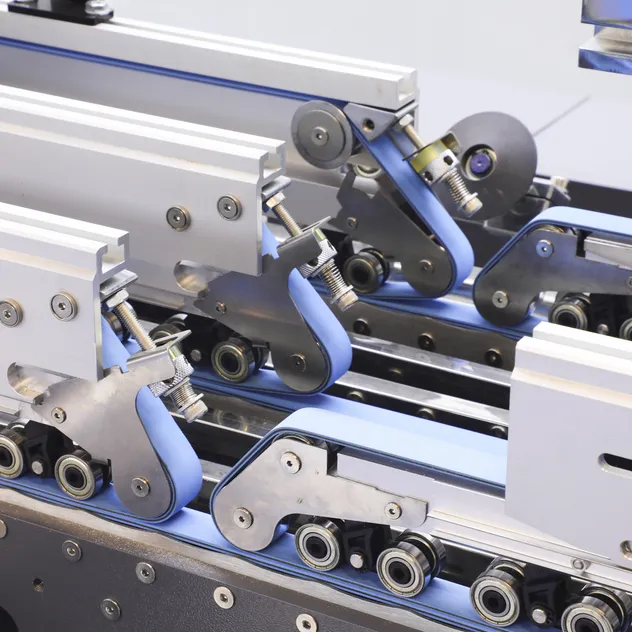

First folding line 180°, third folding line 135° pre-folding for better box formation.

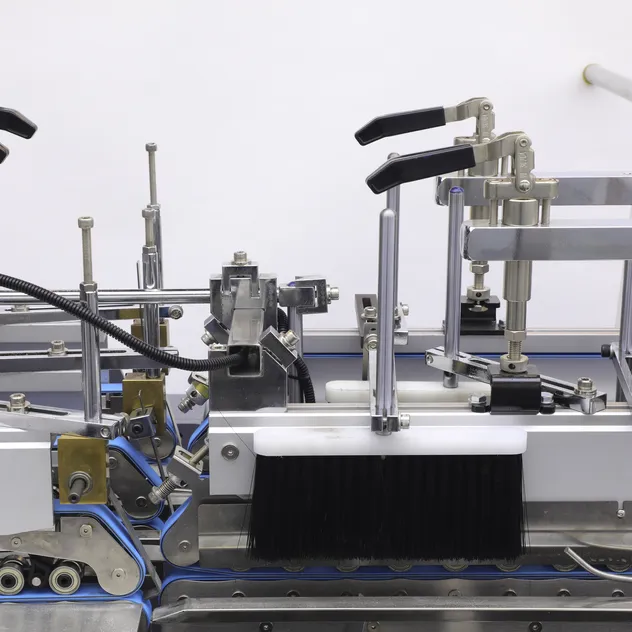

Sectional-type upper Belt board with special design for complex bottom-lock boxes.
Motorized and untimed electronic back folding system using intelligent servo motor technology.
Collapsible central carrier by pneumatic system. Belt speed can be adjusted separately.

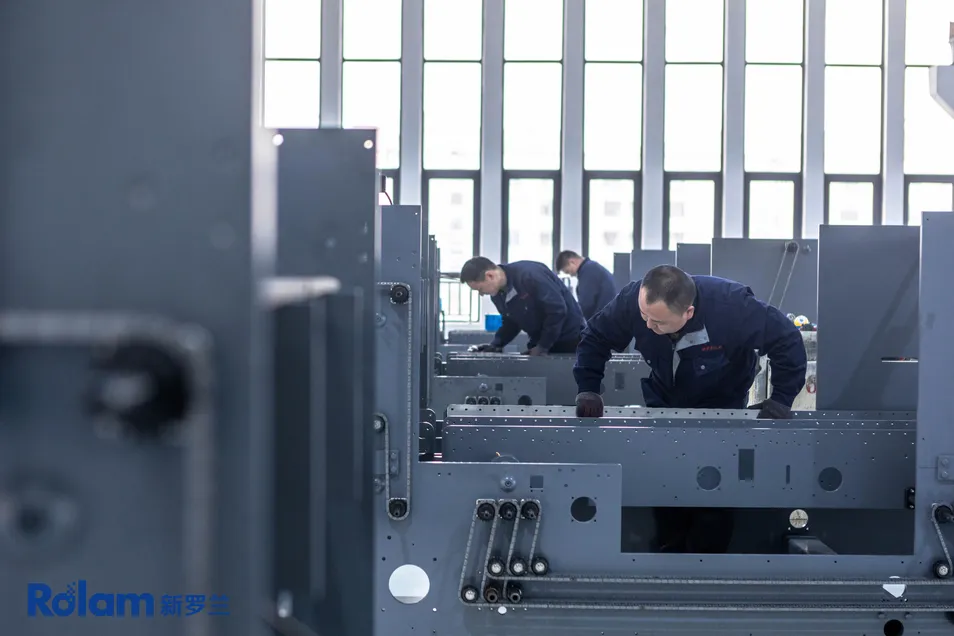

Every machine passes 13 major and 132 minor inspection items, from assembly to refined post-production checks.

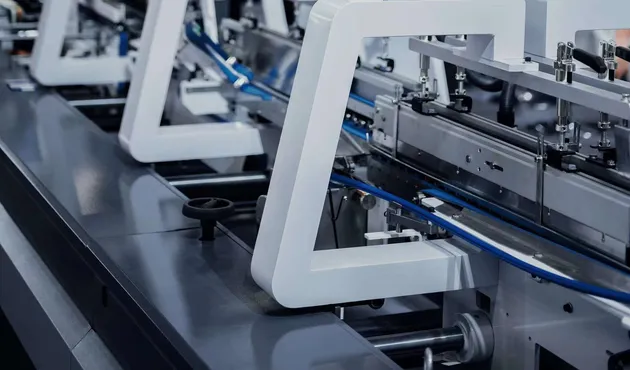

Before delivery, we run the machine at high speed for an extended period to ensure absolute stability.

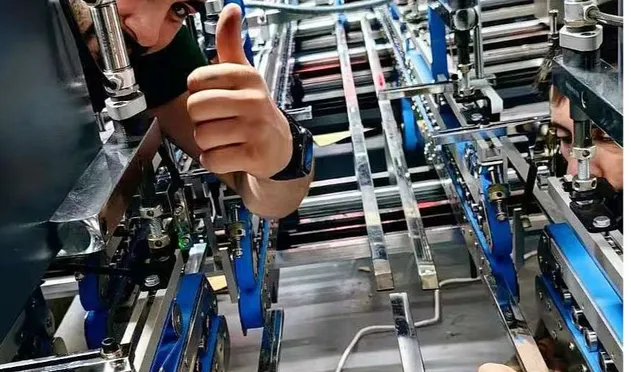

Remote troubleshooting and on-site dispatch of certified engineers for installation and training.
Established in 2006, we are a professional manufacturer specializing in research, manufacturing, and marketing of high-quality equipment for the cardboard and corrugated box folding industry. As a National High-tech enterprise, we hold numerous patents and our equipment has passed rigorous national quality inspections.
