Full Automatic Ice Cream Smaller Salad Bowl Paper Bowl Making Machine
Full Automatic Ice Cream Smaller Salad Bowl Paper Bowl Making Machine
Full Automatic Ice Cream Smaller Salad Bowl Paper Bowl Making Machine
Full Automatic Ice Cream Smaller Salad Bowl Paper Bowl Making Machine
Full Automatic Ice Cream Smaller Salad Bowl Paper Bowl Making Machine
1 / 5
Full Automatic Ice Cream Smaller Salad Bowl Paper Bowl Making Machine
Full Automatic Ice Cream Smaller Salad Bowl Paper Bowl Making Machine
Full Automatic Ice Cream Smaller Salad Bowl Paper Bowl Making Machine
Full Automatic Ice Cream Smaller Salad Bowl Paper Bowl Making Machine
Full Automatic Ice Cream Smaller Salad Bowl Paper Bowl Making Machine

Full Automatic Ice Cream Smaller Salad Bowl Paper Bowl Making Machine

Customization: Available
Warranty: 1 Year
Application: Food
Send Inquiry

Product Description

Basic Information

Model NO.
RD-LB120-3600B
Production Speed
45-50PCS/Min
Voltage
380V/220V 50Hz
Certification
CE
Process
Paper Machine
Usage
Packing Paper Machine
Type
Paper Folding Machine
Automatic Grade
Automatic
Transport Package
Wooden Cases
Origin
China
HS Code
84413090
Production Capacity
100set

Product Description

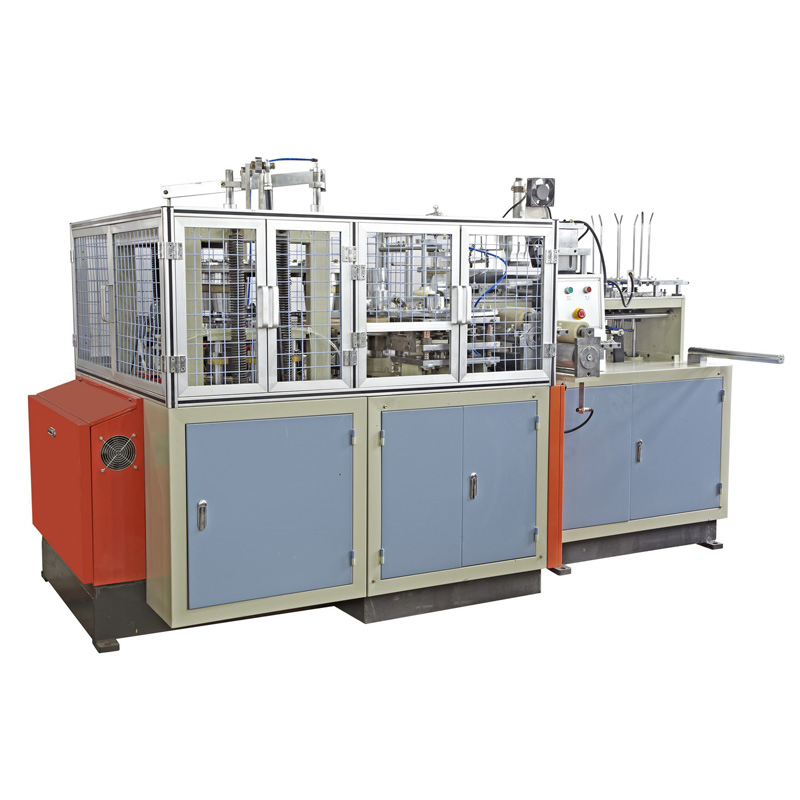

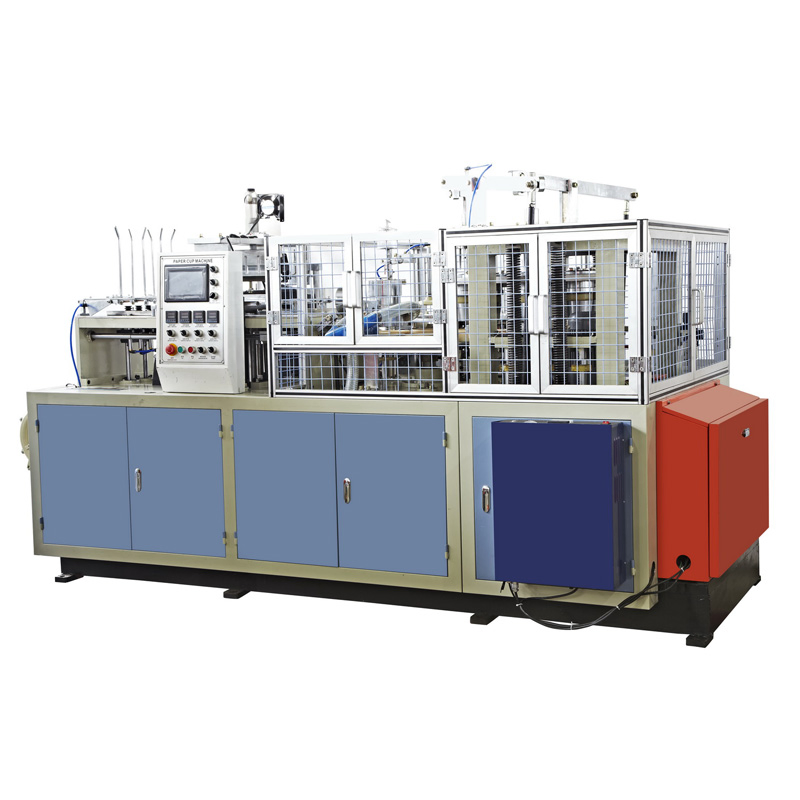

RD-LB120-3600B Paper bowl forming machine is a high-performance full automatic forming solution. It integrates multiple advanced functions to ensure precision and efficiency in paper bowl production.

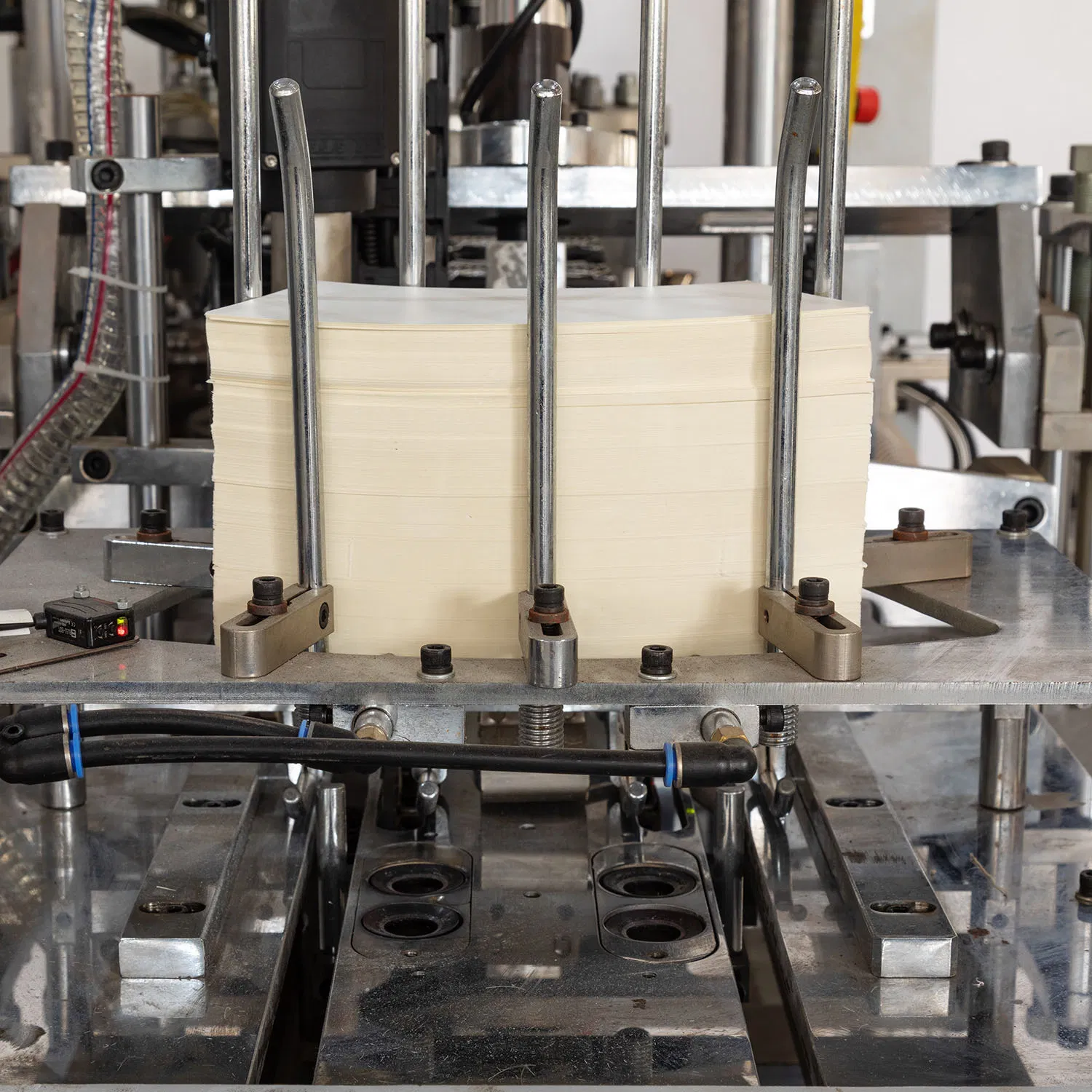

Automatic row-by-row paper feeding with retreat prevention for maximum precision.
Advanced ultrasonic sealing and mechanical arm cylinder transfer.
Comprehensive process: oiling, bottom punching, folding, preheating, knurling, and stacking.
Servo motor controlled bottom punching: sends paper only when the body is present to eliminate waste.
Vertical axis internal structure with an automatic lubrication system for reduced friction.
Smart sensor control for automatic shutdown during issues, ensuring machine durability.

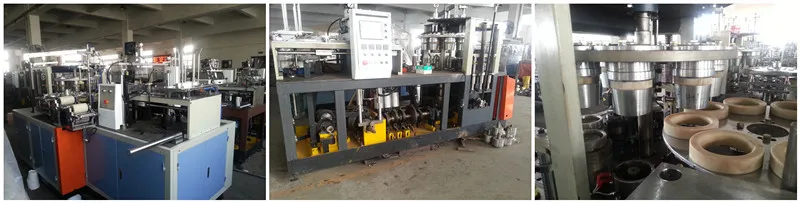

Full Automatic Paper Bowl Making Machine

Technical Parameters

Size of Cup35OZ (Adjustable by mould)
Paper Material180-380g (Single or double PE coated paper)
Production Speed45-50 pcs/min
Power Supply380V/220V 50Hz 3PH
Total Power6KW
Weight2500KG
Overall Dimensions3000 x 1200 x 1580mm (LxWxH)

Frequently Asked Questions

What is the maximum production speed of this machine?
The RD-LB120-3600B paper bowl forming machine operates at a stable speed of 45-50 pieces per minute.
What types of paper can be used for bowl production?
It supports single or double PE coated paper with a weight range between 180g and 380g.
How does the machine prevent paper waste during the bottom punching process?
The machine utilizes a servo motor for bottom punching. It is designed to only send bottom paper when a paper bowl body is detected, significantly reducing waste.
Does the machine require manual lubrication?
No, the machine is equipped with an automatic lubrication system that services all mechanical parts to reduce friction and maintenance effort.
What safety features are integrated into the system?
The machine includes multiple sensors that monitor the operation. If any problem is detected, the machine stops automatically to protect the components and ensure durability.
Is the cup size adjustable?
Yes, while the standard setup is for 35OZ bowls, the size can be adjusted by changing the specific moulds.
