Basic Information
Production Speed
60-80PCS/Min
Control Panel
Computer Control Panel
After-sales Service
1 Year
Usage
Household Paper Machine
Type
Paper Folding Machine
Automatic Grade
Automatic
Transport Package
SEAWORTHY WOODEN CASES
Production Capacity
100SETS/YEAR
Product Description

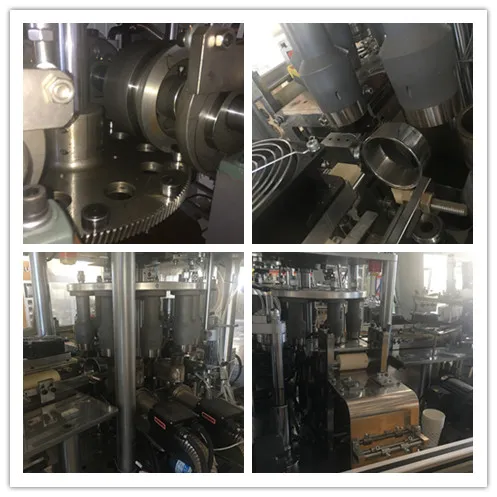

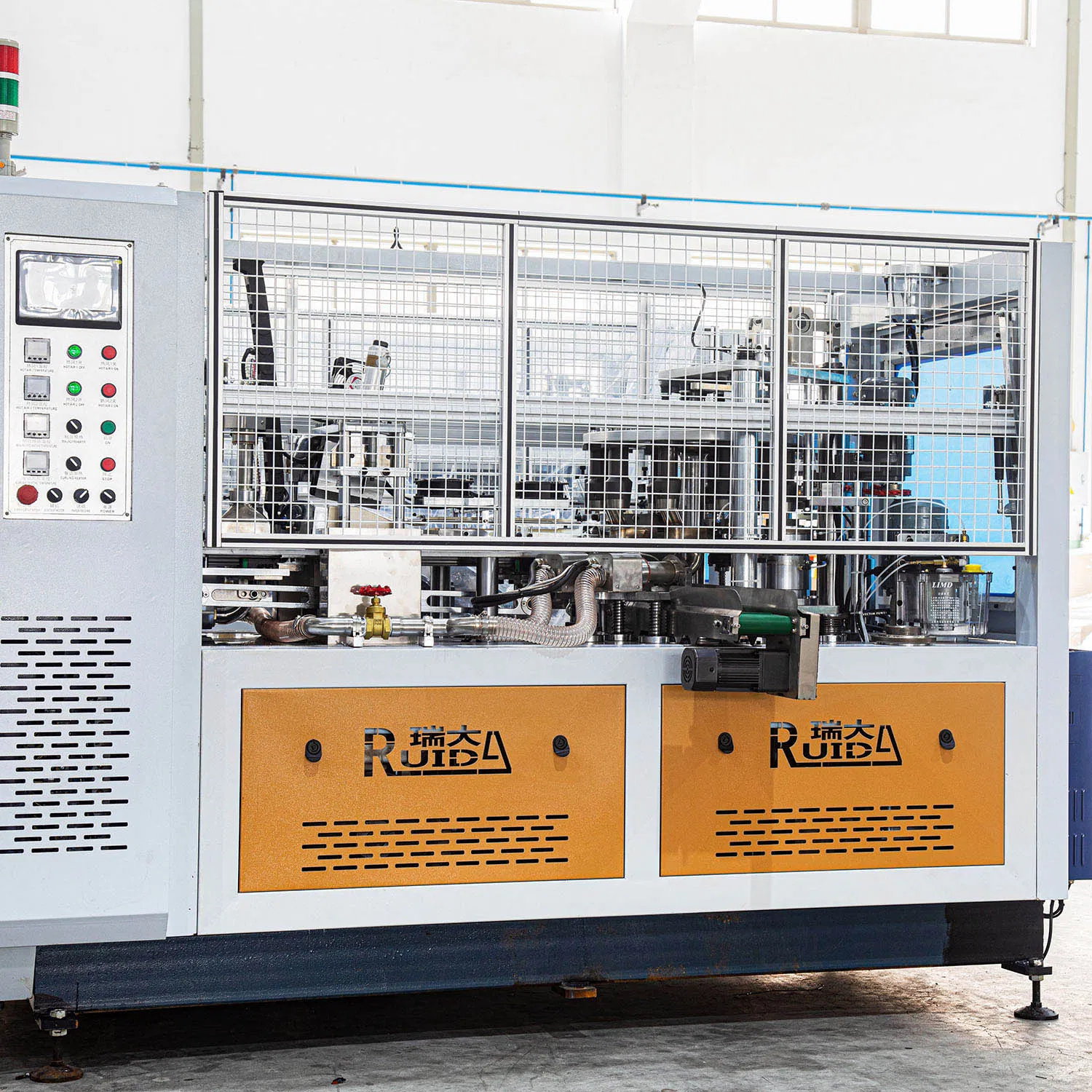

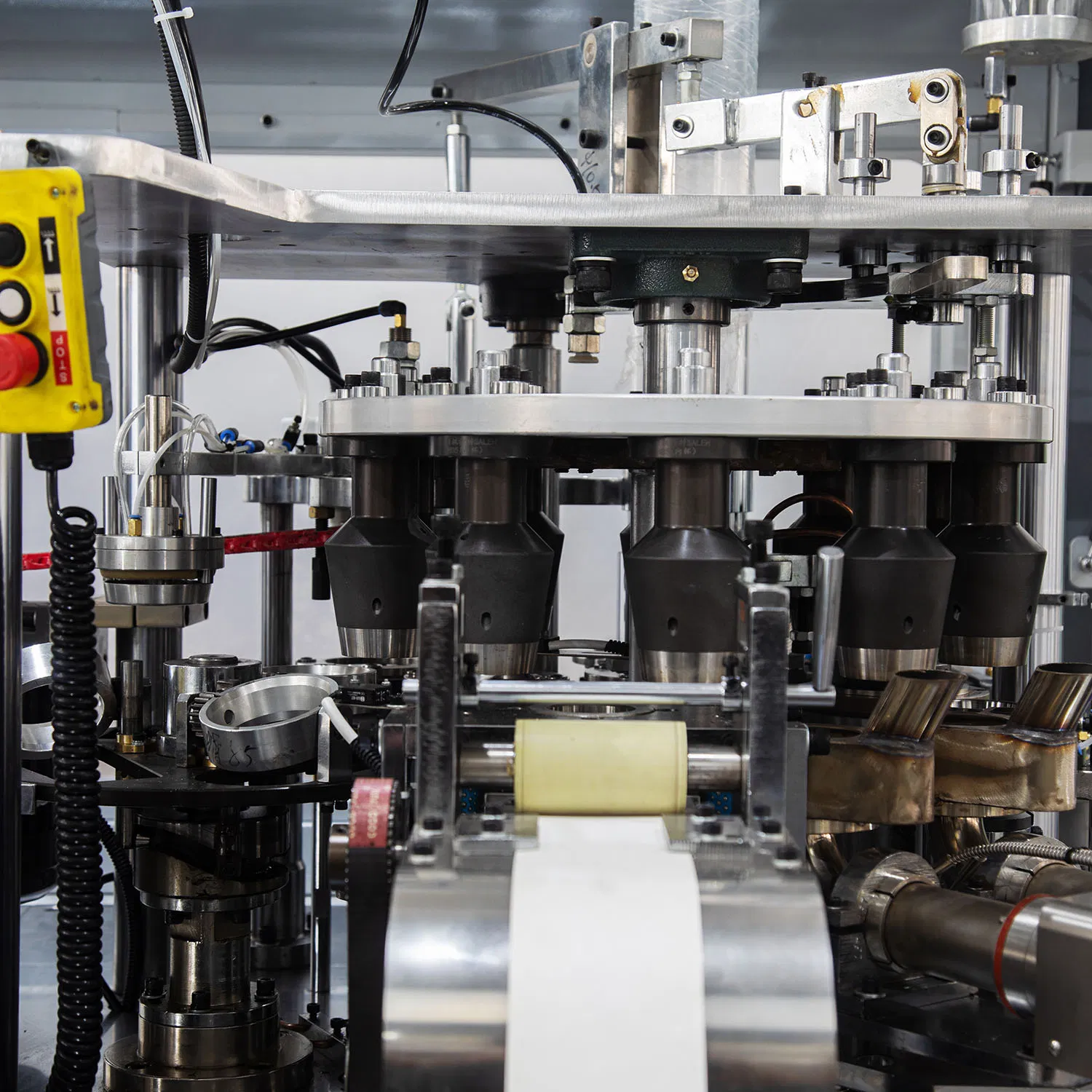

RD-12/22-100B high speed paper cup forming machine comes with two turnplate, open intermittent indexing cam mechanism and gear transmission, longitudinal axis structures. The machine comes with PLC control system, sensor failure detecting, and can stop working automatically if the machine has any problem, it can greatly improve operation safety and reducing labor cost. The machine can finish the whole process including paper feeding, side sealing, cup bottom punching & feeding, heating, knurling, cup-top curling, cup stacker. It is the best choice for making paper cups.
| Model |
RD-12/22-100B |
| Cups Specifications |
6-22OZ |
| Cups material |
Single PE/Double PE coated paper |
| Paper Specifications |
190-500g/m² |
| Speed |
60-80 pcs/min |
| Weight |
3500kg |
| Gas source |
0.4m³/min |
| General Power |
9Kw |
| Power supply |
220v/380v, 50Hz |
| Packing Dimensions |
2730*1660*1800mm(L*W*H) |
| Cup Use |
Round paper cups, drinking, noodle and vending cups ice-cream and food containers |
| Other Products |
Paper cup machinery, die cutting machine, paper cup forming machine, cup top flatten machine. |
Key Characteristics

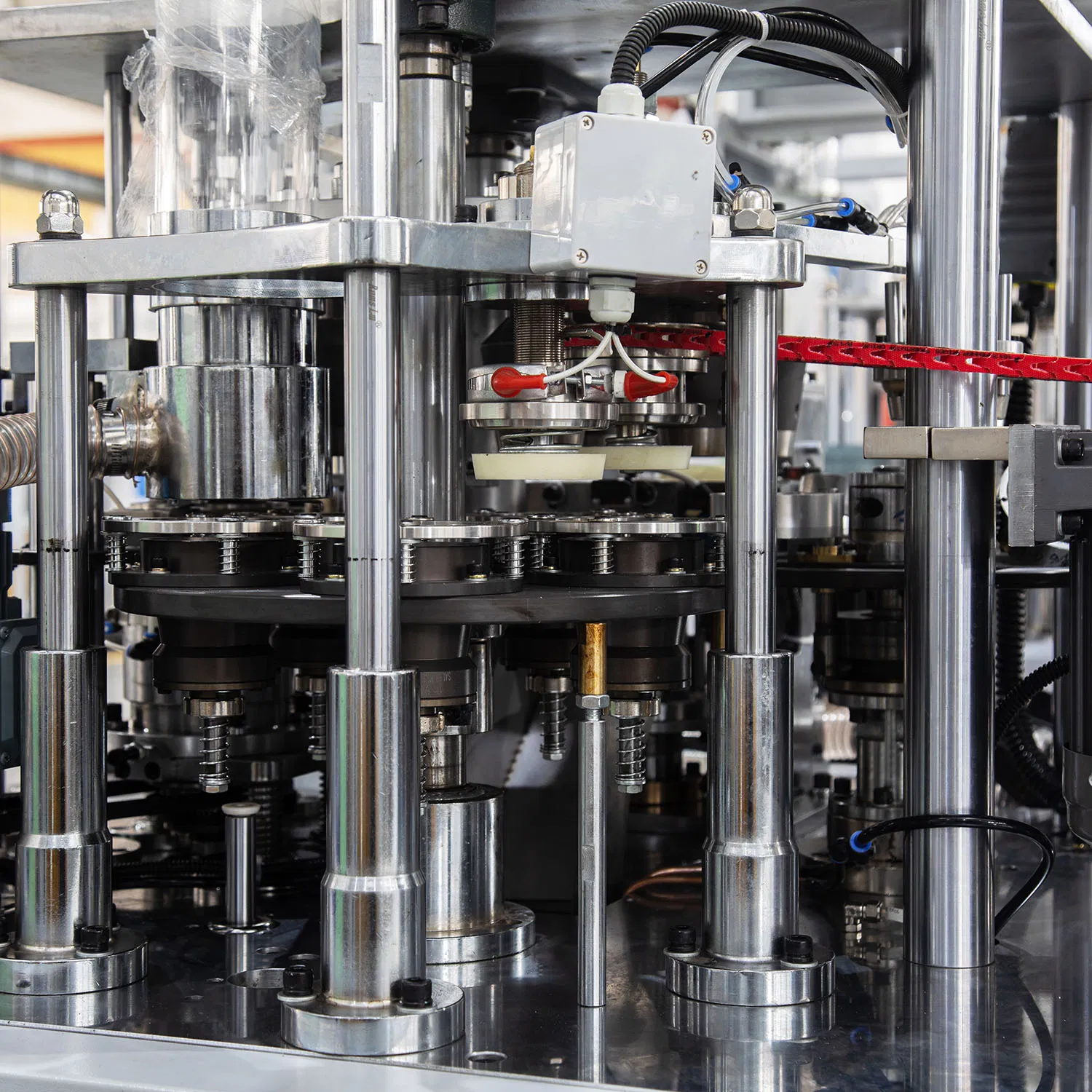

- High speed paper cup forming machine comes with two turnplate, open intermittent cam mechanism and gear transmission, longitudinal axis structures.
- The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly.

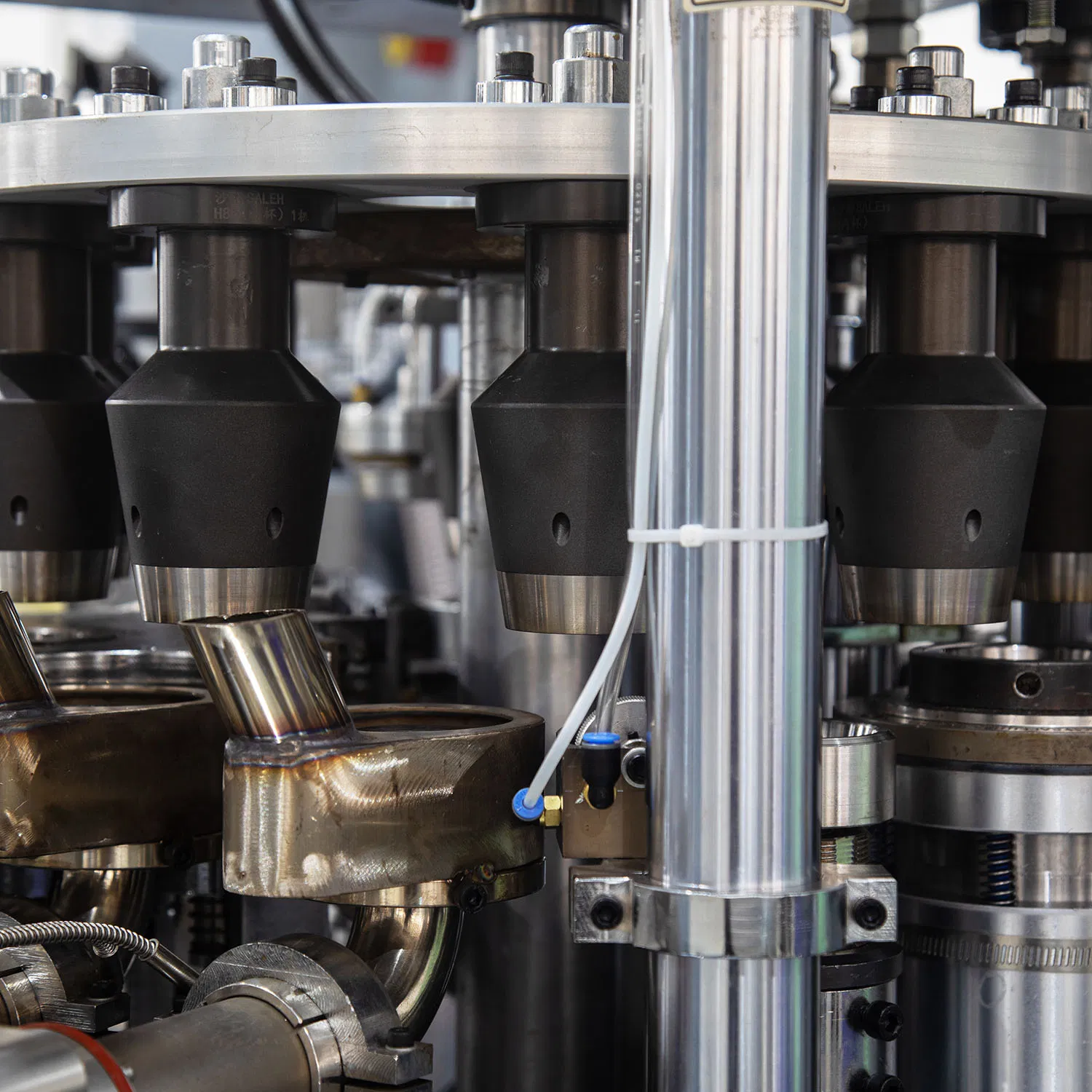

- Bottom sealing by hot air devices, ensuring efficiency; the hot air device is imported.

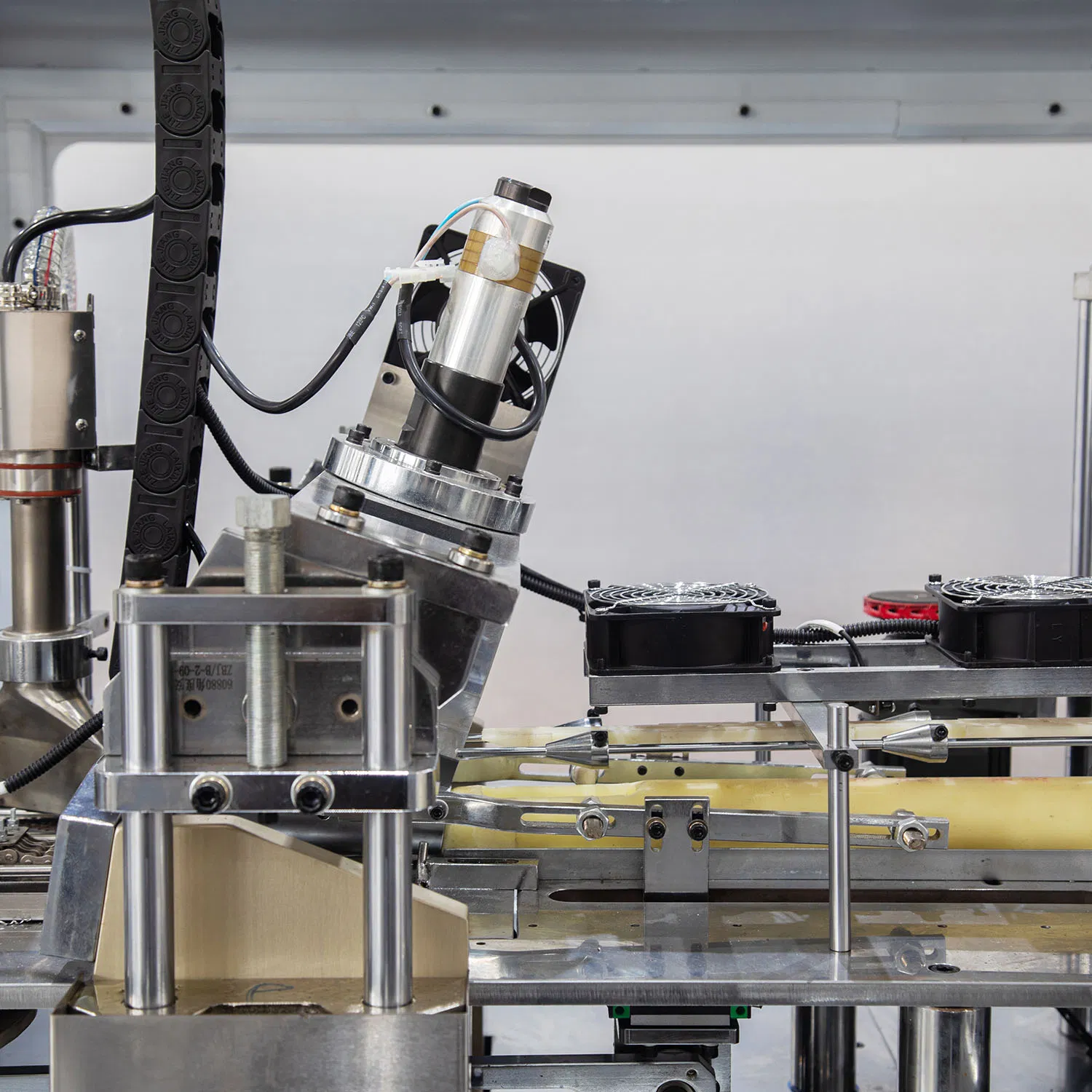

- Cup side sealing by ultrasonic technology.
- Cup top curling has two steps: rotary curling and heating figuration, making the curling more stable and smooth.
- Equipped with PLC control system and sensor failure detecting for improved safety and reduced labor costs.
- More efficient and higher performance compared to standard models.
- Easy to produce cups with different sizes by changing moulds.
- Includes an automatic cup delivery system and counter.
- Compact design with smaller dimensions for space efficiency.
Frequently Asked Questions
What is the production speed of the RD-12/22-100B?
The machine operates at a high speed of 60-80 pieces per minute, depending on the material and cup size.
What range of cup sizes can this machine produce?
This model is versatile and can produce paper cups ranging from 6OZ to 22OZ.
Does the machine support both single and double PE coated paper?
Yes, the RD-12/22-100B is compatible with both Single PE and Double PE coated paper materials.
How does the automatic safety system work?
The machine features a PLC control system with sensor failure detection. It will automatically stop if any operational problem is detected to ensure safety.
Is it easy to switch between different cup sizes?
Yes, the machine is designed for flexibility. You can easily produce different cup sizes by simply changing the corresponding moulds.
What kind of maintenance does the machine require?
The machine is equipped with an automatic lubrication system, which significantly reduces manual maintenance and ensures all mechanical parts run smoothly.
