High-Speed Automatic Paper Cup and Bowl Production Machine
High-Speed Automatic Paper Cup and Bowl Production Machine
High-Speed Automatic Paper Cup and Bowl Production Machine
High-Speed Automatic Paper Cup and Bowl Production Machine
High-Speed Automatic Paper Cup and Bowl Production Machine
1 / 5
High-Speed Automatic Paper Cup and Bowl Production Machine
High-Speed Automatic Paper Cup and Bowl Production Machine
High-Speed Automatic Paper Cup and Bowl Production Machine
High-Speed Automatic Paper Cup and Bowl Production Machine
High-Speed Automatic Paper Cup and Bowl Production Machine

High-Speed Automatic Paper Cup and Bowl Production Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
YB-W35
Production Speed
＞45pcs/min
Voltage
380V 50Hz
Control Panel
Computer Control Panel
Certification
CE
After-sales Service
12 Month
Transport Package
Wooden Box by Sea
Production Capacity
1000sets/Year
Product Description

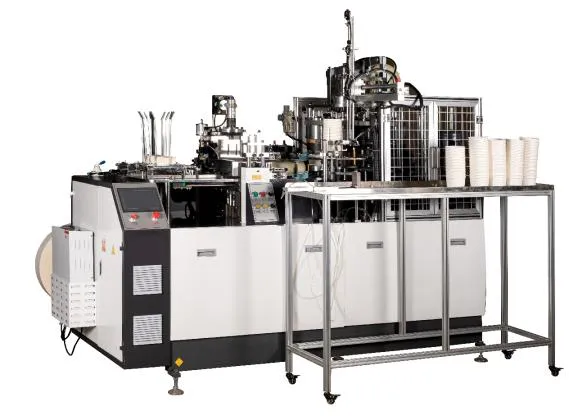

YB-W35 Paper Bowl Machine

YB-W35 Paper Bowl machine
● Quotation: The ex factory price including tax and wooden box packaging is 129,000 RMB.
● Packing type: Wooden base plate, damp proof plastic lining, fully-closed plate-box external.
● Delivery time: 40 days after receive the payment of deposit.
● Payment: Deposit 30% by T/T in advance, delivery against payment of 70% balance after qualified acceptance.
● Installation: Technicians available for installation and debugging (USD 100/day service charge).
● Guarantee: 12 months after receiving the machine.

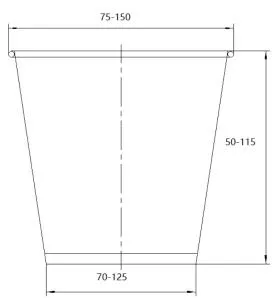

Machine Detail 1 Machine Detail 2
Core Advantages

Reliability

YB-W35 intelligent medium-speed paper bowl forming machine features high performance and efficiency. The integral steel body and auto oil lubrication system ensure long-term stable operation.

Energy Efficient

Advanced high-precision open cam and gear drive make it accurate. Servo tracking bottom paper feeding effectively saves raw materials.

Humanized Design

The man-machine interface PLC system controls the long-term stable operation of the whole machine, making it easy to operate.

Technical Parameters
Parameter Specification
ModelYB-W35 automatic paper bowl forming machine
Cup Size20-50oz (mould can be changed)
Raw MaterialsSingle /Double PE coated paper
Paper Weight140-350gsm
Speed60-75pcs/min
Power Source380V 50Hz
Total Power4.8KW
Weight2400KG
Dimension (L*W*H)2450 x 1300 x 1750mm
Air Pressure0.6Mpa, output: 0.6 m³/minute
Specification Details

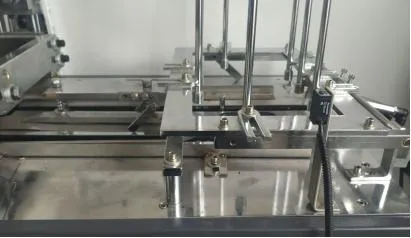

1. Multiple Paper Feeding: Three-time feeding to avoid unevenness on both sides of the paper bowl fan.

Paper Feeding

2. Sensors Detection: Controlled by encoder and sensors to ensure paper fan matches cup bottom, reducing waste. Includes fault alarm and auto shutdown.

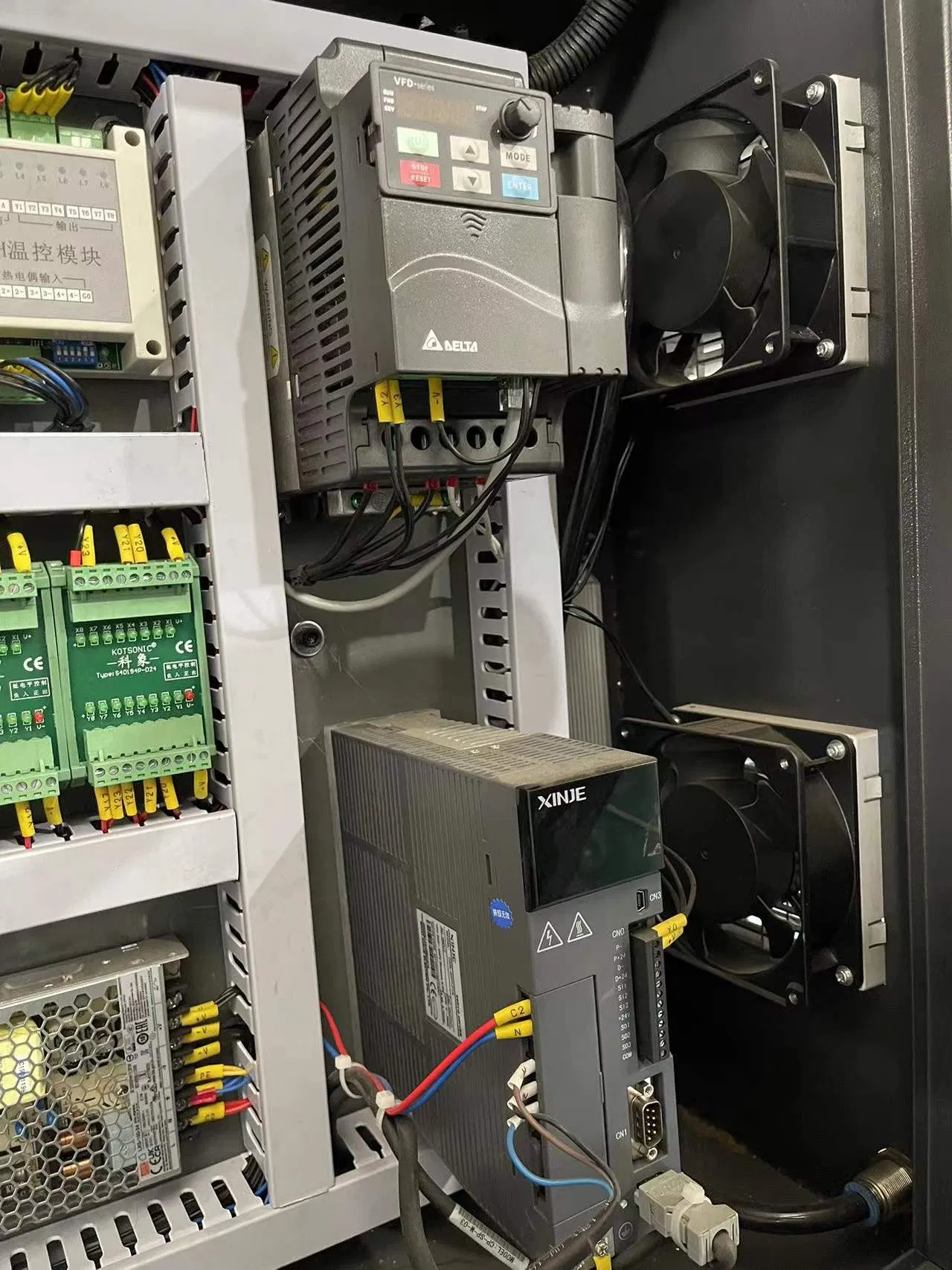

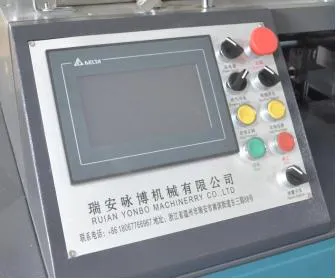

3. PLC Control System: Improves intelligence and precision. All parameters are adjustable via the control panel.

PLC System

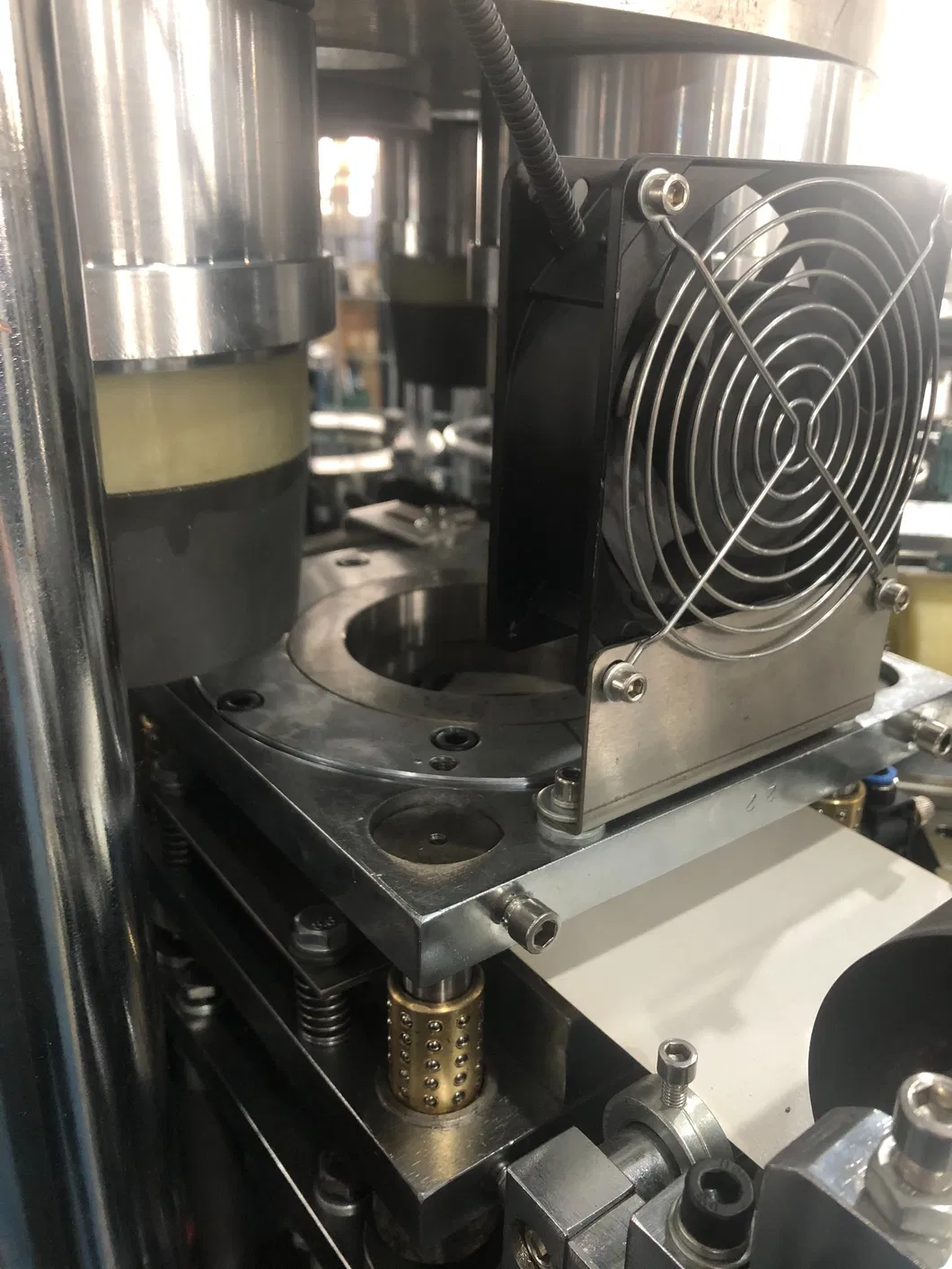

4. Ultrasonic Cooling Fan: Multiple fans operate simultaneously to speed up heat dissipation.

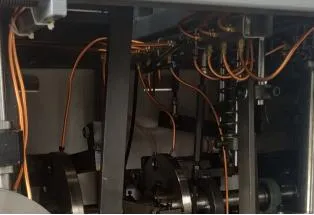

5. Automatic Lubrication: Lubricates key moving parts via copper pipes, extending machine service life.

Lubrication System

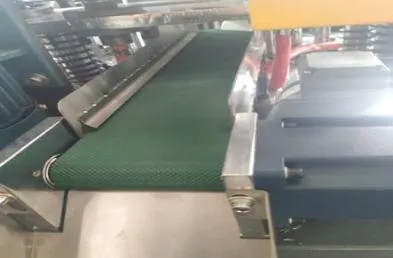

6. Waste Paper Removal: Conveyor belt transfers waste paper to keep the machine interior clean.

Waste Removal

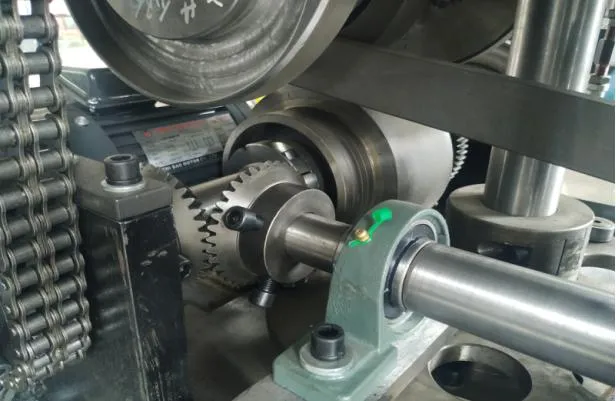

7. Gear Drive System: Grooved wheel and full gears drive system for closer connections and stable forming process.

Gear Drive

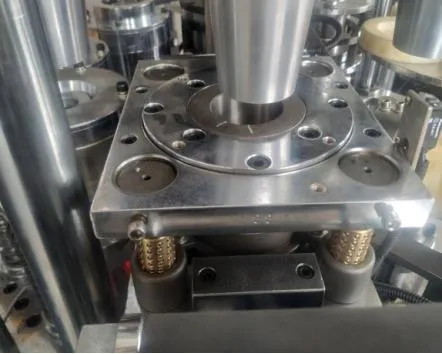

8. Direct Bottom Punching: Direct punch bottom feeding method avoids bottom turning over during production.

Bottom Punching
Spare Parts List
NameQuantity
Electrical heating rod1pcs
Adjustable spanner 10inch1pcs
Small Springs3pcs
Preheat heating collareach 1pc
Heater ring2 pcs
Bearing 5204 + Knurling wheel1set
Inner hexagonal spanner1set
Open-end wrench set1set
Oil Gun1pcs
Operation manual1pcs

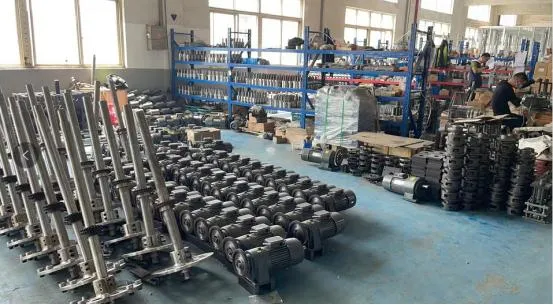

Production Environment
Frequently Asked Questions
What is the production speed of the YB-W35?
The machine operates at a stable speed of 60-75 pieces per minute, depending on the material and bowl size.
What bowl sizes can this machine produce?
It is designed for large paper bowls ranging from 20oz to 50oz. The moulds can be customized according to your specific requirements.
Does it support double PE coated paper?
Yes, the YB-W35 is compatible with both single and double PE coated paper, making it suitable for both hot and cold food containers.
What is the warranty and after-sales service?
We provide a 12-month guarantee period after you receive the machine. Technical support and installation services are also available.
How does the automatic lubrication system benefit the machine?
The system automatically lubricates key moving parts through copper pipes, which reduces manual labor, ensures smoother operation, and significantly extends the machine's service life.
What are the power and air requirements?
The machine requires a 380V 50Hz power source and an air compressor providing 0.6Mpa pressure with an output of 0.6 m³/minute.
