Ruida Automatic High Speed Square and Rectangular Kraft Paper Bowl Making Machine
Ruida Automatic High Speed Square and Rectangular Kraft Paper Bowl Making Machine
Ruida Automatic High Speed Square and Rectangular Kraft Paper Bowl Making Machine
Ruida Automatic High Speed Square and Rectangular Kraft Paper Bowl Making Machine
Ruida Automatic High Speed Square and Rectangular Kraft Paper Bowl Making Machine
1 / 5
Ruida Automatic High Speed Square and Rectangular Kraft Paper Bowl Making Machine
Ruida Automatic High Speed Square and Rectangular Kraft Paper Bowl Making Machine
Ruida Automatic High Speed Square and Rectangular Kraft Paper Bowl Making Machine
Ruida Automatic High Speed Square and Rectangular Kraft Paper Bowl Making Machine
Ruida Automatic High Speed Square and Rectangular Kraft Paper Bowl Making Machine

Ruida Automatic High Speed Square and Rectangular Kraft Paper Bowl Making Machine

Customization: Available
Warranty: 1 Year
Application: Food
Send Inquiry

Product Description

Basic Specifications
Model NO.
RD-XLF-SF
Production Speed
65-75PCS/Min
Voltage
380V/220V 50Hz
Control Panel
Computer Control Panel
Certification
CE
After-sales Service
1 Year
Process
Paper Machine
Automatic Grade
Automatic
Origin
Made in China
HS Code
84413090
Product Overview

RD-XLF-SF High Speed square /rectangle cup forming machine is a professional equipment to produce the container at square/rectangular shapes. The machine adopts an automatic rotary paper suction mechanism and customized molding dies. Driven by open gears, the bottom is heated and extruded by hot air. It is suitable for making special containers such as square bottom and round top, square bottom and square top, and oval bottom designs.

Model RD-XLF-SF
Cups Specifications 500-1400ml
Cups Material Single PE/Double PE coated paper
Paper Specifications 170-350g/m²
Speed 55-75 pcs/min
Weight 4800kg
Gas Source 0.6m³/min
General Power 18Kw
Packing Dimensions 3600*1830*2050mm (L*W*H)
Cup Size 170mm(L) x 120mm(W)
Technical Characteristics
High speed paper bowl forming machine with two turnplates, open intermittent cam mechanism, and gear transmission.
Automatic lubrication system ensures all mechanical parts work smoothly.

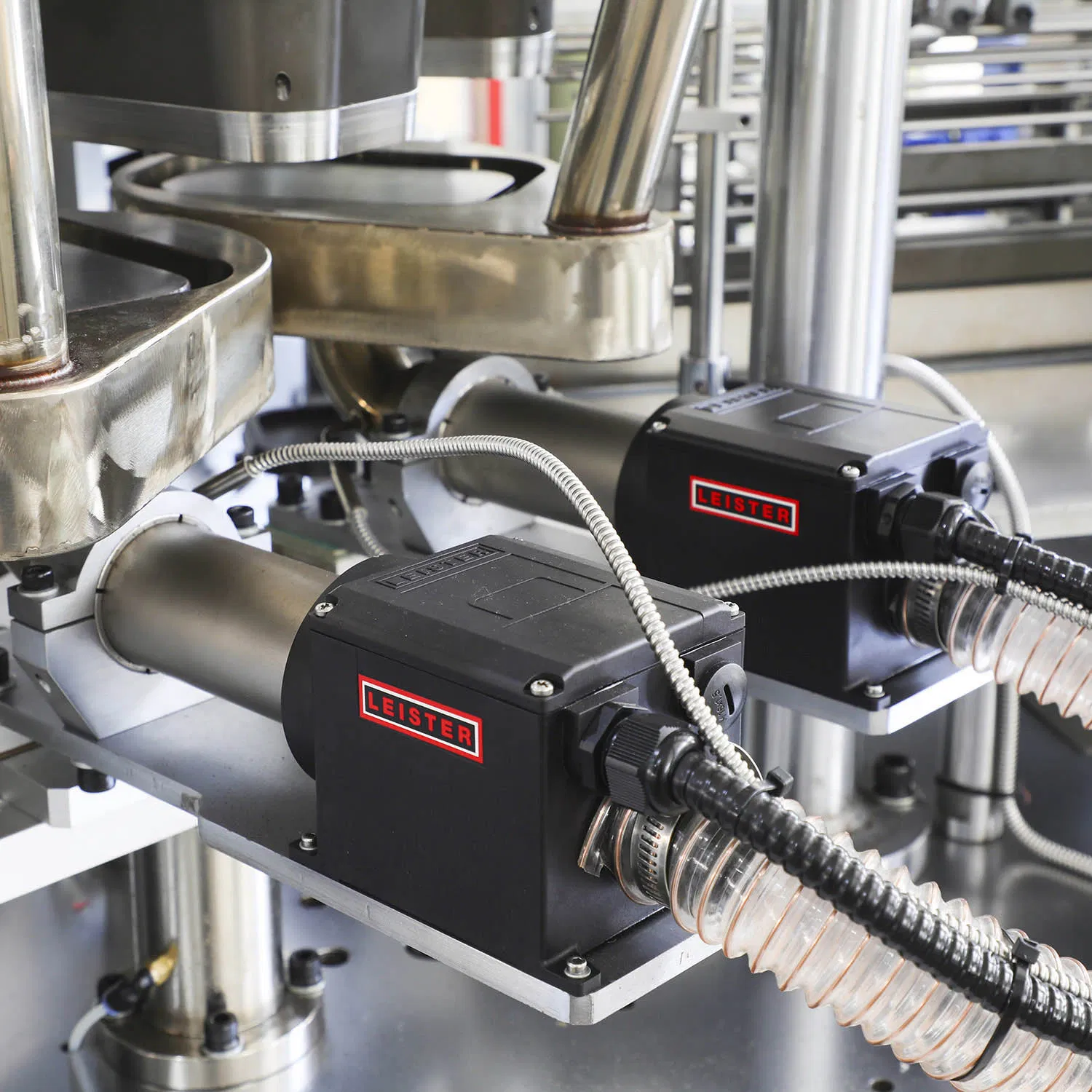

Efficient bottom sealing using imported hot air devices from Switzerland.
Cup side sealing utilizing both ultrasonic and hot air technology.
Two-step cup top curling (rotary curling and heating figuration) for a stable, smooth, and round appearance.
Advanced PLC control system with sensor failure detection and automatic stop for enhanced safety.

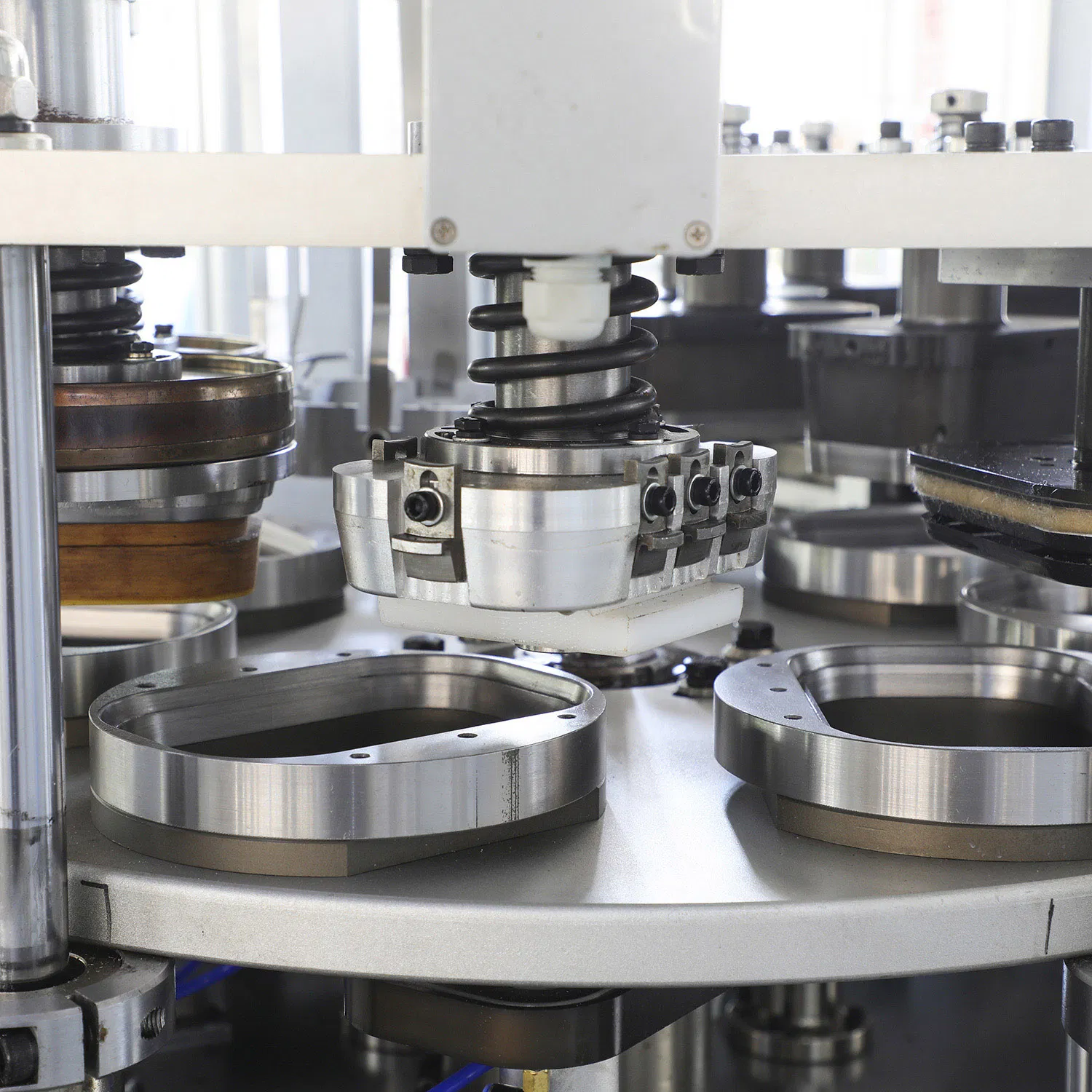

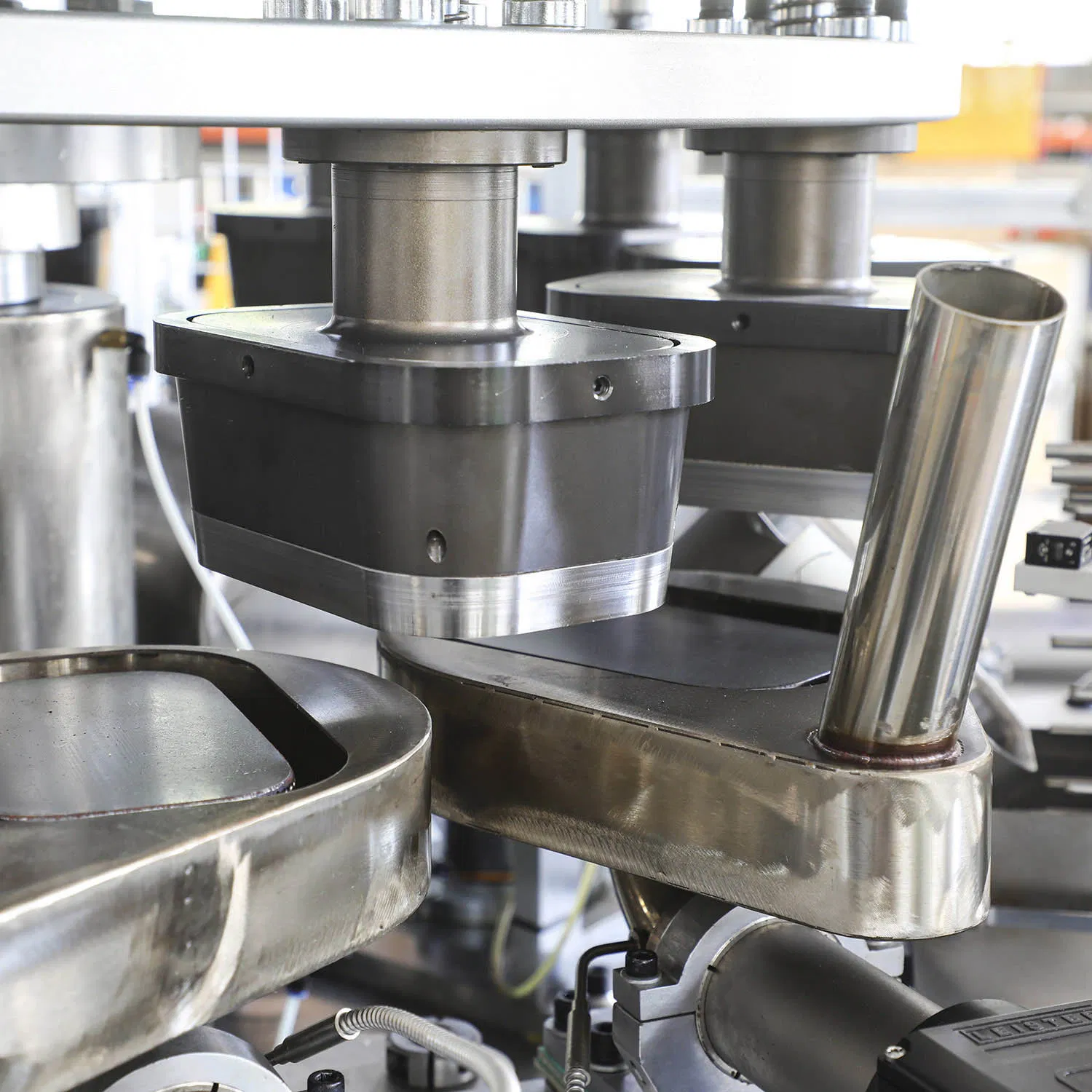

Easy size transitions by changing customized moulds.
Integrated automatic cup delivery system and counter.
Product Display
High Speed Square and Rectangular Paper Bowl Making Machine
Frequently Asked Questions
What is the production capacity of the RD-XLF-SF machine?
The machine operates at a high speed of 65-75 pieces per minute, depending on the material and cup size.
What types of paper can be used with this forming machine?
It is compatible with both Single PE and Double PE coated paper, with a weight range of 170-350g/m².
Can this machine produce different sizes of containers?
Yes, the machine is designed to be versatile. You can produce different sizes and shapes (square, rectangular, or oval) by simply changing the moulds.
How is the sealing quality ensured for the containers?
The machine uses a combination of ultrasonic and hot air technology for side sealing, and imported Swiss hot air devices for bottom sealing to ensure leak-proof results.
What safety features are included in the operation?
It features a PLC control system with integrated sensors that detect failures and automatically stop the machine to prevent damage and ensure operator safety.
What are the power and gas requirements?
The machine requires a power supply of 220V/380V 50Hz with a general power of 18Kw, and a gas source of 0.6m³/min.
