Basic Specifications
Application
Drinks, Oil, Tea, Fish, Meat, Snack, Rice, Flour, Seasoning
Type
Forming Filling Sealing Machine
Transport Package
Wooden Box by Sea
Production Capacity
2000 Sets/Year

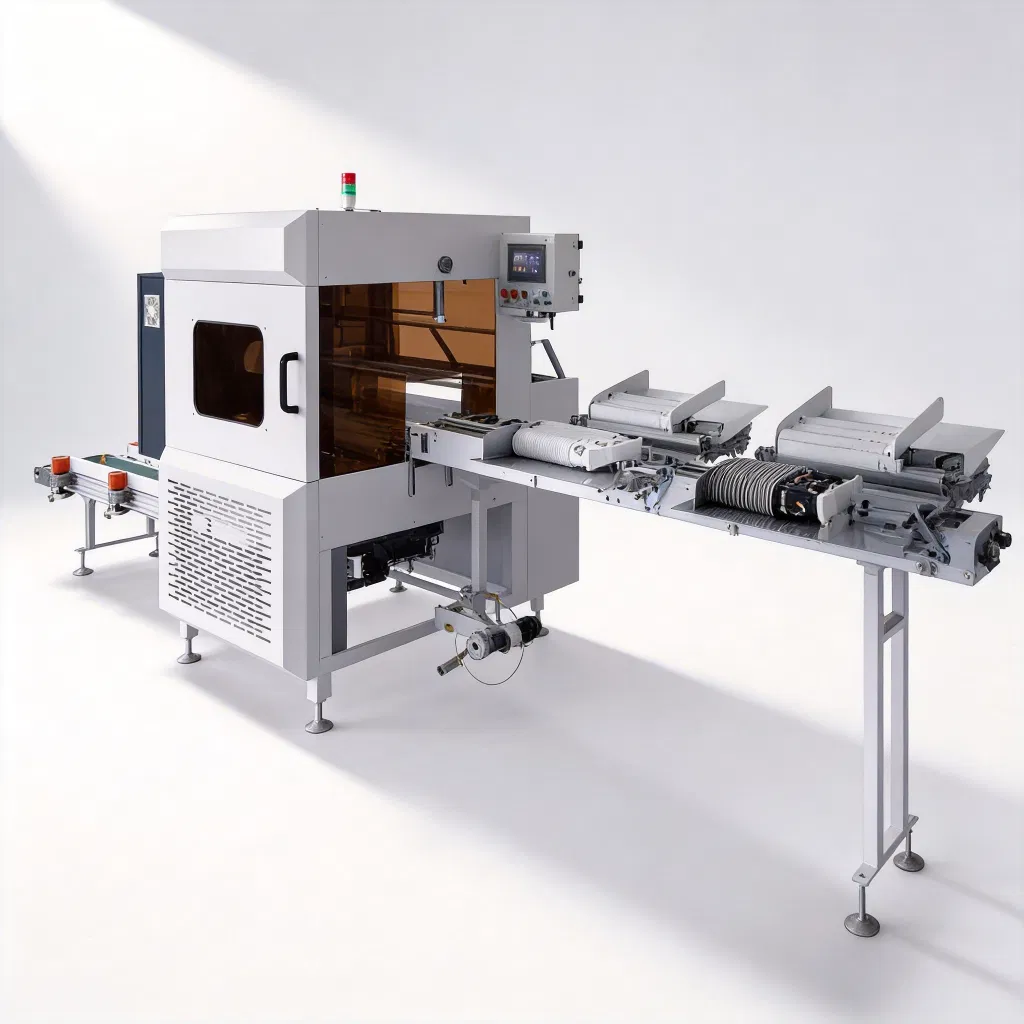

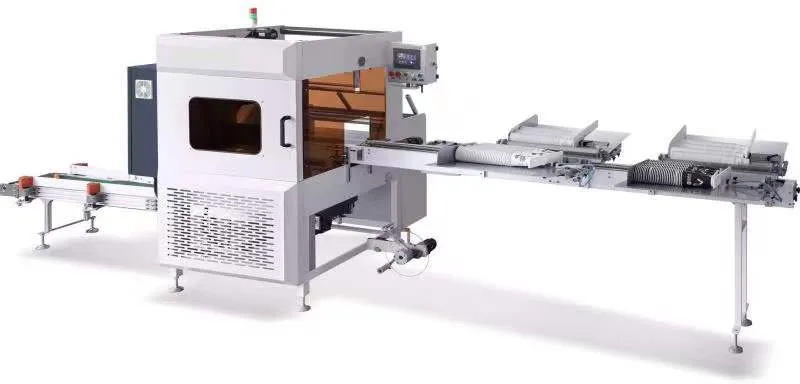

YB-520 Horizontal Packaging Machine - Four Stations

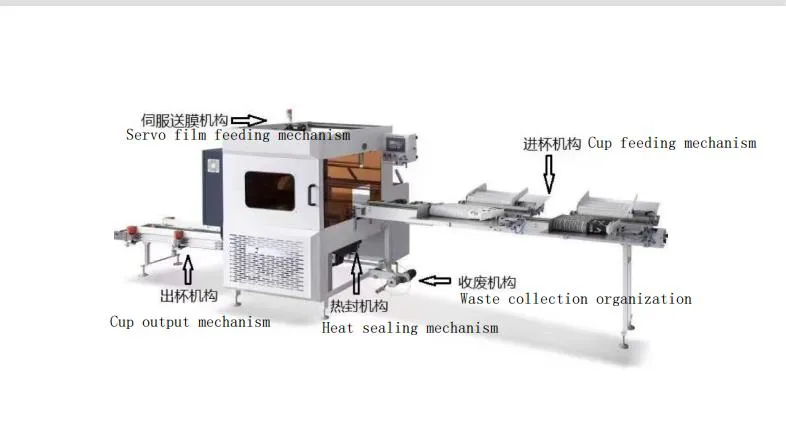

Equipment Introduction
➊
Cup feeding: After the paper cup is counted by the cup counting frame, it falls down and slides onto the cup table. After the optical eye detects a cup, the cup turning mechanism pours the paper cup on the rope and sends it to the top of the heat sealing splint.
➋
Film feeding: When the optical eye detects a cup, it sends a pulse to the servo driver after being recognized by the PLC program, and sends out the corresponding length film according to the different caliber of the cup.
➌
Heat sealing: The hot air splint opens, the cup moves down, the splint closes, and the heat sealing knife seals the film to complete the bag sealing process.
➍
Cup output: The sealed cup drops onto the rear conveyor board, and cups of different specifications are dropped into the box from the corresponding cup outlet according to the memory function of PLC program to complete cup collection.
Mechanism Characteristics

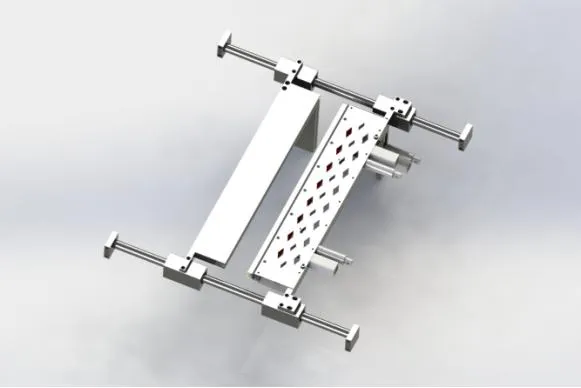

The use of mechanical and pneumatic execution makes the incision more firm and beautiful. Compared with other machines, the noise and vibration are significantly reduced. The cutter uses special materials and quenching processes for durability, supporting PE, OPP, PP, POF, and other films. The cutting knife prevents film sticking, making cleaning more convenient.

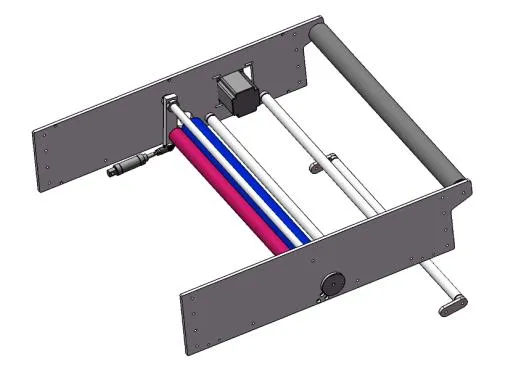

The servo motor film feeding mechanism ensures high accuracy. When integrated with multiple paper cup machines, film lengths can be set in groups, accommodating different cup sizes while saving material.

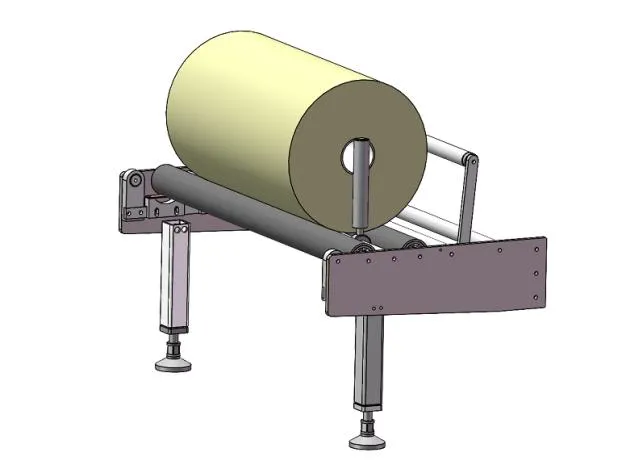

The floor-support film mechanism is faster and more convenient for threading and loading. It can handle larger and heavier film rolls with fewer restrictions.

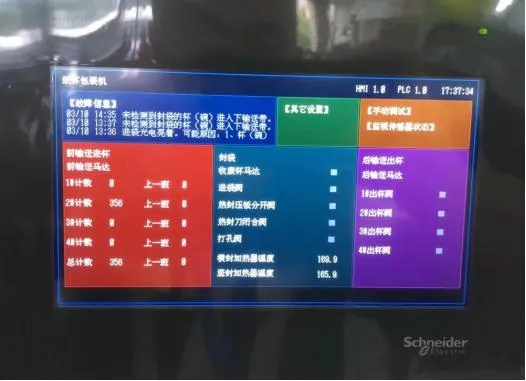

Equipped with an imported international brand PLC programmable controller and touch human-machine interface for simplified operation.
Ten Key Advantages
- 4 independent motor controls (servo motor for feeding, discharging, and waste collection).
- Motion controller for fast response to various commands.
- Precise positioning of products.
- Independent temperature control module for stable and uniform heating.
- 304 stainless steel used for all parts in contact with the product.
- Electrical components from leading international brands.
- Anti-empty bag function: Starts with material and stops without, saving film.
- One machine can produce different specifications and sizes online.
- Automatic shutdown alarm for insufficient air pressure to reduce waste.
- Stable and reliable quality proven through years of industry cooperation.
Technical Parameters - Four Stations
| Parameter | Specification |
|---|
| Model | YB-520B |
| Speed | 10-15 bag/min (Product/membrane dependent) |
| Cup Bottom Size | Ø65-Ø100, Ø100-Ø145 |
| Package Height | 250 - 550mm |
| Packing Film Material | OPP, PE, PP, POF |
| Film Thickness | 15 - 30um |
| Total Power | 2.8KW |
| Electrical Power | 220V 50HZ |
| Air Supply | ≥0.5 Mpa |
| Weight | 800kg |
| Machinery Size | 6000*1600*1730mm |

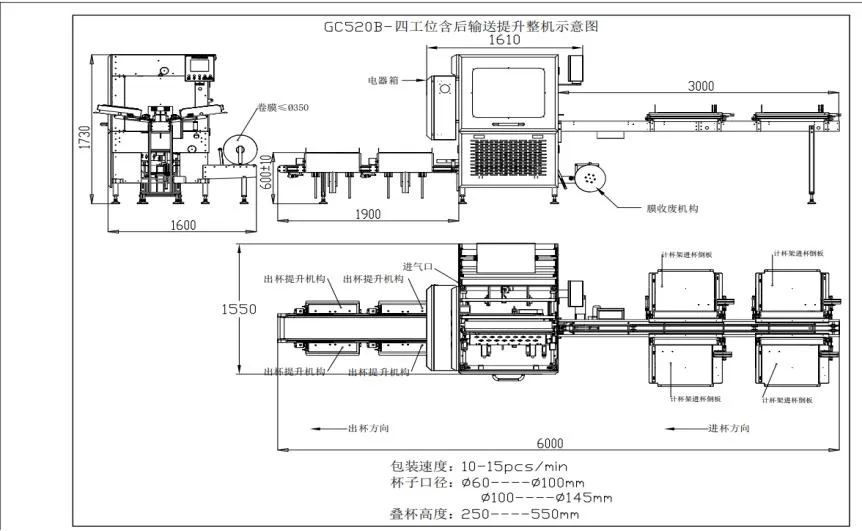

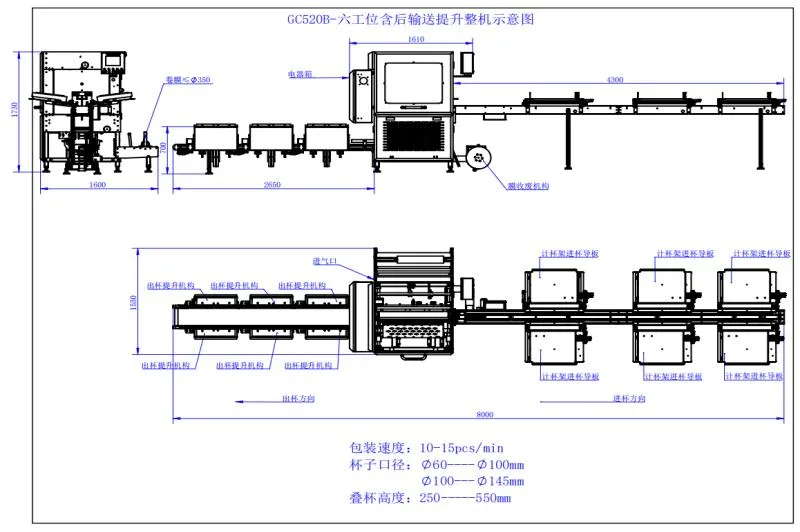

Schematic Diagram

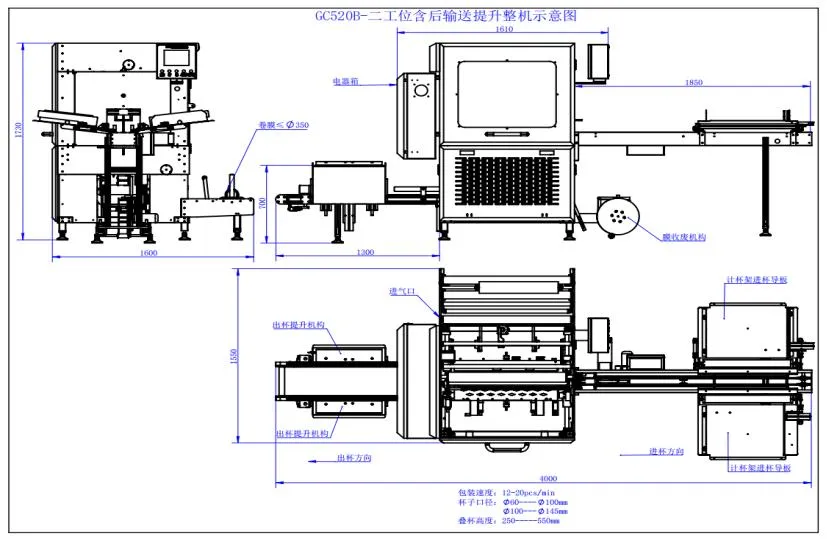

Technical Parameters - Two & Six Stations
| Station Type | Two Stations | Six Stations |
|---|
| Speed | 10-20 bag/min | 10-15 bag/min |
| Weight | 650kg | 950kg |
| Machinery Size | 4000*1600*1730mm | 8000*1600*1730mm |
Core Component Configuration
| Parts | Brand | Quantity | Origin |
|---|
| PLC | Schneider | 1 set | France |
| Touch Screen | Schneider | 1 pcs | France |
| Temperature Template | Schneider | 1 pcs | France |
| Servo Motor | Delta/Schneider | 1 set | China/France |
| Photoelectric Switch | Schneider | 6 pcs | France |
| Intermediate Relay | Schneider | 6 pcs | France |
| Pneumatic Components | Runjia | 1 set | China |
Note: The above is for reference only; please refer to the actual equipment configuration.

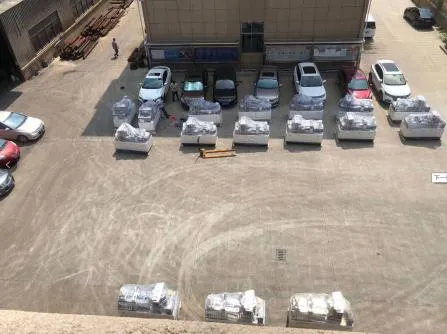

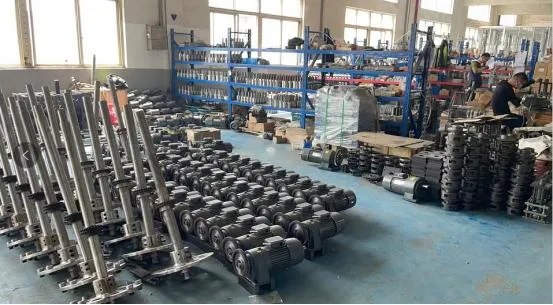

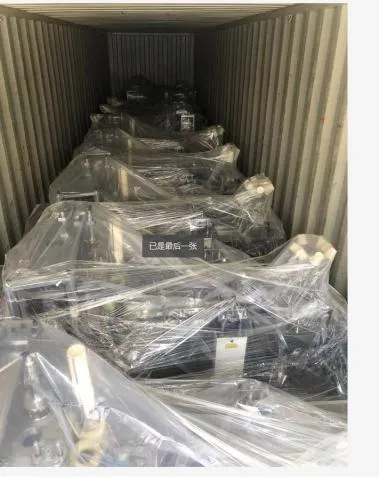

Factory Overview
Frequently Asked Questions
What types of materials can the YB-520 package?
The YB-520 is versatile and can package various products including drinks, oil, tea, fish, meat, snacks, rice, flour, and seasonings. It is specifically designed for powder and cup-based items.
Which packaging films are compatible with this machine?
The equipment effectively supports multiple types of packaging films, including PE, OPP, PP, and POF. The cutting mechanism is optimized to prevent film sticking.
How does the "Anti-empty bag" function work?
This intelligent feature ensures the machine only starts packaging when material is detected and stops automatically when material is absent. This significantly reduces packaging film waste.
Can one machine handle different cup sizes?
Yes, the machine can produce different specifications and sizes. The servo motor film feeding mechanism allows for group settings of film length to match different cup calibers.
What are the main electrical components used?
The machine utilizes high-quality international brands for its core components, including Schneider PLC, touch screens, and relays, ensuring long-term stability and easy maintenance.
What is the production speed of the YB-520B?
Depending on the station configuration, the speed ranges from 10 to 20 bags per minute. Actual output may vary based on specific product characteristics and the type of film used.
